From Unboxing to Perfect Tension: Set Up Your Baby Lock 6-Needle or 10-Needle Embroidery Machine Without the Rookie Mistakes

If you just brought home a Baby Lock 6-needle (Array/Intrepid) or a Baby Lock 10-needle embroidery machine, the excitement is real—and so is the intimidation. I’ve watched plenty of confident single-needle owners freeze the first time they see six (or ten) tension units staring back at them.

Here represents a shift from "hobbyist" to "operator." The good news? You aren't dealing with voodoo; you are dealing with physics. Most early “my machine is broken” moments are actually simple mechanical errors: a thread not seated, a frame holder slightly askew, or a hoop that isn't tight enough. Once you learn the few non-negotiables, these machines are incredibly forgiving workhorses.

The Calm-Down Check: Your Baby Lock A-Arm (Frame Holder) Isn’t Hard—But It Must Be Seated Right

The A-Arm (the white frame holder marked with an “A”) is the physical bridge between your machine's brain and the embroidery hoop. If this connection is off by even a millimeter, the sensors will reject your frame, or your design will stitch out distorted.

What the video does (and what you should copy):

1. Remove: Take out the one large gray thumb screw and two smaller gray screws from the A-Arm completely. Don't just loosen them.
2. Align: Match the A-Arm holes with the two positioning posts on the machine carriage.
3. Sensory Check: It only fits one way. It should drop in with a solid clunk feeling. If you have to force it, it’s wrong.
4. Secure: Reinstall the screws. Finger-tighten only. You want them snug enough that the arm doesn't slide, but do not use a screwdriver to crank them down—you risk stripping the threads.

Checkpoint: Grab the installed A-Arm gently. Does it wiggle? It should feel solid, like it is part of the machine chassis.

Expected outcome: The frame holder feels solid, and you avoid the dreaded "Change Embroidery Frame" error later.

Warning: Pinch Hazard. Keep fingers clear of the carriage rails and frame holder connection points. When the machine calibrates, that carriage moves fast and with torque. Never force a part that “almost fits.” Back up and realign.

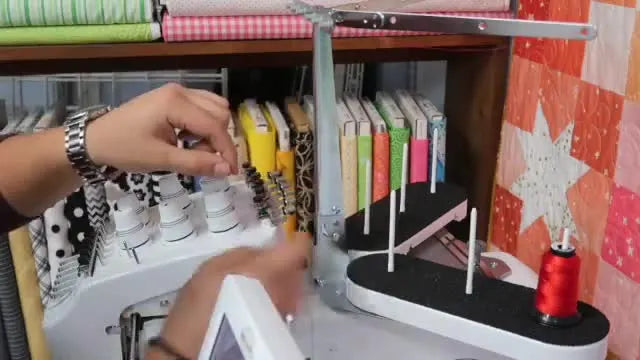

Thread Stand Setup That Doesn’t Strip Screws: Raise the Baby Lock Thread Tree the Safe Way

The telescoping thread stand governs how smoothly thread feeds into the machine. If it is too low, the thread drags; if it is wobbly, it tangles.

What the video shows:

1. Identify: Use the Phillips screwdriver from your toolkit.
2. Loosen: Inside the vertical posts, loosen the two small screws. Crucial: Do not remove them! Just loosen enough to allow movement.
3. Extend: Lift the thread tree straight up until you hear/feel a mechanical click/stop. Re-tighten the screws firmly.
4. Spread: Loosen the large gray center knob, "butterfly" the spool pins outward so they don't crowd each other, and tighten the knob back down.

Checkpoint: The mast is fully extended and does not collapse under light pressure. Spool arms are spread wide enough that cone bottoms won't touch.

One Setting That Saves Your Sanity: Switch the Baby Lock Screen from mm to Inches

This is optional, but highly recommended for the US market. Most stabilizers, hoops, and client requests ("I want a 4-inch logo") operate in inches.

In the video:

• Navigate to the settings menu (on Array/Intrepid it’s usually page 5).
• Toggle the measurement unit from mm to inches.

Expected outcome: Your screen reality matches your physical ruler. This reduces the cognitive load of doing mental math while learning a new machine.

The “Hidden” Prep Pros Do First: Stabilizer, Thread, Bobbins, and Needles That Prevent Early Failures

Before you thread anything, set yourself up so your first stitch-out is a fair test—not a fight. In professional embroidery, 80% of issues are caused by the "Holy Trinity" of failures: wrong needle, wrong stabilizer, or cheap thread.

Starter stabilizers (The Physics of Support)

The video recommends two basics, and we agree, but let's explain why:

• Medium Tearaway: Use this for stable woven fabrics (towels, denim, canvas). It supports the stitch but doesn't fight the fabric's non-existent stretch.
• Medium Cutaway: Mandatory for anything that stretches (T-shirts, hoodies, knits). Why? Because 10,000 stitches will cut through the fabric fibers. Cutaway acts as a permanent chaotic anchor to hold the garment together.

Thread and bobbins

• Thread: The video host prefers Floriani polyester. We recommend any high-sheen, high-tenacity polyester (40wt). Polyester resists breaking at high speeds (800-1000 SPM).
• Bobbins: The machine includes pre-wound magnetic bobbins (white type L). Use them. The magnetic core helps the bobbin spin consistently without "backlashing" (spinning out of control when the machine stops).
• Hidden Consumable: Keep a can of compressed air and a small brush handy. Lint is the enemy of tension.

Needles (The Penetration Point)

The video’s practical baseline:

• Microtex 80/12 (Sharp): The everyday workhorse for wovens and crisp detailing.
• Ball Point 80/12: Essential for knits. It slides between fibers rather than cutting them, preventing holes in T-shirts.

Decision Tree: Fabric → Stabilizer + Needle (Beginner Sweet Spot)

If you’re building a small shop workflow, keep these “starter pairs” pre-cut and labeled. Don't make decisions under pressure.

Prep Checklist (Do this BEFORE you thread)

• A-Arm Check: Confirm it is installed and does not wiggle.
• Mast Check: Thread tree acts as a solid anchor; pins are butterflied.
• Unit Check: Screen displays inches (if preferred).
• Physics Check: You have paired Cutaway with Knits / Tearaway with Wovens.
• Tool Check: Small flathead screwdriver is within reach for the bobbin case.

Threading a Baby Lock Multi-Needle the Way It Actually Wants: Seat the Pre-Tension Clip and Wrap the Tension Knob Fully

Threading is where most “check thread” errors are born. It's not about putting the thread in the hole; it's about applying tension control.

When you’re learning, pick one needle (e.g., Needle 1) and use a bright color like neon orange so you can see the path clearly against the machine body. If you’re running a babylock multi needle embroidery machine, treat threading like a surgical procedure, not a chore.

Core threading actions (The "Flossing" Technique):

1. Vertical Path: From the spool, go straight up and through the upper guide bar (back to front).
2. The Pre-Tension Click: This is the most critical step. Bring the thread over the silver pre-tension clip. Action: Hold the thread taut at the spool with your right hand. With your left hand, pull the thread down firmly until you hear a sharp CLICK.
   • Sensory Anchor: If you don't hear or feel that snap/click, the thread isn't seated. It's like snapping a dry twig.
3. The 360° Wrap: At the tension knob, you must make a full 360° wrap. The thread must cross over itself.
   • The "Flossing" Check: Once wrapped, pull the thread up and down. You should feel smooth, waxy resistance—like flossing tight teeth. If it feels loose, it's not in the tension discs.
4. Final Path: Follow the diagram on the head down to the needle bar.

Checkpoint: The thread is deep under the pre-tension clip (not riding on top) and securely hugged by the tension knob.

Expected outcome: Fewer false “check upper thread” alarms and glass-smooth stitch surfaces.

Needle Threading Without the Struggle: Use the Baby Lock Automatic Needle Threader (and the Presser-Foot Trick)

The automatic needle threader is a gift, but it requires mechanical precision. If your needle is slightly bent or the thread isn't taut, it will fail.

In the video:

1. Select: On the screen, touch the needle number you are threading.
2. Engage: Press the automatic threader button. The mechanism descends.
3. Guide: Manually guide the thread under the hook on the mechanism and pull it up through the cutter to trim the tail.
4. Execute: Press the button again. The hook pulls the loop through the eye.

The "Pro" Visibility Trick: Usually, the presser foot blocks your view. Manually pull the presser foot down with your finger. It will spring back up when you let go, but holding it down for a second gives you a clear line of sight to check if the thread is actually catching the hook.

Pro tip (from common beginner pain): If the threader misses repeatedly, change the needle. A needle bent even by a fraction of a millimeter (invisible to the naked eye) will misalign with the threader hook.

Bobbin Loading That Prevents Birdnests: The Baby Lock Magnetic Bobbin Orientation + the “Yo-Yo” Feel Test

The bobbin case is the "heart" of your tension system. A surprising number of new owners don’t realize how central this component is until they get a "birdnest"—a chaotic ball of thread under the throat plate.

The video’s method is the industry standard:

1. Invert: Hold the bobbin case upside down.
2. Observe: Determine the magnetic side of your bobbin (usually smooth/dark gray).
3. Drop: Drop the bobbin in with the magnetic side facing down into the case. The magnet acts as a brake.
4. Slit & Snap: Rotate the bobbin until you find the slit in the case edge. Slide the thread in and pull it under the tension spring until it snaps into the delivery eye.
5. The "Yo-Yo" Test (Sensory Check): Hold the thread end and let the bobbin case dangle.
   • Fail: If it falls to the floor, it's too loose.
   • Fail: If it doesn't move when you jerk it, it's too tight.
   • Pass: It should hang still, but drop 2-3 inches when you give it a gentle bounce (like a Yo-Yo).
6. Install: Insert the case into the machine hook (usually at a 3 o’clock angle). Push until you hear a positive mechanical CLICK. If it feels spongy, it’s not seated.

Checkpoint: The case is flush, and you heard the click.

Expected outcome: No birdnests, clean starts, and consistent backtracking.

The Tie-On Method for Fast Color Changes: Save Time Without Re-Threading the Whole Path

Multi-needle machines shine when you improve your "uptime." Stop re-threading the entire machine for a simple color swap.

The "Knot & Pull" Technique:

1. Cut: Snip the old thread at the spool (not the needle).
2. Replace: Swap onto the new spool.
3. Tie: Tie the new thread to the old thread tail using a tight Overhand Knot or Square Knot. Trim the tails of the knot short.
4. Pull: Go to the needle. Unthread the needle eye manually. Pull the old thread through the machine. The knot should pass through the pre-tension and tension discs. Note: You may need to help the knot through the needle eye manually, or clip it before the eye.

This converts a 3-minute task into a 30-second task. If you’re doing production on a 6 needle babylock embroidery machine, this habit alone can save you an hour a week.

Hooping That Doesn’t Pucker: Get “Drum Tight” Without Distorting the Fabric

Hooping is an art form. You are fighting physics: the needle wants to pull fabric in, and the hoop must keep it out.

The video’s hooping sequence (The "Sandwich" Method):

1. Loosen: Open the outer hoop screw significantly.
2. Stack: Lay the outer hoop down. Place stabilizer over it. Place fabric over that. Smooth everything out.
3. Press: Push the inner hoop into the outer hoop.
4. Refine: Gently pull the fabric edges to remove wrinkles—but do not stretch the grain! To check, look at the weave of the fabric; lines should be straight, not curved.
5. Lock: Tighten the thumbscrew firmly while maintaining downward pressure on the inner hoop.
6. The Sensory Check: Tap the fabric with your finger. It should sound like a drum—Thump, Thump. If it sounds dull or loose, you will get puckers.

Critical Rule: Always over-cut your stabilizer. You need at least an inch showing outside the hoop to ensure the grip holds.

This matters even more when you’re using hooping for embroidery machine techniques on knits (hoodies/polos). If the fabric isn't neutralized by the stabilizer and tightness, the design will distort.

Setup Checklist (Right before you stitch)

• Stabilizer Margin: Stabilizer extends at least 1 inch past hoop edges.
• No Bubbles: Fabric is flat between the rings.
• Drum Tight: Tapping the fabric produces a "thump" sound.
• No Stretch: Fabric grain is straight/perpendicular, not bowed.
• Clearance: Nothing (sleeves/straps) is caught underneath the hoop area.

Two “Scary” Baby Lock Errors That Are Usually Simple: Upper Thread Clip Seating + A-Arm Sensor Screws

The machine has sensors everywhere. When it throws an error, it is protecting itself.

Error 1: “Check and Re-thread Upper Thread”

This is the machine saying, "I don't feel any tension."

• Most Likely Cause: The thread slipped out of that silver pre-tension clip we discussed.
• The Fix: Don't re-thread everything. Just floss the thread back under that clip until it clicks.


Error 2: “Change Large Embroidery Frame” (Phantom Error)

You know the frame is right, but the machine denies it.

• Most Likely Cause: The magnetic sensors on the A-Arm aren't reading the hoop because the A-Arm is loose.
• The Fix: Check those two gray thumbscrews on the arm holder. If the arm wiggles, the sensor alignment is broken. Tighten them.


Expert Insight: If you stitch one shirt perfectly, but the next one gathers thread underneath instantly, avoid the urge to change screen settings. Physical errors require physical fixes. Re-check: (1) Pre-tension clip seated? (2) Bobbin case clicked? (3) Hoop tight?

The 6-Bar Tension Test Pattern: Adjust Baby Lock Bobbin Case Tension Without Guessing

"Tension" is the monster under the bed for most beginners. Let's turn on the lights. You do not guess tension; you measure it.

The video uses the built-in six vertical bars (I-test) pattern. This runs all needles to give you a baseline.

How to read the test (Visual Anchor): Flip the hoop over. Look at the back of the satin columns.

• Perfect: You see a "caterpillar" effect: 1/3 Color - 1/3 White - 1/3 Color.
• Too Loose: You see a thin strip of white or no white at all (top thread is overpowering).
• Too Tight: You see mostly white bobbin thread (bobbin is pulling too hard).

How to adjust (The Clock Face Method):

1. Remove the bobbin case.
2. Locate the larger flathead screw.
3. To Tighten: Turn slightly Clockwise (Right) – imagine moving the hand of a clock 5 minutes.
4. To Loosen: Turn slightly Counter-Clockwise (Left).
5. Re-test: Never turn more than "15 minutes" (90 degrees) at a time without re-testing.




Why These Fixes Work (So You Don’t Keep Repeating the Same Problems)

Multi-needle embroidery is a system of controlled resistance. When one link breaks, the machine compensates chaotically.

• Pre-tension clip not seated: The machine loses "grip" on the thread before it even hits the tension discs. Result: False thread breaks or loops on top of the design.
• Hoop not tight / Stabilizer too small: The fabric flag-waves under the needle. Result: Outlining that doesn't match the fill (registration errors).
• Bobbin Case not clicked: The bobbin jumps around. Result: Birdnests.

If you eventually add accessories like fast frames embroidery clamps for heavy bags or a cap driver for hats, these fundamentals become even more critical because you lose the stability of a standard hoop.

The Upgrade Path That Actually Makes Sense: When to Consider Magnetic Hoops, Better Stabilizer Workflow, or a Multi-Needle Production Setup

Once you master threading and tension, the next bottleneck is human effort. If your back hurts or your fingers are sore, it's time to upgrade your tools.

The Problem: Hoop Burn and Wrist Fatigue

Standard hoops work by friction and pressure. To hold a thick hoodie, you have to crank that screw hard. This leaves "hoop burn" (pressure marks) on delicate fabrics and fatigues your wrists.

The Solution: Magnetic Hoops

Terms like magnetic embroidery hoop are your gateway to efficient production.

• Criteria for Upgrade:
  • Volume: Are you doing 10+ shirts a week?
  • Material: Are you fighting thick fleece or delicate velvet?
  • Consistency: Do you struggle to get the logo straight every time?

The Upgrade: Magnetic hoops (like dime magnetic hoop for babylock or SEWTECH magnetic frames) use powerful magnets to clamp fabric instantly. No cranking screws, no hoop burn, and much faster release.

• For Single-Needle Users: We also offer magnetic solutions for home machines that solve the same struggle.
• For Pros: Industrial magnetic frames allow you to hoop a shirt in under 10 seconds.

Safety Warning: High-Power Magnets. Magnetic hoops are industrial tools. They can pinch fingers severely. Never place them near pacemakers, insulin pumps, or MRI-sensitive medical devices. Keep them away from credit cards and phone screens.

The Problem: Production Scale

If you are turning away orders because you can't stitch fast enough, or you are tired of babysitting a single-needle machine for color changes, you have outgrown your hardware.

The Solution: SEWTECH Multi-Needle Ecosystem Switching to a dedicated multi-needle platform isn't just about speed (SPM); it's about walk-away reliability. 10 needles mean you set the job and leave. If you are ready to scale from "hobby" to "business," explore our SEWTECH multi-needle lineup designed for the high-volume operator.

Your First Confident Stitch-Out: Run This Simple Practice Plan Before You Touch a Customer Shirt

You don't learn to drive in a Ferrari, and you don't test on a customer's $50 jacket.

The "Safe Mode" Practice Recipe:

1. Material: Scrap Cotton (old bed sheet or quilting cotton).
2. Stabilizer: Medium Tearaway (crisp support).
3. Design: A simple block letter or basic shape (low stitch count).
4. Verification: Run the 6-Bar Tension test first.

Operation Checklist (Every time you press start)

• Needle Count: confirm the correct needle number is selected/active.
• Thread Path: Verify thread is snapped under the pre-tension clip (Recount the "Clicks").
• Bobbin: Confirm the case is inserted and clicked in firmly.
• Hoop Check: Drum tight? Consumables (stabilizer) visible?
• Clearance: Ensure the garment arms/back aren't folded under the needle plate.
• Safety: Hands clear of the moving carriage.

If you master these habits early, your Baby Lock will feel less like a complicated robot and more like a dependable partner in your creative business.

FAQ

• Q: How do I stop a Baby Lock Array/Intrepid multi-needle embroidery machine from showing “Change Embroidery Frame” when the hoop is already installed?
  A: Reseat and tighten the Baby Lock A-Arm (frame holder) so the sensors can read the frame correctly.
  • Remove the one large gray thumb screw and the two smaller gray screws fully (do not just loosen).
  • Align the A-Arm with the two positioning posts and let it drop in the only correct orientation.
  • Reinstall screws finger-tight only (snug, not cranked down).
  • Success check: the installed A-Arm does not wiggle and feels like part of the chassis.
  • If it still fails: remove and reseat the A-Arm again—if any step required force, the alignment is likely off.
• Q: How do I fix a Baby Lock Array/Intrepid “Check and Re-thread Upper Thread” error without re-threading the entire thread path?
  A: Seat the thread under the silver pre-tension clip until it audibly/physically clicks.
  • Hold the thread taut at the spool.
  • Pull the thread down firmly into the pre-tension clip until a sharp “click” is felt/heard.
  • Wrap the tension knob a full 360° so the thread crosses over itself.
  • Success check: the thread feels like “flossing tight teeth” when pulled up/down—smooth resistance, not loose.
  • If it still fails: re-check that the 360° wrap is complete and the thread is not riding on top of the pre-tension clip.
• Q: How do I load a Baby Lock magnetic Type L bobbin to prevent birdnesting under the throat plate?
  A: Install the bobbin with the magnetic side facing down, snap the thread under the tension spring, and confirm bobbin-case seating.
  • Hold the bobbin case upside down and drop in the bobbin with the magnetic side down (smooth/dark gray side).
  • Route thread through the slit and pull under the tension spring until it snaps into the delivery eye.
  • Perform the bobbin-case “Yo-Yo” test before installing.
  • Success check: the bobbin case hangs still but drops 2–3 inches with a gentle bounce, and it clicks positively into the hook.
  • If it still fails: remove and reinstall the bobbin case—if the click felt spongy, it was not seated flush.
• Q: How can I tell if hooping is tight enough on a Baby Lock multi-needle embroidery machine to prevent puckering and registration issues?
  A: Hoop “drum tight” without stretching the fabric grain, and make sure stabilizer extends beyond the hoop.
  • Over-cut stabilizer so at least 1 inch shows outside the hoop on all sides.
  • Smooth fabric and stabilizer, then press the inner hoop in and tighten while pressing downward.
  • Tug edges gently to remove wrinkles but do not distort the weave/grain.
  • Success check: tapping the hooped fabric makes a clear “thump” drum sound (not dull/loose).
  • If it still fails: re-hoop and verify fabric grain lines stay straight (not bowed) before stitching.
• Q: How do I adjust Baby Lock bobbin case tension using the built-in six vertical bars (I-test) pattern instead of guessing?
  A: Stitch the six-bar test, inspect the back, then turn the bobbin-case screw in very small “clock” increments and re-test.
  • Run the six vertical bars (I-test) pattern across needles.
  • Flip the hoop and inspect satin columns on the back for the 1/3 color–1/3 white–1/3 color balance.
  • Turn the larger flathead bobbin-case screw slightly: clockwise to tighten, counter-clockwise to loosen (about “5 minutes” at a time).
  • Success check: the back shows an even “caterpillar” with a clear white band centered between top-thread colors.
  • If it still fails: never exceed about “15 minutes” (90°) without re-testing; re-check physical causes first (pre-tension clip seated, bobbin case clicked, hoop tight).
• Q: What is a safe starter pairing of stabilizer and needle for a Baby Lock Array/Intrepid first stitch-out to avoid early failures?
  A: Use medium tearaway + Microtex 80/12 for stable woven practice, and switch to medium cutaway + Ball Point 80/12 for knits.
  • Choose medium tearaway for stable woven cotton scraps; choose medium cutaway (2.5 oz) for T-shirts/hoodies/knits.
  • Install Microtex 80/12 (Sharp) for wovens; install Ball Point 80/12 for knits to reduce holes.
  • Prepare pre-cut, labeled stabilizer pieces so decisions are not made mid-job.
  • Success check: the fabric remains stable in the hoop with clean edges and no visible knit damage (holes) after stitching.
  • If it still fails: stop and re-check the “Holy Trinity” basics—needle type/condition, stabilizer type, and thread quality—before changing machine settings.
• Q: When should a Baby Lock multi-needle owner consider upgrading from standard hoops to magnetic hoops, and when is it time to move up to a SEWTECH multi-needle production setup?
  A: If hoop burn and wrist fatigue are the main pain points, magnetic hoops are the next tool upgrade; if stitch volume and color-change babysitting are limiting output, a dedicated production multi-needle platform is the next step.
  • Diagnose the bottleneck: frequent screw-cranking for thick hoodies/delicate fabrics and inconsistent hooping results point to hooping friction/pressure issues.
  • Try Level 1 first: improve hooping technique (drum tight, no stretch, stabilizer margin) and confirm threading/bobbin seating to reduce rework.
  • Move to Level 2: use magnetic hoops to clamp quickly and reduce hoop burn and wrist strain when doing repeated garments.
  • Success check: hooping becomes fast and repeatable (consistent placement with fewer pressure marks and less re-hooping).
  • If it still fails: if production demand is outpacing available stitch time or constant color changes reduce uptime, consider Level 3 scaling with a SEWTECH multi-needle workflow designed for higher-volume operation.
