From Vector Art to a Clean Sew-Out on a Brother PR-600: The Commercial Embroidery Workflow That Saves Shirts (and Your Reputation)

Commercial embroidery looks “easy” right up until the moment you hear that sickening crunch—the sound of a needle hitting a hoop, or a garment getting eaten by the bobbin case. It’s the sound of profit turning into a loss.

But here is the truth experienced shop owners know: The difference between a ruined jacket and a masterpiece isn't luck. It is a repeatable, almost boring workflow.

The comprehensive workflow in this guide mirrors the exact foundation I’ve used for two decades in high-volume production shops. It follows the immutable laws of machine embroidery: start with clean data, compensate for fabric physics, stabilize correctly, and never let a customer’s garment be your test subject.

The File-Type Reality Check: Why Vector Art Beats Bitmap When You Need Clean Edges

David starts with the invisible step that determines 80% of your quality before you even thread a needle. The raw ingredients you feed your digitizing software define whether you end up with crisp, satin columns or a jagged, "mushy" mess.

He distinguishes between the two digital species:

• Vector images (The Gold Standard): Defined by mathematical curves. When you zoom in 500%, the lines remain razor-sharp. These are the blueprints machines love.
• Bitmap images (The Trap): Made of a grid of static pixels (like JPEGs or phone photos). When you zoom in, you see "steps" or jagged blocks.

The "Zoom Test" (Sensory Check)

This is your first line of defense. Open your artwork file and zoom in until the image fills your screen.

• Visual Check: Do the edges look like a smooth slide, or do they look like a Lego staircase?
• The Consequence: If you feed a bitmap into auto-digitizing software, the software will try to place stitches around those jagged Lego blocks.

If you are building a workflow around a high-precision tool like a brother multi needle embroidery machine, vectors are non-negotiable. A multi-needle machine runs at high speeds (often 800-1000 stitches per minute). At that velocity, the machine amplifies every imperfection in the data. A slightly rough edge in a bitmap becomes a visible wobble or thread break once stitched at production speed.

What the video implies (and shops learn the hard way)

Digitizing software is essentially a translator. It translates shapes into X/Y coordinates for the pantograph. If the source shape is ambiguous (blurry pixels), the translation will be "slurred." The cleaner the underlying curves, the less "guessing" the digitizer has to do, resulting in cleaner underlay and sharper corners.

Warning: Physical Risk. Never test a new design on a customer garment first. This is the "Golden Rule." A bad digitizing file can drive a needle straight through a hook timing mechanism or create a "bird's nest" so dense it requires cutting the garment off the machine. Always use a sacrificial scrap piece first.

The “Hidden” Prep Before Digitizing: Set Yourself Up So theোধ Sew-Out Matches the Screen

The video shows the visible work—converting art to stitches—but the invisible prep works is what prevents failure.

Here is the cognitive shift you need to make: You are never digitizing "a logo." You are digitizing a logo interacting with a specific material.

David calls out that towels, stiff jackets, and stretchy performance shirts all require radically different engineering. A file digitized for a stable denim jacket will cause a performance polo to pucker and warp.

Before you touch your mouse, you must identify your "Target Substrate." If you are planning to stitch on difficult 3D items like hats or structured bags, you must also mentally rehearse the hooping for embroidery machine. Ask yourself: Do I have the gripping power to hold this item still while a needle punches it 15 times a second?

Prep Checklist (The "Pre-Flight" Safety Check)

• Source Integrity: Zoom in on artwork to confirm it is Vector (no pixelation).
• Substrate ID: Identify the fabric type (e.g., Pique Knit). Rule of thumb: If it stretches, it distorts.
• Consumable Match: Verify you have the correct needle (e.g., 75/11 Ballpoint for knits, 75/11 Sharp for wovens).
• Scrap Retrieval: Find a scrap fabric that matches the weight and stretch of your final product.
• Backing Selection: Have your stabilizer ready (Cutaway for knits, Tearaway for stiff wovens).
• Size Constraints: Plan the design size (the sample shown is roughly 3–4 inches wide).

Digitizing That Actually Stitches: Pull Compensation, Lettering Weight, and Fabric-Specific Attributes

David describes digitizing as “writing the program,” which is technically accurate. You are programming a robot to weave thread through a moving target.

He highlights two critical variables that beginners often ignore until their text looks unreadable:

1. Pull Compensation (“Pull Comps”)
   • The Physics: Thread has tension. When a stitch forms, it pulls the fabric edges toward the center of the column. A circle digitized perfectly round will stitch out as an oval because the sides pull in.
   • The Fix: Pull compensation deliberately "over-digitizes" the shape, making it wider than it looks on screen, so that when it pulls in, it snaps back to the correct width.
2. Lettering Weight (Thicken/Thin)
   • The Physics: Thread takes up physical space, but it also sinks into the fabric pile. Small text often disappears into the weave.
   • The Fix: You must artificially thicken thin strokes to ensure they remain visible above the fabric texture.




The “why” behind pull compensation (so you stop guessing)

Imagine the fabric is a trampoline and the thread is a tight rope pulling the edges together. On a stable woven fabric (like a drum skin), the pull is minimal. On a soft fleece or towel, the pull is massive.

This is why David’s advice—different attributes for different items—is critical. You are not just designing graphics; you are engineering structural stability against tension forces.

A quick stabilizer decision tree (fabric → backing choice)

Use this logic flow to stabilize your foundation. Without this, the best digitizing will fail.

• Is the fabric unstable/stretchy (Polos, T-shirts, Knits)?
  • Decision: CUTAWAY Stabilizer.
  • Why: The fabric structures cannot support the stitch density alone. Cutaway creates a permanent skeleton for the embroidery.
• Is the fabric stable/woven (Denim, Canvas, Twill)?
  • Decision: TEARAWAY Stabilizer.
  • Why: The fabric supports itself; the backing is just for temporary rigidity during the hoop travel.
• Is the fabric lofty/fluffy (Towels, Fleece)?
  • Decision: SOLUBLE TOPPER + Backing.
  • Why: You need a "floor" (backing) and a "ceiling" (topper) to keep the stitches from sinking into the loops (the "swimming pool" effect).
• Is the item un-hoopable or sensitive (Velvet, Leather)?
  • Decision: MAGNETIC FRAMES or Floating Method.
  • Why: Avoiding hoop burn (crushing the texture) requires a clamping mechanism that holds without grinding the fibers.

Sending the File to the Brother PR-600 Series: Needle/Color Assignment Without the Panic

Once the engineering phase (digitizing) is done, David moves to the execution phase. He sends the file to the machine and interacts with the LCD interface.

On multi-needle machines, unlike single-needle home machines, you must explicity tell the machine which needle bar holds which color. This is the "Needle/Color Assignment."

• The Risk: If you digitized a red stop for Needle 1, but you physically have blue thread on Needle 1, the machine will obediently sew a blue apple.
• The Routine: Always double-check the "Map" on your screen against the physical thread cones on top of the machine.

If you are currently evaluating embroidery hoops for brother machines, understand that the hoop communicates with the machine. The machine needs to know the hoop size to center the design. A mismatch here means the machine might slam the pantograph arm into the hoop frame limit—a costly error.

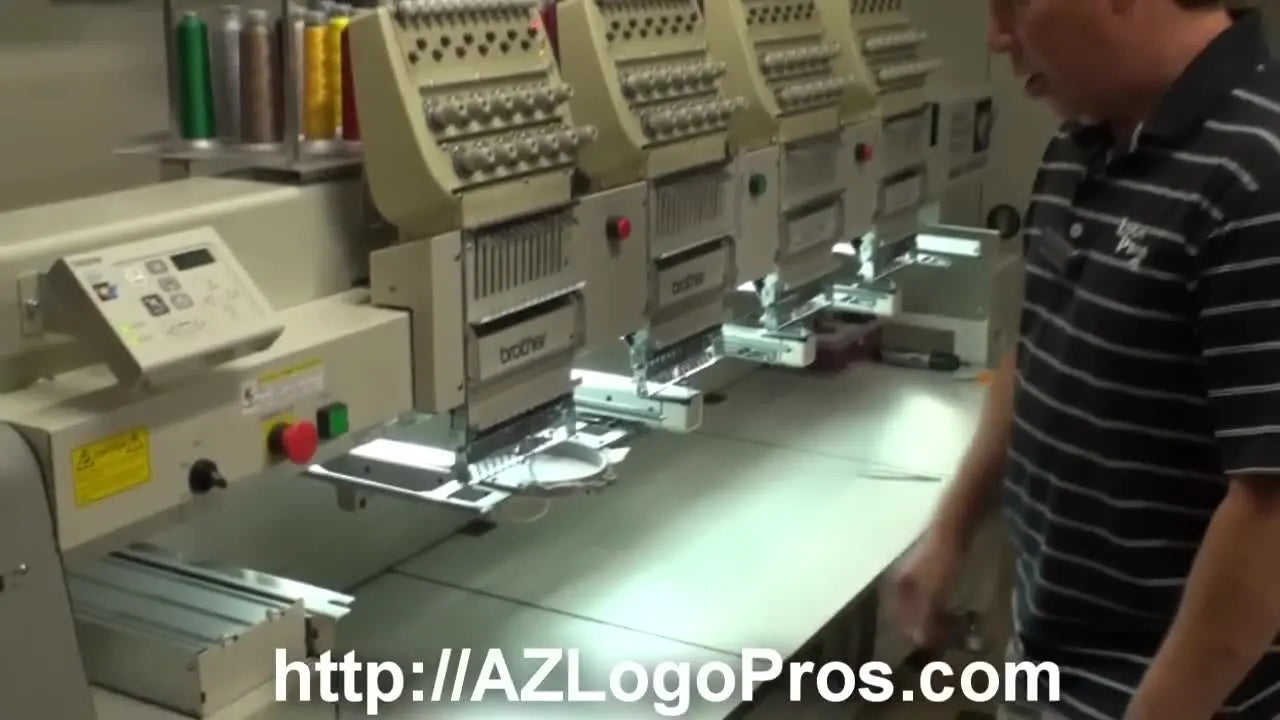

Comment-driven clarity: “What machine is this?”

A viewer identified the machine as a Brother multi-needle unit. The workflow shown is consistent with the rigid PR-600 series platform. These machines are workhorses, but they demand precise input.

Comment-driven clarity: “What program do you use?”

The specific software brand matters less than the capability. Whether it's Wilcom, Hatch, or PE Design, the requirement is the same: Control. You need software that allows manual adjustment of pull compensation and density, rather than "one-click wonder" tools that often fail on complex textures.

The Sample Sew-Out Habit That Saves You Money: Hoop Scrap Fabric First, Not a Shirt

This is the most critical "commercial habit" in the video. David hoops white sample fabric with backing and runs the design. He does not touch the final garment yet.

Why burn time on a sample?

1. Verification: Is the text readable?
2. Tension Check: Is the white bobbin thread showing on top? (Bad) Is the top thread looping on the bottom? (Also bad).
3. Color Flow: Do the colors blend as intended?

He presses the green Start button. For a sample, I recommend keeping your speed in the "Sweet Spot" of 600-700 SPM. Running at maximum speed (1000+) on a sample is unnecessary and increases the risk of thread breaks during verification.

Setup Checklist (Before You PUSH GREEN)

• Visual Confirmation: Does the design orientation on the screen match the hoop orientation? (Is "UP" actually "UP"?)
• Thread Path Check: Are the thread trees fully extended? Is the thread caught on anything?
• Needle Check: Is the needle fresh and appropriate for the sample fabric? (A bent needle will sound like a dull thud).
• Clearance: Rotate the handwheel or use the "Trace" function to ensure the needle will not hit the plastic hoop frame.
• Bobbin Status: Is the bobbin full? Running out mid-sample is a nuisance; running out mid-production is a disaster.

Warning: Safety Hazard. Multi-needle machines move the pantograph arm rapidly and without warning. Keep fingers, scissors, and loose clothing/hair at least 6 inches away from the active needle area before pressing Start.

Watching the Stitch Like a Pro: Trims, Color Changes, and the “Sound Check” for Tension

The machine begins. It automatically switches needles and trims threads. This is automation in action. But a pro operator is not passive; they are monitoring with their senses.

The expert habit: use your senses while it runs

You don't just watch; you listen and feel.

• The Sound: You want a rhythmic, sharp click-click-click or hum.
  • The Warning Sound: A dull thump-thump-thump suggests a dull needle or flagging fabric. A loud clatters or grinding noise usually means a bird's nest (thread tangle) is forming in the bobbin area. STOP IMMEDIATELY.
• The Sight: Watch the fabric inside the hoop. It should be "drum-tight." If you see the fabric rippling or creating a "wave" in front of the presser foot like the bow of a boat, your hooping is too loose. This will cause registration errors (outlines not matching fills).
• The Touch: Gently touch the thread feeding into the needle (be careful). It should have a slight resistance, similar to pulling dental floss between teeth. If it feels flopping loose, your tension is gone.

This phase is where upgrading your tools pays off. If you notice your fabric constantly slipping, using professional hooping for embroidery machine techniques or magnetic frames can solve the physical stability issues that software cannot fix.

The Finish Line: Lock Stitch, Auto Trim, Hoop Release—Then Inspect Like You’re Getting Paid

The machine finishes with a lock stitch (tying the knot) and cuts the thread. David removes the hoop. Now, the real work begins: Inspection.

In a shop, "good enough" is the enemy of "paid." You need to inspect the sample with a critical eye.

Operation Checklist (The Quality Control Gate)

• Text Readability: Can you read the letters from 3 feet away? If "A" looks like a blob, you need to increase the "Thin/Thick" parameter in your software.
• Registration: Is the outline sitting perfectly on top of the color fill? If there is a white gap between the black outline and the red fill, you need to increase Pull Compensation.
• The 1/3 Rule (Bobbin): Flip the hoop over. Look at the back of a satin column. You should see white bobbin thread taking up the middle 1/3 of the column, with the colored top thread wrapping around the distinct sides.
  • All White? Top tension is too tight.
  • All Color? Top tension is too loose.
• Puckering: Is the fabric around the design gathering or wrinkling? Your stabilizer was too light, or your hoop was too loose.

“My Bag Has a Zipper—How Do I Hoop That?” The Real-World Answer Without Ruining Hardware

A commenter asked about zippered bags. This represents the "Advanced Class" of embroidery. Irregular items like bags, pockets, and collars fight the hoop.

Here is the production reality:

1. Clearance is King: You must ensure the zipper pull tab is taped down or pinned far outside the sewing field. Striking a metal zipper pull will shatter your needle and potentially throw off the machine's timing.
2. Thickness Management: A standard plastic hoop has trouble clamping over thick seams. You often have to wrestle the screw to tighten it, which creates uneven tension (tight on the seam, loose on the fabric).
3. The Solution: Most shops abandon standard hoops for this. They use "floating" techniques (sticking the bag to adhesive backing) or upgrade to magnetic clamping systems that snap over seams without forcing them.

If your daily work includes these awkward items, you’ll eventually care a lot about hooping for embroidery machine consistency—because every minute spent wrestling a bag into a plastic ring is a minute you aren't making money.

The Hooping Efficiency Upgrade Path: When a Station or Magnetic Frame Starts Paying You Back

The video demonstrates a standard tubular hoop. It works, but it is slow and physically demanding. In a production environment, hooping is the #1 bottleneck.

If you are frustrated, here is a diagnostic framework to decide if it's time to upgrade your toolkit:

Scene 1: The "Hoop Burn" & Wrist Pain Scenario

• The Pain: You are struggling to tighten screws on thick hoodies. When you un-hoop, there is a permanent "ring" (hoop burn) crushed into the fabric. Your wrists hurt after 10 shirts.
• The Diagnosis: Standard friction hoops rely on brute force.
• The Solution (tool upgrade): Magnetic Hoops.
  • Pros search for terms like magnetic embroidery hoop because they clamp automatically with vertical force, not friction. They eliminate hoop burn and reduce wrist strain instantly. They are the "power windows" of the embroidery world—you never want to go back to hand-cranking.

Scene 2: The "Crooked Logo" Scenario

• The Pain: You hoop a shirt, sew it, and realize the logo is 1 inch too low or slightly tilted. You have to throw the shirt away.
• The Diagnosis: Human error in manual alignment.
• The Solution (workflow upgrade): Hooping Stations.
  • Tools comparable to the hoop master embroidery hooping station or the dime totally tubular hooping station provide a physical jig. You slide the shirt on, and the station forces the hoop into the exact same spot every time. This guarantees consistency across a run of 50 shirts.

Scene 3: The Scaling Scenario

• The Pain: You have orders for 100 hats or shirts. Your single-needle machine takes 20 minutes per shirt because you have to change threads manually.
• The Diagnosis: You are under-gunned.
• The Solution (capacity upgrade): Multi-Needle Platform.
  • Moving to a platform like SEWTECH multi-needle embroidery machines allows you to preset 10+ colors. You press start and walk away. That is how a hobby becomes a business.

Also, if hats are your specific bottleneck, a standard flat hoop won't work. A dedicated brother hat hoop (cap driver system) is mandatory to spin the hat on a cylinder for a distortion-free stitch.

Warning: Magnetic Safety. Industrial magnetic hoops use high-gauss magnets.
* Pinch Hazard: They snap together with enough force to bruise fingers. Handle with intent.
* Medical Risk: Keep them at least 6 inches away from pacemakers, insulin pumps, and other implanted medical devices.

Troubleshooting the One Problem That Ruins Logos: Distortion and Unreadable Lettering

The video’s troubleshooting logic is sound: if the sew-out fails, do not blame the machine immediately. Blame the data or the stabilization first.

Use this symptom → cause → fix table as your "Emergency Room" triage:

The “Price Question”: What It Really Costs to Do This Professionally

One commenter asked, “How much it is.” While prices fluctuate, beginners often misunderstand the cost of operation.

It is not just the price of the machine. Your "Cost of Goods Sold" (COGS) includes:

1. Consumables: Thread, Backing, Needles, and Temporary Spray Adhesive (vital for floating).
2. Hoops: A standard brother pr600 hoops kit gets you started, but specialized clamps cost extra.
3. Mistakes: You will ruin shirts. Factor a 2-5% spoilage rate into your pricing.
4. Digitizing: Whether you buy software ($1,000+) or pay a service ($15/logo), clean data costs money.

The sample sew-out step in the video is your cheapest way to lower these costs. Wasting $0.50 of scrap fabric is better than refunding a $40 jacket.

The Takeaway: A Repeatable Workflow From Screen to Stitch

David’s video captures the essence of commercial quality. It isn't magic; it is a recipe.

1. Analyze: Verify vector art and choose the right stabilizer for the fabric.
2. Engineer: Adjust Pull Comp and Lettering Weight in software.
3. Verify: Check needle assignments on your Brother machine.
4. Test: Hoop scrap matching the final garment and run a sample (600 SPM).
5. Inspect: Check for readability and tension (1/3 rule).
6. Produce: Only then do you hoop the customer's garment.

Once you master this loop, your problems will shift from "how do I stitch this?" to "how do I stitch this faster?" That is the moment to look at magnetic frames, hooping stations, and multi-needle upgrades to turn that efficiency into revenue.

FAQ

• Q: How do I prevent a Brother PR-600 series multi-needle embroidery machine from ruining a customer garment when testing a new digitizing file?
  A: Run the first sew-out on scrap fabric with backing, not on the customer item.
  • Hoop scrap that matches the garment’s weight and stretch, then add the correct backing (often cutaway for knits, tearaway for stable wovens).
  • Slow the first test run to about 600–700 SPM to reduce thread breaks while verifying.
  • Use the machine’s Trace/clearance check (or carefully rotate by hand) to confirm the needle will not strike the hoop frame.
  • Success check: lettering is readable and the sew-out finishes without crunching, rubbing, or a sudden tangle forming under the hoop.
  • If it still fails, adjust pull compensation/lettering weight in the file before touching the final garment.
• Q: How do I verify needle-to-color assignment on a Brother PR-600 series so the machine does not stitch the wrong colors?
  A: Match the on-screen needle/color map to the physical thread cones before pressing Start.
  • Compare each displayed needle number and color stop to what is actually threaded on top of the machine.
  • Correct any mismatch in the assignment screen before running, especially after re-threading or changing a design.
  • Confirm the hoop size is correctly recognized so the machine centers the design inside the hoop limits.
  • Success check: the first color stitches match the intended color and the machine does not attempt to sew outside the hoop boundary.
  • If it still fails, stop and re-check the map again—multi-needle machines will sew exactly what they are told.
• Q: How do I know embroidery tension is correct on a Brother PR-600 series using the “1/3 rule” on satin columns?
  A: Use the back-of-design “1/3 rule” as the pass/fail standard for tension.
  • Flip the sample over and inspect a satin column.
  • Look for white bobbin thread occupying the middle 1/3, with top color wrapping both edges.
  • Interpret results: all white indicates top tension too tight; all color indicates top tension too loose.
  • Success check: the stitch line looks balanced and clean with no looping on the bottom and minimal bobbin show on the top.
  • If it still fails, re-thread the machine with the presser foot up to ensure thread is seated in the tension discs.
• Q: How do I stop a Brother PR-600 series multi-needle embroidery machine from making a “bird’s nest” tangle in the bobbin area?
  A: Stop immediately and re-thread the top thread with the presser foot UP because the top thread likely jumped out of tension.
  • Press Stop as soon as you hear grinding/clattering or see thread piling underneath.
  • Raise the presser foot, completely remove the top thread path, and re-thread from spool to needle.
  • Verify the thread is seated deep in the tension disks before restarting.
  • Success check: the machine returns to a steady click/hum sound and the underside no longer forms a dense knot of thread.
  • If it still fails, check for a loose/incorrect thread path and confirm the bobbin area is clear before resuming.
• Q: How do I choose stabilizer for polos, denim, towels, and velvet so embroidery does not pucker or sink during a Brother PR-600 series sew-out?
  A: Match backing to fabric behavior: cutaway for stretch, tearaway for stable wovens, and soluble topper for loft.
  • Use cutaway for polos/T-shirts/knits because the fabric cannot support stitch density by itself.
  • Use tearaway for stable woven fabrics (denim/canvas/twill) when you mainly need temporary rigidity.
  • Add a soluble topper on towels/fleece (plus backing underneath) to prevent stitches from sinking into pile.
  • Success check: the fabric stays drum-tight in the hoop during stitching and the finished area is flat without rippling or “swimming pool” sinking.
  • If it still fails, increase stabilization (heavier backing or better hoop hold) before changing machine settings.
• Q: What should I do if a Brother PR-600 series sew-out has gaps between outline and fill or the logo distorts on a stretchy shirt?
  A: Treat it as fabric shift first: tighten hooping and upgrade stabilization before blaming the machine.
  • Re-hoop tighter so the fabric is drum-tight and does not wave in front of the presser foot.
  • Switch from tearaway to cutaway on stretchy substrates to reduce movement during travel.
  • Add a light layer of adhesive spray to help prevent shifting when appropriate.
  • Success check: outlines sit directly on top of fills with no visible gap line and the design stays registered through color changes.
  • If it still fails, increase pull compensation in the digitizing file because the fabric pull may not be engineered correctly.
• Q: What are the key safety rules when running a Brother PR-600 series multi-needle embroidery machine and using industrial magnetic embroidery hoops?
  A: Keep hands and loose items away before Start, and handle magnetic hoops as pinch-hazard tools.
  • Keep fingers, scissors, hair, and loose clothing at least 6 inches from the active needle area because the pantograph can move suddenly.
  • Stop immediately if the sound changes to thumping or grinding, which can signal a dull needle or a developing tangle.
  • Handle magnetic hoops with controlled placement because they can snap together hard enough to bruise fingers.
  • Keep magnetic hoops at least 6 inches away from pacemakers, insulin pumps, and other implanted medical devices.
  • Success check: operation stays predictable (steady sound, no unexpected movement near hands), and hoop clamping is secure without finger pinches.
  • If it still fails, pause the job and reset the workspace—safe clearance beats saving seconds.
