Hoop Tech Clamps on a Brother PR655: The No-Panic Install That Saves Your Arms (and Your Stitch Field)

If you’ve ever stared at your multi-needle machine with an aftermarket clamp system in your hands and thought, “One wrong move and I’m going to break something,” you’re not being dramatic—you’re being realistic.

On a Brother PR655, clamp frames can be a serious productivity upgrade, but only if you install them with the same mindset you’d use around needles and moving carriages: slow, deliberate, and with clear checkpoints.

The Calm-Down Moment: What “Normal” Looks Like on a Brother PR655 Before You Touch Anything

The first thing I tell shop owners is this: nothing is “wrong” just because the Hoop Tech parts feel unfamiliar. The PR-series arm area is tight, and you’re working close to needles and sensors.

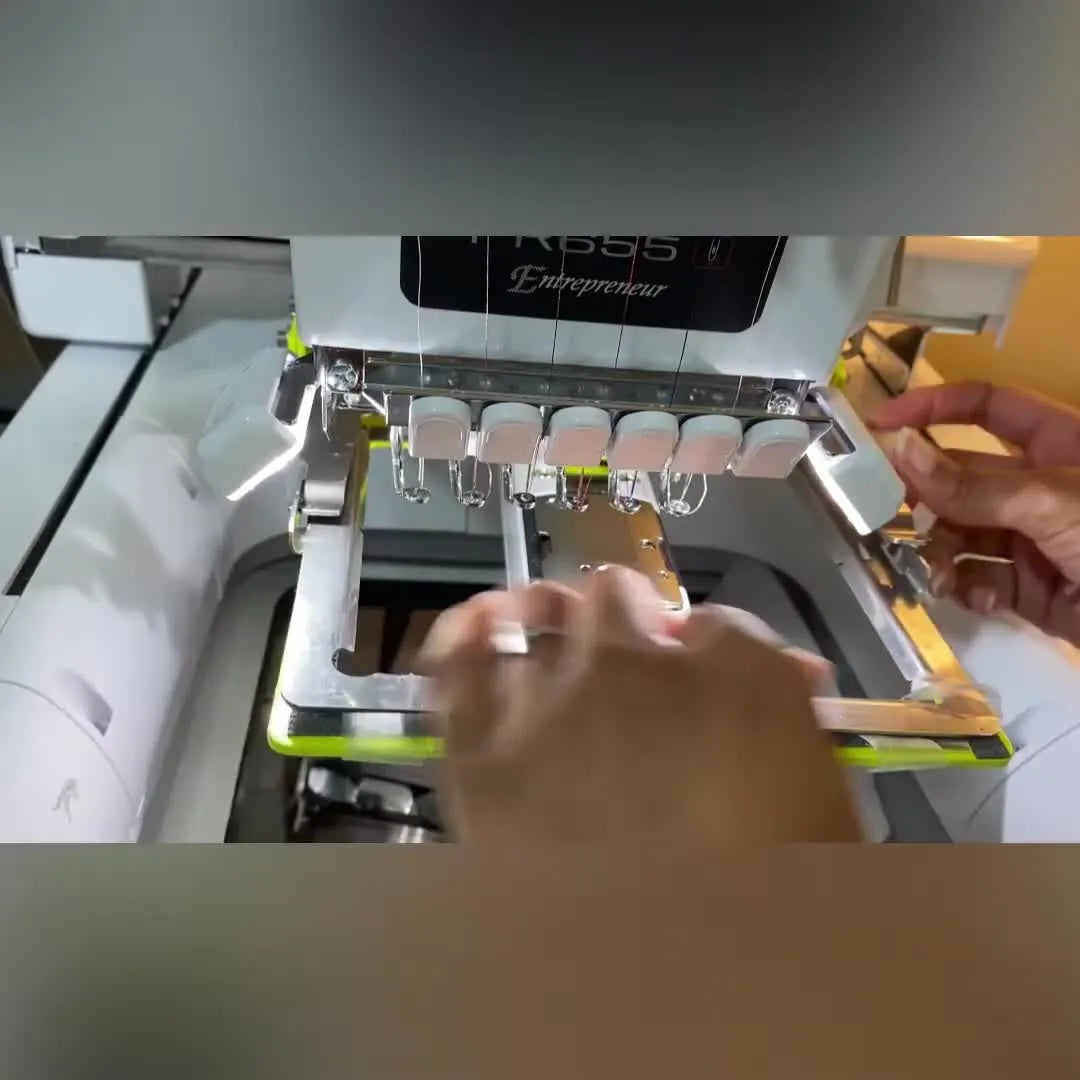

In the video, the machine is a brother pr655 embroidery machine, and the clamp system is the green Hoop Tech chassis with interchangeable window frames. The goal is simple, but the tactile feedback matters:

• Remove the standard hoop arms (the factory frame holders) so the clamp drivers can mount.
• Slide the clamp driver onto the left mount carefully. Listen for metal-on-metal scraping—stop if you hear it.
• Make sure the sensor lever is positioned correctly so the machine recognizes the hoop size.
• Secure with the factory thumbscrew(s).
• Mount the right side and lock it in.
• Swap window frames as needed.
• Clamp stabilizer + fabric and lock the lever.

If you do those in the right order, the system behaves predictably.

Warning: Keep hands, tools, and loose clothing away from needles and any moving pantograph/carriage parts. Work with the machine stopped, and move slowly when sliding hardware near the needle area—one bump can loosen a needle or cause a collision.

The “Hidden” Prep Pros Do: Remove Factory Arms, Clean Contact Points, and Stage Your Screws

Before you install anything, do the prep that prevents 80% of frustration later.

In the video, Alexis mentions her clamps are “gunky” from tape residue—very common in real production. Residue changes the geometry; a 0.5mm build-up of adhesive can make a part feel like it isn't seating, leading you to use excessive force.

Prep notes (based on what’s shown/said):

• The standard hoop arms must be removed first (she already removed them).
• You’ll reuse the black factory thumbscrew(s) that normally hold the factory arms.
• Don’t drop the screw—she literally drops one and has to grab a spare.

Hidden Consumables for this step:

• Isopropyl Alcohol (90%+): To clean the "gunk" off the chassis.
• Magnetic Tray: To hold those black thumbscrews so they don't vanish into the machine chassis.


Prep Checklist (do this before you mount the left driver)

• Factory hoop arms/frame holders removed (the clamp drivers need that space)
• Factory thumbscrew(s) located and placed in a magnetic tray (do not balance them on the machine bed)
• Clamp chassis contact areas wiped with alcohol to remove sticky tape residue
• Needles visually clear of the path where the green chassis will slide in
• Window frame you plan to use identified by its label (so you don’t guess later)

If you’re running a small shop, this is also where you decide whether you’re building a “one-off hobby workflow” or a repeatable production workflow. Clamps are fast once you stop hunting for screws and sizes.

Left Drive Arm Install on Brother PR Machines: Slide Slow, Seat Flush, Then Confirm the Notch

The left side is where most people rush—and where most people accidentally bump needles.

What the video shows:

1. Align the green clamp driver with the left screw mount.
2. Slide it on slowly. It should feel like a piston in a cylinder—snug, but smooth. No grinding.
3. Let it slide up against the arm.
4. Ensure the bracket sits flush and the hole aligns with the machine’s screw hole.
5. Confirm it goes into the first notch.

Your checkpoint is not “it looks close.” Your checkpoint is visual and tactile: the bracket hole aligns cleanly with the machine’s screw hole and the bracket sits flush against the metal arm without rocking.

The Sensor Lever Under the White Latch: The Tiny Detail That Controls Your Stitch Field

This is the make-or-break detail.

In the video, Alexis points out a small metal lever arm on the clamp driver and explains it acts like a sensor trigger. It must slide underneath the machine’s latch mechanism (she references a white plastic latch).

If that lever isn’t positioned correctly, the machine may not recognize the hoop size correctly—meaning you don’t get the stitch field you expect.

Why this matters (expert context, in plain language)

Machines like the Brother PR series often rely on physical micro-switches to identify frame size. When an aftermarket system doesn’t “trip” the sensor the way the factory frame does, the machine defaults to safety mode (usually the smallest hoop size) to prevent needle strikes.

That’s why this tiny lever placement can feel like a “software problem,” even though it’s purely mechanical.

If you’re working with brother pr machines across different needle counts (PR600, PR1000, etc.), verifying this mechanical handshake is step one when the screen shows the wrong hoop size.

Secure the Left Thumbscrew Without Losing It: Finger-Tight, Fully Seated, No Drama

Once the left side is seated and the sensor lever is correctly positioned, insert the black factory thumbscrew into the aligned hole and tighten by hand.

Alexis’s real-world warning is the one I repeat in every studio: don’t drop the screw inside the machine. She drops one off-camera and has to use a spare.

Torque Rule: Tighten only until you feel firm resistance (finger-tight plus a quarter turn). Do not use pliers. Over-tightening strips the aluminum threads on the carriage.

Expected outcome: the left side feels stable and doesn’t wiggle when you gently test it.

Right Drive Arm Install: Lock the Vertical Knob Into the Receiving Hole (or It’ll Feel “Loose”)

On the right side, the video shows a key detail: a small vertical metal knob/pin on the driver must slot into the machine’s receiving hole to hold it in place.

Process shown:

1. Slide the right side of the clamp driver onto the right machine arm pin.
2. Make sure the little knob sticks up and locks into place.


Checkpoint: You should hear a soft metallic "clink" or feel a distinct "click" as the knob finds the home position. If it feels spongy, it isn't seated.

Comment-based pro tip (common question, de-identified)

A frequent question is: “How do I push my driver bar all the way back on a 10-needle Baby Lock?” The practical answer is: don’t force it—confirm what’s blocking travel.

Generally, when a driver won’t slide back fully, it’s one of three things:

1. Alignment: The driver isn’t square (it’s riding the edge like a derailed train).
2. Obstruction: A latch or sensor area isn’t being cleared.
3. Debris: Thread nests or lint are packed into the rail.

Move slowly, back it off, re-align, and try again. If you feel metal-on-metal binding, stop and reset rather than muscling it.

Swapping Hoop Tech Window Frames: Compress the Spring Side, Drop the Pins, Lift Away

One of the best parts of this system is how quickly you can change window frames once the chassis is mounted.

In the video:

• Push one side of the spring-loaded window frame inward to compress it. It should offer resistance similar to a heavy stapler.
• That lets the pins drop out of the holes.
• Lift the frame away.


Behind the frame, Alexis points out a width adjustment screw. If the fit is too tight or too loose, that screw is your fine-tuning point.

Expected outcome: the window frame releases without prying or twisting.

Reinstall the Window Frame With the Grip Side Up—Then Label Sizes So You Stop Guessing

To reinstall:

1. Slide the window frame back under the needle area.
2. Compress the spring-loaded side again.
3. Align the metal pins into the holes on the green driver bars.
4. Release to lock.
5. Make sure the rough grey side (grip tape) is facing up.


Alexis also shows a label example (“PR600 4x4 Window Set”) and mentions she used labels early on because she couldn’t remember sizes. That’s not a beginner problem—that’s a production problem.

If you run multiple window sizes, label them in a way your future self can understand at a glance. In the video she references a labeled 4" x 4" set, and later verbally estimates another window around “5x6 or 6x5.”

Setup Checklist (after the window frame is installed)

• Window frame pins fully seated in the chassis holes (wiggle test: zero movement)
• Spring side released and locked (no half-engaged feel)
• Rough grey grip side facing UP (this grips the fabric backing)
• Window size identified (label or your own marking system)
• Width adjustment screw only changed if the fit is clearly too tight/loose

The Collision Rule That Saves Your Clamp Arms: Click the Window Frame DOWN Before Any Movement

This is the “horrible day” warning in the video—and it’s real.

Alexis warns that if you move the pantograph while the clamp window is tilted up, it can collide with the machine head. Because the movement is automated, it won’t politely stop; it can keep pushing and bend the clamp arms. She points to the pivot/hinge area that can bend.

Warning: Before you move the pantograph/carriage in any direction, confirm the clamp window frame is clicked DOWN into the flat position. Moving while it’s tilted can cause a head collision and bend the clamp arms, requiring a full replacement of the driver assembly.

Why clamps bend (expert insight)

Clamps create leverage. When the window is up, the system becomes a long lever arm. A small collision at the head becomes a big bending force at the hinge/pivot. That’s why “just a little bump” in the wrong position creates catastrophic damage.

Clamping Stabilizer + Fabric: Build a Flat Sandwich, Then Pull the Lever Like You Mean It

In the video, clamping is straightforward:

• Place stabilizer and fabric between the bottom window and the top clamping arm.
• Pull the large side lever firmly down to snap the clamp shut.
• You’ll see the lever go from vertical to horizontal, with an audible click.

Alexis shows stabilizer placed over the bottom window before clamping, and mentions she’s using two pieces of stabilizer.

Material science that prevents puckers (general guidance)

Clamps are unforgiving about thickness changes. If your stabilizer stack is uneven, the clamp pressure won’t be even, and fabric can creep.

Stabilizer Recommendation Decision Tree:

• Stretchy Garments (Polos/Performance wear): Use Cut-away stabilizer. It creates a permanent foundation that won't distort under clamp pressure.
• Stable Wovens (Tovels/Canvas bags): Use Tear-away stabilizer.
• Lofty Items (Fleece/Towels): Use a water-soluble topping on top of the fabric to prevent loops from poking through, and double your backing stabilizer if the clamping feels "squishy."

Always confirm with your stabilizer manufacturer guidance and your machine manual, but the principle is consistent: even pressure + stable backing = predictable stitch-out.

Operation Checklist (right before you press start)

• Stabilizer and fabric are flat with no folds at the clamp edge
• Window frame is clicked DOWN flat (the Critical Collision check)
• Clamp lever fully locked (audible snap, lever is horizontal)
• Use the "Tug Test": Gently pull the fabric edge; if it slips, re-clamp
• Stitch field on-screen matches the window/frame you installed

When the Machine Won’t Recognize the Hoop Size: Sensor Lever Fixes (and the One Risky Move)

The video’s troubleshooting is specific:

Symptom: machine not recognizing the largest hoop size / incorrect stitch field.

Cause shown: the sensor lever arm on the clamp attachment wasn’t making proper contact with the machine’s sensor.

Solution shown: a technician advised bending the metal sensor lever down slightly, and Alexis reports that a small bend helped the machine register the largest hoop size.

Here’s how I’d frame that as a safe diagnostic sequence:

1. Re-check that the lever is truly under the latch (not beside it).
2. Re-seat the driver so it’s flush (a tiny gap can change lever contact).
3. Only if you’re confident the lever is positioned correctly and the machine still won’t register, consider the “slight bend” approach.

Be conservative. Small changes only.

Warning: Bending a sensor lever is a last-resort adjustment. Metal fatigue is real; bend it back and forth too many times and it will snap. Make only minimal changes (1-2mm) and verify results immediately.

Clamp System vs Durkee vs Fast Frames: Choose Based on What You Sew Most (Not What Looks Cool)

A comment asks whether the clamping system is more for bags than garments, and whether to choose Durkee frames or a clamping system for shirts and linens. Another asks about Fast Frames, and the creator replies she hasn’t tried them but believes she’d prefer the clamps and rarely runs into a project she can’t use them for.

Here’s the practical way to decide, based on shop reality:

• If you do a lot of “hard-to-hoop” items (bags, awkward seams, hats, pre-made goods), clamps can be a lifesaver because you’re not fighting a traditional ring-and-screw hoop.
• If you do mostly flat garments and linens, traditional frames can still be efficient—especially if your workflow is dialed in.
• If you’re comparing systems like durkee ez frames or searching for fast frames embroidery, don’t just compare price—compare how often you’ll actually use the system and how quickly you can mount, align, and start sewing.

Decision tree: pick a hooping approach by product type and volume

• If you mostly stitch flat shirts/linens and you’re comfortable hooping:
  • Start with a reliable embroidery hooping system and refine your stabilization + alignment routine.
• If you frequently stitch awkward items (bags, thick seams, pre-made goods) or you hate hoop burn:
  • Clamps are the superior choice to reduce mechanical fighting.
• If you are battling wrist pain, hoop burn, or high-volume fatigue:
  • This is the trigger to investigate a magnetic hooping station or magnetic frames.

Warning: Magnet Safety. If you opt for magnetic hoops, be aware they use powerful neodymium magnets. They constitute a pinch hazard for fingers and can be dangerous for individuals with pacemakers. Handle with respect.

The Upgrade Path I Recommend in Real Shops: From “It Works” to “It Pays”

Once you can install and run clamp frames safely, the next question is: how do you turn that into fewer mistakes and faster throughput?

1) Reduce setup time with repeatable staging

If you’re constantly searching for the right window size or re-cleaning tape residue mid-job, you’re bleeding minutes that add up across orders.

A simple staging area (even a small table) next to your machine functions like a hooping station for machine embroidery—you keep window frames, stabilizer, tape, and marking tools in one predictable place.

2) Upgrade hooping ergonomics when volume increases

If you’re doing batches, the biggest bottleneck is often hooping/clamping, not stitch speed.

This is where magnetic hoops/frames serve as a logical "tool upgrade path," especially when:

• You’re seeing "hoop burn" (permanent rings on delicate fabrics).
• You need faster loading/unloading (pop on, pop off).
• You want more consistent tension with less hand strain (let the magnets do the work).

For home single-needle users, magnetic hoops eliminate the struggle of the inner ring. For industrial/multi-needle production, they drastically reduce changeover time.

3) Scale intelligently when orders outgrow your current machine

If you’re consistently running long days and still behind, the upgrade isn’t just “a faster gadget”—it may be a higher-output multi-needle platform.

In many shops, moving to a cost-effective multi-needle machine (like the SEWTECH multi-needle lineup) becomes the turning point where you can take on more logos, uniforms, and repeat orders without living at the machine. The ability to queue colors and load larger hoops turns embroidery from a hobby into a manufacturing process.

Quick Troubleshooting Table: Symptoms, Likely Causes, Fixes You Can Do Today

The Result You’re After: Safe Movement, Correct Recognition, and Faster Changeovers

When Hoop Tech clamps are installed correctly on a Brother PR655, you get three wins:

1. The machine recognizes the stitch field you expect (because the sensor lever is doing its job).
2. The window frames swap quickly without drama.
3. You avoid the expensive mistake—bending arms from a preventable collision.

If you’re building a shop workflow, treat clamps as one step in a broader productivity ladder: better stabilization choices, cleaner staging, and (when the time is right) upgrades like magnetic frames or a higher-output multi-needle setup.

The goal isn’t “perfect.” It’s predictable, repeatable, and profitable.

FAQ

• Q: How do I prep a Brother PR655 embroidery machine before installing a Hoop Tech clamp frame system so the clamp drivers slide on smoothly?
  A: Do the “no-force prep” first: remove the factory hoop arms, clean sticky residue, and stage the factory thumbscrews so nothing binds or gets dropped.
  • Remove the standard hoop arms/frame holders before bringing the clamp drivers near the needle area
  • Wipe clamp chassis contact points with 90%+ isopropyl alcohol to remove tape “gunk” that changes fit
  • Place the black factory thumbscrew(s) in a magnetic tray so they don’t fall into the machine
  • Success check: the clamp driver slides on snug-but-smooth with no grinding and the screw hole aligns cleanly
  • If it still fails: back the driver off and re-check for residue, lint, or misalignment before applying any pressure
• Q: How do I install the left clamp driver on a Brother PR655 so the bracket seats flush and the hoop size sensor lever works?
  A: Slide the left driver slowly until it seats flush, then confirm the sensor lever is positioned under the latch so the machine can recognize the stitch field.
  • Align the left driver to the mount and slide it on “piston-smooth” (stop immediately if there is metal-on-metal scraping)
  • Confirm the bracket sits flat against the arm and the bracket hole lines up with the machine screw hole
  • Position the small metal sensor lever so it sits underneath the latch mechanism (not beside it)
  • Success check: the driver does not rock or wiggle, and the machine shows the expected stitch field for the installed frame
  • If it still fails: remove and re-seat the driver to eliminate any tiny gap that can prevent proper sensor contact
• Q: How tight should the factory thumbscrew be when securing a Hoop Tech clamp driver on a Brother PR655 carriage?
  A: Tighten the factory thumbscrew finger-tight plus a small additional snug—do not use pliers, because over-tightening can strip threads.
  • Start the screw by hand to avoid cross-threading and tighten only until firm resistance is felt
  • Avoid tools; the goal is secure seating, not maximum torque
  • Gently test stability after tightening instead of tightening harder
  • Success check: the left side feels stable with no wiggle when lightly pushed
  • If it still fails: re-check that the driver is fully seated flush and the screw hole alignment is clean before tightening again
• Q: How do I install the right clamp driver on a Brother PR655 so the right side does not feel loose?
  A: Make sure the small vertical knob/pin on the right driver locks into the machine’s receiving hole—otherwise the right side will feel spongy or loose.
  • Slide the right driver onto the right machine arm pin slowly and squarely
  • Watch/feel for the vertical knob/pin to drop into the receiving hole
  • Do not force travel; back off and re-align if it hangs up
  • Success check: a soft metallic “clink/click” is felt or heard and the assembly feels firm, not springy
  • If it still fails: inspect for obstruction, debris, or misalignment and reset rather than muscling the driver backward
• Q: How do I swap and reinstall Hoop Tech window frames on a Brother PR655 clamp system without prying or twisting?
  A: Compress the spring-loaded side to release the pins, lift the frame away, then reinstall with the grip side up and the pins fully seated.
  • Push the spring side inward (it should feel like firm stapler resistance), let pins drop free, then lift off
  • Reinstall by compressing the spring side again, aligning pins into the chassis holes, and releasing to lock
  • Confirm the rough grey grip surface is facing UP before clamping fabric
  • Success check: the window frame locks with zero wiggle and releases without prying
  • If it still fails: clean lint from pin holes and only adjust the width screw if the fit is clearly too tight or too loose
• Q: How do I prevent pantograph head collisions and bent clamp arms when using Hoop Tech clamps on a Brother PR655?
  A: Never move the pantograph/carriage while the clamp window is tilted up—always click the window frame DOWN flat first.
  • Stop the machine before working near needles and moving carriage parts
  • Click the window frame DOWN into the flat position before any carriage movement (manual or automatic)
  • Keep hands, tools, and loose clothing away from the needle area while sliding hardware
  • Success check: the window frame is flat/locked before movement, with no “half-up” tilt
  • If it still fails: stop immediately and inspect the hinge/pivot area for bending before continuing production
• Q: Why does a Brother PR655 show the wrong stitch field or not recognize the largest hoop size with a Hoop Tech clamp system, and what is the safest fix order?
  A: This is common: the clamp’s sensor lever is not making correct contact, so re-seat and re-position first; bending the lever is a last-resort adjustment.
  • Re-check that the metal sensor lever is truly under the latch mechanism
  • Remove and re-seat the driver so it sits fully flush (tiny gaps change lever contact)
  • Only if the lever position is correct and recognition still fails, make a very slight bend (about 1–2 mm) and test immediately
  • Success check: the Brother PR655 displays the expected stitch field for the installed frame/window
  • If it still fails: stop bending (metal fatigue can snap the lever) and seek a technician-level inspection of fit and sensor engagement
• Q: If Hoop Tech clamps reduce hoop burn but hooping still slows production, when should an embroidery shop upgrade to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Use a tiered approach: optimize workflow first, then upgrade hooping tools for fatigue/consistency, then upgrade the machine only when order volume outgrows capacity.
  • Level 1 (technique): stage window frames, stabilizer, and screws in one spot to stop time loss from searching/cleaning mid-job
  • Level 2 (tool): consider magnetic hoops when hoop burn, wrist strain, or inconsistent tension becomes the bottleneck (handle magnets carefully due to pinch hazard and pacemaker risk)
  • Level 3 (capacity): consider a SEWTECH multi-needle embroidery machine when long days still leave orders behind and you need repeatable throughput
  • Success check: changeovers get faster and results become more consistent job-to-job
  • If it still fails: track where minutes are lost (mounting, clamping, rework) and upgrade the single biggest bottleneck first, not the newest gadget
