Janome MB-7 Reality Check: The 1,000-Hour Motor Surprise and the Hoop Mapping Trap That Can Scar Your Machine

If you run a home embroidery business, you don’t need more “cute projects”—you need fewer surprises that stop production.

This video is a perfect example: the Janome MB-7 is genuinely productive (seven needles, free arm, fewer thread changes), but two details hidden in plain sight can cost you real money and real downtime: the 1,000-hour motor replacement requirement and the hoop preset limitation that makes third-party hoops (especially magnetic hoops) harder to use safely.

Below, I’m going to rebuild the creator’s experience into a shop-ready workflow you can follow today—whether you already own the machine or you’re still deciding.

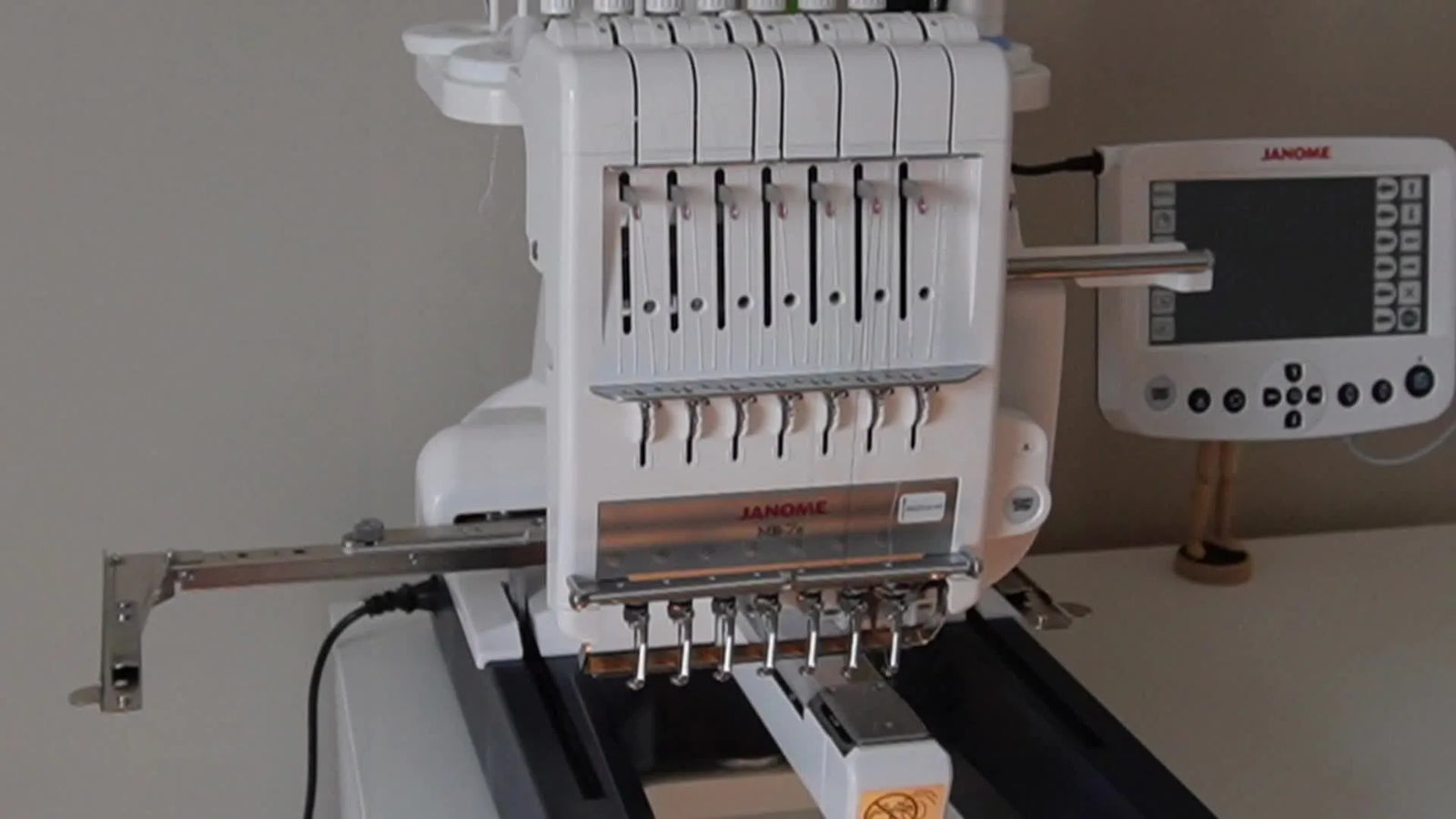

The “Seven-Needle Blessing” on the Janome MB-7—Why It Feels Like a Production Upgrade Overnight

The creator is clear: the Janome MB-7 has been a blessing because the free arm lets you stitch more items with less wrestling, and the seven needles reduce constant thread swapping. That’s not just convenience—it’s throughput.

If you are coming from a single-needle flatbed machine, the difference isn't just speed; it is the rhythm of your day. On a single-needle machine, you are the color changer. You are tethered to the machine every 5 minutes. On a seven-needle machine, you hit "Start" and walk away to fold shirts, invoice clients, or prep the next hoop.

Let’s talk about speed versus quality. While the MB-7 can technically run up to 800 SPM (Stitches Per Minute), experienced pros know that "redlining" your machine is a recipe for thread breaks.

• The Beginner Sweet Spot: 600–700 SPM.
• The Sensory Check: Listen to the machine. A happy multi-needle machine should have a rhythmic, consistent "thrum-thrum." If it sounds like a jackhammer or you hear metallic slapping, you are running too fast for the fabric/stabilizer combo. Slow down.

If you’re doing small-batch work (team gear, boutique drops, repeat logos), the real win is consistency: fewer stops means fewer chances to bump a hoop, shift a cap, or forget to re-seat thread correctly.

One sentence I tell every new multi-needle owner: profit doesn’t come from running faster—it comes from stopping less.

The Manual-Only Wake-Up Call: Checking Janome MB-7 Motor Hours Before 1,000 Hours Sneaks Up

The creator’s #1 wish was simple: download and read the manual before buying. Why? Because the MB-4/MB-7 has a motor replacement requirement at 1,000 hours, and that’s the kind of detail that changes your business planning.

In the video, she shows her machine at 24 hours of usage, and explains that once it reaches 1,000 hours, the motor must be replaced. This isn't a defect; it is a maintenance interval for the DC motor brushes, much like changing oil in a car. However, she notes the motor can be hard to source (she found one in the UK for roughly $300), and that waiting for parts can create downtime.

A commenter echoed the frustration, saying 1,000 hours feels too low and that they bought a spare motor “just in case.” Another viewer did the math and realized that at about three hours of actual stitching time per day, you could hit that limit in roughly a year—exactly the kind of “surprise” that can wreck a busy holiday season.

If you’re researching the machine right now, this is the sentence you should keep in your head: maintenance schedules are part of your Cost of Goods Sold (COGS), not an afterthought.

How to access the hidden usage screen (as shown in the video)

1. Prepare: Turn the machine power switch OFF.
2. Engage: Press and hold the two buttons directly beneath the screen (the creator demonstrates holding both simultaneously).
3. Power Up: While holding the buttons, flip the power switch ON. Keep holding until the screen changes.
4. Read: The display changes to a diagnostic-style screen showing time statistics for Power, Drive, and Motor.

Your expected outcome: you can read the machine’s accumulated hours and plan maintenance instead of guessing.

Warning: Mechanical Safety Hazard. Keep fingers, hair, and loose sleeves away from the needle area when the machine is powered on, even if you’re “just checking menus.” Multi-needle heads can move unexpectedly during tracing, centering, or startup routines. A moving head has enough torque to crush a finger.

Prep Checklist (do this before you rely on the MB-7 for paid orders)

• Baseline Check: Confirm you can access the hidden usage/time screen and record your current Motor hours in a logbook.
• Sourcing Plan: Identify at least one realistic source for replacement parts (motors, needle bars) so you aren't searching Google at 2 AM during a rush week.
• Stock Critical Consumables: Don't just stock thread. Ensure you have replacement needles (sizes 75/11 and 90/14), bobbin cases, and a small tube of machine oil.
• Define Downtime Protocol: If this machine stops, what is the plan? (A) Switch to a backup machine? (B) Outsource to a local shop? (C) Delay the order?
• Schedule It: Set a recurring calendar reminder (e.g., "First Monday of the Month") to check motor hours.

The Spare-Motor Strategy: Planning for Janome MB-7 Downtime Like a Business Owner, Not a Hobbyist

The creator’s point is blunt: if you can’t afford downtime, you can’t afford to be surprised.

From a shop-operations perspective, you have three options:

1. Run it and react (cheapest today, most expensive later in lost reputation).
2. Pre-order and waitlist (better, but still risky if supply chains are tight).
3. Keep a spare motor on hand (highest upfront cost, lowest downtime risk).

A commenter mentioned finding a motor on eBay for $160 and keeping it as a backup. That’s not a recommendation to buy generic parts—it is a real-world example of how owners are trying to protect production assurance.

If you’re pricing jobs, remember: your machine is not just a tool; it’s a time-based asset. Motor hours are a real input cost, just like thread and stabilizer.

Consider Scaling Up: If the idea of a 1,000-hour limit scares you because you plan to run the machine 8 hours a day, you might be outgrowing this class of machine. This is where a production-focused setup starts to matter. A multi-needle like our SEWTECH line is often chosen clearly for scale. Shop owners who demand predictable throughput and heavier duty cycles often look for machines designed for 24/7 distinct operation.

The Hoop Preset Trap on the Janome MB-7: Why “Janome MB7 Hoops” Can Feel Weirdly Limited

Now to the second issue: hoop selection. This is where software meets physics, and it causes the most frustration for new users.

The creator scrolls through the hoop categories and shows that the machine’s preset library is limited. She explains:

• The M series represents the standard Janome hoops, and there are only three: M1, M2, M3.
• There are J-series monogramming hoops, but she notes they aren’t readily available in stores.
• There are Tajima-style hoops, but only six are programmed.
• There are sock hoops (she mentions three options total).
• There is a proprietary hat hoop setting labeled H, shown as 100 × 90 mm.

This matters because the machine does not let you freely type in a custom hoop size (e.g., "150mm x 150mm"). You’re forced to “think like the firmware,” not like the hoop you physically own.

If you’re searching for terms like janome mb7 hoops to find alternatives, understand the real-world meaning: the machine’s hoop menu is not just a convenience feature—it’s a safety boundary. It defines where the machine thinks the plastic edges are.

Mapping a Durkee Hat Hoop on the Janome MB-7 Without Losing Hoop Area (or Your Patience)

The creator explains that many people won’t buy the proprietary Janome hat hoop because it’s extremely expensive (she cites around $400). Instead, most will buy a third-party hat hoop like Durkee or an EZ Frame style option, often around $80–$100.

Her workaround is the key teaching point:

• When using her Durkee hat hoop on a hat, she selects M2 on the machine.
• The M2 preset is shown as 126 × 110 mm.
• Even though her physical hoop is slightly larger, M2 is the only workable selection she has.

That workaround comes with a cost: you may lose usable embroidery field area because you’re mapping to a smaller preset. You effectively have "ghost borders" that you cannot stitch past, even if there is physical space.

This is where many operators get burned: they assume “close enough” is fine, then run a design that pushes the boundary.

If you’re comparing third-party systems like durkee ez frames, treat hoop mapping as a workflow step, not a one-time setup. You must memorize which preset corresponds to which physical frame in your shop.

Setup Checklist (before you stitch anything on a third-party hoop)

• Identify the Physical Hoop: Know exactly what you are holding (e.g., "Durkee Cap Frame").
• Determine the Preset: Scroll the MB-7 hoop menu and write down the closest preset you plan to map to (example shown: Durkee hat hoop → M2).
• Calculate the Loss: Assume you will lose some usable area. If the M2 preset is smaller than your frame, the M2 dimensions are your actual working limit.
• Safe-Zone Test: Load a simple test design first (not a customer order) to validate clearance.
• Visual Confirmation: "Does the screen show the design centered?" If the preset centers differently than your physical hoop, you may need to jog the design.

The Magnetic Hoop Dream vs Janome Firmware Reality: Why a 5.5" Hoop Can Turn Into a Safety Problem

The creator describes wanting to use magnetic hoops for easier hooping. She mentions the most popular magnetic hoop size she sees is 5.5 × 5.5 inches, but she cannot select a custom hoop size on the machine.

She also explains a frustrating detail: even if your embroidery software (Wilcom, Hatch, etc.) can define a custom hoop size, once the design is transferred to the Janome, the machine still forces you to pick from M1/M2/M3 or a monogramming hoop that “most closely aligns.”

That’s the heart of the issue when looking for mighty hoops for janome mb7: it’s not only about whether the hoop physically clips onto the arm—it’s whether the machine’s idea of the hoop matches reality.

And yes, she specifically calls out the 5.5 mighty hoop size as the example that doesn’t map cleanly.

From an operator’s standpoint, here’s the practical rule:

• If the machine thinks the hoop is smaller than it really is, you might hit a soft limit and be unable to sew the full design.
• If the machine thinks the hoop is larger than it really is, the needle creates its own exit strategy—usually through your plastic frame or metal clamps.

Either way, the risk is the same: needle strike.

If you’re determined to use specific magnetic embroidery hoops for janome, your safety net is not “being careful.” Your safety net is aggressive tracing and conservative design boundaries.

Warning: Magnet Safety. Magnetic hoops use industrial neodymium magnets. They are powerful. Keep them away from pacemakers/implanted medical devices. Never let two magnets snap together near your fingers without a barrier—pinch injuries happen fast and can break skin.

The Trace Button Is Not Optional: How the Janome MB-7 Needle Strike Happens (and How to Prevent It)

The creator shows the exact consequence of hoop mismatch: a small needle strike mark on the metal arm/frame area. She explains it happened because she was unable to select the proper hoop size while using a hoop that didn’t match the preset.

Her fix is the most important operational habit in the whole video: Trace your designs.

On the MB-7, this function moves the hoop around the outer rectangular perimeter of your design without stitching.

The Sensory Trace Check

Do not just press the button and look at your phone.

1. Watch the Needle: Put needle #1 in position.
2. Lower the Foot: Manually lower the presser foot slightly (if safe) or visualize the needle drop point.
3. Listen: Listen for the hoop arm moving. It should move smoothly.
4. Gap Check: As the needle traces the corners, is there at least a finger-width gap (or 10mm) between the needle bar and the hoop edge? If it's tighter than that, you are in the danger zone.

This is not a “beginner tip.” In production, tracing is your last line of defense when firmware limitations force you into imperfect mapping.

Pro tip (from the comment vibe, de-identified)

If you’re running daily orders, treat tracing like you treat threading: it’s part of setup, not a “nice extra.” The one time you skip it is usually the time you regret it.

The “Why” Behind Hoop Problems: Physics of Hooping, Tension, and Why Mapping Errors Get Worse on Hats

Even though the video focuses on menus and presets, the real-world failures show up in fabric.

On hats and other curved items, you’re fighting three forces at once:

1. Curvature tension: The material wants to spring back flat.
2. Hoop pressure: Traditional hoops pinch the material. If you tighten the screw too much, you get "hoop burn" (permanent glossy rings on the fabric). If too loose, the fabric slips.
3. Stitch pull: Dense stitching pulls fabric toward the center of the design (Pull Compensation).

When your hoop mapping is off, you’re more likely to push designs toward the edge “to use the space you paid for.” That’s exactly when curvature and stitch pull combine to shift the work area—and suddenly the clearance margin you thought you had disappears.

The Solution? This is why magnetic hoops are so attractive. They clamp vertically, reducing hoop burn and speeding up loading. But on machines with strict preset libraries, even the best magnetic hoop in the world needs a safe mapping strategy.

In our own product ecosystem, this is where a magnetic hoop/frame becomes a legitimate tool upgrade path. If hooping is slow, leaves marks, or causes operator wrist fatigue, magnetic systems help—but only when you choose sizes that map cleanly to your machine’s available presets and you keep tracing as a non-negotiable habit.

A Stabilizer Decision Tree for Hats and Small Items (So You Don’t Blame the Machine for a Material Problem)

The video doesn’t go deep on stabilizers, but in my experience, hoop frustration often hides a stabilizer mismatch. Mis-stabilized fabric shifts during sewing, causing the needle to hit the hoop even if you traced it perfectly.

Use this decision tree as a starting point (and always defer to your machine manual and your material tests):

Decision Tree: Fabric behavior → Backing Choice

1. Is the item structured (firm cap front) or unstructured (soft beanie/dad hat)?
   • Structured: Structure provides support. Start with a firm cutaway or specific cap backing.
   • Unstructured: The stabilizer must become the structure. Use a heavy cutaway (2.5oz or 3.0oz).
2. Does the fabric stretch when you tug it lightly?
   • Yes (Knits/Sportswear): You need Cutaway. No exceptions. Tearaway will explode under needle penetration, leading to shifting.
   • No (Canvas/Denim/Twill): Tearaway may work for lighter designs, but if the design has high stitch counts (>10k), use Cutaway to prevent outline misalignment.
3. Is the design dense or large for the available field?
   • Dense/Large: Increase stabilization (two layers of cutaway, cross-grain) and reduce speed to 500-600 SPM.
   • Light/Open: You can use less backing, but never under-support hats.

Hidden Consumable: Don't forget Temporary Adhesive Spray (like 505) or a glue stick. For items that are hard to hoop (like socks or tight hats), "floating" the item on the stabilizer with spray is a valid technique, provided you trace carefully.

The Business Question in the Comments: Janome MB-7 vs BAI vs “Chinese Multi-Needle”—How Space and Workflow Decide

One commenter asked what made the creator choose Janome over BAI or other industrial clones. The creator’s answer is practical: weight and size—the BAI wouldn’t work for her space, and the Janome was smaller, so it fit.

That’s a real buying framework. Don't look at specs; look at your room.

• If your workspace is a spare bedroom or a shared family space, Footprint and Noise are your constraints.
• If you’re scaling production in a garage or commercial space, Serviceability, Parts Availability, and Hoop Ecosystem matter more.

If you’re currently shopping for equipment like the janome mb-7 embroidery machine because you want multi-needle productivity without a huge industrial footprint, write down your constraints first:

1. Space: Measure your table depth. Do you have 360-degree access?
2. Order Volume: Are you doing one-offs (Monograms) or batches (50 branded polos)?
3. Hoop Needs: Do you mostly do flats, or do you need deep clearance for bags and pockets?
4. Downtime Tolerance: Can you afford to be down for 2 weeks waiting for a part?

That list will usually make the decision clearer than any spec sheet.

The Upgrade Path That Actually Makes Sense: When to Add a Hooping Station, Magnetic Frames, or a Multi-Needle Step-Up

Once you’ve felt the speed of seven needles, the next bottleneck is almost always hooping. The machine is fast, but you are slow.

If you’re spending more time loading hoops than the machine spends stitching, a hooping station for embroidery can be a massive workflow upgrade. It ensures every logo is placed exactly the same distance from the collar, reducing customer returns.

Here’s the “Scene Trigger → Decision Standard → Options” way I advise shops:

• Scene Trigger: You’re hooping the same polo shirt 20 times. Your thumbs hurt, and you notice "hoop burn" rings on the fabric that require steaming to remove.
• Decision Standard: If hooping time per item (>3 mins) is longer than your stitch time, or if rejects due to marking exceed 2%, you have a process bottleneck.
• Options:
  • Level 1 (Technique): Use better marking tools and a Hooping Station for repeatability.
  • Level 2 (Tool Upgrade): Move to Magnetic Hoops/Frames. They snap on instantly, hold thick items (Carhartt jackets) securely, and eliminate hoop burn. Crucial: Choose sizes that map safely to your machine’s presets.
  • Level 3 (Capacity Upgrade): If you are consistently maxing out the MB-7 and need faster processing for bulk orders, consider a high-output multi-needle platform like SEWTECH for production scaling. Unlike the "Compact" class, full industrial frames often offer wider compatibility.

And if you’re tempted by reputable accessories like durkee magnetic hoops, treat them like any production tool: verify compatibility, map the preset safely, trace every time, and test on scrap before touching customer goods.

The “No-Regrets” Operating Routine for the Janome MB-7 (So You Don’t Learn the Hard Way)

This is the routine I’d want any MB-7 owner to internalize after watching the video. It prevents the panic of broken needles and burned-out motors.

1. Check motor hours monthly and log them.
2. Accept that hoop presets are a constraint, not a suggestion.
3. Map third-party hoops conservatively (expect to lose some field; accept it as the cost of doing business).
4. Trace every design, every time you change hoop type or push boundaries.
5. Treat needle strikes as a process failure to fix, not “bad luck.”

Operation Checklist (end-of-run habits that prevent repeat disasters)

• Hoop Driver Inspection: After a long run, wipe down the hoop driver arm. Look for any new scratches or contact points.
• Near-Miss Log: If you had a near-miss (needle came too close to the edge), write down exactly which hoop preset and specific design size caused it. Stick this note on the wall.
• Cheat Sheet: Store your "Safe Mapping Notes" (e.g., "Note: Durkee Hat Hoop = M2 Setting") right on the machine chassis interactively.
• Test File Ready: If you run hats often, keep a dedicated square "box" test file that runs the perimeter of your safe zone. Run it quickly before the real design to verify alignment.
• Growth Trigger: Re-evaluate your workflow every 6 months. What worked at 5 orders/week breaks at 50. Be ready to upgrade your tools when the pain points reappear.

The creator still loves the machine—and that’s the balanced truth. The Janome MB-7 can be a strong productivity tool, but only if you treat motor hours and hoop mapping as first-class operational realities, not footnotes.

FAQ

• Q: How do I check Janome MB-7 motor hours using the hidden usage/time screen before reaching the 1,000-hour motor replacement interval?
  A: Use the built-in diagnostic screen to read and log the Motor hours so the 1,000-hour service interval never surprises production.
  • Turn the Janome MB-7 power switch OFF.
  • Press and hold the two buttons directly beneath the screen.
  • While holding both buttons, turn the power switch ON and keep holding until the screen changes.
  • Record the Power/Drive/Motor time values in a logbook and set a monthly reminder.
  • Success check: The display switches to a diagnostic-style screen showing time statistics (including “Motor” hours).
  • If it still fails: Re-try the button timing (hold before powering on) and confirm the correct two buttons under the screen are being pressed.
• Q: What prep items should a Janome MB-7 shop stock to avoid downtime during paid orders (needles, bobbin cases, oil, and parts planning)?
  A: Treat critical consumables and sourcing as part of the operating routine, not an emergency purchase.
  • Stock needles in sizes 75/11 and 90/14, plus at least one spare bobbin case and a small tube of machine oil.
  • Create a realistic sourcing plan for replacement parts (such as a motor) before the rush season.
  • Define a downtime protocol (backup machine, outsource locally, or customer delay plan) and write it down.
  • Success check: When something breaks, the shop can resume stitching the same day (or has a defined plan within hours, not days).
  • If it still fails: Reduce reliance on one machine by adding a backup workflow (outsourcing or a second machine) before peak season.
• Q: Why does Janome MB-7 hoop preset selection make third-party hoops (Durkee hat hoop, magnetic hoops) risky, and what is the safest mapping workflow?
  A: Janome MB-7 hoop presets are a safety boundary, so map third-party hoops conservatively and treat the preset size as the true stitching limit.
  • Identify the exact physical hoop/frame being used (for example, a Durkee-style cap frame or a magnetic hoop).
  • Select the closest usable Janome MB-7 preset and write the mapping down as a “cheat sheet” on the machine.
  • Assume usable field may shrink when mapping to a smaller preset, and keep designs inside the preset boundary.
  • Success check: The design traces and stitches without soft-limit stops or contact marks on the hoop driver/arm.
  • If it still fails: Switch to a smaller design boundary or a different preset and re-test on scrap before running customer goods.
• Q: How can a Janome MB-7 operator prevent needle strike when the hoop size does not perfectly match a Janome MB-7 preset (especially on hats and third-party frames)?
  A: Use the Janome MB-7 Trace function every time the hoop type changes or the design approaches the edge—this is the last line of defense.
  • Load the design and run Trace to move the hoop around the outer perimeter without stitching.
  • Watch needle #1 position and pay attention at the corners where clearance gets tight.
  • Confirm there is at least a finger-width gap (about 10 mm) between the needle bar area and any hoop/frame edge during tracing.
  • Success check: Tracing completes smoothly with consistent motion and no near-contact at corners.
  • If it still fails: Stop immediately, reduce the design size/reposition it inward, or choose a more conservative hoop preset before stitching.
• Q: What are the mechanical safety rules for working around a powered-on Janome MB-7 multi-needle head during tracing, centering, or menu checks?
  A: Keep hands, hair, and loose sleeves away from the needle area whenever the Janome MB-7 is powered on because the head can move unexpectedly.
  • Power OFF before making any physical adjustments near needles, presser foot, or hoop driver area.
  • Treat tracing/centering/startup routines as active motion events and keep fingers out of the travel path.
  • Secure loose clothing and tie back hair before starting a run.
  • Success check: No part of the body enters the needle/head travel zone while the machine is ON.
  • If it still fails: Stop using “reach-in” habits and build a routine: power off first, then adjust, then power on and trace again.
• Q: What magnetic hoop safety precautions should embroidery operators follow when using neodymium magnetic embroidery hoops/frames?
  A: Handle magnetic hoops like industrial magnets: protect fingers from pinch points and keep them away from implanted medical devices.
  • Keep magnetic hoops away from pacemakers or other implanted medical devices.
  • Separate magnets with a controlled grip and a barrier so they cannot snap together on fingers.
  • Store magnets so they cannot jump together unexpectedly on metal surfaces.
  • Success check: No snapping/impact events occur during handling, and fingers never get caught between magnet faces.
  • If it still fails: Stop using the hoop until handling and storage are made safer (separate storage, barriers, and a consistent loading routine).
• Q: When Janome MB-7 production feels limited by hooping time, hoop burn marks, or frequent stops, what is the best upgrade path (technique → magnetic hoops → higher-output machine)?
  A: Use a tiered decision rule: fix technique first, upgrade hooping tools second, and only then consider a higher-duty-cycle machine if volume demands it.
  • Level 1 (Technique): Add repeatable placement tools and consider a hooping station when hooping time per item exceeds about 3 minutes or rejects from marking exceed about 2%.
  • Level 2 (Tool): Move to magnetic hoops/frames to reduce hoop burn and speed loading, but only choose sizes that map safely to Janome MB-7 presets and trace every design.
  • Level 3 (Capacity): If the shop routinely runs long daily hours and downtime risk (like scheduled motor service intervals) becomes unacceptable, plan for a production-focused multi-needle platform such as a SEWTECH machine.
  • Success check: Stops decrease, rejects decrease, and the operator can keep the machine stitching while prepping the next item.
  • If it still fails: Audit the bottleneck—if tracing/mapping is still consuming time, standardize hoop types and keep a “safe mapping notes” sheet on the machine.
