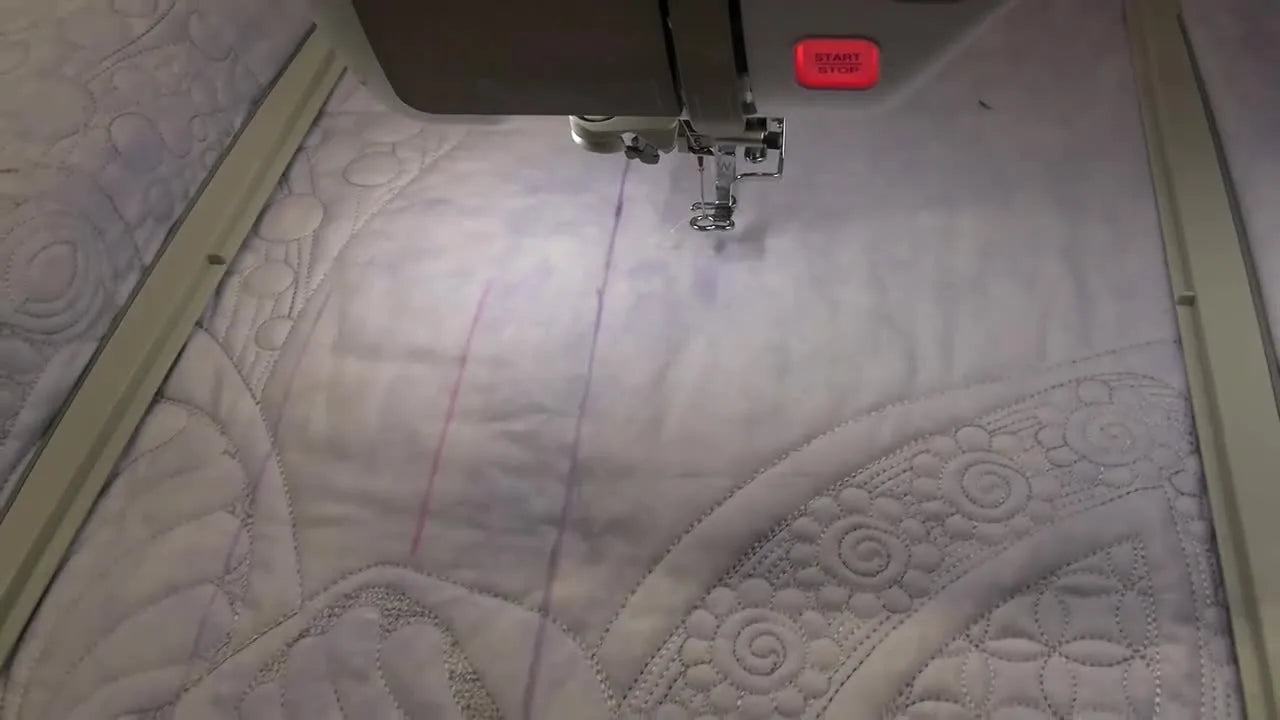

Nail Design Placement on the Baby Lock Solaris 2 Projector—Without Marks, Guesswork, or Re-Hooping Drama

The Calm-Down Moment: Why the Baby Lock Solaris 2 Projector Beats Guessing on Plain Fabric

When you’re staring at a plain quilt sandwich with no printed panel lines to “save” you, design placement can feel like a high-stakes gamble—especially on a big, beautiful quilting motif. The good news: the Baby Lock Solaris 2 projector turns placement into a calm, visual process you can verify before you ever stitch.

In this post, I’m rebuilding Kelly’s exact workflow for positioning a Stitch Delight Dream Big Panel Pack design on plain fabric, then adding the small, experience-based habits that prevent the two classic disasters: (1) shifting a thick quilt sandwich while you’re still aligning, and (2) “chasing” the design around the screen until you’re no longer sure what’s centered.

Kelly’s situation is the one that trips up even confident stitchers: she’s stitching a quilting design sample on plain fabric—no pre-printed panel, no obvious placement marks—so she needs a reliable way to line things up.

The projector feature on the Baby Lock Solaris 2 solves that by showing the design on the fabric as light. Instead of imagining where the needle will land, you watch the projected motif move in real time as you reposition it on-screen.

One detail I love in her method is that she doesn’t start digitally. She verifies hooping physically first, then uses the projector for precision. That order matters because projector positioning can’t fix a quilt sandwich that’s already hooped crooked.

The “Hidden” Prep Pros Do First: Quilt Sandwich Hooping That Won’t Shift While You Align

Before you touch the screen, set yourself up so the sandwich behaves. Thick layers (fabric + batting + backing) operate differently than a single layer of cotton; they can “creep” or migrate under hoop pressure. Even a tiny shift becomes obvious when you’re trying to align projected lines to fabric grain.

Kelly hoops her quilt sandwich and uses a printed template to confirm it’s square and centered. That’s the right instinct: verify the foundation before you fine-tune.

If you’re doing a lot of quilt-sandwich samples (like class prep), this is also where workflow upgrades pay off. Standard hoops rely on friction and inner/outer ring pressure, which can leave "hoop burn" on delicate quilt tops.

Expert Note on Consumables: For quilt sandwiches, I highly recommend using a light mist of temporary spray adhesive (like 505) between the batting and fabric layers. This acts as a "second set of hands," preventing the layers from sliding against each other during the hooping process.

Prep Checklist (Pre-Flight Safety Check):

• The Physical Setup: Quilt sandwich is loaded. Tap the center of the hoop—it should have a dull "thump," indicating secure tension without over-stretching.
• The Consumables: Used temporary spray adhesive or basting pins (outside the stitch zone) to lock layers.
• The Reference: Printed paper positioning template is ready (Kelly uses the template that came with the design pack download).
• The "Kill Zone" Check: Your hands are free of pins, clips, or magnetic wand tools near the hoop opening (avoid accidental snags while you rotate/slide the design).
• Thread Plan: Thread choice is decided (Kelly uses Madeira rayon thread).


Hooping Verification with the Paper Template: Catch “Crooked in the Hoop” Before the Screen Lies to You

Kelly places a paper template labeled “16” with printed crosshairs directly onto the hooped quilt sandwich to confirm the fabric is hooped square and where she wants it.

This step looks simple, but it prevents a very expensive mistake: The Cognitive Trap. If the sandwich is skewed in the hoop, you can still make the projector image look “straight” relative to the hoop—yet the stitched result will look off relative to the quilt top (the grain).

A common comment question was where the template came from. In Kelly’s case, the templates came with the Stitch Delight design pack—she printed them from the download she received.

Pro tip from the field: Don’t rush this check. Look at the crosshairs relative to the weave of the fabric. If the template crosshairs don't run parallel to the fabric grain, fix the hooping now. Digital nudging is for fine placement, not for correcting a crooked foundation.

Turning On the Baby Lock Solaris 2 Projector Icon (Yes, It’s Easy to Miss)

One viewer said, “I don’t know how to turn on the projector!”—and that’s more common than people admit. On the Solaris 2, Kelly turns it on by pressing the dedicated projector icon in the upper right toolbar on the LCD screen.

She describes it as an icon that looks like a beam pointing down (think flashlight beam). Once pressed, you’ll see a bright rectangular light with the stitch pattern projected onto the fabric bed.

If you’re setting up a repeatable routine, this is the moment to remember the feature name you’re actually using. Mastering the actual hooping for embroidery machine technique becomes dramatically less stressful when you can visually confirm placement instead of relying on tape marks or hoping your measurements were perfect.

Warning: Projector Safety Zone. Keep fingers, tools, and loose thread away from the needle area and presser-foot zone while you’re leaning in to watch the projection. The machine is "live." Avoid the temptation to put your hand directly under the needle to "catch" the light—if you accidentally hit surface touch buttons, the needle bar could descend.

Drag-to-Place on the Solaris 2 Touchscreen: Move the Projection, Not Your Confidence

With the projector on, Kelly uses her finger on the touchscreen to drag the design view. The key relationship she demonstrates is this:

• The red bounding box on the screen corresponds to what’s being projected.
• When you drag the design on-screen, the projected light image moves on the fabric.

Her best advice is also the hardest habit to learn: Decouple your vision. Watch the hoop and projection, not just the screen. Your eyes should be on the fabric because that’s where the truth is.

Here’s the placement mindset I teach in studios: move in big, confident motions first (get it “in the neighborhood”), then switch to small nudges and rotation. If you start with micro-adjustments too early, you’ll waste time and lose your reference point.

The 1-Degree Fix: Using Solaris 2 Rotation Increments (0.1, 1, 10, 90) Without Overcorrecting

Kelly notices a slight misalignment and opens the rotation options. On the Solaris 2 screen, she has rotation increments of 0.1, 1, 10, and 90 degrees.

She chooses 1 degree for a tiny tilt, then moves the design back into position. This is exactly how you should use rotation: correct the angle first, then re-center.

The "Walk Away" Phenomenon: A practical rule of physics to remember: if you rotate an image, the outer edges (the perimeter) move further than the center. If you rotate and the design “walks away” from your target line, that’s normal—rotation changes the footprint. Don’t panic. Rotate 1 degree, then Drag to reposition.

If you’re doing quilting motifs like this, you’re usually aligning projected edges to fabric grain or reference markings. That’s why hoop stability matters so much: if the sandwich relaxes or shifts, you’ll keep rotating to chase a moving target.

The Red Box View on Baby Lock Solaris 2: What You’re Really Looking At (and Why It Matters)

Kelly shows a close-up of the interface where the red box indicates the portion of the design currently being projected. Inside that box is what you’re seeing on the fabric.

This matters because it keeps you oriented. When you’re zoomed in or checking a specific point, the red box is your “field of view.”

Orientation Check: If you ever feel lost—like you don't know which part of the leaf you are looking at—return to a wider view on screen to re-establish where that red box sits relative to the full design.

Pixel-Level Placement: Using Solaris 2 Directional Arrow Keys (Including Diagonals) for Final Nudges

After rotation and rough placement, Kelly uses the directional arrow pad on-screen to nudge the design precisely—up, down, and diagonally.

This is the stage where you stop dragging and start nudging.

• Dragging: Fast, coarse adjustments.
• Arrow Nudges: Slow, pixel-perfect accuracy.

Kelly’s workflow is consistent: while she presses movement buttons, she watches what’s happening on the hoop and the projected embroidery—not the screen.

Setup Checklist (The "Commit" Phase):

• Projector is active (icon in the upper right toolbar).
• You can see the projected design clearly on the fabric surface.
• Use a dark room if possible—the Solaris projector is bright, but dimming studio lights increases contrast significantly.
• You understand the red box on-screen as the projector’s active field.
• Rotation increment matches your need (Kelly demonstrates 1 degree; use 0.1 for hairline corrections).
• You have switched from "Hand/Drag" mode to "Arrow/Nudge" mode.

The Reset Button Saves Projects: How to Recover from “I Messed It Up” in Two Seconds

Kelly demonstrates the most underrated feature in the whole sequence: Reset.

If placement or rotation gets mapped incorrectly—or you simply over-adjust and the design looks skewed—pressing the Reset button snaps the design back to the original center position and 0-degree angle so you can restart cleanly.

This is not just a convenience; it’s a professional habit known as "Zeroing Out." Reset prevents the spiral where you keep making “one more correction” until you’re no longer sure what’s true.

When you’re training staff or prepping class kits, this reset-and-recover habit is what keeps output consistent. It’s also why the Solaris 2 projector feels so forgiving: you really can’t go wrong if you’re willing to reset instead of forcing a bad alignment.

Final Alignment on a Quilt Sandwich: Check Multiple Points, Not Just One Pretty Corner

Kelly doesn’t stop after lining up one spot. She checks the rest of the design to confirm she’s exactly where she wants to be, and she points out that she’s right on the lines.

Triangulation Strategy: A quilt sandwich can have subtle thickness variation or stretching. Checking one point proves position; checking three points proves alignment.

Here’s a simple decision tree I use when students ask, “How do I know I’m done positioning?”

Decision Tree: When to Stop Adjusting and Start Stitching

• Scenario A: Projector aligns at one point only.
  • Action: Check at least 2–3 additional perimeter points (Top, Bottom, Right).
• Scenario B: Alignment is good at multiple points but the design still feels “off” or tilted.
  • Action: Press Reset. Re-check physical hoop squareness with the paper template. The issue is likely the fabric, not the machine.
• Scenario C: Rotation looks right but the design is slightly shifted left/right.
  • Action: Use arrow nudges (not dragging) for final placement.
• Scenario D: You’ve nudged for more than a minute and keep overshooting.
  • Action: Stop. Switch to a smaller rotation increment (0.1) only if your machine offers it in that menu, then re-center.

The “Why” Behind the Magic: Hooping Physics, Quilt Thickness, and Why Placement Drifts

Let’s talk about what’s happening physically—because understanding it prevents repeat mistakes.

A quilt sandwich is a stack of materials with different compressibility. When you hoop it in a standard two-ring hoop, the outer ring compresses the batting and backing. If the sandwich isn’t evenly tensioned, the fabric can relax slightly after hooping, recovering its volume. This causes the famous "placement drift."

That’s why Kelly’s order works: 1) Macro Check: Verify squareness with a paper template. 2) Micro Check: Use the projector for precision.

In production settings, I often see placement drift caused by one of these:

• The sandwich was hooped “tight in one direction, loose in the other.”
• The operator keeps lifting/tilting the hoop to look closer, which physically shifts the heavy quilt layers.
• The hoop mechanism itself struggles to grip thick batting evenly.

If you’re frequently hooping thick quilts, bags, or layered items, this is where tool choice becomes a real efficiency lever. Many shops move to magnetic embroidery hoops because they use vertical magnetic force rather than friction. This consistent clamping pressure reduces re-hooping needs and helps keep layers from creeping while you do your careful projector alignment.

Warning: Magnetic Hoop Safety. If you allow magnetic frames into your workflow, keep the magnets away from pacemakers and implanted medical devices. Be mindful of pinch points—strong industrial magnets (like those on SEWTECH frames) can snap together instantly. Keep fingers clear of the gap!

Comment-Driven Fixes: The Two Questions Everyone Asks (and the Answers That Actually Help)

“Where did the template come from?” Kelly’s template came with the Stitch Delight design pack download—she printed it.

• The Fix: If your design pack includes templates, always print them at 100% scale (verify with a ruler). If it doesn’t, create a simple crosshair on Vellum paper to use as a universal reference.

“How do I turn on the projector?” On the Solaris 2, Kelly taps the projector icon in the upper right toolbar. Once it’s on, you’ll see the projected design on the fabric and the red box on-screen indicating the projected area.

And yes—once you do it a couple times, it really does feel “so easy” because the machine gives you immediate visual feedback.

The Upgrade Path That Makes This Faster: Hooping Stations, Magnetic Frames, and When ROI Is Real

If you’re doing this occasionally for personal quilts, the standard hoop and template method Kelly demonstrates is perfectly workable.

But if you’re doing repeated samples, class prep, or customer quilting motifs, your bottleneck becomes hooping consistency and hand fatigue—not the projector speed.

Here’s the practical upgrade logic I use with studios to determine if they need to invest:

• Level 1 (Comfort & Safety): If your hands struggle to close hoops on thick sandwiches, or you see hoop marks appearing on velvet/quilts, consider baby lock magnetic hoops. They require zero hand strength to close and eliminate "hoop burn."
• Level 2 (Speed): If you are doing volume work and need to hoop 10 shirts in a row, a hooping station for machine embroidery ensures every item is placed in the exact same spot on the hoop, reducing the need for projector adjustments later.
• Level 3 (Scalability): If you are building a business, pairing a station with a magnetic hooping station style clamping system reduces re-hooping events—the hidden time-killer that quietly eats profit.

For shops running multi-needle production, the same principle scales even harder: consistent hooping is what lets you batch work cleanly. That’s where a high-productivity machine like SEWTECH and industrial magnetic frames become a “time math” decision rather than a hobby purchase.

Stitch-Ready Confidence: What You Should See Right Before You Press Start on Solaris 2

Kelly’s final moment is simple: when she’s happy with placement, she starts stitching.

Right before you do, make sure your visual checks match what the machine will do.

Operation Checklist (The Last 20 Seconds):

• Visual Lock: Projected design sits exactly where you want it on the quilt sandwich.
• Angle Check: Rotation looks parallel to your fabric grain/markings (Kelly uses a 1-degree adjustment when needed).
• Multi-Point Verification: You verified alignment at multiple points (center + perimeter), not just one.
• The "Gut Check": If anything felt confusing, you used Reset and re-established center/0° rather than forcing it.
• Clearance: Hoop path is clear of obstructions (walls, extra fabric behind the machine).


If you take only one habit from this workflow, make it this: verify hooping physically, position visually with the projector, and use Reset the moment you feel lost. That’s how you get perfect placement on plain fabric—without marks, guesswork, or re-hooping drama.

And if you find yourself doing this every week, consider whether your hooping process is the real bottleneck. Upgrading the hooping method (especially for thick quilt sandwiches) is often the fastest way to make the Solaris 2 projector feel even more powerful—because the projection can only be as accurate as the fabric you’ve held steady.

FAQ

• Q: How do I stop a thick quilt sandwich from shifting in a Baby Lock Solaris 2 hoop while aligning the projector image?
  A: Stabilize the quilt sandwich first so the projector alignment is not chasing moving layers—this is common with batting.
  • Use a light mist of temporary spray adhesive (such as 505) between fabric and batting before hooping.
  • Hoop the sandwich evenly and avoid over-stretching; aim for secure, even tension rather than “drum-tight.”
  • Keep the hoop supported and avoid lifting/tilting it repeatedly while you watch the projection.
  • Success check: Tap the hooped center and listen/feel for a dull “thump,” not a loose rattle or over-tight ping.
  • If it still fails… Re-hoop and verify squareness with a paper template before doing any on-screen adjustments.
• Q: How do I verify a quilt sandwich is hooped square before using the Baby Lock Solaris 2 projector on plain fabric?
  A: Use a printed paper positioning template with crosshairs to catch “crooked in the hoop” before the screen misleads you.
  • Place the paper template directly on the hooped quilt sandwich and align the crosshairs visually.
  • Compare the template crosshairs to the fabric grain; correct the hooping if the lines are not running parallel.
  • Re-check center and edges before turning to fine projector nudges.
  • Success check: The template crosshairs look parallel to the fabric weave/grain, not just “straight” to the hoop.
  • If it still fails… Press Reset on the machine and redo the physical hooping check—digital nudging cannot fix a skewed foundation.
• Q: How do I turn on the projector on a Baby Lock Solaris 2 when the projection is not showing?
  A: Tap the dedicated projector icon in the upper-right toolbar on the Baby Lock Solaris 2 screen.
  • Look for the icon that resembles a beam of light pointing downward.
  • Confirm a bright rectangular light appears and the stitch pattern is projected onto the fabric bed.
  • Dim the room lights to increase contrast if the projection looks faint.
  • Success check: The projected motif is visibly on the fabric, and the on-screen red box corresponds to the projected area.
  • If it still fails… Re-check you are on the correct screen/view for placement and consult the Baby Lock Solaris 2 manual for projector menu specifics.
• Q: How do I use the Baby Lock Solaris 2 rotation increments (0.1, 1, 10, 90 degrees) without overcorrecting design placement on a quilt sandwich?
  A: Correct the angle first with a small increment (often 1°), then drag or nudge back into position—rotation naturally “walks” the edges.
  • Rotate in small steps to match fabric grain or reference markings before re-centering.
  • Expect the design perimeter to shift more than the center after rotation; re-position after each tilt.
  • Switch from big drag moves to small arrow nudges only after the angle looks right.
  • Success check: Multiple projected edges look parallel to the fabric grain/marks, not just one corner.
  • If it still fails… Press Reset to return to 0° and center, then re-check the hooping squareness with the paper template.
• Q: What does the red bounding box mean on the Baby Lock Solaris 2 projector screen, and how does it prevent getting “lost” during placement?
  A: The red box is the projector’s active field of view—what’s inside it is what you are seeing on the fabric.
  • Use a wider on-screen view if orientation feels confusing, then zoom/inspect again once you’re re-centered.
  • Watch the fabric and projected light while adjusting, not only the LCD screen.
  • Use the red box to confirm which portion of the design you are checking before making micro-moves.
  • Success check: You can identify exactly which design area is projected and can predict where a nudge will move it.
  • If it still fails… Return to a wide view and use Reset to “zero out” placement before restarting alignment.
• Q: How do I do pixel-level final placement on a Baby Lock Solaris 2 projector—dragging versus directional arrow nudges (including diagonals)?
  A: Drag for fast “get it close,” then switch to arrow keys (including diagonal arrows) for final precision—don’t worry, this is the normal workflow.
  • Drag the design on-screen to get placement “in the neighborhood.”
  • Rotate as needed, then use the directional arrow pad for tiny, controlled movements.
  • Keep your eyes on the projected design on the fabric while pressing arrows.
  • Success check: The projection stays aligned at several points (center plus perimeter), and arrow taps produce predictable micro-movement.
  • If it still fails… Stop nudging, press Reset, and re-establish center/0° before trying again.
• Q: What are the safety rules when aligning a Baby Lock Solaris 2 projector near the needle area, and what additional safety rules apply when using magnetic embroidery hoops?
  A: Keep hands and tools out of the needle/presser-foot zone while the Baby Lock Solaris 2 is active, and treat magnetic hoops as pinch-and-medical-risk items.
  • Keep fingers, thread, pins, clips, and tools away from the needle area while leaning in to watch the projection.
  • Remove or relocate basting pins outside the stitch zone before rotating or sliding placement checks.
  • Handle magnetic hoops carefully: keep fingers clear of closing gaps and keep magnets away from pacemakers/implanted medical devices.
  • Success check: The hoop opening and needle path are clear, and nothing can snag or get pulled under the presser-foot area.
  • If it still fails… Pause and reset the work area—safety comes before alignment accuracy.
