Stop Throwing Away Cutaway: The “Stabilizer Window Frame” Trick for 5x7 Hoops (Plus a Hooping Alignment Hack)

The "Window Frame" Technique: How to Cut Stabilizer Waste by 80% (And Stop Hoop Burn)

If you have ever pulled a perfectly good sheet of cutaway stabilizer out of a 5x7 hoop after stitching a small block and thought, "I just threw money in the bin," you are not being dramatic—you are being observant. Stabilizer is an operational cost, and when you are stitching repeated quilt blocks (especially 5x5 or 6x6-style blocks) without jumping up to a massive hoop, that waste accumulates rapidly.

But the cost isn't just financial; it is physical. The constant friction of hooping and un-hooping stiff stabilizer creates "hoop burn" on delicate fabrics and strains your wrists.

This guide rebuilds a smart, frugal technique demonstrated by Sweet Pea Machine Embroidery: turning one sheet of medium-weight cutaway into a reusable "master frame," then patching the center window for each new block. Done right, it is stable, accurate, and repeatable—without the fabric creep that usually destroys block #2.

The Physics of Waste: Why standard Hooping Hurts Your Wallet

A 5x7 hoop is a workhorse size, but it is also the "waste valley" of embroidery. To hoop correctly, you need enough stabilizer overhang to grip, tension, and float the hoop arms—yet your actual stitched area might only be a 4x4 square.

The "Window Frame" technique changes the paradigm: you treat the hooped stabilizer not as a disposable backing, but as a permanent fixture for the duration of the project.

If you are currently building your workflow around an embroidery hooping station, this technique complements it perfectly. While a station speeds up the initial placement, the Window Frame technique reduces the consumable cost of that placement to almost zero for subsequent blocks.

Phase 1: The "Hidden" Prep (The Foundation)

Most beginners fail this technique because they rush the initial hoop. If the "master frame" is loose, every single block you stitch inside it will be distorted.

The Golden Rule of Tension: You want the stabilizer to feel like a skin on a drum—tight and resonant when tapped—but not stretched so tight that it warps the plastic hoop into an oval.

Material Specs & Hidden Consumables

Before you start, gather these "hidden" essentials that professionals use but manuals often forget:

• Medium-weight Cutaway Stabilizer: Do not use tearaway for this; it lacks the structural integrity to hold a patch.
• T-Pins: Essential for locking the stabilizer in place.
• Washi Tape or Painter's Tape: For temporary holding.
• Double-Sided Tape (6mm / 0.25 inch): The secret weapon for alignment.
• Water Soluble Pen: For marking registration lines.

The Hooping Procedure

1. Cut with Generosity: Cut your stabilizer with at least 3/4 inch (2 cm) of overhang beyond the hoop edge. This margin is your "safety handle."
2. The "Click" Test: Loosen your outer hoop screw. Place the inner hoop. Press down. You should not have to force it. If your knuckles turn white pressing it in, it is too tight—loosen the screw.
3. Tighten & Verify: Once seated, tighten the screw. Pull the stabilizer edges gently to remove slack. Tap the center. Listen: A dull thud means it's too loose. A sharp, rhythmic sound means you are ready.

The T-Pin Anchor Technique

A viewer asked, "What are the T-pins for?" Sweet Pea’s answer reveals a crucial mechanical insight: Slippage happens at the long edges.

When you remove the hoop from the machine to trim appliqué or fabric, the hoop flexes. T-pins prevent the stabilizer from creeping inward.

Action: Insert T-pins along the long inner edges of the stabilizer, pinning through the stabilizer and hugging the inner hoop wall.

Warning: The Rotary Danger Zone
T-pins and rotary cutters are a dangerous combination. When trimming your blocks later, if your rotary blade hits a steel T-pin, the blade can chip and send metal shards flying. Always retract your blade when setting it down, and scan for pin heads before every cut.

Checkpoint 1: The Prep Checklist

• Overhang: Stabilizer extends ~3/4 inch (2 cm) beyond all edges.
• Tension: Stabilizer is "drum tight" with no bubbles.
• Anchors: T-pins are inserted along the long inner edges (away from the stitching field).
• Registration: Vertical and horizontal center lines are marked clearly on the stabilizer.
• Hoop Screw: Tightened firmly, but the inner ring is not distorted.

Phase 2: Creation of the Window

Stitch your first block as normal. Now, remove the hoop from the machine, but do not un-hoop the stabilizer.

The Surgical Cut

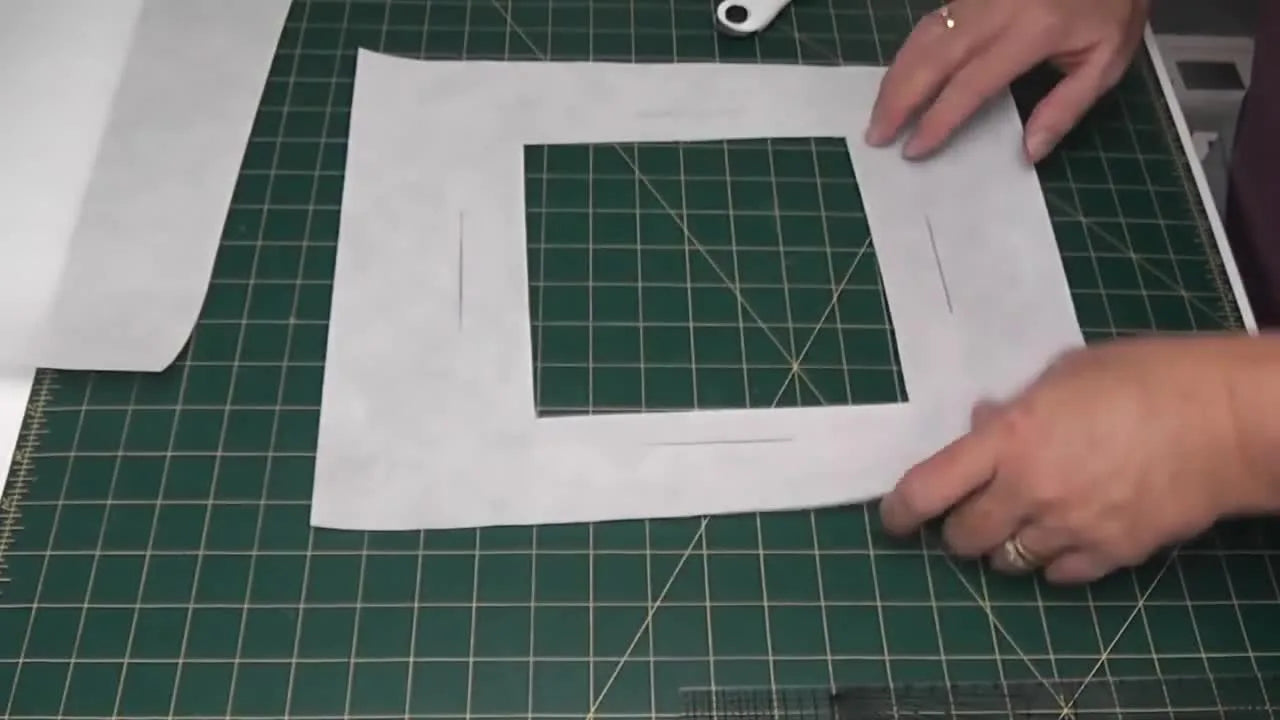

You are now going to cut the finished block out of the stabilizer, leaving a "window" behind.

1. Measure the Seam: Use a quilting ruler. You need to leave a 1/2 inch (12mm) lip of stabilizer inside the hoop area. This lip is where your patch will attach.
2. Corner Control: Don't try to cut a perfect 90-degree corner. Overcut past the corner by about 1/2 inch to ensure a clean release.

The result? Your finished block is free, and your hoop now holds a rectangular frame of stabilizer with a hole in the center.

Phase 3: The Patch (Adhesion Science)

Now you need to patch that hole with a fresh scrap of stabilizer. You have two options: Chemical Bond (Glue) or Mechanical Bond (Stitching).

Option A: Washi Tape (The "Quick & Dirty")

Place a scrap piece of stabilizer over the window. Secure corners with Washi tape.

• Pros: Fast.
• Cons: Week. Can shift if your needle density is high.




Option B: Washable Glue (The Humidity Risk)

The host demonstrates using Elmer’s washable school glue (purple type).

• Risk: In high humidity environments, school glue can remain "gummy" rather than drying tack-hard. This allows the patch to slide micro-millimeters during stitching, ruining registration.

Option C: The Professional Fix (Stitching)

This is the recommended method for durability.

1. Apply a small amount of glue or tape to hold the patch.
2. Take the entire hoop to your sewing machine.
3. Run a long straight stitch (Stitch Length 3.5mm - 4.0mm) down the center of the overlap area.


Why Stitching Wins: Tape and glue are temporary fixtures. Stitching creates a mechanical lock. If you are doing a production run of 20 blocks, this step prevents the "drift" that usually happens by block #5.

Phase 4: Re-Hooping with Precision (The Double-Sided Tape Trick)

Now for the magic trick. How do you get the inner hoop back into the outer hoop without the patch moving?

The "Pickup" Maneuver:

1. Flip your inner hoop upside down.
2. Apply 6mm Double-Sided Tape to the rim of the hoop.
3. Peel the backing (use a pin tip to catch the edge if you have no fingernails).
4. Align the inner hoop precisely over the marked lines on your new stabilizer patch.
5. Press down firmly.
6. Lift the hook. The stabilizer patch is now stuck to the hoop in the perfect position.




This eliminates the "hoop dance" where you try to chase the stabilizer around the table.

Checkpoint 2: Setup Checklist (Before Stitching Block #2)

• Flatness: The patch sits perfectly flat—no ripples or waves.
• Bond: The patch is mechanically secured (stitched or firmly glued).
• Tape Pickup: The double-sided tape successfully held the alignment during insertion.
• Clearance: The stitching area is clear of any tape or glue lumps that could deflect the needle.

Phase 5: Troubleshooting & The "Upgrade" Tipping Point

Why go through all this trouble? Because hooping perfectly takes time. However, there comes a point where the time spent patching exceeds the value of the stabilizer saved.

When to Stick with the Window Method:

• Hobby Projects: You have more time than budget.
• Quilting: You need perfect geometric alignment (6x6 squares).
• Material Shortage: You are running low on stabilizer at 11 PM on a Sunday.

When to Upgrade Your Tools (The "Pain" Trigger)

If you find yourself dreading the hooping process because of wrist pain, or if you are seeing "hoop burn" (shiny crushed rings) on velvet or dark cottons, the Window Method is only a partial cure.

The industry solution for these issues is the magnetic embroidery hoop.

Unlike traditional screw hoops that rely on friction and brute force, embroidery hoops magnetic use vertical magnetic force to clamp the fabric.

• Zero Hoop Burn: No friction ring.
• Speed: No unscrewing. Snap on, pull tight, snap off.
• Capacity: They handle thick towels and zippers that cause standard hoops to pop open.

The ROI Calculation: If you are producing batches of 50+ items, the 2 minutes saved per hoop with a magnetic frame pays for the tool in less than two jobs.

Warning: Magnetic Force Safety
Industrial-strength magnetic hoops are not fridge magnets. They carry a pinch hazard that can bruise fingers.
* Pacemakers: Keep these hoops at least 6 inches away from medical implants.
* Electronics: Store away from credit cards and smartphones.

Decision Tree: Troubleshoot Your Workflow

Use this logic flow to determine your next move when things go wrong:

1. Is the design shifting/gapping?
   • Yes: Your patch wasn't tight enough. Action: Use Option C (Sewing machine stitch) to lock the patch.
2. Is the inner hoop popping out?
   • Yes: You wrapped the stabilizer too thick at the corners. Action: Trim excess stabilizer from the corners of your patch.
3. Are you getting hoop burn marks?
   • Yes: You are over-tightening the screw. Action: Try floating the fabric on the stabilizer patch, OR upgrade to a magnetic hoop system.
4. Is alignment taking too long?
   • Yes: You are fighting physics. Action: Investigate a hoop master embroidery hooping station or similar alignment jig to standardize placement.

Q&A: Expert Answers to Common Comments

Q: "Do you just float the fabric on top?" A: Yes. Sweet Pea often floats projects. Floating is faster, but it relies entirely on the stabilizer being tight. If your patch is loose, floating will result in a messy design.

Q: "Can I use masking tape?" A: Be careful. Masking tape leaves a sticky residue on the needle which can cause thread shredding. Washi tape or specialized embroidery tape is safer.

Q: "Does this work with Tearaway?" A: No. Tearaway compromises the structural integrity of the "frame." Once you poke needle holes in tearaway, it weakens. Put tension on it, and the frame will disintegrate. Stick to Medium-weight Cutaway.

Q: "What is that Triple Stitch for batting?" A: The video shows joining batting scraps using a Triple Zig-Zag (often called a Tricot stitch).

• Why: A standard zigzag creates a ridge. A triple zigzag keeps the batting flat and pliable, perfect for quilting.


Conclusion: Smart Frugality

The goal of embroidery is a beautiful finished product, not a bin full of waste. By treating your stabilizer as a reusable frame, you gain control over your tension and your budget.

However, recognize the limits. If you are fighting with the hoop every single time, solving the problem might require a hardware change (like a magnetic hoop) rather than a technique change.

Checkpoint 3: Operations Checklist (Every Run)

• Patch Integrity: Verify the patch hasn't loosened after the last block.
• Needle Check: Is the needle getting gummy from tape/glue? Clean with alcohol if needed.
• Alignment: Double-check your center point before hitting "Start."
• Sound Check: Does the machine sound rhythmic? (Thump-thump-thump). If it sounds harsh (Clack-Clack), pause and check if the hoop is vibrating against the arm.

FAQ

• Q: How do I hoop medium-weight cutaway stabilizer for the Window Frame technique to avoid stabilizer drift in a 5x7 embroidery hoop?
  A: Hoop the cutaway “drum tight” with enough overhang, then lock the long edges so the master frame cannot creep.
  • Cut stabilizer with at least 3/4 inch (2 cm) overhang beyond the hoop edge before hooping.
  • Loosen the outer hoop screw until the inner ring seats without force, then tighten firmly without warping the hoop.
  • Insert T-pins along the long inner edges, hugging the inner hoop wall to prevent inward slippage.
  • Success check: Tap the hooped stabilizer—sound should be sharp and resonant (not a dull thud), and the surface should show no bubbles.
  • If it still fails… re-hoop slower and re-check that the hoop is not distorted into an oval from over-tightening.
• Q: Why does a tearaway stabilizer “frame” fail in the Window Frame technique when stitching repeated quilt blocks in a 5x7 embroidery hoop?
  A: Do not use tearaway for the Window Frame master frame because needle holes weaken tearaway and the frame can disintegrate under tension.
  • Switch to medium-weight cutaway stabilizer for the master frame so the window lip stays strong.
  • Keep the master frame hooped for the project and only patch the center window between blocks.
  • Success check: After the first block is cut out, the remaining stabilizer frame stays firm and does not split when gently tugged.
  • If it still fails… verify the stabilizer is truly cutaway (not soft tearaway) and that the hoop tension is “drum tight,” not loose.
• Q: How do I cut the stabilizer window after the first block without ruining the Window Frame master frame in a 5x7 embroidery hoop?
  A: Cut the finished block out while leaving a 1/2 inch (12 mm) stabilizer lip inside the hoop so the next patch has a strong landing zone.
  • Remove the hoop from the machine but do not un-hoop the stabilizer.
  • Measure and leave a consistent 1/2 inch (12 mm) lip all around the stitched area.
  • Overcut past each corner by about 1/2 inch to release cleanly instead of forcing a perfect 90° corner.
  • Success check: The stitched block lifts out cleanly and the remaining stabilizer frame is continuous with no accidental tears into the lip.
  • If it still fails… re-cut with a ruler for control and ensure the lip is not too narrow to support the patch.
• Q: How do I stop the stabilizer patch from shifting during stitching when using the Window Frame technique on repeated blocks?
  A: Use a mechanical lock by stitching the patch to the frame; tape or glue alone may allow micro-shifts and registration drift.
  • Place the patch over the window and hold temporarily with tape or a small amount of washable glue.
  • Take the hooped frame to a sewing machine and sew a long straight stitch (3.5–4.0 mm stitch length) down the center of the overlap area.
  • Keep the patch perfectly flat before stitching the next embroidery block.
  • Success check: The patch cannot slide when rubbed firmly by hand, and alignment stays consistent from block #2 onward.
  • If it still fails… check for glue staying gummy (often in high humidity) and switch to the stitched method every time for production runs.
• Q: How do I use 6 mm (0.25 inch) double-sided tape on an inner hoop to align a stabilizer patch accurately for the next block?
  A: Use the “pickup maneuver” so the inner hoop grabs the patch in the correct position before insertion into the outer hoop.
  • Flip the inner hoop upside down and apply 6 mm double-sided tape to the rim.
  • Peel the backing, then align the inner hoop precisely to the marked registration lines on the stabilizer patch.
  • Press firmly, lift the hoop, and insert it into the outer hoop without letting the patch shift.
  • Success check: The patch sits perfectly flat with no ripples, and the marked center lines remain square to the hoop.
  • If it still fails… remove and reapply tape and confirm no tape or glue lumps are in the stitching field that could deflect the needle.
• Q: What should I do if the inner embroidery hoop keeps popping out after patching the Window Frame stabilizer window?
  A: Reduce bulk at the corners because thick wrapped stabilizer can prevent the hoop from seating and cause pop-outs.
  • Trim excess stabilizer from the corners of the patch so the layered area is not bulky where the hoop clamps.
  • Re-seat the inner hoop without forcing it, then tighten the screw firmly.
  • Verify the patch is flat before starting the next block.
  • Success check: The inner hoop seats evenly all the way around and stays locked during a short test stitch.
  • If it still fails… re-check that the stabilizer overhang and patch overlap are not stacking multiple layers at one clamp point.
• Q: How can I prevent hoop burn marks on velvet or dark cotton when using a screw-tight embroidery hoop for repeated blocks?
  A: Back off over-tightening and reduce friction; if hoop burn and wrist strain persist, upgrading to a magnetic embroidery hoop is the next step.
  • Loosen the approach: seat the inner hoop without forcing it, then tighten only until stabilizer is drum tight (not enough to warp the hoop).
  • Try floating the fabric on the tight stabilizer patch to reduce fabric abrasion from repeated hooping.
  • Consider switching to a magnetic embroidery hoop if hoop burn and wrist pain are recurring, because magnetic clamping reduces friction rings.
  • Success check: After stitching, the fabric shows no shiny crushed ring and the design remains stable without shifting.
  • If it still fails… move to a magnetic hoop workflow for repeated batches, and standardize placement with an alignment station if setup time is the bigger issue.
• Q: What safety precautions should I follow when using T-pins with rotary cutting during the Window Frame stabilizer cutting step, and when handling industrial magnetic embroidery hoops?
  A: Treat T-pins and magnetic hoops as real hazards—prevent blade-to-pin contact and avoid pinch/medical/electronics risks with magnets.
  • Retract the rotary blade when setting it down and scan for T-pin heads before every cut to avoid striking steel.
  • Keep T-pins positioned along the long inner edges and away from the cutting path whenever possible.
  • Handle magnetic embroidery hoops slowly to avoid finger pinch injuries, and keep magnetic hoops at least 6 inches away from pacemakers and similar medical implants.
  • Success check: Cutting stays smooth with no blade nicks, and magnetic hoop handling causes no pinches or sudden snaps onto the frame.
  • If it still fails… remove pins before trimming or switch to a cutting method that keeps the blade path completely clear of any metal.
