Change Thread Colors in Creative DRAWings (Fill vs Outline) Without Ruining Your Stitch-Out

Master the Micro-Decision: A Professional’s Guide to Color Logic in Creative DRAWings

In my twenty years on the production floor, I have seen seasoned operators bring a $15,000 multi-needle machine to a grinding halt because of a single, localized error in the digitization phase. You might think changing a hat color from green to blue is a cosmetic tweak. It isn’t. In the world of machine embroidery, color data is instruction data.

When you change a color in Creative DRAWings, you are not just painting pixels; you are programming a sequence of "stops" and "trims" for your machine. A mis-click here doesn't just look wrong on screen—it can cause your machine to stitch an unwanted outline, increase needle penetration on delicate fabrics, or confuse your thread change sequence during a production run.

This guide is designed to move you from "guessing and clicking" to precision engineering. We will cover the software interface mechanics, but we will also bridge the gap to the physical reality of hooping, stabilization, and machine management.

The Cognitive Split: Why Your Software Has "Click Zones"

The frustration beginners feel with Creative DRAWings usually stems from a misunderstanding of the User Interface (UI). You click a color, but nothing happens. Or worse, an outline appears where you didn't want one.

Here is the mental model you need to adopt: The Color Swatch is not a button; it is a split-command console.

Every color block in your palette is divided diagonally by an invisible line. The software is waiting for you to tell it where to apply the thread:

1. The Fill (Bucket): The interior stitches that cover the fabric.
2. The Outline (Pen): The running or satin stitches that border the object.

If you treat the swatch as a single button, you are flipping a coin with your production quality.

Phase 1: The Pre-Flight Inspection (The "Hidden" Prep)

Before you even touch the thread palette, you must establish a clean baseline. In aviation, pilots walk around the plane before takeoff. in embroidery, we check our Selection State.

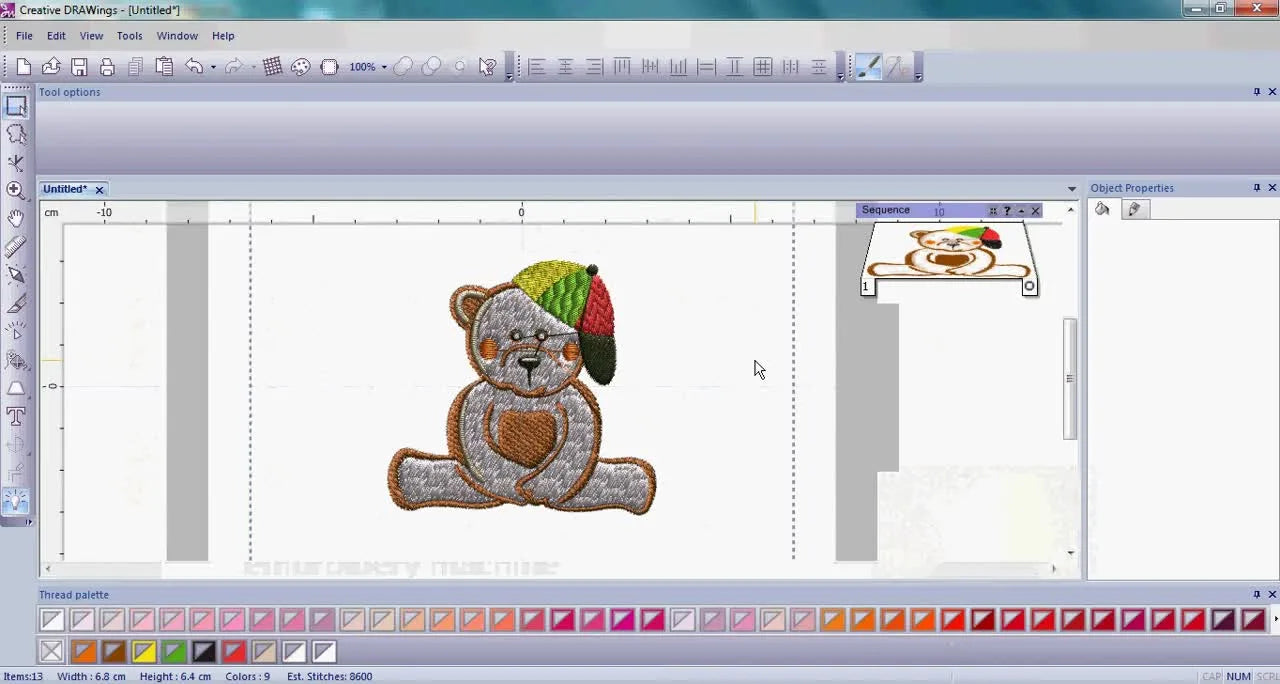

In the provided visual lesson, you are working on a teddy bear. Specifically, you want to change the hat from Green to Royal Blue.

The "Ghost Problem" Phenomenon

If you do not explicitly select the object first, the software ignores your palette clicks. This is a safety feature, not a bug. It prevents you from accidentally recoloring the entire design when you only meant to change a detail.

Action: The Selection Check

1. Visual Anchor: Look at the workspace. Left-click directly on the green section of the hat.
2. Sensory Confirmation: You should see the "bounding box" (the square handles) appear around only the hat. If the box surrounds the whole bear, you have selected the group. Click off, and try again.

Warning: Physical Safety Protocol
When transitioning from software planning to machine operation, never become so focused on the screen that you neglect physical safety. When the machine is running (even during a color paste or frame movement), keep hands at least 6 inches away from the needle bar. Modern servo motors are silent and fast; a 1000 SPM (Stitches Per Minute) needle impact can cause severe injury.

Prep Checklist: The Protocol

Perform these checks before every editing session.

• Object Isolation: Is the bounding box active only on the target area (the hat)?
• Current State Analysis: Does the object currently have an outline? (Look for the "X" in the Colors Used row—more on this below).
• Thread Inventory: Do you actually own the thread color you are about to select? (Don't program "Deep Sea Teal" if you only have standard "Royal Blue" on the rack).
• Version Control: Have you saved a backup file (e.g., Bear_Design_v1_Original.draw)?


Phase 2: Decoding the Dashboard ("Available" vs. "Used")

The bottom panel of Creative DRAWings is your telemetry system. It is divided into two distinct rows. Understanding this hierarchy is what separates a hobbyist from a production manager.

• Row 1 (Top): Available Thread Colors. This is your warehouse. It represents the potential universe of colors you can use.
• Row 2 (Bottom): Colors Used. This is your production schedule. This row dictates exactly how many times the machine will stop (on a single-needle) or switch needle bars (on a multi-need machine like a SEWTECH).

The Efficiency Rule: In a professional workflow, we obsess over the Bottom Row. If you see two different shades of blue in the "Colors Used" row that look nearly identical, you are forcing the machine to stop/switch unnecessarily. Consolidating these into a single "Used" color is a key optimization step.

Phase 3: The Iconography of Control (Bucket vs. X)

Look closely at the "Colors Used" row in the video. You will see tiny icons overlaying the color swatches. These are not decorations; they are status indicators.

• The Paint Bucket: This indicates the color is driving a Fill. The software is calculating density, underlay, and stitch angle for a solid area.
• The "X": This indicates Null Status for the Outline. It means "Do not stitch a border."


Why This Matters for Hooping

If you accidentally click the wrong zone and add an outline to a fill, you significantly increase the stitch count. On stable fabrics like denim, this might just look thick. However, if you are stitching on knitwear or performance fabrics, that accidental outline adds localized stress.

The Physics of Distortion: An unexpected outline on a t-shirt (without proper stabilization) usually causes "tunneling"—where the fabric pulls away from the fill, leaving a gap. This is often blamed on hoop tension, but the root cause was a software click.

Phase 4: The Precision Maneuver (The Click-Zone Secret)

This is the core technical skill of the lesson. You must learn to read your mouse cursor like a gauge.

The Hover Test (Sensory Feedback)

Move your mouse over the Royal Blue swatch in the Top Row. Do not click yet. Watch the cursor transform.

1. The Outline Zone (Top-Left):
   • Visual Anchor: The cursor transforms into a tiny Pen/Pencil.
   • Result: Assigns the color to the border.
2. The Fill Zone (Bottom-Right):
   • Visual Anchor: The cursor transforms into a tiny Paint Bucket.
   • Result: Assigns the color to the interior.




Executing the Change

To change the hat from Green to Royal Blue:

1. Ensure the hat is selected.
2. Locate Royal Blue in the top row.
3. Move the mouse to the Bottom-Right quadrant.
4. WAIT for the Paint Bucket icon to appear.
5. Left-Click firmly.

Immediate Feedback Check:

• Workspace: The hat turns blue.
• Palette: The Green swatch in the "Colors Used" row disappears and is replaced by Royal Blue.






Setup Checklist: Verification

Perform this immediately after the click.

• Visual Confirmation: Did the Fill change color?
• Negative Confirmation: Did an Outline appear? (If you see a thin blue line added to the edge, you clicked the wrong quadrant. Undo immediately.)
• Palette Hygiene: Is the old color (Green) gone from the "Colors Used" row? (Unless another part of the bear is still using it).

Phase 5: Repeatability and Flow (Changing to Turquoise)

The video demonstrates changing the color again to Turquoise. The process is identical. In manufacturing, we call this "Standard Operating Procedure" (SOP). The goal is to build muscle memory so your eyes look for the Bucket Icon instinctively.

Phase 6: The Physical Bridge (From Software to Reality)

Now that your file is clean, we must discuss where the digital design meets the analog world. A perfect file will still fail if your physical constraints—Hooping, Stabilization, and Environment—are ignored.

The Decision Tree: Match Your Tool to Your Fabric

Use this logic flow to determine your physical setup based on the design you just edited.

Step 1: Identify Fabric Substrate

• A. Stable (Denim, Canvas, Twill): Structure is provided by the fabric.
• B. Unstable (T-shirt Knit, Pique, Performance): Structure must be added.
• C. Dimensional (Terry Cloth, Fleece, Velvet): Texture fights the thread.

Step 2: select Stabilization

• If A: Tear-away is usually sufficient (Medium weight).
• If B: Cut-away is non-negotiable. (2.5oz or 3.0oz). You need permanent support to prevent the "Royal Blue" circle from becoming an oval.
• If C: You need a Water Soluble Topping (Solvy) to keep the stitches sitting on top of the pile.

Step 3: The Hooping Strategy (The Critical variable) The most common failure point for beginners is "Hoop Burn"—the shiny ring left on the fabric due to aggressive over-tightening of standard plastic hoops to secure a slippery garment.

• The "Drum Skin" Myth: While fabric needs to be taut, stretching it creates a boomerang effect. When you un-hoop, the fabric snaps back, and your perfect circle puckers.
• Tactile Check: The fabric should be taut enough that tapping it makes a dull thud, but not so tight that the weave is distorted.

Pro-Tip regarding magnetic embroidery hoop:
If you struggle with hoop burn or hand fatigue, many professionals transition to using an embroidery magnetic hoop. Unlike the friction-fit of standard hoops, magnetic frames clamp the fabric vertically. This allows you to hold thick items (like the teddy bear on a fleece jacket) or delicate items without crushing the fibers. They are the industry standard for minimizing "hooping trauma."

Warning: Magnetic Field Safety
magnetic embroidery hoops use rare-earth neodymium magnets. They are incredibly strong.
1. Pinch Hazard: They snaps together instantly. Keep fingers clear of the mating surfaces.
2. Medical Danger: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
3. Electronics: Do not place them directly on your laptop hard drive or credit cards.

Troubleshooting: Structured Logic

When things go wrong, do not guess. Follow this diagnostic table.

The "Hidden Consumables" of the Trade

Software tutorials rarely tell you what else you need on your desk. To execute this teddy bear design successfully, ensure you have:

1. Temporary Spray Adhesive (KK100/505): Essential for floating fabric or securing topping.
2. New Needles (75/11 Ballpoint): If stitching on knit/fleece. Sharp needles cut semantic fibers; ballpoints slide between them.
3. Appliqué Scissors/Snips: For trimming jump threads that the software might create during color changes.

Moving to Production: The Upgrade Logic

As you master color changing in Creative DRAWings, you will naturally speed up. Eventually, your bottleneck will shift from designing to stitching.

• Level 1 (The Skill Upgrade): You master the "Bucket Click" and stop making outline errors. Your designs look cleaner.
• Level 2 (The Tool Upgrade): You notice hooping takes longer than stitching. You invest in a hooping station for embroidery or magnetic frames to standardize your placement. This eliminates the "re-do" pile.
• Level 3 (The Capacity Upgrade): You realize swapping thread spools on a single-needle machine accounts for 40% of your labor time. This is when the best embroidery machine for beginners conversation shifts toward commercial multi-needle equipment (like SEWTECH models). These allow you to set the Royal Blue and Turquoise on Needles 1 and 2 once, and run 50 shirts without touching a spool.

Operation Checklist: The Final Go/No-Go

Complete this before hitting "Export" or "Save to Machine."

• Zone Verification: Confirm no inadvertent outlines were created (look for visual thickness on screen).
• Stop Count: Check the total number of color changes. Does it match the number of spools you are willing to change?
• Format Compatibility: Are you exporting to the correct language for your machine (DST, PES, EXP)?
• Simulator Run: Run the "Slow Redraw" or simulator in the software. Watch the virtual needle. Does it stitch the Blue Hat before the outline (if there was one)? Stitch order issues often happen during color edits.

Mastering the color palette in Creative DRAWings is about precision. It is the digital equivalent of threading a needle—it requires a steady hand and an understanding of the mechanics. Once you respect the "Click Zones," you turn a source of frustration into a tool of creativity.

FAQ

• Q: In Creative DRAWings, why does changing a thread color sometimes do nothing when clicking the palette?
  A: The most common cause is that the target object is not selected, so Creative DRAWings ignores the color click as a safety feature.
  • Click directly on the exact area to recolor (example: the green hat section), then look for a bounding box around only that part.
  • Click off the design and re-click if the bounding box surrounds the whole group (example: the entire teddy bear).
  • Click the new color again only after the correct bounding box is visible.
  • Success check: the workspace color changes immediately and the old color disappears (or reduces) in the “Colors Used” row.
  • If it still fails: undo, re-check selection state, and confirm the color is being applied to Fill (bucket), not Outline (pen).
• Q: In Creative DRAWings, how do I change a Fill color without accidentally adding an Outline (border) stitch?
  A: Use the hover “click-zone” test and only click when the cursor shows the Paint Bucket icon for Fill.
  • Select the target object first so the edit applies only to that part.
  • Hover over the chosen color swatch and wait for the cursor icon to change.
  • Move to the bottom-right quadrant of the swatch to get the Paint Bucket (Fill), then left-click.
  • Success check: the Fill changes color and no thin border line appears around the edge.
  • If it still fails: press Undo (Ctrl+Z) immediately and repeat the hover test until the bucket icon appears before clicking.
• Q: In Creative DRAWings, what do the Paint Bucket icon and the “X” icon mean in the “Colors Used” row?
  A: The Paint Bucket indicates a Fill stitch is active, and the “X” indicates the Outline is set to “no stitch” (null).
  • Look at the “Colors Used” (bottom row) because it reflects actual stitch instructions and machine stops/needle changes.
  • Treat the bucket as “this color will sew a filled area” and the “X” as “no border will be stitched.”
  • Use the icons to catch accidental outlines before exporting.
  • Success check: the design preview thickness matches expectations (no unexpected border density).
  • If it still fails: run a simulator/slow redraw and watch whether a border stitch appears where it should not.
• Q: When machine embroidery on knit T-shirts causes tunneling after a Creative DRAWings color change, what stabilizer choice fixes it?
  A: For knit/performance fabrics, switch to cut-away stabilizer (2.5oz or 3.0oz) and avoid stretching the garment during hooping.
  • Identify the fabric as unstable (knit, pique, performance) and treat cut-away as non-negotiable support.
  • Re-hoop without over-tightening; keep fabric taut but not distorted to prevent snap-back puckering.
  • Check whether an accidental outline was added during color editing, because extra stitches increase localized stress.
  • Success check: the fill area stays flat with no “ridge” or gap forming between fill and fabric after un-hooping.
  • If it still fails: re-check design for unintended outlines and add water-soluble topping if the surface is textured or pile-like.
• Q: How do I avoid hoop burn and fabric distortion when using standard embroidery hoops on slippery garments?
  A: Stop chasing the “drum skin” feel; hoop fabric taut with a dull thud on tap, but do not stretch or crush the fibers.
  • Reduce over-tightening and aim for firm, even tension rather than maximum tension.
  • Tap-test the hooped area: taut fabric gives a dull thud, not a high-pitched “tight drum” sound.
  • Re-hoop if the weave looks pulled or shiny before stitching.
  • Success check: after un-hooping, the fabric does not snap back and the stitched circle does not pucker.
  • If it still fails: consider switching to a magnetic embroidery hoop to clamp vertically and reduce hooping trauma.
• Q: What safety distance should operators keep from the needle bar during machine embroidery, especially during color changes or frame movement?
  A: Keep hands at least 6 inches away from the needle bar whenever the machine is running, because modern servo motors move fast and quietly.
  • Pause the machine fully before reaching near the needle area for thread or fabric adjustments.
  • Treat color paste/frame movement as “running time” and keep hands clear during those motions.
  • Maintain a consistent habit: eyes on the needle path, hands outside the danger zone.
  • Success check: no hand enters the needle-bar area while the machine is active, even briefly.
  • If it still fails: stop operation, reset workflow, and only resume after a deliberate safety check.
• Q: What are the key safety rules for using magnetic embroidery hoops with neodymium magnets in a professional shop?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from medical devices and sensitive electronics.
  • Keep fingers clear of mating surfaces because magnets can snap together instantly.
  • Keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Avoid placing magnets directly on credit cards or laptop hard drives.
  • Success check: magnets are handled with controlled placement (no snapping) and stored away from electronics/medical devices.
  • If it still fails: switch to a handling routine that separates parts on the table first, then bring them together slowly under full control.
• Q: When Creative DRAWings color edits increase production stops, how should a shop decide between technique optimization, magnetic hoops, or a multi-needle machine like SEWTECH?
  A: Start by reducing unnecessary “Colors Used” entries, then upgrade hooping if setup time dominates, and move to multi-needle when spool swapping becomes the main labor bottleneck.
  • Level 1 (Technique): Consolidate similar shades in the “Colors Used” row and prevent accidental outlines to reduce extra stitch time and stops.
  • Level 2 (Tooling): If hooping and re-do piles exceed stitching time, upgrade to magnetic hoops or a hooping station to standardize placement and reduce hoop burn.
  • Level 3 (Capacity): If thread spool swapping on single-needle work dominates the workflow, evaluate a multi-needle setup so multiple colors can stay loaded.
  • Success check: the total stop count matches the number of thread changes the operator is willing to manage per run, with fewer re-hoops/rejects.
  • If it still fails: run a simulator/slow redraw to confirm stitch order and verify needle-to-color mapping on the machine before committing to volume.
