Mastering Tension: The "Pilot’s Checklist" for Perfect Satin Stitches

If you run a multi-needle embroidery machine for real production, you already know the ugly truth: “close enough” tension is how you end up with thread breaks, looping, birdnesting, and a pile of rejected pieces.

In my 20 years on the production floor, I have seen more operators cry over tension issues than any other technical problem. The fear is real—you tweak a knob, the stitching gets worse, and you panic.

This Smartstitch tutorial is one of the rare short videos that actually shows a measurable, repeatable workflow using a TOWA digital gauge—so you can stop guessing and start standardizing. We are going to turn that fear into physics.

When Smartstitch thread tension goes sideways, don’t panic—measure it and you’ll get control back

The moment you see inconsistent satin columns, random breaks, or the underside looking messy, it’s easy to assume the design file is bad or the machine is “acting up.” Most of the time, the machine is simply telling you the tension balance has drifted.

Think of tension like the brakes on a car. If the brakes are too loose, the car (thread) flies out of control. If they are too tight, the car screeches to a halt (snap). A digital gauge turns that feeling into a number. That’s why this method is so valuable for shop owners: you can train staff, document targets, and get the exact same result across head 1, head 2, and head 15.

One note before we start: The video demonstrates targets in gram-force (gf) for this specific setup. In the industry, "perfect" is a range, not a single digit. Your exact number will vary based on thread weight (40wt vs 60wt), needle condition, and fabric thickness. Treat the numbers below as your "Sweet Spot" to start, but listen to your machine.

The tool layout that prevents false readings: TOWA gauge batteries, gf units, and a clean pull path

The video begins with the accessories laid out: the TOWA gauge, bobbin case, bobbin, batteries, and a small screwdriver.

Hidden Consumables: Before you start, grab a can of compressed air and an alcohol prep pad. Dust in the bobbin race or wax buildup on the tension discs will give you false readings. Clean your gear first.

What the video does (and why it matters)

1. Install Power: Insert three AAA batteries into the TOWA gauge.
2. Boot Up: Power on the gauge by holding the power button for about 2 seconds.
3. Calibrate Unit: Press the Unit button until the display shows gf.

That last step is critical. Some gauges measure in mN (millinewtons) or cN. If you are reading the wrong unit, you will set your tension dangerously tight without realizing it.

If you’re building a repeatable maintenance routine, keep the gauge in the same drawer as your bobbin-case screwdriver so it doesn’t become a "once-a-year" tool.

Prep Checklist (Do this BEFORE you touch the screw)

• [ ] Battery Check: Confirm the TOWA screen is bright and numbers aren't flickering.
• [ ] Unit Check: Screen must display gf.
• [ ] Clean Bill of Health: Blow out the bobbin case with compressed air; ensure no lint is trapped under the tension spring.
• [ ] Thread Path: Clear the table area so the thread doesn't snag on scissors or hoops while you pull.
• [ ] Body Mechanics: Prepare to pull using your elbow, not your wrist, for smooth consistency.


The “clockwise P-shape” bobbin install in a Smartstitch bobbin case—small detail, huge consequences

The video removes the bobbin and installs it into the bobbin case with a very specific orientation. This is the single most common mistake beginners make.

• The "P" Rule: Hold the bobbin up. The thread should hang off the right side, looking like the letter "P". If it looks like a "q", flip it over.
• The Click: Drop it in. Pull the thread through the slit. You should feel a tiny resistance as it slides under the tension leaf.
• The Pig Tail: Wrap the thread through the pigtail hook twice.




Why experienced operators obsess over bobbin direction

Bobbin direction changes how the thread feeds under the spring. If installed counter-clockwise, the rotation fights the natural feed, causing the thread to jump out of the tension spring at high speeds (1000+ SPM).

Also, those two turns through the pigtail hook are doing real work: they dampen the vibration. Without them, your TOWA gauge needle will bounce wildly, making it impossible to get a reading.

Warning: Sharp Edge Hazard. The tension screws on bobbin cases are often micro-machined and sharp. When applying force with the screwdriver, keep your support fingers clear. If the screwdriver slips, it can gouge your finger or burr the screw head, rendering the case useless.

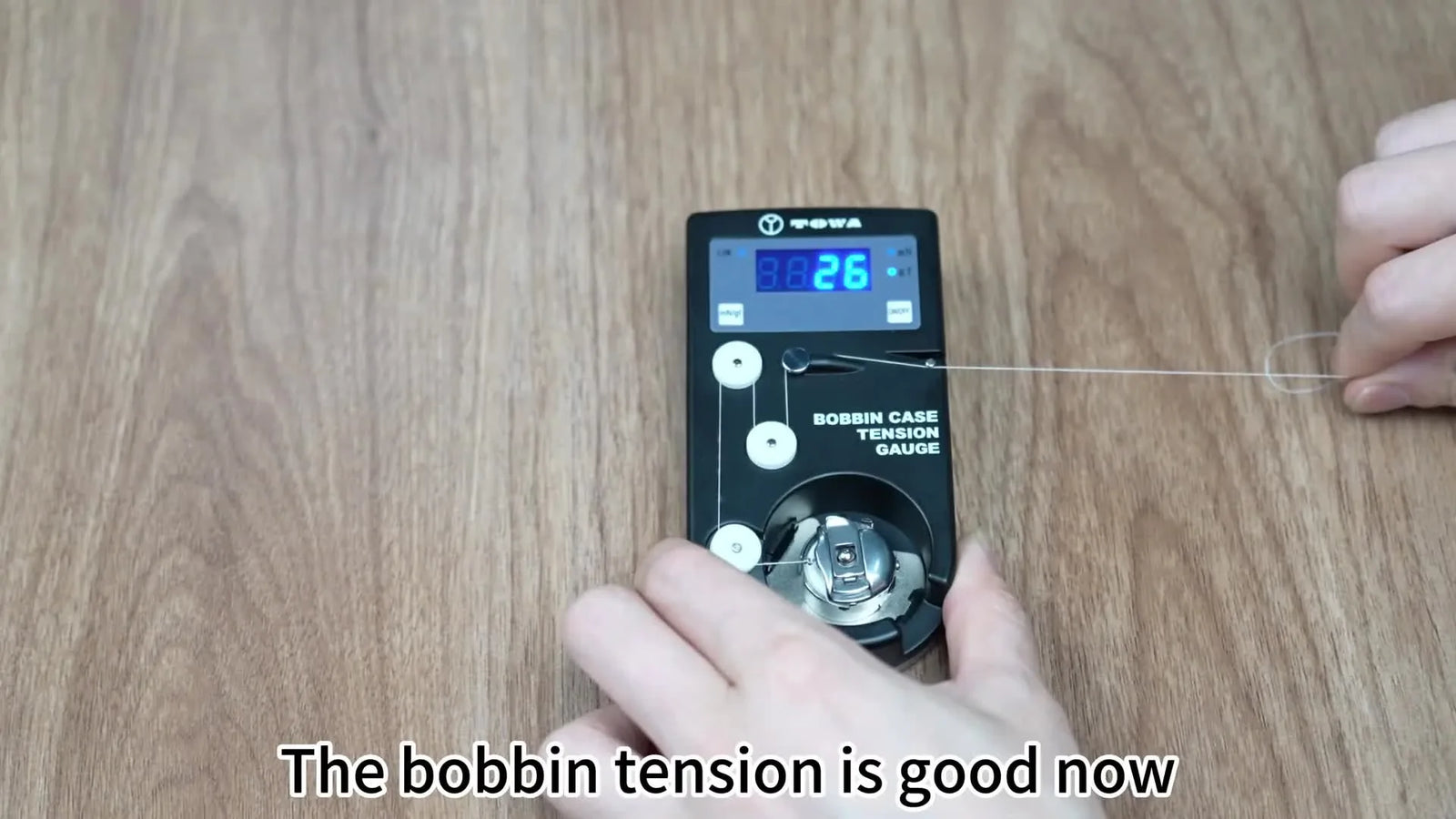

Getting a real bobbin tension number on a TOWA digital gauge: snap in, thread 1–2–3–4, pull steady

Now the bobbin case is mounted into the gauge receiver.

The video winds the bobbin thread around the gauge’s pulley path in the numbered order 1 → 2 → 3 → 4.

The physics that makes (or breaks) your reading

A tension gauge measures kinetic friction—resistance during movement.

• The Rookie Mistake: Pulling fast, then slow, then stopping.
• The Pro Move: Pull the thread away from the gauge at a steady pace, like you are slowly pulling a long piece of tape off a roll.

You are looking for the number that appears most frequently on the screen. Ignoring the initial "spike" when you start pulling, watch for the steady-state number.

The 25 gf bobbin case tension setting on Smartstitch: tiny screw turns, then re-measure

The video targets an ideal bobbin tension of about 25 gf.

Standard Industry Range: For L-style bobbins using 60wt thread, anywhere between 22 gf and 25 gf is generally safe.

• Below 18 gf: Too loose. You will see loops on top of the garment.
• Above 30 gf: Too tight. The bobbin thread will snap, or you will see zero white thread on the back of the design.

To adjust:

1. Locate the larger flat-head screw on the bobbin case. (Ignore the tiny Phillips screw; that simply holds the spring on).
2. Lefty Loosey: Turn counter-clockwise to lower the number.
3. Righty Tighty: Turn clockwise to raise the number.






What “tiny adjustments” really means in a shop

Think of the screw like a clock face. Move it 5 minutes at a time.

1. Tweak the screw.
2. Pull 6 inches of thread to clear the "memory."
3. Measure again.

Pro Tip: If the screw turns too easily, vibrates loose during sewing, or feels "gritty," the bobbin case is dead. Replace it. A $15 part isn't worth ruining a $50 hoodie.

The Smartstitch touchscreen move that everyone misses: “Open upper thread hold” before measuring top tension

This is the most critical "hidden" step. If you skip this, your numbers are a lie.

Before measuring upper thread tension on a multi-needle machine, you must mechanically release the tension discs. The video navigates to:

• Shortcut Menu → Face thread hold action → Open upper thread hold function

You should hear a mechanical clunk or click. This is the sound of the tension discs separating and the solenoid disengaging.

Why this matters (and why people get bad numbers)

If the machine is in "Hold" mode, the thread is clamped. If you pull on it with the gauge:

1. You might bend the needle bar.
2. You will get a "Max Limit" reading.
3. You aren't measuring the spring tension; you're measuring the machine's locking force.

If you’re running a shop, put a sticky note on the screen: "UNLOCK BEFORE MEASURING."

Setting upper thread tension to 55–65 gf on a Smartstitch multi-needle head: measure, then turn the knob with intention

With the upper thread routed through the gauge pulleys, the video pulls to measure. The target range shown is 55–65 gf.

Analysis: This is on the lower (looser) end of the spectrum, which is excellent for delicate fabrics or reducing puckering. Many industrial machines run closer to 100-110 gf for rayon thread. However, Smartstitch machines are calibrated for this 55-65 gf range. Stick to this baseline first.

To Adjust:

• Locate the main tension knob on the head.
• Clockwise: Tightens (Numbers go UP).
• Counter-Clockwise: Loosens (Numbers go DOWN).








Setup Checklist (so your upper tension numbers actually translate to stitch quality)

• [ ] Release Check: Confirm you heard the machine unlock the thread tension discs.
• [ ] Presser Foot: Ensure the presser foot is UP (on some machines, this affects the aux tension).
• [ ] Pathing: Is the thread properly seated in the check spring? (The little wire that bounces).
• [ ] The Feel: When you pull, it should feel consistent, like pulling dental floss. If it "ratchets" or jerks, check for a thread groove worn into the plastic guides.
• [ ] Target: Dial it in to 55–65 gf.

If you’re using the smartstitch 1501, this specific range is your "Safe Mode." It prevents the thread from snapping due to high-speed friction.

The sew-out truth test: flip the hoop and use the 1/3 rule on the backing before you declare victory

Numbers get you close, but the fabric tells the truth. The video runs a satin stitch logo test (the letter "S") and flips the hoop to inspect the underside.

The Golden Rule: The 1/3 Ratio Inspect the back of a satin column (a thick letter or bar):

• Left 1/3: Color thread.
• Middle 1/3: White bobbin thread.
• Right 1/3: Color thread.




Why the 1/3 rule is the shop owner’s best friend

• If you see ALL color: Your top tension is too loose (or bobbin too tight). The top thread is diving to the bottom.
• If you see ONLY white (skinny line): Your top tension is too tight. It's pulling the bobbin thread up to the top surface (you'll see white specks on your design).

Action: Adjust your Top Tension knob 1/2 turn at a time until you see the 1/3 split.

Quick fixes you can trust: symptoms → likely cause → the exact adjustment shown in the video

Don't guess. Use this logic flow to solve problems in under 2 minutes.

The “don’t get fooled” pro tips

1. Velocity Matters: If your readings bounce by +/- 20 gf, you are pulling too jerkily. Smooth it out.
2. The False Positive: If you hit the numbers but the stitch looks bad, change the needle. A burred needle shreds thread regardless of tension.
3. The Material Factor: Thick caps require higher top tension than thin polo shirts.

Stabilizer and hooping choices that keep your tension calibration honest (and stop fabric from lying to you)

Tension numbers are only meaningful if the fabric is held consistently. If the fabric shifts, stretches, or tunnels (flagging), you’ll blame tension when the real culprit is your hooping technique.

Decision Tree: Fabric behavior → Stabilizer/Backing approach

1. Is the fabric a Stable Woven? (e.g., Denim, Twill, Canvas)
   • Stabilizer: Tearaway is usually sufficient.
   • Hoop: Standard plastic hoops work well if tightened correctly.
2. Is the fabric Stretchy or Unstable? (e.g., T-Shirts, Performance Polos, Knits)
   • Stabilizer: Cutaway is mandatory. Without it, the design will distort.
   • Hoop: Do not over-stretch! The fabric should be "neutral" in the hoop.
3. Is the fabric Bulky or Difficult to Clamp? (e.g., Carhartt Jackets, Thick Towels)
   • Stabilizer: Heavy Cutaway + Water Soluble Topper (to keep stitches high).
   • Hoop: This is where a magnetic embroidery hoop becomes a production savior.

Standard hoops require physical hand strength to force the rings together, which can cause "Hoop Burn" (crushed fibers) on delicate items. A magnetic hoop snaps shut with vertical force, holding the fabric firmly without the friction burn.

Warning: Magnetic Field Hazard. Magnetic hoops use industrialstrength neodymium magnets. They can pinch fingers severely (blood blister risk) and can interfere with Pacemakers or ICDs. Keep them at least 6 inches away from implanted medical devices.

The production upgrade path: when a hooping station and magnetic frames pay for themselves

Once your tension is standardized, the next bottleneck is operator fatigue and hooping speed.

If you are a hobbyist doing one robe a week, standard hoops are fine. If you are doing an order of 50 left-chest logos, your wrists will scream.

Understanding the Upgrade Logic:

• The Problem: Crooked logos or inconsistent placement on shirts.
  • The Level 1 Fix: Use water-soluble marking pens and rulers.
  • The Pro Upgrade: A hooping station ensures every shirt is loaded at the exact same spot, reducing "re-do" costs to zero.
• The Problem: Wrist pain and slow changeovers.
  • The Level 1 Fix: Practice efficient motion.
  • The Pro Upgrade: Investing in a hooping station for embroidery generally cuts load times by 30-40%.
• The Problem: Thick seams causing hoop "pop-off."
  • The Solution: A magnetic frame for embroidery machine. Because it doesn't rely on friction fitting inside a ring, it can clamp over zippers and seams that standard hoops simply cannot handle.

Many shops start with the hoop master embroidery hooping station system because it integrates placement logic with the physical holding power of magnetic frames, solving the two biggest variables (placement and grip) simultaneously.

Operation Checklist: the repeatable routine that keeps Smartstitch tension stable week after week

Do not wait for a disaster. Perform this "Pre-Flight Check" every Monday morning.

• [ ] Zero the Scale: Ensure the TOWA gauge is set to gf.
• [ ] Bobbin Protocol: Install bobbin (Clockwise check), wrap pigtail 2x.
• [ ] Bobbin Value: Measure -> Adjust screw -> Validate 22–25 gf.
• [ ] Machine Prep: Navigate to touchscreen -> Open upper thread hold function.
• [ ] Top Value: Measure -> Adjust knob -> Validate 55–65 gf.
• [ ] The 1/3 Test: Sew a satin letter "H" or "I". Flip it. Confirm the white bobbin column is 1/3 of the width.

If you’re seeing online discussions about the smartstitch embroidery frame or the heavy-duty smartstitch mighty hoop upgrades, remember: tools are only as good as the technician using them. Get your tension numbers right first. Once your tension is calibrated, those advanced hoops will allow you to run faster and cleaner, turning your headache into profit.

FAQ

• Q: What consumables and pre-checks should be done before measuring Smartstitch bobbin tension and upper thread tension with a TOWA digital gauge?
  A: Clean and verify the TOWA gauge setup first, or the tension numbers can be misleading (this is common—don’t worry).
  • Confirm: Install 3×AAA batteries, power on, and set the unit to gf before any measurement.
  • Clean: Blow out the bobbin case/bobbin area with compressed air and wipe wax/oil residue with an alcohol prep pad.
  • Clear: Remove anything that can snag thread during the pull (scissors, hoops, tools) and keep a straight pull path.
  • Success check: The reading settles to a repeatable number (not wildly bouncing) when pulling smoothly.
  • If it still fails: Change the needle and re-check for lint under the bobbin tension spring or worn/grooved thread guides.
• Q: How should a Smartstitch bobbin be installed in the bobbin case to prevent incorrect tension readings and high-speed thread issues?
  A: Install the bobbin in the correct “P” direction and wrap the pigtail hook twice to stabilize feeding.
  • Verify: Hold the bobbin so the thread hangs on the right like a letter “P” (if it looks like “q,” flip the bobbin).
  • Thread: Pull the thread through the slit so it slides under the tension leaf with slight resistance.
  • Wrap: Loop the thread through the bobbin-case pigtail hook two times to dampen vibration.
  • Success check: The thread pulls smoothly with light, consistent resistance and the gauge reading does not bounce wildly.
  • If it still fails: Re-seat the thread under the spring (lint can lift it) and confirm the bobbin is not reversing direction in the case.
• Q: What is the correct Smartstitch bobbin case tension range on a TOWA digital gauge, and how do you adjust the bobbin screw safely?
  A: A safe starting target is 22–25 gf (about 25 gf in the demo), adjusted in tiny screw movements and re-measured.
  • Measure: Route the thread through the TOWA path 1 → 2 → 3 → 4 and pull at a steady speed to find the steady number.
  • Adjust: Turn the larger flat-head screw only—counter-clockwise lowers gf, clockwise raises gf; move about “5 minutes on a clock” per change.
  • Re-test: Pull several inches of thread after each tweak, then measure again.
  • Success check: The bobbin tension repeatedly measures in the 22–25 gf range without spikes after the initial pull.
  • If it still fails: Replace the bobbin case if the screw feels gritty, turns too easily, or won’t hold tension during sewing.
• Q: Why must the Smartstitch touchscreen setting “Open upper thread hold function” be enabled before measuring upper thread tension with a TOWA digital gauge?
  A: Because Smartstitch can clamp the thread in “Hold” mode, and measuring while clamped gives false “too high” readings and risks damage.
  • Navigate: Use Shortcut Menu → Face thread hold action → Open upper thread hold function before pulling with the gauge.
  • Listen: Wait for the mechanical click/clunk that indicates the tension discs released.
  • Measure: Only after release, route thread through the gauge and pull smoothly for a stable reading.
  • Success check: The machine audibly unlocks and the gauge no longer shows an extreme/“max limit” style reading when pulled.
  • If it still fails: Re-check that the presser foot is up (on some setups this affects tension behavior) and confirm the thread is correctly seated in the path/check spring.
• Q: What upper thread tension should be targeted on a Smartstitch multi-needle embroidery head when using a TOWA gauge, and which knob direction changes the gf number?
  A: Use 55–65 gf as the Smartstitch baseline and adjust the main tension knob intentionally (clockwise increases, counter-clockwise decreases).
  • Measure: Pull steadily and ignore the initial spike—use the most frequent steady number.
  • Adjust: Turn the main tension knob clockwise to raise gf, counter-clockwise to lower gf.
  • Validate: Sew a small satin test after dialing in the range.
  • Success check: The reading repeatedly lands in 55–65 gf and the sew-out underside passes the 1/3 rule (see below).
  • If it still fails: Replace the needle first; a burred needle can shred thread even when tension numbers look correct.
• Q: How do you confirm Smartstitch tension is truly correct after gauge settings using the satin stitch “1/3 rule” on the back of the hoop?
  A: Use the underside of a satin column as the final truth test: color/white/color across the width in roughly equal thirds.
  • Sew: Run a satin letter test (like an “H,” “I,” or the demo-style satin letter).
  • Flip: Inspect the back of a satin column.
  • Adjust: If the back is all color, tighten top tension (or loosen bobbin); if only white shows, loosen top tension.
  • Success check: The back shows left 1/3 color thread, middle 1/3 white bobbin, right 1/3 color thread.
  • If it still fails: Re-check bobbin tension is still 22–25 gf and confirm the upper thread is actually seated in the tension discs.
• Q: How do you fix Smartstitch birdnesting under the throat plate and loops on top using the Smartstitch tension workflow?
  A: Match the symptom to the fastest correction—most of the time it’s a threading/tension-disc seating issue, not a “bad design.”
  • Fix loops on top: Turn the top tension knob clockwise and aim toward 65 gf.
  • Fix white thread showing on top: Turn the top tension knob counter-clockwise and aim toward 55 gf.
  • Fix birdnesting under the throat plate: Re-thread and ensure the thread “snaps” into the tension discs before sewing.
  • Success check: The sew-out runs without clumps under the plate and the underside satin columns move toward the 1/3 rule.
  • If it still fails: Confirm the machine was set to Open upper thread hold function before measuring and change the needle to rule out burr-related shredding.
• Q: What safety precautions should be followed when adjusting a Smartstitch bobbin case tension screw and when using magnetic embroidery hoops in production?
  A: Prevent injury first: bobbin screws can cut fingers, and magnetic hoops can pinch hard and may affect implanted medical devices.
  • Protect hands: Keep support fingers clear when turning the bobbin-case screw—slips can gouge skin or burr the screw head.
  • Control force: Make small adjustments instead of forcing the screwdriver; stop if the screw head starts to deform.
  • Handle magnets carefully: Keep fingers out of the closing gap and keep magnetic hoops at least 6 inches away from pacemakers/ICDs.
  • Success check: Adjustments are completed without slipping tools, pinched fingers, or damaged screw heads, and the hoop closes without trapping fabric unevenly.
  • If it still fails: Replace the bobbin case if the screw is damaged, and slow down hoop loading until the magnetic clamp motion is consistent.
