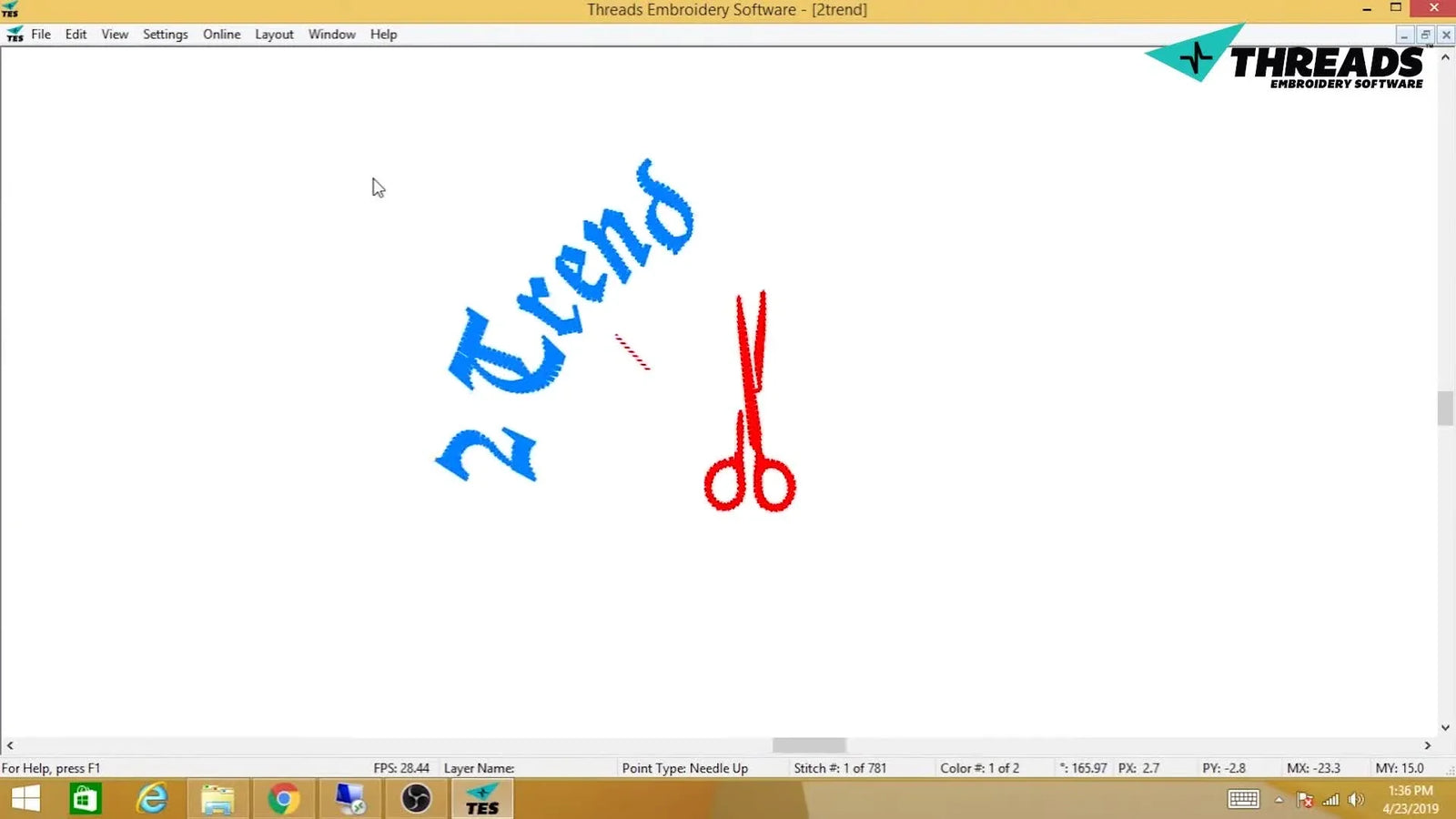

Digitize a Scissors Logo in Threads Embroidery Software: Clean Satin Columns, Smooth Nodes, and Text That Actually Arcs

Master Class: From "Screen Perfect" to "Stitch Perfect" – A Production Digitizer’s Guide

When you’re digitizing a logo for real customers, the hard part isn’t just “making stitches” appear on a screen. It’s making stitches that run cleanly on physical fabric, at 700+ stitches per minute, without puckering, breaking thread, or turning your satin into a jagged mess.

This guide rebuilds a rapid-fire software tutorial into a production-ready workflow. We are using a commercial-style logo—a red scissors icon with circular text (“Trendingtools 2”)—as our case study. While the video demonstrates Threads Embroidery Software, the lessons here apply to your craft, your hands, and your machine.

I will walk you through this not just as a software user, but as an embroidery veteran, pointing out the sensory checks, the safety margins, and the equipment upgrades that separate a hobbyist experiment from a sellable product.

Calm the Panic: What This Threads Embroidery Software Logo File Is Really Teaching You

The video moves fast, but it’s unintentionally showing you the three pillars of Industrial Control. Beginners often panic when they see complex tools, but we are only doing three things here:

1. Defining Boundaries (Manual Plotting): Telling the machine exactly where to stop to prevent "fuzzy" edges.
2. Controlling Flow (Node Types): Using math (arcs) instead of brute force (clicks) to make curves smooth.
3. Balancing Aesthetics vs. Speed (Lettering): Knowing when to hand-stitch a letter for beauty, and when to use a tool for speed.

If you are building a business, treat this not as a drawing lesson, but as a lesson in Stitch Geometry. If the geometry is bad, no amount of expensive stabilizer will save you.

The “Hidden” Prep Before You Plot a Single Node (Raster Cleanup + Size Reality Check)

The video jumps straight into plotting, but in my shop, we never touch the mouse until we’ve done a Physical Reality Check. The screen lies; it has no friction and no gravity.

From the sidebar measurements, the scissors element is roughly 20mm wide. In the physical world, a 20mm satin column is manageable, but anything narrower than 1.5mm is a "danger zone" for needles, and anything wider than 7mm risks snagging unless you use a split satin.

Expert Prep Routine:

1. The 100% Zoom Rule: Never digitize zoomed out. Zoom in until you see the rough pixels of the background image. If you chase every pixel zigzag, your machine will stutter. You must visualize the smooth line that exists through the pixels.
2. The Hidden Consumables Check: Before you start, do you have the right tools?
   • Needles: A fresh 75/11 Sharp (for wovens) or Ballpoint (for knits).
   • Adhesive: A can of temporary spray adhesive (like KK100) if you are floating fabric.
   • Marking: A water-soluble pen or chalk—never a permanent marker.
3. Production Planning: Are you making one accurate sample, or 50 shirts? If you are scaling up, your digitizing determines your profit. A file with too many trims (jump stitches) adds minutes to every run.

In high-volume shops, we also check our holding equipment. If your fabric slips, your digitization is wasted. A consistent hooping workflow—often built around hooping stations—is the secret weapon that ensures the coordinates you set on screen land in the same spot on the shirt, every time.

Prep Checklist (do this before digitizing)

• Size Verify: Is the smallest satin column at least 1.5mm wide?
• Fabric Match: Have you decided on Cutaway (for knits) or Tearaway (for stable wovens)?
• Vector Mental Map: Ignore the pixel stairs; plan the smooth curve in your head.
• Machine Prep: Is your bobbin area clean? (A clear "click" when inserting the bobbin case is mandatory).


Plot the Scissors Handles in Threads: Fewer Nodes, Cleaner Satin, Less Rework

In the video, the digitizer activates the Point Plotting Tool to trace the scissors. Watch closely: they are not clicking every millimeter.

The Golden Rule of Digitizing: Fewer nodes equal smoother embroidery.

Every time you place a node (a click), you are telling the embroidery machine to slightly adjust its X/Y motors. Too many adjustments create "chatter"—a vibration you can actually hear.

• Bad Sound: A harsh, grinding "Vrr-Vrr-Vrr" on curves.
• Good Sound: A smooth, rhythmic hum.

What to do: Place anchor points only at the "peaks" and "valleys" of the curve. Let the software handle the connection. Your outline should "hug" the silhouette gently, not strangle it.

Warning: Mechanical Safety. When test-sewing these designs, keep your hands away from the needle bar! A machine running at 800 SPM (Stitches Per Minute) cannot stop instantly. Never use your fingers to brush away a loose thread while the machine is active.

The Curve-Smoothing Trick: Normal vs Column vs Arc Column Node Types (And When Each One Wins)

At 00:43, the digitizer right-clicks nodes to change their properties to Column or Arc Column. This is the difference between an amateur "stop-sign" shape and a professional "circle."

The Physics of the Node:

• Normal Nodes: Creates straight lines. Good for the sharp tips of the scissors.
• Arc Column Nodes: Calculates a mathematical curve. This allows the machine to flow without decelerating.

Expert Action: If your preview looks jagged, do not add more points. Instead, delete points and switch the remaining ones to "Arc Column."

Why this matters: When a needle attempts to sew a jagged curve at high speed, the needle creates "deflection"—it bends slightly. This leads to needle breaks and thread shredding. Smooth curves keep your needles straight and your production running.

Color Configuration: Set the Scissors to Red Without Losing Your Object Control

The video shows selecting the object and using the Color Palette to switch to red.

Operational Intelligence: On the screen, red is just a color. On your machine, a color change is a Stop Command.

• Single-Needle Machines: Every color change requires you to walk to the machine, re-thread it, and restart.
• SEWTECH Multi-Needle Machines: Use color changes to assign specific needles. The machine handles it automatically.

Tip: Group all your "Red" objects together in the sequence window. You want the machine to sew all the red parts of the scissors at once before stopping to switch to the black text. This "sequencing" saves massive amounts of time.

Manual Lettering for “Trendingtools 2”: When Custom Satin Columns Beat Any Font

The video manually digitizes the gothic-style letters using the Column Tool. This is tedious, but necessary for logos.

The "Why": Pre-built keyboard fonts often look terrible when arched or manipulated for logos. Manual columns give you control over the Stitch Angle.

• Visual Check: Look at the "wireframe" lines. They should run perpendicular to the column.
• Sensory Check: When stitched, these columns should feel slightly raised and smooth, like a ribbon. If they feel flat or rough, your density is too low or your underlay is missing.

The Hooping Connection: Detailed manual lettering is unforgiving. If your fabric is loose in the hoop (drum-head loose), these beautiful columns will warp. Imagine drawing a straight line on a crumpled piece of paper—impossible. This is why many professionals standardize their process using a specific embroidery hooping system. It removes human error, ensuring the fabric tension is identical whether you hoop it at 9 AM or 5 PM.

Node Editing on Letters: Fix the “Bumpy Satin” Before It Ever Hits the Machine

The video shows zooming in to refine the "e".

The "Fingernail Test": If you run your fingernail over a finished satin stitch, it should glide. If it catches or clicks, you have "jagged rails." This happens when your nodes are not aligned.

Fix it now: Use the node editor to pull the control handles until the preview looks like liquid. If it looks bumpy on screen, it will look ten times worse on thread.

Make Circular Text Behave: Curving “Trendingtools” Around the Scissors Without Warping the Letterforms

Bending text is risky. The video uses the Warp/Arc Tool.

The Push/Pull Compensation Reality: Physics dictates that stitches pull in (shorten) in the direction of the stitch and push out (widen) perpendicular to it.

• Inside the Curve: Stitches bunch up. This can become a "bulletproof" knot that breaks needles.
• Outside the Curve: Stitches fan out. This exposes the fabric underneath.

Expert Fix:

• Slightly increase the spacing between letters before arcing.
• If the text is small (under 5mm), use a simple running stitch or a very light density satin.

Wireframe Reality Check: Read the Structure Like a Mechanic, Not an Artist

The wireframe view creates an "X-Ray" of your design.

What to look for: Look for "Cross-overs" or "Fish-tails" inside the turns. If the stitch lines cross over each other inside the satin column, that is a thread break waiting to happen. The lines should flow like water in a pipe—parallel and smooth.

Arc Column for the Bottom Curve: Use the Right Tool Instead of Fighting the Shape

Using the Arc Column tool for the lower text path.

Consistency is King: Ensure the width of the bottom text column matches the top text exactly. The human eye is excellent at spotting asymmetry. Use the measurement tool to verify the column width is consistent (e.g., 3.5mm throughout).

Replicate Elements Faster: “Paste Section to Point” for Consistency (and Fewer Human Errors)

The video uses Paste Section to Point.

Efficiency Strategy: Never digitize the same thing twice. If the logo has symmetrical parts, digitize one perfectly, then copy-paste-flip/rotate. This guarantees mathematical symmetry and saves you 50% of the labor.

Add the Tagline Fast: Threads Text Tool Settings That Matter (Height + Spacing)

The digitizer types “Hair Supplier” with specific settings: Height 20.75 mm, Spacing 1.00.

The Balance: For small taglines (under 6mm height), do not use satin. Use a "Running Stitch" or "Triple Bean" stitch. Satin stitches that are too small result in a bulky, unreadable mess.

• Rule of Thumb: If the letter is smaller than a grain of rice, stick to running stitches.

Setup Decisions That Prevent “It Looked Fine on Screen” Disasters (Density, Underlay, Pull)

The video ends, but the work isn't done. You must configure the physics engine of the stitch file.

Underlay: The Foundation Think of underlay as the foundation of a house.

• Center Run: Use for narrow columns (2-3mm).
• Edge Run: Use for wider columns (3mm+) to lift the edges.
• Zig-Zag: Use for large areas to hold the fabric down.

Pull Compensation: This is the "magic number." Most software allows you to add "Pull Comp."

• Standard Material: Add 0.2mm - 0.3mm.
• Stretchy Knit (Polo/T-shirt): Add 0.4mm.
• Why? The thread pulls the fabric tight. If you digitize a 3mm column without compensation, it will sew out as 2.6mm, creating gaps.

Setup Checklist (before you export a stitch file)

• Underlay Check: Is Edge Run enabled on the satin scissors handles?
• Jump Stitch Check: Are trims minimized? (Group red objects, group black objects).
• Density Limits: Is the density around 0.40mm - 0.45mm? (Going lower to 0.30mm packs too much thread and causes stiffness).
• Pull Comp: Is at least 0.2mm compensation active?

A Stabilizer Decision Tree for Logos Like This (So Your Satin Doesn’t Ripple)

Digitizing is only 50% of the battle. The other 50% is Stabilization. Use this decision tree:

Decision Tree: Fabric → Stabilizer Approach

1) Is the fabric stretchy (T-shirt, Performance Polo, Beanie)?

• Yes: CUTAWAY Stabilizer. No exceptions. Tearaway will allow the designs to distort over time.
• No (Denim, Canvas, Towel): Go to step 2.

2) Is the fabric textured (Towel, Fleece, Pique Polo)?

• Yes: Use a Water Soluble Topping (Solvy) on top to prevent stitches from sinking. Plus Cutaway/Tearaway on back.
• No: Standard backing applies.

3) Is it a lighter woven shirt (Dress shirt)?

• Yes: TEARAWAY or a lightweight Cutaway (Mesh/No-Show) to prevent a heavy "badge" feel.

Where this ties into workflow upgrades: If your carefully planned stabilizer shifts during hooping, you lose. Many shops reduce that variability by standardizing hooping with an embroidery hooping station so the fabric tension is repeatable from operator to operator.

Troubleshooting: Symptoms → Likely Cause → Fix (Digitizing-First Thinking)

When things go wrong, don't blame the machine immediately. Use this matrix:

Operation Habits That Save Your Machine (and Your Reputation) When You Test-Sew Logos

Once you export and stitch a test sample, treat it like a scientific test run.

1. The Speed Sweet Spot: Do not run your machine at max speed (1000+ SPM) on the first test. Start at 600-700 SPM. This matches the friction heat to a controllable level.
2. The Tension Check: Look at the back of the embroidery. You should see 1/3 bobbin thread (white) in the center of the satin column, with top thread on the sides.
3. The Thread Path: Ensure the thread cone is feeding straight up. A tangled feed causes erratic tension.

If you are running multi-needle production (or planning to), digitizing cleanly is what lets you run faster without constant stops. That’s where high-productivity equipment can matter: a multi-needle platform like a SEWTECH machine is often chosen when you need throughput and consistent color changes, but it only pays off when your files (and skills) are stable.

Operation Checklist (during the first stitch-out)

• Sound Check: listen for the rhythmic hum. Any "slapping" or "grinding" means stop immediately.
• Centering: Is the needle starting exactly where you marked the crosshair?
• Watch the Trim: Does the machine cut cleanly between the scissors and the text? If not, adjust the "Trim Sensitivity" in software.

The Upgrade Path: When Better Hooping Tools Make Your Digitizing Look “Magically” Better

Digitizing is precision work, but embroidery is a physical, forceful process. If your stitch-outs vary wildly between shirts, the fastest "quality upgrade" is often not software—it's Hooping Hardware.

If you are fighting "hoop burn" (the ring left by standard hoops) or finding it impossible to hoop thick garments like Carhartt jackets, the issue isn't your skill—it's the limitations of screw-tightened hoops.

• Level 1 (Technique): Use stronger stabilizer and loosen your grip.
• Level 2 (Tool Upgrade): For many, the answer lies in upgrading to a magnetic embroidery hoop, which holds fabric firmly without the 'drum-head' distortion of traditional screw hoops. These clamps slide effortlessly over thick seams and zippers that break plastic hoops.
• Level 3 (Production Upgrade): If you’re scaling to batches, pairing consistent hooping with a dedicated magnetic hooping station can reduce setup time per piece by 40% and make your digitizing results more predictable.

There is a slight learning curve, so take a moment to research how to use magnetic embroidery hoop properly to ensure the magnets trap the backing securely.

Warning: Magnetic Safety. Magnetic hoops use powerful Neodymium magnets. They can pinch skin severely if they snap together. Keep them at least 6 inches away from pacemakers, insulin pumps, and magnetic media (credit cards/hard drives). Always slide them apart; do not try to pull them apart.

Final Render Check: What “Ready for Export” Should Look Like in Threads

The video ends on a full rendered view of the complete logo.

Before you hit export, ask the "Three Final Questions":

1. Is it safe? (No stitch columns wider than 7mm or narrower than 1mm).
2. Is it efficient? (Colors grouped, trims minimized).
3. Is it beautiful? (Curves are smooth, spacing is even).

If you build that habit, you’ll spend less time "fixing after the fact," and more time delivering logos that stitch cleanly the first time. That is the difference between a digitizer and a production specialist.

FAQ

• Q: What consumables and pre-checks should be ready before digitizing and test-stitching a logo in Threads Embroidery Software on a single-needle embroidery machine?
  A: Use a small “production prep kit” before plotting nodes, because the screen cannot reveal friction, gravity, or fabric shift.
  • Install a fresh 75/11 Sharp needle for wovens or 75/11 Ballpoint for knits.
  • Confirm a temporary spray adhesive is available if fabric will be floated, and use a water-soluble pen/chalk for marking (avoid permanent marker).
  • Clean the bobbin area and re-insert the bobbin case until a clear “click” is felt.
  • Success check: the bobbin case seats with a distinct click and the first test run sounds smooth (a rhythmic hum, not chattering).
  • If it still fails: slow the first stitch-out to 600–700 SPM and re-check threading/tension before changing digitizing settings.
• Q: How can a digitizer verify satin column sizing in Threads Embroidery Software to avoid needle breaks and snagging on a commercial logo?
  A: Keep satin columns out of the “danger zone” and split wide satins so the design is mechanically safe to sew.
  • Measure the narrowest satin: keep it at least 1.5 mm wide (narrower is risky for needles).
  • Watch wide satin behavior: anything wider than about 7 mm may snag unless a split satin approach is used.
  • Digitize at true detail: zoom to 100% so decisions follow the intended smooth curve rather than pixel “stairs.”
  • Success check: the preview shows smooth rails without jagged turns, and the machine sews curves with a steady hum (no “Vrr-Vrr-Vrr” chatter).
  • If it still fails: delete extra nodes and convert key curve nodes to Arc Column instead of adding more points.
• Q: How do Arc Column node types in Threads Embroidery Software reduce thread shredding and needle breaks on curved satin shapes like scissors handles?
  A: Use Arc Column nodes to let the machine flow through curves instead of stuttering through many tiny direction changes.
  • Place fewer nodes at curve peaks/valleys, not every millimeter.
  • Right-click and switch curve nodes to Arc Column for mathematically smooth arcs; keep Normal nodes for sharp tips.
  • Avoid “fixing” jagged previews by adding points; remove points and smooth the remaining ones.
  • Success check: stitched curves look round (not stop-sign faceted) and the machine sound is smooth and rhythmic instead of grinding on curves.
  • If it still fails: reduce speed for the test sew and inspect the wireframe for cross-overs/fish-tails inside turns.
• Q: What is the correct tension success standard for a first stitch-out on a multi-needle embroidery machine like a SEWTECH multi-needle machine (or a single-needle machine)?
  A: Use the back-of-design ratio as the pass/fail standard before blaming the file.
  • Start the first test at 600–700 SPM (not max speed) to keep heat/friction controllable.
  • Inspect the underside of satin: aim for about 1/3 bobbin thread showing in the center, with top thread wrapping the sides.
  • Check thread feeding: ensure the thread cone feeds straight up without tangles that cause erratic tension.
  • Success check: the underside shows the 1/3 bobbin-thread “stripe,” and the stitch-out runs without slapping/grinding sounds.
  • If it still fails: re-thread with the presser foot UP and confirm the thread is seated in the take-up lever path.
• Q: How do you stop birdnesting under the needle plate on an embroidery machine when stitching a newly exported logo file?
  A: Re-thread correctly first, because birdnesting is commonly caused by an upper-threading mistake or loose top tension.
  • Re-thread the machine with the presser foot UP so tension disks open and the thread seats properly.
  • Verify the thread is in the take-up lever (missing this often causes immediate nesting).
  • Check bobbin orientation and that the bobbin is inserted correctly for the machine.
  • Success check: the loud “crunching” under the plate disappears and the underside no longer forms a tangled thread wad.
  • If it still fails: stop immediately, remove the nest, clean the area, and restart the test at a slower speed before adjusting advanced settings.
• Q: How do you fix embroidery puckering around a satin logo on knit shirts using cutaway stabilizer and correct hoop tension?
  A: Treat puckering as a stabilization/hooping problem first: use cutaway on stretchy knits and hoop with consistent “drum-skin” tension.
  • Choose CUTAWAY for stretchy fabric (T-shirts, performance polos, beanies); avoid tearaway for knits.
  • Re-hoop for firm, even tension (drum-skin feel), and keep fabric from shifting during the run.
  • Add a water-soluble topping on textured fabrics (like pique or fleece) to prevent sinking, while still stabilizing the back appropriately.
  • Success check: the fabric lies flat around the logo with no ripples after stitching and the satin edges stay clean.
  • If it still fails: evaluate whether the fabric is slipping during hooping and consider upgrading the holding method (often a magnetic hoop reduces variability).
• Q: What needle-bar safety rules should operators follow when test-sewing a logo at 800 stitches per minute on an embroidery machine?
  A: Keep hands away from the needle bar and never try to brush away loose thread while the machine is running.
  • Stop the machine fully before removing thread tails or clearing trims near the needle.
  • Reduce speed for first tests (600–700 SPM) to improve control during troubleshooting.
  • Listen actively and stop on abnormal sounds (slapping/grinding) before reaching into the sewing area.
  • Success check: the operator never reaches near the needle during motion, and the test run completes without emergency hand interventions.
  • If it still fails: pause, power down if needed, and correct the issue (thread path, trim behavior, hoop security) before resuming.
• Q: What magnetic hoop safety precautions should be followed when using a magnetic embroidery hoop for thick garments and to reduce hoop burn?
  A: Treat magnetic hoops as powerful pinch hazards and keep them away from medical implants and magnetic media.
  • Slide magnets apart—do not pull them straight apart—to prevent sudden snapping and skin pinches.
  • Keep magnetic hoops at least 6 inches away from pacemakers, insulin pumps, credit cards, and hard drives.
  • Focus on secure trapping of fabric and backing so the stabilizer does not shift during stitching.
  • Success check: the hoop closes without snapping onto fingers and the garment holds firmly without a shiny friction ring (hoop burn) after stitching.
  • If it still fails: slow down the handling process and review hooping technique to ensure the backing is captured evenly before starting the run.
