Raw Edge Appliqué That Actually Holds: The 3-Ply Bean Stitch Workflow (and the Trimming Margin That Saves You)

Raw edge appliqué is popular for a reason: it’s fast, forgiving, and creates that intentionally distressed, rustic aesthetic that looks incredible on casual wear, vintage-style collegiate gear, and team jerseys. But let’s be honest about the brutal truth: because you are not hiding the edge under a dense satin border, your structural engineering has to be flawless.

In standard appliqué, the satin column is your safety net—it hides rough cutting and locks down the edges. In raw edge appliqué, there is no safety net. The tack-down stitch is the only thing standing between a beautiful garment and a frayed mess that unravels in the washing machine.

If you’ve ever watched a raw edge design start to "tunnel" (lift in the middle), warp the fabric, or lose its shape after one wash, it is rarely "bad fabric." It is almost always a failure of physics in one of three areas:

1. The Stitch Mechanics: The tack-down path wasn't digitized with enough structural integrity.
2. The Hooping Physics: The fabric wasn't stabilized against the "push and pull" of the needle.
3. The Cutting Geometry: You trimmed too close, compromising the fiber weave.

This guide rebuilds D.J. Anderson’s proven workflow into a "shop-floor-ready" standard operating procedure. We will move beyond theory into the sensory details—what to feel, hear, and see—to ensure you can repeat this technique confidently, whether you are stitching a single gift on a home machine or running a 50-piece order on a SEWTECH multi-needle production horse.

Raw Edge Appliqué vs. Standard Appliqué: Why Skipping the Satin Border Changes Everything

To master raw edge, you must first unlearn the habits of satin appliqué. They are not the same beast.

• Standard Appliqué (The Sandwich): Focuses on containment. You have a placement line, a tack-down, and then a dense satin border (zigzag) that encapsulates the raw edge. You trim close to the tack-down (1mm-2mm) so the satin covers everything.
• Raw Edge Appliqué (The Anchor): Focuses on grip. You rely on only two layers: a placement stitch and a hefty tack-down stitch. There is no cover-up. The tack-down must act like a barbed-wire fence, gripping the fabric fibers tightly enough to prevent the weave from undoing itself, while allowing the edge to fray artistically.

The Golden Rule: In raw edge work, the tack-down stitch does 100% of the heavy lifting. If this stitch is weak, the project fails.

The “Hidden” Prep Pros Don’t Skip: Artwork Visibility, Fabric Plan, and a Clean Workspace

Before you even touch your digitizing software, you need to clear your mental and physical workspace. Seasoned digitizers know that "visual noise" leads to mistakes.

D.J. begins by hiding the artwork image layer (the bitmap) once the basic tracing is done. This sounds purely cosmetic, but it serves a critical function: it forces you to look at the stitch path, not the pretty picture behind it. Beginner mistakes—like gaps in the outline or crossed nodes—are often camouflaged by the background image.

Hidden Consumables:

• Duckbill Scissors: While standard scissors work, having a pair of appliqué (duckbill) scissors dramatically increases your control during the trimming phase.
• Temporary Adhesive (Spray or Tape): Vital for holding the appliqué fabric flat during the placement phase.


Prep Checklist (Do this before you digitize)

• Project Scope: Confirm you are building raw edge appliqué (no satin border objects created).
• Visual Clarity: Hide or dim the background artwork layer. You need to see the "skeleton" of your design clearly.
• Fabric Strategy: Decide on your "Fray Factor."
  • Stable Woven (Canvas/Denim): Clean, slow fray.
  • Looser Weave (Flannel/Linen): Wild, fast fray.
• Workflow Plan: Verify you can force a machine stop between placement and tack-down layers.
• Tool Station: Place your sharpest scissors (preferably duckbill) within arm's reach.

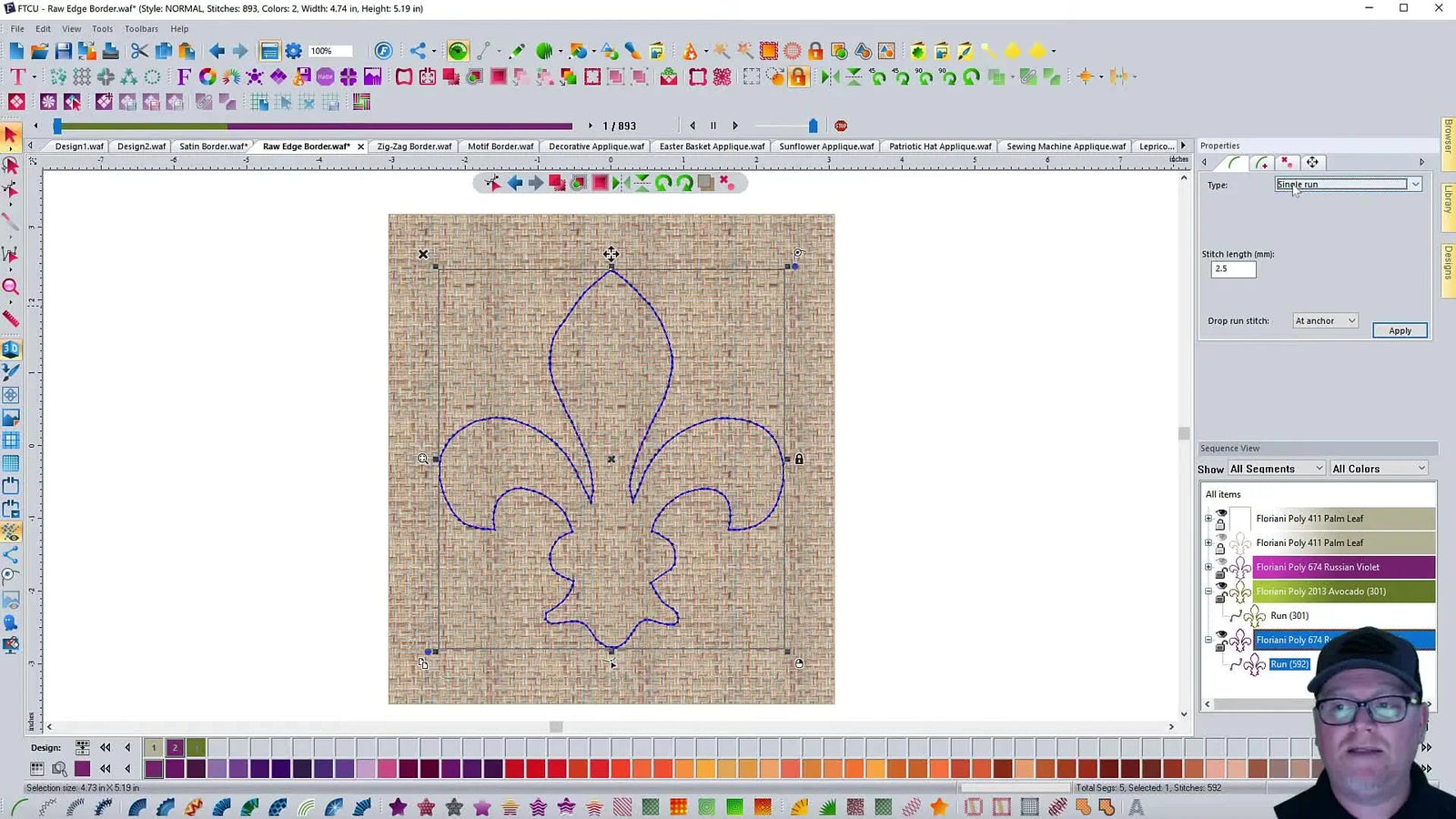

Placement Stitch (Single Run): Trace the Shape for Accurate Fabric Positioning—Not Perfection

The placement stitch is simply your "chalk line." It tells you exactly where on the sweatshirt or tote bag the appliqué fabric must land. D.J. uses a Single Run stitch tool to manually trace the outline of the fleur-de-lis.

The Mental Shift:

1. Precision vs. Coverage: You don't need microscopic precision on the curves here. You need absolute clarity on the area to be covered.
2. Stitch Length Sweet Spot: Keep your run stitch length around 2.5mm to 3.0mm. Too short, and you perforate the backing unnecessarily; too long (>4mm), and curves become blocky polygons.

The goal here is alignment. This line will eventually be covered by the appliqué fabric, so it doesn't need to be bulletproof—it just needs to be accurate.

The Smart Duplicate Move: Copy/Paste the Placement Line to Build a Perfectly Matched Tack-Down

Here is where amateurs often stumble: they try to re-trace the outline for the tack-down (second) layer. Do not do this. Manual re-tracing introduces human error—tiny deviations where the tack-down doesn't perfectly overlay the placement stitch.

The Pro Move:

1. Select your finished Placement Stitch object.
2. Copy and Paste it directly in place.
3. Change the color immediately.

This guarantees that your "Anchor" (tack-down) follows the exact mathematical path of your "Chalk Line" (placement). When working with raw edges, even a 1mm deviation can lead to an edge that looks sloppy or fails to catch the fabric.

Force the Machine Stop: Color Change (and Manual Stop on Multi-Needle Machines)

This is the most critical workflow step. You must force the embroidery machine to pause so you can safely place your fabric.

For Single-Needle (Home) Machines: Simply changing the color in the software (e.g., from Red to Blue) is sufficient. The machine will stop and ask for a thread change. You don't actually have to change the thread if you don't want to, but the stop is what you need.

For Multi-Needle (Commercial) Machines: A color change instruction commands the machine to move to the next needle, but it might not stop if it's programmed to flow continuously. You must insert a "Stop" or "Frame Out" command in your digitizing software or directly on the machine's control panel.

The Safety Factor: If the machine doesn't stop, panic sets in. Beginners often try to slide fabric under a moving needle to "save" the run.

Warning: NEVER attempt to place or adjust appliqué fabric while the needle is reciprocating. A standard embroidery machine runs at 600–1000 stitches per minute. That is 10 to 16 punctures per second. You cannot react faster than the needle. Always ensure the machine has come to a complete, full stop before your hands enter the hoop area.

The Make-or-Break Setting: Convert the Tack-Down to a 3-Ply Bean Stitch (Forward-Back-Forward)

Standard run stitches are weak. They sit on top of the fabric. For raw edge appliqué, you need a stitch that digs into the weaves. D.J. converts the tack-down object from a standard run to a Bean Stitch (3-ply).

The Physics of the Bean Stitch: Unlike a triple run (which sometimes just means three parallel lines), a true Bean Stitch executes a specific motion: Forward 1 step $\rightarrow$ Backward 1 step $\rightarrow$ Forward 1 step.

• Why it works: This back-and-forth motion creates a heavy, knotted rope effect. It creates a robust physical barrier that locks the horizontal and vertical threads of the fabric weave (the warp and weft) together.
• Sensory Anchor: When your machine is running a Bean Stitch, listen to the rhythm. It won't sound like the smooth hummmm of a satin stitch. It will have a distinct, rhythmic thump-thump-thump sound. This is the sound of the needle penetrating the same coordinate multiple times. It is the sound of security.

Expert Parameter Adjustment:

• Stitch Length: D.J. suggests leaving this in the 2.5mm to 3.0mm range.
• Caution: If you make a Bean Stitch too short (e.g., 1.5mm), the triple penetration can create so many holes that it acts like a perforation line on a stamp, causing your fabric to tear right at the seam. Keep it above 2.5mm for safety.


Hooping and Fabric Placement: The 0.5" Overlap Rule That Prevents Missed Tack-Down

Now we leave the digital world and enter the physical realm of the machine.

D.J.’s Physical Workflow:

1. Foundation: Hoop your garment/background fabric.
2. Blueprint: Run the Placement Stitch (Single Run).
3. The Pause: Machine stops (color change).
4. The Placement: Apply your appliqué fabric.
5. The Anchor: Run the Tack-Down (Bean Stitch).

The 0.5" (12.7mm) Safety Zone: When you lay your appliqué fabric over the placement line, don't be stingy. Ensure the raw fabric extends at least 0.5 inches past the stitch line in every direction.

why? When the Bean Stitch starts, the "forward-back" motion exerts significant pull on the fabric. If your overlap is tiny, the fabric can "creep" under the foot and pull inside the line, leaving a gap. That 0.5" is your margin of error against fabric physics.

If you struggle with alignment—perhaps you can't tell if the fabric is straight—this is where learning hooping for embroidery machine technique becomes vital. The hoop provides the tension, but your placement provides the look.

Setup Checklist (Right before you hit Start)

• Tension Check: The hooped background fabric should sound like a drum when tapped. Loose fabric = puckering.
• The Hard Stop: Verify the machine is programmed to stop after the placement stitch (check your color sequence).
• Fabric Allowance: The pre-cut appliqué piece is large enough to cover the placement line with 0.5" excess on all sides.
• Adhesion: Did you use a light spray adhesive or tape? (Recommended prevents the appliqué fabric from shifting).
• Bobbin: Check your bobbin level. You do not want to run out of bobbin thread halfway through the Bean Stitch.

Trimming for the Distressed Look: Leave 0.25" (6mm) on Purpose—Don’t “Trim Like Satin Appliqué”

After the heavy Bean Stitch is complete, remove the hoop from the machine (do not un-hoop the garment yet!) and move to a flat table for trimming.

The Magic Number: 0.25 Inches (6mm) In satin appliqué, we trim as close as possible (1-2mm). In raw edge, if you trim that close, the fabric will unravel past the stitch line within two wash cycles, and the appliqué will fall off.

You must leave a buffer. D.J. recommends 0.25 inch (approx 6mm).

• Why 0.25"? This provides enough fabric length for the fibers to fray and "bloom" without the fray reaching back to the stitch line. It creates the distressed look safely.
• Sensory Check: As you cut, you should feel the scissors gliding through the fabric, not crunching against the thread. If you feel the metal blades hitting the thread knots, you are too close! Back off.


The “Why” Behind the Hold: Hooping Tension, Fabric Behavior, and Why Raw Edge Exposes Weakness

Raw edge appliqué is unforgiving of poor mechanics. It exposes every weakness in your process.

Why Hooping Consistency is King

Because there is no wide satin column to cover mistakes, any shifting of the stabilizer or garment results in ugly puckering (the "bacon effect") around the design.

• The Test: Pull gently on your background fabric once hooped. It should have zero give. If it slides, your hoop is too loose.
• The Upgrade: For those doing volume, a hooping station for machine embroidery helps standardize tension and placement, ensuring that “Shirt #50” looks exactly as crisp as “Shirt #1.”

Why the 3-Ply Bean Stitch is the Only Choice

Strength isn't just about thread count; it's about locking. A standard run stitch sits on the surface. A Bean Stitch uses that "forward-back" motion to cinch the fabric down. It creates a structural ridge that prevents the fraying from traveling further inward.

Trimming Margin as a Structural Component

That 0.25" margin isn't just aesthetic; it's structural. Think of it like the foundation of a house. If you dig the dirt away right up to the wall (trimming too close), the foundation becomes unstable. Leave the dirt (fabric) there to support the wall (stitch).

Troubleshooting Raw Edge Appliqué: Symptoms → Causes → Fixes

Identify the failure mode to apply the correct fix quickly.

Operation Flow You Can Repeat (Home or Production): Placement → Stop → Cover → Tack-Down → Trim

This is the rhythm of a successful production run. Memorize this loop.

1. Load: Hoop background fabric + stabilizer.
2. Run 1: Stitch Placement Line (Single Run).
3. STOP: Machine pauses (Color Change).
4. Place: Apply appliqué fabric (Spray/Tape to hold). 0.5" Overlap.
5. Run 2: Stitch Tack-Down (Bean Stitch).
6. Unload & Trim: Remove hoop, trim fabric to 0.25" margin.
7. Finish: Un-hoop and steam.


Operation Checklist (End-of-Run Quality Assurance)

• Stitch Integrity: Is the Bean Stitch uniform, without looped threads?
• Gap Check: Are there any spots where the fabric pulled away from the stitch?
• Trim Width: Is the raw edge consistent (approx 0.25") all the way around?
• Flatness: Does the design sit flat, or is the background fabric rippled? (Ripples = Hooping issue).

Fabric + Stabilizer Decision Tree for Raw Edge Appliqué

The wrong combination guarantees puckering. Use this logic tree to make safe choices.

A) What is your background fabric?

• Stiff / Woven (Denim, Canvas, Twill):
  • Risk: Low stretch.
  • Solution: Tear-away stabilizer (Medium weight, 2.5oz) is usually sufficient.
• Stretchy / Knit (T-Shirt, Hoodie, Jersey):
  • Risk: High stretch. The Bean Stitch will distort the fabric.
  • Solution: Cut-away Stabilizer (PolyMesh or 2.5oz) is mandatory. Do not use Tear-away on knits for appliqué.

B) What is your desired finish?

• Controlled "Clean" Fray: Use woven cotton or twill for the appliqué.
• Wild "Vintage" Fray: Use flannel or linen. Warning: Leave a slightly wider trim margin (0.3") for these fabrics.

The Hooping Upgrade Path: When Magnetic Hoops and Hooping Stations Start Paying You Back

Raw edge appliqué involves a significant amount of manual labor—loading, stopping, placing, and unloading. If you are doing this for profit, your efficiency bottlenecks will quickly become hooping time and hand fatigue.

Level 1: The Hooping Station (Accuracy)

If you find your appliqué is constantly crooked, human error is the culprit. A hooping station for embroidery (like the HoopMaster system) helps you align the garment mechanically. It ensures that "Chest Left" is in the exact same spot on every shirt, reducing the time you spend measuring and guessing.

Level 2: Magnetic Hoops (Speed & Safety)

Traditional screw-tighten hoops are notorious for "hoop burn" (crushing the fabric fibers, leaving a permanent ring) and causing wrist strain (Carpal Tunnel is a real risk for embroiderers).

Terms like magnetic embroidery hoops are your gateways to understanding efficient production. These hoops use powerful magnets to clamp the fabric without the need for force-tightening a screw.

• The Benefit: They handle thick items (like Carhartt jackets or heavy hoodies) effortlessly.
• The Pivot Point: If you are producing runs of 20+ items, the time saved per hoop load (often 30-60 seconds) pays for the hoop in a few jobs. Check out compatible frames for your machine (Ricoma, Tajima, Brother, etc.).

Warning: Magnetic Safety
Magnetic hoops use industrial-strength magnets (often Neodymium).
* Pinch Hazard: Keep fingers clear of the snapping zone. They can pinch skin severely.
* Medical Safety: Keep away from pacemakers.
* Electronics: Keep away from magnetic storage media and phone screens.

Level 3: Multi-Needle Volumetrics (Profit)

If you are running a single-needle machine, every color change and trim is a manual intervention. Upgrading to a SEWTECH Multi-Needle Machine allows you to preserve your sanity. You can program the stops, utilize larger hoops for full-back appliqué designs, and stitch at higher speeds (up to 1000-1200 SPM) while maintaining quality.

One Last Reality Check: Raw Edge Appliqué Is Simple—But It’s Not Lazy

D.J. Anderson framed it perfectly: Raw edge works because it follows set rules, not because it cuts corners.

1. Placement: Single Run.
2. Tack-Down: 3-Ply Bean Stitch.
3. Overlap: 0.5 inches.
4. Trim: 0.25 inches.

Follow the math, respect the physics of the fabric, and you will produce retail-quality vintage wear that lasts.

FAQ

• Q: Why did a multi-needle embroidery machine not pause between raw edge appliqué placement stitch and tack-down stitch after a color change?
  A: Add an explicit STOP/Frame Out command because a color change on a commercial multi-needle machine may advance needles without pausing.
  • Insert: Program a “Stop” or “Frame Out” after the Placement Stitch in the digitizing software or on the machine control panel.
  • Verify: Keep Placement and Tack-down as different colors so the pause point is clearly separated in the design sequence.
  • Success check: The machine comes to a complete full stop after the placement outline and waits before starting the Bean Stitch.
  • If it still fails: Review the machine’s “continuous run” settings and confirm the stop command is actually saved in the stitch file.
• Q: How do I digitize a raw edge appliqué tack-down stitch strong enough to survive washing without a satin border?
  A: Convert the tack-down to a 3-ply Bean Stitch and keep the stitch length in the 2.5–3.0 mm range.
  • Duplicate: Copy/Paste the Placement Stitch path to create a perfectly matched tack-down outline (do not re-trace by hand).
  • Convert: Change the tack-down stitch type to Bean Stitch (3-ply forward-back-forward).
  • Set: Keep stitch length around 2.5–3.0 mm; avoid very short lengths that can perforate and weaken fabric.
  • Success check: The machine sound becomes a rhythmic “thump-thump-thump,” and the tack-down feels like a firm ridge gripping the fabric.
  • If it still fails: Check that the tack-down is truly Bean Stitch (not a single run) and confirm stabilizer choice matches the garment fabric.
• Q: How much fabric overlap is required over the placement line in raw edge appliqué to prevent missed tack-down stitches?
  A: Cover the placement line with at least 0.5 inch (12.7 mm) of extra appliqué fabric on all sides before running the Bean Stitch.
  • Cut: Pre-cut the appliqué piece oversized so every edge extends 0.5" past the stitched outline.
  • Secure: Use light temporary adhesive spray or tape to prevent the fabric from creeping during the forward-back motion.
  • Success check: After tack-down, there are no gaps where the fabric pulled inside the stitch line.
  • If it still fails: Increase holding method (more secure taping/spray) and re-check hoop tension for slipping.
• Q: What trimming margin should be left for raw edge appliqué after the Bean Stitch to avoid complete unraveling?
  A: Trim to a consistent 0.25 inch (about 6 mm) margin—do not trim like satin appliqué.
  • Remove: Take the hoop off the machine but keep the garment hooped for stability while trimming.
  • Trim: Leave 0.25" all the way around so fray can “bloom” without reaching the stitch line.
  • Success check: Scissors glide through fabric without crunching into thread knots (hitting thread means the cut is too close).
  • If it still fails: Re-evaluate fabric weave (looser weaves fray faster) and confirm the tack-down is a heavy Bean Stitch.
• Q: How can I tell if embroidery hooping tension is correct for raw edge appliqué to prevent puckering and “bacon” ripples?
  A: Hoop the background fabric so it is drum-tight with zero slip, then stabilize appropriately for the fabric type.
  • Tap: Check the hooped fabric—aim for a drum-like sound when tapped (loose hooping invites puckering).
  • Pull-test: Gently tug the fabric surface; it should not slide in the hoop.
  • Match: Use cut-away stabilizer for knits (hoodies, jerseys) and medium tear-away is often sufficient for stable wovens (denim, canvas).
  • Success check: Finished design sits flat with no ripples around the outline after stitching.
  • If it still fails: Reduce fabric stretch during hooping, confirm the correct stabilizer type, and consider a hooping station to standardize tension and placement.
• Q: What is the safest way to place appliqué fabric during a raw edge appliqué stop on an embroidery machine needle area?
  A: Only place or adjust appliqué fabric after the machine has fully stopped—never reach in while the needle is reciprocating.
  • Force-stop: Use a color change (single-needle) or a programmed Stop/Frame Out (multi-needle) so the machine pauses reliably.
  • Wait: Confirm the needle is completely still before hands enter the hoop area.
  • Prepare: Keep appliqué fabric, tape/spray, and scissors ready so placement is fast and controlled.
  • Success check: Fabric is placed calmly with no “rush,” and the next stitch starts cleanly with hands fully clear.
  • If it still fails: Reprogram the stop point and practice a dry run (without stitching) to confirm the pause behavior.
• Q: How do I reduce hoop burn and speed up repetitive raw edge appliqué hooping for small production runs without losing alignment?
  A: Start with technique consistency, then upgrade to magnetic hoops for speed and reduced fabric crushing, and use a hooping station for repeatable placement.
  • Level 1 (Technique): Standardize hoop tension and use a consistent placement process (Placement → Stop → Cover → Tack-down → Trim).
  • Level 2 (Tool): Switch from screw-tight hoops to magnetic hoops to reduce hoop burn and wrist strain and speed loading.
  • Level 3 (Production): If frequent stops and handling are limiting output, a multi-needle setup can reduce manual interventions and increase throughput.
  • Success check: Hoop marks are reduced and hooping time per garment drops while placement stays consistent across items.
  • If it still fails: Review garment thickness and hoop choice, and add a hooping station to mechanically lock in alignment on every load.
