Run a 350×500 Jumbo Design on a Redline Multi-Needle Machine: Drum-Tight Sash Frame Hooping Without the Usual Headaches

Mastering Jumbo Embroidery: The Blueprint for Flawless Large-Scale Production (350×500mm and Beyond)

If you have ever pressed "Start" on a jumbo design and felt your stomach drop as the machine ramped up—praying the fabric doesn’t shift, the needle doesn’t hit the frame, and the registration holds together—you are experiencing a very common technician’s anxiety.

Large-field embroidery magnifies every micro-error. A 1mm slip in a 4x4 hoop is annoying; a 1mm slip in a 350x500mm sash frame is a production disaster that ruins expensive garments.

In this guide, we break down the high-level workflow demonstrated by industry veteran John Deer on a Redline multi-needle machine. We will reconstruct his process into a zero-friction technical standard, adding the sensory checkpoints, safety margins, and gear optimizations necessary to turn "scary" jumbo projects into routine profit centers.

The Physics of Fear: Why Giant Hoops Behave Differently

A large hoop embroidery machine setup isn’t just "bigger"—it is physically different. When you attach a massive 350x500 sash frame, you are dealing with significantly more inertia.

The pantograph has to push much more weight back and forth. If your hooping isn't perfectly tight, the fabric acts like a sail, lagging behind the frame's movement. This "flagging" is the #1 killer of registration.

John’s approach to this—running on thick canvas with a sash frame—relies on Physics Principle #1: Extreme Tension replaced Stabilizer. He skips the stabilizer backing, relying entirely on the clamp's grip and the fabric's inherent structure. Note: While this works for John's heavy canvas, we will discuss safety protocols for other fabrics in the Decision Tree below.

Phase 1: The Hidden Prep & "The Flatness Protocol"

Before you even touch the frame, you must neutralize the variables. You are not fighting the machine; you are fighting the material's memory.

John uses a heavy canvas that has been pre-pressed. This is non-negotiable.

The "Why": Canvas and heavy twills often have "memory folds" from the bolt. If you clamp a wrinkled piece of fabric, those wrinkles act like compressed springs. Under the vibration of stitching, they will try to pop open, changing the tension mid-design.

The Hidden Consumables List: To replicate this workflow safely, ensure you have:

• Green Painter's Tape (Crucial for friction reduction).
• 100/16 or 110/18 Titanium Needles (For penetrating thick canvas without deflection).
• A "Cheater" Bar or screwdriver (For tightening frame knobs—fingers aren't enough for jumbo frames).
• 4 Large Clamps + 2 Small Clamps (Sorted and ready).

Prep Checklist (Verify before Hooping):

• [ ] Material Flatness: Canvas is steam-pressed; laying completely flat on the table with no curling edges.
• [ ] Frame Inspection: The felt lining on the sash frame is clean. Run your finger along it—if you feel a snag or hardened glue, scrape it off. It will cause uneven grip.
• [ ] Hardware Sort: You have identified the side clamps (short) vs. top/bottom clamps (long). Mixing them creates uneven pressure points.
• [ ] Design Confirmation: You have verified your design fits the 350x500mm field in your software before loading.


Phase 2: The "Drum-Skin" Clamping Sequence

This is the most critical manual skill in the process. You cannot clamp randomly. You must chase the slack out of the fabric in a specific geometric order to lock the grainline.

Step 1: The Anchor Point (Inside Edge) Place the canvas on the sash frame. John starts with the edge closest to him (or the "bottom" in some orientations).

• The Action: Clamp the fabric down firmly.
• Sensory Check: Ensure the fabric edge is fully engaged under the clamp teeth.


Step 2: The Tension Pull (Opposite Edge) Move to the opposite side. This is where you create the primary tension.

• The Action: Pull the fabric towards you with significant force—enough to stretch the fibers slightly—and clamp.
• The "Feel": You should feel resistance. If it pulls easily, it's too loose.
• The Sound: When you tap the center of the fabric, you want a dull "thud," not a flappy paper sound.


Step 3 & 4: Lateral Stabilization (The Sides) Now, smooth the fabric to the left and clamp; then smooth to the right and clamp.

• The Goal: You are removing diagonal wrinkles.
• Sensory Check: Look at the weave of the canvas. The threads should look straight, like a grid. If they look curved or bowed, you have over-pulled one side.


The Pain Point: Why Manual Clamping Hurts

If you are doing one jacket back, these sash clamps are fine. If you are doing 50 production runs, manual clamps are a nightmare. They require high grip strength and can cause repetitive strain injury (RSI) in your wrists.

• Trigger: If you find your fingers aching after three hoops, or if you physically cannot pull the canvas tight enough...
• Solution: This is where professionals switch to magnetic embroidery hoops. The magnets self-align and apply hundreds of pounds of clamping force instantly without physical strain, automatically trapping the fabric evenly.

Warning: Pinch Hazard. Whether using manual sash clamps or magnetic frames, keep fingertips clear of the "snap" zone. Magnetic frames, in particular, can pinch skin severely. Never leave them on the floor where they can snap together unexpectedly.

Phase 3: The Friction Hack (Painter's Tape)

In John’s workflow, this is the "secret sauce." He applies green painter’s tape over the inner lip of the frame, covering the transition between the metal/felt and the fabric.

The Engineering Logic: On a jumbo frame, the metal lip of the hoop often drags across the machine's table or throat plate. This metal-on-plastic friction creates drag.

• Drag = Registration Shifts.
• Tape = Low-Friction Glider.

The tape creates a smooth ramp (a fillet) so the frame glides over the machine bed rather than catching on it. If you are searching for successful hooping for embroidery machine techniques for oversized items, do not skip this step. It is the cheapest insurance you can buy.

Phase 4: Mounting and The "Zero-Play" Lock

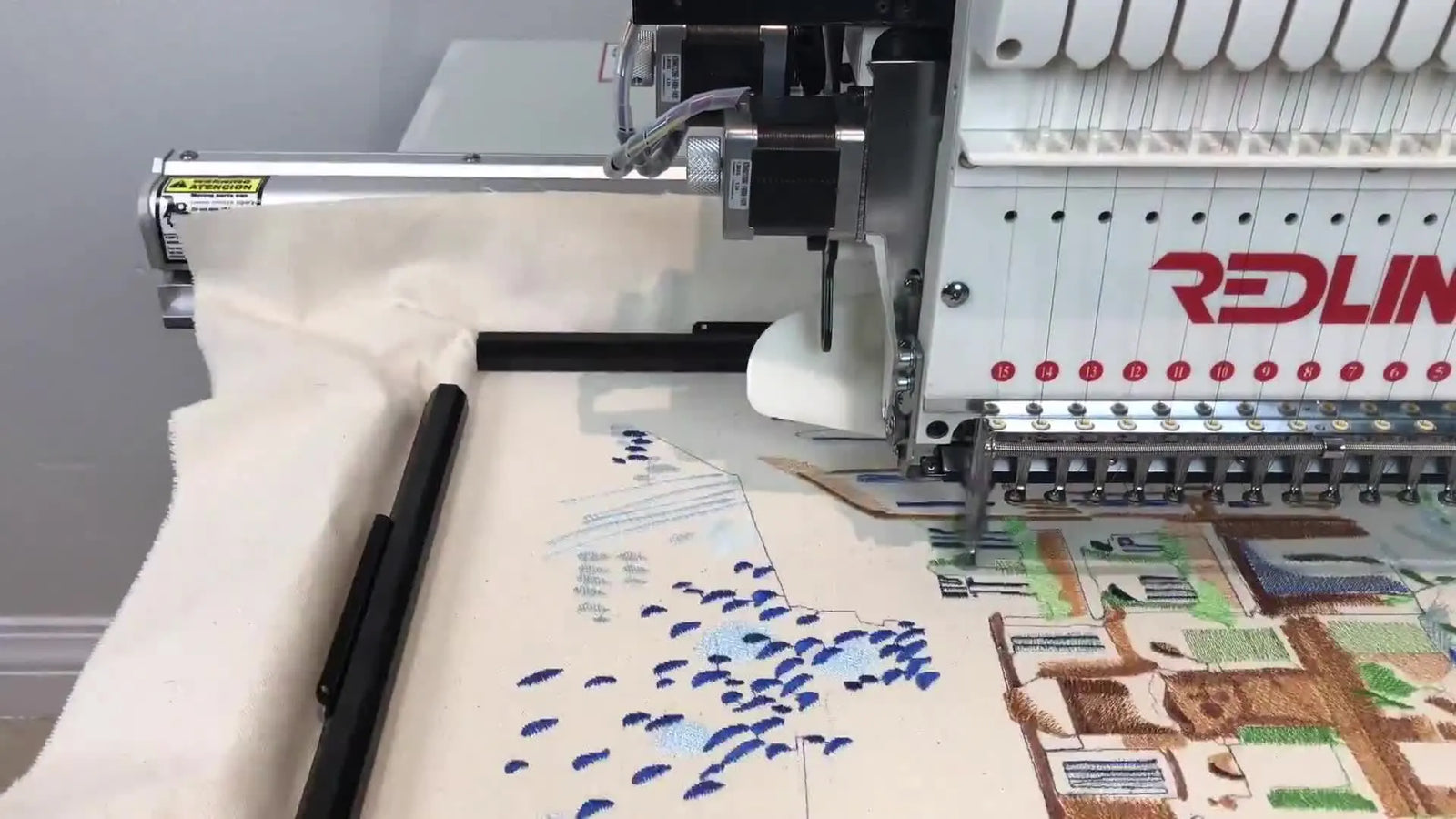

John slides the sash frame onto the pantograph arm. Here is where many beginners fail: they hand-tighten the thumb screws.

The Action: Use a screwdriver. On a 350x500mm frame, the leverage arm is huge. A tiny 0.5mm wiggle at the mount becomes a 5mm wiggle at the bottom of the design.

• Sensory Check: Grab the far end of the frame once mounted. Try to wiggle it up and down. It should feel solid, like it is welded to the machine. If you hear a "click-click" sound, it is too loose.


Setup Checklist (The "Pre-Flight" Check):

• [ ] Mount Security: Frame screws tightened with a tool, not just fingers.
• [ ] Clearance: No spare clamps or scissors left on the machine bed (a jumbo frame will sweep them off!).
• [ ] Tape Check: The painter's tape is smooth and not peeling up at the corners.
• [ ] Fabric Tension: Re-check the "drum skin" feel. Sometimes mounting the frame can cause the fabric to sag slightly—pull it taut again if needed.

Phase 5: Production Mindset – Colors and Safety Traces

John doesn't guess with colors. He loads the DST file via USB and uses a printed Worksheet to map colors to needle numbers.

The Discipline:

1. Load Design.
2. Consult Worksheet (e.g., Color 1 = Black = Needle 7).
3. Program Sequence manually: 7, 2, 5, 1, 3, 4, 9.

The Trap: Many redline embroidery machines (and similar commercial platforms) default to Needle 1. Always verify your start needle.

The Safety Trace (The Eye-Saver)

John performs an Outline Check (Trace). He ensures the active needle (usually #1 for the check) traces the outer box of the design.

What to watch for:

• Visual Verify: Lean in and watch the needle bar. Does it get within 10mm of the metal clamp?
• Vertical Clearance: Does the presser foot glide over the thick clamps, or is it going to hit them?

Warning: Collision Risk. If the needle strikes a metal sash clamp at 800 RPM, it can shatter the needle and send shrapnel flying. Always wear eye protection during the trace and first few minutes of stitching. If the trace looks too close (<5mm), resize your design or move it.

Phase 6: The Stitch-Out & Speed Management

John hits start. But how fast should you go?

The "Beginner Sweet Spot" (Speed Recommendations): While pro machines can hit 1000+ SPM (Stitches Per Minute), a jumbo sash frame carries a lot of momentum.

• Recommended Start Speed: 600 - 700 SPM.
• Why? Lower speeds reduce the "sway" of the pantograph, resulting in crisper text and cleaner satin column edges. Only ramp up to 800+ once you have verified the stability.


Auditory Troubleshooting (Listen to your Machine):

• Rhythmic "Hum-Purr": Normal operation.
• Sharp "Slap" or "Click": Thread is catching on a spool cap or the fabric is flagging and hitting the needle plate. PAUSE IMMEDIATELY.
• Grinding: The frame is hitting the machine arm or a limit switch.


Operation Checklist (First 60 Seconds):

• [ ] Trace complete: No frame collisions.
• [ ] Speed Set: Capped at 700 SPM for safety.
• [ ] Sound Check: Machine sounds smooth, no slapping.
• [ ] Observation: Watching the first color lay down. Is the fabric pushing or bubbling? (If yes, stop and re-clamp).

Troubleshooting: The "Why is this happening?" Guide

Decision Tree: Do I Need Stabilizer on Canvas?

John skips stabilizer for this specific heavy canvas, but is that safe for you? Use this logic flow:

1. Is the fabric thick, rigid, and non-stretch (e.g., 12oz Canvas, Carhartt style)?
   • YES: Proceed to Step 2.
   • NO: STOP. Use Cutaway (for knits) or Tearaway (for woven shirts).
2. Can you hoop it "Drum Tight" without warping the bias?
   • YES: You might be able to skip stabilizer (Test first!).
   • NO: Use a layer of crisp Tearaway to add rigidity.
3. Is the design extremely dense (50,000+ stitches)?
   • YES: Use stabilizer regardless of fabric thickness. Heavy stitch density chews up fibers; backing protects the structural integrity.
   • NO: You are safe to try the "tension only" method.

The Scaling Reality: When to Upgrade Your Toolkit

John’s video shows a perfect execution using basic tools. However, if you are running a business, you must value your time and your physical health.

1. The "Hoop Burn" & Efficiency Bottleneck: If you struggle with sash frames leaving marks or taking too long to adjust, investigate embroidery frame alternatives. Magnetic frames are the industry standard for specific reasons:

• Speed: Hooping takes 5 seconds, not 60.
• Safety: No "hoop burn" (friction rings) on delicate performance wear.
• Consistency: The magnet pressure is identical every time vs. manual clamps which vary by hand strength.

2. The Volume Bottleneck: If you are effectively using a single-needle machine and frustrated by color changes, logic dictates looking at multi-needle platforms.

• Indicator: If you spend more time changing thread than stitching, you need a multi-needle machine (like the SEWTECH commercial lines).
• Indicator: If you are rejecting orders of 50+ hats because "it takes too long," your equipment is costing you profit.

Final Result: The Standard of Excellence

A successful jumbo stitch-out isn't just "done"—it's perfect.

Success Criteria:

• Crisp Edges: No gaps between the border and the fill.
• Flatness: The canvas lays flat on the table after removal (no cupping).
• Clean Back: Bobbin tension is even (check for the "1/3rd white rule" on the back).

By following this disciplined workflow—Pre-press, Drum-Tight Hooping, Friction Tape, and Safety Tracing—you convert the chaos of jumbo embroidery into a predictable, repeatable science.

FAQ

• Q: What consumables and tools are required to safely run a 350×500mm jumbo sash frame on a Redline multi-needle embroidery machine?
  A: Use the same “hidden prep kit” every time so the fabric grips evenly and the frame mounts with zero play.
  • Gather Green Painter’s Tape, 100/16 or 110/18 titanium needles, a screwdriver or cheater bar for tightening, plus 4 large clamps and 2 small clamps.
  • Inspect the sash frame felt lining by finger—remove any snag, hardened glue, or debris before hooping.
  • Sort clamps correctly (side clamps vs. top/bottom clamps) to avoid uneven pressure points.
  • Success check: the fabric sits flat before hooping and the felt contact area feels smooth with no bumps that could create weak grip.
  • If it still fails: re-press the material for flatness and re-check clamp placement/length mismatch.
• Q: How tight should canvas be clamped in a 350×500mm jumbo sash frame to prevent registration shift on a Redline multi-needle embroidery machine?
  A: Clamp canvas to a “drum-skin” tension using a fixed sequence, not random tightening.
  • Clamp the first (near/inside) edge firmly as the anchor, making sure the fabric edge is fully engaged under the clamp teeth.
  • Pull hard on the opposite edge to create primary tension, clamp, then smooth and clamp the left side and the right side to remove diagonal wrinkles.
  • Watch the weave/grid while tensioning—stop and re-balance if threads look curved or bowed (over-pulled on one side).
  • Success check: tapping the center gives a dull “thud” (not a flappy sound) and the weave lines look straight.
  • If it still fails: slow the stitch speed and add stabilizer if the fabric is not rigid canvas or if the design is very dense.
• Q: Why does a 350×500mm jumbo sash frame drag and cause registration shift, and how does green painter’s tape fix the problem?
  A: Frame drag is a common cause of registration shift on jumbo fields, and painter’s tape reduces friction where the frame lip contacts the machine bed.
  • Apply green painter’s tape over the inner lip/transition area between the frame (metal/felt) and the fabric to create a smooth “glider.”
  • Press tape down flat and keep corners from lifting so the frame cannot catch during travel.
  • Re-check tape after mounting because handling can peel edges up.
  • Success check: the frame glides smoothly during movement with no catching, and outlines stay aligned with fills.
  • If it still fails: reduce speed (start around 600–700 SPM) and verify the frame mount has zero play.
• Q: How do you lock a 350×500mm jumbo sash frame onto a Redline multi-needle embroidery machine pantograph so it has “zero play”?
  A: Hand-tight is usually not enough on jumbo frames—use a tool so the mount behaves like it is welded on.
  • Slide the sash frame onto the pantograph arm and tighten the thumb screws with a screwdriver (not fingers).
  • Grab the far end of the mounted frame and try to wiggle it up/down to detect looseness.
  • Clear the machine bed of scissors/clamps before running because jumbo frames will sweep items off.
  • Success check: no “click-click” sound and no detectable wiggle at the far end when you push/pull.
  • If it still fails: stop and re-seat the frame, then re-tighten; a small mount wiggle can become a large design shift.
• Q: How do you prevent needle breaks and clamp collisions when running a 350×500mm jumbo design on a Redline multi-needle embroidery machine?
  A: Always perform an outline trace and verify clamp clearance before stitching at production speed.
  • Run an Outline Check (Trace) and watch the needle bar closely as it traces the design boundary.
  • Confirm the needle path stays at least about 10 mm away from metal clamps and verify the presser foot will glide over clamp thickness.
  • Use appropriate needles for thick canvas (100/16 or 110/18 titanium) to reduce deflection.
  • Success check: the trace completes with comfortable clearance and no near-miss points where the needle approaches clamps.
  • If it still fails: resize or reposition the design; do not “risk it” at 800+ SPM.
• Q: What is a safe starting speed (SPM) for a 350×500mm jumbo sash frame on a Redline multi-needle embroidery machine, and what sounds indicate a problem?
  A: Start slower to control inertia—600–700 SPM is a safer starting point for jumbo frames.
  • Cap speed at 600–700 SPM for the first run and only increase after stability is proven.
  • Listen for a smooth rhythmic “hum-purr” as normal operation.
  • Pause immediately if you hear sharp “slap/click” (possible catching/flagging) or grinding (possible frame contact/limit issue).
  • Success check: the first 60 seconds run smoothly with no slapping sounds and the fabric does not push/bubble under the stitch.
  • If it still fails: stop, re-clamp to drum tension, and verify tape is not dragging or peeling.
• Q: When should an embroidery shop upgrade from manual jumbo sash clamps to magnetic embroidery hoops for large-field production, and when is a SEWTECH multi-needle machine the next step?
  A: Upgrade in layers: fix technique first, move to magnetic hoops for consistency/strain, and move to a multi-needle platform when thread changes become the bottleneck.
  • Level 1 (Technique): correct clamping sequence, add painter’s tape to reduce drag, tighten the mount with a tool, and start at 600–700 SPM.
  • Level 2 (Tool): choose magnetic embroidery hoops if manual clamping causes wrist pain, inconsistent tension, slow hooping, or hoop marks on delicate garments.
  • Level 3 (Capacity): consider a SEWTECH multi-needle machine if you spend more time changing thread than stitching or you decline 50+ piece orders due to changeover time.
  • Success check: hooping becomes repeatable (same tension every run), registration stays stable, and operator fatigue drops during volume work.
  • If it still fails: review material choice and stabilizer decisions—dense designs and unstable fabrics may require backing even with perfect hooping.
