Windows Fonts to Appliqué on a Brother SE425: The Sew Art “MoM” Workflow That Actually Stitches Clean

If you have ever stared at your machine mid-stitch, watching the fabric pucker and thinking, “Why does this look like a disaster already?”, I want you to take a breath. You are not alone. Machine embroidery is an engineering challenge disguised as an art form.

The good news is that appliqué lettering is one of the most forgiving and fastest ways to achieve bold, professional-looking text without needing the skills of a master digitizer. By using fabric to fill the space instead of thousands of stitches, you reduce the push-pull compensation risks that usually ruin beginner text projects.

This guide rebuilds the workflow from the video: creating text in Microsoft Paint, digitizing it in Sew Art, and stitching it on a Brother SE425. However, as an industry veteran, I am going to layer in the "invisible capabilities"—the sensory checks, the safety margins, and the commercial-grade stabilization tactics—that turn a "homemade experiment" into a "sellable product." We will cover how to manage tension, choose the right tools, and prevent the dreaded "bird's nest" before it destroys your garment.

Paint + Windows Fonts: Build “Fat” Letters That Won’t Collapse Under Satin Stitch

The video begins in Microsoft Paint. This is not a gimmick; it is a strategic choice. Paint generates pure, high-contrast bitmap data that eliminates the "noise" found in complex vector programs, making it the perfect feeder for auto-digitizing software like Sew Art.

The core engineering principle here is structural integrity. Appliqué needs "real estate." Thin scripts and delicate serifs do not provide enough surface area for the machine to lay down a die line, a tack down stitch, and a satin column without them overlapping and creating a bulletproof knot.

The Action Plan:

1. Open Paint and select the Text tool.
2. Type your lettering (the demo uses “MoM”).
3. Maximize the Font Size: Set it to 211 (or larger).
   • Why? You want the highest resolution possible before you shrink it down. Digitizing pixilated edges creates jagged stitching.
4. Select a "Fat" Block Font: Choose Arial Black, Impact, or similar. Avoid Times New Roman or scripts.
5. Crop Aggressively: remove all white space around the text. The software defines the center based on the canvas size; excess whitespace will throw off your centering in the hoop later.




Pro tip from the field: If your finalized letters look "blobby" or the corners look rounded after digitizing, the issue is almost always anti-aliasing (the gray pixels computers use to make text look smooth on screen). Paint creates crisp black-and-white edges. If you use other software, ensure you turn off anti-aliasing (font smoothing) before saving the image.

The 2-Color Cleanup in Sew Art: The One Click That Prevents Speckled, Messy Borders

When you paste the image into Sew Art, the video demonstrates a step that 90% of beginners skip to their detriment: Color Reduction.

Even a black-and-white image might contain 256 shades of gray along the edges. If you don't clean this, the machine will interpret those gray pixels as "tiny stitches," causing the machine to slow down, stutter, and create a messy edge.

The Cleanup Protocol:

1. Paste the image into Sew Art.
2. Locate the "Image Color Reduction" tool.
3. Force the count to exactly 2.
   • Sensory Check: The image should look stark and harsh on the screen. This is good. Sharp visual edges equal sharp stitch commands.


Next, you must map the pixels to physical reality. The Brother SE425 uses a 4x4 inch (100mm x 100mm) field.

• Resize Width: Set to ~95.00 mm.
  • Safety Margin: Never set a design to exactly 100mm. You need a 5mm buffer for the presser foot and hoop accumulation.


This "Oversize First, Resize Later" method preserves the geometry of the curves while ensuring you fit safely inside your brother 4x4 embroidery hoop limits.

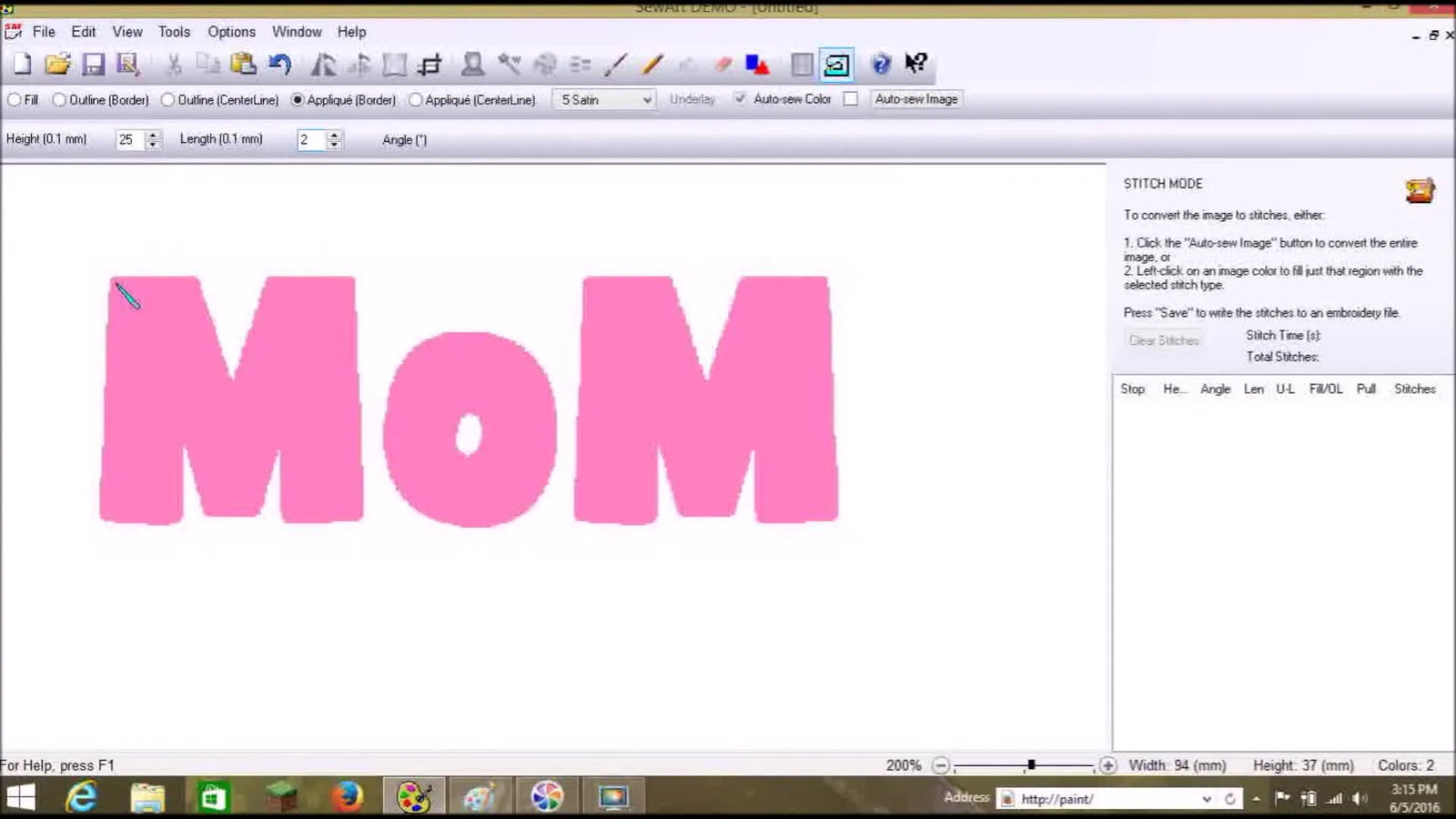

Appliqué Border in Sew Art: Height 25 + Length 3 (and Where You Click Matters)

This is where we convert pixels into thread commands. Sew Art’s "Appliqué Border" tool is an automated script that generates three specific layers:

1. Placement Line (Die Line): Shows you where to put the fabric.
2. Tack Down: Stitches the fabric to the stabilizer.
3. Satin Finish: covers the raw edges.

The Parameter Formula:

• Select: Appliqué Border Tool.
• Height = 25: In Sew Art's proprietary units, this controls the width of the satin column.
  • Context: A setting of 15 is too narrow; your cut fabric edges might poke through. 25 gives you a generous, commercial-grade coverage width (approx 2.5mm - 3mm wide).
• Length = 3: This controls the density (spacing between needle penetrations).
  • Context: If this number is too high, you will see fabric between the threads. If too low (e.g., 1), you risk cutting the fabric or breaking a needle. "3" is the sweet spot for standard coverage.




The Clicking Strategy:

• Click inside the black area of each letter.
• Critical Nuance: Click near the top-center of the letter. The algorithm creates stitch angles based on where you click. Clicking in a tight corner can confuse the software, causing stitches to run parallel to the edge (bad) instead of perpendicular (good).


Troubleshooting the "Click": If the generated satin stitch looks twisted or jagged, Ctrl+Z (Undo) immediately. Click again in a wider, more open part of the letter. Do not hope it will "stitch out fine"—it won't.

The “Hidden” Prep Before You Stitch: Stabilizer, Topper, and a Hooping Reality Check

The video jumps into stitching, but I need to pause you here. 80% of embroidery failures happen before you press the start button. The number one enemy of appliqué is shifting.

Appliqué involves adding a layer of fabric mid-process. If your hoop is not secure, the weight of your hand placing the fabric will push the stabilizer down. The result? The "Tack Down" will be misaligned, and the "Satin Finish" will miss the edge entirely.

The Hooping Standard:

• Sound Check: Tap the hooped stabilizer with your fingernail. It should sound like a tight drum (Thump-Thump), not a rustling paper bag.
• The "Hoop Burn" Dilemma: To get this tension with standard plastic hoops, you often have to crank the screw so tight it crushes the fabric fibers, leaving a permanent ring ("hoop burn").
• The Solution: This is where many of my students switch to a magnetic embroidery hoop. These frames use vertical magnetic clamping force rather than friction. They hold the stabilizer drum-tight without crushing delicate fabrics like velvet or performance wear, and they make re-hooping significantly faster if you are doing a batch of shirts.

Hidden Consumables:

• Spray Adhesive (505 Spray): Lightly mist your appliqué fabric back before placing it. This prevents it from bubbling up before the tack down stitch.
• New Needle: Appliqué is heavy work. Start with a fresh 75/11 Embroidery Needle.

Prep Checklist (Do NOT Press Start Until Checked)

• File Verification: Does the machine show 3 color stops per letter (or 3 groups total)?
• Stabilizer Tension: Drum-skin tight? (Tap it to verify).
• Fabric Prep: Appliqué fabric scraps cut roughly 1-inch larger than the letters on all sides.
• Tool Availability: Curved appliqué scissors and snippers placed within arm's reach.
• Bobbin Check: Is the bobbin at least 50% full? Running out during a satin stitch is a nightmare to fix.

Warning: Physical Safety
When trimming inside the hoop, your fingers will be inches from the needle bar. Always stop the machine completely. If your machine has a "Lock" mode, use it. Do not rely on just taking your foot off the pedal. One accidental bump can result in a sewn finger.

Brother SE425 Stitch-Out: Die Line First, Then Fabric, Then Tack Down (Don’t Rush This)

The Brother SE425 (and most home machines) will stop between colors. We use these stops to perform our manual tasks.

Step 1: The Die Line (Placement)

• Hoop your stabilizer (and base garment if applicable).
• Run the first color stop. This stitches a simple running stitch outline on the stabilizer/garment.
• Purpose: This is your map. It tells you exactly where the fabric needs to go.




Step 2: Placement & Tack Down

• Place your appliqué fabric over the Die Line. Ensure it extends at least 15mm (0.5 inch) past the line on all sides.
• Action: Run the second color stop (Tack Down).
• Observation: Watch the machine. If the fabric starts to "wave" or "push" ahead of the foot, pause and smooth it down (keep fingers away from the needle!).




Setup Checklist (Post-Tack Down verification)

• Coverage: Does the fabric cover the entire outline? (No peek-a-boo gaps).
• Flatness: Is the fabric flat? No bubbles or wrinkles trapped inside the stitch.
• Security: Pull gently on a corner. It should feel anchored.

Trim Like a Production Shop: Close to the Tack Down, Not Into It

This is the single most critical skill in appliqué. You must trim the excess fabric away so the satin stitch can encapsulate the raw edge.

The Technique:

1. Remove the hoop from the machine (optional, but safer for beginners). Do not un-hoop the fabric! Just remove the frame.
2. Lift the excess fabric upward with one hand.
3. Slide your curved appliqué scissors flat against the stabilizer.
4. Cut smoothly, approximately 1mm to 2mm away from the stitching.


Two Critical Production Rules:

1. Trim Jump Stitches NOW: The video emphasizes trimming the threads connecting the letters ("M" to "o"). If you leave these, the foot will snag them during the satin phase, potentially shifting the hoop or snapping the needle.
2. Ignore the "Donut Holes": For small letters (like the inside of a small 'e' or 'o'), do not try to trim the center hole unless it is larger than a pencil eraser. The satin stitch will cover it. Trying to trim a 2mm hole usually results in cutting the stitches you just made.

Common Beginner Trap: If you leave too much fabric margin (3mm+), the satin stitch won't cover it, and you’ll have "hairy" edges. If you cut too close and snip the tack down threads, the fabric will peel away later. Aim for "close, but safe."

Satin Stitch Finish: Topper + “Beef” Underneath Can Make Cheap Letters Look Expensive

The final step is the satin column that hides your work and creates the "pop."

The video suggests two powerful modifiers here:

1. Water Soluble Topper (Solvy): Place a layer of clear film on top of the letters before the final stitch.
   • Why? This acts like snowshoes for your stitches. It prevents the thread from sinking into the fabric pile (especially on towels or fleece) and keeps the edges razor-sharp.
2. The "Underlay" Trick (Felt): The presenter mentions using felt underneath. This acts as a loft booster, giving the letters a raised, 3D effect without using expensive puff foam.

Operation Checklist (The Final Pass)

• Trimming Quality: Excess fabric is removed; margin is 2mm or less.
• Jump Stitches: All connecting threads between letters are clipped.
• Topper: Solvy is placed over the area (if using).
• Speed: Reduce machine speed to 600 SPM or medium. Satin stitching generates high friction; slowing down reduces thread breakage and heat buildup.




When Things Go Sideways: Wrinkles, Jump-Stitch Havoc, and Thread Shredding on Satin

Even with perfect prep, things happen. Here is how to diagnose and fix the three most common applique killers seen in the video.

Symptom table: Troubleshooting Logic

Thread Shredding Strategy: If your thread shreds halfway through a letter:

1. Stop the machine.
2. Clip the messy thread tails carefully.
3. Re-thread.
4. Back up 10-20 stitches. The video shows backing up using the needle +/- keys.
5. Restart. The new stitching will overlap the break, locking it in and hiding the gap. Never restart exactly where it broke; it will leave a hole.

Decision Tree: Stabilizer + Topper Choices for Appliqué Lettering

Use this logic flow to determine your "sandwich" recipe.

START: What fabric are you stitching on?

• PATH A: Stable Woven (Cotton, Canvas, Denim)
  • Base: Medium-weight Tearaway.
  • Topper: None needed (unless creating a specific effect).
  • Hoop: Standard or Magnetic.
• PATH B: Stretchy Knit (T-Shirt, Jersey, Hoodie)
  • Base: Cutaway (Mesh) - Mandatory. Tearaway will support the stitch but distort the shirt when worn.
  • Topper: Water soluble (optional, helps crispness).
  • Hooping: magnetic embroidery hoops are highly recommended here to avoid stretching the knit while hooping (the "biscuit dough" effect).
• PATH C: High Pile (Towel, Fleece, Velvet)
  • Base: Tearaway (clean back) or Cutaway (heavy duty).
  • Topper: Water Soluble - Mandatory. Without this, your satin stitches will disappear into the fuzz.
  • Hooping: Avoid standard hoops to prevent harsh hoop burn marks on velvet/fleece.

Warning: Magnetic Field Safety
Magnetic frames are incredibly powerful working tools.
1. Pinch Hazard: Keep fingers clear of the meeting point between the top and bottom frame.
2. Medical: Keep at least 6 inches away from pacemakers.
3. Tech: Do not place directly on laptops, tablets, or near credit cards.

The Upgrade Path: From "Crafting" to "Production"

The workflow described above is excellent for doing one or two shirts. But what happens when you need to do 20 team jerseys?

The friction points detailed in the video—wrinkly fabric, hand strain from tightening screws, and inconsistent tension—are the bottlenecks that kill profit margins and joy.

Level 1 Upgrade: The Tools If you plan to stick with your current machine but want to reduce frustration, consider a brother embroidery machine hoop upgrade to a magnetic frame. This eliminates the physical struggle of hooping and ensures that Shirt #1 and Shirt #20 have the exact same tension, reducing the chance of distortion.

Level 2 Upgrade: The Workflow If you find yourself spending more time changing bobbin threads and trimming jumps than actually sewing, look at a hooping station for embroidery. This ensures every garment is hooped in the exact same spot, creating uniformity that looks professional.

Level 3 Upgrade: The Capacity Eventually, the limit becomes the single-needle machine itself. The constant stops for thread changes and the 4x4 limit will slow you down. This is the natural trigger to look at multi-needle machines, which can hold all your colors at once and offer larger, more stable field sizes.

By mastering the MS Paint-to-Stitch workflow today, you are building the foundation. But remember: the quality of your output is 20% software, 30% machine, and 50% preparation. Master the prep, upgrade your holding tools when the volume demands it, and you will produce commercial-quality appliqué from your home studio.

Quick Recap (The "Golden Path")

1. Paint: Size 211, Fat Font, Crop Tight.
2. Sew Art: Reduce to 2 Colors, Resize to ~95mm, Border Height 25, Length 3.
3. Prep: Drum-tight stabilizer (check the sound!). Consider magnetic embroidery hoop for consistency.
4. Stitch: Die Line -> Place Fabric -> Tack Down -> Stop & Trim Jumps/Edges -> Satin Finish.
5. Finish: Tear away stabilizer, dissolve topper, and inspect.

FAQ

• Q: How do I stop Brother SE425 appliqué lettering from shifting between the placement line, tack down stitch, and satin stitch?
  A: Use drum-tight hooping and stabilize the appliqué fabric before the tack down step—shifting almost always starts in the hoop, not in the file.
  • Hoop stabilizer “drum tight” before stitching and avoid pressing down on the hoop when placing appliqué fabric.
  • Lightly mist the appliqué fabric back with 505-style spray adhesive before placing it on the placement line.
  • Start with a fresh 75/11 embroidery needle so the tack down and satin pass stay clean and controlled.
  • Success check: Tap the hooped stabilizer—it should sound like a tight drum (“thump-thump”), not a rustly paper sound.
  • If it still fails: Switch to a magnetic embroidery hoop to maintain constant clamping pressure and reduce hoop slip during handling.
• Q: What exact Microsoft Paint settings prevent jagged satin edges when auto-digitizing appliqué letters in Sew Art?
  A: Create “fat” high-resolution letters first, then crop tight—clean bitmap edges digitize into cleaner stitch edges.
  • Set the Paint font size to 211 (or larger) before resizing later.
  • Choose a bold block font (Arial Black, Impact) and avoid thin scripts or serif fonts.
  • Crop aggressively to remove all extra white space so centering stays accurate in the hoop.
  • Success check: The saved image edges look crisp black-and-white (not soft gray), and the letter shapes look thick enough to hold a die line + tack down + satin.
  • If it still fails: Check for anti-aliasing/font smoothing from other software sources and re-save as a clean, high-contrast bitmap.
• Q: Why does Sew Art produce speckled, messy borders when converting appliqué lettering, and how do I fix it with Image Color Reduction = 2?
  A: Force the artwork to exactly 2 colors before digitizing—gray edge pixels create tiny unwanted stitches that roughen the border.
  • Paste the image into Sew Art and open Image Color Reduction.
  • Set the color count to exactly 2 before running the appliqué border tool.
  • Resize the design to about 95.00 mm wide for a Brother SE425 4x4 field to keep a safety margin.
  • Success check: The on-screen preview looks stark/harsh (no gray fuzz), and the border preview does not show pepper-like micro-stitches.
  • If it still fails: Re-crop the source image tighter and repeat the 2-color reduction before re-applying the border.
• Q: What Sew Art Appliqué Border settings (Height 25, Length 3) are a safe starting point for satin coverage on appliqué letters?
  A: Use Height 25 and Length 3 as a practical baseline for strong coverage without excessive needle stress.
  • Set Height to 25 to build a wider satin column that helps cover trimmed fabric edges.
  • Set Length to 3 to balance coverage and avoid over-dense stitching that can cause thread stress.
  • Click inside each letter near the top-center so the stitch angle generates cleanly across the shape.
  • Success check: The satin preview looks even and perpendicular to edges (not twisted, not running parallel to the outline).
  • If it still fails: Undo and re-click in a more open area of the letter—do not stitch a twisted preview hoping it will “work out.”
• Q: How do I trim appliqué fabric after the tack down stitch without cutting the tack down threads on a Brother SE425 hoop?
  A: Trim close but not into the tack down line—about 1–2 mm away—so the satin stitch can fully wrap the raw edge.
  • Stop the machine fully; remove the hoop from the machine if needed for safety (do not un-hoop the project).
  • Use curved appliqué scissors flat against the stabilizer and cut smoothly 1–2 mm away from the tack down stitches.
  • Clip all jump stitches between letters immediately after tack down so the presser foot cannot snag them during satin.
  • Success check: The fabric edge sits just outside the tack down line with no loose flaps, and there are no long connector threads between letters.
  • If it still fails: If fabric peels later, the trim was too aggressive—leave a slightly safer margin next time and confirm tack down is fully anchoring the fabric.
• Q: What should I do if Brother SE425 satin stitching causes thread shredding during appliqué lettering?
  A: Re-thread, change to a new needle, and slow the stitch speed—satin stitching creates high friction and exposes weak setup fast.
  • Stop immediately, clip messy thread tails, and re-thread the top path completely.
  • Replace the needle (start fresh with a 75/11 embroidery needle for appliqué work).
  • Reduce machine speed to about 600 SPM or a medium setting during the satin pass.
  • Success check: The thread runs smoothly without fuzzing, and the satin column forms consistently without repeated breaks.
  • If it still fails: Back up 10–20 stitches before restarting so the new stitches overlap and lock in—restarting exactly at the break often leaves a visible gap.
• Q: What safety steps prevent finger injuries when trimming appliqué fabric inside a Brother SE425 embroidery hoop?
  A: Treat trimming as a “machine locked” operation—never trim near the needle area unless the machine is completely stopped.
  • Stop the machine completely before bringing scissors near the hoop; use a Lock mode if the machine provides it.
  • Keep fingers out of the needle bar zone while positioning fabric; do not rely on simply taking a foot off the pedal.
  • Remove the hoop from the machine for trimming if beginner confidence is low, while keeping the project hooped.
  • Success check: The needle bar is stationary and cannot be activated accidentally while hands are in the work area.
  • If it still fails: Reorganize the workflow—place snips/curved scissors within reach before starting so there is no rushed trimming near a live needle.
• Q: What magnetic embroidery hoop safety rules should be followed when using magnetic frames for appliqué hooping?
  A: Handle magnetic hoops like a powered clamp—prevent pinch injuries and keep magnets away from sensitive medical devices and electronics.
  • Keep fingers clear when the top and bottom magnetic parts meet; close the frame slowly and deliberately.
  • Keep magnetic frames at least 6 inches away from pacemakers.
  • Do not place magnetic frames directly on laptops, tablets, or near credit cards.
  • Success check: The frame closes without finger pinch events, and the work area stays clear of medical/electronic risk items.
  • If it still fails: Switch to a safer handling routine (two-handed placement, clear bench space) before continuing production hooping.
