Bernina Large Free Arm Hoop vs Medium Clamp Hoop: The Real-World Tricks That Make Them Work (Bags, Quilts, Thick Jackets)

If you’ve ever stared at a canvas tote bag, a heavy quilt block, or a thick Carhartt jacket and thought, “There’s no way I’m hooping that without breaking my fingers or ruining the fabric,” you are experiencing the limitation of friction-based hooping. You are exactly who these specialized Bernina hoops were built for.

In this deep dive, we break down two specific tools that solve the "un-hoopable" problem:

• Large Free Arm Hoop (L-FA): Designed for tubular items (bags, pant legs, sleeves) so you don’t have to rip seams.
• Medium Clamp Hoop (8.5" x 8.5"): A mechanical clamp system for quilt blocks and bulky layers (zippers, webbing) that deflect standard inner rings.

I am going to rebuild the workflow into an industrial-standard SOP (Standard Operating Procedure). We will cover the sensory cues you need to look for, the specific physics of stabilization, and the exact moment when you should stop fighting the hoop and upgrade your tools.

Don’t Panic: What These Bernina Hoops Actually Fix (and What They Don’t)

The emotional rollercoaster is real: you buy a new accessory, the machine doesn’t recognize it, or the clamps leave "teeth marks" on your velvet.

Here’s the engineering truth:

• The Large Free Arm Hoop provides clearance access. It allows the machine's free arm to enter a closed tube.
• The Medium Clamp Hoop provides vertical compression. Unlike standard hoops that rely on lateral friction (sandwiching fabric between two rings), this relies on downward bite. This allows it to hold over zipper teeth without popping loose.

The Reality Check: These tools do not stabilize fabric. A clamp holds the edges, but the center field is still vulnerable to "flagging" (bouncing up and down with the needle). You typically need to run these harder substrates at a conservative speed (start at 600 SPM, not 1000) to ensure needle penetration consistency.

The “Hidden” Prep Pros Do Before Touching the Hoop (Stabilizer, Clearance, and Fabric Behavior)

In professional embroidery, 90% of failures happen at the prep table. Before you touch a clamp, you must address the "Hydroplane Effect"—where layers shift against each other under the needle.

The Golden Rule of Consumables: For slick items like nylon bags or puffer jackets, friction is your enemy during hooping but your friend during stitching.

• Adhesive: Use a light mist of temporary spray adhesive (like Odif 505) between your stabilizer and the item. This prevents the "baggy center" effect.
• Stabilizer: For bags, use Heavy Cutaway (2.5oz+). Do not use tearaway on items that will carry weight; the stitches will eventually pull out.

Prep Checklist (do this before hooping)

• Firmware Check: Confirm your machine is running the August 2022 update or later (L-FA will not appear otherwise).
• Stabilizer Strategy: Apply spray adhesive to your stabilizer and "float" it under the hoop area if the item is too thick to capture both layers in the clamp.
• The Trap Zone Inspection: Turn the bag/shirt inside-out and tape down any loose pockets or straps with painter's tape. If a strap floats under the needle plate, it will be sewn into the design.
• Orientation Check: Tubular items usually mount sideways. Rotate your design 90° on the screen now, not after you’ve struggled to mount the bag.


Large Free Arm Hoop (L-FA): The Twist-Lock Mechanism That Makes Tubular Embroidery Possible

The L-FA hoop uses a mechanical leverage system rather than simple friction. It features a grey knob for tensioning and a specific release mechanism.

Sensory Benchmark (The "Click"): When tightening the grey knob, do not guess. You are listening and feeling for a distinct ratcheting click. This is your torque limiter—it ensures you have enough pressure to hold without cracking the frame. To release, you must pinch the two grey buttons simultaneously.

How to lock and release the L-FA hoop (what you should feel)

• Lock: Twist the grey knob. Feel: Resistance increases. Hear: A sharp "Click." Stop there.
• Release: Pinch both grey side buttons. Feel: A mechanical "pop" as the tension releases.

Safety Note: If you don't hear the click, the hoop is not torqued to spec. The fabric may slip mid-stitch, causing registration errors.

Hooping a Tote Bag with the Bernina Large Free Arm Hoop (No Seam Ripping, No Guessing)

Hooping a "closed" item like a tote bag requires a specific inversion technique. You are effectively hooping the air inside the bag.

The Sequence:

1. Insert: Place the inner hoop ring inside the open bag.
2. Align: Position the outer bracket mechanism on the outside (front face) of the bag.
3. Snap: Push the bracket down. You should hear a snap as it seats into the inner ring channel.
4. Secure: Twist the knob until the "Click."

Stabilizer Note: If the bag canvas is extremely thick (>12oz canvas), do not try to hoop the stabilizer. Hoop the bag only, then slide a sheet of cutaway stabilizer under the hoop (floating) before attaching it to the machine.

Checkpoints while hooping the bag

• The Drum Test: Tap the hooped area. It should sound dull and taut, not loose or rattling.
• Seating Check: Look closely at the rim. The outer bracket must be fully seated 360° around the inner ring. If one corner is high, release and reset.
• Bias Check: Pull gently on the fabric corners. If lines distort diagonally, you are pulling too hard. Reset.

The Bernina 790 Plus “Park” Button Trick: The Clearance Move That Saves Your Sanity

Trying to force a hooped bag onto a stationary machine is a recipe for bent needles and scratched chassis. The machine has a specific mode for this.

Jeff uses the “Park” icon (a “P” with a left-pointing arrow).

Why this matters: Standard position keeps the embroidery arm close to the needle. The "Park" position sends the arm to the extreme left, creating the maximum physical gap to slide your bulky item over the free arm.

Setup Checklist (machine-side, before mounting the bag)

• Menu Navigation: Go to the hoop selection menu. Scroll Up. (The L-FA is often hidden above the standard Oval hoop in the list).
• Visual Verification: Ensure the L-FA icon is selected. The stitch field on screen will change shape.
• Action: Press the Park (P) icon. Wait for the module to stop moving.
• Logic Check: Is your design rotated 90°? (The top of the design should usually point to the left of the machine).

Owners of bernina embroidery machines often skip the Park step, leading to unnecessary struggle. Make this a mandatory habit in your workflow.

Mounting the Hooped Bag on the Free Arm: The Underside Check That Prevents a Ruined Project

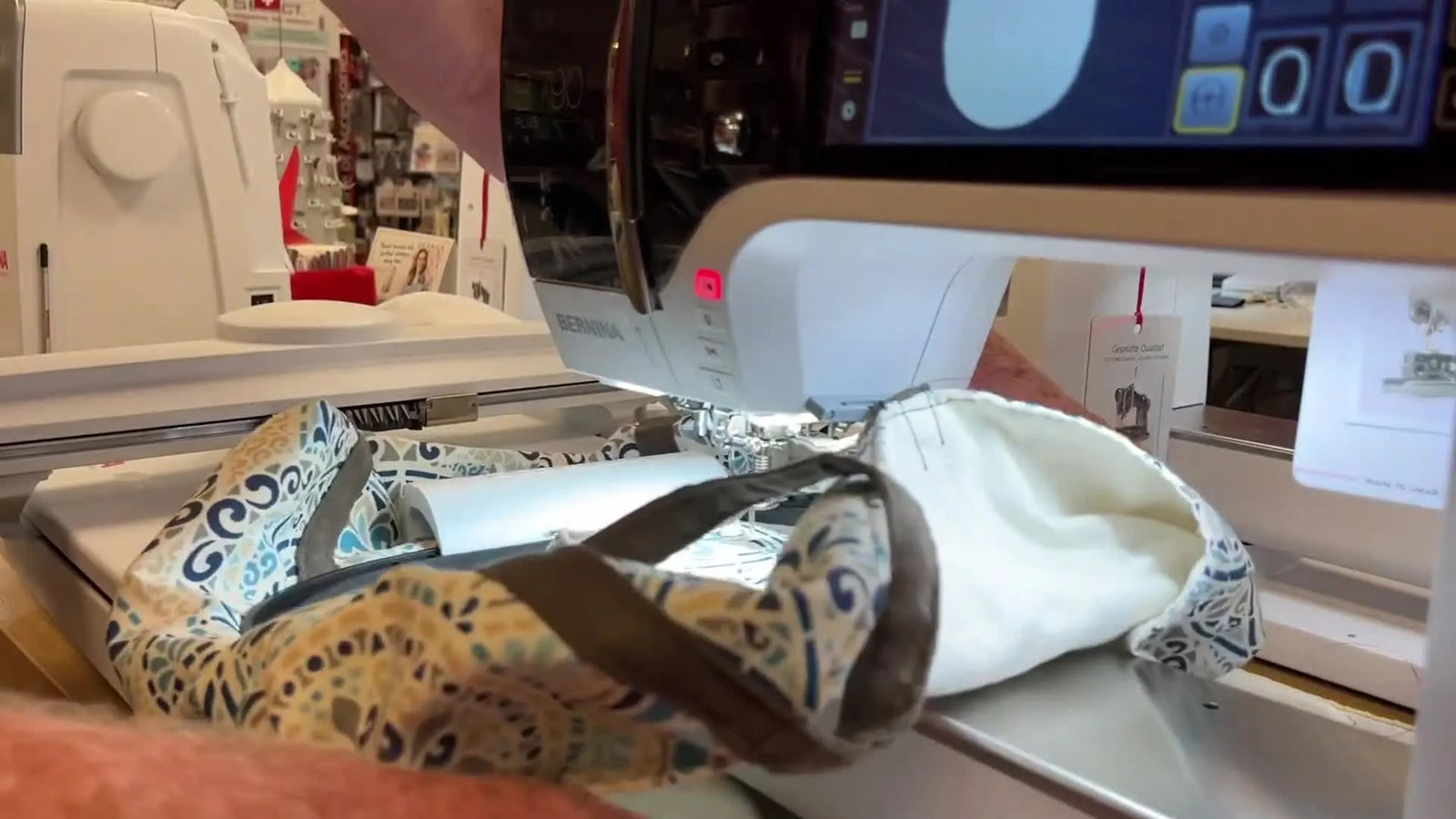

This is the "Point of No Return." Jeff slides the tote bag over the machine’s free arm.

The Critical Error: When a bag hangs off the free arm, gravity pulls the back layer (the side you don't want to sew) toward the needle plate. If you hit start now, you will sew the bag shut.

Warning: Pinch Hazard & Needle Strike. Keep fingers, scissors, and strap handles clear of the needle zone when you engage the arm. A high-speed movement can pull entrapments under the needle bar instantly.

Operation Checklist (right before you press Start)

• The "Under-Look": Physically bend down and look under the hoop. Is there any fabric between the needle plate and the free arm? Clear it.
• Weight Management: Support the bulk of the bag with your hands or a table extension during the first few stitches to prevent drag.
• Float Check: If floating stabilizer, ensure it hasn’t curled up during mounting. Slide your hand under to smooth it out.


Medium Clamp Hoop (8.5" x 8.5"): The Square Hoop Quilters Have Been Waiting For

Jeff introduces the Medium Clamp Hoop—a square 8.5" frame using independent mechanical levers (black clips).

The Physics of Square vs. Oval: Square hoops provide accurate registration for quilt blocks, but they have a weakness: the centers of the straight sides have less tension than the corners. This is why "clamp placement" is not random—it’s structural engineering.

Hooping a Quilt Block with the Bernina Medium Clamp Hoop: The “Trampoline Tight” Method (Without Warping)

Achieving equal tension on a square frame requires a specific clamping order, similar to tightening lug nuts on a tire.

The Workflow:

1. Lay & Center: Place fabric over the frame. Use the acrylic grid template.
2. Anchor North/South: Clamp the top center, then the bottom center. Pull slightly taut.
3. Anchor East/West: Clamp the left center, then right center.
4. Fill Corners: Add remaining clips working from the center out.

Jeff notes using two clamps per side is standard, but you can use up to three for dense batting.

How to clamp for even tension (expert feel, not brute force)

• The Tactile Test: Run your finger across the fabric. It should feel like a "trampoline"—firm with bounce, but not rock hard.
• The Grainline Watch: If your quilt block patterns (lines/seams) start to curve like a banana, you have over-tightened one side. Release and re-clamp.
• Consumable Alert: Remove the acrylic template immediately. Do not become the user who stitches the template to the quilt.

For high-volume quilters, using a dedicated hooping station for machine embroidery can act as a "third hand," ensuring perfectly repeatable centering without the manual juggling act.

Hooping a Thick Fleece Jacket with Zippers and Bulky Seams: Where Clamp Hoops Earn Their Keep

This is the stress test: A thick, black fleece vest with a zipper engaging the hoop line. Standard magnetic or inner-ring hoops often pop open here because the zipper teeth create a 5mm height difference.

Why Clamps Work Here: The clamps are independent. One clamp can grip the thin fabric, while the neighbor clamp grips the thick zipper. The frame doesn't care about the height difference.

Pro tip from the comment section (compatibility anxiety is normal)

Many users ask: "Will this working on my B880/790/570?" The rule of thumb:

• Physical Connection: Most modern 5, 7, and 8 series support the attachment.
• Software Connection: Without the firmware update, the machine won't calculate the safe zone and may refuse to move.
• Alternative: If you have an older machine or struggle with mechanical levers, bernina snap hoop solutions or universal magnetic frames are valid alternatives that rely on magnetic force rather than mechanical leverage.

Hoop Burn Isn’t a Mystery: Why It Happens and How Jeff Removes It with Niagara Spray Starch

"Hoop burn" is the crushing of fibers due to excessive pressure. On velvet, fleece, or delicate cotton, it looks like a permanent bruise.

The Restoration Protocol:

1. Release: Unhoop immediately after stitching.
2. Hydrate: Spray the mark generously with Niagara Spray Starch (or plain water mist for sensitive fabrics).
3. Relax: Hover a steam iron over the area or press lightly (use a pressing cloth). The heat + moisture causes the crushed fibers to swell back to their original shape.


The Firmware + Menu Trap: When the New Hoop “Isn’t There” (But Actually Is)

If you attach the hoop and the machine doesn't behave, do not force it.

Troubleshooting Matrix:

• Symptom: Hoop list ends at "Oval."
• Fix: Scroll UP. The UI often hides new, larger hoops at the top of the list.
• Symptom: L-FA is missing entirely.
• Fix: Go to Settings -> Machine Information. Check Firmware version. If it's pre-August 2022, you must visit Bernina.com, download the update to a USB stick (FAT32 formatted), and flash the machine.

Decision Tree: Choosing Stabilizer and Hooping Strategy for Bags, Quilts, and Bulky Jackets

Stop guessing. Use this logic flow to choose your tool and method.

Start: Analyze Your Substrate

1. Is it a cylinder (bag/leg) that cannot be opened?
   • YES: Use Large Free Arm Hoop (L-FA).
     • Risk: Sewing through the back? -> Action: Park arm, visual underside check.
   • NO: Proceed to step 2.
2. Is it thick/uneven (Quilt sandwich, Jacket with zipper)?
   • YES: Use Medium Clamp Hoop.
     • Risk: Hoop burn? -> Action: Plan for steam/starch finishing.
   • NO: Use Standard Hoop.
3. Is it a high-volume production run (50+ items)?
   • YES: Consider embroidery magnetic hoops.
     • Why: Mechanical clamping is slow and fatiguing. Magnets are instant.

When Mechanical Clamps Feel Too Loose (or Too Fussy): The Upgrade Path Without the Hard Sell

Clamps are great for "impossible" items, but they are slow. Each block requires 8-12 individual clip actions. If you have arthritis or are running a business, this manual dexterity tax adds up.

The Eras of Hooping:

1. Friction Hoops: Good for flats. Bad for burns. Hard on wrists.
2. Clamp Hoops: Excellent for odd thick items. Slow to set up.
3. Magnetic Hoops: The commercial standard.

If you find yourself dreading the hooping process, search for magnetic hoops for bernina embroidery machines. These frames use powerful magnets to snap fabric into place instantly. They eliminate the "adjust, tighten, loosen, adjust again" cycle.

The Commercial Tipping Point: If you start receiving orders for 20+ left-chest logos or 10+ quilt blocks a week, the time saved by a magnetic hoop (approx. 2 minutes per hoop) pays for the tool in less than a month.

Warning: Magnetic Safety. Industrial-strength magnetic hoops are not fridge magnets. They carry a pinch hazard. Keep them away from pacemakers and sensitive electronics. Always slide the magnets apart; never pry them.

For Bernina users who love the precision but hate the hoop burn, a bernina magnetic embroidery hoop compatible frame is often the ultimate upgrade for delicate fabrics like silk or velvet.

The “Why” Behind Better Results: Tension, Compression, and Repeatability

Embroidery is a battle against physics. The needle tries to push fabric down; the thread try to pull it up.

• L-FA wins by giving you access to the un-hoopable.
• Clamp Hoops win by gripping vertical thickness variances.
• Magnetic Hoops win by providing consistent, non-crushing surface tension.

If your shop is scaling up, you will eventually hit a ceiling with single-needle machines. The constant hoop changes effectively halve your production speed. This is when professionals look at multi-needle solutions (like SEWTECH multi-needle embroidery machines) where tubular hooping is the default standard, not an accessory add-on.

Quick Troubleshooting: Symptoms → Likely Cause → Fix

The Results You’re Really After: Faster Hooping, Cleaner Finishing, and Less Rework

Mastering these hoops isn't about collecting accessories; it's about confidence.

1. Safety First: Always Look Underneath.
2. Technique: Listen for the "Click" on the L-FA; feel for the "Trampoline" on the Clamp.
3. Tooling: Use clamps for the impossible stuff, but don't be afraid to upgrade to magnetic frames when speed becomes your priority.

You now have the SOP to tackle that jacket, bag, or quilt. Go hoop it.

FAQ

• Q: Why does a Bernina embroidery machine not show the Large Free Arm Hoop (L-FA) in the hoop selection menu?
  A: The most common causes are an outdated firmware version or the hoop being hidden above “Oval” in the list.
  • Check: Open the hoop selection menu and scroll UP (larger/new hoops can be above the standard list).
  • Verify: Go to Settings → Machine Information and confirm the firmware is August 2022 or later.
  • Update: If pre-August 2022, download the firmware from Bernina.com, unzip it to a FAT32-formatted USB stick, and run the update.
  • Success check: The L-FA icon appears and the on-screen stitch field shape changes when selected.
  • If it still fails: Power-cycle the machine and re-seat the hoop attachment—do not force movement if the machine refuses.
• Q: How do I mount a hooped tote bag on a Bernina 790 Plus free arm without bending needles or fighting clearance?
  A: Use the Bernina 790 Plus “Park (P)” function to move the embroidery arm fully left before sliding the bag onto the free arm.
  • Select: Choose the correct hoop icon first (confirm the L-FA is selected on-screen).
  • Press: Tap the Park icon (a “P” with a left-pointing arrow) and wait until the module stops moving.
  • Mount: Slide the hooped bag over the free arm only after the arm is parked.
  • Success check: The hooped item slides on smoothly without scraping the chassis or forcing the hoop into place.
  • If it still fails: Re-check that the hoop type is correctly selected—wrong hoop selection can block safe movement.
• Q: How tight should the Bernina Large Free Arm Hoop (L-FA) be, and what is the “click” when tightening the grey knob?
  A: Tighten the Bernina L-FA grey knob only until the ratcheting “click”—that click is the torque limiter, and it signals “tight enough.”
  • Lock: Twist the grey knob and stop at the first distinct ratcheting click (do not keep cranking).
  • Release: Pinch both grey side buttons at the same time to pop the tension free.
  • Avoid: Do not guess by brute force—under-torque can slip mid-stitch; over-torque risks damage and marks.
  • Success check: You can hear/feel the sharp click, and the fabric does not shift when gently tugged at the corners.
  • If it still fails: Re-seat the bracket 360° around the inner ring (one high corner means it isn’t fully seated).
• Q: How do I keep a tote bag from getting sewn shut when using a Bernina Large Free Arm Hoop (L-FA) on tubular items?
  A: Always do a physical “look underneath” check before pressing Start, because gravity can pull the back layer into the needle area.
  • Inspect: Bend down and look under the hoop—confirm there is zero extra fabric between the needle plate and the free arm.
  • Secure: Tape down loose pockets/straps inside the bag with painter’s tape so nothing drifts under the needle.
  • Support: Hold the bulk of the bag (or use table support) during the first stitches to prevent drag.
  • Success check: The needle only penetrates the intended front layer, and the back layer stays completely clear during the first stitches.
  • If it still fails: Stop immediately, unmount, and re-position the bag—do not try to “pull it free” while the machine is moving.
• Q: What stabilizer and adhesive setup works best for slick nylon bags or puffer jackets when hooping with Bernina clamp/free-arm hoops?
  A: Use temporary spray adhesive to prevent shifting, and use Heavy Cutaway (2.5 oz+) for bags that will carry weight.
  • Spray: Mist temporary spray adhesive (for example, Odif 505) between the stabilizer and the item to prevent the “baggy center” shift.
  • Choose: Use Heavy Cutaway (2.5 oz+) for bags; avoid tearaway for load-bearing items because stitches can pull out over time.
  • Float: If the item is too thick to capture with stabilizer in the hoop, hoop the item and slide (“float”) cutaway stabilizer underneath before stitching.
  • Success check: The center area stays flat (no bubbling), and layers do not “hydroplane” or drift as stitching begins.
  • If it still fails: Reduce speed (a safe starting point is 600 SPM on harder substrates) and reassess stabilizer weight.
• Q: How do I clamp a quilt block evenly in the Bernina Medium Clamp Hoop (8.5" x 8.5") without warping the block?
  A: Clamp in a cross-pattern (north/south, then east/west, then fill outward) to balance tension like tightening lug nuts.
  • Center: Lay and center the fabric using the acrylic grid template.
  • Anchor: Clamp top center, then bottom center; then left center, then right center.
  • Finish: Add remaining clips working from the center outward; use two clamps per side as a common baseline (up to three for dense batting).
  • Success check: Fabric feels “trampoline tight”—firm with bounce, and seam/grain lines stay straight (not banana-curved).
  • If it still fails: Release the over-tight side and re-clamp—uneven side tension is the usual cause of distortion.
• Q: Why do stitches look loose or looping on thick bags, quilt layers, or bulky jackets when using Bernina clamp hoops, and what is the fastest fix?
  A: The most likely cause is fabric “flagging” (bouncing), so add stabilization and slow the machine down (start around 600 SPM, not 1000).
  • Slow: Reduce stitch speed to a conservative setting (600 SPM is a practical starting point for harder/thicker substrates).
  • Stabilize: Increase stabilizer support (for bags, Heavy Cutaway is the baseline mentioned).
  • Secure: Use temporary spray adhesive to lock the stabilizer to the item and reduce vertical bounce.
  • Success check: The fabric stays flatter under the needle and the stitch formation becomes consistent without visible loops.
  • If it still fails: Stop and re-check hoop seating/tension—slippage mid-design can mimic tension problems.
