From Etsy to Stitching on a Brother SE1900: The No-Panic USB File Transfer Workflow (Mac-Friendly)

Mastering the Brother SE1900: From Etsy Download to Your First Perfect Stitch

A Field Guide for the "Technologically Anxious" Embroiderer

If you just unboxed your Brother embroidery machine and you’re staring at a screen full of Etsy designs thinking, “I’m going to break something,” stop. Breathe. You represent 90% of the beginners I have trained over the last two decades. I’ve watched seasoned sewers freeze at this exact moment—not because embroidery is hard, but because digital file handling feels like learning a new language.

Here is the truth: The machine is just a printer that uses thread instead of ink. The workflow is simple once you do it once, and it builds the muscle memory you will use for the rest of your craft.

1. The 3-Item Reality Check: Brother SE1900 + Mac/PC + USB Drive

The video tutorial begins with the minimal viable setup. To bridge the gap between "Digital Design" and "Physical Stitch," you only need three things.

If you are setting up a new workspace, remember this: Your computer’s sole job is file management. Your Brother SE1900 does not need your Mac to "understand" embroidery logic; it only needs to see a specific file on a USB stick.

The Hoop Limit Rule: The Brother SE1900 uses a 5x7 hoop or a 4x4 hoop. This physical limit dictates everything. If you try to load a design that is 5.1 inches wide, the machine will reject it—not because the file is broken, but to protect the needle from hitting the plastic frame and shattering.

If you are shopping for accessories, know that standard plastic hoops are fine for learning, but they are notorious for "hoop burn" (the ring marks left on fabric) and wrist strain. Once you begin stitching frequently, upgrading to embroidery machine hoops with magnetic locking mechanisms becomes a productivity requirement, not just a luxury. We will discuss when to upgrade later in this guide.

Prep Checklist: The "Pre-Flight" Inspection

Before you spend a dollar on Etsy:

• Machine Audit: Confirm your model (Brother SE1900 in this case).
• Space Audit: Confirm your max stitch field (5x7 inches) and smaller option (4x4 inches).
• Connectivity: Have a USB flash drive (ideally 32GB or smaller—older machine operating systems often struggle to read massive 128GB drives).
• Dongle Check: If using a modern MacBook, ensure you have a reliable USB-C to USB-A adapter.


2. Etsy Forensics: Decoding the Product Description

In the video, the creator searches Etsy for a butterfly design. The rookie mistake here is clicking "Buy" based on the pretty picture alone. You must act like a forensic investigator.

The PES Imperative: Scroll down to the "Item Details." You are looking for a specific file extension. Brother machines speak PES. (PEC is also compatible, but PES is the modern standard).

Why "PNG to PES" Converters Don't Work: I often see beginners getting scammed by "auto-converters."

• PNG/JPG: These are pixel-based images (flat pictures).
• PES: This is coordinate-based data (X/Y axis movements, commands to trim thread, jump commands).
• Analogy: A PNG is a photo of a cake; a PES is the recipe to bake it. You cannot feed a photo to your machine. Warning: if a listing only gives you images, do not buy it.

Your Buying Protocol:

1. Format: Must list PES.
2. Size: Must explicitly state dimensions smaller than 5x7 or 4x4.
3. Delivery: Immediate download (avoid "email me for files" listings if possible).

3. The Download & Unzip Sequence (Mac Workflow)

After purchase, navigate to your computer's Downloads folder.

The Zip Trap: Most Etsy sellers bundle multiple formats (DST for Tajima, EXP for Bernina, PES for Brother) into a single .zip folder.

• Visual Check: If the folder icon has a zipper on it, your machine cannot read it.
• Action: Double-click the zip file to "extract" the contents. You must work from the open, unzipped folder.

This process is critical. Identify the sub-folder for your desired size (e.g., "4x4") and locate the specific .PES file. Do not touch the others.

4. USB Hygiene: The "No Name" Drive

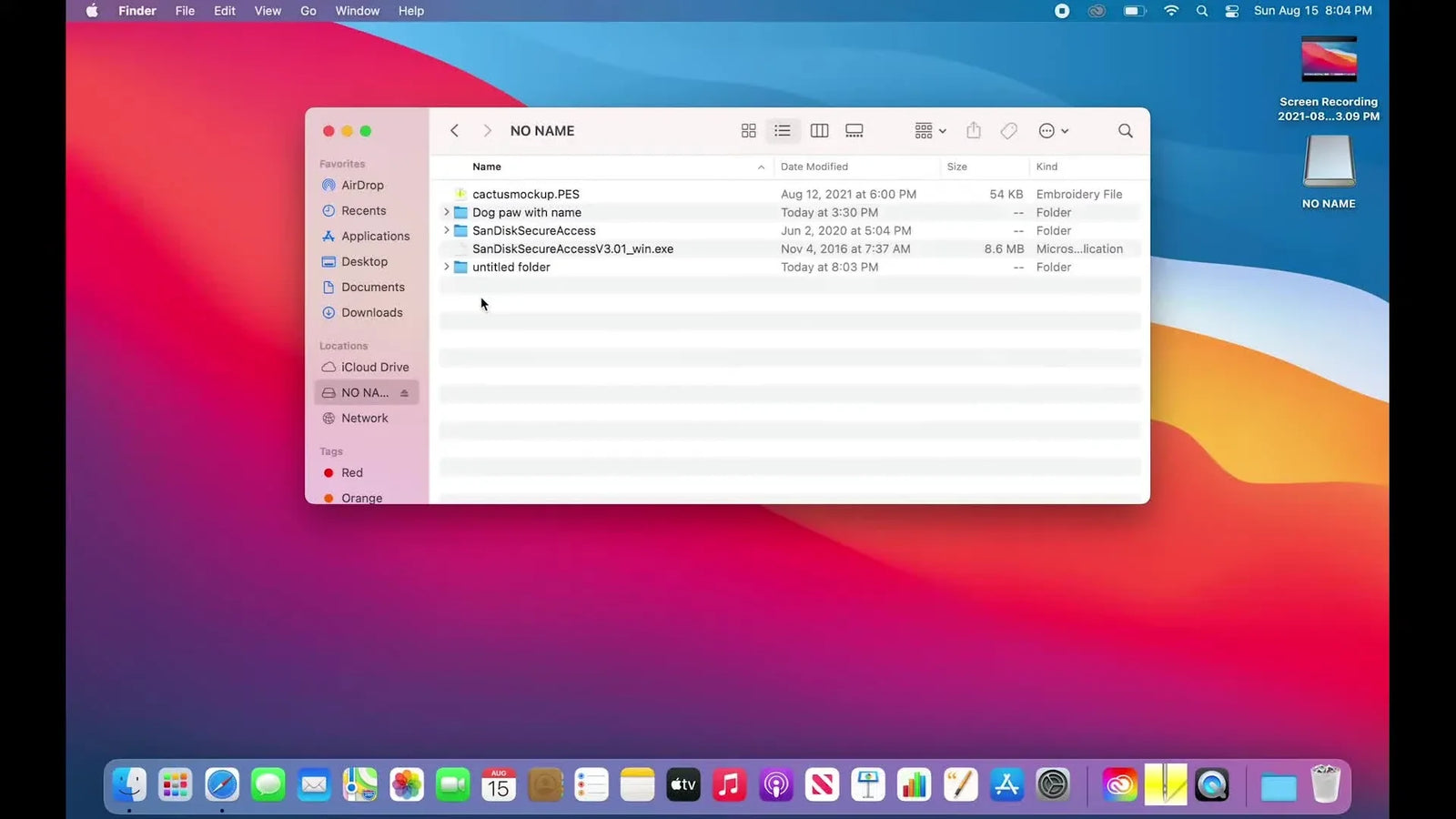

Insert your USB drive. On a Mac, it often appears as "NO NAME" or "UNTITLED." This is normal.

The "Clean Root" Philosophy

Professional digitizers follow a strict rule: Keep the USB clean. Do not treat your embroidery USB like a storage garage for old photos or Word docs. The machine's tiny processor has to scan every file on that drive.

• Best Practice: Copy only the specific PES files you need for today's project onto the root (main) layer of the USB drive.
• Why: Deeply nested folders (Folder > Subfolder > Subfolder) can sometimes confuse older machine interfaces.

The video demonstrates copying the specific 4x4 PES file and pasting it directly to the USB drive.

Setup Checklist: The "Go/No-Go" Criteria

• You selected the folder matching your physical hoop size (e.g., 4x4).
• You extracted/unzipped the folder first.
• You copied the file ending in .PES (not the JPG preview chart).
• You pasted it to the USB drive.
• Visual Check: You can see the distinct file icon on the drive.

5. The Critical Safety Step: Ejecting

The video explicitly warns to "Eject" the drive.

Why this matters: Computers use "write caching." Even if the file looks like it copied instantly, the computer might still be finishing the data in the background. Pulling the stick early is the #1 cause of "files causing machine crashes."

• Action: Click the "Eject" icon in Finder. Wait for the name to disappear.

Warning: Data Corruption Risk
Pulling a USB drive without ejecting can corrupt the file header. If your machine freezes or the screen goes black when you load a design, a corrupted file from an unsafe ejection is the likely culprit.

6. The "Pattern Extends Outside Frame" Error (And How to fix It)

Now, look at the Brother SE1900. Insert the USB into the side port.

Tap the USB icon on the LCD screen.

Select your butterfly.

The Panic Moment: You might see a popup: "Pattern extends to the outside of the embroidery frame."

Do not panic. This is a safety sensor. It means the digital setting for the hoop size does not match the digital size of the design.

1. Likely Cause: The machine defaults to the 4x4 setting, but you are trying to load a 5x7 design.
2. The Fix: Go to the machine's "Edit" or "Settings" tab (as shown in the video) and toggle the frame size to the larger 5x7 option.


If the error persists after changing settings to the max size, you likely bought a design larger than your machine's physical limit (e.g., a 6x10 design).

This error drives many users to search for brother se1900 hoops thinking they need to buy a bigger hoop. Crucial Note: You cannot simply buy a larger hoop (like a 6x10) for the SE1900 to stitch larger designs. The machine's mechanical arm has physical travel limits. Software or multi-position hoops can split designs, but the physical limit adds complexity.

7. The Physics of Embroidery: Hooping, Stabilizing, and Upgrading

The video covers the digital transfer, but the Success or Failure happens on the fabric. Beginners often focus on the file, but 80% of issues (looping, thread nests, puckering) are physical.

The Decision Tree: Fabric vs. Stabilizer

Use this logic flow before every project:

1. Is the fabric stretchy (T-shirt, Hoodie)?

• Yes: You MUST use Cutaway Stabilizer. No exceptions for beginners.
• Why: Knits stretch. If you use tearaway, the stitches will pull the fabric, creating gaps and puckers.

2. Is the fabric stable (Denim, Towel, Canvas)?

• Yes: Tearaway Stabilizer is usually sufficient.
• Sensory Check: When hooped, the fabric should sound like a tight drum skin when tapped. Thump, thump.

3. Are you doing high-volume work?

• Pain Point: Standard hoops require screwing and unscrewing. This causes "Hoop Burn" (crushed texture rings) and repetitive wrist strain.
• Solution Level 1: Use "Floating" technique with adhesive spray (messy).
• Solution Level 2 (The Pro Upgrade): Magnetic Hoops.

Terms like magnetic embroidery hoop are gateways to professional efficiency. These hoops use powerful magnets to sandwich the fabric instantly without adjusting screws.

• For SE1900 Users: Look specifically for a brother 5x7 magnetic hoop or a brother 4x4 magnetic hoop compatible with your specific arm width.
• Benefit: Zero hoop burn, 3x faster loading, and it holds thick items (like towels) that plastic hoops can't grip.

Warning: Magnetic Hoop Safety
These are industrial-strength N52 magnets. They can pinch fingers severely. Pacemaker Warning: Keep these hoops at least 6 inches away from pacemakers or insulin pumps due to strong magnetic fields.

Troubleshooting the "Ghost" Problems

Real-world solutions from the comments section:

8. Scaling Up: When to Upgrade Your Tools

As you master the SE1900, you will hit a ceiling. It is a single-needle machine, meaning every time the color changes, you must stop, cut thread, re-thread, and restart.

The Productivity Ladder:

1. Stabilization: Start using specific stabilizers (Cutaway/Tearaway/Water Soluble) correctly.
2. Hooping: Upgrade to Magnetic Hoops to save your wrists and fabric.
3. Pro Workflow: For repetitive logo placement, investigate a hoop master embroidery hooping station or hoopmaster hooping station. These fixtures ensure your logo is in the exact same spot on 50 shirts in a row.
4. The Machine: If you are changing threads more often than you are stitching, it is time to look at SEWTECH multi-needle machines. These hold 10-15 colors simultaneously, cutting production time by 50-70%.

Final Operation Checklist

Before you press the Green Button:

• USB inserted; Design loaded on screen.
• Needle Check: Is the needle straight? Run a finger down it to check for burrs (rough spots will shred thread).
• Bobbin Check: Is the bobbin thread pulling smoothly?
• Presser Foot: Is it DOWN? (The machine often won't start, or will make a mess, if the foot is up).
• Clearance: Is there anything behind the machine that the moving arm will hit?

You have now bridged the gap between a digital file and physical art. The fear of breaking the machine is gone; now the only limit is your creativity. Happy stitching.

FAQ

• Q: What file format must an Etsy embroidery design be for the Brother SE1900 to read it from a USB drive?
  A: The Brother SE1900 should be given a .PES embroidery file (PEC may work, but PES is the standard), not a PNG/JPG image.
  • Check the Etsy “Item Details” and confirm the download includes “PES.”
  • Download the files and locate the actual file ending in “.PES” (not the preview JPEG/PNG).
  • Copy only the .PES file you will stitch today onto the USB drive.
  • Success check: The USB shows a distinct embroidery-file icon/name ending with “.PES,” and the Brother SE1900 displays it under the USB menu.
  • If it still fails… re-download the file and ensure the folder was unzipped before copying.
• Q: How do I fix the Brother SE1900 “Pattern extends to the outside of the embroidery frame” error when loading a USB design?
  A: Match the Brother SE1900 frame setting to the design size (often switching from 4x4 to 5x7 fixes it).
  • Open the design on the machine, then go to the Edit/Settings area and change the frame size to the correct hoop option.
  • Confirm the design dimensions are within the Brother SE1900’s 5x7 or 4x4 hoop limit before trying again.
  • Success check: The warning no longer appears, and the design preview sits fully inside the selected frame boundary on-screen.
  • If it still fails… the purchased design may be larger than the SE1900’s physical limit (for example, a 6x10 design).
• Q: Why can’t the Brother SE1900 see a USB drive, and what USB setup works best for Brother SE1900 embroidery?
  A: Use a smaller, simple USB drive and keep the file structure clean so the Brother SE1900 can scan it reliably.
  • Use a generic small-capacity USB drive (the blog notes many older systems struggle with very large drives).
  • Format to FAT32 if needed (follow computer prompts and confirm your files are backed up before formatting).
  • Copy only today’s .PES file to the USB “root” (main layer), not deep inside nested folders.
  • Success check: The USB name appears on the machine and the design list populates quickly under the USB icon.
  • If it still fails… try a different USB drive and re-copy a freshly downloaded .PES file.
• Q: How do I stop Brother SE1900 “Invalid File” messages or freezing/black screen issues after transferring an Etsy PES design by USB?
  A: Re-transfer the file correctly—unsafe USB removal can corrupt the file header and trigger crashes or “Invalid File.”
  • Delete the problem file from the USB drive.
  • Re-download the design from Etsy and unzip/extract the folder before copying the .PES again.
  • Eject the USB drive properly from the computer (do not pull it out without ejecting).
  • Success check: The Brother SE1900 opens the design normally without freezing, and the design preview loads on-screen.
  • If it still fails… test with a known-good .PES file to separate “file problem” from “USB/format problem.”
• Q: What stabilizer should a beginner use on the Brother SE1900 for stretchy T-shirts/hoodies versus stable fabrics like denim or canvas?
  A: Use cutaway stabilizer for stretchy knits, and tearaway stabilizer is usually sufficient for stable woven fabrics.
  • Choose cutaway for T-shirts/hoodies (knits) to reduce stretching, gaps, and puckering.
  • Choose tearaway for denim/canvas/towels when the fabric is stable and well-supported.
  • Hoop firmly so the hooped fabric feels tight.
  • Success check: Tap the hooped fabric and listen for a tight “drum” sound (“thump, thump”), with the fabric lying flat.
  • If it still fails… reassess whether the fabric is actually stretching in the hoop and switch to cutaway as the safer starting point.
• Q: How do I fix thread nests (“bird’s nest”) on a Brother SE1900 when it looks like a bobbin problem?
  A: Rethread the upper thread with the presser foot UP—most “bobbin-looking” nests on the Brother SE1900 come from upper threading errors.
  • Lift the presser foot fully before rethreading so the thread seats correctly in the tension path.
  • Rethread the top from the spool all the way to the needle, following the machine’s guides carefully.
  • Restart and stitch a small test area before committing to the full design.
  • Success check: The underside shows controlled bobbin lines (not a wad of loops), and the top stitches look even without looping.
  • If it still fails… stop immediately, cut the nest away, and repeat the upper-threading process slowly.
• Q: What safety precautions should beginners follow with Brother SE1900 needles and with magnetic embroidery hoops used for Brother-size hoops?
  A: Prevent injury and damage by checking needle condition before stitching and handling magnetic hoops as industrial-strength pinch hazards.
  • Inspect the needle before pressing Start; replace a bent or burred needle that can shred thread or break.
  • Keep hands clear of the needle area and ensure nothing behind the machine can be hit by the moving arm.
  • Handle magnetic hoops carefully; keep fingers out of the closing path to avoid severe pinching.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps due to strong magnetic fields.
  • Success check: The machine stitches without unusual snapping/shredding, and hoop loading/unloading happens without pinches or forced movement.
  • If it still fails… pause the job and re-check needle straightness and hoop clearance before continuing.
