Husqvarna Viking Designer Epic 2 Embroidery Features: Ribbon Attachment, mySewnet Wi-Fi, and the Hooping Choices That Save Your Sanity

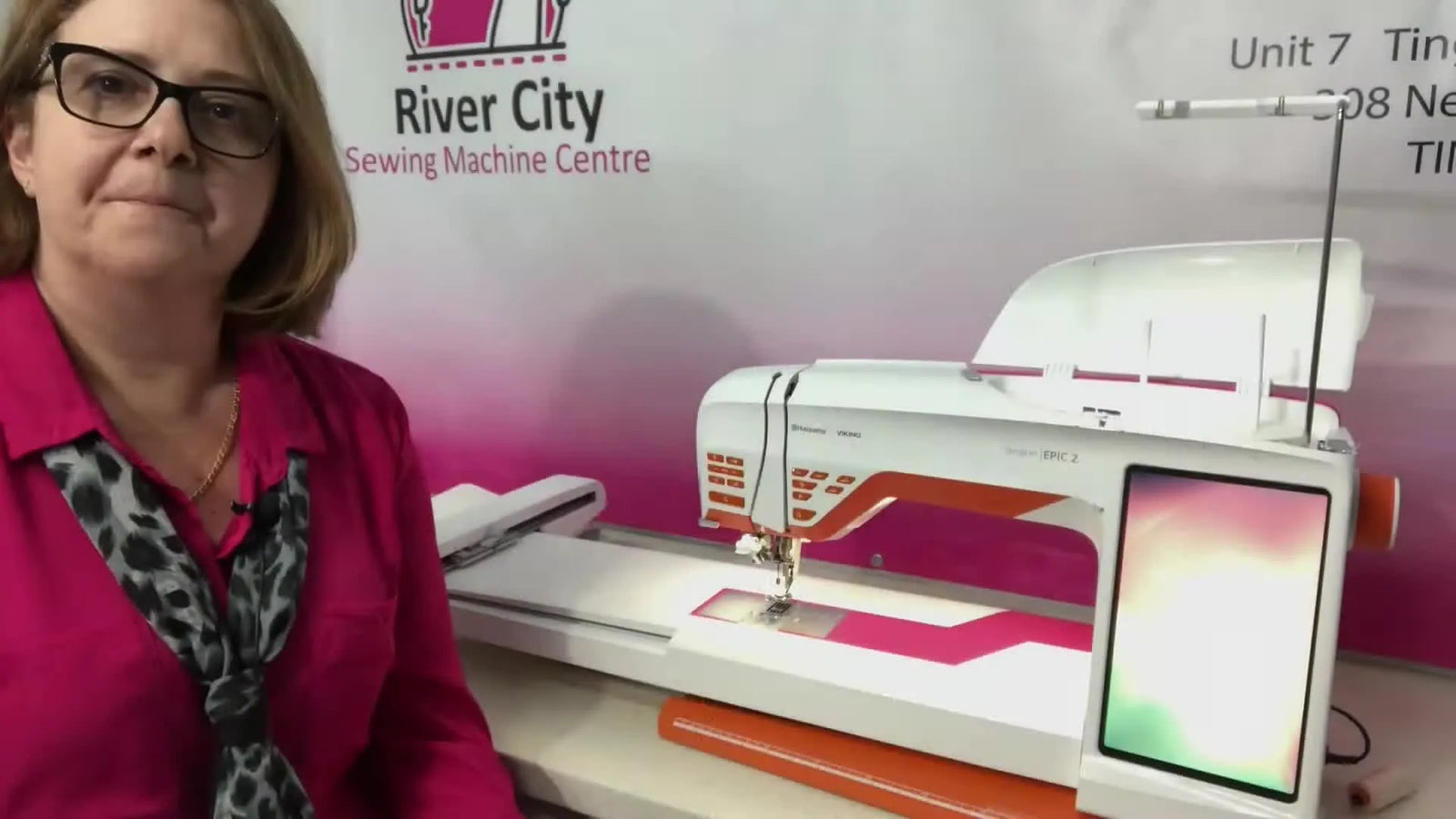

If you just bought (or are seriously eyeing) the Husqvarna Viking Designer Epic 2, you’re probably feeling two things at once: excitement… and that quiet worry that you’ll miss the “one setting” that makes the machine shine.

This post turns Judy’s feature overview into a practical workflow you can actually follow—especially if you want cleaner stitch-outs, fewer thread breaks, and less time wrestling fabric into a hoop.

Don’t Panic—The Husqvarna Viking Designer Epic 2 Is Powerful, Not “Too Much”

High-end domestic embroidery machines can feel like a cockpit at first. The interface is glowing, the icons are unfamiliar, and the fear of breaking a $10,000+ machine is real. The good news is: you don’t need to master every icon on day one to get professional-looking results. You just need to understand the "Order of Operations."

Start by anchoring your learning around three things Judy highlights:

1. Mechanical Capability: What the machine physically does (like the ribbon attachment).
2. Digital Workflow: How data moves (Wi-Fi transfer and on-screen editing).
3. Efficiency Tools: Features that reduce human error (Joy of Sewing Advisor and in-the-hoop construction).

Psychological Safety Tip: Most "machine errors" are actually "operator setup errors." If you hear a rhythmic "thump-thump" or see a bird's nest of thread, 90% of the time it is a threading or hooping issue, not a computer failure.

The Ribbon Embroidery Attachment on Designer Epic 2: Beautiful Results, But Only If You Respect the System

Judy’s first “wow” feature is the ribbon embroidery capability: a specialized attachment that looks like a large circle. You wrap ribbon inside it, and the machine rotates the attachment to release ribbon while stitching it down automatically.

Here’s the key detail that saves you from frustration: this is a patented system and it requires specialized designs created specifically for it. If you try to force a regular embroidery file to behave like ribbon embroidery, you’ll waste ribbon and time.

The Physics of Ribbon: Unlike thread, ribbon has grain and width. It cannot turn on a dime. The attachment is designed to pivot the ribbon before the needle strikes. Use this for high-impact embellishment—think dimensional florals—but understand it requires a slower pace.

Pro tip (Quality Control): Ribbon behaves differently than thread. It can twist, flatten, or snag depending on how it feeds.

• Tactile Check: Run the ribbon through your fingers before loading. It should be ironed flat.
• Test Run: Before committing to a full garment, stitch a sample on scrap fabric. Watch for the "twist point"—if the ribbon flips over, your tension is too loose or the spool is feeding unevenly.

The “Hidden” Prep Pros Do Before Any Epic 2 Stitch-Out (Threads, Stabilizers, and a Reality Check)

Most embroidery problems don’t start at the needle—they start at the prep table. Amateur embroiderers blame the machine; professionals check their "stack."

Judy calls out stabilizers directly (including Inspira options like fusible web, Fabric Magic, Lamifix, and stick-on stabilizers). But let's go deeper. The stack consists of: Stabilizer + Fabric + Hoop + Consumables.

If you’re planning to use hooping for embroidery machine techniques on quilts, bags, or garment pieces, your “prep” should include a quick stress test: can the fabric stay flat and stable without being stretched out of shape?

The "Hidden" Consumables: You need more than just thread. To succeed, you should have:

• Temporary Spray Adhesive (e.g., 505): Crucial for preventing fabric shift on lofty items like quilt sandwiches.
• Fresh Needles: Change your needle every 8 hours of stitching or every major project. A dull needle makes a "popping" sound as it penetrates fabric; a sharp needle should be silent.
• Quality Bobbin Thread: Ensure your bobbin tension is balanced. When you look at the back of a satin stitch, you should see 1/3 white bobbin thread in the center and color thread on the sides.

Prep Checklist (do this before you touch the hoop)

• Design Check: Confirm you’re using the correct design type (standard vs. ribbon vs. cutwork).
• Physical Inspection: Run your fingernail over the tip of your needle. If it catches, throw it away.
• Stabilizer Match: Pair the stabilizer to the stitch count, not just the fabric. (High stitch count = Heavier stabilizer, e.g., 2.5oz - 3.0oz Cutaway).
• Consumable Check: Ensure you have enough bobbin thread to finish the specialized color block.
• Hooping Strategy: Decide between standard hooping (for cottons) or floating/magnetic hooping (for velvets/towels to avoid burn).
• Hidden Layer: Application of a fusible woven interface on the back of unstable knits before hooping to prevent distortion.

mySewnet + Premier+ 2 Wi-Fi Transfer: The No-USB Workflow That Actually Speeds You Up

Judy describes a clean workflow:

• Design on your computer using Premier+ 2.
• Save the file into your mySewnet folder.
• The machine retrieves it via Wi-Fi (no USB).


She also notes the reverse direction: if you create or edit something on the machine, you can save it into the mySewnet folder on the machine and it becomes available back in your software.

Why this matters for production: Physical friction kills creativity. Walking back and forth with a USB stick breaks your flow state. If you are building a library of repeatable designs (logos, labels), this Wi-Fi workflow reduces “file handling friction.”

• The "Cloud" Advantage: It acts as a backup. If you accidentally delete a file on the machine, it's still on the server.
• Live Updates: If a client changes a logo color last minute, you update it on the PC and it’s instantly on the Epic 2 screen.

On-Screen Editing on Designer Epic 2: The Features You’ll Use Every Week (Not Just Once)

Judy lists the on-board editing functions that are now “second nature” once you grow in embroidery:

• Design positioning
• Rotate
• Mirror image
• Scale
• Copy/paste and multiples
• Color block sort


The "Save Your Project" Feature: Design Positioning This is the most critical feature on the list. If you hoop your fabric and it's crooked by 3 degrees, do not un-hoop. Un-hooping strains the fabric fibers. instead, use the Design Positioning feature.

1. Locate a specific point on your fabric (e.g., a crosshair mark you made with a water-soluble pen).
2. Match the design's specific stitch point to that mark on the screen.
3. Rotate the design digitally until it aligns with your fabric's grain.

Watch out: Scaling is not magic. Generally, scaling a design too far up or down (more than 20%) can change stitch density. If you shrink a design too much, the stitches pile up and break needles. If you enlarge it too much, you see gaps. Always rely on the software's density recalculation if resizing significantly.

In-the-Hoop Buttonholes and Eyelets on Epic 2: The “Neat and Tidy” Garment Trick People Miss

One of the most practical features Judy mentions is embroidering buttonholes, decorative stitches, and similar elements in the embroidery hoop.

Her example: a dress bodice. If you already have cut lines ready, you can embroider the front and also embroider the buttonholes in the hoop—so everything is neat and tidy and you don’t have to do it manually later.

Why do this? Manual buttonholes on a sewing machine rely on you guiding the fabric perfectly straight. In the hoop, the machine controls the X and Y axis absolutely. The result is identical buttonholes, every single time.

Warning (Mechanical Safety): In-the-hoop construction often involves placing non-fabric items (zippers, snaps) or using cutwork tools. Keep your hands clear! When the machine is moving to position, never reach inside the hoop area. If you must trim threads or applique fabric, establish a "Stop" routine: Press Stop -> Wait for Needle Up -> Trim -> Resume.

The 1000 SPM Reality: Fast Is Great—Until Metallic Thread Breaks and Ruins Your Mood

Judy states the machine can run up to 1000 stitches per minute (SPM). That’s fast for a domestic embroidery setup.

She also gives the most important “grown-up” advice in the whole overview: slow down.

The Empirical Sweet Spot: While 1000 SPM is the "marketing speed," it is not always the "quality speed." Friction generates heat, and heat melts polyester thread or shreds metallic foil.

• Standard Poly/Rayon: Safe zone is 600 - 800 SPM.
• Metallic/Glow-in-the-Dark: Safe zone is 400 - 500 SPM.
• Dense Satin Stitches: Slow down to 600 SPM to prevent looping.

Sensory Troubleshooting: Listen to your machine. At 1000 SPM, if you hear a "slapping" sound, the thread is whipping against the guides too hard. Slow it down until the sound becomes a steady hum.

Husqvarna Viking Designer Epic 2 Hoop Sizes: What’s Included, What’s Optional, and What That Means for Your Projects

Judy lists three hoops included with the machine:

• 360 x 260 mm (Large - for jacket backs)
• 260 x 200 mm (Medium - for chest logos/designs)
• 120 x 120 mm (Small - for patches/monograms)


She also mentions an additional option: 260 x 260 mm (10-inch square).

The Physics of Hoop Size: Always use the smallest hoop that fits your design.

• Why? A large hoop has a large surface area of fabric suspended in the middle ("The Trampoline Effect"). As the needle creates thousands of penetrations, the fabric in the center tends to bounce and pull inward, causing outline misalignment.
• The Rule: If the design fits in the 120x120 hoop, do not use the 360x260 hoop, even if it's easier to load. The quality difference is visible.

Magnetic Hoops for Quilting on Epic 2: When They’re a Luxury—and When They’re a Lifesaver

Judy specifically mentions magnetic hoops as an available accessory, calling out quilting as a use case.

If you’ve ever tried to hoop a quilt sandwich or a bulky bag panel in a standard hoop, you already know the pain: it’s slow, it can leave marks ("hoop burn"), and it can distort layers if you over-tighten the screw.

This is where magnetic hoops are not just a luxury; they are a mechanical necessity for certain materials.

The Decision Criteria:

1. Standard Hoops (Friction): Best for single-layer woven cottons or linens where you need drum-tight tension.
2. Magnetic Hoops (Clamping): Best for delicate fabrics (velvet, crushing risks), thick items (towels, quilts), or continuous production.

The Upgrade Path: If you are setting up a professional machine embroidery hooping station in your home studio, integrating magnetic frames changes your workflow. You stop wrestling with screws and start snapping fabric in place.

• Level 1: SEWTECH Magnetic Hoops for Domestic machines (compatible with Epic 2) — Save your wrists and protect fabric.
• Level 2: If you find yourself doing 50 shirts a week, you have outgrown the single-needle process. This is when you look at SEWTECH multi-needle machines that use industrial magnetic frames for high-speed throughput.

Warning (Magnet Safety): High-quality magnetic hoops use strong Neodymium magnets.
* Pinch Hazard: They snap together with immense force. Keep fingers clear of the edge.
* Medical Device Safety: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Do not place magnetic hoops directly on top of laptops or the Epic 2 screen/hard drive area.

The Joy of Sewing Advisor on Epic 2: Use the Stabilizer Guide Like a Built-In Mentor

Judy physically moves the camera closer to show the large tablet-like screen and navigates the Joy of Sewing Advisor.

She taps into the Stabilizer Guide, which explains different stabilizers. This is the feature that prevents expensive trial-and-error.

How to use this as a Diagnostic Tool: Don't just read it; use it to confirm your physics. If your stitch-out is puckering, open the advisor. It will likely tell you that for "Heavy Knit," you should be using a Cut-Away, not a Tear-Away.

She also points out the QuickStart guide and workbook.

Setup Checklist (before you press “go”)

• Bobbin Check: Is the bobbin area clear of lint? (Blow it out or use a brush).
• Needle Check: Is the needle fully inserted relative to the flat side? A needle inserted 1mm too low will cause timing issues.
• Hoop Check: Verify the hoop selection on the screen matches the physical hoop attached. The machine will let you crash the needle into the frame if this is wrong.
• Clearance Check: Ensure the wall behind the machine is clear. The embroidery unit arm moves forcefully; it needs roughly 12 inches of clearance.
• Screen Review: Check the "sewing order" on screen. Does it make sense?

Stabilizer Decision Tree for Epic 2 Projects (Fabric → Stabilizer Strategy → Hooping Choice)

Use this logic flow to prevent 80% of common failure modes.

Decision Tree:

1. Is the fabric stretchable or unstable (T-shirt, Knit, Sweater)?
   • Yes: You MUST use Cut-Away Stabilizer. (Tear-away will eventually distort). Use a ballpoint needle.
     • Hooping: Don't stretch the fabric. Consider a magnetic hoop to hold it neutral.
   • No: Go to step 2.
2. Is the fabric stable but delicate (Velvet, Corduroy, Satin)?
   • Yes: Use Tear-Away or Water Soluble.
     • Hooping: Do not use a standard friction hoop (hoop burn risk). Use a Magnetic Hoop or "Float" the fabric on adhesive stabilizer.
   • No: Go to step 3.
3. Is the fabric heavy and stable (Denim, Canvas, Drill Cloth)?
   • Yes: Use Tear-Away. Standard friction hooping is fine. Use a sharp/jeans needle (Size 90/14).

Many users searching for new husqvarna embroidery hoops believe a new hoop will fix their puckering, when the real culprit is a mismatch between fabric elasticity and stabilizer type.

Troubleshooting Epic 2 Stitch Quality: Symptoms → Likely Cause → What to Change Next

When something goes wrong, amateurs change five things at once. Pros change one thing at a time. Follow this hierarchy from "Low Cost" (Free/Quick) to "High Cost" (Time consuming).

The Upgrade Path That Actually Makes Sense: From Better Hooping to Real Production Speed

The Designer Epic 2 is an engineering marvel, but even a Ferrari needs the right tires. Integrating professional-grade accessories allows you to move from "Fighting the machine" to "Producing art."

Here is the logical upgrade ladder:

1. Foundation (Consumables):
   Stock quality stabilizers (Cutaway/Tearaway/Wash-away) and specialized needles. Use the Joy of Sewing Advisor to learn them.
2. Workflow (Tools):
   If hooping fatigue sets in, or you are ruining velvet/quilts with hoop marks, add a magnetic hoop compatible with your Epic 2. This solves the physical strain and fabric damage issues instantly.
3. Scale (Production):
   If your hobby succeeds and you are running 6+ hours a day, the Epic 2 is still great, but a single-needle machine requires a thread change every few minutes. The next step in your journey is a SEWTECH Multi-Needle Machine. This allows you to set 15 colors, press start, and walk away, using industrial magnetic ecosystem tools for maximum profit.

Operation Checklist (the “calm operator” routine that prevents most mistakes)

• The "Tug Test": after threading, pull the thread gently near the needle. You should feel resistance (like pulling a tooth with floss). If it runs loose, rethread.
• The "Punch Test": Tap the center of your hooped fabric. It should sound like a drum (pau-pau), not a thud. Exception: Do not tighten knits this much.
• Speed Limit: Set max speed to 800 SPM for Poly, 600 SPM for metallic.
• Trace/Baste: Use the "Trace" function to ensure the needle won't hit the hoop frame. Use the "Baste" function to tack down the fabric/stabilizer sandwich before the real embroidery starts.
• Go Button: Watch the first 100 stitches. If it survives the start, it will usually finish the race.






When you treat the Epic 2 like a system—mechanical attachments, digital workflow, hooping physics, and stabilizer logic—you stop “hoping it works” and start controlling the outcome. And that’s when a premium machine finally feels relaxing instead of intimidating.

FAQ

• Q: What prep consumables should be on the table before starting a Husqvarna Viking Designer EPIC 2 embroidery stitch-out?
  A: Most Husqvarna Viking Designer EPIC 2 stitch problems start at the prep table, so stage the “stack” before hooping.
  • Check: Use the correct stabilizer for stitch count (high stitch count often needs heavier cutaway like 2.5–3.0 oz).
  • Add: Keep temporary spray adhesive (e.g., 505), fresh needles, and quality bobbin thread ready before loading the hoop.
  • Verify: Confirm the design type matches the attachment/workflow (standard vs ribbon vs cutwork) before pressing start.
  • Success check: The fabric stays flat without being stretched out of shape when you do a quick stress test by hand.
  • If it still fails: Stop and reassess stabilizer choice first, then hooping method (standard vs float vs magnetic).
• Q: How do I know Husqvarna Viking Designer EPIC 2 top tension and bobbin balance are correct when the back looks messy?
  A: Re-thread the top thread first—most “messy back” issues on Husqvarna Viking Designer EPIC 2 are top threading/tension-disc engagement problems.
  • Do: Raise the presser foot, then re-thread the top path so the thread seats fully into the tension discs.
  • Do: Inspect bobbin thread quality and make sure there is enough bobbin thread to finish the color block.
  • Do: Change to a fresh needle if you hear popping or see inconsistent stitch formation.
  • Success check: On the back of a satin stitch, the bobbin thread should sit as a narrow band (about 1/3) centered, with top color thread on both sides.
  • If it still fails: Clean the tension discs carefully (often with unwaxed floss) and re-test on scrap.
• Q: How do I stop a bird’s nest on the bottom thread on a Husqvarna Viking Designer EPIC 2 embroidery design?
  A: Don’t panic—on a Husqvarna Viking Designer EPIC 2, a bottom bird’s nest is most often caused by top mis-threading, so re-thread the TOP correctly.
  • Do: Stop the machine, raise the presser foot, and re-thread the top path from spool to needle.
  • Do: Ensure the thread is pulled fully into the tension discs (a common miss when the presser foot is down).
  • Do: Remove any loose thread wad under the hoop before restarting.
  • Success check: The restart sound becomes a steady hum (not a rhythmic thump) and the underside no longer forms loops immediately.
  • If it still fails: Clean the tension discs and verify needle condition before changing anything else.
• Q: What Husqvarna Viking Designer EPIC 2 speed should I use to prevent metallic thread breaks at 1000 SPM?
  A: Treat 1000 SPM as a maximum, not a default—on Husqvarna Viking Designer EPIC 2, slowing down is the fastest way to stop metallic shredding.
  • Set: Run standard poly/rayon around 600–800 SPM, and metallic/glow threads around 400–500 SPM.
  • Do: Slow dense satin stitch areas to about 600 SPM to reduce looping and heat.
  • Listen: If you hear slapping/whipping at high speed, reduce speed until it becomes a smooth, steady hum.
  • Success check: The thread stops fraying at the guides and the design runs longer without breaks.
  • If it still fails: Change to a needle with a larger eye (often a topstitch-style needle) and re-test on scrap.
• Q: How do I avoid hoop burn marks on velvet or towels when hooping a Husqvarna Viking Designer EPIC 2 embroidery project?
  A: If Husqvarna Viking Designer EPIC 2 hooping leaves marks, stop over-tightening—use a float method or a magnetic hoop to clamp without crushing fibers.
  • Choose: Avoid standard friction hooping on delicate pile fabrics (velvet/towels) where hoop burn risk is high.
  • Do: Float fabric on adhesive stabilizer or switch to a magnetic hoop when the fabric crushes or shifts under screw tension.
  • Do: Use the smallest hoop that fits the design to reduce fabric bounce and shifting.
  • Success check: After unhooping, the nap/pile is not permanently flattened and the embroidery outline stays aligned.
  • If it still fails: Reduce hoop size again and add a baste/tracing step to stabilize the sandwich before the design.
• Q: How do I keep a Husqvarna Viking Designer EPIC 2 from hitting the hoop frame when starting an embroidery design?
  A: Prevent needle-to-frame crashes on Husqvarna Viking Designer EPIC 2 by matching the on-screen hoop selection to the physical hoop and tracing before stitching.
  • Verify: Confirm the hoop selected on the screen is the exact hoop attached to the machine.
  • Do: Use the Trace function to confirm needle travel stays inside the frame.
  • Do: Watch the first ~100 stitches and stop immediately if motion or sound changes.
  • Success check: The trace path clears the hoop edges with no contact and the start stitches run without sudden jolts.
  • If it still fails: Re-check design placement/rotation (Design Positioning) instead of re-hooping and stretching fabric.
• Q: What safety rules should I follow for in-the-hoop buttonholes and for strong magnetic hoops on a Husqvarna Viking Designer EPIC 2?
  A: In-the-hoop work and magnetic hoops are safe on Husqvarna Viking Designer EPIC 2 when hands stay clear and magnets are treated as pinch hazards.
  • Do: Use a “Stop routine” for trimming/appliqué—Press Stop → wait for Needle Up → trim → resume.
  • Don’t: Reach into the hoop area while the embroidery unit is moving to position.
  • Handle: Keep fingers away from magnetic hoop edges as they snap together with high force.
  • Success check: Hands never enter the moving field during repositioning, and magnetic parts close without pinching or misalignment.
  • If it still fails: Pause and reset the workspace—keep magnets away from sensitive medical devices and avoid placing them directly on electronics.
