Quilt in the Hoop on the Brother Dream Machine 2 (XV8500D): Scan, Fence Off Appliqué, Fill-Stipple the Background—Plus Power-Resume & Lock-Screen Safety

If you have ever stopped halfway through a project, stared at a pristine appliqué block, and thought, “I love this… but wrestling it through the throat of my machine to quilt it is going to ruin it,” you are experiencing the Domestic Quilting Plateau.

The Brother Dream Machine 2 (Innov-is XV8500D) offers a specific workflow that solves this: Quilting inside the embroidery frame. By keeping the fabric stationary and moving the needle (via the embroidery arm), you eliminate the physical drag and inconsistency of free-motion quilting. The machine scans what is hooped, allows you to digitally draw a "safety fence" around your appliqué, and automatically floods the background with a texture like stipple or cross-hatch.

However, moving from standard embroidery to "in-the-hoop quilting" requires a shift in mindset—specifically regarding bulk management and precision.

Based on 20 years of floor experience, this guide breaks down the "Kent Demo" into a replicable, safe, and professional workflow. We will cover the specific physics of hooping quilt sandwiches, the "hidden" safety features like Power Resume and the Lock Key, and the tools that prevent physical burnout.

The "Why": Precision Without the Wrestling Match

The concept demonstrated is deceptively simple: hoop a quilt block (Kent uses a blue square to represent a logo, boot, or sunbonnet), scan it using My Design Center, blocks out the center, and quilt the rest.

Why do professionals use this method instead of free-motion?

1. Texture Consistency: A machine-generated stipple or cross-hatch is mathematically perfect. There are no "long stitches" or "short stitches" caused by your hands moving too fast or slow.
2. Safety Zone: You aren't guessing where the needle will go. The camera shows you exactly where the appliqué sits.
3. Physical Relief: You are not shoving a heavy quilt sandwich under the presser foot. The machine does the work.

If you are new to this, understand that you are not "digitizing" stroke-by-stroke. You are simply defining a Negative Space (The Appliqué) and a Positive Space (The Background), then telling the machine to fill the positive space.

The Physical Prep: Preventing Hoop Burn and "Drift"

Kent uses the standard 9.5" square embroidery frame. While effective, standard hoops rely on friction and screw tension to hold fabric. When you introduce a "quilt sandwich" (Top Fabric + Batting + Backing), you introduce drag and bulk.

The Physics of the "Sandwich"

When you hoop three layers, the inner ring of a traditional hoop has to compress the batting to grip the fabric.

• The Risk: If you tighten the screw too much, you get permanent "hoop burn" (crushed fibers) on delicate cottons/velvets. If you tighten it too little, the batting shifts during the rapid back-and-forth movement of a fill stitch.
• The Symptom: If your outline matches on the left side but is off by 2mm on the right side, your fabric shifted.

The Tool Upgrade Path

If you find yourself struggling to close the hoop over thick batting, or if you are doing production runs (e.g., 20 quilt blocks for a full bedspread), this is a specific trigger point for hardware upgrades.

This is where many advanced users switch to a magnetic hoop for brother dream machine.

• Concept: Instead of friction/screw jamming, strong magnets clamp the sandwich directly from the top.
• Benefit: It eliminates "hoop burn" because there is no friction-drag on the fabric face. It also accommodates thickness key (batting) automatically without needing manual screw adjustments.

Warning: Needle Clearance Safety. Before you put your hands near the needle area for any adjustment—whether changing a needle, checking the thread path, or verifying bobbin teantion—STOP. Engange the Lock feature (discussed in section 7). An accidental tap on the "Start" button while your finger is near the needle clamp can result in severe injury.

Phase 1: Prep & Physics Checklist

Before you even touch the screen, ensure the physical setup is flawless.

• Sandwich Check: If using spray baste, ensure layers are adhered smoothly. Loose batting causes "puffing" that traps the presser foot.
• Hoop Tension (Sensory Cue): Tap the hooped fabric. It should not sound like a high-pitched drum (too tight, causes puckering) nor a dull thud (too loose, causes registration errors). It should feel firm, like a well-made bedsheet.
• Clearance Check: Ensure the quilt sandwich edges are not hanging so far off the hoop that they will get caught in the embroidery arm movement. clip them up if necessary.
• Needle Selection: Switch to a Topstitch 90/14 or Quilting 90/14 needle. The larger eye protects the thread from shredding against the batting friction.
• Bobbin Check: For quilting, ensure your bobbin thread matches your backing fabric (or top thread) if you don’t want contrast showing on the back.


The Scan: Utilizing the Camera Eye

Kent navigates to My Design Center and hits the Scan icon. The machine physically moves the hoop to capture a panoramic image of the fabric.

Crucial Operation Note: Lighting matters. If your room is extremely dark or has a harsh spotlight hitting the fabric directly, the scan can be washed out. Ensure even, ambient lighting for the best camera recognition.

Upon completion, the LCD screen displays your actual fabric as the background wallpaper. You are no longer working in the abstract; you are working on reality.

The Boundary: Constructing the "No-Sew" Zone

This is the most critical step for success. You must tell the machine where not to stitch.

Using the stylus, select the Shape Tool (Square) to create a box around your center appliqué. In the demo, this is resized to 7.02" x 7.02".

Expert Visual Cues

1. The Margin: Do not draw the line tight against your appliqué satin stitch. Leave a "breathing room" or buffer zone of at least 3-5mm (1/8 to 1/4 inch).
   • Why? If the batting shifts slightly, a tight margin means the quilting stitch might stab into your beautiful appliqué satin stitch, ruining the look. A textured buffer zone looks professional.
2. The Seam Allowance: Do not extend the quilting fill to the absolute edge of the fabric if you plan to sew these blocks together later. Stop the boundary 1/2 inch from the raw edge to leave flat fabric for piecing.


Phase 2: Digital Setup Checklist

Verify these settings on-screen before applying stitches.

• Scan Clarity: Is the appliqué clearly visible on screen? Usually requires a clean background scan.
• Buffer Zone: Visually verify a consistent gap between your red boundary line and the appliqué.
• Dead Space: Ensure your boundary box (the outer limit) is smaller than your inner hoop ring. Never stitch precisely up to the plastic hoop edge; the presser foot needs clearance.
• Stylus Precision: Use the fine-point stylus, not your finger, for corner adjustments.

The Fill: Flooding the Background

Kent selects a Cross-Hatch pattern from the built-in library. He then uses the Fill (Bucket) Icon and taps the area outside the inner boundary box but inside the outer frame limit.

The "Flood" Logic: Think of this like MS Paint. If you pour paint into a closed room, it fills the room.

• If you tap inside the appliqué box -> You ruin the appliqué.
• If you tap the background -> You get the desired quilting effect.

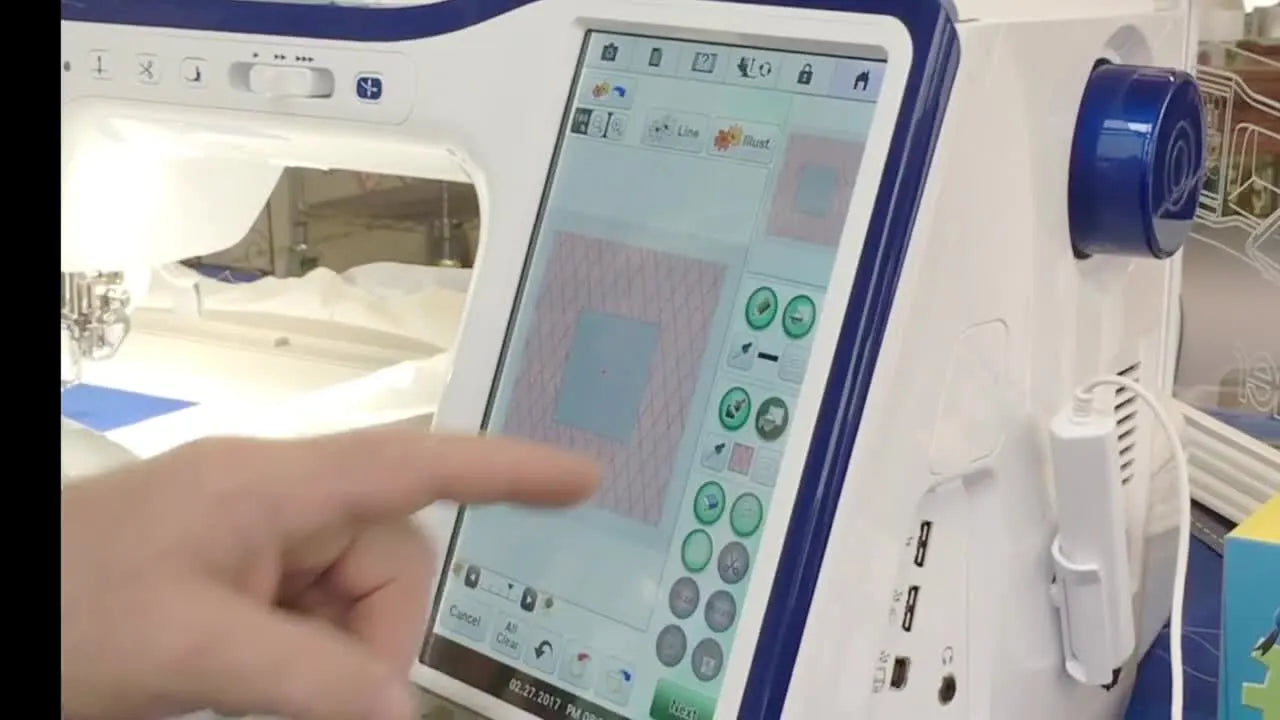

Upon tapping, the background turns red (or the pattern color), indicating stitch coverage. The center remains clear (the protected zone).

Demo Stats:

• Stitch Count: ~3,000–4,000 stitches.
• Time: Approx 8 minutes.
• Speed Recommendation: Do not run this at max speed (1050 SPM). For quilting layers, reduce speed to 600-700 SPM. This reduces friction heat and prevents thread shredding inside the batting.






Troubleshooting: The "Whole Hoop" Disaster

A common point of failure for beginners is tapping the fill tool and seeing the entire screen (including the appliqué) turn red.

This is rarely a machine glitch; it is almost always a "leak" in your shape.

Diagnostic Table: Why is it filling everywhere?

The "Scanning Frame" Myth: You do not strictly create "scan frame" hardware for this specific technique on the Dream Machine 2, as it uses the built-in camera scanning of standard hoops. However, verify your specific machine model's firmware capability if menus look different.

Safety Net 1: Power Failure Recovery

To demonstrate robustness, Kent pulls the plug mid-stitch. When rebooted, the machine offers "Resume Previous Memory."

Strategic Use

This is not just for power outages.

• Thread Break Recovery: If a thread breaks and the machine creates a "bird nest" underneath, you may need to shut down to cut the nest safely. This feature allows you to reboot and pick up exactly where you left off.
• The Rule: Never move the hoop if power dies. Leave everything engaged. Turn power back on, follow the calibration (keep hands away), and hit Resume.






Safety Net 2: The Lock Key (Physical Safety)

Located on the top panel, the Lock key freezes all motor functions and touchscreen "Go" buttons.

Why use it? Most domestic accidents happen when a user is threading the needle and their forearm brushes the "Start/Stop" button or the touchscreen. The needle bar creates a puncture wound instantly.

• Protocol: Any time your fingers cross the plane of the needle screw -> Press Lock.


Material Science: The Stabilizer Decision Tree

Kent’s video shows the result, but not the layers underneath. The success of in-the-hoop quilting relies heavily on your "Stack."

Use this decision logic to choose your consumables.

Decision Tree: Stabilizer vs. Batting

1. Is this a full quilt sandwich (Top + Batting + Backing)?
   • YES: You generally do not need extra stabilizer. The batting and backing provide structure. Critical: Hooping must be tight. Consider a magnetic hoop for brother dream machine to hold all 3 layers without slip.
   • NO: (Go to step 2).
2. Is this "Quilt-As-You-Go" (Top + Batting only)?
   • YES: Use a tear-away stabilizer floating under the hoop or hooped with the batting. This prevents the feed dogs (or lack thereof) and needle drag from distorting the block shape.
3. Is the fabric stretchy (T-shirt quilt, Jersey)?
   • YES: You MUST use fusible woven interfacing (like Shape-Flex) on the back of the knit block before sandwiching. Batting alone will not stop a knit fabric from stretching under a dense cross-hatch fill.

Commercial Pivot: When to Upgrade

This technique is fantastic for 1-5 blocks. But if you have an order for 50 branded polo shirts with a quilted background, or a King Size quilt with 64 blocks, the limits of a single-needle workflow become painful.

The Trigger Point: You are spending more time hooping, adjusting screws, and massaging wrinkles than actual stitching. Your wrists hurt from tightening hoops.

The Criteria:

• Hoop Burn: Traditional hoops leave marks that are hard to iron out of polyester or velvet.
• Speed: Screw-tightening takes 2-3 minutes per hoop. Magnets take 10 seconds.
• Volume: doing 50+ items/week.

The Options:

• Level 1 (Efficiency): magnetic embroidery hoops for brother. These snap onto your existing machine arms. They reduce hooping time by ~70% and eliminate hoop burn. They are creating a safer, faster workflow for the operator.
• Level 2 (Consistency): A hoop master embroidery hooping station ensures that every single logo or block is placed in the exact same spot on the shirt/block, reducing the reliance on camera scanning for placement correction.
• Level 3 (Scale): If you are consistently bottling-necking on speed, this is when you look at multi-needle machines (Sewtech ecosystem), which allow you to cue up colors and run faster without flat-bed friction.

Warning (Magnetic Safety): Magnetic hoops use industrial neodymium magnets. They are incredibly strong.
* Pinch Hazard: Keep fingers clear of the snap zone.
* Medical Devices: Do NOT use if you have a pacemaker.
* Electronics: Keep at least 6 inches away from computerized screens and credit cards.

Expert Q&A: Addressing Common Anxieties

From comment analysis and floor experience.

• "I have the original Dream Machine 1. Does this work?"
  • Answer: Usually yes, if you have installed the Upgrade Kits (I or II). The core scanning tech is there, but specific UI icons might differ. Check your "My Design Center" version.
• "How do I use HoopMaster with Brother?"
  • Answer: The hoopmaster for brother system acts as a jig. You align the fixture number to your shirt size once, and every subsequent shirt is hooped in the exact same geometric spot. It replaces the "eyeball it and pray" method.
• "My fill looks wavy."
  • Answer: Your sandwich was loose. The fill stitch pushed the fabric like a bulldozer. Upgrade to a magnetic frame or use spray baste to glue the layers into a firmer unit.


Phase 3: Operation Checklist

Final Go/No-Go assessment.

• [ ] Preview Mode: Have you zoomed in to verify the fill is only in the background?
• [ ] Lock Off: Disengage the Lock key only when hands are clear.
• [ ] Speed Limiter: Set to approx 700 SPM for the first minute of stitching.
• [ ] Sound Check: Listen for the rhythmic thump-thump of the needle penetrating the batting. A sharp snap or grinding noise means the needle is dull or hitting a layer of stabilizer adhesive.
• [ ] Observation: Watch the first 100 stitches. If the fabric ripples immediately, STOP. Re-hooping now saves the block; hoping it "fixes itself" never works.

By mastering this boundary-fill workflow, you unlock the full ROI of the Dream Machine. It transitions from just an embroidery machine to a precision quilting instrument. The key is respecting the physics of the fabric scan and upgrading your hooping tools when production volume demands it.

FAQ

• Q: How do I prevent hoop burn and fabric drift when quilting a full quilt sandwich inside a Brother Dream Machine 2 (Innov-is XV8500D) embroidery frame?
  A: Use firm-but-not-crushed hooping and manage bulk so the quilt sandwich cannot creep during fast fill movement.
  • Reduce screw tension on a traditional hoop; avoid “drum tight” hooping that crushes fibers on delicate cotton/velvet.
  • Clip or secure excess quilt edges so they cannot snag and tug during embroidery-arm travel.
  • Spray-baste layers smoothly so batting cannot “puff” and shift under the presser foot.
  • Success check: the hooped sandwich feels firm (like a bedsheet), not high-pitched tight, and outline alignment does not drift (no ~2 mm mismatch side-to-side).
  • If it still fails… switch to a magnetic embroidery hoop/frame style clamp to reduce slip and eliminate friction marks, and re-test at a lower stitch speed.
• Q: What needle and speed settings are a safe starting point for cross-hatch “in-the-hoop quilting” on a Brother Dream Machine 2 (Innov-is XV8500D)?
  A: Start with a Topstitch 90/14 or Quilting 90/14 needle and slow the machine down for thick layers.
  • Install a Topstitch 90/14 or Quilting 90/14 needle to reduce thread shredding from batting friction.
  • Limit speed to about 600–700 SPM for quilting layers instead of running at maximum speed.
  • Match bobbin thread to the backing (or top) if contrast on the back is not desired.
  • Success check: stitching sounds like a steady “thump-thump” through batting, with no snapping/grinding and no immediate rippling at the start.
  • If it still fails… stop after the first 100 stitches, re-hoop tighter/cleaner, and inspect for dull needle or excess drag from loose layers.
• Q: Why does Brother Dream Machine 2 My Design Center Fill flood the entire screen (including the appliqué) during in-the-hoop quilting?
  A: The boundary is almost always leaking or the fill tap is landing in the wrong place—not a machine glitch.
  • Zoom in and close the shape completely; even a tiny gap at a corner lets fill “leak” everywhere.
  • Tap firmly inside the open background area, not on the boundary line itself.
  • Shrink the outer boundary slightly if the boundary touches the scan/frame edge so the software has a clear endpoint.
  • Success check: only the background region turns red (pattern coverage), and the appliqué “no-sew zone” remains clear.
  • If it still fails… redraw the shape with the stylus (not a finger) and re-scan in even ambient lighting for better on-screen visibility.
• Q: How much buffer space should be left between an appliqué satin stitch and the My Design Center boundary on a Brother Dream Machine 2 (Innov-is XV8500D)?
  A: Leave a consistent 3–5 mm (1/8–1/4 inch) buffer so small shifts do not stitch into the appliqué.
  • Draw the “no-sew” box around the appliqué with a visible gap instead of hugging the satin edge.
  • Stop quilting about 1/2 inch from the raw fabric edge if the block will be pieced later (keeps seam areas flat).
  • Keep the quilting boundary inside the inner hoop ring; avoid stitching right up to the plastic hoop edge for presser-foot clearance.
  • Success check: the preview shows a clean “breathing room” border around the appliqué and no stitches planned near hoop plastic.
  • If it still fails… increase the buffer slightly and re-check hoop tightness to reduce drift during dense fills.
• Q: What is the correct safety protocol for using the Brother Dream Machine 2 (Innov-is XV8500D) Lock key during needle-area adjustments?
  A: Press the Lock key any time hands go near the needle clamp area to prevent accidental start-up injuries.
  • Engage Lock before changing needles, checking thread path, verifying bobbin tension, or clearing thread nests near the needle.
  • Keep hands away during any restart/calibration steps after a stop or power cycle.
  • Disengage Lock only after fingers are fully clear of the needle/presser-foot zone.
  • Success check: pressing Start/Stop or touchscreen “Go” does nothing while Lock is engaged.
  • If it still fails… stop and review the machine’s safety behavior in the user manual, because menu and control behavior can vary by firmware.
• Q: How should Brother Dream Machine 2 (Innov-is XV8500D) users recover from a power outage or a severe thread-break bird nest during in-the-hoop quilting?
  A: Do not move the hoop; reboot and use “Resume Previous Memory” to continue from the exact stitch position.
  • Leave the hoop fully engaged and stationary if power fails or if shutdown is needed to cut a nest safely.
  • Power back on, follow the on-screen prompts, keep hands away from moving parts, then select Resume Previous Memory.
  • Reduce speed for restart (a safe starting point is 600–700 SPM for quilting layers) to re-enter the stitch path smoothly.
  • Success check: the needle resumes in the correct prior position without a visible jump in the quilting pattern.
  • If it still fails… inspect for fabric shift (re-hoop if necessary) and re-check boundary/fill preview before restarting.
• Q: When should a Brother Dream Machine 2 (Innov-is XV8500D) user upgrade from a traditional screw hoop to a magnetic embroidery hoop/frame or move to a multi-needle embroidery machine for production?
  A: Upgrade when hooping time, hoop burn, or repeat-volume becomes the real bottleneck—not when one block is simply “challenging.”
  • Level 1 (Technique): optimize hoop tension, clip bulk, baste layers, and slow to ~600–700 SPM to reduce shredding and drift.
  • Level 2 (Tool): switch to a magnetic hoop/frame if screw-tightening causes wrist fatigue, thick batting is hard to clamp, or hoop burn marks are recurring.
  • Level 3 (Capacity): consider a multi-needle machine when weekly volume (often 50+ items) makes single-needle color handling and hooping time the limiting factor.
  • Success check: hooping becomes fast and repeatable, registration stays consistent, and physical strain drops (less fighting the sandwich).
  • If it still fails… add a hooping station/jig approach for repeat placement and verify the quilting boundary stays inside hoop clearance limits.
• Q: What magnetic hoop safety risks should be considered when using magnetic embroidery hoops/frames on a Brother Dream Machine 2 (Innov-is XV8500D)?
  A: Treat magnetic hoops as industrial clamps: prevent finger pinches and avoid use around pacemakers and sensitive electronics.
  • Keep fingers out of the snap zone; magnets can close suddenly and pinch hard.
  • Do not use magnetic hoops if the operator has a pacemaker.
  • Keep magnets at least 6 inches away from computerized screens and credit cards.
  • Success check: the hoop closes without hand contact in the pinch area, and the quilt sandwich is held evenly without screw over-tightening marks.
  • If it still fails… return to a traditional hoop for that setup or adjust handling workflow (two-handed placement, controlled closing) before resuming stitching.
