Stop “Guess-Scaling” ITH Bags: Resize the Urban Threads Owl Purse to 7 Inches in Embrilliance (and Stitch Faux Leather Cleanly)

The "Exact Match" Blueprint: Mastering ITH Faux Leather Purses Without the Headache

If you’ve ever finished an In-The-Hoop (ITH) bag panel, held it up next to the matching back piece…and felt your stomach drop because the edges didn’t line up, you are not alone. It creates a specific kind of panic: Do I trim it and ruin the symmetry? Do I stretch it?

ITH projects are unforgiving. A "close enough" resize on your machine screen often turns into a full re-cut, re-hoop, and re-stitch disaster.

In this guide, we analyze a common workflow failure using Shirley’s ITH owl purse project (Urban Threads style). We will fix the exact problem that ruins most faux leather bags: reliance on screen percentages. We will replace guesswork with the "Hard Number Strategy"—sizing both panels to exactly 7.0 inches in software—and optimizing your physical setup with the right stabilizers and tools like magnetic hoops to prevent material drift.

The Panic Moment: Why Resizing on the Brother PR1050X Screen Can Break ITH Panel Matching

Shirley’s initial struggle was a classic "experience gap" moment: the purse design didn’t fit her hoop, so she adjusted the size directly on her Brother machine's interface. The result? The front and back panels didn't align.

Here is the "Why" behind the failure: Embroidery machines calculate resizing based on percentages (scaling), not absolute geometry. If you shrink File A by 90% and File B by 90%, slight rounding errors in the stitch count or density recalculation can result in File A being 6.95" and File B being 7.05". In bag construction, that 0.1" gap is the difference between a professional finish and a warped reject.

If you are using a brother embroidery machine with 8x12 hoop, treat the on-screen resize function as an emergency tool only. It is not designed for structural architectural matching.

The Pro Rule: If two separate files must sew together (Front + Back), never resize them on the machine. Resize them in software using typed numerical values.

The "Exact 7.0-Inch" Move in Embrilliance: Resizing Both Owl Purse Files So the Edges Actually Meet

The solution requires moving upstream to your software (Shirley uses Embrilliance, but the logic applies to Wilcom, Hatch, etc.).

The Protocol:

1. Identify the Target Width: The original was 7.75". Shirley needs it to fit a specific hoop, so she chooses 7.0 inches.
2. Apply to ALL Components: She opens the Front Panel file and types "7.0" in the width field. She then opens the Back Panel file and types "7.0" in the width field.
3. Ignore the Height Differences: The back panel (10 1/8") will naturally be taller than the front pocket (5 15/16"), but the width must remain the constant anchor.

Sensory Check (The "Lock-in"): When you type that number, don't just look at the design. Look at the properties box. It should read exactly 7.00. If it reads 6.99 or 7.01, re-type it.

Expected Outcome: When you assemble the bag, the needle holes from the front panel will align perfectly with the back panel, creating a "zipper-like" lock rather than a struggle.

The "Hidden" Prep That Saves Faux Leather: Dielines, Cutaway Stabilizer, and Thread/Bobbin Planning

Before the machine ever stitches, we must stabilize the environment. Faux leather is unforgiving; needle holes are permanent. You do not get a "redo."

1. The Dieline Strategy (Your Cutting Template)

Shirley prints the Front, Strap, and Back dielines on paper.

• Expert Note: Do not skip this. Printing a template allows you to cut the faux leather before it goes to the machine, ensuring clean raw edges that don't need to be trimmed safely inside the hoop later.






2. Material Staging (The "Mise-en-place")

On her cutting board, she lays out:

• Stabilizer: Medium-weight Cutaway. (Avoid tearaway for ITH bags; the needle perforation will cause the stabilizer to disintegrate during turning, ruining the structural integrity.)
• Faux Leather: Brown, medium weight.
• Lining: Cotton woven.
• Consumables: Tailor’s chalk, spray adhesive (like KK100 or 505), and—crucially—bobbins wound to match the top thread.


Why this prep matters (The Physics of Stability)

If you are chasing cleaner results on sensitive textiles, traditional hooping for embroidery machine technique must change. You are not trying to create "drum-tight" tension, which stretches faux leather (creating ripples later). You are trying to achieve "neutral stability."

• Tactile Check: Rub your thumb over the hooped stabilizer. It should feel firm but not strained. If you press it, it shouldn't bounce like a trampoline; it should just resist properly.

Prep Checklist: The "No-Go" Criteria

• Software: Both Front and Back files confirmed at exactly 7.00 inches width.
• Visual: Back height is approx 10 1/8"; Front height is approx 5 15/16".
• Templates: Paper dielines printed for Front, Back, and Strap.
• Consumables: Cutaway stabilizer cut 2 inches larger than the hoop on all sides.
• Adhesion: Temporary spray adhesive verified (test on scrap to ensure it doesn't stain).
• Hardware: D-rings placed on the table (visual reminder to insert them).

Warning: Rotary cutters are deceptive. They require less force than you think. Always cut away from your body. When cutting curves on faux leather, turn the cutting mat, not your wrist, to maintain control and avoid injury or jagged cuts.

Clean Cutting Without Stretching: Spray-Adhering Paper Dielines to Faux Leather and Lining

Shirley’s cutting method minimizes distortion:

1. Spray: Apply a light mist of adhesive to the back of the paper dieline.
2. Stick: Press the paper directly onto the faux leather (and lining).
3. Cut: Trace the paper edge with scissors or rotary cutter.


Pro Tip: The Friction Factor

The spray adhesive adds friction. If you just pin the paper, the faux leather slides underneath, and your "perfect" 7-inch panel becomes a 7.2-inch oval.

• Hidden Consumable: Keep "Anti-Glue" Needles or alcohol wipes handy. Cutting through spray residue can gum up your scissors; stitching through it can gum up your needle.

The Stitch-Out Flow on the Brother PR1050X: Dieline on Stabilizer, Then Faux Leather

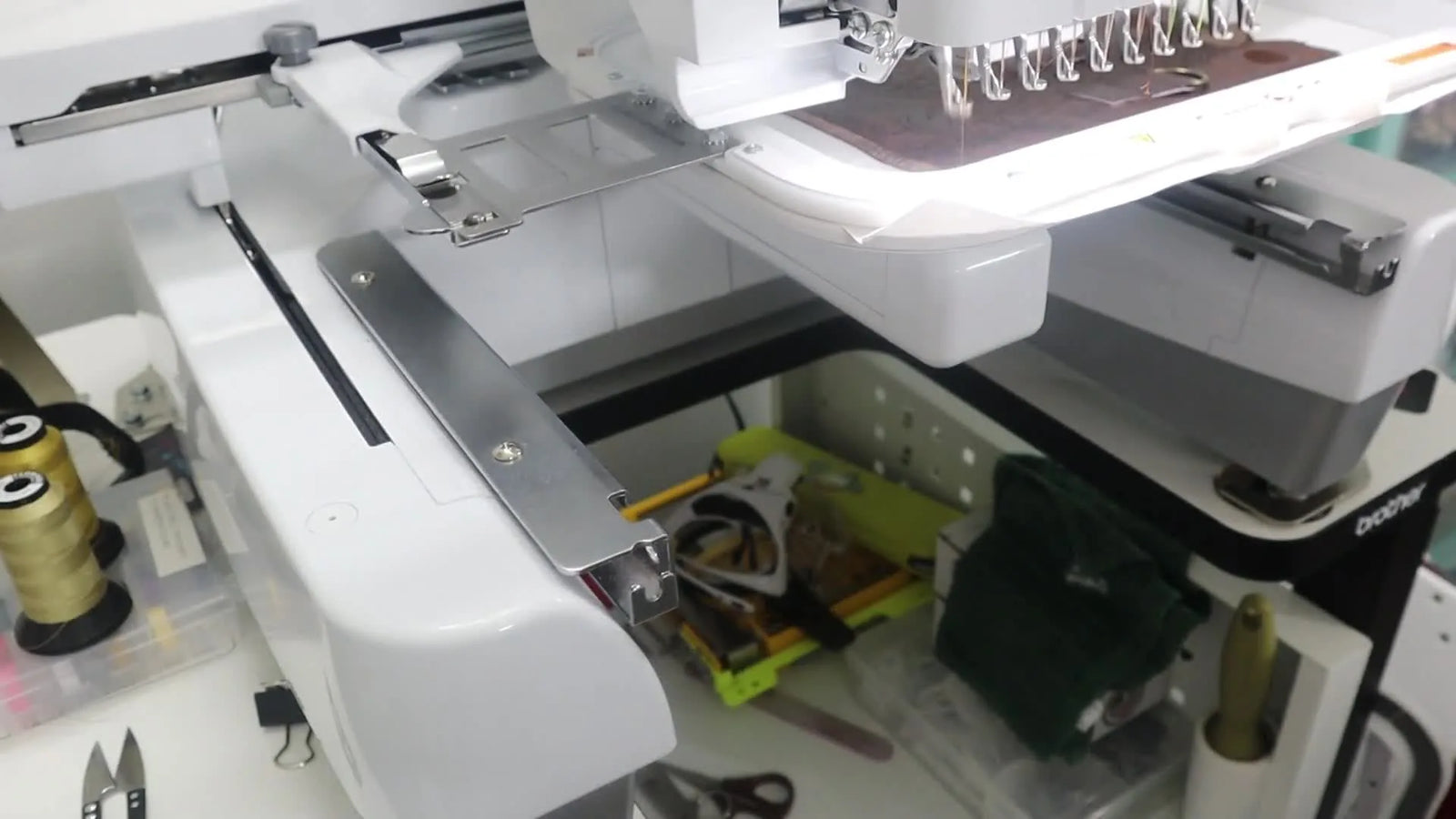

Shirley moves to the Brother Entrepreneur Pro X PR1050X with an 8x12 hoop.

The Sequence Strategy

1. Hoop the Stabilizer: Only the cutaway goes in the hoop.
2. Placement Stitch: The machine sews the outline on the stabilizer.
3. Adhesion: Spray the back of the pre-cut faux leather.
4. Placement: Align the leather exactly over the stitched outline.
5. Tack Down & Decorate: The machine secures the leather and begins the design.




The "Hoop Burn" Problem and the Magnetic Solution

Standard hoops use friction and inner/outer rings to hold fabric. On faux leather, this pressure creates permanent "hoop burn" rings that ruin the aesthetic. This is why you often see professionals "float" the material (hoop stabilizer only, stick material on top), as Shirley does here.

However, floating relies heavily on adhesive. If the adhesive fails, the material shifts.

The Level-Up: This is the specific scenario where magnetic embroidery hoops shine. Unlike friction hoops that pinch (and burn) fabric, magnetic hoops clamp straight down. This allows you to hold thick faux leather securely without bruising it, giving you better registration than floating alone. If you struggle with materials shifting, a magnetic frame is the appropriate tooling upgrade.

Setup Checklist: Before You Press Start

• Hoop Check: Stabilizer is hooped flat; no wrinkles.
• File Check: Verify you have loaded "File 1: Front Panel" (do not guess).
• Bobbin: Pre-wound matching bobbin is inserted.
• Needle: Fresh Size 90/14 or 75/11 Sharp (depending on leather thickness).
• Clearance: Ensure the hoop path is clear of detailed scrap fabric or scissors.

Don’t Miss the "Stop 3 or 4" Moment: Stitching D-Rings Into the ITH Owl Purse

Shirley highlights the critical "Machine Stop" phases. Often at Stop 3 or 4, the machine will pause specifically for you to insert D-ring tabs.

The Risk: If you miss this stop and hit "Start," the machine will stitch the seam closed, and you will have to unpick stitches (which leaves permanent holes in leather).

Hardware & Magnet Safety

A viewer asked about magnetic snaps. While Shirley installs hers later, remember that magnetic snaps—and magnetic hoops—require safety protocols.

Warning: Magnetic Safety
High-strength magnets (used in closures and frames) can pinch skin severely causing blood blisters. Crucially: Keep them at least 6 inches away from pacemakers, insulin pumps, and credit cards. Handle with intentional grip strength.

The "Four Files" Reality Check: Organization as a Skill

Shirley emphasizes that ITH projects are rarely "One Click." You are juggling:

1. Front Dieline
2. Front Stitch File
3. Back Dieline
4. Back Stitch File

Production Tip: Utilize a designated space or hooping station for embroidery to stack your materials in order: Front Stack and Back Stack. Confusion costs money. Label your files on the USB drive clearly (e.g., 01_Owl_Front, 02_Owl_Rear) so you don’t accidentally stitch the Front file on the Back fabric.

Decision Tree: Stabilizer & Hooping Logic for Bag Making

Use this logic flow to determine your setup based on your specific material.

Q: What is your primary outer material?

• A: Heavy Faux Leather / Vinyl (No Stretch)
  • Stabilizer: Medium Cutaway.
  • Method: Float (Spray adhesive) OR embroidery magnetic hoops for direct clamping without burn.
  • Needle: 90/14 Topstitch or Leather needle.
• B: Thin Vinyl / PU Leather (Stretchy/Drapey)
  • Stabilizer: Heavy Cutaway (or two layers of Medium).
  • Method: Must be hooped or magnetically clamped to prevent shrinking. Floating is risky.
  • Needle: 75/11 Sharp.
• C: Woven Cotton / Canvas
  • Stabilizer: Medium Tearaway is acceptable, but Cutaway gives a better "hand" or feel to the finished bag.
  • Method: Standard hooping.

The Finish Line: What "Success" Looks Like

Shirley’s result is a perfectly aligned Owl Purse. The edges meet. The stitching doesn't drift off the side.

The "Tool Upgrade" Logic (ROI Analysis)

If you are a hobbyist making one bag for a grandchild, resizing in software and careful floating works perfectly.

However, if you are scaling up to sell these on Etsy or at markets:

1. Speed: A magnetic hoop for brother pr1050x drastically reduces the time it takes to hoop thick layers (approx. 30 seconds vs 3 minutes of screw-tightening).
2. Consistency: Magnetic frames apply even pressure, reducing the "pull" distortion that creates mismatched edges.
3. Volume: Moving from a single heavy-duty machine to a fleet of machines (like SEWTECH multi-needle solutions) allows you to run the Front Panel on Machine A and the Back Panel on Machine B simultaneously.

Operation Checklist: Post-Stitch Verification

• Alignment: Design is centered; margins are equal.
• Hardware: D-Rings are secured in the seam.
• Clean Up: Jump stitches trimmed (flush to surface).
• Tear Out: Stabilizer trimmed back (leave 1/4" seam allowance if turning) or torn away carefully.

Quick Troubleshooting: Symptoms, Causes, and Fixes

If things go wrong, start with the physical (low cost) fixes before changing computerized settings.

Final Thought: Precision in ITH embroidery isn't about luck. It's about math (software resizing) and physics (stabilization). Master those two, and your edges will line up every single time.

FAQ

• Q: Why do Brother PR1050X ITH purse front and back panels stop matching after resizing on the Brother PR1050X screen with an 8x12 hoop?
  A: Avoid resizing ITH matching panels on the Brother PR1050X screen; resize both files in software using the same typed width (for example, exactly 7.00 inches).
  • Type the target width into the width field for the Front Panel file, then repeat for the Back Panel file (do not use percentages).
  • Re-check the design properties box and re-type until it displays the exact value (e.g., 7.00, not 6.99 or 7.01).
  • Keep width as the constant anchor even if the heights differ between front pocket and back panel.
  • Success check: the software properties show identical width on both files, and the assembled needle holes align like a “zipper” instead of fighting the seam.
  • If it still fails: confirm the correct files were stitched (Front stitch file on front pieces, Back stitch file on back pieces) and re-check file naming/order on the USB drive.
• Q: What stabilizer setup prevents faux leather shifting during ITH stitching on a Brother PR1050X 8x12 hoop?
  A: Use medium-weight cutaway stabilizer and hoop only the stabilizer, then float the pre-cut faux leather with temporary spray adhesive.
  • Hoop the cutaway stabilizer flat and wrinkle-free, then run the placement stitch on the stabilizer first.
  • Spray the back of the pre-cut faux leather lightly and align it to the stitched outline before tack-down stitches begin.
  • Avoid tearaway for ITH bags because perforations can cause it to break down during turning and weaken the project.
  • Success check: the hooped stabilizer feels firm but not strained, and the faux leather stays registered to the stitched outline without creeping.
  • If it still fails: increase holding security with stronger taping at edges or upgrade to a magnetic hoop to reduce reliance on adhesive.
• Q: How can Brother PR1050X users avoid permanent hoop burn rings on faux leather when making ITH bags?
  A: Do not clamp faux leather tightly in a standard friction hoop; hoop stabilizer only and float the leather, or use a magnetic hoop to clamp without bruising.
  • Hoop only the cutaway stabilizer, then adhere the faux leather on top after the placement outline stitches.
  • If direct holding is needed, switch to a magnetic hoop because it clamps straight down instead of pinching like inner/outer rings.
  • Keep hoop pressure choices focused on “neutral stability,” not drum-tight tension that can ripple faux leather later.
  • Success check: after unhooping, the faux leather surface shows no permanent ring marks and the panel remains flat.
  • If it still fails: reduce clamping force (standard hoop) or stop direct hooping of the faux leather and rely on floating/magnetic clamping instead.
• Q: What causes needle gumming or skipped stitches when using spray adhesive for ITH faux leather on a Brother PR1050X, and what is the quickest fix?
  A: Spray adhesive residue can build up on the needle; clean the needle or switch to anti-glue needles, and keep adhesive light and controlled.
  • Wipe the needle with alcohol when stitches start skipping or sounding punchy/uneven.
  • Use anti-glue (often titanium-coated) needles if adhesive work is frequent.
  • Mist adhesive lightly and test on scrap first to confirm it does not stain or over-transfer.
  • Success check: stitches form cleanly without missed penetrations and the needle comes out without sticky buildup.
  • If it still fails: replace with a fresh sharp needle (size choice depends on leather thickness) and re-check that the material is not shifting/flagging.
• Q: How do Brother PR1050X users stop thread nesting underneath during ITH stitching on faux leather panels?
  A: Treat nesting as a setup issue first: re-seat the upper thread correctly and eliminate hoop bounce/flagging before changing advanced settings.
  • Re-thread the top path and make sure the thread is seated in the tension discs (a common cause of sudden nests).
  • Confirm the stabilizer is hooped flat and firm so the material does not “flag” (bounce) under the needle.
  • Use a pre-wound bobbin that matches the top thread as planned, so the stitch formation stays consistent through stops and color changes.
  • Success check: the underside shows controlled bobbin lines (not a wad of loops), and the hoop area stays stable without visible bouncing.
  • If it still fails: stop immediately, remove the nest, re-check needle condition, and verify the correct file was loaded before restarting.
• Q: Where is the critical “Stop 3 or 4” moment on Brother PR1050X ITH purse files for inserting D-rings, and how do you avoid stitching the seam closed?
  A: Plan to pause at the machine’s programmed stop (often Stop 3 or 4) to insert D-ring tabs; do not hit Start until the hardware is placed.
  • Stage D-rings on the table as a visual reminder before pressing Start on the Brother PR1050X.
  • Watch the stop prompts closely and insert the D-ring tabs exactly when the design sequence calls for it.
  • If a stop is missed, do not force the seam—unpick carefully because faux leather holes are permanent.
  • Success check: D-rings are captured securely in the seam with clean stitches and no extra holes from rework.
  • If it still fails: restart with a checklist and label files clearly (e.g., 01_Front, 02_Rear) to reduce distraction and sequencing mistakes.
• Q: What safety rules should Brother PR1050X operators follow when using high-strength magnetic hoops or magnetic snaps for ITH bag making?
  A: Handle high-strength magnets as pinch hazards and keep them away from medical devices and magnetic-stripe cards.
  • Grip magnets intentionally and keep fingers out of the closing path to prevent severe pinches and blood blisters.
  • Keep magnets at least 6 inches away from pacemakers, insulin pumps, and credit cards.
  • Store magnetic hoops and snaps so they cannot slam together unexpectedly on the worktable.
  • Success check: magnets can be placed/removed without finger contact in the clamp zone and without pulling nearby metal tools into the work area.
  • If it still fails: switch to a slower, two-hand handling routine and clear the table of loose metal tools before moving magnets.
