Stop Installing Fonts: Digitize Big, Clean Letters in Embird Font Engine—and Turn Them into DIY Appliqué That Actually Stitches Well

If you have ever downloaded “just a few” TrueType fonts and suddenly your computer feels like it is wading through mud, you are not imagining it. Windows loads every installed font into system memory on startup. And if you have ever tried to stitch a 90–100 mm letter as a satin stitch and watched it turn into loose, snag-prone "spaghetti," that is not your machine being picky—that is physics attacking your design.

In my 20 years on the production floor, I have seen more garments ruined by poor font management and unstable stitch types than by machine failure. In this Embird Studio masterclass, we will break down a workflow I teach to professional shops: digitize TrueType fonts straight from a folder (keeping your PC fast), convert oversized satin into a stable fill, and build a clean, repeatable appliqué sequence that works on real fabric, not just on screen.

The Calm-Down Moment: What Embird Font Engine Is Really Doing (and why your PC feels faster)

Embird Font Engine allows you to digitize TrueType font files directly from a specific directory on your hard drive, bypassing the need to install them into your Windows C:WindowsFonts folder. In the tutorial, Donna points Embird to a folder simply named “Fonts to Digitize,” selects the “Cleopatra” font, and begins generating letters immediately.

Why does this matter? Hand-digitizing mimics the stroke of a pen, but font engines rely on mathematical vectors. If you install 5,000 fonts into Windows, your operating system must index every single one before you can open your email. By keeping them in a folder, your computer remains responsive, and your digitizing software doesn't hang while trying to display a reliable preview.

Pro tip (production mindset): Organize your "Digitizing Fonts" folder by style (e.g., Serif, Script, slab-Serif, Vintage). When you are midway through a rush order, you want to browse visually, not scroll alphabetically through 400 options.

The “Hidden” Prep Before You Click Generate: Folder hygiene, font sanity, and stitch reality checks

Donna’s prep is deceptively simple: open Font Engine, browse, and load. However, the difference between a hobbyist and a pro is what happens before the click. We call this the "Pre-Flight Check."

Here is the mental framework you need before generating a single stitch:

1. Define the Scale: Is this for a left-chest logo (small lettering) or a full jacket back (display letters)? Small letters (<15mm) need satin columns with underlay. Large letters (>50mm) need fills to prevents loops.
2. Define the End-Use: Are you stitching on a stable canvas tote or a stretchy performance polo? This dictates your underlay and pull compensation settings.
3. The "Reality Size" Rule: confirm you are digitizing at the final size. Donna starts large—around 98.4 mm (3.8 inches)—to judge the stitch structure honestly. Scaling a design up or down by more than 20% after generation usually ruins the density.


Prep Checklist (Do this once per font family)

• Directory Check: Create a dedicated folder (e.g., D:Embroidery_Fonts) and move your .TTF files there. Do not install them.
• Needle Check: Ensure you have a fresh needle inserted (75/11 Sharp for wovens, 75/11 Ballpoint for knits). A burred needle will shred the thread on large fill areas immediately.
• The "O" Test: Pick a letter with enclosed space (like A, B, or O). If the font engine can't handle the curves of an "O" without weird gaps, it won't handle the rest of the alphabet.
• Unit Standard: Verify your software is set to metric (mm) for precision, even if you think in inches. It is easier to calculate density in mm (e.g., 0.40mm spacing).

Load TrueType Fonts in Embird Font Engine Without Installing Them (the exact clicks Donna uses)

Donna launches Font Engine by clicking the “A” icon in the top toolbar, then selects the folder icon to browse her external directory. She selects the “Cleopatra” folder, confirms, and waits for the specific font list to load.

This workflow keeps your system lean. It is especially critical for shops using laptops to drive their machines, where RAM is precious. If you have "font addiction" (a common condition among embroiderers), this method is your cure.

Practical Note: If you currently have fonts installed in Windows that you only use for embroidery, I recommend uninstalling them from Windows and moving the files to your Embird folder. You will likely hear your computer's fan spin down for the first time in months.

Digitize a 96.5 mm Letter in Embird: Why Satin (Auto Column) Falls Apart at This Size

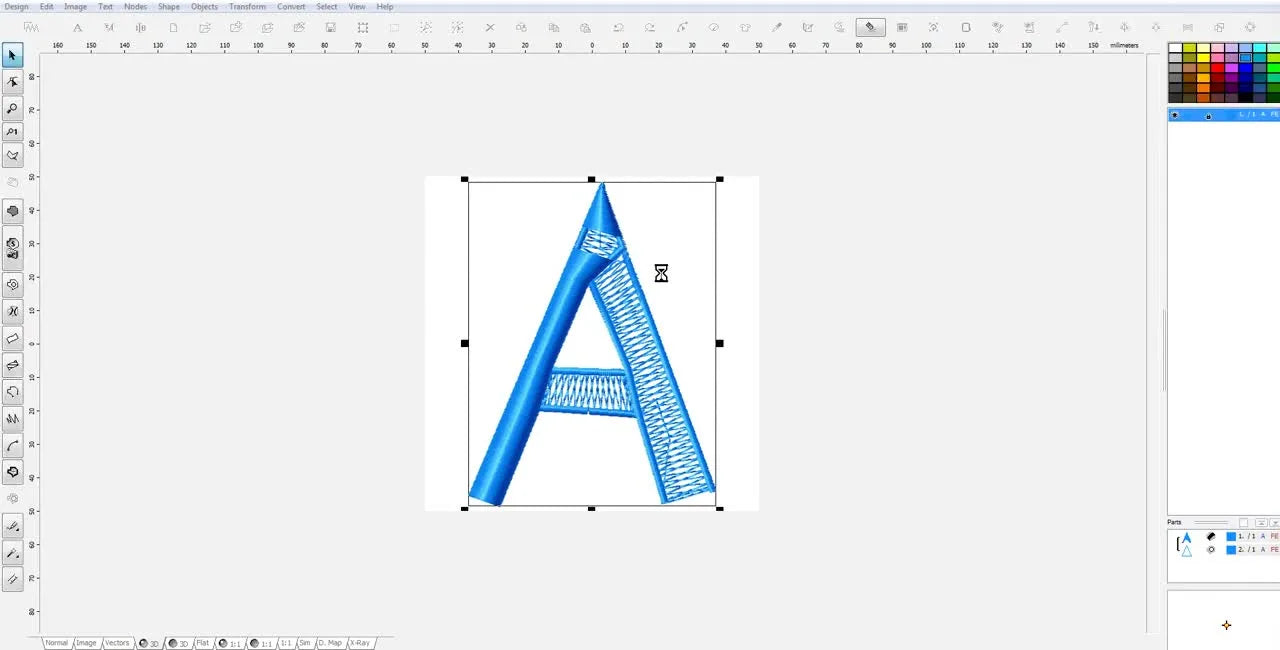

Donna types the letter “A,” sets the size (approx. 96.5 mm tall / 3.8 inches), and generates stitches. The default result is a Satin Stitch (Auto Column). On screen, it looks glossy and perfect. In reality, it is a disaster waiting to happen.

The Physics of Failure: A satin stitch is a single thread jumping from one side of a column to the other. If that column is 20mm wide, that is a 20mm loop of thread floating on your shirt.

1. Snag Hazard: A 10mm+ stitch will catch on buttons, zippers, and washing machine agitators.
2. Looseness: Without intermediate needle penetrations, the thread has no tension anchor. It will look like sagging fishing line.


Warning: Physical Safety Alert. Keep fingers, long hair, and loose sleeves away from the needle zone when test-stitching large lettering. Excessively long satin stitches (12mm+) can cause the machine to slow down and then accelerate violently, or cause a "bird's nest" that snaps the needle, sending metal shards flying. Always use safety glasses.

The Fix That Saves Big Letters: Convert Auto Column (Satin) to Plain Fill in Embird

Donna uses the Convert menu to change stitch type from Auto Column (Satin) to Plain Fill (Tatami). You can visually see the texture change from long, glossy lines to a textured, woven pattern.

This is the golden rule of digitizing:

• 0mm – 8mm Width: Satin is safe (and pretty).
• 8mm – 12mm Width: Satin needs split-stitch (Auto-Split) enabled.
• >12mm Width: Must be converted to Fill (Tatami).




Sensory Success Metric: After converting to Plain Fill, your previews should look like a woven basket or a carpet. If you still see long, unbroken lines spanning the width of the letter leg, you haven't converted it correctly.

Checkpoint: If the fill looks boring or "flat," do not worry. We fix the aesthetics with stitch angles in the next step.

Make the Fill Look Expensive: Adjust the Stitch Angle Vector (and stop fighting shine)

Donna drags the angle handle on the fill object to rotate the stitch direction. This is a subtle move that separates "homemade" from "professional."

Why it matters: Thread is reflective. If all your stitches run at 0° (horizontal), the light hits them flatly. By angling the stitch (e.g., 45° or 135°), you create depth and shine. Furthermore, changing the angle can prevent "push/pull distortion." If your fabric stretches horizontally, stitches running vertically will pinch it less.

Expert Tip: If you are digitizing a full name, keep the stitch angle consistent (e.g., all 45°) for a uniform look. If you are doing a single monogram, play with the angle to see which one catches the light best on your specific thread type (Rayon shines more than Polyester).

Repeat the Workflow for the Next Letter (B): Generate, Center, Convert to Plain Fill, Then Save

Donna edits the text to “B,” generates stitches, centers the design (shortcut Ctrl+Alt+C), converts to Plain Fill again, and adjusts start/end points.

This rhythm is your production heartbeat:

1. Generate at final size.
2. Evaluate structure (Is it too wide for satin?).
3. Convert to Fill if necessary.
4. Angle the stitches.
5. Save cleanly.


Setup Checklist (Before you build appliqué layers)

• Stitch Type Verification: Is the letter definitely Plain Fill? (Zoom in to confirm needle penetrations in the middle of the shape).
• Centering: Is the design perfectly centered? (Donna's Ctrl+Alt+C trick ensures layers align perfectly later).
• Entry/Exit Planning: Where does the stitch finish? Ensure it ends closest to where the next letter begins to minimize jump stitches/trims.
• Backup Save: Save the "Base Letter" file now (e.g., A_Base.eof) before modification.

Turn a Plain Fill Letter into a DIY Appliqué in Embird: Outline-from-Fill Is the Shortcut

Now we move to the advanced technique: Appliqué. This is how you use fabric inside the letter to save stitch count and add texture. Donna selects the fill object (Letter B) and uses the Convert menu to "Create Outline from Fill."

This extracts the exact geometric boundary of your letter. It is far more accurate than trying to manually trace a border. The software mathematics ensure the outline hugs the fill perfectly.

The Three-Layer Appliqué Stack: Placement Line, Tack-Down Line, Satin Border (with color stops)

An appliqué file is just a sandwich. To make the machine stop so you can place fabric, you must use Color Changes. The machine does not know you are changing colors; it only knows "Stop, Trim, Wait for Start button."

Donna duplicates the outline to create three distinct events, ordered top-to-bottom in the object list:

1. Placement Line (Color 1): A simple running stitch that draws the shape on your hoop's stabilizer. Action: Spray adhesive on back of appliqué fabric and place over this line.
2. Tack-Down Line (Color 2): A double-run or zigzag that sews the fabric down. Action: Remove hoop (do not un-hoop!) and trim excess fabric with duckbill scissors.
3. Satin Border (Color 3): The final visible edge that covers the raw cut fabric lines.




Critical Error: If you do not assign different colors to these three layers, the machine will sew them all continuously, trapping your hands or ruining the sequence.

Dial in the Appliqué Border Parameters: Width, Stitch Type, and Corner Clean-Up

Donna opens the parameters for the final top layer and converts it to a Satin Border (Appliqué Stitch). She defines the width.

The "Safe Zone" for Width:

• Beginner: 3.5mm – 4.0mm. This gives you margin for error if your trimming isn't perfect.
• Expert: 2.5mm – 3.0mm. Looks sleeker but requires precision cutting.




Corner Logic: Appliqué borders often struggle on sharp corners. If you see "bunching" or hard knots of thread at the points of the "A" or "B," adjust your corner settings in Embird to "Mitred" or "Capped" to reduce bulk.

The Appliqué That Actually Stitches Flat: Fabric + Stabilizer Decision Tree (so your letter doesn’t ripple)

A perfect digital file will still fail if the physics of the fabric aren't managed. The "rippled letter" effect happens when the density of the satin border creates more tension than the stabilizer can support.

Use this decision tree to choose your "Foundation":

Decision Tree: Fabric & Stabilizer Pairing

• Scenario A: Stretchy Knits (T-shirts, Polos, Hoodies)
  • Problem: Fabric moves with the needle.
  • Solution: Fusible Mesh (ironed on) OR Cutaway Stabilizer (2.5oz or heavier). Never use Tear-away alone.
  • Hooping: Do not stretch the fabric; lay it neutral.
• Scenario B: Stable Wovens (Denim, Canvas, Twill)
  • Problem: High density can cause puckering around edges.
  • Solution: Tear-away Stabilizer (medium weight) is usually sufficient.
• Scenario C: High Pile (Towels, Fleece)
  • Problem: Stitches sink into the fluff.
  • Solution: Cutaway Stabilizer on bottom + Water Soluble Topper (Solvy) on top to keep stitches elevated.

Hooping Reality: Why Appliqué Fails in the Hoop (and how magnetic hoops change the game)

Digitizing is theory; hooping is reality. The number one reason appliqué borders fail to cover the raw fabric edge is Fabric Shift. If the fabric moves 1mm during the tack-down, your 3mm border will miss the edge.

Traditional screw-tighten hoops are notorious for causing "Hoop Burn" (shiny rings on fabric) and forcing you to pull on the fabric to get it taut, which introduces distortion. When you release the hoop later, the fabric snaps back, and the letters pucker.

For production durability, terms like magnetic embroidery hoops represent a significant upgrade in tooling. These frames clamp the fabric using powerful magnets rather than friction, holding it "drum tight" without distorting the grain of the fabric.

If you are a home user struggling with thick seams (like on a hoodie pocket) or delicate fabrics that bruise easily, searching for magnetic embroidery hoops for brother (or your specific machine brand) can solve the issue of "impossible to hoop" items.

Warning: Magnetic Safety Alert. Magnetic hoops use industrial-strength magnets (neodymium). They can pinch skin severely causing blood blisters. Never place them near pacemakers, insulin pumps, or credit cards. Use the provided leverage tabs to open them safely.

For those moving into volume production (50+ items), the speed bottleneck is often the hooping process itself. Investing in a hooping station for machine embroidery allows you to ensure every placement is identical, reducing the reject rate significantly.

Often, solving a "digitizing problem" actually requires embroidery hoops magnetic to stabilize the physical canvas.

Operation: Stitching the Appliqué Letter Without Wasting Fabric (the clean, repeatable sequence)

Once the file is loaded, follow this execution sequence for professional results.

Hidden Consumables You Need:

• Spray Adhesive (e.g., KK100) or Glue Stick: To hold the appliqué fabric flat during placement.
• Duckbill Scissors: The paddle shape protects the base fabric while you slice the appliqué close to the stitches.
• Water Soluble Pen: To mark center lines on your garment.

1. Placement (Stop 1): Machine sews the outline. You Stop. Lightly spray back of appliqué fabric and stick it down within lines.
2. Tack-Down (Stop 2): Machine zig-zags fabric down. You Stop. Remove hoop (keep fabric in!). Trim fabric as close to stitching as possible—leave 1mm max.
3. Finish (Stop 3): Machine sews the Satin Border. Watch it run.

Operation Checklist (Every time you stitch)

• Bobbin Check: Do you have enough bobbin thread to finish? Running out mid-satin border leaves an ugly join mark.
• Stop Command: Did the machine actually stop after color 1? (If not, hit the emergency stop!).
• Trim Clearance: After trimming, run your finger over the edge. If you feel a "flap" of fabric, trim closer, or the satin stitch will not cover it.
• Sound Check: Listen to the satin border. A rhythmic "hum" is good. A harsh "chunka-chunka" sound means needle resistance—check your stabilizer or needle sharpness.

Two Common Problems Donna Calls Out—Plus the Fixes I See Most in Shops

Even with a perfect tutorial, variables happen. Here is your troubleshooting guide suited for both single-needle and multi-needle machines.

Symptom: "My computer is slow and Embird feels laggy"

• Likely Cause: Windows is choking on thousands of installed TrueType fonts.
• Quick Fix: Uninstall non-system fonts and move them to an external folder.
• Prevention: Use Embird Font Engine's "Browse" feature exclusively.


Symptom: "My big letters look loose / stitches are too long"

• Likely Cause: You left the stitch type on "Auto Column" (Satin) for a letter >15mm wide.
• Quick Fix: Convert object to Plain Fill (Tatami).
• Prevention: Check measurement of the widest part of the letter column before generating.

Symptom: "The Satin Border doesn't cover the raw edge of the fabric"

• Likely Cause A: Trimming was not close enough (User Error).
• Likely Cause B: Fabric shifted in the hoop (Physics).
• Fix: Use safer hooping methods (consider machine embroidery hoops with magnetic grip) or increase border width to 4.5mm to hide errors.

Symptom: "The letter puckers/ripples after the final border"

• Likely Cause: "The Push/Pull Effect." The heavy satin border pushed the fabric outward.
• Fix: Use a heavier Cutaway stabilizer. Do not rely on tear-away for density-heavy appliqué.

The Upgrade Path: When a Better Workflow Beats Another Plugin

If you are digitizing fonts for personal gifts, Donna’s workflow gives you complete creative control. You are saving money by not buying pre-made fonts.

However, if you are digitizing to sell, your bottleneck is rarely software—it is repeatability.

• How fast can you hoop a shirt?
• How consistent is the tension?
• Do your hands hurt after 20 shirts?

If you find yourself dreading the setup process, that is the trigger to upgrade your hardware, not just your software. A hooping station for embroidery ensures your placement is identical on every size Small through XXL. Replacing standard hoops with magnetic embroidery hoops for brother (or compatible brands) eliminates the "screw-tightening" fatigue and improves appliqué edge quality.

For those hitting the ceiling of what a single-needle machine can do (slow color changes for appliqué stops), moving to a dedicated multi-needle platform like SEWTECH machines transforms the "Stop-Trim-Start" dance into a smooth production flow, giving you back hours of your day.

One Last Habit That Pays Off: Save “A Tested Alphabet,” Not Random Letters

Donna saves her letters as “A,” then “B.” In a professional environment, unlabelled files are lost files. I recommend a strict naming convention:

FontName_Height_Type_Context.eof

• Example: Cleopatra_96mm_Applique_3Layer.eof
• Example: Cleopatra_96mm_TatamiFill.eof

This way, six months from now when a customer wants that exact "Vintage Look," you can find the tested file instantly without re-digitizing.

Final thought: Machine embroidery is 50% digital art and 50% mechanical engineering. If you respect the file management (Folder hygiene) and respect the physics (Stitch types and Stabilization), the machine will behave. Don't let the fear of "breaking it" stop you—just follow the checklists, and watch your stitch quality soar.

FAQ

• Q: How can Embird Font Engine load TrueType (.TTF) fonts from a folder without installing fonts into Windows C:WindowsFonts when Embird feels laggy?
  A: Keep embroidery-only .TTF files in a dedicated folder and use Embird Font Engine “Browse” instead of installing fonts into Windows.
  • Create a folder such as D:Embroidery_Fonts (or an external drive) and move .TTF files there.
  • Open Embird Font Engine (the “A” icon) and use the folder icon to browse to that directory.
  • Organize the folder by style (Serif, Script, Vintage) to speed up choosing during rush jobs.
  • Success check: Windows feels more responsive and Embird previews load without long delays when switching fonts.
  • If it still fails: Uninstall non-system fonts you only used for embroidery and keep only essential fonts installed in Windows.
• Q: Why do large Embird Auto Column (Satin) letters around 90–100 mm stitch like loose “spaghetti,” and how do I fix the stitch type in Embird Studio?
  A: Convert oversized satin (Auto Column) to Plain Fill (Tatami) because long satin spans become snag-prone and unstable at large widths.
  • Generate the letter at final size first, then measure the widest column area before trusting satin.
  • Convert the object: use the Convert menu to change Auto Column (Satin) to Plain Fill (Tatami).
  • Follow the rule: 0–8 mm satin is safe; 8–12 mm needs split-stitch (Auto-Split); over 12 mm must be Fill.
  • Success check: The preview looks like a woven/carpet texture with needle penetrations across the shape, not long unbroken lines.
  • If it still fails: Re-check the letter was generated at the final size (avoid scaling more than ~20% after generation).
• Q: How can Embird plain fill letters look more “premium,” and what stitch-angle change should be made to reduce flat shine and distortion?
  A: Adjust the fill stitch-angle vector so the light hits the thread differently and the fabric resists push/pull better.
  • Select the fill object and drag the angle handle to rotate stitch direction (often 45° or 135° is a practical test).
  • Keep a consistent angle across a full name for uniform appearance; vary angles for a single monogram if needed.
  • Use angle changes to “fight” fabric stretch direction (change angle when distortion shows up).
  • Success check: The fill shows controlled shine and depth under light, and the fabric looks less pinched in the dominant stretch direction.
  • If it still fails: Confirm the object is truly Plain Fill (Tatami) and not still satin/column in parts of the letter.
• Q: How do Embird appliqué letters require three separate color changes for Placement Line, Tack-Down Line, and Satin Border, and what goes wrong if colors are not separated?
  A: Assign different colors to the three appliqué layers so the machine stops between steps for fabric placement and trimming.
  • Create the appliqué workflow by using “Create Outline from Fill,” then duplicate the outline into three stacked layers.
  • Set Color 1 as Placement (running stitch), Color 2 as Tack-Down (double-run or zigzag), Color 3 as Satin Border (appliqué stitch).
  • Stop after Placement to add fabric (spray adhesive or glue stick helps), stop after Tack-Down to trim with duckbill scissors, then run the border.
  • Success check: The machine stops at the correct times and the satin border cleanly covers the trimmed fabric edge.
  • If it still fails: Reorder the objects top-to-bottom in the correct sequence and verify each layer truly has a different color assignment.
• Q: What is a safe Embird appliqué satin border width for beginners vs experts, and how can sharp corners be cleaned up in Embird?
  A: Start with a wider satin border for coverage, then refine once trimming accuracy is consistent.
  • Set width to 3.5–4.0 mm as a beginner range to hide small trimming errors; use 2.5–3.0 mm only when cutting is precise.
  • Change corner behavior in Embird to “Mitred” or “Capped” if corners bunch or form heavy knots.
  • Trim close after tack-down (aim for minimal excess) so the satin border can fully cover the raw edge.
  • Success check: Corners look smooth (not knotted/bulky) and the satin border fully hides the cut edge around the entire letter.
  • If it still fails: Increase border width toward 4.5 mm as a coverage band-aid while addressing fabric shift and trimming control.
• Q: What stabilizer pairing should be used for Embird appliqué letters on stretchy knits, stable wovens, and high-pile towels to prevent rippling and “push/pull” puckering?
  A: Match stabilizer to fabric behavior; appliqué borders are dense and need a strong “foundation.”
  • Use fusible mesh or heavy cutaway (2.5 oz or heavier) for stretchy knits; do not rely on tear-away alone.
  • Use medium tear-away for stable wovens in many cases, especially when the fabric is not shifting.
  • Use cutaway on the bottom plus a water-soluble topper on top for towels/fleece to keep stitches from sinking.
  • Success check: The finished letter lies flat after unhooping, with no rippled edge around the satin border.
  • If it still fails: Upgrade to heavier cutaway and re-hoop without stretching the fabric (lay it neutral).
• Q: What needle-zone safety steps should be followed when test-stitching very long satin stitches (12 mm+) that can cause bird’s nests and needle breaks?
  A: Treat oversized satin tests as a safety risk and keep hands and loose items out of the needle area.
  • Keep fingers, long hair, and loose sleeves away from the needle zone during test runs.
  • Wear safety glasses when testing problematic long stitches or unstable designs.
  • Stop immediately if a bird’s nest starts forming; clear thread before continuing to avoid needle snap and flying shards.
  • Success check: The machine runs without sudden jerks/violent accelerations and the stitch-out does not build thread nests under the fabric.
  • If it still fails: Convert wide satin areas to Plain Fill (Tatami) or enable split-stitch where appropriate before running another test.
• Q: What magnetic hoop safety rules should be followed when using industrial-strength magnetic embroidery hoops to reduce fabric shift in appliqué?
  A: Use magnetic hoops carefully because neodymium magnets can pinch skin severely and can interfere with medical devices and cards.
  • Open magnets using the provided leverage tabs and keep fingers out of pinch points.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards.
  • Clamp fabric “drum tight” without over-stretching to reduce fabric shift that causes border miss.
  • Success check: Fabric does not shift during tack-down and the satin border consistently covers the appliqué edge.
  • If it still fails: Increase satin border width temporarily and review hooping technique to eliminate distortion from pulling the fabric during hooping.
