Stop Ruining Polos: Dial In HoopMaster + Mighty Hoop 5.5" for Bulletproof Left-Chest Alignment

If you have ever peeled a crooked left-chest logo off a brand-new Nike or Ogio polo and felt your stomach drop, you are not alone. Corporate polos are expensive, performance fabric is unforgiving, and the customer’s eye goes straight to the chest.

One millimeter of alignment error can turn a $40 garment into a shop rag.

This workflow is simpler than your anxiety suggests. It is built around one promise: repeatable placement you can trust when you are staring down a stack of 50 shirts. We are going to move from "eyeballing and praying" to a station-based system that leverages Grid Logic and Magnetic Physics.

Manual hooping on corporate polos: the quiet way you bleed money and confidence

When left-chest placement is even slightly off, you don’t just lose a shirt—you lose time, thread, backing, and momentum. The core issue with manual hooping isn't your skill; it's cognitive load. Trying to visually center a logo while simultaneously fighting the spring tension of a traditional hoop is a recipe for fatigue.

If you are still fighting the fabric while trying to close a traditional plastic hoop, you are living the classic problem: you finally get it straight… then the hoop shifts a hair as you tighten the screw, and you don’t notice until the needle is moving. This is often where "Hoop Burn" (permanent ring marks) ruins delicate performance fabrics.

One reason shop owners stick with a hooping station is psychological as much as technical: it removes the “did I mess this up?” doubt that slows you down.

Workstation note: If you are building a production workflow, a station allows you to offload the mental math to a grid. This is where a system like the hoop master embroidery hooping station earns its keep—consistent mechanical references will always beat perfect eyesight.

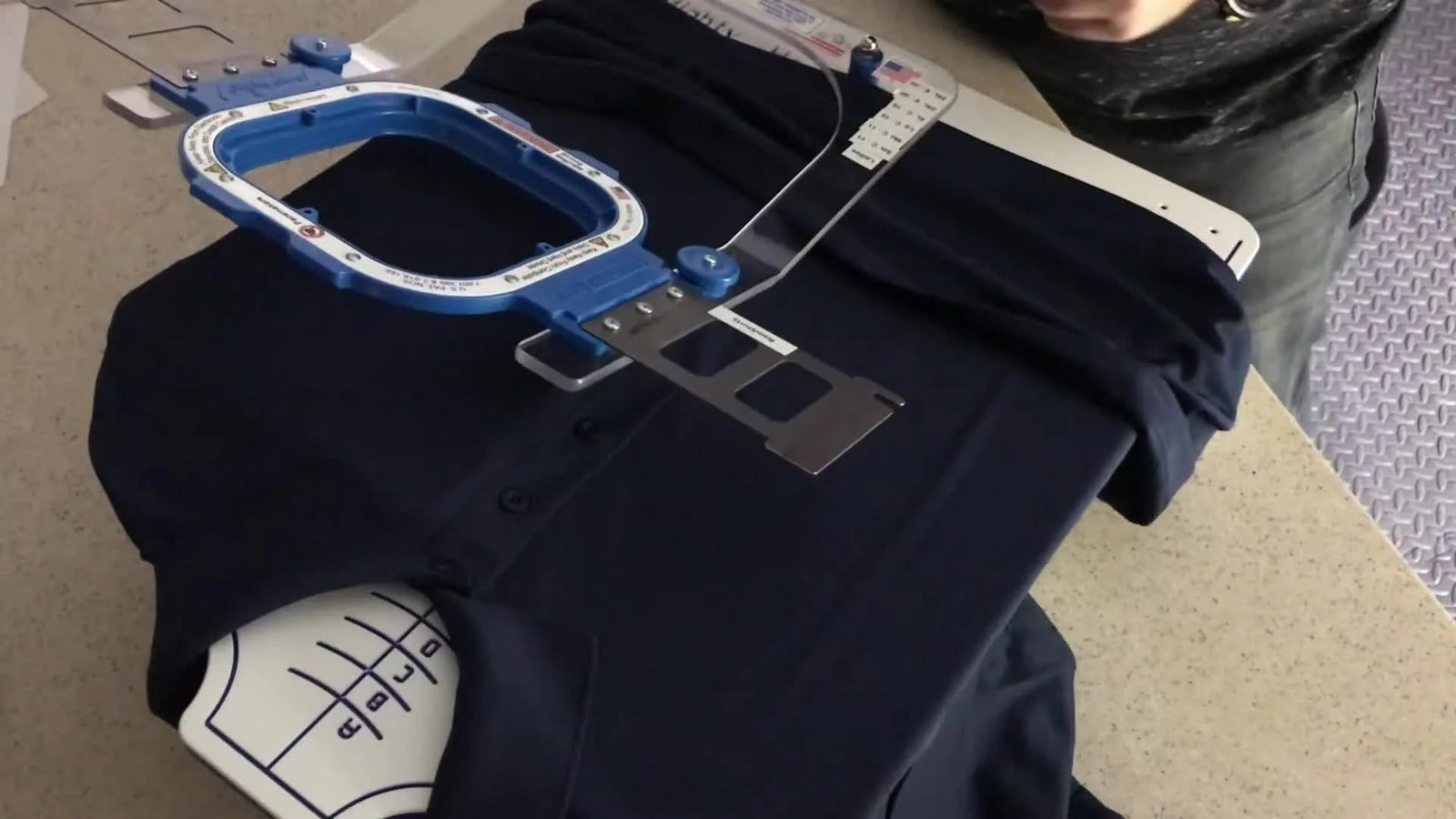

The “don’t-make-me-think” setup: HoopMaster grid settings for XL left chest (Number 20, D/E)

In a high-production environment, we don't guess. We read coordinates. The video demonstrates setting the station specifically for an Extra Large (XL) polo.

Here is the "Sweet Spot" setup for an XL Men's Polo:

• Garment size: Extra Large (XL)
• HoopMaster grid number: 20
• Letter setting: D or E (D sits slightly higher; E is standard)
• Critical Axis: Use the left-side “20” for left chest (using the right-side “20” places the logo on the right chest).


Why "20"? This number isn't random. It corresponds to the average distance from the center placket to the ideal visual center of the left chest for that specific shirt width.

Pro Tip: Do not rely on your memory. Use a label maker to paste a "Cheat Sheet" directly onto your station. Here is a widely accepted industry baseline to start your testing:

• Ladies Cut Shirts
  • Small: C-11
  • Medium: C-11
  • Large: C-15
  • XL: C-15
  • 2XL: E-20
• Mens/Unisex Cut Shirts
  • Small: C-15
  • Medium: C-15
  • Large: E-19
  • XL: D or E-19
  • 2XL: F-20
  • 3XL: F-24

If you are searching for a repeatable baseline for hoopmaster station setups, labeling the grid is the singular habit that keeps new staff from guessing.

The “hidden” prep that prevents puckering: stabilizer stack for moisture-wicking Sport-Tek polos

Performance polos (moisture-wicking polyester) behave like fluid. They stretch, they rebound, and they love to pucker when stitch density meets fabric elasticity. Stitch density pulls; your stabilizer must pull back.

The specific "Sandwich" used in the video is aggressive but effective for automated production:

1. Bottom Layer: One sheet of 8-inch Black Cutaway (Permanent stability).
2. Top Layer: Two sheets of Waffle Tearaway (Temporary rigidity).


Wait, three layers? Yes. Here is the sensory logic:

• The Cutaway: This is your foundation. Without it, the design will distort after the first wash.
• The Tearaway: This adds stiffness during the embroidery process so the needle penetrates cleanly rather than pushing the stretchy fabric down into the throat plate.

Hidden Consumable Alert: He calls out a purchasing mistake. 7.5" waffle sheets are slightly too short to lock confidently under the fixture tabs. Buy 8" sheets or roll goods cut to size. If your stabilizer slips during hooping, your design fails before you press start.

The Physics of Puckering

If you have ever asked, “Do I pull the shirt tighter to prevent puckering?”—Stop. Over-tightening pre-stretches the fabric grains. When you un-hoop, the fabric snaps back like a rubber band, creating ripples around your embroidery.

The Golden Rule: Aim for neutral tension. The fabric should lie flat and supported, not "drumskin tight." Magnetic hoops are superior here because they clamp vertically without the "drag" of friction hoops. One sentence that matters for buyers comparing options: magnetic embroidery hoops are less about “magic” and more about consistent, even clamping pressure that reduces human error.

Safety Warning: Embroidery needles can break and fly at high speeds if they strike a hoop frame or thick seam. Always wear safety glasses when operating the machine. Additionally, Magnetic Hoops contain powerful Neodymium magnets. They can pinch fingers severely. If you have a pacemaker, consult your doctor before handling high-strength magnetic hoops.

Prep Checklist (Do this BEFORE you touch the shirt)

• Confirm Size: Check the tag (e.g., XL) and match Grid Settings (e.g., E-20).
• Inventory: Have 2x Waffle Tearaway and 1x 8" Cutaway stacked.
• Hoop Check: Ensure you are using the correct 5.5" fixture size.
• Surface Check: Wipe the station board. Use a lint roller. Lint under the backing creates bumps that look like mistakes.
• Prepare Consumables: Have a temporary spray adhesive or masking tape nearby just in case backing slips.

Load the bottom frame correctly: the “Bottom” label saves you from a dumb, expensive mistake

The host flips the magnetic holders outward and drops the bottom frame into the station recess.

The Tactile Check: When you place the bottom hoop, wiggle it. It should seat firmly with no rocking. If it rocks, it is upside down or backwards. The host labels his hoop "BOTTOM" with a sticker. This seems trivial until it is 4:00 PM on a Friday and you are tired.

If you are new to hoopmaster, labeling your hoops is not overkill; it is a Standard Operating Procedure (SOP).

Stabilizer decision tree: pick backing based on fabric behavior (not guesswork)

New embroiderers often ask: "Do I always need three layers?" No. Use this logic tree to save money and reduce bulk.

Decision Tree (Fabric → Stabilizer Plan)

1. Is the fabric Performance/Dri-Fit/Moisture-Wicking?
   • YES: Use the video’s stack: 1x Cutaway + 2x Waffle Tearaway (or 1x Heavy Cutaway). Reason: Fabric is unstable.
   • NO: Go to step 2.
2. Is the fabric a Standard Cotton Pique Polo?
   • YES: Use 1x Medium Weight Cutaway. (Tearaway alone is rarely enough for wearables).
   • NO: Go to step 3.
3. Is the design density very high (>20,000 stitches or solid fills)?
   • YES: Add a layer of Tearaway behind your Cutaway for extra needle deflection resistance.
   • NO: Standard Cutaway applies.

Note: For beginners, Cutaway is the "Safety Net." It is harder to mess up a shirt with Cutaway than with Tearaway.

Shirt loading that actually stays straight: buttons, shoulder seams, and the “fold-up” trick

The video demonstrates loading a Sport-Tek polo. This is a sensory process—you must use your hands to feel the alignment.

1. Button Up: Button the placket all the way to the top. This creates a rigid center structure.
2. The "Cuff" Fold: Fold the bottom hem of the shirt upward. This reduces weight dragging off the station, which can pull the shirt crooked.
3. Visual Anchor: Slide the shirt on until the shoulder seams align exactly with the top edge of the board.




The Reality Check: A shop owner commented asking why shirts still come out crooked. The answer is usually reference confusion. Do not look at the sleeves. Look at the Buttons and the Shoulder Seams. If the buttons follow the center line and the shoulders are even, the shirt is straight.

Lock in XL left-chest placement: collar to D, buttons to center line, smooth outward

Once draped, finalize the placement:

1. Primary Anchor: Align the Collar Opening to Letter D or E.
2. Secondary Anchor: Ensure buttons run perfectly down the painted Center Line.
3. The "Smoothing" Technique: Gently sweep your hands from the center outward.


Sensory Warning: Do not pull. Simply smooth wrinkles. If you pull, you create potential energy in the elastic fibers. When the hoop snaps, that energy is trapped. When the hoop is removed, the fabric relaxes and your circle logo becomes an oval.

If you are doing mighty hoop left chest placement all day, this gentle smoothing habit is what distinguishes a pro from a frantic novice.

Top frame in the fixture arms: the calm moment before the snap

The host inserts the top magnetic frame into the floating fixture arms (leveling device).

The Pre-Flight Pause: Before you snap the magnets, take 3 seconds.

• Are the buttons on the line?
• Is the collar at "E"?
• Did the backing slide?


This “calm moment” is your last line of defense. Once you snap, the position is locked.

The snap: how to engage a Mighty Hoop safely

The host presses down on the fixture arms. CLACK. The magnets engage.

Physical Technique: Use the heels of your hands on the fixture arms, not your fingers on the hoop. The magnetic force is significant. For home users struggling with wrist pain or arthritis, this system is a game-changer. Standard hoops require grip strength; magnetic systems require only leverage.

Setup Checklist (Right before the SNAP)

• Bottom Frame: Seated and labeled "Bottom."
• Stabilizer-Fabric-Hoop Sandwich: Layers are flat.
• Alignment: Placket on Center Line; Shoulders on Top Edge.
• Safety: FINGERS CLEAR of the magnet zone.
• Action: Press down firmly; lift fixture arms to release.

Inspect the underside like a pro: flat backing is your quality receipt

The host flips the hooped shirt to show the underside.

Visual Pass/Fail Criteria:

• PASS: Backing is taut, smooth, and covers the entire hoop area.
• FAIL: You see a wrinkle, a fold, or a corner of the backing folded over.
• FAIL: The shirt fabric is bunched between the backing and the ring.

If you see wrinkles now, you will see puckers later. Re-hoop it. It takes 20 seconds to re-hoop, but 20 minutes to pick out a bad design.

Stitch-out on the machine: what to watch in the first 30 seconds

The video ends with the shirt loaded onto an SWF machine.

The "Canary in the Coal Mine": Do not walk away. Watch the first 30 seconds (usually the underlay stitches).

• Sight: Is the fabric "flagging" (bouncing up and down) with the needle? If yes, your backing is too loose or you need a topping.
• Sound: Listen for a rhythmic thump-thump. If you hear a sharp tick-tick, your needle might be hitting the hoop guard or a thick seam.

If you observe these issues on legacy equipment like the video's swf embroidery machines, the fix is physical (hooping), not digital. However, if you are looking to upgrade your production capabilities, modern multi-needle machines (like SEWTECH) offer larger throat spaces and advanced tension systems that forgive minor hooping errors.

Operation Checklist (During embroidery)

• Trace Function: ALWAYS trace the design to ensure the presser foot won't hit the hoop.
• Watch Underlay: Ensure stitches are biting into stable fabric, not tunneling.
• Listen: Monitor for sound changes indicating thread fraying or needle deflection.

Troubleshooting: Symptoms → Causes → Fixes

Here is your quick-reference for when things go wrong.

The upgrade path: Tools that protect your profit margins

The host closes with production advice: once you have volume, buy another hoop to speed up the process. This is the Commercial Logic of embroidery.

1. Level 1 (Technique): Use the decision tree above. Better stabilizers = less ruin.
2. Level 2 (Hoop Upgrade): If you are fighting hoop burn or wrist fatigue, upgrading to Magnetic Hoops (compatible with both home single-needle and commercial machines) allows for faster, safer hooping.
   • Sweet Spot: The 5.5 mighty hoop starter kit (or equivalent 5.5" magnetic frame) is the industry standard for left-chest logos.
3. Level 3 (Machine Upgrade): If you are consistently running orders of 20+ shirts, a single-needle machine is your bottleneck. Moving to a SEWTECH Multi-Needle Machine allows you to queue colors, reduce thread-change downtime, and increase stitch speed without sacrificing quality.

Final Thought: If you take only one habit from this tutorial, let it be Verification. Verify the Grid (E-20). Verify the Sandwich (Waffle+Cutaway). Verify the Underside. The machine does the stitching, but you do the engineering.

FAQ

• Q: How do I set a HoopMaster hooping station grid for XL men’s left-chest logos to avoid a crooked polo placement?
  A: Use the XL baseline Grid 20 with Letter D or E, and always reference the left-side “20” for left chest.
  • Set the station to 20 and choose D (slightly higher) or E (standard).
  • Align the buttons/placket to the station center line and the shoulder seams to the top edge of the board.
  • Pause before clamping and re-check collar position at D/E.
  • Success check: The placket runs straight on the center line and both shoulder seams hit the same top reference.
  • If it still fails: Ignore sleeve/side seams and re-hoop using only buttons + shoulder seams as the references.
• Q: What stabilizer stack should I use for moisture-wicking Sport-Tek polos to reduce puckering on left-chest embroidery?
  A: A reliable production stack is 1x 8" black cutaway + 2x waffle tearaway to resist stretch and stitch pull.
  • Place cutaway on the bottom as the permanent foundation.
  • Add two waffle tearaway sheets on top to increase rigidity during stitching.
  • Avoid pulling the polo tight; keep neutral tension and smooth fabric outward.
  • Success check: The hooped area feels supported (flat, not drum-tight) and the backing stays fully under the hoop area.
  • If it still fails: Re-hoop with less pre-stretch and verify the backing did not shift before snapping the hoop.
• Q: Why does waffle tearaway stabilizer slip in a HoopMaster-style fixture during polo hooping, and what is the quickest fix?
  A: Stabilizer often slips because the sheets are slightly too short, so they do not lock confidently under the fixture tabs—use 8" sheets.
  • Switch from 7.5" waffle sheets to 8" sheets (or cut roll goods to size).
  • Stage the backing stack before loading the shirt so you are not adjusting while holding fabric.
  • Use a small amount of temporary spray adhesive or masking tape only if needed to prevent shifting.
  • Success check: The backing remains flat and fully captured after the hoop is clamped—no corners creeping out.
  • If it still fails: Inspect the underside immediately after hooping and re-hoop if any fold or wrinkle is visible.
• Q: How do I know the magnetic hoop bottom frame is loaded correctly in a hooping station so it does not rock or mis-seat?
  A: Seat the bottom frame and do the quick wiggle test—any rocking usually means the frame is upside down or backwards.
  • Flip the magnetic holders outward and drop the bottom frame into the station recess.
  • Wiggle the frame lightly to confirm it sits firmly with no rocking.
  • Label the frame “BOTTOM” to prevent mix-ups when you are tired or moving fast.
  • Success check: The frame feels fully seated and stable before the garment goes on.
  • If it still fails: Remove and re-seat the frame, rotating it until the rocking disappears.
• Q: How do I verify a polo is hooped straight for left-chest embroidery using buttons and shoulder seams (not sleeves)?
  A: Button the polo to create a rigid center, align the placket to the center line, and use shoulder seams as the top reference.
  • Button the placket all the way up to lock in a straight center structure.
  • Fold the bottom hem upward (“cuff” fold) to reduce garment weight pulling the shirt crooked.
  • Slide the shirt until both shoulder seams align with the station’s top edge, then smooth outward—do not pull.
  • Success check: Buttons track perfectly down the center line and the shoulders look even at the top reference.
  • If it still fails: Re-hoop and stop using sleeve/side seams as alignment guides (they often reflect cutting variance, not true center).
• Q: What is the safest way to snap a Mighty Hoop-style magnetic hoop without pinching fingers or shifting the polo?
  A: Keep fingers out of the magnet zone and press using the heels of your hands on the fixture arms for controlled leverage.
  • Pause for 3 seconds before clamping: confirm buttons on center line, collar at D/E, and backing did not slide.
  • Press down firmly on the fixture arms with the heels of your hands, not fingertips near the magnets.
  • Lift the fixture arms to release after the magnets engage.
  • Success check: The snap locks cleanly and the fabric/backing layers remain flat without a sudden shift.
  • If it still fails: Stop and re-hoop—small shifts at the snap stage are a common cause of crooked left-chest logos.
• Q: What should I watch for in the first 30 seconds of stitching on an SWF embroidery machine when sewing left-chest polos, and what do the sounds mean?
  A: Watch the underlay and listen—flagging means instability, and a sharp tick-tick can mean needle contact with hoop/guard or a seam.
  • Run the machine’s trace function before stitching to confirm clearance from the hoop.
  • Observe the underlay: if fabric bounces (“flagging”), improve stabilization or add a topping if needed.
  • Listen closely: rhythmic thump-thump can be normal motion; sharp tick-tick suggests a strike risk—stop immediately and check clearance.
  • Success check: Underlay stitches lay down smoothly with minimal fabric bounce and no sudden clicking sounds.
  • If it still fails: Re-check hooping (neutral tension, flat backing underside) before changing design settings.
