Stop Those Ugly Outline Gaps: Dialing In Pull Compensation in PE-Design 10 (Without Overdoing It)

Auto-punched designs often look pristine on your computer screen—perfectly aligned, colorful, and sharp. Then comes the heartbreak: you stitch it out, and there they are—maddening slivers of white fabric grinning between the black outline and the colorful fill.

If you are seeing these gaps, stop blaming yourself. You aren't "bad at embroidery." You are simply fighting physics.

This is registration error caused by "pull effect." As stitches form, they draw the fabric inward, while the stabilizer resists. If the digitization is too conservative (which Auto Punch usually is), the fill stops short, and the outline lands on bare fabric.

In this guide, we will fix this using a PE-Design 10 workflow as our baseline. We will move from conservative defaults to 0.6 mm Pull Compensation, and combine that with a "Pro" stabilization strategy to lock that fabric down.

The Calm-Down Check: Why PE-Design 10 Auto Punch Leaves Gaps Between Fill and Satin Outline

The first stitch-out in our case study shows clear gaps—white fabric peeking between the red hat fill and the black outline. This is the "Pull Effect" in action.

Think of your embroidery stitches as thousands of tiny rubber bands. As the machine creates the fill (the red area), it pulls the fabric fibers inward, making the object physically smaller than it is on screen. The outline, which stitches last, lands where it was programmed to go—but the fill has already retreated.

The Mindset Shift: You are not trying to make the outline wider. You are trying to make the fill extend further out, so it tucks safely underneath the outline even after the fabric shrinks.

If your hooping for embroidery machine technique is even slightly loose—if the fabric doesn't sound like a drum when tapped—this pulling effect doubles. Felt and heavy wovens (like in the example) feel stable, but they can still shift microscopically under the stress of 3,000+ stitches.

The “Hidden” Prep Pros Do First: Test Stitch Strategy, Zoom Discipline, and a Stabilizer Reality Check

Before you touch a single slider in PE-Design 10, we must establish a baseline. Without a physical test, you are guessing.

The Baseline Data (Our Starting Point)

• Design: Auto-punched Snoopy file.
• The Problem: Visible white gaps on the first run.
• The Target Density: Verified at 114 lines/inch (keep this consistent).
• The Goal: We will eventually push Pull Compensation to 0.6 mm.

Why Zoom is a Safety Tool

In the software, you must zoom in until individual stitch points are visible. Pull compensation adjustments of 0.2 mm or 0.3 mm are invisible at standard zoom levels. If you can't see the overlap change on screen, you can't control it.

Prep Checklist: The "Pre-Flight" Inspection

• Visual Confirmation: Look at your failed stitch-out. Is the gap on the sides (pull) or everywhere (shrinkage)?
• Software Ready: Open Sewing Attributes in PE-Design 10 (usually on the right right-hand panel).
• Consumables Check: Ensure you have enough stabilizer for at least two more test runs.
• Needle Check: Run your fingernail down the needle tip. If you feel a burr, replace it. A burred needle pushes fabric rather than piercing it, causing gaps.

Warning: Mechanical Safety. When focusing intently on a test stitch-out, keep fingers, long hair, and loose sleeves/drawstrings at least 4 inches away from the needle bar. Never reach under the presser foot to "quickly fix" a loop while the machine is paused—always keep hands clear.

The Control Panel That Actually Fixes It: Using PE-Design 10 “Sewing Attributes” Pull Compensation (0.0 mm → 0.3 mm)

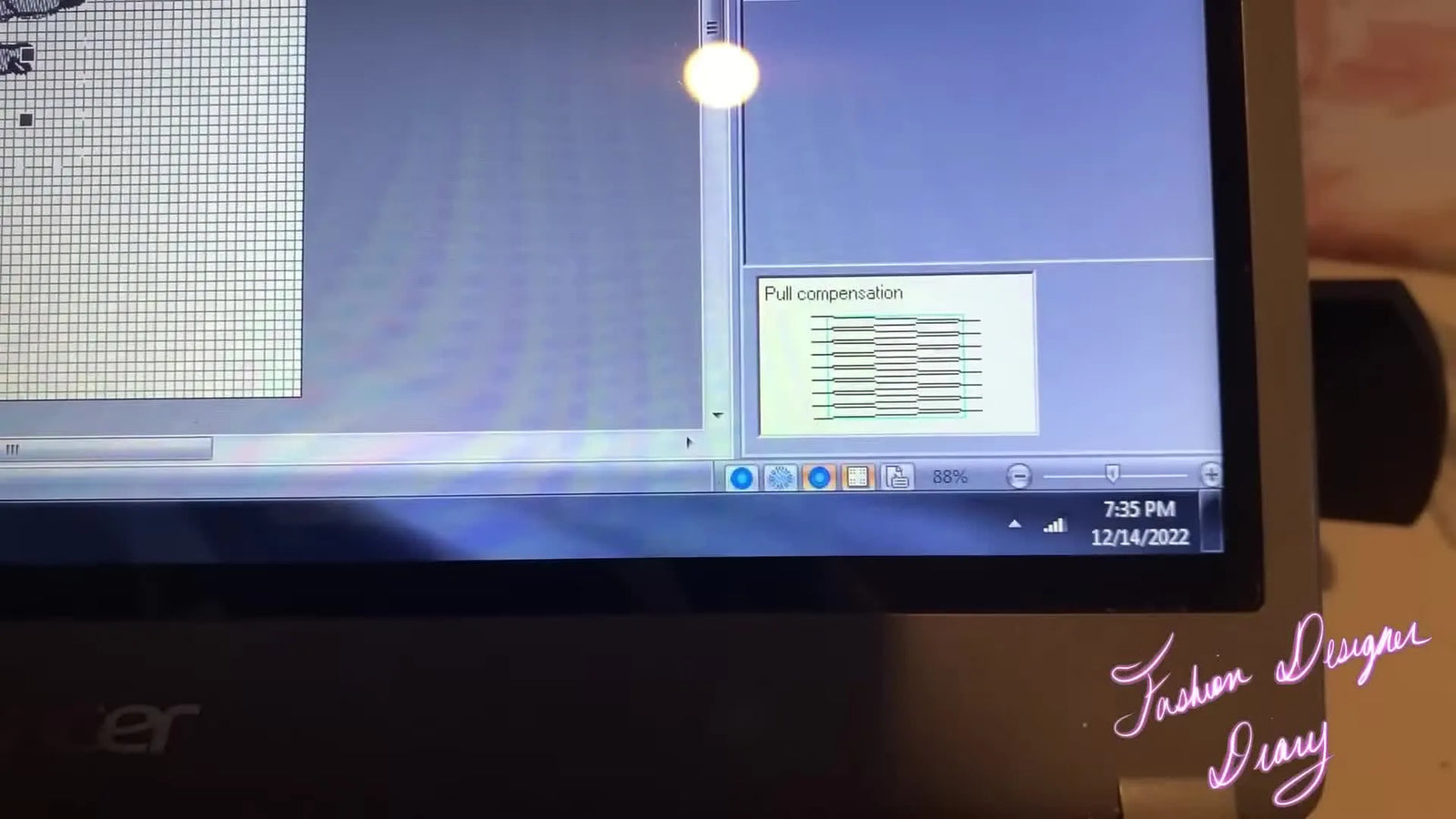

The default Auto Punch setting is often 0.0 mm. This assumes a perfect world where fabric never moves. We need to tell the software to compensate for reality.

The first adjustment—a conservative move—is to change Pull Compensation to 0.3 mm.

Step-by-Step Procedure

1. Select the Object: Click the specific region with the gap (e.g., the red hat fill). Do not select the black outline.
2. Open Attributes: Navigate to the Sewing Attributes tab.
3. Adjust Pull Comp: Change the setting from 0.0 mm to 0.3 mm.
4. Visual Check: Watch the screen closely. You should see the color block expand slightly underneath the border line.

Pro Tip: Edit one region at a time. The hat (top) might need 0.3 mm, while the body (large fill) might trigger more fabric pull and require more compensation.

If you are using basic embroidery machine hoops, check the inner ring. If the ridges are worn smooth, the fabric feels tight at first but slips as the machine vibrates, rendering your 0.3 mm adjustment useless.

The Annoying Save Error: Fixing “No PE-DESIGN Software key is opened” Without Losing Your Work

During the workflow, you might hit a terrifying popup: “No PE-DESIGN Software key is opened.” This usually prevents saving.

The Quick Fix

• Don't Panic: Your work isn't gone yet.
• Check the Dongle: This error means the physical USB security key (dongle) has lost connection.
• Re-seat: Remove the USB key and insert it firmly into a different USB port.
• Retry: Attempt the save again.

This is almost always a hardware connection issue, not a corrupted file.

The First Reality Check: Comparing Stitch-Out #1 vs #2 (Better… But Not Perfect)

After running the test with 0.3 mm compensation, place your new patch next to the first one.

Visually inspect:

• Are the gaps smaller? (They should be).
• Are they gone entirely? (Likely not yet).

In our case study, the 0.3 mm adjustment improved the hat, but faint white lines still appear around the body. This is the "Intermediate Trap." Many users stop here, fearing they will ruin the design. But if you can still see fabric, the job isn't done. We need to find the specific region limits.

The Sweet-Spot Game: Why Pull Compensation Can Make Outlines Protrude (and How the Video Backs Off)

Why not just set it to 1.0 mm and be done with it? Because of Protrusion.

If you set Pull Compensation too high, the fill stitches will extend past the outline. You will trade a "white gap" for a "ragged color edge" that bleeds outside the black border.

The "Sweet Spot" Strategy:

1. Incremental Increases: Move in 0.1 mm or 0.2 mm steps.
2. Sensory Check: Look at the screen preview. If the color fill looks like it is swallowing the black outline, you have gone too far.
3. Back Off: If you see protrusion on the stitch-out, dial it back by 0.1 mm.

This balance depends heavily on your material. If you are doing hooping for embroidery machine instructions on a stable denim, 0.3 mm might be enough. On a stretchy performance knit or the felt used here, you need more aggression to counter the fiber stretch.

The Final Fix That Actually Holds Up: Setting Pull Compensation to 0.6 mm (and Checking Density at 114 lines/inch)

For the larger body area in our example, 0.3 mm wasn't enough. The fabric pull was too strong. The final successful setting was 0.6 mm.

The Winning Recipe

• Target Region: Body Fill.
• Pull Compensation: 0.6 mm.
• Density: 114 lines/inch (Maintained).

Why Density Matters: This is crucial. Higher density (tightly packed stitches) creates more pull. If you increase density to make a color "richer," you must also increase Pull Compensation because that rich fill will yank the fabric harder. The displayed 114 lines/inch is a standard density; if you go higher (e.g., 120+), expect to need 0.6 mm or even higher compensation.

If you are using a consumer machine and struggling to find a compatible hoop for brother embroidery machine that holds tight enough for these density levels, remember that software can only compensate so much for physical slippage.

The Stabilizer Twist That Makes the Software Fix Stick: Why Two Layers Beat One on Small Designs

Here is the secret that separates hobbyists from pros: Software settings rely on physical stability.

In the final successful run, the creator didn't just change the number to 0.6 mm—they also added a second layer of stabilizer.

Why Two Layers?

A single layer of stabilizer might flex under the rhythmic pounding of the needle (the "trampoline effect"). By floating a second sheet of tear-away or cut-away stabilizer underneath, you create a rigid foundation. This ensures that when the software commands a 0.6 mm overlap, the needle actually lands there.

Consumable Tip: Use a light mist of temporary spray adhesive (like 505 Spray) between the stabilizer layers to prevent them from sliding against each other.

The “Pro” Setup: Hooping Stability, Magnetic Frames, and When a Tool Upgrade Beats Another Test Stitch

If you find yourself constantly tweaking software to fix gaps that change every time you stitch, your problem isn't the file—it's your hooping.

Traditional friction hoops require significant hand strength to get "drum-tight" tension without distorting the fabric grain. This is why professionals and high-volume shops switch to magnetic embroidery hoops or heavy-duty magnetic embroidery frames.

The Logic for Upgrading:

• Consistency: Magnets apply vertical pressure that doesn't drag the fabric, reducing the "pull" before you even start stitching.
• No Hoop Burn: A magnetic hoop for brother or similar home machines eliminates the friction ring marks that are hard to iron out of delicate fabrics.
• Speed: If you are stitching 20 patches, re-hooping takes 5 seconds instead of a minute.

Warning: Magnet Safety. Magnetic hoops use powerful Neodymium magnets. Pinch Hazard: They can snap together with crushing force—keep fingers clear. Medical: Keep at least 6 inches away from pacemakers. Tech: Do not place directly on top of laptops or tablets.

Setup Checklist (Ready for Final Stitch)

• File Transfer: Verify the key is connected and the file on your USB drive is the new version (v3).
• Parameter Scan: Hat at 0.3 mm? Body at 0.6 mm?
• Stabilizer Stack: Are you using two layers (or one heavy Cut-Away)?
• Hoop Check: Tap the hooped fabric. It should sound like a dull thud or drum. If it's silent or ripples, re-hoop.


A Fast Decision Tree: If You Still See Lines, Change Pull Compensation or Stabilizer First?

Stop guessing. Follow this logic path to fix the problem efficiently.

1. The Gap is uneven (huge on left, perfect on right).

• Diagnosis: Hooping issue. Texture is slipping.
• Action: Do not touch software. Re-hoop tighter or use a Magnetic Hoop.

2. The Gap is consistent (white line all around the fill).

• Diagnosis: Pull Compensation is too low.
• Action: Increase Pull Comp by +0.2 mm.

3. The Outline looks like it's "falling off" the fill (Protrusion).

• Diagnosis: Pull Compensation is too high.
• Action: Decrease Pull Comp by -0.1 mm.

4. The Gaps appear only on the final item of a batch.

• Diagnosis: Stabilizer failure (perforation).
• Action: Switch to a heavier Cut-Away stabilizer or add a second floating layer.


Troubleshooting the Three Problems the Video Actually Shows (Symptoms → Causes → Fixes)

The Production Mindset: How to Stop Burning Time on Test Stitch-Outs

You cannot afford to run 5 test stitches for every logo. You need a system.

The "One-Touch" Workflow: Experience teaches us to anticipate the pull. If I am digitizing for a sweatshirt (unstable knit), I will automatically set my Pull Compensation to 0.4 mm - 0.5 mm before the first test. I don't wait to see the gap.

If you are running a business, consistency is profit. Using a hooping station for embroidery helps ensure that every shirt is hooped at the exact same tension and location. This means once you dial in your settings (like the 0.6 mm used here), they will work for the next 50 shirts too.

Operation Checklist (Post-Run Analysis)

• The "Floss" Test: Run your fingernail over the border. Does it catch on the fill (gap) or feel like a continuous ridge (perfect)?
• The Stretch Test: Gently pull the fabric. Does a gap open up? If yes, you need backing that completely prevents stretch (Cut-Away).
• Documentation: Write down "Pull Comp 0.6mm / 2 Layers stabilizer" on your production sheet so you don't have to relearn this next month.


The Result You’re After: A Clean Edge That Stays Clean

By the end of this process, the Snoopy design looked solid. The gaps were gone. This wasn't magic—it was the combination of 0.6 mm Pull Compensation (Software) and Double Stabilization (Physics).

Embroidery is a marriage between your digital file and your physical materials. When you respect the forces of tension and support—whether through smarter digitizing or upgrading to tools like a magnetic embroidery hoop for better control—you stop hoping for good results and start engineering them.

FAQ

• Q: How do I fix PE-Design 10 Auto Punch gaps between fill stitches and a satin outline on felt or heavy woven fabric?
  A: Increase Pull Compensation on the fill object (not the outline) and re-test; 0.3 mm is a safe first move and 0.6 mm is a proven fix in the case study.
  • Select the specific fill region that shows the white gap (example: the red hat/body fill).
  • Open Sewing Attributes and change Pull Compensation from 0.0 mm to 0.3 mm, then test stitch.
  • Increase in small steps if needed (often +0.2 mm), up to 0.6 mm for strong pull areas.
  • Success check: the fill tucks under the satin outline with no white fabric showing along the edge.
  • If it still fails: re-check hoop tightness and stabilizer (software cannot overcome fabric slippage).
• Q: In PE-Design 10, should Pull Compensation be applied to the satin outline object or the fill object when white fabric shows between them?
  A: Apply Pull Compensation to the fill object so the fill extends under the outline after pull effect.
  • Click the fill region with the gap; do not select the border/satin outline.
  • Adjust Pull Compensation in Sewing Attributes and visually confirm the fill expands under the border line.
  • Edit one region at a time (different areas may need different values).
  • Success check: on-screen preview shows a slight underlap, and the stitch-out edge feels continuous when you run a fingernail across it.
  • If it still fails: reduce any hoop slippage (worn inner ring or loose hooping can cancel the software fix).
• Q: How do I decide between changing Pull Compensation vs adding stabilizer when embroidery outlines show white gaps after stitching?
  A: Use the symptom pattern: uneven gaps point to hooping/stability first; consistent gaps all around point to Pull Compensation being too low.
  • If the gap is uneven (big on one side): re-hoop tighter or switch to a more consistent hooping method before touching software.
  • If the gap is consistent all around: increase Pull Compensation (commonly +0.2 mm steps).
  • If gaps show up late in a batch: add a second layer or switch to heavier cut-away to prevent perforation/failure.
  • Success check: the next stitch-out matches the preview and the edge stays closed even with a gentle stretch test.
  • If it still fails: verify the fabric is “drum-tight” and not rippling in the hoop.
• Q: How do I stop PE-Design 10 Pull Compensation from causing fill protrusion past the satin outline (ragged color edge)?
  A: Back off Pull Compensation slightly; too much compensation trades white gaps for visible color bleed.
  • Reduce Pull Compensation by 0.1 mm and run a quick test stitch.
  • Increase again only in small increments (0.1–0.2 mm) until the gap closes without protrusion.
  • Keep density consistent while testing (changing density changes pull behavior).
  • Success check: the outline fully covers the fill edge with no color spilling outside the border.
  • If it still fails: confirm the fabric/stabilizer stack is stable; instability can mimic protrusion and misregistration.
• Q: How do I fix the PE-Design 10 save error “No PE-DESIGN Software key is opened” without losing my design changes?
  A: Re-seat the USB security key (dongle); this error is usually a connection issue, not file corruption.
  • Stop and keep the project open (do not close the software if possible).
  • Remove the USB key and insert it firmly into a different USB port.
  • Retry saving immediately after the key reconnects.
  • Success check: the file saves normally and the error popup does not return on the next save attempt.
  • If it still fails: inspect the USB port for dust/looseness and try another port again.
• Q: What is a reliable “success standard” for hooping stability when registration errors and fill/outline gaps keep changing between stitch-outs?
  A: Hoop so the fabric is truly drum-tight and stable; inconsistent hooping can double the pull effect and make software settings look unreliable.
  • Tap the hooped fabric and listen/feel for a dull thud/drum-like tension (no soft ripples).
  • Inspect the hoop gripping surfaces; worn smooth inner-ring ridges can allow slip under vibration.
  • Use enough stabilizer for repeat tests, and keep the stack from shifting (spray adhesive between layers can help).
  • Success check: the same file and settings produce consistent edges across repeated stitch-outs.
  • If it still fails: upgrade the holding method (magnetic hoops/frames often improve consistency versus friction hoops).
• Q: What needle-area safety rule should be followed during embroidery test stitch-outs when checking gaps and registration on a multi-needle or home embroidery machine?
  A: Keep hands, hair, and loose clothing well away from the needle bar and never reach under the presser foot during a pause.
  • Keep fingers, long hair, and loose sleeves/drawstrings at least 4 inches away from the needle bar while watching the stitch-out.
  • Stop the machine fully before making any adjustments around the needle/presser foot area.
  • Focus on observation rather than “quick fixes” near moving parts.
  • Success check: adjustments are made with the needle area clear and no need to touch under the presser foot during motion.
  • If it still fails: slow down the process and prioritize safe access—do not troubleshoot with hands near the needle path.
• Q: What magnetic hoop safety precautions should be followed when using neodymium magnetic embroidery hoops or magnetic embroidery frames for faster, more consistent hooping?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers and sensitive electronics.
  • Keep fingers clear when magnets snap together; they can clamp with crushing force.
  • Keep magnetic hoops at least 6 inches away from pacemakers.
  • Do not place magnetic hoops directly on laptops or tablets.
  • Success check: magnets are installed/removed without finger pinches and stored away from medical devices and electronics.
  • If it still fails: switch to a safer handling routine (set magnets down one at a time and separate slowly under control).
