Melco Bravo Cart Assembly: The "Zero-Vibration" Setup Guide

If you’re staring at a pile of metal parts and thinking, “I just bought a professional machine—why do I feel like I’m assembling gym equipment?”, take a breath. You are not just building a table; you are calibrating the chassis for a high-precision robot. The Bravo cart is straightforward, but it punishes one common novice habit: tightening bolts too early.

I’ve watched new shop owners lose 30–60 minutes (and a lot of patience) because one bolt got cranked down before the frame had a chance to “find square.” The good news: the method detailed here—finger-tight first, align later—is exactly how experienced technicians build stands that stay rigid, roll straight, and don’t rattle under high-speed production.

The calm start: what this Melco Bravo cart assembly is really protecting you from

A cart isn’t just a place to park the machine. It’s the foundation that mitigates vibration physics. It keeps casters tracking straight and ensures your machine’s needle bar remains level relative to the floor.

When the cart is slightly twisted (even by 2mm), you may not see it while tightening bolts—but you will feel it later. You'll feel it when the stand “rocks” on uneven concrete, or when you start running the machine at 1000 SPM (Stitches Per Minute) and the whole setup sounds harsher than it should.

If you’re running a precision instrument like the melco bravo embroidery machine, treat the cart manufacturing tolerances like part of the machine’s engineering—not just furniture.

Warning: Pinch Point Hazard. Keep fingers clear of metal junctions when sliding shelves into the side panels. Heavy steel components can shift suddenly. Do not try to "catch" a falling frame component with your bare foot or hand; let it fall to avoid crushing injuries.

The “hidden” prep: inventory the Bravo cart parts before you touch a wrench

We begin by suppressing the urge to just "start screwing things together." Lay everything out to identify what is what. This is where most assembly mistakes are born—mixing hardware or flipping a panel strictly because they look similar at a glance.

What you should locate first

• Two side panels with locking casters/wheels. (Critical: The locks must face forward/away from you during the build).
• Hardware bags: Bolts, washers, and the black “pucks” (machine locator mounts).
• Machine Operator Kit: Found on the base of the embroidery head box in the video.
• Tools: The 4mm Allen wrench (Start with this) and a Setup Consumable: Magnetic Parts Tray (or a simple bowl) to keep screws from rolling away.


Why the 4mm Allen wrench matters

The video specifies the 4mm size.

• Tactile Check: When you insert the wrench into the bolt head, it should feel tight with zero wiggle.
• Risk: Using a standard (Imperial) wrench that is "close enough" will strip the head. Once that happens, a 5-minute setup becomes a 2-hour drill-and-extract nightmare.

If you’re also setting up a long-term workspace for a melco embroidery machine, standard practice is to tape a spare 4mm wrench to the bottom of the cart so it never disappears into a junk drawer.

Prep Checklist (Do this BEFORE Stage 1)

• Orientation Check: Confirm both side panels are positioned so the caster locks face the front (away from you).
• Hardware Sorting: Separate items into distinct piles: M6 x 12mm button head screws, flat washers, lock washers, long bolts, and locator mounts/pucks.
• Tool Hygiene: Locate the 4mm Allen wrench and place it on a stable surface (not the floor).
• Documentation: Scan the first page of the printed instructions, then focus on the cart assembly visuals.
• Surface: Choose a flat, carpeted area or use the cardboard box flattened out to protect the finish (and your knees).


Stage 1 done right: assemble the Bravo cart base frame so the holes actually line up

This is where the “finger-tight first” rule pays off. We are managing tolerance stacking—the accumulation of tiny gaps in manufacturing.

The Logic & The Action

1. Take Parts A & B (side panels).
2. Slide Part C (base shelf) into the side panel slots.
3. Critical orientation: The base shelf has two holes—one on each front corner. Those holes must face the locking wheels (the front).


Sensory Checkpoints

• Visual: The "two corner holes" are on the same side as the locking lever on the wheels.
• Tactile: The base shelf should slide into the slots with minimal resistance. If you have to hammer it, check your angle.
• Status: The frame should still feel "loose" and able to shift slightly. This is intentional.

The tightening sequence that prevents a twisted frame

Insert six M6 x 12mm screws with flat washers into the base frame holes.

The Golden Rule of Threading:

1. Start by hand: Rotate the screw with your fingers.
2. The "Butter" Test: The screw should turn smoothly for at least 3 rotations. If you feel immediate resistance or a "gritty" scraping sensation, STOP. You are cross-threading. Back it out, realign the metal, and try again.
3. Do NOT tighten yet: Leave all screws loose until the very end of the build.

Warning: If a screw doesn’t start easily, do not force it with the wrench. Steel screws are harder than the threaded inserts; forcing them will destroy the threads permanently.

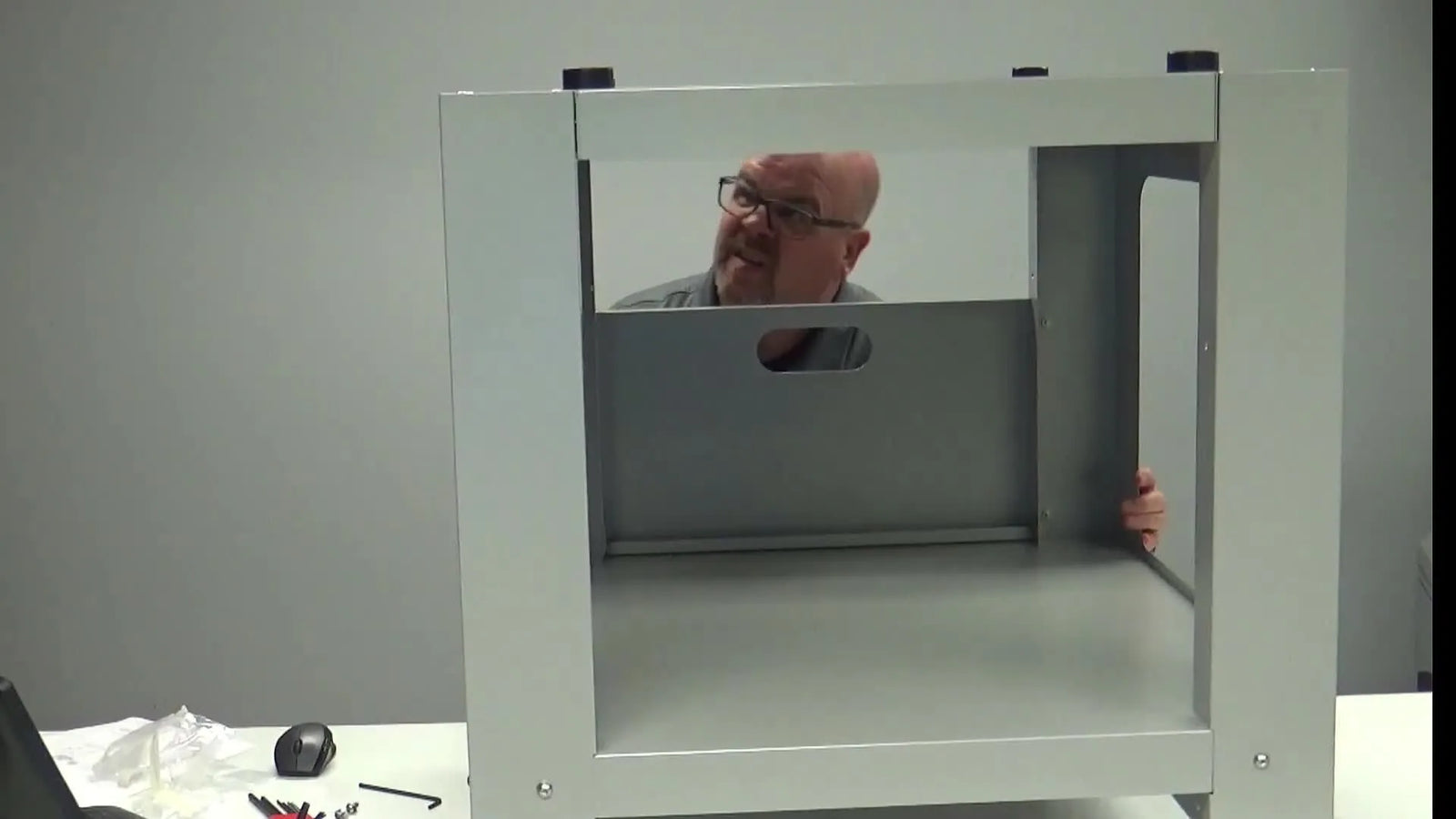

The back support panel trick: install it with the cable hole down (and avoid cross-threading)

The video calls this Stage 2, and it’s the vital structural spine of the cart.

The Orientation

1. Take the back stability panel.
2. Install it with the large cable knockout hole facing DOWN.
3. Protocol: Install the top bolts first (finger-tight only), then the bottom bolts.


The “Lift & Catch” Technique

When installing the back panel, gravity often pulls the panel holes slightly below the threaded inserts.

• The Fix: Gently lift the panel up or down with one hand while starting the bolt with the other. You are trying to align the axis of the bolt perfectly with the hole.
• Success Metric: The bolt catches the thread without the panel binding against the screw.

Setup Checklist (End of Stage 2)

• Back Panel: Cable hole is positioned at the bottom.
• Sequence: Top bolts started first, then bottom bolts.
• Tightness: All four bolts are snug using the 4mm Allen wrench (but not cranked with full force yet).
• Stability: The frame stands on its own without requiring support.

Don’t mess up the pucks: machine locator mounts must have the beveled edge up

Stage 3 involves the black "pucks." These are not just spacers; they are the interface between the machine's rubber feet and the steel cart. A mistake here complicates placing the machine later.

Hardware stack order (The Sandwich)

Prepare four sets in this exact order:

1. Long bolt
2. Lock washer (Split ring)
3. Flat washer
4. Through the hole in the cart...
5. Refasten with the Locator Mount/Puck on top.

Orientation rule you must follow

The puck acts as a cup for the machine feet.

• Top: Has a radiused/beveled (curved) edge.
• Bottom: Has a sharp 90-degree edge.
• Rule: The BEVELED edge must face UP.


How tight is “tight enough”?

Hold the puck firmly with your hand to prevent it from spinning and tighten the bolt from below with the Allen wrench.

• Tactile Goal: Tighten until the lock washer flattens fully. You do not need to "crush" the black plastic puck.


Pro Tip: Accurate placement here is crucial. If you plan to scale your business and are comparing this setup to industrial systems utilizing melco embroidery hoops or magnetic frames, you'll learn that stability is everything. A loose locator puck allows the machine to "walk" slightly during high-speed saturation stitching.

The “F” stamp moment: install the top shelf with the front facing the locking casters

Stage 4 is the final structural cap.

The Visual Cue

1. Slide the top shelf over the locators.
2. Locate the letter “F” stamped into the metal surface.
3. Rule: The “F” must face the FRONT, aligned with the locking wheels.




Bolt strategy (The Final Lockdown)

• Insert the final bolts with flat washers.
• Finger-tighten these final bolts first.
• The "Settle": Give the cart a gentle shake to let all metal plates find their neutral center.
• Final Torque: Now, go back and tighten ALL bolts (Base, Back Panel, Top Shelf) with the 4mm Allen wrench.


Turn the wrench until you feel a firm stop. Do not over-torque to the point of stripping the bolt head. If one bolt causes another to pop out of alignment, back them both off, wiggle the shelf, and restart.

Operation Checklist (End of Stage 4)

• Orientation: The "F" stamp clearly faces the front (locking casters).
• Torque Audit: systematically check every bolt with the 4mm wrench. None should spin freely.
• Stability: Press down hard on opposite corners (diagnoally). The cart should NOT rock.
• Brake Check: Engage the caster locks. The cart should resist pushing.


Why “finger-tight first” is the pro move (and how it prevents future headaches)

We utilize the "Finger-Tight" protocol because metal frames are rigid tolerances structures.

1. The Physics: When you fully tighten one corner immediately, you "bias" the frame tension to that corner.
2. The Consequence: The remaining holes will be slightly misaligned (off by 0.5mm).
3. The Result: You end up stripping bolts trying to force them into misaligned holes, or the cart sits with a permanent "twist," ensuring one wheel never touches the ground properly.

By leaving it loose, you allow the frame to "float" into a stress-free square shape before locking it down. This concept applies directly to embroidery: finding the "Sweet Spot" in tension and hooping requires patience before locking it in.

Quick decision tree: when to stay on a single-needle setup vs move to a multi-needle production workflow

Assembling this cart is often the moment a user realizes, "I am moving from hobby to production."

Use this decision tree to benchmark your current needs:

If you are already investing in a platform like the melco emt16x embroidery machine, remember that your peripheral workflow (cart stability, lighting, and hooping speed) dictates your actual profit margin.

Troubleshooting the two problems everyone hits during Bravo cart assembly

1) Symptom: Bolt holes won’t line up (The "Offset")

• Likely Cause: You tightened Part A or Part B too early, making the frame too rigid to accept Part C.
• The Fix: Loosen the nearest 4 bolts by three turns. Do not remove them. Shake the frame slightly. The hole should align.

2) Symptom: Bolts feel "gritty" or get stuck halfway

• Likely Cause: Cross-threading or paint inside the threads.
• The Fix: Remove the bolt. Check the threads for damage. Try a different bolt from your spare pile.
• Prevention: Start the bolt by spinning the shaft with your fingertips, not holding the wrench handle.

The upgrade path that actually matters: reduce setup time and operator fatigue

Once the cart is built and the machine is mounted, your next physical bottleneck will be your hands.

Operators moving from domestic to pro machines often suffer from wrist fatigue due to traditional screw-tightening hoops. If you have researched melco mighty hoop or generally compatible melco mighty hoops, you know the industry is shifting toward magnetic clamping.

Why consider this now?

• Speed: Magnetic hoops snap together in seconds, removing the "unscrew-adjust-screw" cycle.
• Safety: They reduce Repetitive Strain Injury (RSI) risks for your wrists.
• Quality: They hold thick garments (like Carhartt jackets) without popping open mid-stitch.

Terms like magnetic embroidery hoop and how to use magnetic embroidery hoop are worth investigating if you plan to do back-to-back runs of heavy garments.

Warning: Magnetic Safety. Professional magnetic hoops contain powerful Neodymium magnets.
* Health: Keep them away from pacemakers/ICDs (at least 6-12 inches).
* Injury: Do not place fingers between the rings; they snap together with enough force to pinch blood blisters.
* Electronics: Keep away from credit cards and machine screens.

If you are struggling with placement accuracy (logos crooked), consider adding a hooping station for machine embroidery to your cart setup. It acts as a "third hand" to hold the hoop while you align the garment.

Final “old hand” check: what a correctly assembled Bravo cart feels like

Before you lift that heavy machine onto the cart, perform the Integrity Test:

1. The Brake Test: Lock front casters. Push the cart. It should skid, not roll.
2. The Rock Test: Press heavily on the back-left and front-right corners simultaneously. There should be zero wobble or clicking sounds.
3. The Glide: Roll it on a flat floor. It should track straight and silent.

If it feels solid, you have successfully built a stable platform. You are now ready to mount the machine and start stitching.

FAQ

• Q: During Melco Bravo cart assembly, why do the base frame bolt holes not line up between the side panels and the base shelf?
  A: The frame was usually tightened too early—loosen nearby bolts and let the cart “float” back into square.
  • Loosen the nearest 4 bolts about three turns (do not remove them).
  • Shake the frame gently so the metal plates can self-align, then re-seat the base shelf.
  • Start all six M6 x 12mm screws by hand again before using the 4mm Allen wrench.
  • Success check: the screws start smoothly and the holes align without forcing or prying.
  • If it still fails… re-check the base shelf orientation: the two front corner holes must face the locking casters (front).
• Q: On the Melco Bravo cart, what should be done if the bolts feel gritty or bind halfway during tightening with the 4mm Allen wrench?
  A: Stop immediately—gritty resistance usually means cross-threading or debris/paint in the threads.
  • Back the bolt out completely and inspect the bolt and threaded insert for damage.
  • Swap in a different bolt from the hardware pile instead of forcing the same one.
  • Re-start the bolt using fingertips first (aim for at least 3 smooth turns before using the wrench).
  • Success check: the bolt turns smoothly with “butter” feel and no scraping sensation.
  • If it still fails… confirm the Allen wrench is truly 4mm with zero wiggle in the bolt head (a “close” Imperial key can strip).
• Q: In Melco Bravo cart Stage 2, which direction should the back support panel cable hole face, and what bolt sequence prevents cross-threading?
  A: Install the back stability panel with the large cable knockout hole facing DOWN, and start the top bolts first (finger-tight).
  • Position the panel so the cable hole is at the bottom before inserting any hardware.
  • Start the top bolts by hand first, then start the bottom bolts.
  • Use a gentle “lift & catch” motion to align holes while starting each bolt.
  • Success check: each bolt catches threads without the panel binding or needing force to line up.
  • If it still fails… loosen the surrounding frame bolts slightly so the panel can shift into alignment.
• Q: On the Melco Bravo cart machine locator mounts (black pucks), which side faces up and how tight should the long bolts be?
  A: The beveled/radiused edge of each locator puck must face UP, and tightening only needs to flatten the lock washer—not crush the puck.
  • Build each hardware stack in order: long bolt → lock washer → flat washer → through cart hole → puck on top.
  • Hold the puck to prevent spinning while tightening the bolt from below.
  • Stop tightening when the lock washer fully flattens.
  • Success check: the puck feels solid (no wobble) and the lock washer is flat, with the puck’s beveled edge clearly on top.
  • If it still fails… re-check that the puck is not upside down (sharp 90-degree edge should be on the bottom).
• Q: In Melco Bravo cart Stage 4, what does the “F” stamp mean on the top shelf, and which direction should it face?
  A: The “F” stamp marks the FRONT—install the top shelf so the “F” faces the locking casters.
  • Slide the top shelf over the locators and locate the stamped “F”.
  • Rotate/position the shelf so “F” points toward the caster locks (front).
  • Finger-tighten the final bolts first, then gently shake the cart to let parts settle before final tightening.
  • Success check: “F” is visible and facing the locking wheels, and the cart does not rock when pressing opposite corners diagonally.
  • If it still fails… back off the shelf bolts, re-seat the shelf, and restart with finger-tight only until everything is aligned.
• Q: What is the safest way to prevent pinched fingers during Melco Bravo cart assembly when sliding shelves into the side panels?
  A: Keep fingers out of metal junctions and never try to “catch” a falling steel part—let it drop and reposition safely.
  • Grip shelves from the broad edges, not near the side panel slots where parts can shift suddenly.
  • Support the shelf weight with both hands before aligning it into the slots.
  • Pause and reset if the shelf binds; do not force it while hands are near pinch points.
  • Success check: shelves slide in with controlled movement and hands never pass between two closing steel surfaces.
  • If it still fails… stop and get a second person to stabilize the frame while inserting the shelf.
• Q: When should an operator switch from traditional screw-tightening hoops to magnetic embroidery hoops, or move from single-needle to a multi-needle production workflow?
  A: Use the bottleneck to choose the next step: optimize technique first, then upgrade tooling (magnetic hoops), then upgrade capacity (multi-needle) if volume demands it.
  • If re-threading for color changes is the daily pain point, consider a multi-needle workflow to reduce color-change downtime.
  • If hoop burn marks or wrist fatigue from tightening hoops is the pain point, magnetic hoops often reduce pressure marks and repetitive strain.
  • If hooping takes longer than stitching, add process support like a hooping station and faster clamping tools.
  • Success check: setup time drops and the operator can complete repeat runs with less strain and fewer placement errors.
  • If it still fails… audit the foundation first (cart stability, caster locks, zero rocking); vibration and movement can mimic “hoop” problems.
