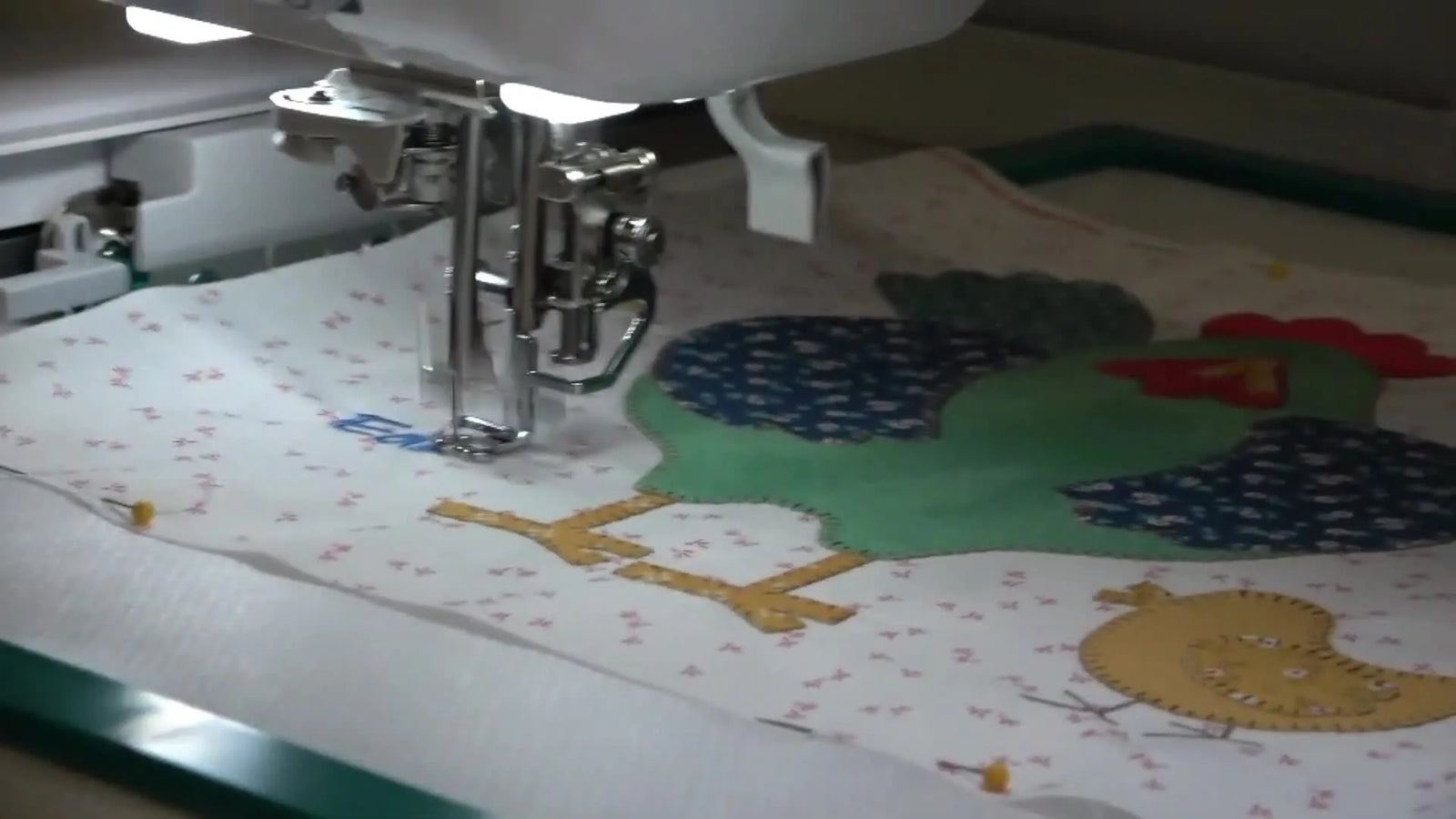

Digitize, Transfer, and Rescue a Brother Luminaire Appliqué Block: The Edna Chicken Workflow (Without the Usual “Oops”)

If you have ever watched a design stitch out and felt your stomach drop—because you suddenly realize the chicken’s feet are about to stitch on top of the body instead of underneath—you are not alone. That sinking feeling is a rite of passage.

The good news? On a high-end machine like the Brother Luminaire, you can save the project mid-stream if you stay calm and know where the digital "escape hatches" are.

In this deep dive, we are rebuilding Becky Thompson’s end-to-end workflow for Lori Holt’s “Edna” chicken block. We will cover digitizing from an FCM cut file, converting stitches to avoid bulk, using camera alignment, and the critical mid-stitch rescue. But more importantly, we will apply production-level safeguards to this process so you can stop holding your breath and enjoy the embroidery.

The Calm-Down Moment: Why “Edna” is Harder Than She Looks

You are attempting a complex stack of skills: software digitizing, wireless transfer, on-machine editing, camera alignment, floating fabric, and in-the-hoop pressing.

This workflow creates three classic "Failure Points" for novices:

1. Sequence Blindness: An under-piece (feet) stitches after a top-piece (body).
2. Alignment Drift: When you float fabric, it can shift slightly during stitching if not secured properly.
3. Bulletproof Bulk: Leaving small satin elements at default settings creates needle-breaking lumps.

If you are researching hooping for embroidery machine techniques, the fastest way to reduce stress is to stop treating this as a craft project and start treating it like a pilot’s pre-flight checklist.

The “Hidden” Prep Before PE-Design 11: File Hygiene & Data Safety

Becky starts by importing the FCM file created in Brother ScanNCut. She tweaks placement and checks symmetry. But before you click Import, you need to define your physical boundaries.

Benchmark Data: The "Safe Zone"

Becky’s chicken body ends up around 9.46" × 10.58", and she uses the 10.5" × 16" hoop.

• Veterans Rule: Never fill a hoop to 100% capacity. Always leave a 10-15mm buffer zone around the edges for presser foot clearance.
• Stabilizer Selection: Since she is floating the fabric, the hooped stabilizer must be tight. Sensory Check: When you hoop your stabilizer, tap it. It should sound like a drum. If it sounds like a dull thud, re-hoop it, or your appliqué lines will not match up.

Prep Checklist (Do this *before* you open software)

• Hoop Validation: Confirm design size (approx. 9.5" x 10.5") fits your target hoop with buffer room.
• Sequence Plan: Write it down on paper: Feet first → Body second → Details last.
• Consumables Check: Do you have temporary adhesive spray (like Odif 505) or tape to secure the floating fabric?
• Stabilizer Match: For a heavy quilt block, use a medium-weight Cutaway or a very sturdy Tearaway.


Convert-to-Appliqué: Switching Stitch Types to Prevent "Bulletproof" Edges

In the software phase, Becky uses Convert to Appliqué, then changes the stitch type from the default Satin to Blanket Stitch.

Why this matters (The Physics): Satin stitches look luxurious, but they pile thread thread on top of thread. On a quilt block with multiple layers (stabilizer + base fabric + appliqué fabric + fusible web), a dense satin stitch creates a stiff ridge that is hard to quilt over later. Blanket stitch provides a lighter, flatter edge.

The "Sweet Spot" Parameters

Becky changes the settings for small parts (feet/beak) to Length 1.0mm and Width 2.0mm.

• Safety Warning: Be very careful going below 1.5mm width or 0.8mm length. Only do this if you are using thin 60wt thread. If you use standard 40wt thread with settings tighter than this, you risk "birdnesting" (a thread jam under the throat plate) because the needle creates holes faster than the machine can clear the thread.


Sequence First, Aesthetics Second: The Art of Layering

Becky explicitly reorders the sequence view so the feet (underneath pieces) stitch first, and she renames objects.

Expert Insight: Appliqué is construction work. Digital layers equate to physical layers. If you stitch the body before the feet, the feet will look like they are floating on top of the chicken's stomach.

Pro Habit: Rename your layers "01_Feet", "02_Body", "03_Beak". The numbers force the software to keep them in order visually, reducing cognitive load when you are staring at a screen late at night.

Wireless Transfer Reality Check: The "File Name" Trap

Becky uses Brother Design Database Transfer to send the file wirelessly to the machine (the "Darla" icon).

The Trap: This utility often renames files to a machine-readable code (e.g., e2cpr...), rendering alphabetical search useless.

The Fix: Do not look for "Edna." Look for the thumbnail image or check the "Recently Transferred" tab immediately.

Finding efficient workflows is critical. Just as you organize digital files, organizing your physical workspace with the right embroidery hoops for brother machines saves you from hunting for tools when the machine is paused.

On-Screen Editing: The "Punctuation Eye" Trick

Once on the Luminaire, Becky retrieves the design, adds built-in chick feet, adds the name “Edna” (Font 11), and realizes she forgot the eyes.

The "Period" Hack

Instead of digitizing a circle, she goes to the built-in fonts, selects a Period (.), resizes it to Small, and Copy/Pastes it.

• Why this works: It guarantees perfect symmetry.
• Alignment Tip: Zoom to 400%. Use the hand tool to verify the feet tuck under the body appliqué line by at least 1-2mm. If they just "kiss" the edge, the fabric might fray and create a gap later.

For those using a dedicated hooping station for embroidery machine, this is where your precision pays off—if your initial hooping is square, your onscreen edits will align perfectly with your fabric grain.

Floating Fabric with Target Stickers: The "Hoop Burn" Solution

Becky floats the quilt block over hooped stabilizer using a DIME target sticker for alignment. She uses the Luminaire’s camera to match the on-screen crosshair to the sticker.

This technique is excellent for preventing hoop burn (the shiny ring left by tight hoops), but it relies 100% on the stabilizer being tight.

Decision Tree: To Float or To Hoop?

How do you decide which method to use?

1. Is the fabric delicate (Velvet/Corduroy)?
   • Decision: Float. Hooping will crush the pile. Use a magnetic hoop if available to hold it gently but firmly.
2. Is it a heavy Quilt Block (Cotton + Batting)?
   • Decision: Float. It is too thick to frame easily in standard plastic hoops.
3. Is it stretchy (Knit/Jersey)?
   • Decision: Hoop It. Floating stretchy fabric usually leads to distortion unless you use heavy spray adhesive.

When I discuss the floating embroidery hoop technique with students, I remind them: gravity is your enemy here. Ensure the rest of the quilt fabric is supported on a table, or the weight will pull the design off-center.

If you struggle with the "float vs. hoop" decision, many sewers eventually upgrade to magnetic hoops for brother luminaire because they offer the best of both worlds: they hold fabric firmly like a traditional hoop, but without the "burn" or the wrestling match of standard frames.

The In-The-Hoop Pressing Trick: Fusing Without Fear

Becky stitches the Placement Line, places her fabric, and skips the tack-down stitch. Instead, she fuses the fabric directly inside the hoop using a mini-iron and a wool pressing mat.

CRITICAL WARNING:
* Clearance: Ensure the presser foot is raised and moved away.
* The Mat Trap: Becky puts the tails of the ironing pad UP. This is a sensory cue. If the tails are down, you might forget the pad is there and stitch the pad permanently to the back of your quilt.

Mid-Stitch Rescue: The "Panic Button" Protocol

This is the masterclass moment. Becky realizes mid-project that the sequence is wrong (feet are set to stitch last).

Do not panic. Follow this sequence:

1. STOP: Press the Stop/Start button immediately.
2. SAVE: Save the current state to the machine's memory. This is your "restore point."
3. EXIT: Return out of the embroidery screen to Edit Mode.
4. SELECT: Touch the screen to highlight the Feet layer.
5. MOVE: Use the Layering Arrows (looks like sheets of paper) to move the Feet to the Top of the list.
6. STITCH: Return to Embroidery Mode. Stitch the feet.
7. JUMP: Use the Needle +/- button to skip the steps you have already completed.

This capability is what separates prosumer machines from entry-level ones. It turns a ruined project into a 5-minute fix.

Setup Details: Physics of the "Micro-Shift"

Becky uses 400% zoom to ensure overlap. Why? Because floating fabric initiates a "micro-shift." As the needle pounds the fabric, the adhesive bond can loosen slightly. A 1mm overlap assumes the fabric might shift 0.5mm.

If you find your fabric shifting more than that, your stabilizer is too loose or your adhesive spray is too light. Upgrading to a brother luminaire magnetic hoop can significantly reduce this shifting because the magnetic force clamps the entire perimeter evenly, unlike screws that pull from one corner.

The 5x7 Hoop Reality: Scaling Down Safely

Can you do this in a smaller 5x7 hoop? Yes, but with caveats.

If you scale the chicken down to 4.85":

1. Density Increases: When you shrink a design, stitches get closer together.
2. Correction: You must increase the stitch length slightly on the machine settings, or your needle will hammer the fabric into a hole.

If you are serious about small-hoop workflows, verifying compatibility with a brother magnetic hoop 5x7 can save you immense frustration. Small hoops are notoriously hard to finger-tighten accurately; magnetic frames snap on perfectly every time.

Troubleshooting Guide: Symptoms & Solutions

When troubleshooting, always check Physical items first (Needle, Thread path, Hoop tension) before blaming the digital file. Problems with hooping for embroidery machine tension account for 80% of outline misalignment.

Finishing: The "Good Enough" Standard

Becky finishes by pressing the block with an OESD cloth.

The "Sensory" Quality Check: Run your hand over the block.

• Good: It feels flat, flexible, and the appliqué edges are soft.
• Bad: It feels like a stiff piece of cardboard (too much density) or you feel sharp "pokes" (thread nests on the back).


The Upgrade Path: When to Switch Tools?

If you are making one chicken, these tricks work fine. But if you are doing a production run of 20 chickens for a full quilt, manual hooping becomes a bottleneck.

The Business Case for Upgrading: If you spend more than 3 minutes hooping and aligning each block, you are losing money (or valuable free time).

1. Level 1 (Technique): Use the Floating Method (as described).
2. Level 2 (Tooling): Upgrade to a generic or brother magnetic embroidery frame. This reduces hooping time to under 30 seconds and eliminates hoop burn.

Magnetic Safety Warning: These magnets are industrial strength. They can pinch fingers severely. Keep them away from pacemakers, adjusters with metal implants, and children.

1. Level 3 (Capacity): If you are customizing blocks for customers, a single-needle machine requires constant thread changes. A multi-needle machine (like the SEWTECH series) allows you to set up all colors at once, reducing your interaction time by 50%.

Operation Checklist (The "Don't Ruin It" List)

• Zoom Check: View at 400% to confirm overlaps.
• Stitch Order: Verify feet are first in the list before pressing start.
• Float Check: Is the target sticker exact? Is the fabric square?
• Ironing Pad: Are the tails UP and visible?
• Safety: Hands clear of the needle zone before resuming.


Workflow Recap: Your Cheat Sheet

1. Prep: Import FCM, Reorder Sequence (Feet First), Rename Layers.
2. Settings: Convert to Blanket Stitch. Set Small Parts to Len 1.0mm / Wid 2.0mm.
3. Transfer: Use Wireless, find by Thumbnail.
4. Edit: Add Feet, Text, and "." Eyes.
5. Align: Float fabric, match Target Sticker.
6. Rescue: If order is wrong, Pause -> Edit -> Reorder.
7. Finish: Press with cloth.


Setup Checklist (Final Pre-Flight)

• Stabilizer is "drum-tight" in the hoop.
• Bobbin is full (check visual indicator).
• Top thread path is clear (pull thread gently near needle—should feel like flossing teeth).
• Sticker crosshair matches screen crosshair exactly.

If you can follow this logic once, you can do it a hundred times. Embroidery is not magic; it’s a repeatable system.

FAQ

• Q: How do I confirm stabilizer hooping tension is correct before floating fabric on a Brother Luminaire camera-alignment appliqué block?
  A: Hoop the stabilizer “drum-tight” before floating anything, because loose stabilizer causes outline drift.
  • Tap the hooped stabilizer and re-hoop until it sounds like a drum, not a dull thud.
  • Leave a 10–15 mm buffer around the design area so the presser foot has clearance.
  • Support the weight of the quilt block on the table so gravity cannot pull the fabric off-center.
  • Success check: The stabilizer surface feels tight and springy, and alignment stitches land consistently where expected.
  • If it still fails… Re-hoop from scratch and reduce shifting by clamping more evenly (often a magnetic frame helps).
• Q: What stitch settings help prevent “bulletproof” bulky edges and needle breaks when converting appliqué details in Brother PE-Design 11?
  A: Switch small appliqué edges from Satin to Blanket Stitch and keep small-part settings in a safe range to avoid dense buildup.
  • Use Convert to Appliqué, then change the edge stitch from Satin to Blanket Stitch for flatter edges.
  • Set small parts (like feet/beak) to Length 1.0 mm and Width 2.0 mm as used in the workflow.
  • Avoid going tighter than 0.8 mm length or below 1.5 mm width unless using thin 60 wt thread, because 40 wt thread may birdnest.
  • Success check: The edge feels flexible (not like a stiff ridge) and the needle runs smoothly without “thunking” into a hard lump.
  • If it still fails… Increase stitch length/width slightly or switch to thinner thread for tiny details.
• Q: How do I fix wrong stitch order mid-project on a Brother Luminaire when appliqué feet are set to stitch after the chicken body?
  A: Pause immediately and reorder the layer sequence in Edit Mode, then skip already-stitched steps with Needle +/-.
  • Press Stop/Start to STOP as soon as the mistake is noticed.
  • SAVE the current state to the machine memory as a restore point.
  • EXIT to Edit Mode, SELECT the Feet layer, then MOVE it using the layering arrows to the top of the list.
  • Return to Embroidery Mode, stitch the feet, then use Needle +/- to jump past steps already completed.
  • Success check: The feet stitch underneath the body edge with a visible 1–2 mm tuck-under when viewed at high zoom.
  • If it still fails… Zoom to 400% and confirm overlap; if overlap is correct but alignment is off, stabilizer tension or floating security is the next suspect.
• Q: Why does Brother Design Database Transfer “lose” the embroidery file name when sending to a Brother Luminaire, and how do I find the correct design fast?
  A: The transfer utility may rename the file to a coded name, so search by thumbnail image or “Recently Transferred,” not the title.
  • Open the machine’s recently transferred list right after sending the file.
  • Identify the design by the thumbnail preview instead of alphabetical filename.
  • Keep designs visually distinctive (renaming layers inside the design can reduce confusion during editing).
  • Success check: The correct design loads with the expected preview image and stitch count/size matches the intended project.
  • If it still fails… Re-transfer once and confirm the correct destination/location on the machine before sending again.
• Q: How do I decide between floating fabric vs hooping fabric to prevent hoop burn on a Brother Luminaire quilt-block appliqué?
  A: Float thick or delicate fabrics to avoid hoop burn and crushing, but hoop stretchy knits to prevent distortion.
  • Float velvet/corduroy to avoid crushing the pile and leaving a shiny ring.
  • Float heavy quilt blocks (cotton + batting) because standard hoops struggle with thickness.
  • Hoop knits/jersey because floating often distorts unless adhesive hold is very strong.
  • Success check: After stitching the placement line, the fabric stays square and the next line lands exactly on the intended edge without creeping.
  • If it still fails… Increase fabric support on the table and improve how firmly the fabric is secured (spray/tape or a magnetic frame may reduce micro-shift).
• Q: What safety steps prevent accidentally stitching an ironing pad into a quilt block during in-the-hoop pressing on a Brother Luminaire?
  A: Keep the presser foot raised and moved away, and orient the pressing mat with tails UP as a visual reminder before resuming stitching.
  • Raise and move the presser foot away before placing any pressing mat or mini-iron near the hoop.
  • Place the wool pressing mat with the tails UP so it is obvious the mat is still present.
  • Remove the mat completely before returning to Embroidery Mode and pressing Start.
  • Success check: The machine resumes stitching with a clear needle path and nothing touches the needle area except fabric/stabilizer.
  • If it still fails… Stop immediately and re-check the hoop area for any tools, pads, or loose items before restarting.
• Q: What are the key safety risks of using an industrial-strength magnetic embroidery frame for Brother Luminaire-style floating, and how do I handle the magnets safely?
  A: Treat magnetic frames as pinch hazards and keep them away from pacemakers, metal implants, and children.
  • Keep fingers clear when the magnetic top frame snaps into place; magnets can pinch severely.
  • Store magnets controlled and separated so they do not slam together unexpectedly.
  • Keep magnetic frames away from pacemakers, adjusters with metal implants, and children.
  • Success check: The frame closes smoothly without finger contact, and fabric is clamped evenly around the perimeter without struggling.
  • If it still fails… Slow down and reposition with two-handed control; if safe handling is difficult, use technique-only floating until confident.
