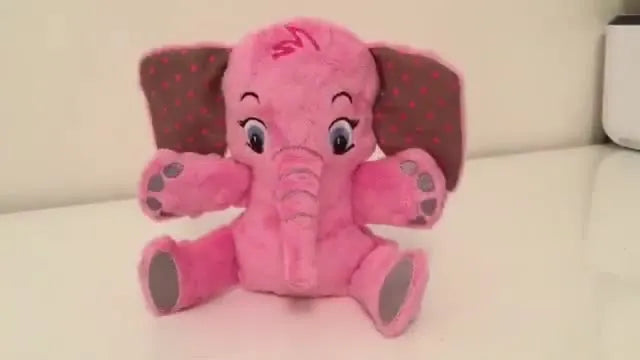

ITH Elephant Limbs Without Needle Breaks: The Tape-Down Method That Keeps Minky Under Control

If you have ever attempted to assemble an In-The-Hoop (ITH) plush toy on a single-needle machine, you recognize the specific moment your heart rate spikes. It’s when the hoop is packed full, the center is a bulky mountain of fabric, and you know one wrong move could snap a needle—or worse, stitch a leg permanently into the wrong seam.

As an embroidery educator with two decades of floor experience, I can tell you that this fear is rational. You are asking a domestic machine to perform a task designed for industrial clearance. However, this elephant assembly is absolutely doable on a home machine, provided you trade speed for a calm, methodical workflow.

Below is the definitive limb-and-trunk attachment process, demonstrated on a Husqvarna Viking with a 180×130 hoop. We will move beyond simple instructions and dive into the "physics of the stitch"—why needles break, how to listen to your machine, and how to stabilize the unstable.

The “It’s Possible” Primer: ITH Elephant Assembly on a Single-Needle Husqvarna Viking (180×130 Hoop)

Let’s dismantle the anxiety first: Yes, you can attach the trunk, ears, arms, and legs in the hoop on a single-needle machine. Success relies on controlling a triad of variables simultaneously:

1. Placement Accuracy: The limb must land exactly on the placement line, not a millimeter off.
2. Bulk Management: The presser foot needs a clear path, free of "cliffs" caused by stuffed limbs.
3. Fabric Stability: Plush fabrics like Minky want to creep, stretch, and ripple under the foot.

In the tutorial context, the body panel is stitched in a standard 180×130 plastic hoop, with the plush fabric "floated" (placed on top rather than hooped) and secured with small magnets at the corners.

The "Hoop Burn" Reality Check: If you are fighting slippage or dreading the permanent "halo" marks that standard hoops leave on crushed velvet or Minky, this is a diagnostic moment. This mechanical friction is exactly why a magnetic hoop for husqvarna viking becomes a practical upgrade path. Unlike traditional friction hoops that require a "death grip" to hold fabric, magnetic systems clamp vertically. This distributes pressure evenly, securing the pile without crushing it, giving you the stability of a hoop with the gentleness of floating.

The “Hidden” Prep That Saves Needles: Trunk Shaping, Limb Stuffing Discipline, and a Clean Work Zone

Amateurs start stitching immediately; pros prepare until failure is statistically unlikely. Before you press "Start," the physical properties of your materials must be managed.

Prep the Trunk: Creating Dimension

The trunk starts as a pre-sewn tube. If you stitch it flat, it looks like a flat tube. The method shown uses a "shorten-and-hollow" trick:

• Turn the trunk right-side out.
• Push the raw end back inside slightly so the trunk becomes about 3/4 of its original length.
• Sensory Check: Pinch the end. It should feel hollow, like a small cup. This simple manipulation tricks the eye into seeing a 3D trunk without complex digitizing.

The "One Inch Rule": Stuffing Discipline

This is the single most critical anti-breakage rule in ITH plush projects. Polyester filling is springy and deflective. If a needle creates a stitch through tight poly-fill, the fiber can deflect the needle tip just enough to hit the metal throat plate. Snap.

• The Rule: The top section (approx. 1 inch) of every limb—the part that will be stitched into the body—must be completely empty of filling.
• Tactile Check: Squeeze the top of the arm. You should feel only fabric, no "crunch" or resistance of stuffing. The stuffing should start lower down, well clear of the presser foot's path.

Prep Your “No-Drama” Tool Layout

You will be trimming within millimeters of stitches and taping aggressively. Set your station up like a sterile field.

Prep Checklist (Pre-Flight):

• Stabilizer: Mesh Cut-Away (preferred for wearables/plush) or sturdy Tear-Away, hooped drum-tight.
• Consumables: Wide masking tape (or blue painter's tape) and a fresh 75/11 or 90/14 embroidery needle.
• Trunk: Turned, hollowed, and shortened.
• Limbs: Stuffed, but with the top 1-inch void of filling.
• Scissors: Double-curved embroidery scissors (essential for the trunk applique).
• Pins: Long quilting pins (and a magnetic dish to keep them controlled).


The Clean Applique Move: Attaching the ITH Elephant Trunk Without Ragged Edges

The trunk is attached using a standard applique sequence: Placement -> Stitch-down -> Trim -> Cover.

1. Placement Line: Let the machine stitch the outline on the face panel.
2. Alignment: Place the prepared trunk exactly over the lines. Tape it if your hands are unsteady.
3. Tack-Down: Run the stitch that secures the trunk.
4. The Surgical Trim: Using your curved scissors, trim the raw edge of the trunk very close to the stitch line.

Why the Trim Matters: This is functional, not just cosmetic. If you leave a fuzzy ridge of Minky bristles outside the tack-down line, the final satin or decorative stitch has to fight that bulk. It will look lumpy and may cause thread nests.

The Floating Debate: If you look closely, floating plush fabric is a compromise. It avoids hoop burn but sacrifices tension. This requires excellent holding technique. This technique is the core principle behind floating embroidery hoop methods—maximizing surface stability while minimizing frame damage. If you float, you must ensure your stabilizer underneath is rock solid (usually a medium-weight cut-away).

Warning: Physical Safety
Curved embroidery scissors are fantastic for applique, but they are sharp. When trimming the trunk, keep your non-cutting hand flat and away from the blade. Never trim while the hoop is attached to the machine if you can avoid it; if you must, ensure your foot is off the pedal and the machine is stopped. A slip here cuts the stabilizer—or your finger.

The “Needle-Down Check” Ritual: Placing Ears, Arms, and Legs So You Don’t Sew Crooked

Once the trunk is secured, the machine will stitch placement lines for the ears, arms, and legs. Do not eyeball this. Use the Needle-Down Protocol.

The Protocol:

1. Place the limb face down (raw edge aligned with the placement line).
2. Disengage the motor (or use the hand wheel).
3. Manually lower the needle until the tip just touches the fabric.
4. Visual Check: Is the needle tip landing exactly at the start of the tack-down line? Is it catching the corner of the limb?
5. If yes, proceed. If no, adjust the fabric—not the machine.

On ITH plush, a discrepancy of 2mm can mean a twisted arm or a toe pointing backwards. The video demonstrates using small magnets to hold corners while positioning. If you have been experimenting with miscellaneous embroidery hoop magnets, remember the golden rule: Use them to stabilize the peripheral fabric field, never place them where the presser foot might strike them.

The “Cuddle-Up” Tape Method: Securing Bulky ITH Limbs So the Perimeter Seam Stays Clear

After the limbs are tacked down, your hoop looks like a chaotic traffic jam of fabric. This is the danger zone. If a loose leg flops into the path of the final perimeter seam, the project is ruined.

The solution is the "Cuddle-Up": Tape everything aggressively toward the center.

How to Tape for Security:

• Tape Choice: Use blue painter's tape or high-quality masking tape. Do not use duct tape (residue) or scotch tape (too weak).
• Sequence: Tape ears down first. Pull the trunk up/in and tape. Tuck feet tight. Push arms inward.
• The Metric: Run your hand around the outer 1-inch perimeter of the design. It must be completely flat and clear. If you feel a bump, re-tape.

Production Insight: If you do this once, tape is fine. If you are doing a production run of 50 elephants, taping becomes a bottleneck. This is where a professional magnetic frame for embroidery machine becomes a massive workflow upgrade. These frames often allow you to clamp the stabilizer and fabric so securely that you have more "safe zone" tension, and the flat metal rims are easier to tape against than rounded plastic hoops.

Backing Fabric + Pins Without Panic: Building the Final Sandwich and Keeping Metal Out of the Stitch Path

With the limbs secured in a tape cocoon, place the backing fabric right side facing down over the bundle.

• Pile Check: Ensure the "fur" direction of the backing matches the front.
• Pinning Strategy: You need to pin the perimeter to prevent the backing from sliding. However, pins are the enemy of rotary hooks.
• The Safe Zone: Place pins perpendicular to the edge, but ensure the head and point are at least 1 inch away from the stitch line.
• Tactile Check: Run your hand over the back of the hoop. Make sure the stabilizer hasn't buckled.

Warning: Machine Safety
A needle striking a steel pin at 800 stitches per minute can shatter the needle and send shrapnel towards your eyes. It can also gouge the rotary hook, requiring an expensive repair. If you are unsure about pin clearance, use spray adhesive (temporary) to hold the backing instead, or use tape on the corners.

The Final Perimeter Stitch: Managing the “Hump” So the Presser Foot Doesn’t Stall

The final color stop seals the elephant. The machine now has to sew through stabilizer, face fabric, limb layers, and backing fabric.

The "Hump" Problem

As the presser foot approaches the bulky center (where the limbs are taped), the foot angle changes. It may stall, stitch in place, or skip.

The Manual Assist

• Listen: If you hear a rhythmic "thud-thud-thud" or a "grinding" noise, the machine is struggling to feed.
• Action: Gently—very gently—push the bulky "hump" of limbs aside with your fingers to clear a path for the foot. Do not push or pull the hoop itself (this knocks the registration off); just manipulate the soft fabric bulk out of the way.
• Speed: Drop your speed to the minimum (e.g., 400 SPM) for this final pass.


Trim Like a Pro: The “Just Over 1/4 Inch” Seam Allowance and Corner Clips That Prevent Lumpy Turns

Once the stitching stops:

1. Un-hoop the project.
2. Tear away or cut away the excess stabilizer.
3. The Cut: Trim around the perimeter, leaving a seam allowance of just over 1/4 inch (6mm).
4. Clip Colors: You must clip the corners diagonally (without cutting the stitch) and notch any convex curves.

Why Clip? Plush fabric is thick. If you don't remove that excess material at the corners, when you turn it inside out, the corners will be rounded hard lumps rather than soft curves.

Turning and Finishing: Removing Tape, Stuffing the Elephant, and Getting a Gift-Ready Plush Look

Turn the elephant right-side out. You will see your blue tape inside—remove it gently. Stuff the body to your desired firmness.

Quality Control Scan:

• Check the neck seam (a common weak point).
• Pull gently on the limbs to ensure they are caught securely.
• Close the turning gap with a ladder stitch (hand sewing).

The Sustainability Question: If you enjoyed this, great. If you found the hooping process exhausting or your wrists hurt from tightening the screw, listen to that signal. Makers who transition to volume sales almost universally adopt magnetic embroidery hoops. Why? Because fighting a friction hoop 20 times a day causes repetitive strain injury (RSI). Magnetic hoops simply "click" closed, reducing hoop burn on the plush and saving your wrists.

Fabric-to-Stabilizer Decision Tree: Picking Tear-Away vs Cut-Away for ITH Plush Panels

Every professional studio uses a logic flow to choose materials. Use this decision tree:

Start Here: Squeeze your plush fabric.

• Is it stretchy (Jersey/Knits) or unstable (Minky)?
  • YES: Use Poly-Mesh Cut-Away.
    • Why: The stabilizer serves as the permanent skeleton. If you tear it away, the stitches will pull apart when the toy is stuffed.
  • NO (Felt/Fleece): You can use Tear-Away.
    • Why: The fabric provides its own structure.
• Are you seeing gaps between the outline and the fill?
  • Diagnosis: Fabric is shifting.
  • Rx: Switch to Cut-Away + Spray Adhesive. Consider a magnetic hoop to increase clamping consistency.
• Are you worried about stiff stabilizer inside the toy?
  • Rx: Use No-Show Mesh. It is soft against the skin (or stuffing) and provides structural integrity without the "cardboard" feel of heavy cut-away.

Troubleshooting the Two Scariest Moments (and the Fixes That Actually Work)

If things go wrong, don't panic. Check these probable causes first.

Symptom 1: Needle Jam / "Clunking" Sound on Limb Attachment

• Sound: A sharp metallic click or a stalled motor hum.
• Likely Cause: The needle is hitting compressed polyester stuffing in the top 1 inch of the limb.
• Quick Fix: Stop. Remove the hoop. Massage the limb to push stuffing further down. Change the needle (it is likely burred).
• Prevention: The "One Inch Rule" during prep.

Symptom 2: Hoop Pop / Fabric Slippage

• Visual: The design outlines no longer align; the fabric has "shrunk" inward.
• Likely Cause: "Hoop Burn" creates a loose perimeter, or the hoop wasn't tight enough for Minky's weight.
• Quick Fix: You cannot fix this mid-stitch. You must restart.
• Prevention: Use a layer of non-slip shelf liner strips in your plastic hoop, or upgrade to a magnetic hoop system that grips vertically.

The Setup Habits That Make This Repeatable (Not Just “Lucky Once”)

Consistency is the difference between a hobby and a business.

Setup Checklist (The "Do Not Skip" List):

• Hoop Size: Confirm 180×130 (or appropriate size) is selected in the machine.
• Bobbin: Is it full? Running out during the final seam is a nightmare.
• Top Thread: Use a matching color for the final seam (it hides mistakes).
• Equipment: Check your specific husqvarna embroidery hoops for cracks or loosened screws before starting.
• Clearance: Ensure the table behind the machine is clear so the hoop doesn't hit a wall.

Warning: Magnet Safety
If you upgrade to magnetic hoops, treat them with respect. Industrial magnets can pinch skin severely. Keep them away from pacemakers, computerized machine screens, and credit cards. Always slide them off the frame; do not try to pry them straight up.

The “Upgrade Path” for Faster, Cleaner ITH Plush Production

If you make one elephant, the technique above is perfect. If you plan to make fifty for a craft fair, your bottleneck is no longer "stitch time"—it is "hoop time."

Here is how to diagnose when you need to upgrade your tools:

1. The "Hoop Burn" Trigger: If you are spending 10 minutes steaming out hoop marks from every plushie, you are losing money.
   • Solution: Level 1: Wrap plastic hoops in bias tape. Level 2: Switch to magnetic hoops for embroidery machines. The vertical clamp eliminates the burn marks instantly.
2. The "Wrist Pain" Trigger: If your hands ache from tightening hoop screws.
   • Solution: Magnetic frames. They snap close. Zero torque required.
3. The "Color Change" Trigger: If you are spending more time changing thread than stitching.
   • Solution: This is the ceiling of a single-needle machine. The next logical step for a growing business is a SEWTECH Multi-Needle Machine. Moving to 15 needles means you set the colors once and walk away, doubling your daily output.

Operation Checklist: The Exact Run Sequence That Prevents Most ITH Plush Failures

Print this out and keep it by your machine.

Operation Checklist:

• Prep: Trunk shortened/hollowed? Limbs stuffed (top 1" empty)?
• Stitch Trunk: Placement -> Stitch -> Trim Close.
• Limbs: Use Needle-Down check for every corner placement.
• Secure: Tape traffic jam inward. Check for "humps".
• Backing: Pin carefully (keep pins 1"+ away from path).
• Final Stitch: Listen for thuds. Push bulk gently if needed.
• Finish: Trim seam allowance to 6mm. Clip corners. Remove tape.

Embroidery is a game of millimeters and patience. Master the prep, upgrade your holding tools when the volume demands it, and enjoy the process of creating something from nothing. Happy stitching!

FAQ

• Q: How can a Husqvarna Viking single-needle embroidery machine stitch ITH plush elephant limbs without needle breakage when the limbs are bulky?
  A: Keep the top 1 inch of every limb completely unstuffed, then slow down for the final perimeter seam.
  • Stop and prep: Push poly-fill downward so the limb attachment zone feels like fabric-only.
  • Change needle: Install a fresh 75/11 or 90/14 embroidery needle before limb/perimeter steps.
  • Reduce speed: Run the final perimeter stitch at low speed (a safe starting point is the machine’s minimum setting).
  • Success check: Squeeze the top of the limb—there should be no “crunch” or resistance, and the machine should stitch without clunking.
  • If it still fails… Remove the hoop, re-clear stuffing again, and replace the needle if any clunking occurred (the tip may be burred).
• Q: How do you align ITH elephant ears, arms, and legs accurately on a Husqvarna Viking embroidery machine so the limbs do not sew on crooked?
  A: Use the Husqvarna Viking needle-down placement check for every limb corner instead of eyeballing.
  • Place limb: Position the limb face down with the raw edge aligned to the placement line.
  • Disengage motion: Use the hand wheel (or manual needle-down function) to lower the needle until it just touches the fabric.
  • Adjust fabric: Move the limb until the needle tip lands exactly on the start/corner of the tack-down path.
  • Success check: The needle tip touches the placement start point cleanly before stitching, and the limb sits exactly on the stitched outline.
  • If it still fails… Secure corners with small holding magnets only in areas the presser foot will never reach.
• Q: How can you prevent hoop pop and fabric slippage when floating Minky for an ITH plush panel in a 180×130 Husqvarna Viking hoop?
  A: Float the plush on a rock-solid hooped stabilizer and increase grip consistency to avoid slippage.
  • Hoop stabilizer: Hoop mesh cut-away (often preferred for unstable plush) or sturdy tear-away drum-tight.
  • Stabilize float: Keep the plush flat on top and secure the corners so the fabric field cannot creep.
  • Improve grip: Add non-slip shelf-liner strips in the plastic hoop to reduce sliding (a common fix).
  • Success check: Placement lines and stitch paths continue to align; the fabric does not “shrink inward” as stitching progresses.
  • If it still fails… Restart the stitch-out (slippage is not reliably fixable mid-design) and consider switching to a magnetic hoop system for vertical clamping.
• Q: What is the safest way to pin backing fabric for the final ITH plush elephant sandwich on a home single-needle embroidery machine to avoid needle hitting pins?
  A: Pin only in a safe zone at least 1 inch away from the stitch line, or use temporary spray adhesive if pin clearance is uncertain.
  • Place backing: Lay backing fabric right-side down over the taped limb bundle.
  • Pin smart: Insert pins perpendicular to the edge with both point and head kept 1 inch+ away from the stitch path.
  • Verify clearance: Run a hand over the hoop back to confirm nothing shifted or buckled.
  • Success check: No pins are near the perimeter seam path, and the backing cannot slide during stitching.
  • If it still fails… Remove pins and switch to temporary spray adhesive or tape the corners to keep metal out of the stitch area.
• Q: How do you manage the “hump” during the final perimeter stitch on a Husqvarna Viking single-needle machine so the presser foot does not stall on an ITH plush elephant?
  A: Slow the machine down and gently move only the soft bulk aside so the presser foot has a clear path.
  • Listen first: Watch for rhythmic thuds or grinding sounds as the foot approaches the taped limb bulk.
  • Assist carefully: Use fingers to nudge the bulky bundle away from the foot path without pushing/pulling the hoop.
  • Lower speed: Stitch the final pass at the lowest comfortable speed for control.
  • Success check: The presser foot feeds smoothly around the perimeter with no repeated stitches in one spot and no sudden stalls.
  • If it still fails… Stop immediately and re-tape the limbs farther toward the center to keep the outer 1-inch perimeter flat and clear.
• Q: Which stabilizer should be used for ITH plush panels (Minky vs felt/fleece) to prevent shifting and stitch gaps during home-machine embroidery?
  A: Use poly-mesh cut-away for stretchy/unstable plush like Minky, and tear-away is usually acceptable for stable felt/fleece.
  • Test fabric: Squeeze and stretch the plush—if it feels unstable or stretchy, treat it as a cut-away case.
  • Choose stabilizer: Pair Minky/knits with poly-mesh cut-away; pair felt/fleece with tear-away when structure is sufficient.
  • Fix shifting: Switch to cut-away plus temporary spray adhesive if outlines and fills start separating.
  • Success check: Outlines stay registered to the fabric with no new gaps forming as stitching continues.
  • If it still fails… Improve holding consistency (non-slip strips or a magnetic hoop) because shifting is often a clamping problem, not a digitizing problem.
• Q: What safety steps should be followed when using curved embroidery scissors and strong magnetic hoops during ITH applique and limb placement?
  A: Keep hands clear during trimming and treat magnetic hoops as pinch hazards that must be slid off—never pried straight up.
  • Trim safely: Keep the non-cutting hand flat and away from the blade; avoid trimming while the hoop is attached to the machine whenever possible.
  • Stop the machine: Ensure the machine is fully stopped before any trimming or repositioning.
  • Handle magnets correctly: Slide magnets off the frame to release; keep magnets away from pacemakers, screens, and credit cards.
  • Success check: Trimming is controlled with no accidental stabilizer cuts, and magnets are never placed where the presser foot could strike.
  • If it still fails… Remove the hoop from the machine before trimming and reduce the number of loose tools around the needle area to avoid rushed hand movements.
