Melco Design Shop Shop Talk, Rebuilt: Faster Testing, Cleaner Curves, Safer Maintenance, and Puff/Gradient Settings That Actually Stitch Well

Production Panic vs. Systemized Success: The 20-Year Veteran’s Guide to Melco Layouts & Workflows

When you’re running production, the "little" things—finding the right hoop in a dropdown, testing one name under a mascot, or skimming past a maintenance warning—are exactly what turn a calm day into a panic day. I have seen shop floors come to a grinding halt because of a dropped needle bar or a misaligned puff design.

This guide reconstructs a Melco Shop Talk Q&A into a "White Paper" standard operating procedure. We are moving beyond buttons and clicks; we are building a workflow that prioritizes safety, predictability, and profit. Below is the blueprint experienced operators rely on so they don't repeat the same expensive mistakes.

Use the Melco OS “Move” Tab to Test One Name (Without Stitching the Whole Logo)

If you have ever thought, "I only need to test the bottom line of text—why am I stitching 20 minutes of mascot first?" you are battling unnecessary machine wear and wasted time.

In the Melco operating system, expert operators use the "Move" function to jump the head to a specific stitch count or color block. This allows you to verify placement on a specific segment without the time cost of running the full design.

The Workflow

1. Load the design on the machine OS.
2. Navigate to Tools > Settings > Move.
3. Input Data:
   • Stitch Number: Enter a specific coordinate (e.g., 5000) to jump mid-design.
   • Color Number: Jump directly to the start of a specific thread color.
4. Execute the move. The pantograph will physically travel to that needle point.

The "Sensory Check" (Crucial Step)

Do not just click "Go." Once the head moves, look at the needle position relative to your hoop. Imagine the design boundaries. Does the needle look dangerously close to the plastic rim?

Pro tip from the field: A "Move" command is a navigation tool, not a validation tool. After moving, always run a Trace/Contour to confirm that your specific element (like the text) still fits within the printable area of the frame.

Workflows like this are why commercial operators obsess over repeatability on a melco embroidery machine—you are buying time back every time you avoid unnecessary stitches.

Fix Stacked Toolbars in Design Shop (The Windows “Restore + Snap” Trick)

Cognitive friction kills creativity. When your toolbars stack vertically and hide your workspace, it creates a sense of claustrophobia in the software. This often happens during remote desktop sessions or resolution changes.

The "Snap" Fix

1. Grab the Design Shop window header.
2. Pull Down (Restore): Drag it down so it is no longer full-screen.
3. Thrust Up (Snap): Drag it aggressively to the very top edge of your monitor until you see a transparent ripple effect or outline.
4. Release.

Success Metric: The toolbars should instantly realign horizontally. If they remain stacked, your display scaling settings in Windows may be fighting the software—check that your text size is set to 100% in Windows Settings.

Digitize Curved Stitch Direction Lines in Design Shop (The "Fluid" Look)

Curved stitch directions are the difference between a design that looks like a "sticker" and one that looks like fluid art. Without direction lines, the software defaults to a flat fill (usually 45 degrees), which reflects light monotonously. By curving the lines, you manipulate how light hits the thread.

The Action Plan

1. Select the shape you want to edit.
2. Hold Down the Insert Stitch Direction button.
3. Select Insert Curved Stitch Direction Line.
4. Plot your flow:
   • Left-click: Creates a hard corner/straight point.
   • Right-click: Creates a soft, rolling curve point.
5. Drag the line through the shape.

Expert settings for the "Airy Ribbon" Look

The video demonstrates a specific open-fill effect. Here are the data points to replicate it:

• Auto Density: OFF
• Density Value: 18.0 (Standard is usually 3.5-4.0; 18.0 creates wide gaps).
• Underlay: OFF (Essential for keeping it translucent).
• Trapunto: ON (This forces the travel runs to the edge, preventing ugly lines through the center).


Build Curved Stitch Direction During “Insert Complex Fill” (The Native Method)

You do not need to wait until the end to fix flow. You can build it during the digitizing phase.

The Sequence

1. Select Insert Complex Fill.
2. Draw your object shape. Hit Enter.
3. Define Start/Stop points.
4. When prompted for direction, Hold the button and switch to Curved.
5. Right-click your way across the shape to create a flowing river of stitches.

Why this matters: Native complex fills with curved directions calculate faster and edit cleaner than vector conversions.

Shorten the Hoop Dropdown: Customize Hoop List in Hoop Manager

If your hoop list is long enough that you are scrolling and squinting, you are paying a "tax" on every single setup. Psychological fatigue sets in when you have to filter through 50 hoops to find the one you own.

The Fix

1. Go to Tools > Hoop Setup (or right-click the hoop icon).
2. Select Customize Hoop List.
3. Uncheck every single hoop you do not physically own.
4. Check only your daily drivers.
5. Apply.

If you are building a streamlined list for melco embroidery hoops, treat it like a surgical tray: only the tools you need should be visible. This prevents the dangerous mistake of selecting a 15cm hoop in software while using a 12cm hoop on the machine—a guaranteed way to break a needle.

Decision Tree: Hoop + Stabilizer Choices & Upgrade Paths

Fabric and physics dictate your tools. Use this logic tree to determine when to stick to basics and when to upgrade your hardware.

1. Is the item structured (Cap/Hat)?

• YES: You must use a cap driver and a designated melco hat hoop or wide-angle driver. Friction is your friend here; ensure the cap band is extremely tight (drum-skin tight).
• NO: Proceed to Question 2.

2. Is the fabric stable (Canvas, Denim, Heavy Twill)?

• YES: Standard plastic hoops with Tearaway backing are sufficient.
• NO (Performance Wear, Pique Knit, Stretchy Tees): You are entering the "Distortion Zone." Use Cutaway stabilizer (2.5oz minimum).
  • Decision Point: Do standard hoops leave "hoop burn" (shiny rings) on these fabrics?
  • IF YES: This is a hardware limit. It is time to consider Magnetic Hoops.

3. Is this a high-volume production run (50+ items)?

• YES: Standard hooping screws cause wrist fatigue (Carpal Tunnel risk) and inconsistent tension.
• The Upgrade: Professional shops switch to magnetic embroidery hoops for flats. The magnets self-level the fabric, reducing setup time by 30-40% per shirt.

Warning: Magnetic Safety
Magnetic hoops (like Mighty Hoops) use high-power Neodymium magnets.
* Pinch Hazard: They snap together with extreme force (up to 30lbs). Keep fingers clear of the edges.
* Medical Device Risk: Keep these magnets at least 6 inches away from pacemakers or insulin pumps.

Don’t Convert DST/EXP and Expect Perfect Curves (The "Wireframe" Reality)

Many beginners think they can convert a .DST (Machine file) back to .OFM (Wireframe) and perfectly resizing it. This is a myth.

• The Science: Expanded formats (DST/EXP) are just X/Y coordinates. They do not know a circle is a circle; they just know it is a series of small straight stitches.
• The Consequence: When you convert back to wireframe, the software "guesses" the curves, resulting in thousands of unnecessary nodes and jagged edges.
• The Solution: Always digitize or request Native Files (.OFM, .EMB) if you plan to resize or edit curves. If you must use DST, accept that cleanup is manual labor.


The Needle Case Cover Mistake That Drops Needles (Maintenance Safety)

This specific maintenance error costs hundreds of dollars in repairs. Read carefully.

The Scenario

You are performing the "10 Million Stitch Maintenance." You remove the Black Safety Covers on the front of the needle case to grease the cam.

The Critical Rule

You must reinstall the black covers immediately after greasing. Do not index the color change. Do not turn off the machine. If you move the needle case without those covers interacting with the z-axis sensors/guides, the needle bars can physically drop out of the head.

Warning: Mechanical Hazard
Maintenance alerts (Red Triangles) are not suggestions. Ignoring them or performing them in the wrong order can cause catastrophic head failure.
* Always remove clamping systems (hoops/cap drivers) before maintenance.
* Never put your hands near the needle bars while the machine is powered on unless specifically instructed by the UI for a color change test.

Protect the Optical Sensor During Heavy Grease Cleaning

The optical sensor is the "eye" of your thread break detection system.

The Risk: During deep cleaning, you will find old, black, viscous grease on the rails. It is tempting to wipe it aggressively. The Protection: Locate the optical sensor (consult your manual). Wipe away from the sensor. If you smear opaque grease over the lens, the machine will scream "Thread Break" falsely forever.

Sensory Text: When cleaning, the cloth should come away dirty, but the rail should look shiny. If you see a cloudy film on any glass or plastic components, stop immediately and use a clean microfiber cloth to gently polish it.

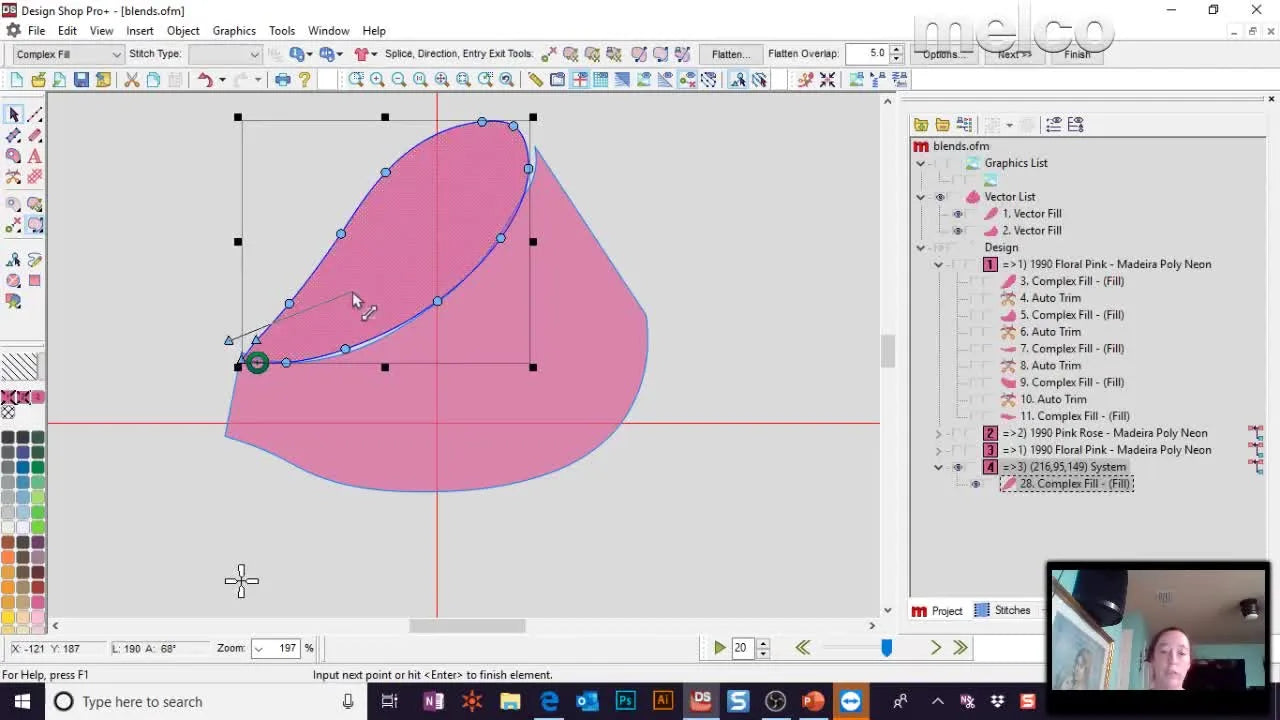

Create Thread Color Gradients (The "Blend" Technique)

Gradients separate boutique shops from mall kiosks. The secret isn't just color choice; it's Density Control.

The Method

1. Object Properties > Effects.
2. Enable Custom Density.
3. Check Blend.
4. Select your Second Color.
5. Enable Auto Apply.
6. The Secret Sauce: You will see a Vector Line appear over the shape. Drag this line. This line dictates the angle and "speed" of the color transition. If you see a hard line of travel stitches cutting through your beautiful gradient, move this vector line physically until the travel stitches are pushed to the edge.


Program 3D Puff the Safe Way: Hold, Tape, Stitch

3D Puff is high-risk, high-reward. The workflow must be rigid to prevent needle breaks.

The Sequence

1. Base Layer: Stitch the flat framing or underlay.
2. The "Hold" Command: Insert a HOLD or STOP in your color sequence. The machine must come to a complete dead stop.
3. Placement: Place your Puff Foam (Standard is 3mm or 2mm).
4. Securing: Use masking tape or elastic bands. Do not trust gravity.
5. Top Stitch: Resume the machine to stitch the capping layer (Stitch length should be increased to 20-30 points / 2-3mm to slice the foam cleanly).

Safety Note: Never attempt to hold the foam with your fingers "just for the first few stitches." If the pantograph moves unexpectedly, your finger is arguably softer than the foam.

Setup Checklist: The 90-Second "No-Regrets" Routine

Execute this before every single run to normalize your quality.

• File Logic: Are you working with a Native file (clean) or DST (needs watching)?
• Test Mode: If using "Move," did you do a Contour Trace afterwards?
• Hoop Validity: Is the physical hoop on the machine the exact same one selected in the OS?
• Needle Clearance: If doing a cap, is the bill oriented clearly away from the needle bar?
• Maintenance State: Are all safety covers (black clips) re-installed securely?


Prep Checklist: Consumables & The "Hidden" Toolkit

New operators often forget these essentials until they are stuck.

• Adhesive: Double-sided tape or Painter's tape (for Puff/Applique).
• Securing: Rubber bands (for anchoring stabilizer).
• Foam Verification: Is it 2mm or 3mm? (Using the wrong density settings on 3mm foam breaks needles).
• Cleaning: Lint roller and precision tweezers.
• Optical Safety: Clean microfiber cloth (no solvents) for sensor cleaning.
• Hooping Station: If you are struggling with alignment, consider if a hooping station for embroidery is the missing link in your physical workflow.


Operation Checklist: What to Watch Like a Pilot

• First 500 Stitches: Listen. A rhythmic "thump-thump" is good. A slapping or grinding sound means tension is off or the hoop is loose.
• Gradient Check: Look for that "travel line" cutting through the blend. Stop and trim if necessary.
• Puff Stop: Did the machine actually stop at the Hold command?
• Bobbin Monitor: Glance at the bobbin usage before starting a 20,000-stitch jacket back.


The Upgrade Path: Fix the Workflow, Then Buy Speed

Most people try to buy their way out of a workflow problem. The smarter move is to remove friction first—then upgrade the tools where they multiply your efficiency.

Phase 1: Friction Removal If your pain is "setup takes forever," fix your Hoop Manager list. If your pain is "I ruin 1 in 10 shirts," audit your Stabilizer choices using the Decision Tree above.

Phase 2: Tooling Upgrade (The Hooping Bottleneck) If you are confident in your digitizing but your wrists hurt and you can't hoop fast enough to keep the machine running, this is the trigger point for hardware.

• The Solution: Standardizing on systems like a 5.5 mighty hoop or similar magnetic frames can double your daily output on left-chest logos.

Phase 3: Capacity Upgrade (The Scale Bottleneck) Once your process is tight, you will eventually hit the speed limit of a single head. This is where moving to a multi-head platform or a high-speed single head (like a melco emt16x embroidery machine) makes sense. However, for many growing shops, looking at cost-effective multi-needle workhorses like the SEWTECH ecosystem offers a balanced path to scaling production without the massive overhead of enterprise-only brands.

Whether you are running a melco bravo embroidery machine or managing a fleet of industrial heads, the principle remains: Safety first, correct process second, speed third. Master the machine, and the profit will follow.

FAQ

• Q: How do Melco embroidery machine operators test only the name line using the Melco OS “Move” tab without stitching the full logo first?
  A: Use the Melco OS Tools > Settings > Move to jump to a stitch number or color block, then run Trace/Contour before stitching.
  • Load the design on the Melco OS, then open Tools > Settings > Move.
  • Enter a Stitch Number (example: 5000) or a Color Number to jump to the start of the text segment.
  • Run Trace/Contour after the move to confirm the text fits inside the physical hoop area.
  • Success check: the traced path stays comfortably inside the hoop boundary and the needle position is not visually close to the hoop rim.
  • If it still fails, re-check that the physical hoop on the machine matches the hoop selected in the OS before running any stitches.
• Q: How do Melco Design Shop users fix stacked vertical toolbars after a Windows resolution change or remote desktop session?
  A: Use the Windows “Restore + Snap” window move to force Melco Design Shop toolbars back into a horizontal layout.
  • Drag the Design Shop window down so it is no longer full-screen (Restore).
  • Drag the window hard to the very top edge of the monitor until the snap outline/ripple appears, then release.
  • Check Windows display scaling/text size and set it to 100% if the toolbars keep stacking.
  • Success check: toolbars instantly realign horizontally with a normal workspace width.
  • If it still fails, repeat the snap after confirming the session is on the target monitor and not being resized by remote desktop.
• Q: How do Melco Design Shop digitizers create curved stitch direction lines for a “fluid” fill instead of a flat 45-degree look?
  A: Insert Curved Stitch Direction Lines and use right-click curve points to control flow and light reflection.
  • Select the fill object, then hold Insert Stitch Direction and choose Insert Curved Stitch Direction Line.
  • Left-click to place hard corner points; right-click to place soft curve points.
  • For the demonstrated open “airy ribbon” effect: set Auto Density OFF, Density 18.0, Underlay OFF, and Trapunto ON.
  • Success check: the fill looks like it “flows” through the shape, not like a rigid sticker, and the spacing matches the intended open look.
  • If it still fails, redraw the curved direction line so it travels through the shape more naturally before changing other parameters.
• Q: How do Melco embroidery machine operators shorten the hoop dropdown by customizing the hoop list in Hoop Manager to prevent wrong-hoop needle breaks?
  A: Hide every hoop not physically owned so only daily-use hoops remain selectable in Melco Hoop Manager.
  • Open Tools > Hoop Setup (or right-click the hoop icon) and choose Customize Hoop List.
  • Uncheck hoops not in the shop and check only the hoops used in production.
  • Apply changes and re-open the hoop selector to confirm the list is short and clean.
  • Success check: the hoop dropdown shows only the exact hoops on the floor, reducing the chance of selecting a larger hoop in software than the hoop on the machine.
  • If it still fails, stop the run and verify the physical hoop installed is the exact same hoop selected in the Melco OS.
• Q: When should embroidery shops switch from standard hoops to magnetic embroidery hoops to stop hoop burn and speed up 50+ piece runs?
  A: If standard hoops cause hoop burn on stretchy/performance fabrics or hooping screws slow production and cause fatigue, magnetic embroidery hoops are the next-step hardware fix.
  • Diagnose fabric type: on performance wear/pique knit/stretch tees, use cutaway stabilizer (2.5oz minimum) because distortion risk is high.
  • If hoop burn (shiny rings) appears with standard hoops, treat it as a hardware limit and test a magnetic hoop workflow.
  • For 50+ items, use magnetic hoops to reduce inconsistent tension and wrist fatigue; many shops see faster setup per garment.
  • Success check: fabric sits self-leveled with even tension, hoop marks are reduced, and repeat hooping feels consistent from piece to piece.
  • If it still fails, re-audit stabilizer choice first (Level 1), then standardize hooping hardware (Level 2), and only then consider a capacity upgrade to a multi-needle platform (Level 3).
• Q: What magnetic hoop safety rules should embroidery operators follow when using high-power Neodymium magnetic embroidery hoops?
  A: Treat magnetic embroidery hoops as pinch-hazard tools and keep them away from medical devices.
  • Keep fingers away from the edges when closing the hoop; magnets can snap together with extreme force.
  • Place and remove the hoop deliberately—do not “let it jump” into place.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Success check: operators can mount/dismount hoops without finger pinches and without the hoop snapping uncontrolled.
  • If it still fails, stop using the hoop until a safer handling routine is trained and consistently followed.
• Q: What Melco embroidery machine maintenance mistake can cause needle bars to drop during “10 Million Stitch Maintenance,” and how can operators prevent it?
  A: Reinstall the black safety covers on the needle case immediately after greasing—do not move/index the needle case without them.
  • Grease the cam as instructed, then reinstall the black covers right away before any color change/indexing or power changes.
  • Treat maintenance alerts (red triangles) as mandatory safety steps, not optional reminders.
  • Remove clamping systems (hoops/cap drivers) before maintenance and keep hands away from needle bars while powered on unless the UI explicitly instructs otherwise.
  • Success check: after maintenance, the head indexes normally and needle bars remain secure with no abnormal looseness or drop.
  • If it still fails, power down and consult the machine manual/service support before attempting further indexing or disassembly.
