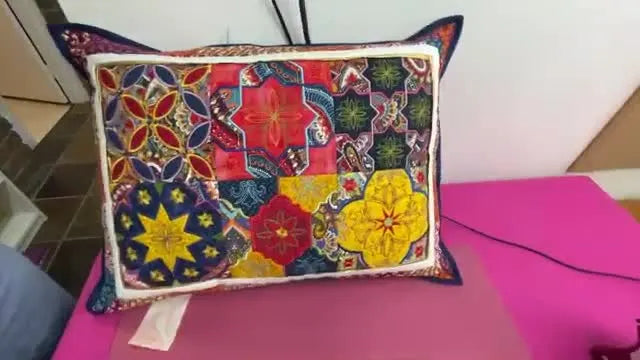

Moroccan Tile ITH Cushion Sew-Along: Crisp Appliqué, Flat Miters, and a Finish That Looks Store-Bought

If you have ever pulled a nearly-finished cushion off the machine and thought, “It’s beautiful… but why is that border bubbling and why do my corners look angry?”—you have arrived at the right place.

This Moroccan tile cushion sew-along is absolutely doable at an intermediate level, but let’s be honest: machine embroidery is an unforgiving art. It rewards careful preparation, consistent trimming, and one very specific corner-stitching habit that prevents physical pleats.

You will stitch multiple In-The-Hoop (ITH) appliqué blocks, join them like quilt blocks, add optional flat piping, calculate and attach mitered borders with batting, build an envelope back, then bind the whole cushion. I will keep the steps faithful to the original tutorial while adding the “studio-floor” reality checks—the sensory details, the safety parameters, and the physics of fabric—that stop rework before it starts.

The Calm-Down Primer: Why This ITH Moroccan Cushion Looks Hard (and Why It Isn’t)

This project often triggers “Intermediate Anxiety” because it stacks three distinct skill sets: repeated hooping for ITH blocks, accurate piecing so the block borders line up, and mitered corners that must land exactly on a stitched corner point.

Here is the good news: none of these steps are mysterious. The cushion turns out “masterpiece-level” when you adhere to two non-negotiable rules:

1. The Millimeter Rule: Trim batting and appliqué fabric close (1–2 mm from stitching).
2. The Stop-Point Rule: Border construction stitches must stop Exactly at the corner stitching—without drifting into the adjacent seam allowance.

However, be aware of the physical toll. If you are doing a lot of repeated hooping for blocks, this is the specific type of project where multi hooping machine embroidery fatigue sets in. We will discuss tool upgrades to save your wrists later, but for now, focus on your process.

The Hidden Prep That Saves the Whole Cushion: Stabilizer, Batting, Tools, and Layout Discipline

Before you stitch a single tile, you must standardize your setup. Inconsistency here guarantees that your final panels will not join cleanly.

The Decision Tree: Battling Bulk vs. Stability

This project requires a specific "sandwich" to prevent the 'puffy quilt' effect from distorting the embroidery geometry.

• Foundation: Cutaway Stabilizer. Why? Tearaway is too risky for dense satin stitches on a cushion that will be sat on. Cutaway provides the permanent architecture.
• Volume Layer: Batting placed after the placement line. Why? If you hoop the batting with the stabilizer, the bulk in the hoop frame will cause "hoop burn" and distortion. Floating the batting is the professional standard here.

Required Arsenal:

• Curved Appliqué Scissors (Double-Curved preferred): Essential getting into the hoop without gouging the fabric.
• Rotary Cutter + Acrylic Ruler: For trimming blocks square.
• Iron + Wool Mat: A wool mat absorbs heat and traps it, pressing seams flatter than a standard board.
• Hidden Consumable: Temporary Spray Adhesive (e.g., ODIF 505). Use lightly to hold batting if you struggle with floating accuracy.

Warning: Physical Safety
Curved appliqué scissors and rotary cutters are fast—and unforgiving. When trimming inside the hoop, keep your stabilizing hand outside the frame. Never cut towards your body. When using a rotary cutter, if you are not cutting, the safety latch must be ON.

Prep Checklist (Pre-Flight Checks)

• Design Capacity: Confirm your design size (4x4, 5x5, 6x6, or 7x7) matches your available hoop. Do not shrink the design in software more than 10%, or density will ruin the fabric.
• Hoop Tension Sensory Check: Hoop your cutaway stabilizer. Tap it. It should sound like a dull drum (taut) but not be stretched so tight that the weave distorts.
• Bobbin Check: Wind 3-4 bobbins with high-quality 60wt or 90wt bobbin thread. Running out mid-block creates weak points.
• Organization: Clear a space for finished blocks. Stack them Left-to-Right by row to prevent rotating a block by accident later.


Stitching the ITH Appliqué Tile Blocks: Placement–Stitch–Trim Without Chewing Up Your Seam Allowance

The appliqué cycle in the tutorial follows the classic ITH rhythm, but we need to refine the execution speeds and trimming logic.

Expert Speed Setting:

• Stabilizer/Batting Tack-down: 600–700 SPM.
• Satin Stitches: 500–600 SPM. Do not run at max speed. High speed on dense satin stitches causes the stabilizer to pull inward (the "hourglass" effect), ruining your square block.

The Workflow:

1. Stitch the placement line.
2. Place fabric right side up, covering the placement line completely.
3. Stitch the tack-down.
4. Remove hoop and trim fabric 1–2 mm from stitching.

The Critical Nuance: The "Safe Zone"

The prompt notes a vital detail: Leave the fabric in the outer seam allowance untrimmed.

• Why? If you trim the outer edge fabric away, you are trying to sew rows together using only stabilizer. Stabilizer tears; fabric holds. You must have fabric in the ½ inch seam allowance zone.

Block Sequence Strategy (Example Block):

• Short half tile (top left): Fabric A → trim close, leave seam allowance.
• Center tile: Fabric C → trim close all around.
• Satin Stitching: The machine will now cover raw edges.


Expert Insight: The Physics of Trimming When trimming batting, your scissors should glide. You want to remove the bulk so the satin stitch wraps over the edge, creating a smooth transition. If you leave too much batting, the satin stitch will look "lumpy" and your machine may break needles trying to penetrate the density.

Sensory Check:

• Touch: Run your finger over the trimmed edge. If it feels like a hard ridge, you trimmed too far out. It should feel like a soft step down.


Joining Embroidered Quilt Blocks on a Sewing Machine: The Half-Inch Seam That Disappears on the Front

Once you’ve stitched all blocks, you switch from embroidery mode to construction mode. The goal is to hide the construction seams behind the embroidery borders.

The Procedure:

1. Layout: Arrange blocks on a large surface.
2. Mating: Place two blocks right sides together.
3. Pinning: Do not just align the raw edges! Align the stitched border lines. Use fine pins or wonder clips.
4. Sewing: Use a 1/2 inch seam allowance.
   • Crucial Detail: Sew just inside the border lines already on the panels. This ensures the construction thread is hidden deep in the valley of the seam.

Studio-Grade Advice: Use a "Walking Foot" or "Even Feed Foot" on your sewing machine. Embroidery blocks are thick and stiff; a standard foot will push the top layer forward, misaligning your corners. A walking foot feeds both layers evenly.

Setup Checklist (Before Chain-Piecing)

• Needle: Switch to a fresh Universal 80/12 or Microtex 80/12 needle. Embroidery residue can dull needles quickly.
• Stitch Length: Set to 2.5mm. Too tight creates puckering; too loose creates gaps.
• Visual Check: After the first seam, open the blocks. Can you see the construction thread?
  • Yes: You sewed too far into the embroidery.
  • No: Perfect.
• Pressing: Press seams OPEN. Use steam and a clapper if available to make them lie dead flat. Do not "finger press"—it is not enough for this thickness.


Flat Piping That Doesn’t Go Wavy: Cutting 1.5" Strips and Avoiding Joins

Flat piping adds a professional frame without the headache of inserting cording.

The Tutorial Spec:

• Cut four 1.5 inch strips (Fabric D).
• Press strips in half lengthwise (wrong sides together).
• Align raw edges of piping to raw edge of cushion front.
• Baste with a 1/4 inch seam.


Troubleshooting: The Wavy Piping Effect

• Symptom: The piping looks rippled or varies in width after the cushion is finished.
• Cause: Often caused by joining short strips of fabric on the bias or straight grain without stabilizing, or inconsistent feeding.
• Fix:
  1. Cut one long continuous strip if possible.
  2. If you are producing these cushions in batches, consistency is key. While not used for piping directly, a hooping station for machine embroidery mindset applies here: using jigs or guides on your sewing machine bed (like magnetic seam guides) ensures your piping width remains identical from corner to corner.

Measuring Border Fabric for Mitered Corners: The Exact Formula That Prevents “Almost Fits”

Do not guess. Do not "eyeball." Use the math.

Side Border Length Formula: Length = (Inside border width + Outer border width) × 2 + Length of joined block edge

Example:

• Inside border: 1.5" | Outer border: 3" | Total width: 4.5"
• (4.5" × 2) = 9"
• Block edge: 19"
• Cut Length: 19" + 9" = 28"

End Borders: Repeat using the short edge measurement (e.g., 13" + 9" = 22").

Securing Batting to Border: The tutorial suggests spray adhesive.

• Material Science Note: If you overspray, the needle will get gummed up, leading to skipped stitches. Spray lightly in a box away from your machine, or use a water-soluble glue stick along the edge.

The Corner-Stitching Rule for Mitered Borders: Stop Exactly at the Corner Stitching (No Exceptions)

This is the most critical technical maneuver in the entire project.

When attaching the side borders:

1. Match centers and raw edges.
2. Stitch with a 1/4 inch seam.
3. THE RULE: You must Start and Stop exactly 1/4 inch from the ends of the cushion panel (the "break point").
   • Sink the needle into the corner stitching.
   • Backstitch to lock it.
   • DO NOT sew off the edge.


Warning: The Geometry of Failure
If you sew all the way to the edge (into the seam allowance), you geometrically lock the fabric. It will be physically impossible to fold a 45-degree miter. You will get a bubble, a pleat, or a pucker. You must leave the corners "free" to fold.

Attaching End Borders: Fold the side border fabric out of the way so you don't accidentally catch it. Stitch from break point to break point.

Mitered Corners That Lay Flat: Folding, Marking, and Accepting That You Might Need a Second Try

The "Fold and Mark" method is safer than the "Math and Cut" method for beginners because it accounts for the thickness of the batting.

1. Fold: With cushion right side up, fold an end border over a side border, right sides together.
2. Align: Ensure the 45-degree angle originates exactly from that "Stop Point" you sewed earlier.
3. Mark: Draw a line from the corner point to the outer edge.
4. Stitch: Sew directly on that line.
5. Check: Unfold it before trimming. Does it lie flat?
   • Yes: Trim excess to 1/4 inch.
   • No: Seam rip and adjust angle slightly.




Adding Lining and Building the Envelope Back: The 2.5" Mark That Makes the Overlap Behave

An envelope back that gapes open looks amateur. The 2.5" overlap rule solves this.

Lining: Baste the lining (Fabric I) wrong side up to the back of your cushion front. This hides all your messy embroidery backs and provides body.

Envelope Back Structure:

• Hemming: Clean finish one edge of Fabric J and Fabric K.
• Placement:
  1. Fabric J (Right side down) aligns with the top raw edge.
  2. Fabric K (Right side down) aligns with the bottom raw edge.
  3. The Overlap: They should overlap by at least 4-5 inches total in the center to ensure the pillow form doesn't peek out.




Binding the Cushion Edges with Mitered Corners: The 3" Strip and the Gap You Must Leave

Binding is the frame of your artwork.

Binding Basics:

• Cut Width: 3 inches. (Wider than usual quilt binding because of the cushion thickness).
• Preparation: Fold in half lengthwise and press well.

The "Continuous Binding" Technique:

1. Leave a 6-inch tail unsewn at the start.
2. Stitch with a 3/8 inch seam.
3. Corner Miter: Stop 3/8" from the corner. Backstitch. Cut thread. Fold the binding up at 90 degrees, then fold it back down. Start sewing again from the edge.
4. Joining: Stop sewing 6 inches before you hit the start. Join the two tails on the bias (diagonal seam) to reduce bulk.

If you produce many home décor items, mastering this manual binding is essential. However, the consistency of the stitching line is easier if your embroidery machine setup is optimized. Terms like hooping for embroidery machine often refer to the initial stage, but think of binding as the final "hooping" of the layers—you need clamps or clips to keep tension even.

Operation Checklist (Quality Control)

• Corner Sharpness: Do all four binding corners create a perfect 90-degree angle?
• Binding Fullness: Is the binding filled by the cushion edge, or is it empty/floppy? (If floppy, seam allowance was too narrow).
• Overlap: Does the envelope back stay closed when you stuff the pillow form in?
• Lint Check: Did you use a lint roller on the black velvet/dark fabrics before closing?

Optional Closure with Kam Snaps

For a premium finish, add Kam snaps to the envelope closure. Space them every 4-5 inches. This prevents the "gaping mouth" look if the pillow form is slightly overstuffed.

Troubleshooting: The Two Most Common “I’m So Close” Problems

The Upgrade Path: When You Love the Project but Hate the Repetition

This cushion is a stunning project, but let’s acknowledge the elephant in the room: Repetitive Hooping Fatigue.

Making one cushion involves hooping stabilizer and fabric multiple times. If this is a one-off gift, it is a labor of love. If you are making sets for clients or an Etsy shop, it is a bottleneck that causes wrist strain and inconsistent results.

Here is when you should upgrade your toolkit:

1. The Pain: "My wrists hurt and I can't get the fabric tight enough."
   • The Upgrade: magnetic embroidery hoops. Unlike screw-based hoops requiring manual torque, magnetic frames snap into place. They hold thick sandwiches (like cutaway + batting + velvet) firmly without "hoop burn" (friction marks).
2. The Pain: "I have a Brother/BabyLock and the standard hoops are sliding."
   • The Upgrade: A specific magnetic hoop for brother or magnetic hoops for babylock embroidery machines fits the specific attachment arm of your machine. This allows you to slide fabric on and off faster for continuous block production.
3. The Pain: "My placement is wandering slightly between blocks."
   • The Upgrade: A hoopmaster hooping station system (or similar fixture). While an investment, these stations ensure that every single layer of stabilizer lands in the exact same coordinate, standardizing your block output.

Warning: Magnet Safety
Professional magnetic hoops use industrial-strength neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can slam together instantly. Keep fingers clear.
* Medical Devices: Maintain a safe distance from pacemakers.
* Electronics: Do not place phones or credit cards directly on the magnets.

If you find yourself producing 20+ cushions a month, you have likely outgrown your single-needle machine. This is where a Multi-Needle Machine (like the SEWTECH lineup) changes the game—allowing you to queue colors, utilize larger hoops for multiple blocks at once, and regain your sanity.

Until then—measure twice, cut once, and watch those corners. Happy stitching!

FAQ

• Q: How do I choose cutaway stabilizer vs tearaway stabilizer for an ITH Moroccan tile cushion embroidery block that will be sat on?
  A: Use cutaway stabilizer for this ITH cushion because it provides permanent support for dense satin stitching under real-life wear.
  • Choose: Hoop cutaway stabilizer as the foundation; avoid relying on tearaway for the main structure.
  • Add: Float batting after the placement line instead of hooping batting with the stabilizer to reduce bulk distortion.
  • Slow down: Run satin stitches at a controlled speed (not max) to reduce inward pull on the block.
  • Success check: The finished block stays square and the satin border lies smooth without puckers or “hourglass” pinching.
  • If it still fails… Re-check hoop tension and consider using a light temporary spray adhesive to keep floated layers from shifting.
• Q: How do I know the hoop tension is correct when hooping cutaway stabilizer for repeated ITH cushion blocks to avoid distortion?
  A: Hoop the cutaway stabilizer taut but not stretched—tight enough to support stitches without warping the fabric grain.
  • Tap: Drum-test the hooped stabilizer; aim for a dull, taut “drum” sound.
  • Watch: Avoid over-tightening until the weave looks pulled or skewed.
  • Standardize: Hoop the same way every time so blocks join consistently.
  • Success check: Blocks sew together without turning into a rhombus shape and borders line up at the seams.
  • If it still fails… Slow the machine down on dense satin areas and confirm the hooping is straight (not cocked) before stitching.
• Q: How close should batting and appliqué fabric be trimmed on ITH appliqué blocks to prevent lumpy satin borders and broken needles?
  A: Trim batting and appliqué fabric very close—about 1–2 mm from the stitching—while keeping the outer seam allowance fabric untrimmed.
  • Trim: Remove hoop and cut close to the tack-down/satin line (about 1–2 mm) to remove bulk.
  • Leave: Keep fabric intact in the outer seam allowance zone so seams are sewn through fabric, not just stabilizer.
  • Feel: Trim so scissors glide and the edge transitions smoothly under satin stitches.
  • Success check: The satin stitch edge feels like a soft step-down (not a hard ridge) and looks smooth (not lumpy).
  • If it still fails… Reduce speed on satin stitches and verify batting was floated after the placement line (not hooped).
• Q: How do I stop pleated or bubbled mitered corners when sewing cushion borders with batting using the “stop-point” rule?
  A: Stop and start stitching exactly at the corner stitching point (about 1/4 inch from each end) so the corner seam allowance can fold into a true 45° miter.
  • Mark: Mark the stop point before sewing so the needle lands exactly where the corner stitching ends.
  • Stitch: Sew border seams break-point to break-point; do not sew off the edge into the seam allowance.
  • Fold: Use the fold-and-mark method to stitch the miter line, then open and check before trimming.
  • Success check: The corner unfolds flat with no bubble, pleat, or locked pucker.
  • If it still fails… Seam-rip the last 1/2 inch near the corner to “free” the seam allowance, then re-stitch to the correct stop point.
• Q: Why does flat piping look wavy after basting 1.5-inch strips onto a cushion front, and how do I fix the feeding consistency?
  A: Wavy flat piping usually comes from inconsistent feeding or poorly joined/handled strips; re-cut and baste with consistent guidance.
  • Cut: Use one long continuous strip when possible to avoid unstable joins.
  • Guide: Use a consistent seam guide approach so the piping width stays identical around the cushion.
  • Baste: Keep the basting seam at the specified 1/4 inch and feed steadily without stretching the strip.
  • Success check: The piping width looks uniform corner-to-corner with no ripples after stitching.
  • If it still fails… Re-baste more slowly and check that strip handling is not stretching the fabric during pressing and sewing.
• Q: What is the safest way to trim appliqué fabric inside the embroidery hoop with curved appliqué scissors and a rotary cutter during ITH block production?
  A: Treat trimming like a controlled cut—keep hands out of the cutting path and secure tools every time to prevent slips.
  • Position: Keep the stabilizing hand outside the hoop frame when trimming inside the hoop.
  • Cut: Never cut toward the body; rotate the hoop/project instead of twisting the wrist into a risky angle.
  • Lock: Engage the rotary cutter safety latch whenever not actively cutting.
  • Success check: Trims are clean with no accidental snips into the base fabric or seam allowance.
  • If it still fails… Pause and switch to slower, smaller cuts; consider trimming with the hoop removed when possible for better control.
• Q: What magnetic hoop safety rules should be followed when using industrial-strength magnetic embroidery hoops to reduce hooping fatigue on thick cushion “sandwich” materials?
  A: Magnetic embroidery hoops are strong enough to pinch—handle them like a clamp and keep magnets away from sensitive devices.
  • Protect: Keep fingers clear when bringing magnetic parts together; let the frame “snap” closed without guiding with fingertips.
  • Separate: Store magnets away from phones, credit cards, and other electronics.
  • Medical: Keep a safe distance from pacemakers and similar medical devices.
  • Success check: The hoop closes without finger pinches and holds thick layers firmly without friction marks from over-tightening.
  • If it still fails… Slow down the handling process and re-seat the frame evenly; if the fabric is shifting, re-evaluate the layering method (floating vs hooping bulk layers).
