Free-standing lace (FSL) is the "high-wire act" of machine embroidery. It looks mesmerizingly delicate, but because there is no fabric to support the stitches, the margin for error is razor-thin. It looks “easy” right up until you waste a sheet of expensive stabilizer, snap a needle mid-design, or end up with lace that curls like a potato chip once it dries.

This design set—an FSL Bladder Cancer Awareness ribbon pendant plus matching earrings—can stitch beautifully. However, success depends on treating the software preview not as a pretty picture, but as your first quality-control step. Regina’s demo in Baby Lock Palette 11 is short, but it contains the exact checks that prevent most FSL headaches: stitch count validation, dimension checks, hoop fit, color order, and interpreting the sewing-order icons that tell you the structural story.

Below is that same workflow, rebuilt into a shop-ready process you can repeat on any FSL jewelry file, enriched with the safety margins and sensory checks that usually take years to learn.

Calm the Panic: What the “FSL Bladder Cancer Ribbon SET.pes” Properties Tell You Before You Waste Stabilizer

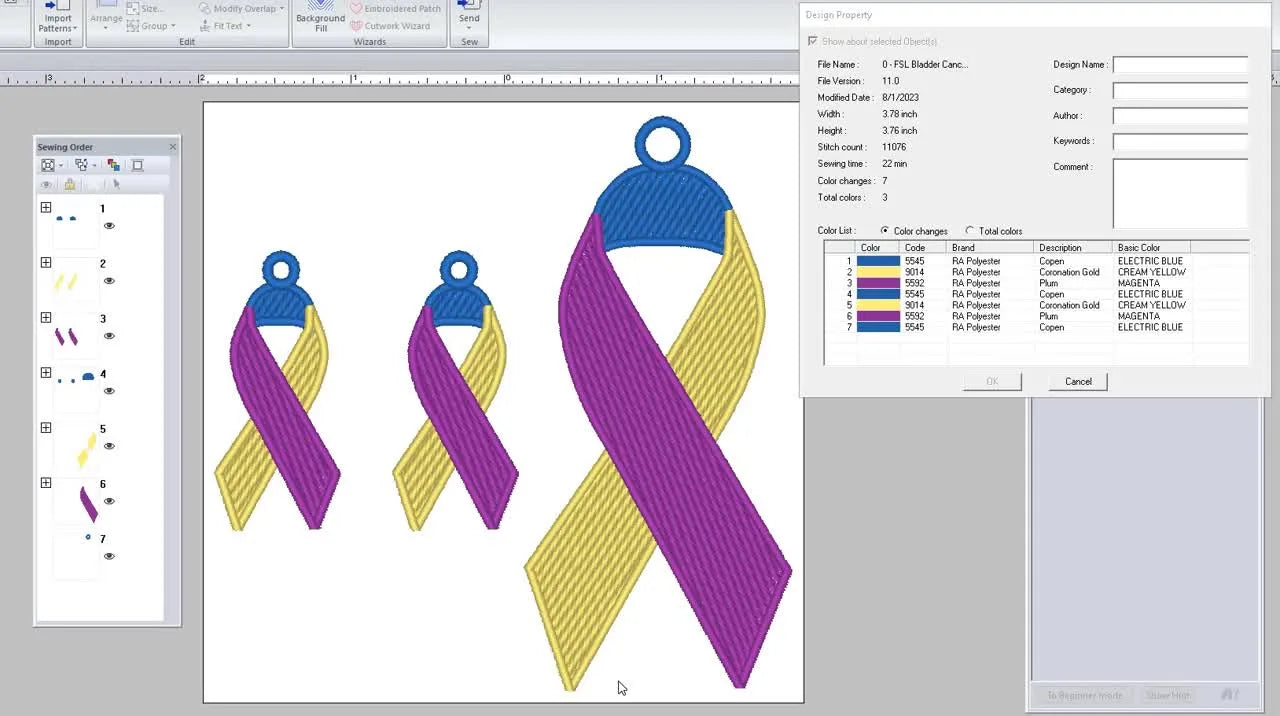

Regina starts where experienced stitchers always start: the Design Property window. Do not skip this. This is your risk assessment.

In Palette 11, she opens the full set file (the one that includes two earrings plus the large ribbon) and reads the key stats. Let's decode what these numbers actually mean for your machine setup:

• Stitch count: 11,070 stitches
• Estimated time: 27 minutes (at standard speed)
• Color changes / total colors: 3
• Total set layout size: 2.75" wide × 3.76" high

Those numbers are not trivia—they are your warning lights.

• 11,070 stitches on FSL means a massive amount of needle penetration into a substrate that is essentially plastic or starch. If your stabilizer isn’t held drum-tight, the friction creates heat and drag. You will see shifting, "webby" lace that falls apart, or edges that don't lock.
• 27 minutes is a marathon for stabilizer.
  • Experience Tip: Beginners often run machines at max speed (e.g., 800-1000 SPM). For dense FSL like this, slow down to the "Sweet Spot" of 500-600 SPM. You want a rhythmic "thump-thump," not a high-pitched whine. Speed causes vibration; vibration kills lace precision.
• 3 colors sounds simple, but the order creates the structural integrity.

Regina also points out the pack includes multiple configurations: a complete set, earrings-only, and ribbon-only. If you’re organizing files, decide now: Are you making one gift, or batching 50 sets for a fundraiser?

The “Hidden” Prep for FSL Lace Jewelry: Stabilizer, Thread, and a Hooping Plan That Won’t Warp

FSL is stitched on water-soluble stabilizer (WSS), so your "material" is a temporary foundation. That changes the laws of physics for your machine.

Stabilizer tension is the whole game. In general, FSL behaves best when the stabilizer is held evenly tight across the hoop—tight enough that if you tap it with your fingernail, you hear a distinct, paper-like drumming sound. It must not sag.

If you are currently fighting ripples, broken needles, or inconsistent edge satin, the upgrade path is often not "new settings"—it's better hoop control. Traditional screw-tightened hoops can distort WSS as you pull the edges. This is why many professional stitchers move to magnetic embroidery hoops specifically for FSL; they clamp the stabilizer swiftly and evenly without the "tug-of-war" that stretches the material, reducing distortion and protecting your wrists.

Warning: (Needle Safety) FSL runs are needle-heavy and generate lint. Do not put your fingers near the needle to "hold" the stabilizer flat while the machine is running. If the stabilizer fails, the needle can deflect and shatter instantly. Keep hands clear.

The "Hidden Consumables" List

Before you start, ensure you have:

• Needles: A fresh 75/11 Sharp (not Ballpoint). Sharps pierce the stabilizer cleanly; ballpoints can tear it.
• Stabilizer: Heavy-duty water-soluble (like fibrous Vilene or heavy film like Badgemaster). Do not use thin topper film.
• Bobbin: Matching thread in the bobbin is mandatory for FSL, as the back is visible.

Prep Checklist (Do this BEFORE opening the file)

• Needle Check: Is the needle brand new? (Burrs ruin FSL).
• Stabilizer Choice: Are you using heavy water-soluble stabilizer (fibrous or heavy film)? Never use tear-away.
• Bobbin Match: Did you wind a bobbin with the exact same thread as your top thread?
• Sensory Check: Tap the hooped stabilizer. Does it sound like a drum? If it sounds loose or floppy, re-hoop immediately.
• Output Plan: Decide if you are running the full set or just earrings to save thread changes.


Don’t Guess the Hoop Fit: Palette 11 Measurements for the Earrings (4x4-Friendly)

Regina isolates the earring objects and checks their size:

• Earring height: 1.83"
• Earring width: 0.83"

She notes the earrings fit a 4x4 hoop area. This measurement matters for two reasons:

1. Hardware clearance: Small FSL earrings rely on a tiny loop of thread to hold the metal jump ring. It must be precise.
2. Batch planning: If you can stitch multiple earrings in one hooping, you reduce setup time.

If you are running a Brother-style 4x4 format, you will recognize the workflow. For anyone checking equipment compatibility, searching for terms like brother 4x4 embroidery hoop dimensions is common, but the practical takeaway is: trust the measured dimensions, not the thumbnail. Always leave a 0.5-inch safety margin of stabilizer around the design.

Watch the Stitch Simulator Like a Hawk: The Real Layer Order (Blue → Yellow → Purple → Satin Edges)

Regina runs Palette 11’s Stitch Simulator to preview the sew-out. This is where you catch "surprises" that cause most FSL failures—like borders that stitch before the net fill is complete.

Her simulated order is clear:

1. Blue base sections stitch first (This is the "Skeleton" or foundation layer).
2. Yellow ribbon segments stitch next.
3. Purple segments stitch after that.
4. Satin stitch borders finish the edges.

In FSL, that foundation-first approach is non-negotiable. It builds a mesh that holds the subsequent stitches. If you ever see a file attempting to satin-edge before the interior structure is built, stop. That file will crumble.

What an experienced operator is checking during simulation

• The Skeleton: Are the first stitches creating a grid or heavy underlay? (Yes = Good).
• The Overlap: Do the yellow and purple blocks overlap the blue base enough to lock in?
• The Seal: Do the satin edges come absolute last to wrap and seal the raw thread edges?

This is also where you decide whether you want to stitch the full set in one run or split it into separate hoopings for better control.

The Sewing Order Panel (Steps 1–7): How to Predict Trims, Holes, and Hardware Points

Regina zooms in and correlates the Sewing Order icons (numbered 1 through 7) with the actual objects on the canvas.

She specifically calls out a critical detail: the blue stitch at the top creates the hole for hardware attachment.

That is not decoration—it is a functional reinforcement point.

• The Risk: If your stabilizer is loose, the circle stitch will deform into an oval or close up entirely.
• The Fix: Watch this specific step during the sew-out. If it looks messy, stop the machine and trim any stray threads immediately so they don't get sewn over by the satin border.


Thread Colors and Codes in Palette 11: Keep the 3-Color Plan Simple (and Repeatable)

Regina opens the earrings file properties and shows the color list with codes:

• 0545 (Electric Blue)
• 0234 (Cream Yellow)
• 5545 (Magenta)

Experience Note: You likely won't have these exact specific codes. That’s fine. The discipline here is Mapping. Write down your substitutions (e.g., "My Blue = Isacord 3640"). FSL sets are often gifted or sold; if you need to make a replacement earring later, guessing the shade of yellow you used three months ago is a nightmare.

File Pack Reality Check in Windows Explorer: What You Actually Get in the Download

Regina switches to Windows File Explorer and shows the deliverables: multiple PES variations plus image previews.

From a production standpoint, those image previews are vital assets:

• Visual Confirmation: They help you distinguish the "Earrings Only" file from the "Full Set" file without opening the software.
• Error Prevention: They act as a "proof" to ensure you haven't accidentally mirrored or resized the file.


The Pendant Ribbon Isn’t Just a Ribbon: It Can Be a Gift Tag or Necklace (Plan the Hole on Purpose)

In the simulation, Regina shows the large ribbon pendant stitching after the earrings. She describes it as a gift tag / ornament / pendant.

That use-case changes how you think about finishing. If this touches skin (necklace):

1. Thread Choice: Use high-quality Rayon or Polyester (Polyester is stronger for FSL). Avoid metallic threads for the backing steps as they can be scratchy.
2. Melting Check: If using a heat-away stabilizer (not recommended for wet FSL, but some do), ensure the edges are not sharp. Water-soluble is superior for jewelry comfort.




The “Why” Behind Clean FSL: Hooping Physics, Tension, and Why Lace Curls When You Rush

Here’s the part most short demos don’t say out loud: FSL is a controlled fight between stitch density and your temporary support (the stabilizer).

• Dense stitching shrinks and pulls inward as it forms.
• Stabilizer resists that pull—until it flexes, relaxes, or gets perforated too much.

So when lace curls, it’s usually not "bad digitizing." It is typically:

1. Uneven Hoop Tension: You tightened the screw, but the top was tighter than the bottom.
2. Speed: The machine was running too fast (800+ SPM), turning the stabilizer into a trampoline.
3. Hoop Burn: You pulled the stabilizer so hard to get it tight that you distorted the weave before you even started.

In general, a stable hooping method is the cheapest quality upgrade you can make. If you are constantly wrestling with screws and fighting slack, consider whether embroidery magnetic hoops would reduce your setup time. They allow the stabilizer to lay flat and be clamped vertically, rather than being dragged across the inner ring.

Warning: (Magnet Safety) Strong magnetic hoops are industrial tools. They can snap together with enough force to pinch skin severely or damage watches. Users with pacemakers should consult a physician before handling high-power magnets. Always slide them apart; never pry them.

Setup Choices That Save Real Time: Hooping Stations, Magnetic Frames, and When to Upgrade for Batch Work

If you only stitch one pair of earrings a month, any standard hoop works. If you stitch ten pairs in a weekend (for a craft fair or cancer awareness walk), your bottleneck becomes hooping and re-hooping.

That’s where tools matter. In many studios, a simple hooping stations setup improves repeatability because you’re aligning stabilizer the same way every time, ensuring the grain is straight.

And if your hands are tired from tightening screws, many operators look at magnetic hoops for babylock embroidery machines as a crucial workflow upgrade: faster loading, less wrist strain, and consistent clamping pressure that prevents the dreaded "curling lace."

Decision Tree: Select Your Workflow Based on Volume

Many users start by mapping their inventory to their actual needs, searching for babylock magnetic hoop sizes to find the perfect fit for these 4x4 earring files.

Setup Checklist (Right before you press Start)

• File Check: Verify you selected the correct file variation (Earrings vs. Full Set).
• Hoop Perimeter: Confirm the design fits within the hoop with safety margin.
• Thread Prep: Do you have all 3 colors (Blue, Yellow, Purple) on the table?
• Tension Final Check: Tap the stabilizer. Is it still a "drum"?
• Trace: Run the machine's "Trace/Trial" button to visualize needle placement.


Operation: Stitch the Earrings First, Then the Ribbon—And Don’t Miss the Hardware Hole Stitches

Regina’s sew-out order is straightforward: the file stitches the earrings, then stitches the ribbon.

Operationally, your job is to keep the run stable. You are the pilot.

• The Takeoff: Watch the first blue base stitches. If the stabilizer bounces or "flags" (lifts up with the needle), STOP. It is too loose. Re-hoop. You cannot save loose FSL.
• The Cruising Altitude: Let the yellow and purple layers build. Listen to the sound.
• The Landing: The satin edges finish the perimeter. This is where clean tension matters most.
• Critical Moment: Pay attention when the design forms the hardware holes (the blue stitches at the top). Ensure no fuzzy thread tails obstruct them.

If you are using a rigid framing system, such as magnetic embroidery hoops for babylock, the benefit here is fewer mid-run distortions. The magnet holds the sandwich firm even as the needle perforates the stabilizer thousands of times.

Operation Checklist (Monitoring the Run)

• First 60 Seconds: Stabilizer stays flat. No "trampolining."
• Sound Check: Machine sounds rhythmic, not angry/clanking.
• Hardware Holes: Holes stitch open and clean.
• Jump Stitches: Pause and trim long jump stitches between color changes to avoid them getting sewn into the lace.

Finishing Standards for FSL Earrings and Pendants: Make It Look Like Jewelry, Not a Test Sew-Out

Regina’s video focuses on the digital walkthrough, but the physical finishing is where the magic happens.

1. Trim First: Cut all jump stitches before wetting the lace. It is impossible to trim them once the stabilizer gets gummy.
2. The Soak: Use warm water. Soak until the stabilizer dissolves (it feels slippery like soap).
3. The Shape: Crucial Step. Do not wring or twist the lace. Lay it flat on a paper towel. Gently shape the loop and edges with your fingers.
4. Dry Flat: Let it air dry completely (24 hours). This sets the rigidity.

Common FSL “Uh-Oh” Moments (Troubleshooting Guide)

Even with perfect software prep, reality happens. Here is your quick-fix guide.

The Upgrade Path: When Better Tools Pay You Back

If this design is a one-time awareness stitch-out, your biggest win is simply doing Regina’s software checks first.

However, if you find yourself falling in love with lace, or if you plan to sell these sets, your time becomes the most expensive material.

• Level 1 Upgrade: Magnetic Hoops. These solve the #1 FSL problem (hooping consistency) and save your wrists.
• Level 2 Upgrade: Multi-Needle Machines. If you are doing batches of 50+, a single-needle machine requiring a manual thread change for every color will drive you crazy. A SEWTECH multi-needle setup automates the color swaps, allowing you to press "Start" and walk away while the machine produces profit.

Start with process discipline (properties → dimensions → simulator → sewing order), and let your volume dictate when it’s time to upgrade your tools. Happy stitching!

FAQ

• Q: In Baby Lock Palette 11, what Design Properties should be checked before stitching the “FSL Bladder Cancer Ribbon SET.pes” on water-soluble stabilizer?
  A: Use the Design Property window as a risk check before hooping so stabilizer and machine setup match the file’s load.
  • Confirm stitch count (11,070 stitches) and plan to slow the machine to a safe starting point of 500–600 SPM for dense FSL.
  • Verify color changes (3) and decide whether to run the full set file or the earrings-only / ribbon-only variation to reduce re-hooping.
  • Check total layout size (2.75" W × 3.76" H) and leave a safety margin in the hoop so edges are not near the hoop ring.
  • Success check: the plan answers “How long will this run, how dense is it, and does it physically fit with margin?” before any stabilizer is wasted.
  • If it still fails, re-check hoop tension and sew order in Stitch Simulator before changing thread tension.
• Q: What stabilizer, needle, and bobbin setup should be used for Free-Standing Lace (FSL) earrings on a single-needle embroidery machine?
  A: Start with heavy water-soluble stabilizer, a fresh 75/11 Sharp needle, and matching thread in the bobbin so the lace holds and looks clean on both sides.
  • Install a brand-new 75/11 Sharp (avoid ballpoint) to pierce stabilizer cleanly and reduce tearing.
  • Hoop heavy-duty water-soluble stabilizer (fibrous or heavy film); do not use thin topper film and never use tear-away for FSL.
  • Wind and use the same thread in the bobbin as the top thread because the back of FSL will be visible.
  • Success check: the hooped stabilizer taps like a “drum” (paper-like drumming sound) and does not sag.
  • If it still fails, slow down toward 500–600 SPM and re-hoop tighter before troubleshooting stitch settings.
• Q: How can water-soluble stabilizer be hooped for FSL so the stabilizer does not ripple, bounce, or “trampoline” during stitching?
  A: Hoop water-soluble stabilizer evenly drum-tight (not stretched unevenly) and stop immediately if the stabilizer starts lifting with the needle.
  • Tap-test the stabilizer after hooping; re-hoop immediately if it sounds loose or feels floppy.
  • Avoid “tug-of-war” hooping that distorts the stabilizer when tightening a screw hoop; clamp evenly and keep the surface flat.
  • Run the machine’s Trace/Trial to confirm needle placement stays inside the safe area before pressing Start.
  • Success check: in the first 60 seconds, the stabilizer stays flat with no bouncing/flagging and the machine sounds rhythmic, not harsh.
  • If it still fails, reduce speed (often 500–600 SPM is a safer starting point for dense FSL) and consider switching to an even-clamping magnetic hoop system.
• Q: In Baby Lock Palette 11 Stitch Simulator, what sew-out order should be seen in an FSL jewelry file so the lace does not crumble?
  A: The file should build structure first (foundation) and finish with satin borders last so edges are sealed after the interior is locked.
  • Confirm the base “skeleton” stitches sew first (often shown as the first color blocks), forming a grid/underlay that supports everything.
  • Verify overlap: later color blocks should overlap the base enough to lock layers together.
  • Ensure satin stitch borders sew last to wrap and seal edges; stop if borders stitch before the interior structure is complete.
  • Success check: the simulator shows a clear foundation-first sequence followed by the finishing satin edge as the final step.
  • If it still fails, select a different file variation (earrings-only vs full set) and re-check Sewing Order icons for trims and structural steps.
• Q: During stitching the FSL Bladder Cancer Awareness earrings, how can the hardware attachment hole be kept open and clean?
  A: Treat the hardware hole stitches as a critical control point and keep thread tails from getting sewn over that opening.
  • Watch the step that stitches the small top hole (reinforcement circle) and pause if stray threads are crossing the opening.
  • Trim jump stitches between color changes so long tails do not get trapped under the satin border.
  • If the hole starts to distort, stop and re-hoop—loose stabilizer can turn a circle into an oval or close it up.
  • Success check: the hole stitches form a clean, open circle before the satin edge finishes.
  • If it still fails, gently open the hole while the lace is still wet using a hand needle or awl.
• Q: What should be done when Free-Standing Lace curls like a “potato chip” after rinsing out water-soluble stabilizer?
  A: Curling is commonly caused by uneven hoop tension or stretched stabilizer, so prevent it at hooping and dry the lace perfectly flat.
  • Re-focus on even hoop tension: hoop drum-tight without stretching one side more than the other.
  • Slow the run if needed; excessive speed can increase vibration and contribute to distortion on long, dense FSL runs.
  • After soaking, shape gently and dry flat for up to 24 hours; do not wring or twist the lace.
  • Success check: when fully dry, the lace lies flat and the edges look sealed rather than lifted.
  • If it still fails, improve hooping consistency (often an evenly clamping magnetic hoop helps) and add strict “first 60 seconds” monitoring for bounce.
• Q: What needle safety and magnetic hoop safety rules should be followed when stitching dense Free-Standing Lace on water-soluble stabilizer?
  A: Keep hands away from the needle during stitching, and handle strong magnetic hoops as pinch-hazard tools.
  • Keep fingers away from the needle area; do not try to “hold” stabilizer flat while the machine is running because stabilizer failure can deflect and shatter a needle.
  • Clean lint and monitor needle condition; dense FSL is needle-heavy and a damaged needle increases break risk.
  • If using magnetic hoops, slide magnets apart and never pry them; keep watches and sensitive items away, and pacemaker users should consult a physician before handling strong magnets.
  • Success check: stitching runs without hands near the needle and hoop handling never involves sudden snapping together.
  • If it still fails, stop the machine, re-hoop safely, and replace the needle before resuming.
