Ricoma Sock Embroidery That Actually Stays Centered: The Easy Sock Tool + Floating Method (No More Crooked Monograms)

Socks are one of those deceptive items in the embroidery world: they look small and manageable, but they are mechanically hostile. The fabric is tubular, ribbed, highly elastic, and eager to twist the moment the needle penetration begins. If you have ever pulled a finished sock off your machine only to find the monogram is drifting off-center, tilted 15 degrees, or sunk so deep into the ribs it’s illegible—take a breath. You are not losing your touch; you are fighting physics.

The workflow details below are based on Zee’s proven process for wedding socks on a Ricoma multi-needle machine. We are going to deconstruct this into a "white paper" level guide, moving beyond what to do and explaining how to feel your way through the process to ensure professional, repeatable results.

The “Don’t Panic” Primer: Why Ribbed Socks Fight You (and How This Workflow Wins)

To master sock embroidery, you must understand the material science of the "rib." A ribbed sock behaves like a tension spring. When you stretch it to create a stitchable surface, the knit structure wants to rebound violently. Conversely, when the presser foot impacts the fabric (thousands of times per minute), the fabric wants to "creep" or "flag" (bounce up and down).

Standard clamping hoops often fail here because they stretch the tube unevenly, leading to "hoop burn" (permanent marks) or distorted lettering once the sock relaxes. This is why Zee’s method uses a Floating Workflow: specific stabilization held by a wire jig, riding on a sticky surface.

If you are attempting this on a large commercial head with a tiny garment, the scale difference can be intimidating. One commenter noted they “never knew you could direct a machine that big for small items.” The secret is control. You can embroider a postage stamp on a billboard if the stabilization is absolute.

One clarification before we begin: Newcomers often ask, “What is the hoop inside the sock?” It is not a standard hoop. It is the Easy Sock Tool wire jig—a mechanical insert that holds the tube open and flat, converting a 3D tube into a 2D plane for your needle.

The “Hidden” Prep That Saves the Job: Stabilizer, Topping, Pins, and the Easy Sock Tool

Success in embroidery is 80% preparation and 20% execution. Zee’s supply list is precise. We have expanded it to include the "hidden" consumables that professionals keep within arm's reach to prevent downtime.

The Essential Kit:

• Substrate: Adult and children’s black ribbed socks (Cotton/Poly blends are standard).
• Stabilizer (Base): Medium-weight Tearaway (approx. 1.8oz - 2.5oz). Do not use flimsy backing; the ribs need a spine.
• Stabilizer (Topping): Water-soluble film (Solvy), pre-cut into 3x3 inch squares.
• Adhesion: Odif 505 temporary adhesive spray.
• Hardware: Large rectangular sash frame (e.g., your machine's oversized sash hoop).
• Insert: Easy Sock Tool wire jig.
• Marking: Pins (bright heads for visibility) and Taylor’s chalk.
• Consumables: 75/11 Ballpoint Needles (essential for knits to avoid cutting fibers).

If you are currently searching for a specific sock hoop for embroidery machine, understand the distinction in this workflow: Zee is not clamping the sock itself. She is hooping the stabilizer drum-tight, then floating the sock on top. This eliminates hoop burn completely.

Prep Checklist (Do this strictly before touching the machine)

• Check Needle Type: Ensure your active needle is a Ballpoint (BP). Sharps can slice knit fibers, causing holes that appear after the first wash.
• Pre-Cut Supplies: Tearaway is sized for the hoop; topping squares are cut and stacked.
• Bobbin Check: Ensure you have at least 50% bobbin thread remaining. Changing a bobbin mid-sock is a recipe for alignment shifts.
• Visibility Check: Pins have high-contrast heads (e.g., yellow/white) against the black sock.
• Jig Inspection: Ensure the wire jig compresses smoothly and has no burrs that could snag the knit.

Warning: Pins and needles are catastrophic enemies. A machine needle striking a steel pin can shatter, sending shrapnel into your eyes or the machine's hook timing assembly. Always stage pins perpendicular to the stitch path and remove them before the presser foot engages.

Pin-Centering Socks Without Pinning Them Shut: The Finger-Guard Trick

Finding the geometric center of a floppy tube is difficult. Zee locates the center by folding the sock lengthwise and pinning the vertical axis. However, the difference between a pro and an amateur is the "Finger-Guard" technique.

When inserting the pin, slide your index finger inside the sock tube. You should feel the point of the pin graze your skin (gently!) but never pass through to the bottom layer of the sock.

Why this matters: If you accidentally pin the front of the sock to the back, even by a single thread, the sock will not slide onto the jig correctly. You will create a pucker that is invisible until the embroidery machine locks it in permanently.

Zee’s secondary rule is symmetry: Pin the pair back-to-back. Ensure the branding or heel orientation is identical so the embroidery lands on the outside ankle of both feet.

Pro tip: The "Tube vs. Flat" Mental Shift

When viewers ask about the metal insert, they are trying to solve the problem of separating the layers. The wire jig acts as an internal frame. Without it, floating a sock is nearly impossible because the feed mechanism would trample the loose fabric.

The Sticky-Stabilizer Setup: Hooping Tearaway in a Large Rectangular Hoop (and Not Overdoing 505)

This step establishes your foundation. Zee hoops a single sheet of tearaway stabilizer.

Sensory Check: When you tap the hooped stabilizer, it should sound like a drum skin—a distinct, high-pitched thump. If it sounds dull or loose, re-hoop. Stabilizer that is "good enough" will cause the design to register poorly (gaps between outlines and fill).

The Spray Technique:

1. Loosen First: Zee reminds us to loosen the outer screw significantly before inserting the inner ring to prevent "waffle" wrinkles at the corners.
2. Distance Spray: Hold the Odeif 505 spray can 8-10 inches away. fast, light mist.
3. Tack Test: Touch the stabilizer with your knuckle. It should feel tacky, like a Post-it note, not wet or gummy.

If you are experimenting with a floating embroidery hoop technique for the first time, know that the adhesive is the only thing preventing horizontal shifting. If the spray is too light (or dry), the sock will shift during the high-speed vibration.

Setup Checklist (Post-Hooping)

• Tension Check: Stabilizer is drum-tight with no sagging in the center.
• Surface Check: 505 spray is applied evenly; no wet spots.
• Orientation: You know exactly which way is "up" relative to the machine pantograph.
• Mounting: The hoop is ready, but not yet on the machine. (We load the sock first).

The Easy Sock Tool Wire Jig: Stretch Just Enough, Keep the Pin Dead-Center

Zee compresses the wire arms and slides the sock over the jig. This is the critical variable zone.

The Philosophy of Stretch: Socks are designed to stretch, but embroidery is designed to be stable. You must find the "Goldilocks Zone."

• Too Loose: The fabric will ripple under the needle, causing distorted text.
• Too Tight: The knit ribs will deform permanently, and the embroidery will bunch up when the sock retracts (the "accordion effect").

Action: Align the center pin with the visual center of the wire jig. Pull the sock taut just until the surface is flat and the ribs look parallel. Do not max out the stretch. As Zee notes, maintain the pin alignment strictly—if the pin drifts left, your logo drifts left.

Floating the Sock on Sticky Tearaway: Press Firmly, Then Stop Touching It

With the sock jigged and centered, Zee presses it onto the sticky zone of the hooped stabilizer.

The "One-Touch" Rule: Embroiderers often ruin alignment by fussing—peeling it up and sticking it down repeatedly. Every time you lift the sock, the fabric grain shifts and the adhesive weakens.

1. Hover the jig over the visual center.
2. Commit. Press down firmly.
3. Smooth firmly from the center out to the edges.
4. Stop. Do not nudge it.

In high-volume production, consistency is key. We often build custom hooping stations or use marked grids on tables to ensure that every sock lands in the exact same coordinates on the hoop, reducing the need for software re-centering later.

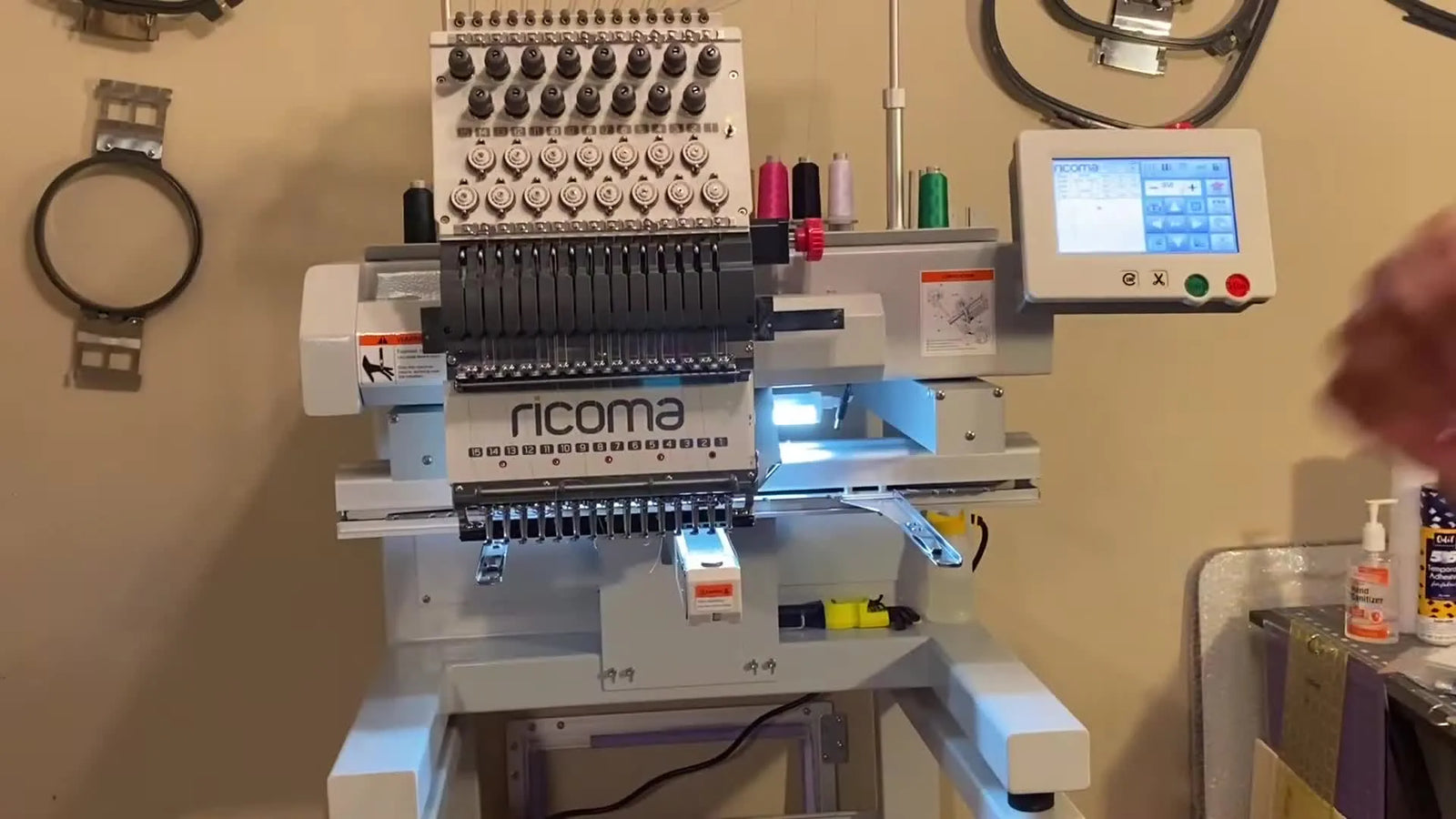

Ricoma Machine Setup: Load the Hoop, Remove the Pin, Add Water-Soluble Topping

Zee snaps the hoop into the Ricoma pantograph. Listen for the audible click of the hoop arms locking into place. If it doesn't click, it's not safe.

The Sequence of Safety:

1. Load Hoop.
2. Center Needle: Use the control panel to align Needle 2 (or your chosen color) over the pin mark.
3. REMOVE PIN. Do this now. Do not wait.
4. Apply Topping.

Zee acts out this sequence perfectly. She places the water-soluble topping after the pin is gone.

Why Topping is Non-Negotiable: Topping allows the stitches to "sur float" (sit on top) of the fabric. Without it, the thread sinks into the valleys of the ribbing, making the text look jagged and thin.

If you are operating a ricoma embroidery machine, ensure your pantograph has clearance. The wire jig adds weight; ensure the sock hanging off the back doesn't catch on the machine bed or the bobbin door during movement.

Operation Checklist (The "Pre-Flight" Check)

• Mechanical Lock: Hoop arms are fully seated and locked.
• Hazard Removal: Vertical alignment pin is REMOVED.
• Topping Check: Water-soluble film covers the entire design area (plus 0.5 inch margin).
• Speed Setting: Reduce machine speed. For ribbed socks, 1000 SPM is risky. Set to 600-750 SPM. This reduces the chance of thread breaks and flagging.
• Clearance: Turn the handwheel or do a trace to ensure the needle bar won't hit the wire jig.

Warning: Pinch Point Hazard. When the machine starts, the pantograph moves rapidly. Keep fingers, loose clothing, and scissors at least 6 inches away from the active field. Never reach in to grab a loose thread while the machine is running—hit the emergency stop first.

Finishing Like a Pro: Tear Away, Don’t Over-Trim, and Clean the Top Film

The run is done. Zee pops the sock off the tearaway. The sound should be a crisp tearing noise—proof your stabilizer was holding tight.

The Cleanup Protocol:

1. Remove Jig: Compress wire and slide out.
2. Top Tear: Rip off the excess water-soluble film. It should pull away clean from the satin stitches.
3. Back Trim: Zee advises leaving a buffer of tearaway stabilizer around the design (about 1/4 to 1/2 inch).
   • Why? Cutting too close can unravel the lock-stitches or cause the design to cup. The stabilizer acts as a permanent washer for the embroidery.
4. Micro-Cleanup: Use tweezers/snips to cut jump stitches. Use a damp cloth or Q-tip to dissolve any remaining solvy film bits stuck in the grooves.

The Crosshair Trick That Fixes “How Far Down the Cuff?”: Taylor’s Chalk Vertical Alignment

Pins give you the vertical center (Left/Right), but they don't help with height (Up/Down). Zee uses Taylor’s chalk to draw a horizontal line intersecting the pin.

Data Point: A standard placement for sock monograms is 1.5 to 2 inches down from the cuff edge. Without this horizontal mark, your pair of socks will have one logo higher than the other—a visual error that the human eye detects instantly. The chalk washes away; the error does not.

Troubleshooting Sock Embroidery on Ribbed Knit: Symptoms → Causes → Fixes

If your result isn't perfect, use this diagnostic table. Start with the "Likely Cause" that is easiest to check.

Decision Tree: Choosing Stabilizer + Topping for Socks

Avoid guessing. Use this logic flow to determine your stack.

1. Is the fabric textured (Ribbed / Cable Knit)?
   • YES: Use Tearaway Base + Water Soluble Topping. (Mandatory to prevent sinking).
   • NO (Flat weave): Tearaway Base is sufficient. Topping is optional but recommended for crisp text.
2. Is the design heavy (High stitch count / Dense fill)?
   • YES: Upgrade to Cutaway Stabilizer (floated). Tearaway may perforate and blow out during a dense fill, causing alignment loss.
   • NO (Simple Monogram): Tearaway is standard.
3. Is the sock material slippery (Synthetic/Performance)?
   • YES: Ensure Odif 505 coverage is uniform. You may need to pin the corners of the sock (outside the stitch zone) to the stabilizer for insurance.

Child vs Adult Socks on a Ricoma: What Zee Actually Does (and Why It Matters)

Zee demonstrates that this method is scale-agnostic. She processes children's socks (Size 6-8) using the exact same large hoop and jig setup.

The Efficiency Lesson: In a production environment, changing hoop sizes takes time (swapping arms, checking clearance). Only change hoops if you have to. If your large sash frame works for both adult and child socks using the floating method, keep the frame on. This reduces setup time and minimizes the "fumble factor" of switching hardware.

The Upgrade Path When Socks Become a Product Line: Faster Hooping, Less Fatigue, Cleaner Results

Zee’s method is excellent for custom orders. However, as your business grows from "one wedding gift" to "50 groomsmen socks," your body and your machine will reveal new bottlenecks.

1. The Wrist Pain Bottleneck (Hooping Fatigue) Standard screw-tightening hoops require repetitive twisting motions that lead to carpel tunnel symptoms over time.

• The Upgrade: For items that can be clamped (like the matching polos or hoodies for the wedding), professionals switch to magnetic embroidery hoops. These frames snap together instantly using industrial magnets, eliminating the "screw and tug" battle. While you still need the wire jig for socks, using magnetic hoops for the rest of the order saves your wrists for the delicate work.

2. The Production Bottleneck (Thread Changes) If your single-needle machine is forcing you to stop and re-thread for every color change, your profit margin is evaporating.

• The Upgrade: Moving to a multi-needle platform (like the SEWTECH ecosystem or similar commercial options) allows you to preset 12-15 colors. You hit "Start" and walk away while the machine handles the swaps. This is the difference between a hobby and a business.

3. The Consistency Bottleneck

• The Upgrade: If you are shopping for accessories or specifically hoops for ricoma, look for standardized kits. Using the same magnetic hoop across all your machines ensures that a design loaded on Machine A runs exactly the same on Machine B.

Warning: Magnet Safety
If you upgrade to magnetic frames (like the MaggieFrame or SEWTECH series), treat them with extreme caution.
* Pinch Hazard: These magnets have industrial clamping force (often 50lbs+). Do not place fingers between the rings.
* Medical Devices: Keep magnetic hoops at least 12 inches away from pacemakers or insulin pumps.
* Electronics: Keep away from credit cards and older hard drives.

The Results Standard: What “Good Sock Embroidery” Looks Like

Before you ship the order, perform this final Quality Control (QC) Audit. A professional sock embroidery must pass these three tests:

1. The Stretch Test: Gently stretch the ribbing. The stitches should not pop, and the backing should not scratch your hand.
2. The Profile Test: Look at the sock from the side. The stitches should stand visibly above the ribs (thanks to the topping), not buried in the trenches.
3. The Center Test: Fold the sock. The embroidery should be perfectly bisected by the fold line.

If you hit these marks, you have conquered the most difficult "small" item in the shop. You are now ready to offer this high-margin service with confidence.

FAQ

• Q: On a Ricoma multi-needle embroidery machine, how can ribbed sock monograms be centered without hoop burn from a standard clamping hoop?
  A: Use a floating workflow: hoop tearaway drum-tight in a large rectangular sash frame, then stick the sock on top instead of clamping the sock.
  • Hoop: Tighten tearaway until it “drums” when tapped; re-hoop if it sounds dull/loose.
  • Spray: Mist Odif 505 lightly and evenly, then press the sock once and stop repositioning.
  • Align: Use the Easy Sock Tool wire jig to hold the tube open and keep the center pin dead-center.
  • Success check: After stitching, the monogram stays centered when the sock is removed and relaxed, with no clamp marks on the knit.
  • If it still fails: Re-check 505 tack level (Post-it feel) and confirm the sock was not stretched past the “Goldilocks” zone on the jig.
• Q: For ribbed socks on a Ricoma embroidery machine, what stabilizer, topping, and needle setup prevents stitches from sinking into the ribs?
  A: Use medium-weight tearaway as the base + water-soluble topping, and stitch with a 75/11 ballpoint needle.
  • Install: Switch the active needle to a Ballpoint (BP) to avoid slicing knit fibers.
  • Stack: Float ribbed socks on medium tearaway (about 1.8–2.5 oz) and cover the design area with water-soluble film topping.
  • Apply: Place topping only after the alignment pin is removed and the hoop is loaded.
  • Success check: The lettering looks crisp and sits visibly above the rib texture instead of disappearing into valleys.
  • If it still fails: Increase design density by about 10–15% and confirm topping fully covers the design with margin.
• Q: On a Ricoma commercial embroidery machine, what is the correct sequence for pin alignment, hoop loading, and topping so a sock pin never gets hit by the needle?
  A: Load the hoop first, align the needle to the pin mark, remove the pin, then apply water-soluble topping—do not deviate.
  • Load: Snap the hoop into the pantograph and confirm the hoop arms audibly “click” locked.
  • Align: Use the control panel to bring the chosen needle (example used: Needle 2) directly over the pin mark.
  • Remove: Pull the pin out immediately before the machine runs.
  • Success check: No pins remain anywhere in the active stitch field when the trace/run begins.
  • If it still fails: Stop and re-stage pins perpendicular and away from the stitch path, then re-do alignment from the start.
• Q: On a Ricoma multi-needle machine, how can Odif 505 be applied for floating sock embroidery without making the stabilizer wet or gummy?
  A: Use a fast, light mist from 8–10 inches away and stop as soon as the surface feels tacky, not wet.
  • Loosen: Back off the outer hoop screw significantly before inserting the inner ring to avoid corner “waffle” wrinkles.
  • Spray: Hold Odif 505 about 8–10 inches away and mist quickly and evenly.
  • Test: Touch with a knuckle; aim for a Post-it tack, not a slick wet patch.
  • Success check: The sock stays planted during stitching (no creeping/flagging sounds) without visible gummy spots on stabilizer.
  • If it still fails: Replace old/dry tearaway and re-spray evenly; weak adhesion is a common cause of sock shifting.
• Q: On a Ricoma embroidery machine stitching ribbed socks, what causes loud sock “flagging” and how can the floating setup be stabilized fast?
  A: Flagging usually means the sock is not firmly bonded to the sticky stabilizer—stop immediately and reset adhesion rather than “pushing through.”
  • Stop: Hit stop/emergency stop as soon as bouncing starts; continuing often ruins placement.
  • Reset: Re-press the sock firmly onto the sticky tearaway (center-out), and avoid repeated lift-and-restick.
  • Rebuild: If adhesion is weak, start over with fresher tearaway and more uniform 505 coverage.
  • Success check: The sock runs quietly with minimal vertical bounce and the design tracks cleanly without distortion.
  • If it still fails: Reduce speed to the recommended 600–750 SPM range and confirm the hooped stabilizer is drum-tight.
• Q: On a Ricoma multi-needle embroidery machine, how can white bobbin thread showing on top be reduced during ribbed sock embroidery?
  A: Slow the machine and check the thread path/tension cleanliness before making big tension changes.
  • Slow: Drop speed to about 600 SPM as a first response (the guide flags 1000 SPM as risky on ribbed socks).
  • Check: Verify bobbin path is correct and bobbin supply is adequate before starting (avoid mid-sock bobbin changes).
  • Clean: Remove lint from tension disks and the bobbin case area, then re-evaluate top tension.
  • Success check: Top stitches look filled with the needle thread color, with minimal white bobbin “peek-through.”
  • If it still fails: Pause production and adjust top tension in small steps per the machine manual after cleaning is confirmed.
• Q: For a sock embroidery production workflow, when should an operator upgrade from technique fixes to magnetic embroidery hoops or a SEWTECH multi-needle embroidery machine?
  A: Upgrade in layers: first standardize the floating sock process, then use magnetic hoops for clampable garments to reduce hooping fatigue, then move to multi-needle when thread-change time becomes the profit bottleneck.
  • Level 1 (Technique): Standardize one-touch placement, chalk crosshair height marks (1.5–2 inches down from cuff), and slower speed (600–750 SPM).
  • Level 2 (Tooling): Use magnetic hoops on items that can be clamped (polos/hoodies in the same order) to cut screw-hooping fatigue and improve repeatability.
  • Level 3 (Capacity): Choose a multi-needle platform like SEWTECH when frequent color changes on a single-needle machine are slowing throughput.
  • Success check: Setup time drops, placement repeatability improves across orders, and operators report less wrist strain.
  • If it still fails: Build a simple hooping station/grid to lock placement coordinates before investing further, then reassess volume and labor time.
