Stiff Tension Knobs on a Multi-Needle Embroidery Machine? Fix the Split Post Without Stripping Threads

The "False Tension" Trap: Fixing Stiff Knobs & Mastering Machine consistency

If you have ever turned a tension knob and felt a gritty, stubborn resistance—even when the tension spring is completely loose—you are experiencing a "phantom reading." Your fingers tell you the tension is tight, but the machine tells a different story: loose loops, bird nests, and inconsistent stitch quality.

As we scale from single-needle hobby units to high-output production gear, understanding the tactile feedback of your machine becomes a critical skill. On a commercial multi-needle head, a stiff knob creates a dangerous feedback loop I call "False Confidence." You feel resistance, so your brain says, "That's enough torque." In reality, you are fighting screw thread friction, not compressing the spring. The spring never gets the load it needs, and you are left chasing "moody" tension settings that change every time you touch the dial.

This guide provides a definitive, technician-level fix for the split-post tension assembly found on many commercial machines (like the butterfly embroidery machine and similar tubular models). We will correct the mechanical defect, calibrate your "hand feel," and discuss when to stop fighting your machine and start upgrading your workflow with better tooling.

The Anatomy of the Lie: When the Knob Fights the Post

Before we pick up tools, we must understand the physics of the failure. A correct thread tension reading comes from the compression of the spring against the tension discs. The knob is merely the actuator that compresses that spring.

However, many tension posts are designed as a "split bolt"—a metal threaded post cut down the middle to allow for expansion. If that split post is too wide, the plastic knob binds against the metal threads.

The Diagnostic Test (Sensory Check) How do you know if you have this problem?

1. Unload the spring: Spin the knob counter-clockwise until the spring is loose and rattling.
2. The "Pinky Test": Try to turn the knob further with just your pinky finger.
3. The Verdict:
   • Good Condition: The knob spins freely, like a nut on a smooth bolt. You should hear a light whirring sound or silence.
   • Bad Condition: You feel a gritty, "cross-threaded" resistance. It requires a firm grip to turn. It feels "sticky."

This friction is the "lie." It masks the true tension value, leading to hours of wasted troubleshooting where you blame the needle, the bobbin, or the digitizer, when the culprit is simple mechanical friction.

Phase 1: Preparation & Safety Protocols

This is a mechanical intervention. We are going to physically alter the geometry of the tension post. In my 20 years of experience, I’ve seen operators crush threads by rushing this step. We will not be those operators.

Required Tooling

• Standard Pliers: Look for pliers with a broad, flat gripping surface.
• Flathead Screwdriver: Medium head (for emergency recovery only).
• Protection: Electrical tape or masking tape (optional, to wrap plier jaws).

The "Do No Harm" Pre-Flight

You are servicing a precision instrument. If you are working on a multiple needle embroidery machine, treating every head consistently is the key to scalability. Do not treat this as a brute-force operation.

Hidden Risk Check:

• Pliers Surface: Run your finger over the jaws of your pliers. Are there sharp serrations? If so, wrap them in tape. Serrated teeth can chew up the fine threads on the post, determining the part permanently.
• Cleanliness: Blow out any lint from the tension assembly before starting. Lint acts as a wedge, making the split post feel tighter than it is.

Prep Checklist (Action-First):

• Isolate the variable: Ensure the tension spring is fully decompressed or removed so you feel only the post friction.
• Remove the knob: Unscrew the plastic knob completely. Place it in a magnetic tray; these vanish easily.
• Inspect the split: Look closely at the metal post. Identify the orientation of the split gap.
• Select tool position: Orient your hand so you can squeeze perpendicular to the split (squeezing the two halves together).

Warning: Pinch Hazard. Keep fingers clear of the plier pivot point. Also, never apply "mechanic strength" to "instrument parts." The tension post is made of relatively soft metal; it bends easily. Over-torquing leads to snapping, which turns a 5-minute fix into a 2-week parts order delay.

Phase 2: The Calibration Squeeze (The Fix)

The objective is to slightly reduce the diameter of the split post—just enough to allow the plastic knob to glide.

Step-by-Step Execution

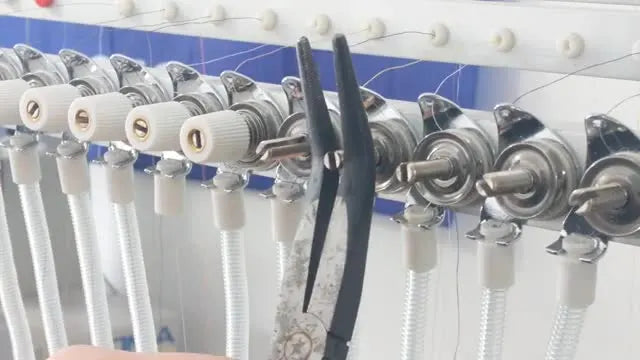

1. Position the Pliers: Approach the post from the side. Align the jaws so they press on the "solid" sides of the halves, driving them toward each other.
2. The Micro-Squeeze: Apply gentle pressure. Think of it like testing an avocado's ripeness, not crushing a can.
3. Auditory/Tactile Check: You will likely not see the metal move with your naked eye. You might feel a tiny "give" in the metal handles.
4. The "Gap Rule": Do not close the gap. The two halves of the post must never touch. If they touch, you have compromised the structural integrity and potentially the thread path.




Why "Micro-Increments" Matter

In the world of commercial embroidery, patience is profit. It is faster to squeeze gently, test, and squeeze again than it is to recover from a crushed post.

Phase 3: The Verification Loop

Before you put the machine back in rotation, you must verify the fix.

The "Butter-Smooth" Standard: Re-thread the plastic knob onto the post.

• Visual: Does it go on straight?
• Tactile: It should spin with zero drag until it hits the spring.
• Auditory: Silence. No grinding sounds.

If you are maintaining a 15 needle embroidery machine, perform this check on every single head. If Head 1 is loose and Head 15 is tight, your production runs will have variable density, defeating the purpose of a multi-needle machine.

Phase 4: Recovery Protocol (If You Squeezed Too Hard)

It happens. You applied too much force, and now the split post is too narrow. The knob wobbles, feels loose, or won't thread on because the angle is too steep. Do not panic. We use the "Rock, Don't Twist" method to recover.

The Controlled Widening Technique

1. Soft Engagement: Gently thread the knob on just a few turns—do not force it.
2. Flush Alignment: Screw it down until the top of the knob is flush with the metal post tip. This supports the threads.
3. Insert Tool: Place the tip of your flathead screwdriver into the split gap at the very top.
4. The Motion: gently rock the screwdriver back and forth.
   • Do NOT twist: Twisting applies lever force that can snap one side of the post off.
   • Do Rock: The rocking motion gently spreads the metal memory back open.








Warning: Breakage Risk. The metal post hardens with bending (work hardening). You only get a few chances to bend it back and forth before it snaps. Be decisive and gentle.

The Physics of Tension: Why This Matters (The "Why")

Why go through this trouble? Because Friction ≠ Torque.

When you tighten a tension knob, you are converting rational distance into linear force (compressing the spring). The machine manufacturers calibrate springs to provide specific gram-force (e.g., 100g to 130g for polyester top thread).

If your knob has high friction:

• Input: Your hand feels "tightness" (e.g., 500g of resistance).
• Reality: 450g of that is screw friction. Only 50g is pressing the spring.
• Result: Loose loops, thread breaks, and the dreaded "looping on the bottom" (which is actually a top tension issue).

Operators coming from brother multi needle embroidery machines often find industrial tension systems feel different. The goal is not to match the "feel" of a specific brand, but to remove mechanical noise so that Feel = Reality.

Addressing the "New Spring" Myth

A common question arises: "I replaced all my springs and now everything is tight, even with knobs loose."

If the knobs spin freely (you've done the fix above) and tension is still sky-high, you have a different problem:

• Spring Rate Error: Industrial springs come in different weights. You may have installed a "heavy duty" spring intended for metallic thread on a standard rayon/poly setup.
• Pathing Error: Is the thread double-wrapped?
• Bobbin Conflict: Sometimes, the issue is a bobbin case tension that is set too loose, making the top tension feel comparatively tight.

Always isolate the friction of the knob first. Once the knob is neutral, you can accurately diagnose the spring.

Troubleshooting Logic: Structured Path to Stability

Use this table when your machine starts "acting up." Always fix mechanical issues (Low Cost) before messing with digitizing files (High Cost).

The Production Pivot: From Fixing to Scaling

In my consulting work, I see shop owners obsess over tension knobs when their real profit leak is elsewhere. Yes, a stiff knob causes downtime. But once you fix it using the steps above, you hit a plateau.

You cannot "maintenance" your way to double capacity. You must "upgrade" your way there.

If you have dialed in your tension but still struggle with:

• Hoop Burn: Those ugly rings left on delicate polos or performance wear.
• Wrist Fatigue: The physical toll of screwing and unscrewing traditional hoops 50 times a day.
• Setup Time: Taking 3 minutes to hoop a shirt that only takes 5 minutes to sew.

Then your bottleneck isn't the machine—it's the fixturing.

The Logic of the Tool Upgrade

We use specific terms like hooping stations and magnetic frames not because they are trendy, but because they mathematicaly reduce "non-sew time."

Transitioning from standard screw-hoops to magnetic embroidery hoops is often the highest ROI change a shop can make.

• Standard Hoops: Require manual adjustment for every thickness change. High risk of fabric abrasion (burn).
• Magnetic Hoops: Self-adjusting thickness. Zero screw tightening. The magnets clamp the fabric flat without the "tug and pull" that distorts weaves.

Decision Tree: Fabric vs. Stabilizer vs. Hoop

Stop guessing. Use this logic tree to standardize your workflow.

Scenario A: Performance Wear / Dri-Fit (Stretchy & Slippery)

• Risk: Fabric puckering and hoop burn marks.
• Stabilizer: Cutaway (2.5oz - 3.0oz). No-show mesh is preferred for comfort.
• Hoop Choice: magnetic embroidery frame.
  • Why: The magnets hold the slick fabric firmly without the "crushing" force of a plastic ring inner hoop. It prevents the white "halo" mark.

Scenario B: Heavy Carhartt Jackets / Canvas (Thick & Tough)

• Risk: Unable to close the hoop; popping out mid-sew.
• Stabilizer: Tearaway (ensure it's crisp) or heavy cutaway.
• Hoop Choice: magnetic embroidery hoops (High Strength).
  • Why: You don't need to unscrew the hoop to the absolute limit. The magnets snap over the thick seams effortlessly.

Scenario C: Standard Cotton T-Shirts (Medium Weight)

• Risk: Alignment issues.
• Stabilizer: Medium Cutaway.
• Hoop Choice: Standard tubular hoop OR Magnetic.
  • Why: Standard hoops work fine here, but if volume > 50 units/day, switch to magnetic to save operator wrists.

Warning: Magnetic Safety. Industrial magnetic hoops use Neodymium magnets. They are incredibly powerful. 1) Never place them near pacemakers. 2) Watch your fingers—they snap shut with bone-pinching force. 3) Do not slide them across the table; lift them to remove, to avoid scratching surfaces.

Final Verify: The "Ready to Run" State

You have squeezed the post, checked the spin, and selected the right hoop. Before you press start, do the Final Three Check.

Final Operation Checklist:

• Knob Spin: The knob spins perfectly smooth with one flick of the finger.
• Spring Engagement: As you tighten, you feel gradual, linear resistance—pure spring compression.
• Consistency: If working on a multi-head, verify Head 1 feels exactly like Head 6.
• Thread Path: Ensure thread is deep between the tension discs (floss it in).

When you eliminate mechanical friction from your controls, you regain control of your craft. Your machine stops being a "mystery box" and becomes the precision tool it was meant to be. Now, go hoop something difficult and watch it run perfectly.

FAQ

• Q: How do I fix a stiff embroidery thread tension knob on a split-post tension assembly when the tension spring is already loose?
  A: Reduce split-post binding with a gentle pliers “micro-squeeze” so the knob turns freely before it contacts the spring.
  • Unload/remove the tension spring so hand-feel reflects post friction only.
  • Remove the plastic tension knob and inspect the split gap on the metal post.
  • Squeeze the post halves together perpendicular to the split using broad pliers (tape the jaws if serrated).
  • Test frequently; repeat in micro-increments and do not close the split gap.
  • Success check: the knob spins straight and butter-smooth with one finger until it reaches the spring, with no grinding sound.
  • If it still fails: blow out lint and re-check that the resistance is not coming from dirty tension discs.
• Q: How can I diagnose “false tension” when an embroidery machine tension knob feels tight but stitches still look loose and loopy?
  A: Confirm the knob resistance is screw-thread friction (not spring compression) using the spring-unloaded pinky test.
  • Spin the knob counter-clockwise until the spring is loose and rattling.
  • Turn the knob further using only a pinky finger to feel for free-spinning vs gritty drag.
  • Treat gritty, cross-threaded feel as a mechanical friction problem in the split post.
  • Success check: in good condition, the knob spins freely like a nut on a smooth bolt and you hear silence or a light whir.
  • If it still fails: after fixing knob friction, check whether the thread is properly seated deep between the tension discs.
• Q: What should I do if I squeezed an embroidery machine split tension post too hard and now the tension knob wobbles or won’t thread on?
  A: Use the “rock, don’t twist” screwdriver method to gently widen the split gap without snapping the post.
  • Start the knob on a few turns gently; do not force it.
  • Screw down until the knob top is flush with the post tip to support the threads.
  • Insert a flathead screwdriver tip into the split at the very top.
  • Rock the screwdriver back and forth lightly; do not twist.
  • Success check: the knob threads on straight and spins smoothly without wobble or rattling.
  • If it still fails: stop bending further—work-hardening can cause breakage, and the safest next step is parts/service guidance.
• Q: How do I clean embroidery machine tension discs when the thread pull feels “crunchy” and tension becomes inconsistent?
  A: Clean lint out of the tension discs before adjusting settings because debris can mimic tension problems.
  • Blow out lint around the tension assembly before any calibration work.
  • Floss the tension discs with un-waxed floss to remove packed debris.
  • Re-thread the top path carefully and ensure the thread seats fully between the discs.
  • Success check: pulling thread by hand feels smooth (no gritty “crunch”) and tension changes respond predictably to knob turns.
  • If it still fails: re-run the spring-unloaded knob friction test to ensure the knob feel matches real spring compression.
• Q: What causes birdnesting under the needle plate on a commercial embroidery machine when the design starts, and what is the fastest fix?
  A: Treat birdnesting under the plate as “zero top tension” first—most often the top thread is not actually in the tension discs.
  • Stop the machine and re-thread the top path from spool to needle.
  • Confirm the thread is seated deep between the tension discs (floss it in if needed).
  • Check for normal drag: the thread should not fall through the needle with zero resistance.
  • Success check: after re-threading, the first stitches form cleanly without a wad building under the plate.
  • If it still fails: verify the tension knob turns freely (no false tension from split-post friction) before changing needles or files.
• Q: What are the safety risks when squeezing an embroidery machine split tension post with pliers, and how can I avoid damaging the threads on the post?
  A: Use controlled force and protected tools—over-torque and sharp plier jaws can permanently damage the post or snap it.
  • Feel the plier jaws; if serrated/sharp, wrap with electrical or masking tape before gripping the post.
  • Keep fingers clear of the plier pivot point to avoid pinch injuries.
  • Apply only a micro-squeeze; never use “mechanic strength” on soft precision parts.
  • Success check: the post threads remain clean (not chewed), the split gap is still open, and the knob threads on smoothly.
  • If it still fails: avoid repeated bend cycles—metal can work-harden and break; move to a recovery method or service support.
• Q: When should an embroidery shop upgrade from screw hoops to magnetic embroidery hoops to reduce hoop burn, wrist fatigue, and setup time?
  A: Upgrade to magnetic hoops when hooping—not stitching—becomes the bottleneck, especially on delicate performance wear or high daily volume.
  • Choose stabilizer and hoop by fabric: performance wear often pairs with cutaway (no-show mesh preferred) plus a magnetic frame to reduce “halo” marks.
  • Use magnetic hoops for thick workwear/canvas when standard hoops are hard to close or pop out mid-sew.
  • Keep standard hoops for typical cotton tees if volume is low; switch to magnetic when repetitive tightening causes slowdowns and operator fatigue.
  • Success check: garments clamp flat with less distortion, hoop marks reduce, and hooping time drops noticeably without constant screw adjustment.
  • If it still fails: re-check stabilizer choice and confirm the fabric is not being stretched during hooping, then reassess whether production needs a multi-needle capacity upgrade.
