Stop Fighting Sweatshirt Sleeves: Clean Sleeve Embroidery on a Ricoma EM-1010 with a Fast Frame (Without Stitching It Shut)

Sleeves can make even confident embroiderers feel clumsy. The problem isn’t your design skill—it’s physics. You are fighting a narrow tube, stretchy knit fabric, and a heavy garment body that wants to drag everything down gravity’s well.

If you are running a multi-needle machine like the ricoma em 1010 embroidery machine, you can achieve clean, repeatable sleeve results without the dreaded "hoop burn," puckering, or the nightmare scenario of stitching the sleeve shut.

Below is the definitive, empirical workflow based on Ana’s demonstration, calibrated with industrial safety margins to keep your production profitable and your blood pressure low.

The Calm-Down Primer: Why Sweatshirt Sleeve Embroidery Feels Hard (and Why It’s Fixable)

Embroidery on a sweatshirt sleeve creates a "perfect storm" of resistance variables:

1. Instability: Knit fabric stretches under pressure. If you pull it too tight, the design looks perfect in the hoop but wrinkles like a raisin once removed (this is "relaxation distortion").
2. Gravity: The heavy body of the sweatshirt hangs off the machine arm, creating leverage that can tilt specialized frames, causing needle breaks.
3. Clearance: The sleeve is a tube. One moment of distraction, and you stitch the front to the back.

The fix is not "muscle it harder." The fix is controlled tension (using correct stabilizers), clearance discipline (checking the path), and tool optimization. In high-volume shops, this often means upgrading to magnetic systems to bypass the friction of mechanical frames entirely.

The “Hidden” Prep That Saves the Job: Marking Placement on a Sweatshirt Chest and Sleeve

Ana starts by treating placement as a geometry problem, not an art project. We need strict anchors.

Hidden Consumables Checklist (Don't start without these)

• Tailor’s Chalk / Yellow Chalk: For dark fabrics (wipes off easily).
• Water Soluble Pen: For light fabrics (never use heat-erasable pens on areas that might get cold, or marks return).
• Ruler/T-Square: For perpendicular lines.
• Spray Adhesive (Temporary): Vital for floating stabilizer.

Chest placement (front of sweatshirt)

1. Fold the sweatshirt in half vertically to create a center crease.
2. Mark the Center: Use yellow chalk to mark the crease line. You should feel the drag of the chalk against the fabric grain.
3. The "3-Inch Rule": Measure 3 inches down from the bottom of the collar ribbing. Mark this crosshair. This is the industry-standard "sweet spot" for left-chest logos.
4. Reference Lines: Draw a simple cross so your paper template has a visual anchor.




Sleeve placement (near the cuff)

1. Fold the sleeve flat to find the center line opposite the underarm seam.
2. Baseline: Use the cuff seam (where the ribbing meets the sleeve) as your zero point.
3. Measurement: Measure 1.5 to 3 inches up from the cuff seam, depending on the logo size. Ana uses 3 inches.
4. Marking: Make a distinct crosshair here.


Warning (Safety Protocol): Keep scissors, seam rippers, and fingers at least 4 inches away from the needle bar when test-fitting bulky garments. A heavy sweatshirt can "spring" or slide abruptly as you shove it onto the arm, potentially driving your hand into the needles.

Pro tip: Once you find a placement you like (e.g., "3 inches up"), write it on your Standard Operating Procedure (SOP) sheet. Consistency is the difference between a hobbyist and a professional.

Prep Checklist (Do this **before** touching the hoop)

• Chalk marking tool and ruler ready.
• Paper template printed and aligned on the garment.
• Stabilizers staged: Cutaway, Sticky Tear-Away, and Water-Soluble Topper.
• Safety Check: Are your needles sharp? (Ballpoint 75/11 recommended for sweatshirts).
• Gravity Plan: Is there a table or surface to support the heavy sweatshirt body?


Nail the Chest First: HoopMaster Alignment Without the Guesswork

For the chest, consistency is king. Using a hooping station eliminates the variable of "hand tremors."

1. Load Stabilizer: Place black cutaway stabilizer on the station.
2. Load Garment: Pull the sweatshirt over the station board.
3. Align: Match your yellow chalk mark with the station’s grid lines.
4. Tactile Check: Run your hands over the fabric. It should be smooth but not stretched. If you pull it tight, the embroidery will distort.
5. Hooping: Insert the top hoop with a firm press. You should hear a distinct "click" or "thud" as the magnetic or mechanical inner ring seats.

Devices like the hoopmaster hooping station significantly reduce "redo time"—the most expensive cost in your shop.

The Surface Texture Fix: Ana adds water-soluble topper on the chest. Tape it down.

• Why? Sweatshirts have a "pile" (fuzzy texture). Without topper, stitches sink into the fuzz.
• Visual Check: The thread should sit on top of the fabric, not buried in it.

The Sleeve Game-Changer: Prepping an 8-in-1 Fast Frame the Way It Actually Holds

Now, the sleeve—the intimidating part. Ana uses an 8-in-1 metal attachment. In the industry, we classify these as fast frames embroidery hoops, designed specifically for unhoopable narrow tubes like socks, sleeves, and pockets.

The "Sandwich" Strategy (Corrected Workflow)

The video captures a common error (putting backing on backwards). Here is the correct, Fail-Safe method for loading sticky stabilizer:

1. Cut: Cut a piece of Sticky Tear-Away stabilizer slightly larger than the metal frame.
2. Peel & Stick: Peel the release paper. Stick the non-adhesive side to the bottom (underside) of the metal frame. The sticky side should be facing UP through the window.
3. Secure: Fold the excess edges around the metal frame rails to lock it in place.
4. The Cutaway Layer: Since sticky stabilizer offers zero long-term support, cut a piece of Cutaway stabilizer and stick it to the underside of the window (or float it under the frame later).




Critical Stabilizer Logic: Ana recommends using cutaway stabilizer underneath the sticky stabilizer.

• Why? Sticky Tear-Away holds the fabric during stitching. Cutaway holds the stitches forever. Without cutaway, your sleeve logo will deform after the first wash.

Viewer Question Solved: "How do I layer them?"

The Stack:

1. Bottom: Machine Arm.
2. Layer 1: Cutaway Stabilizer (floating or stuck to the bottom of the sticky stabilizer).
3. Layer 2: Sticky Tear-Away (stuck to the frame).
4. Top: The Sleeve Fabric.

The Sleeve Hooping Ritual: Insert the Frame Inside the Sleeve (and Control the Stretch)

This is the "make-or-break" moment for quality.

1. Insertion: Slide the metal frame inside the sleeve.
2. Sticky Window: Ensure the sticky side is facing UP, directly under the marking area.
3. Alignment: Align your chalk crosshair with the frame's center notch.
4. The "Pat-Down": Press the fabric firmly onto the sticky surface.
   • Sensory Check: Do not stretch the fabric smooth. Pat it down in its relaxed state. If it looks like a tight drum skin, you have stretched it too much. It should look flat but relaxed.




Commercial Insight: If you struggle with clamping thick sweatshirts or leaving permanent "hoop burn" marks on delicate cuffs, consider upgrading to Magnetic Hoops. Many professionals search for how to use magnetic embroidery hoop solutions specifically because magnets hold thick fleece without the mechanical crushing force of traditional plastic hoops, saving both your wrists and the garment.

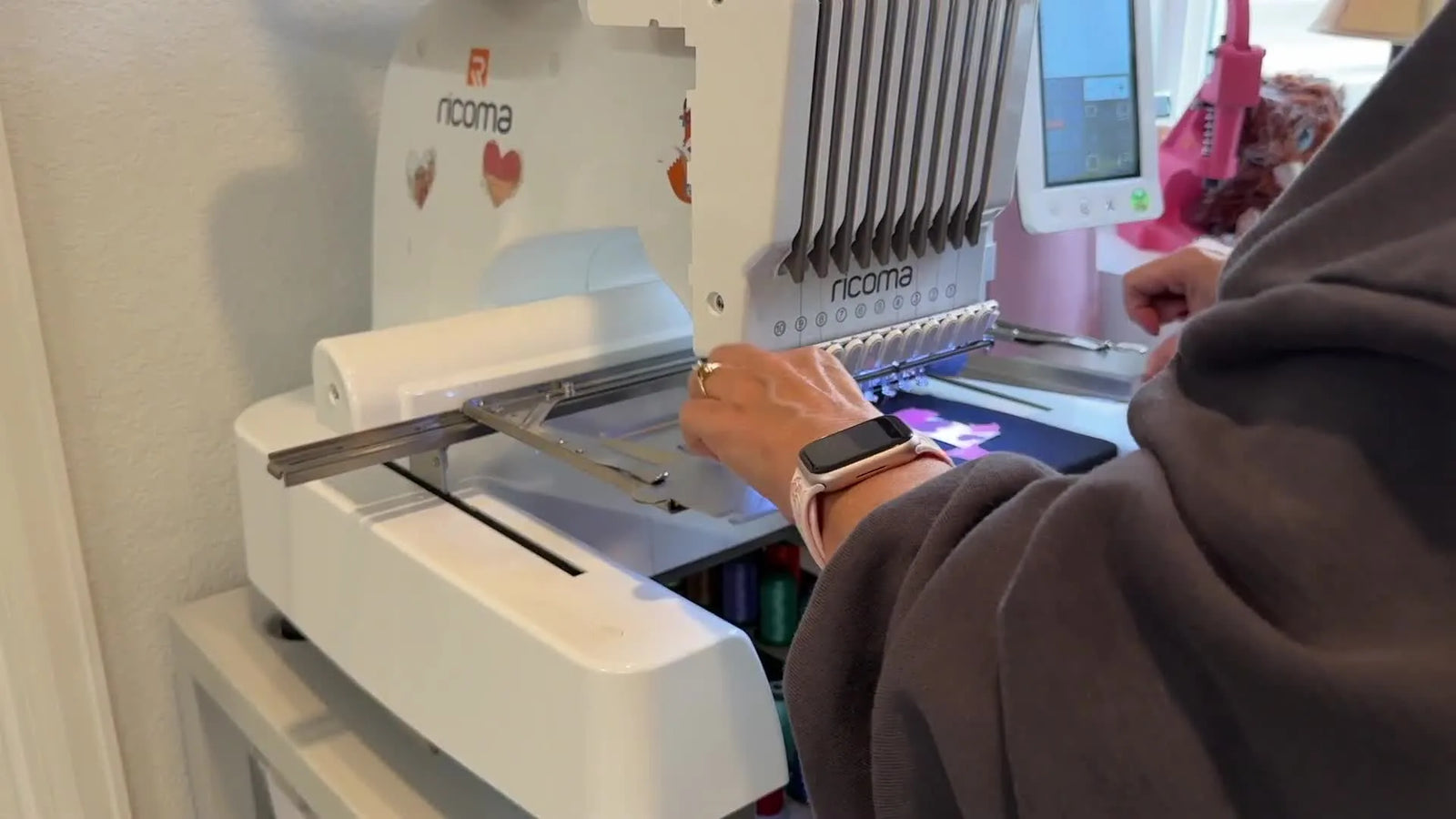

The Bulk Management Moment: Loading a Sleeve on the Ricoma without Stitching It Shut

Ana identifies this as the hardest part. It requires spatial awareness.

1. Mounting: Slide the loaded frame onto the machine's pantograph arm. Listen for the lock engaged sound.
2. The "Tuck": Check the bulk of the sweatshirt. Tuck the body under the machine arm or support it on a table.
3. The Clearance Sweep: Visually verify that the back layer of the sleeve is not bunching up under the needle plate.




This creates the foundation of hooping for embroidery machine mastery: Managing gravity. If the sweatshirt hangs heavy, it pulls the sleeve frame down, causing "flagging" (bumping) and needle deflection.

Warning (The "Death Zone"): Before pressing Start, perform a Manual Clearance Sweep.
1. Turn off the machine or lock the screen.
2. Put your hand inside the sleeve tube while it is on the machine.
3. Feel underneath the needle plate. Is the path clear?
Stitching a sleeve shut is a 10-second mistake that takes 30 minutes to unpick.

Setup Checklist (Right before running the trace)

• Frame is locked securely on the machine arm (wiggle it to check).
• Sweatshirt body is supported (table or stand), not dragging the arm down.
• Back layer check: Verified clear via hand-sweep.
• Topper is cut and within reach.
• Binder clips are ready.

The Binder-Clip Trick That Stops Ruffles: Topper + Clamping on a Metal Sleeve Frame

Unlike magnetic hoops which clamp the entire perimeter, open "fast frames" only hold the fabric via adhesive. This isn't enough for dense designs.

The Fix:

1. Place water-soluble topper over the area.
2. Use black binder clips (small/medium size) to clamp the fabric and topper to the sides of the metal frame.


• Why? This physical clamp stops the fabric from lifting (flagging) when the needle pulls out. It creates a stable "bridge" for the embroidery.

Ricoma Screen Settings That Prevent a Bad Surprise: Hoop Size “Other” + Trace

On the interface (Ricoma or similar):

1. Hoop Selection: Select “Other” or the specific fixture setting. Do not select a standard round hoop size, or the machine might limit your field incorrectly.
2. Speed Limiter: CRITICAL STEP. Reduce your speed. For sleeve frames (which bounce more than standard hoops), set your max speed to 600-700 SPM (Stitches Per Minute). Running at 1000 SPM on a cantilevered sleeve frame causes vibration and poor registration.
3. The Trace: Run a design trace. Watch the needle bar. Does it get dangerously close to the metal frame clips? Adjust positioning if needed.


Using specialty tools like the ricoma 8 in 1 device requires respecting the machine's strict physical limits. Always trace twice.

Stabilizer Strategy for Sweatshirt Sleeves: Sticky Tear-Away Isn’t Enough

Ana’s advice supports the "Golden Rule of Knits": If it stretches, use Cutaway.

Here is the decision logic for your shop:

Decision Tree: Sleeve Stabilizer Selection

• Is the fabric a Knit (Sweatshirt, T-Shirt)?
  • YES -> Base: Cutaway + Fix: Sticky Tear-Away + Top: Water-Soluble. Why? Structure + Hold + Texture.
  • NO (Woven Shirt, Denim) -> Base: Sticky Tear-Away is usually sufficient. Why? Fabric is stable.
• Is the garment heavy/thick?
  • YES -> Use Binder Clips or Magnetic Hoops for extra hold. Adhesive alone may fail against the heavy drag.

The "Best Practice" Stack:

1. Sticky Stabilizer: For positioning and registration.
2. Cutaway: For lifespan durability.
3. Topper: For clean, crisp text on fuzzy fleece.

Troubleshooting Sleeve Embroidery: The "Symptom-Fix" Matrix

When things go wrong on sleeves, they go wrong quickly. Use this diagnosis table:

The Upgrade Path: From Frustration to Profit

Ana notes that sleeves are "a job for somebody," implying they are difficult but profitable. If sleeves transition from an occasional favor to a core revenue stream for your business, your equipment must evolve.

How to Identify When to Upgrade:

1. Pain Point: Wrist pain from forcing hoops; Hoop burn marks on customers' cuffs.
   • The Upgrade: SEWTECH Magnetic Hoops.
   • Why: They snap on automatically. No screwing, no forcing, no burn marks. They hold thick sweatshirts securely without crushing fibers.
2. Pain Point: Inconsistent placement (logos jumping up and down).
   • The Upgrade: Hooping Stations (like HoopMaster).
   • Why: Mechanical alignment ensures every sleeve in a 50-shirt order looks identical.
3. Pain Point: Need for Speed (Changing threads constantly).
   • The Upgrade: SEWTECH / Ricoma Multi-Needle Machines.
   • Why: Pre-thread 10-15 colors. Dedicated sleeve arms. Higher torque for punching through thick seams.

Operation Checklist (The "Pre-Flight" Launch)

• Water-soluble topper is clamped tight (glass-smooth surface).
• Binder clips are secured away from the needle path.
• Hoop size set to "Other".
• Trace Logic: Completed and visually verified.
• Speed Check: Lowered to <700 SPM.
• Clearance: Hand sweep confirmed back of sleeve is free.


When the machine stops, remove the topper (tear it off, use a wet Q-tip for remnants), trim the stabilizer on the back (leaving a clean margin of cutaway), and inspect. A professional sleeve embroidery should feel flexible but supported—ready for wear, wash, and repeat business.

FAQ

• Q: What marking tools and prep supplies are required before embroidering a sweatshirt sleeve on a Ricoma EM-1010 multi-needle embroidery machine?
  A: Use a reliable marking tool + ruler setup and stage stabilizers before any hooping so placement and hold are repeatable.
  • Gather: tailor’s chalk (yellow for dark fabric) or a water-soluble pen (for light fabric), plus a ruler/T-square, temporary spray adhesive, and paper template.
  • Stage: cutaway stabilizer, sticky tear-away stabilizer, and water-soluble topper within arm’s reach.
  • Check: install a sharp ballpoint 75/11 needle before starting (a common safe choice for sweatshirts; confirm with the machine manual).
  • Success check: placement crosshair is clearly visible and stabilizers are pre-cut so you are not scrambling mid-hoop.
  • If it still fails… re-check that the marking line is centered using a fold crease, not “eyeballing.”
• Q: How do I mark correct left-chest logo placement on a sweatshirt for machine embroidery using a HoopMaster hooping station?
  A: Use the center crease + the 3-inch-down reference so every sweatshirt lands in the same “sweet spot.”
  • Fold: fold the sweatshirt vertically to create a center crease.
  • Mark: chalk the center line, then measure 3 inches down from the bottom of the collar ribbing and mark a crosshair.
  • Align: match the crosshair to the HoopMaster station grid before pressing the hoop/ring into place.
  • Success check: fabric feels smooth but not stretched when you run your hands over it (flat, not drum-tight).
  • If it still fails… slow down and re-seat the hoop/ring; inconsistent hoop seating is a common source of “logo drift.”
• Q: What is the correct stabilizer stack for embroidering a sweatshirt sleeve with a fast frame (metal sleeve frame) so the logo survives washing?
  A: Do not rely on sticky tear-away alone—use cutaway for permanent support, sticky for holding, and topper for clean stitches on fleece.
  • Load: stick sticky tear-away to the underside of the metal frame so the sticky window faces up through the opening.
  • Add: place cutaway stabilizer underneath (float it under the frame or attach it under the sticky layer) for long-term structure.
  • Top: apply water-soluble topper on the outside surface before stitching if the sweatshirt is fuzzy.
  • Success check: sleeve fabric is patted down in a relaxed state (flat, not stretched) and the topper lies smooth on top of the pile.
  • If it still fails… replace the sticky sheet (loss of tack is a frequent cause of shifting/flagging).
• Q: How do I avoid stitching a sweatshirt sleeve shut when loading a sleeve frame on a Ricoma multi-needle embroidery machine?
  A: Perform a manual clearance sweep every time—this prevents the back layer from getting caught under the needle path.
  • Mount: lock the sleeve frame onto the machine arm and support the heavy sweatshirt body on a table or under the arm.
  • Sweep: before pressing Start, put a hand inside the sleeve tube and feel under the needle plate area to confirm the back layer is clear.
  • Verify: visually check bulk is tucked away and not bunching behind the stitching field.
  • Success check: you can freely move your hand inside the sleeve tube without feeling fabric trapped near the needle plate.
  • If it still fails… stop immediately and repeat the sweep; one missed fold can still get pulled in during the first stitches.
• Q: How do I stop flagging and ruffles on sweatshirt sleeve embroidery when using a fast frame instead of a magnetic hoop?
  A: Clamp the fabric and topper to the metal frame sides with binder clips because adhesive alone often cannot resist dense stitching pull.
  • Cover: place water-soluble topper over the sleeve embroidery area.
  • Clamp: add small/medium binder clips to the sides of the metal frame, keeping clips away from the needle path.
  • Support: keep the sweatshirt body supported so gravity is not tugging the frame downward.
  • Success check: the surface stays “glass-smooth” and does not bounce when the needle penetrates and lifts.
  • If it still fails… re-check stabilizer freshness and reduce speed; vibration makes flagging worse.
• Q: What Ricoma screen settings prevent vibration and needle strikes when running a sleeve fast frame, and what speed should be used?
  A: Select the correct hoop setting and slow down to reduce vibration; always trace to confirm clearance.
  • Set: choose hoop size “Other” (or the specific fixture option) instead of a standard round hoop size.
  • Limit: cap maximum speed at 600–700 SPM for sleeve frames to reduce bounce and registration issues.
  • Trace: run a trace (often twice) and watch for close passes near metal frame edges or binder clips.
  • Success check: the trace completes with safe clearance—no near-contact between needle path and frame/clips.
  • If it still fails… reposition the design within the safe area and repeat the trace before stitching.
• Q: What safety rules should be followed when test-fitting a bulky sweatshirt sleeve frame near the needle bar on a Ricoma-style multi-needle embroidery machine?
  A: Keep hands and tools away from the needle bar area because bulky garments can spring or slide suddenly during loading.
  • Keep: scissors, seam rippers, and fingers at least 4 inches away from the needle bar during test-fitting.
  • Lock: turn off the machine or lock the screen before doing any manual clearance checks inside the sleeve tube.
  • Support: stabilize the sweatshirt body on a table/stand so it does not yank the frame unexpectedly.
  • Success check: you can mount the frame and position the garment without the sweatshirt “dropping” or pulling your hands toward the needles.
  • If it still fails… stop and reset the garment support; gravity management is a safety issue, not just a quality issue.
• Q: When should a shop upgrade from standard hoops to magnetic hoops or upgrade to a multi-needle embroidery machine for sweatshirt sleeves?
  A: Upgrade when the problem is repeatable and costs time or damages garments—start with technique, then tooling, then capacity.
  • Level 1 (technique): correct stabilizer stack (cutaway + sticky + topper), binder clips, manual clearance sweep, and slower speed (600–700 SPM).
  • Level 2 (tooling): move to magnetic hoops if mechanical hoop force causes hoop burn marks, cuff crushing, or wrist strain (this is common with thick fleece).
  • Level 3 (capacity): consider a multi-needle setup when sleeve work becomes frequent and thread changes/torque limits are hurting throughput.
  • Success check: rework time drops (fewer unpicks/redo hoops) and placement becomes consistent across repeat orders.
  • If it still fails… document the winning placement and setup in an SOP so results stay consistent across operators.
