Stop Looping and Foot Marks on a Meistergram GEM-XL 1500: Dial In Independent Presser Foot Height the Technician Way

The Silent Quality Killer: Mastering Presser Foot Height on Your 15-Needle Machine

Presser foot height is the “silent killer” in embroidery. It is the subtle mechanical adjustment that quietly controls everything you care about: crisp text definition, the absence of bird-nesting (looping), and ensuring your garments don’t come off the machine with permanent, shiny “hoop burn” marks.

If you are running a Meistergram GEM-XL 1500, a Tajima, or a SWF, you aren’t just adjusting one universal foot. On a 15 needle embroidery machine, you are adjusting each needle’s presser foot independently. That gives you incredible power to customize settings for different threads, but it also means one mis-calibrated bar can be the reason needle #4 runs perfectly while needle #5 loops, frays, or shreds your profit margin.

If you are reading this because your machine suddenly started "acting up"—shredding thread or leaving pressure marks—take a deep breath. This is not black magic. It is a controlled, mechanical calibration based on physics. Once you understand the sensory feedback—what it should feel and look like—you will stop chasing symptoms and fix the root cause.

The "Calm-Down" Check: Understanding the Physics of Contact

Before we touch a screwdriver, let’s define success. When the presser foot height is correct, the foot kisses the material at the very bottom of the needle stroke. This split-second contact acts as a clamp, stabilizing the fabric right where the needle penetrates.

When this calibration is off, you get two distinct categories of failure:

• Gap Too Large (Foot too high): The fabric "flags" (bounces up and down with the needle). This causes looping, thread breaks, and messy tatami fills because the loop isn't forming cleanly in the rotary hook.
• Gap Too Small (Foot too low/tight): The foot acts like a hammer, crushing the fabric fibers. This leads to pressure marks (sheen/bruising) that won't steam out, and it increases friction on the thread, leading to fraying.

On a multi-needle machine, managing these gaps across 15 different bars requires a systematic approach.

The "Hidden" Prep: What You Need (And What They Don't Tell You)

In the reference tutorial, Hector uses a specific spacer method: cut-away backing folded in two placed over the needle plate. This acts as a physical gauge to simulate the thickness of a garment.

Expert Note on Thickness: The video specifies "3mm cut-away backing." In the industry, 3mm is exceptionally thick (think 3D puff foam). It is highly likely the original context refers to a standard 3oz backing or a specific thick stabilizer stack. The Golden Rule: Your spacer should mimic the compressed thickness of the actual garment you plan to sew (e.g., a polo shirt + stabilizer).

The "Hidden" Consumables List: Don't start without these items to prevent frustration:

• A user-friendly Phillips screwdriver (magnetic tip recommended to catch falling screws).
• The Spacer: A scrap of stabilizer or fabric that matches your target job.
• A Magnetic Parts Tray: To hold the faceplate screws (never put them in your pocket).
• Good Lighting: A headlamp or directed task light is essential to see inside the head.

Warning: Mechanical Safety
Keep fingers, tools, and loose clothing/jewelry away from the needle area while rotating the main axis knob. When the needle bar descends, it creates a pinch point that can crush fingers or puncture skin. Always power down the drive motor if possible while making manual adjustments.

Prep Checklist (Pass/Fail)

• Correct Bar Identified: Are you looking at the needle bar that is currently jamming/marking?
• Spacer Ready: Do you have your folded backing (or fabric sample) ready to act as a gauge?
• Reference Point: Have you located the presser foot adjustment screw (usually a Phillips head just above the foot)?
• Return Strategy: Do you know how to return the machine to the "100" (Head Up) position via the panel?


Phase 1: Surgical Access

Removing the Faceplate Without the Drama Start by removing the face plate. This is the protective cover on the front of the sewing head.

Hector loosens the side screws holding the white metal faceplate cover, then gently pulls it away.

• Sensory Check: As you pull the plate, feel for resistance. Do not yank wires. There are often thread break sensor cables attached.
• Pro Tip: Place the screws immediately in your magnetic tray. This is where 90% of "lost screw" stories begin.


Phase 2: The Mechanical Lock-Down

Next, you must lock the needle bar down. Manually push the specific needle bar driver mechanism down until it clicks or locks into its lower position.

Why this matters: You are setting the foot height relative to the needle's lowest possible position. If the bar isn’t fully engaged, you will set a "false height." When the machine runs at 1000 SPM (Stitches Per Minute), that false height will result in immediate thread breaks.

• Troubleshooting: If the needle bar won't stay down, or the needle doesn't descend while you rotate the shaft, stop. Check if your machine is in "Head Up" or "Drive" mode. You may need to engage the specific embroidery head via your panel settings first.


Phase 3: The Spacer Gauge Strategy

Fold your stabilizer (or 3mm backing reference) to create a double thickness, then place it directly over the needle plate hole, right where the needle will strike.

The Logic: You are telling the machine, "This is how thick my shirt is."

• If you mostly embroider thick Carhartt jackets or hoodies, use a thicker spacer (perhaps the jacket fabric itself).
• If you mostly do thin dress shirts, use a thinner stabilizer fold.

This concept of "matching the tool to the fabric" is why users upgrading to commercial embroidery machines often see quality jumps—they allow for this level of granular, needle-by-needle control that domestic machines often lack.

Phase 4: Finding "Lowest Dead Point"

Locate the main access knob (usually on the side or rear of the head). Push the knob inward to engage the main shaft, then rotate it counter-clockwise (towards you).

Watch the needle bar carefully. It will descend, hit bottom, and then start to rise. You want to stop exactly at the very bottom of the stroke.

• Visual Anchor: Look at the needle tip. Stop rotation the moment it ceases downward movement, before it begins to retract.
• Hector calls this the lowest dead point. This is the non-negotiable reference for maximum penetration.


Phase 5: The Adjustment (The "Sweet Spot")

Identify the screw immediately above the presser foot. This is the Presser Foot Eccentric Screw or stopping screw. Use your Phillips screwdriver to loosen it.

• Sensory Anchor: You only need to loosen it enough so the foot slides. You aren't taking the screw out. A half-turn usually suffices.
• Once loosened, the presser foot shaft should slide up and down freely with your finger. If it doesn't, check for oil/gunk buildup or a bent shaft.


Phase 6: Calibrating the Squeeze

This is the most critical step step.

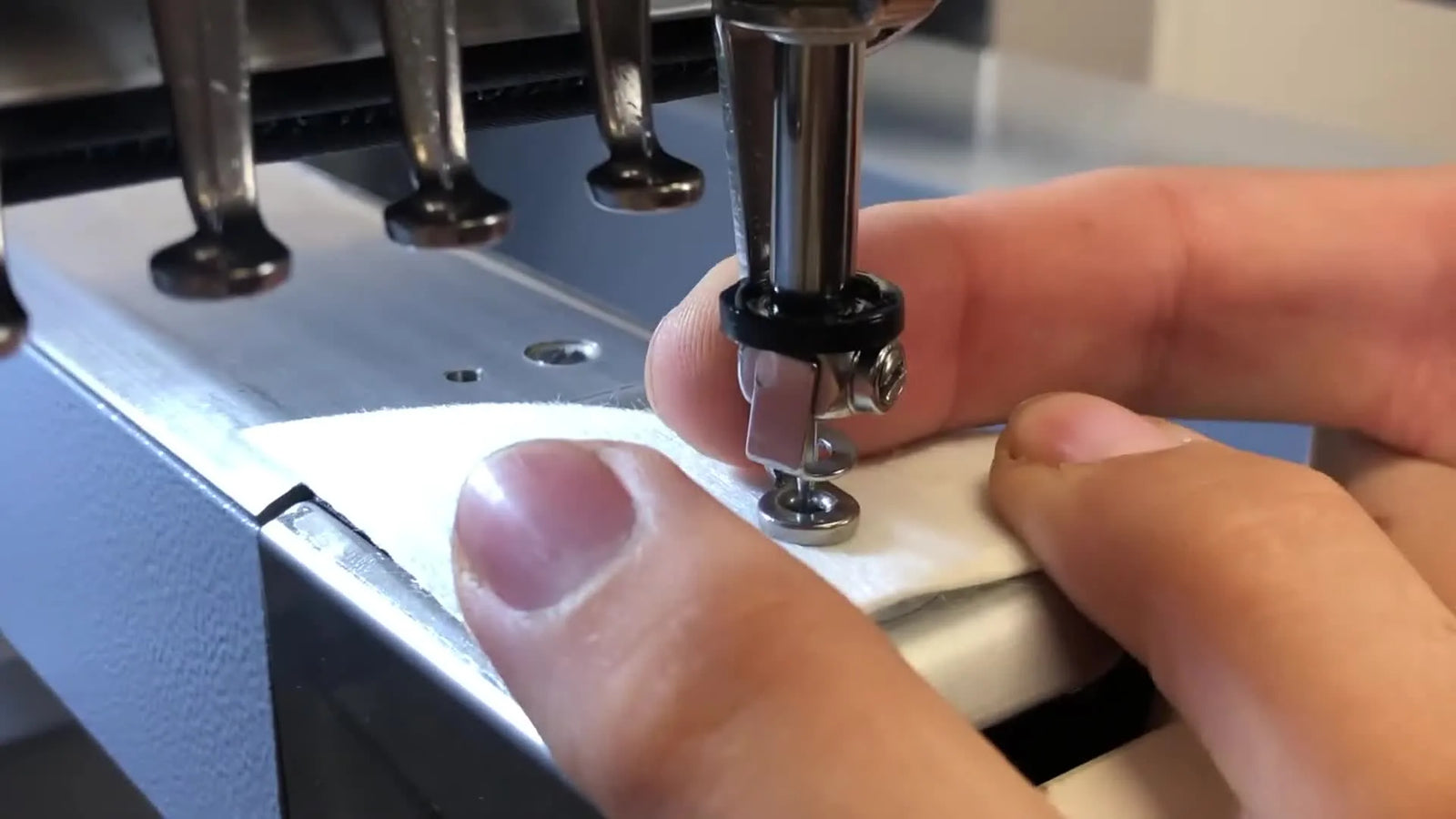

1. Press Down: With one hand, press the foot down firmly against your spacer (the folded backing).
2. The "Kiss": You want the foot to compress the spacer slightly—firm contact, but not crushing it into oblivion.
3. Lock Due: While holding that downward pressure with your left hand, use your right hand to re-tighten the screw securely.

The Verification Test: Remove the spacer. The foot should stay at that new height. Now, slide your spacer back under the foot. It should feel snug—like flossing your teeth—not impossible to insert, but definitely touching.

• Hector’s Pro Tip: Hold the foot down firmly while tightening. If you let go, the torque of the screwdriver will often lift the foot slightly, ruining your setting.


Setup Checklist (The "Pre-Flight" Check)

• Dead Point verified: Did the needle bar stay at the bottom during adjustment?
• Torque check: Is the screw tight? (A loose screw here leads to a foot smashing into the needle plate later).
• Clearance check: Does the foot sit just touching your reference spacer?
• Return to Origin: Is the path clear to raise the needle bar?


Phase 7: Reset and Repeat

Press the “100” icon (or your machine's equivalent "Head Up/Trim" button) on the touchscreen to cycle the machine back to the origin position.

Production Reality Checklist:

• One vs. Many: Did you only fix Needle #1? If you are running a 12-color design, you must check if Needles #2 through #12 are also set correctly.
• Standardization: Validating the settings on a meistergram embroidery machine often requires checking all 15 needles. In a busy shop, we recommend setting all needles to a "Standard Polo" height (approx 1.0mm - 1.5mm clearance from plate) and keeping one or two needles set higher for "Puff" or heavy jackets.


Phase 8: Closing Up

Position the face plate back onto the head unit.

• Look for pinched wires: Ensure no cables are trapped between the metal casing and the frame.
• Listen: Tighten screws until they stop. Loose faceplates rattle; over-tightened screws crack plastic casings.


Troubleshooting Guide: Reading the Signs

Your machine talks to you through the quality of the stitch. Use this table to diagnose presser foot issues instantly.

The Material Thickness Decision Tree

Don't guess. Use this logic flow to determine your spacer thickness.

START: What are you sewing?

1. Standard Knits (Polos/T-Shirts):
   • Spacer: Folded Cut-Away Backing (~1mm - 1.5mm).
   • Goal: Light contact. Prevent flagging.
   • Risk: Easy to leave marks if too tight.
2. Structured Caps / Heavy Jackets / Carhartt:
   • Spacer: The actual fabric scrap + backing (~2.5mm - 4mm).
   • Goal: Clearance. You need space for bulky seams to pass under.
   • Risk: If set too low, the foot will drag and distort the design registration.
3. 3D Puff Foam:
   • Spacer: The Foam + Cap + Backing.
   • Goal: The foot must dwell above the uncompressed foam height.
   • Risk: If the foot smashes the foam, you lose the "3D" loft effect.

When Adjustment Isn't Enough: The "Hoop Burn" Dilemma

Sometimes, even with the perfect presser foot height, you will still get unsightly rings on delicate performance wear (like Nike or Under Armour dry-fit). This often happens because standard plastic hoops require you to wrench the fabric tight to hold it.

The Solution Ladder:

1. Level 1 (Skill): Adjust presser foot height (as described above).
2. Level 2 (Physics): Switch to magnetic embroidery hoops.
   • Why? Magnetic hoops hold fabric via downward pressure rather than lateral "stretching" or friction rings. This eliminates the "hoop burn" variable entirely, allowing you to run the presser foot slightly higher without losing registration.
   • Many shops use a dedicated magnetic hooping station to ensure consistent tension every time, reducing the need for constant foot height tweaking.

Warning: Magnet Handling
magnetic embroidery hoops use industrial-strength rare earth magnets. They can pinch skin severely.
* Pacemaker Safety: Keep magnets away from anyone with a pacemaker.
* Pinch Point: Never let two magnets snap together without a barrier.
* Electronics: Keep away from credit cards and older hard drives.

The ROI of Maintenance

In a commercial environment, ignoring a "clicking" or "marking" presser foot costs money. Consistently checking this setting prevents:

• Garment Spoilage: (Cost: $20-$60 per ruined jacket).
• Downtime: (Cost: $50-$100/hr in lost production).
• Operator Fatigue: Fighting a machine is exhausting.

And typically, when shops find themselves spending more time adjusting than sewing, it serves as a trigger point. This is often when owners upgrade to modern hooping for embroidery machine systems (like the MaggieFrame) or scale up to newer SEWTECH production machines that feature motorized/automated foot height adjustments.

Final Validation: The "Reality Run"

After reassemble, do not run your customer's order immediately. Run a "Test H" or a small block letter on a scrap piece of the same material.

Operation Checklist (Final Pass):

• Audio Check: The machine should sound rhythmic ("thump-thump"), not clacking loud.
• Visual Check: No loops on top.
• Tactile Check: Rub your finger over the finished embroidery. Is there a "dent" around the letters? If yes, raise the foot slightly.
• Return to Origin: Does the machine trim and return to Head Up smoothly?

By mastering this one adjustment, you move from "operator" to "technician," gaining the control necessary to produce retail-quality embroidery on any fabric.

FAQ

• Q: How do I set presser foot height on a Meistergram GEM-XL 1500 15-needle embroidery machine without causing birdnesting or hoop burn?
  A: Set the presser foot so it “kisses” the material at the needle’s lowest dead point using a spacer that matches the job thickness.
  • Power down the drive motor if possible, remove the faceplate carefully, and identify the exact needle bar causing the issue.
  • Lock the needle bar down, place a folded stabilizer/fabric spacer over the needle plate, then rotate the main shaft to the lowest dead point.
  • Loosen the presser foot adjustment screw slightly, press the foot down to lightly compress the spacer, then tighten the screw while still holding the foot down.
  • Success check: The spacer should slide under with a snug “flossing” feel, and a test stitch should show no top loops and no shiny pressure ring.
  • If it still fails: Re-check that the needle bar was fully locked down at the true lowest dead point before tightening.
• Q: What spacer thickness should be used to gauge presser foot height on a Tajima or SWF commercial embroidery machine for polos, jackets, and 3D puff foam?
  A: Use a spacer that mimics the compressed thickness of the real garment + stabilizer stack for that specific job.
  • Choose folded cut-away backing for standard knits like polos/t-shirts (light contact to stop flagging).
  • Use an actual fabric scrap plus backing for heavy jackets/caps (more clearance so bulky seams can pass).
  • Stack foam + cap + backing when sewing 3D puff (the foot must sit above the uncompressed foam height).
  • Success check: The machine runs without looping on top and without dragging/distorting the material as it feeds under the foot.
  • If it still fails: Adjust in small increments and re-test on the same material; do not rely on one “universal” setting across very different thicknesses.
• Q: Why does a 15-needle commercial embroidery machine get birdnesting/looping on only one needle after a presser foot adjustment?
  A: Birdnesting on a single needle commonly means that needle’s presser foot is set too HIGH, allowing fabric flagging on that specific bar.
  • Verify the correct needle bar is the one being adjusted; multi-needle machines require per-needle calibration.
  • Lower the presser foot for the problem needle using the spacer method at the lowest dead point.
  • Repeat the same clearance check for the other needles used in the design to standardize the set.
  • Success check: The stitch-out shows clean tops with no loops on the problem color change, and the machine sound is rhythmic instead of “clacking.”
  • If it still fails: Stop and confirm the needle bar fully locked down during adjustment; a “false height” often causes immediate looping at speed.
• Q: What causes shiny hoop burn or pressure marks around embroidery on a Meistergram GEM-XL 1500 or Tajima machine, even when stitches look clean?
  A: Shiny marks usually mean the presser foot is too LOW/tight and is hammering/crushing the fabric fibers against the needle plate.
  • Raise the presser foot slightly for the affected needle using the same spacer gauge process.
  • Run a small test (like a block letter) on the same garment type before restarting production.
  • Consider reducing hoop-related stress if the fabric is delicate performance wear that marks easily.
  • Success check: After the test run, there is no visible sheen ring and rubbing a finger around the embroidery does not feel like a dented “bruise.”
  • If it still fails: Move to a lower-tension hooping method (such as a magnetic hoop) because standard hoops can require excessive fabric stretching that creates marks.
• Q: What tools and prep items are required before adjusting presser foot height on a multi-needle commercial embroidery machine faceplate area?
  A: Prepare the spacer, the correct screwdriver, and screw-control items first to avoid lost parts and mis-adjustments.
  • Use a Phillips screwdriver (a magnetic tip helps prevent dropped screws).
  • Prepare a folded stabilizer/fabric spacer that matches the target job thickness.
  • Place a magnetic parts tray nearby and use strong task lighting or a headlamp to see inside the head.
  • Success check: Faceplate removal and re-installation happen without missing screws, pinched wires, or rattling covers after tightening.
  • If it still fails: Stop and re-check for cable resistance when pulling the faceplate; thread-break sensor cables may be attached.
• Q: What mechanical safety steps should be followed when rotating the main shaft knob to find lowest dead point on a Tajima, SWF, or Meistergram multi-needle embroidery machine?
  A: Treat the needle bar area as a pinch point and keep hands and tools clear while rotating the main shaft.
  • Power down the drive motor if possible before manual adjustments.
  • Keep fingers, loose clothing, and jewelry away from the needle/foot area while rotating the knob.
  • Rotate slowly and stop exactly at the bottom of the needle stroke (lowest dead point) to avoid sudden movement and mis-setting.
  • Success check: Hands never enter the needle path during rotation, and the adjustment can be completed without the needle bar snapping down unexpectedly.
  • If it still fails: Do not force the mechanism; verify the machine mode (Head Up/Drive) and that the correct head/needle bar is engaged.
• Q: What are the safety rules for using magnetic embroidery hoops to reduce hoop burn on delicate performance fabric?
  A: Handle magnetic embroidery hoops as pinch-hazard tools and keep them away from medical implants and sensitive items.
  • Keep magnetic hoops away from anyone with a pacemaker.
  • Prevent magnets from snapping together; use a barrier/controlled placement to protect fingers.
  • Store magnets away from items like credit cards and older hard drives.
  • Success check: Hooping can be done consistently without finger pinches, and garments show reduced hoop burn compared with standard hoops.
  • If it still fails: Re-check hoop placement and run a small test sew-out; magnetic hoops reduce hoop-stress, but presser foot height still must be set correctly for the material.
