Threading Needle #2 on a Meistergram Embroidery Machine: The Calm, Correct Thread Path That Prevents Breaks and Bad Tension

If you run a commercial head, you already know the sinking feeling: one thread pops out, the machine stops, and suddenly—instead of making money—you’re second-guessing every guide you touched.

Here’s the reality: Threading needle #2 on a Meistergram is not "mystical," nor does it require luck. It is a physics-based system with a few make-or-break contact points. Miss one tension disc, route a stud on the wrong side, or forget to park the tail, and you trigger the classic symptoms that kill profit margins: looping, shredding, missed trims, or a thread that unthreads itself instantly.

This guide rebuilds the exact Needle #2 thread path. However, we are moving beyond basic diagrams. We are adding the sensory checks (what it should feel like) and veteran-level safety protocols that keep you from having to rethread the same needle twice.

Don’t Panic: A Meistergram Embroidery Machine Threading Reset Is Usually a Routing Problem, Not a “Machine Problem”

When thread issues hit, operator anxiety spikes. It is easy to assume something is mechanically wrong with the head. In reality, 90% of first-day failures stem from three specific operator errors:

1. The thread isn’t "flossed" deep between the tension discs.
2. The course wheel S-pattern is reversed.
3. The tail isn’t retained at the presser foot/clamp during startup.

If you are working on a meistergram embroidery machine, treat threading like a pilot’s pre-flight checklist. Slow down for 60 seconds. Follow the exact same geometry every time. You will stop chasing phantom tension issues and start trusting your machine again.

Read the Thread Stand Like a Map: Picking the Correct Row for Needle #2 on a Multi Needle Embroidery Machine

The video begins with a detail often skipped by novices, but it is critical for long-run consistency: the thread stand is not just a holder; it is a traffic control system.

The rows correspond to needle positions:

• Row 1: One hole.
• Row 2: Two holes.
• Row 3: Three holes.
• Row 4: One hole (positioned at the front).

The Protocol for Needle #2: Route your thread through the corresponding eyelets on the overhead rack designated for position #2.

• The "Why": It isn't just about being tidy. Each needle has a designated "lane." Crossing lanes creates drag and friction points that change as the sewing head moves left to right.
• The Risk: If you cross lanes, the thread tension will fluctuate unpredictably depending on where the design is being stitched on the hoop.


Prep Checklist: The "Clean Bench" Approach

Before you touch the tension knobs, ensure the environment is ready.

• Verify Source: Confirm you are actually threading position #2 (check the numbering on the head).
• Cone Check: Place the cone so it unwinds smoothly. Hidden Consumable: Use a thread net if the cone is slippery to prevent "puddling" at the base.
• Slack Management: Pull 18–24 inches (45–60 cm) of thread free. Reason: You need slack to route without yanking against the cone's weight.
• Debris Check: Visually confirm the overhead ceramic eyelets are clear. Old lint or wax buildup here acts like sandpaper.
• Tool Readiness: Have sharp snips and the hook tool within arm's reach.


The First Tension Knob: “Floss” the Discs or You’ll Get Fake Tension and Ugly Stitching

After the overhead rack, the thread meets the first tension knob (Pre-tensioner). This is the biggest failure point for new operators.

The Action:

1. Pass the thread through the guide hole.
2. Aggressively pull the thread between the two metal discs. The presenter describes this as "flossing."

Sensory Check (The "Pop" Test):

• Don't: Gently lay the thread on top.
• Do: Pull until you hear a tiny click or feel a pop as the thread seats onto the center shaft.
• Tactile Feedback: Gently tug the thread. It should not pull freely. You should feel a light, steady drag—similar to the resistance of dental floss between teeth.

If the thread rides on the outer edge of the discs, you have Zero Tension. The machine will stitch, but you will see massive loops on the back of the garment, and the top thread may shred instantly at high speeds (800+ SPM).

Warning: Mechanical Safety. Keep fingers, loose sleeves, jewelry, and long hair away from the take-up levers and moving parts. Never thread while the machine is engaged or running.

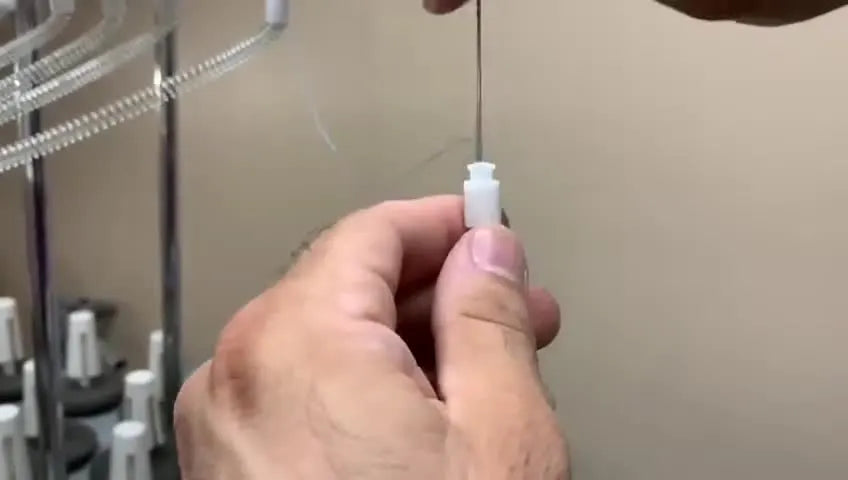

The Tube Guide Without Tears: Use the Hook Tool for Meistergram Thread Course Tubes

The video identifies this as the "scary part"—the long plastic tube. Trying to push a limp thread through by gravity or friction is a recipe for frustration.

The Professional Method:

1. Remove the top cap of the thread course tube.
2. Locate the long metal rod with a hook (this is a standard accessory in your kit).
3. Insert the tool down the tube from the top.
4. Hook the thread.
5. Retract the tool, pulling the thread cleanly through.

The "Why": Using the tool prevents the thread from twisting or knotting inside the tube, which is a hidden cause of unexplained thread breaks. If you are comparing different commercial embroidery machines, note that efficient tooling like this saves minutes per day—which adds up to hours per month.

The Second Tension Knob: The Stud Matters—Keep the Thread on the Left Side

Next is Main Tension Knob #2. This knob controls the primary stitch tension. The video highlights a subtle but vital physical feature: the small check stud.

The Action:

1. Pass the thread into the tension discs.
2. Ensure the thread sits on the Left-Hand Side of the tension stud (between 9 o'clock and 6 o'clock).

The Physics of the "Left Side": Thread has a natural "S" or "Z" twist. Routing on the correct side of the stud works with the thread's twist rather than against it.

• Error Implication: If you route on the right, the thread rubs against the stud during the uptake cycle, causing fraying (the "fuzz" you see around the needle eye) and eventually a break.

Expected Outcome: The thread exits the knob cleanly, heading straight down toward the course wheel without rubbing the stud’s edge.

The Thread Course Wheel S-Pattern: One Wrong Stud and You’ll Chase Loops All Day

This is the "brain" of the thread path. The course wheel stabilizes thread delivery. The video describes three studs: Top, Left, and Bottom.

The Mandatory S-Curve:

1. Go to the Right of the top stud.
2. Go Under the left stud.
3. Wrap back Up and Around the course wheel.
4. Exit to the Left of the bottom stud.

Visual Verification: Look at [FIG-07]. The thread should form a smooth pattern that hugs the wheel. If it looks like a straight line or crosses itself, Stop. Redo it immediately. A wrong pattern here guarantees poor stitch formation.

Why This Wheel Routing Matters (Operator Science)

The course wheel prevents the "gulping" effect. When the machine accelerates to 1000 stitches per minute, the thread is yanked violently.

• Correct S-Pattern: buffers the yank, providing a steady feed.
• Incorrect Pattern: allows the thread to go slack. Slack thread creates loops (birdnesting) on the bottom of your fabric.

For those running a production multi needle embroidery machine, checking this S-pattern is the fastest way to troubleshoot "sudden bad quality" after a color change.

Check Spring + Take-Up Lever: The Two Parts That Make Thread Feed Feel “Alive”

After the course wheel, the thread passes behind the guide and into the check spring assembly.

1. The Check Spring (The Heartbeat)

• Action: Pass thread down through the guide, then through the check spring loop.
• Sensory Check: When you pull the thread gently, you should see the small wire spring bounce or flex.
• Function: This spring takes up the slack after the needle penetrates the fabric but before the stitch locks. If the spring doesn't move, your stitches will be loose.


2. The Take-Up Lever (The Engine)

• Action: Find the metal arm (take-up lever) moving up and down. Pass the thread through the eyelet from Right to Left (check your specific machine manual, but usually front-to-back/right-to-left).
• Warning: Failure to thread the take-up lever is catastrophic—the thread will simply pool on top of the fabric.




Setup Checklist (The Mid-Point Review)

• Tension 1: Thread is "flossed" (Popped in).
• Tension 2: Thread is on the Left of the stud.
• Course Wheel: Visual confirmation of the S-Pattern.
• Check Spring: Spring flexes when thread is pulled.
• Take-Up Lever: Thread is positively inside the eyelet.

Thread Clamp, Needle Eye, and Presser Foot: The “Start-Safe” Finish

We are at the finish line. This is where many operators rush, causing the thread to pop out on the very first stitch.

Step 1: Route Behind the Thread Clamp

The clamp is the solenoid-driven gatekeeper.

• Action: Place thread behind the thread clamp, then behind the small U-shaped guide.
• Why: This clamp holds the thread during trims. If you miss this, the thread trimmer ("scissors") will fail to hold the thread, and the needle will unthread itself on the next start.




Step 2: The Clean Cut & Needle Threading

• Action: Use sharp snips to cut the thread end cleanly.
• Action: Thread the needle eye Front to Back.
• Pro Tip: If the thread won't go through, do not lick it (saliva dries sticky). Cut it again at a 45-degree angle.




Step 3: Presser Foot Retention (Crucial)

This is the veteran move demonstrated in the video:

1. Pass the tail through the hole in the presser foot.
2. Bring the tail Back Up.
3. Park the tail inside the thread clamp/spring area.


Operation Checklist (Pre-Flight)

• Tail Management: Thread is routed back up and parked (not dangling loose).
• Needle Orientation: Thread goes Front to Back.
• The Pull Test: Pull the thread near the needle. You should feel smooth, consistent resistance.
  • Too loose? Check Tension Knob #1.
  • Jerky/Gritty? Check the Course Wheel path.

A Fast Decision Tree: When "Threading Issues" Are Actually "Hooping Issues"

You have threaded perfectly, but the machine is still breaking thread or skipping stitches. In commercial shops, 50% of "thread breaks" are actually Flagging (fabric bouncing).

Use this logic flow to diagnose the root cause:

Scenario A: The thread breaks immediately (Stitches 1-10).

• Diagnosis: Thread Path Error.
• Action: Re-check Presser Foot retention, Needle orientation, and Tension #1 seating.

Scenario B: The thread breaks after 100+ stitches or on specific designs.

• Diagnosis: Stability Issue.
• Action: Check your hooping. Is the fabric "drum tight"? Is the backing sufficient?

Scenario C: Registration is off (Outlines don't match fill).

• Diagnosis: Fabric Movement.
• Action: Stop blaming the thread. Upgrade your stabilization.

Terms like magnetic embroidery hoop are often searched by professionals here. Why? Because traditional screw hoops often leave "hoop burn" or fail to hold thick garments evenly, causing the fabric to shift. If the fabric shifts, the needle deflects, and the thread breaks.

The “Hidden” Prep Pros Use: Hooping Tension & Tooling

Even with a perfect thread path, the Meistergram head requires a stable canvas. If your fabric is loose, it travels up the needle (Flagging), creating slack that loops and breaks.

The Criteria for Tool Upgrade: When should you stop blaming your technique and upgrade your tools?

1. Pain Trigger: Your wrists ache from tightening hoop screws all day.
2. Quality Trigger: You see "hoop burn" (crushed fibers) on delicate polys or performance wear.
3. Efficiency Trigger: You are doing production runs of 50+ items and hooping is your bottleneck.

The Solution:

• Level 1 (Technique): Use a hooping station for machine embroidery to ensure repeatable placement and tension.
• Level 2 (Tooling): Switch to high-quality Magnetic Hoops. They clamp automatically, reducing wrist strain and eliminating hoop burn markings. This allows the thread path to function exactly as you set it up.

Troubleshooting: The "Quick Fix" Matrix

Here is a structured guide to the most common failures on a Meistergram head, mapped to the video steps.

The Upgrade Path: From Better Hooping to Scalable Production

Mastering the thread path is Step 1. Step 2 is optimizing your workflow to minimize the number of times you have to rethread.

A Scalable Business Roadmap:

1. Stabilize the Workflow: Standardize your hooping. If you use a embroidery hooping station, every garment is hooped with the same tension, which means your thread tension settings (Knobs 1 & 2) rarely need changing.
2. Optimize the Hold: For shops handling diverse materials (jackets, bags, caps), magnetic frames are the industry standard for speed and safety.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch fingers severely. Keep them away from pacemakers and sensitive electronics.

1. Scale the Hardware: If you are consistently maxing out your single-head or need faster color changes, moving to a dedicated production unit like a 6 needle embroidery machine drastically reduces downtime compared to single-needle or smaller commercial units.
2. Research Smart: When reading meistergram embroidery machine reviews or looking for a meistergram pro 1500 embroidery machine, look for feedback on thread path accessibility. A machine that is easy to thread (like the one shown in this guide) is a machine that keeps running.

Final Thought: If you follow the path—Overhead → Tension 1 (Flossed) → Tube (Tool) → Tension 2 (Left Stud) → S-Pattern → Check Spring → Take-up → Clamp → Needle—you transform "threading" from a frustration into a simple, rhymthic habit.

Ready to stabilize your production? Explore our full range of magnetic hoops and commercial embroidery solutions at SEWTECH.

FAQ

• Q: How do I thread Needle #2 on a Meistergram embroidery machine so the thread does not instantly unthread on startup?
  A: Park the thread tail correctly at the presser foot and thread clamp before the first stitches.
  • Loop the tail through the hole in the presser foot, bring the tail back up, and park the tail inside the clamp/spring area.
  • Route the thread behind the thread clamp and behind the small U-shaped guide before threading the needle.
  • Cut a clean end with sharp snips and thread the needle front-to-back.
  • Success check: A gentle pull near the needle feels smooth and consistently resistant (not free-spooling).
  • If it still fails: Re-check that the thread is fully seated (“flossed”) in Tension Knob #1 and that the take-up lever is threaded.
• Q: How do I “floss” the first pre-tension discs on a Meistergram embroidery machine to prevent birdnesting and fake tension?
  A: Seat the thread deep between the discs until the thread “pops” into place.
  • Feed the thread through the guide hole leading into the first tension knob.
  • Pull firmly between the metal discs (do not just lay the thread on top).
  • Tug lightly afterward to confirm there is light, steady drag.
  • Success check: You feel/hear a tiny click or “pop,” and the thread no longer pulls freely.
  • If it still fails: Inspect the overhead ceramic eyelets for lint/wax buildup that can mimic tension problems.
• Q: How do I route the long plastic thread course tube on a Meistergram embroidery machine without the thread twisting or jamming?
  A: Use the long hook tool and pull the thread through from the top instead of trying to “feed” it by hand.
  • Remove the top cap of the thread course tube.
  • Insert the long metal hook tool down the tube from the top.
  • Hook the thread and retract the tool to pull the thread through in one clean motion.
  • Success check: The thread slides through the tube smoothly with no snagging or spring-back.
  • If it still fails: Re-cut the thread end cleanly and repeat; frayed ends commonly catch inside the tube.
• Q: On a Meistergram embroidery machine, why must the thread sit on the left side of the stud at Main Tension Knob #2, and how do I set it correctly?
  A: Keep the thread on the left-hand side of the tension stud to reduce rubbing that causes fraying and breaks.
  • Pass the thread into the main tension discs as normal.
  • Position the thread on the left-hand side of the stud (between about 9 o’clock and 6 o’clock).
  • Guide the exit path so the thread heads downward cleanly without scraping the stud edge.
  • Success check: The thread exits straight and clean with no visible fuzz/fraying at the needle during running.
  • If it still fails: Re-check the thread course wheel routing; incorrect routing can create slack and violent snap-tension.
• Q: What is the correct S-pattern on the thread course wheel for a Meistergram embroidery machine, and what symptoms show the pattern is wrong?
  A: Follow the mandatory S-curve around the studs; one wrong stud position can cause looping and unstable stitches.
  • Route to the right of the top stud.
  • Route under the left stud, then wrap up and around the course wheel.
  • Exit to the left of the bottom stud.
  • Success check: The thread forms a smooth S-shaped path that hugs the wheel (not a straight line and not crossing itself).
  • If it still fails: Stop and re-route immediately; then confirm the check spring flexes when you gently pull the thread.
• Q: What are the key mechanical safety steps when threading a Meistergram embroidery machine near the take-up lever and moving parts?
  A: Never thread a Meistergram head while the machine is engaged; keep hands and loose items clear of moving mechanisms.
  • Power down/disengage before threading so the take-up lever cannot cycle unexpectedly.
  • Keep fingers, loose sleeves, jewelry, and long hair away from the take-up lever and other moving parts.
  • Move slowly and deliberately when routing near the take-up lever eyelet.
  • Success check: Threading is completed with the head stationary, and the thread is positively inside the take-up lever eyelet.
  • If it still fails: Consult the specific Meistergram manual for the correct threading direction through the take-up lever eyelet.
• Q: If a Meistergram embroidery machine keeps breaking thread after 100+ stitches, when is it a hooping/stabilization problem instead of a threading problem, and what should I do next?
  A: If breaks happen later in a run (or only on certain designs), treat it as fabric movement/flagging and improve stabilization before changing tension again.
  • Check hooping tightness: confirm the fabric is “drum tight” and not bouncing (flagging) during stitching.
  • Increase stabilization: ensure backing/stabilizer is sufficient for the fabric and design density.
  • Standardize placement: use a hooping station for repeatable tension and alignment when doing runs.
  • Success check: Registration improves (outlines match fills) and thread breaks stop occurring at the same point in the design.
  • If it still fails: Consider a tooling upgrade—magnetic hoops often reduce hoop burn and improve holding consistency on difficult garments.
