The Science of Security: Mastering Tie Stitches in Melco Design Shop

If you have ever watched a customer return a polo shirt after one wash because the company logo started unraveling, you know that sinking feeling in your stomach. Or perhaps you've seen a tiny, ugly "pimple" of thread distorting the edge of a crisp letter.

These are the two extremes of Tie Stitches: too loose, and your design falls apart; too aggressive, and you ruin the visual finish.

As moisture, friction, and laundry machines attack your embroidery, tie stitches are the only things holding the line. But here is the secret most manuals don't tell you: More locking isn't better. Smarter locking is better.

In my 20 years of production management, I’ve learned that digitizing is a game of physics. You are pushing a needle through a flexible substrate thousands of times. This guide will take you through the exact workflow for Melco Design Shop, moving beyond "buttons to click" into the sensory details and safety checks that separate the amateurs from the pros.

Tie Stitches: The "Knot Mechanics" That Save Your Reputation

Tie stitches are short, back-and-forth securing stitches placed at the start (Tie In) and end (Tie Off) of an element. Their job is to lock the thread tail into the fabric so it cannot be pulled out.

In the video, the presenter demonstrates the nightmare scenario: zooming into lettering where the stitch path simply stops and travels to the next letter. There is no lock.

The Sensory Anchor: Think of a tie stitch like tying off a balloon. If you just let go of the nozzle, the air rushes out. If you knot it three times, it holds the air, but the knot is huge and ugly. We are looking for that perfect, single, tight seal.

The "Hidden" Prep: Forensic Digitizing Before You Click

Before you touch a single setting in Object Properties, you must perform a "forensic inspection" of your design file. The presenter in the video zooms into the letter "o" to check the endpoints.

Why this is critical: If you are working with an older file (or a file you bought online), it might already have manual tie stitches digitized into it. If you add automatic software ties on top of manual ties, you create a "hard knot" of six to ten stitches in one millimeter.

Physical Consequence: This hard knot can deflect your needle (causing breaks) or shatter the carbide knife in your trimmer.

Prep Checklist: The "Do Not Fail" Inspection

Perform this check on every file not created by you.

1. Format Check: Are you in valid Wireframe (OFM)? Tie properties do not work on Expanded (DST/EXP) files the same way.
2. The "Ghost" Walk: Zoom in to 600% on the start and end of a letter. Do you see a tiny walk stitch that backtracks over itself? That is a manual tie.
3. The Travel Check: Look for an endpoint that stops cleanly and immediately jumps. This is a "naked" endpoint and needs a tie stitch.
4. Consumables Check: Do you have the right needle size? An aggressive tie stitch with a 75/11 needle on delicate silk is a recipe for holes. Switch to a 65/9 or 70/10 for fine detail.

Warning: Never test new tie settings on a final garment. The density of a tie stitch can punch a hole in thin fabrics. Always run a test on a fabric scrap with the exact same stabilizer you intend to use.

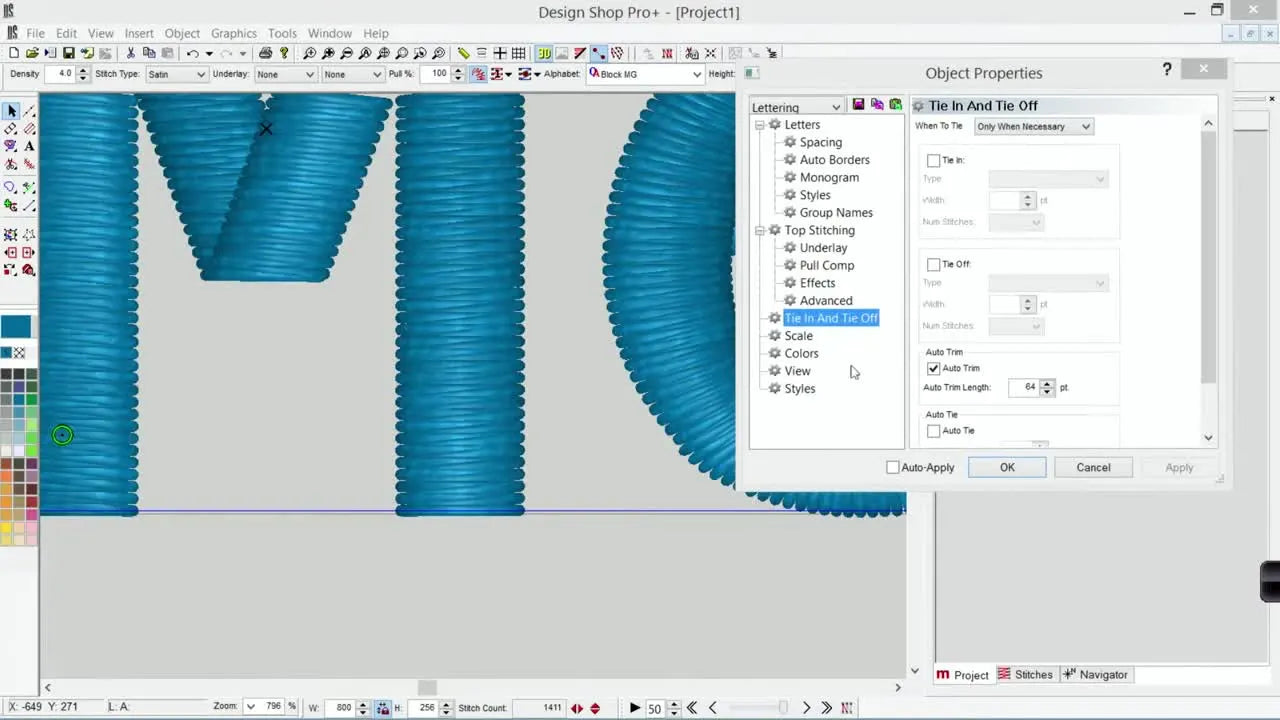

The Setup: Enabling Tie In and Tie Off (Action-First Guide)

The video outlines a repeatable path. Here is how to execute it with zero friction:

1. Select: Right-click the object (e.g., your lettering).
2. Access: Choose Properties.
3. Navigate: Locate the Tie In And Tie Off section.
4. Action: Check Tie In (locks the start).
5. Action: Check Tie Off (locks the end).

This is the baseline "safety net" the presenter advocates to prevent the unravelling shown in Fig 02.

Decoding the 5 Styles: Finding the "Sweet Spot"

Melco Design Shop offers five distinct tie styles. The video makes a crucial point: Visibility is the enemy.

The more aggressive the tie stitch, the more likely you are to see a visible artifact—a dimple, a bump, or a "bruised" look on the fabric.

Expert Analysis of Tie Styles

The video highlights specific use cases. Here is the calibrated advice based on material science:

• Style 1 (Full–Half–Full):
  • The Standard: This is the presenter's default. It is a "Goldilocks" stitch—secure enough for 90% of jobs, but flat enough to hide inside a satin column.
  • Parameter: The video keeps the Tie Width at 6 points. This is a safe industry standard.
• Style 2 & 3 (Sinking Penetrations):
  • Use Case: Best used for Run/Walk stitches. Because the needle points align with the line of stitches, they disappear into the flow.
• Style 5 ( The Aggressive "Plus"):
  • Use Case: The video recommends this for 3D Foam (Puff).
  • The Physics: Foam pushes back. You need a "grappling hook" style tie to prevent the foam from spitting the thread out. However, on a polo shirt, Style 5 will look like a mistake.

The "Always" vs. "Only When Necessary" Debate

This is a setting that confuses many beginners.

• "Always": Puts a tie stitch on every single vector change.
  • Result: Bulletproof security, but massive stitch bloat.
  • Risk: On small text, this creates "density spikes." You might hear your machine making a rhythmic thump-thump sound. That is the needle struggle-bussing through too much thread.
• "Only When Necessary":
  • The Professional Choice: The presenter recommends this. It ties at the start of the design, before a trim, and at the end of the design.
  • Benefit: It keeps the flow clean and prevents those ugly dimples on small letters.


If you use melco embroidery machines, their active feed systems are sensitive to density. Using "Only When Necessary" helps the machine calculate thread delivery more accurately.

The Auto Trim Relationship (The 1/4 Inch Rule)

Tie stitches and Trimmers are married. If the machine cuts the thread (Trim), it must tie off first, or the thread will slip out of the needle eye.

The video highlights the Auto Trim threshold at 64 points.

• Metric: 64 points is roughly 6.4mm or 1/4 inch.
• The Logic: If a jump is shorter than 1/4 inch, you rarely want to trim it. Trimming takes time (slowing production) and adds risk (pull-outs).
• Visual Check: In the video, the presenter shows the software generating a connector line that sinks in. This visual confirmation is your "green light."


The "Legacy File" Trap: Saving Your Trimmer

This is the most technically significant part of the video. The presenter opens an older .OFM file to demonstrate a common danger.

The Scenario:

1. You have an old design that runs well.
2. You decide to "modernize" it by checking "Tie In/Tie Off" in properties.
3. The Crash: The old file already had manual walking stitches acting as ties. You have now stacked new ties on top of old ties.

The Consequence: This creates a "thread rock." When the trimmer knife tries to engage, it hits this rock. Best case: it fails to cut. Worst case: you break a knife or bend a selector.

The Fix: Always view legacy files in Wireframe mode before applying global settings. If you see manual ties, do not enable auto properties.

Troubleshooting: From Symptom to Solution

When things go wrong, don't guess. Use this diagnostic table used by master technicians.

Decision Tree: Stability vs. Settings

Sometimes, the tie stitch isn't the problem—the fabric movement is. If your fabric shifts while the tie is forming, it will look ugly no matter what style you choose.

Scenario: You are seeing dimples or puckering around the tie stitches.

1. Is the stabilizer correct?
   • Stretchy/Knit: Must use Cutaway. If you are using Tearaway, the fabric is collapsing around the lock.
   • Stable/Woven: Tearaway is usually fine.
2. Is the Hooping "Drum Tight"?
   • Tactile Check: Run your fingers over the hooped fabric. It should feel like a drum skin. If it ripples, the tie stitch will distort the fabric.

The Business Trigger: When to Upgrade Your Tools

If you find yourself constantly fighting "hoop burn" (the ring left by the frame) or wrestling with thick garments that make consistent tension impossible, this is a hardware bottleneck, not a software issue.

• Level 1 (Technique): Use "floating" techniques with adhesive spray (messy, but works).
• Level 2 (Tool Upgrade): For production consistency, professionals switch to magnetic embroidery hoops.
  • Why: They hold thick or delicate items firmly without forcing the fabric into a ring, reducing the distortion that makes tie stitches look bad.
  • Search Intent: Many users dealing with uneven stitching search for hooping station for machine embroidery to standardize their placement.
• Level 3 (Scale): If you are doing caps, a melco hat hoop or similar specialized clamping systems are essential to keep the curved surface stable for precise tie-ins.

Warning: Magnetic Safety
Magnetic hoops (like the popular mighty hoop melco compatible models) use industrial-strength magnets.
* Pinch Hazard: They can crush fingers instantly. Handle with extreme care.
* Health Risk: Keep away from pacemakers.
* Data Risk: Keep away from phones, credit cards, and machine screens.

Operation Checklist: The "Don't Get Burned" Final Pass

Before you press start on that 500-stitch run, verify these six points:

• Visual Confirmation: Zoom in to the wireframe. Do the starts and ends have locks?
• Frequency Check: Is "When to Tie" set to Only When Necessary? (Unless you have a specific reason for "Always").
• Style Match: Are you using Style 1 for standard lettering? (Save Style 5 for Foam).
• * [ ] Legacy Audit: Did you ensure there are no manual ties hidden in the file?
• Trim Length: Is Auto Trim set to roughly 64 points (1/4 inch)?
• Hidden Item: Do you have Fray Check or a liquid sealant nearby? (A tiny drop on the back of a questionable knot can save a garment without re-stitching).

By mastering tie stitches, you aren't just clicking checkmarks; you are engineering durability. Security is a balance between the physics of the knot and the stability of the fabric. Get the hooping right, pick the right style, and your embroidery will survive the wash for years to come.

FAQ

• Q: In Melco Design Shop, how can Melco Design Shop Wireframe (OFM) inspection prevent double tie stitches on legacy embroidery files?
  A: Inspect the design in Wireframe first, because older OFM files may already contain manual tie walks that will stack with automatic Tie In/Tie Off.
  • Open: Switch the view to Wireframe and zoom in (around 600%) on the start and end of small letters.
  • Identify: Look for a tiny walk stitch that backtracks over itself (manual tie) versus a clean stop-and-jump endpoint (needs a tie).
  • Decide: If manual ties exist, do not enable global auto Tie In/Tie Off on that object/file.
  • Success check: At high zoom, endpoints show one clean lock method only (no “thread rock” clump of multiple backtracks in 1 mm).
  • If it still fails… Test on scrap and re-check every start/end after any global property change, especially on purchased/older files.
• Q: In Melco Design Shop, what are the exact steps to enable Tie In and Tie Off in Object Properties for embroidery lettering?
  A: Enable Tie In and Tie Off inside the object’s Properties to stop lettering endpoints from unraveling.
  • Select: Right-click the lettering object.
  • Open: Choose Properties.
  • Activate: Find “Tie In And Tie Off,” then check Tie In and check Tie Off.
  • Set: Choose “Only When Necessary” unless a specific job requires ties on every vector change.
  • Success check: In Wireframe, the start and end of the element show a deliberate locking movement instead of a “naked” stop that jumps away.
  • If it still fails… Confirm the design is being edited as a valid Wireframe/OFM-type object; expanded stitch formats do not behave the same for tie properties.
• Q: In Melco Design Shop, which tie stitch style should be used to prevent a visible thread “pimple” at the end of satin lettering on polo shirts?
  A: Switch to Tie Style 1 because aggressive tie styles are more likely to show as a bump or dimple on small lettering.
  • Change: Set the Tie Style to Style 1 (Full–Half–Full) for standard lettering.
  • Avoid: Reserve the aggressive “plus” style (Style 5) for 3D foam jobs, not polos.
  • Verify: Keep the tie as hidden as possible inside the satin column.
  • Success check: The letter edge stays crisp with no raised bump or “bruised” look at the endpoint.
  • If it still fails… Re-check hooping stability and stabilizer choice, because fabric movement can make any tie style look ugly.
• Q: In multi-needle embroidery production, what does the “1/4 inch rule” (64 points) mean for Auto Trim when using tie stitches in Melco Design Shop?
  A: Use the ~64 points (about 6.4 mm / 1/4 inch) trim threshold so short jumps do not trigger unnecessary trims that add risk and slow production.
  • Set: Adjust Auto Trim so jumps shorter than ~64 points do not automatically trim.
  • Confirm: Check that the software generates a connector line that sinks in when a trim is skipped.
  • Remember: Any time a trim happens, a proper tie-off is required or thread can slip.
  • Success check: The design runs with fewer needless trims and no pull-outs immediately after a trim point.
  • If it still fails… Inspect for density spikes from double ties that can cause trimming failures or “clicking” without cutting.
• Q: On Melco embroidery machines, what should be checked first when embroidery thread unravels after washing even though the design looked fine after stitching?
  A: Enable proper Tie In/Tie Off and use “Only When Necessary” so each element has a secure lock without creating visible knots.
  • Enable: Turn on Tie In (start lock) and Tie Off (end lock) on the affected objects.
  • Set: Choose “Only When Necessary” to avoid excessive tying on small lettering.
  • Inspect: In Wireframe, confirm there are no “naked” endpoints that stop and jump without a lock.
  • Success check: After stitching, gently tug the thread tail area; the stitch path should not loosen or open at starts/ends.
  • If it still fails… Re-run the file audit for legacy manual ties and confirm trims are not occurring without an adequate tie-off.
• Q: On multi-needle embroidery machines, how can operators diagnose and stop a “bird nest” under the fabric related to Tie In failure and bobbin tension?
  A: Treat it as a tie-in and tension control issue: secure the thread start, then confirm bobbin tension and tail handling.
  • Check: Verify Tie In is enabled where the problem starts (especially after trims).
  • Adjust: Confirm bobbin tension using the visual standard—about 1/3 white bobbin thread showing in the center.
  • Manage: Ensure the thread tail is long enough at the start so it cannot be pulled out during the first stitches.
  • Success check: The underside shows controlled, even bobbin presentation (not a loose wad), and the start does not pull free.
  • If it still fails… Inspect Wireframe for stacked manual + auto ties that can destabilize starts and create erratic tension behavior.
• Q: What safety risks exist when using industrial-strength magnetic embroidery hoops on multi-needle machines, and how should operators handle magnetic hoops safely?
  A: Handle magnetic embroidery hoops as a pinch and medical/device hazard—strong magnets can crush fingers and interfere with pacemakers and electronics.
  • Protect: Keep fingers clear of the closing path; separate and seat the hoop slowly and deliberately.
  • Separate: Keep magnetic hoops away from pacemakers and medical implants.
  • Shield: Keep magnets away from phones, credit cards, and machine screens to reduce data/device risk.
  • Success check: The hoop closes without snapping onto skin, and the operator can place/remove it without sudden jumps.
  • If it still fails… Stop using the hoop until a safer handling routine is established, and consider a different hooping method for that garment thickness.
• Q: When tie stitches look dimpled or puckered even with the correct Melco Design Shop tie stitch style, how should stabilizer choice and hooping tension be diagnosed before changing software settings?
  A: Fix fabric stability first: incorrect stabilizer or loose hooping will distort tie stitches no matter what tie style is selected.
  • Match: Use cutaway stabilizer for stretchy/knit garments; use tearaway for stable/woven fabrics in typical cases.
  • Check: Hoop “drum tight” and run fingers over the hooped fabric to feel for ripples before stitching.
  • Try: If hoop burn or thick garments prevent consistent tension, start with floating + adhesive spray; if consistency is still poor, consider upgrading to magnetic hoops; if scaling production (e.g., caps), consider specialized clamping/hat systems.
  • Success check: The fabric surface stays flat during stitching and tie areas do not show new dimples as the lock forms.
  • If it still fails… Run a test on scrap with the exact same stabilizer and re-check needle choice, because aggressive ties on delicate fabric can punch holes.
