XT Pro Built-In Lettering (Part 1): Create, Resize, Space, and Save Clean Text Right on the Dahao-Style Screen

If you have ever stood at an XT Pro console with an impatient customer tapping their foot—asking, "Can you just add a name real quick?"—you know exactly what actual pressure feels like.

The tension isn't just social; it’s financial. If you have to go back to a PC, digitize the name, transfer it to a USB, and walk back to the machine, you have lost the profit margin on that $15 job.

The XT Pro’s built-in lettering is the "Zero-to-Stitch" solution that bypasses the computer entirely. However, like any industrial tool, it rewards process and punishes guessing. This guide rebuilds the workflow from the video (Part 1) but injects the shop-floor safeguards, sensory checks, and specific parameter boundaries you need to produce sellable work, not just test scraps.

The “Don’t Panic” Moment: XT Pro Built-In Lettering Is Fast—If You Respect One Rule (Internet)

The number one reason new owners think their XT Pro is "broken" is the font menu. Here is the reality: The lettering program accessed from the control panel is a cloud-hybrid system. It has one non-negotiable requirement: it only works when the machine has an active live internet connection.

If you enter the font program without Wi-Fi, the menu may load blank or freeze. In a commercial environment, treat this like checking the air pressure on a pneumatic line: check the connection before you promise the customer a turnaround time.

Warning: Mechanical Safety. Keep fingers, sleeves, and magnetic tools away from the pantograph arm and needle bar case when transitioning from "Editing" to "Stitching." The machine may perform a sudden "origin seek" movement the moment a file is loaded.

The “Hidden” Prep Pros Do First: Wi-Fi Check + Screen Hygiene Before You Touch the T Icon

Before you press a single button, perform two "Pre-Flight" actions. These prevent 80% of the friction users experience with touch panels.

1. Confirm Wi-Fi Status: Do not assume yesterday's connection is alive.


2. The "Microfiber" Wipe: Industrial touchscreens rely on precise pressure. A slightly greasy screen (from machine oil or hand lotion) causes "phantom taps"—where you type '50' but the machine sees '5'.
   • Action: Wipe the screen with a clean, dry microfiber cloth.
   • Hidden Consumable: Keep a dedicated layout stylus or screen pen nearby. It is often more precise than a finger for hitting small coordinate arrows.

Prep Checklist (Pre-Flight):

• Connectivity: Wi-Fi icon is green/active.
• Surface: Screen is free of oil/lint.
• Target Dimensions: You know the maximum width available (e.g., 100mm for a left chest).
• Material Check: You have the correct needle (e.g., 75/11 Ballpoint for knits) installed.

Enter Lettering Mode on the XT Pro Control Panel: The T Icon That Starts Everything

From the main design grid, the workflow begins by pressing the “T” icon on the bottom row.

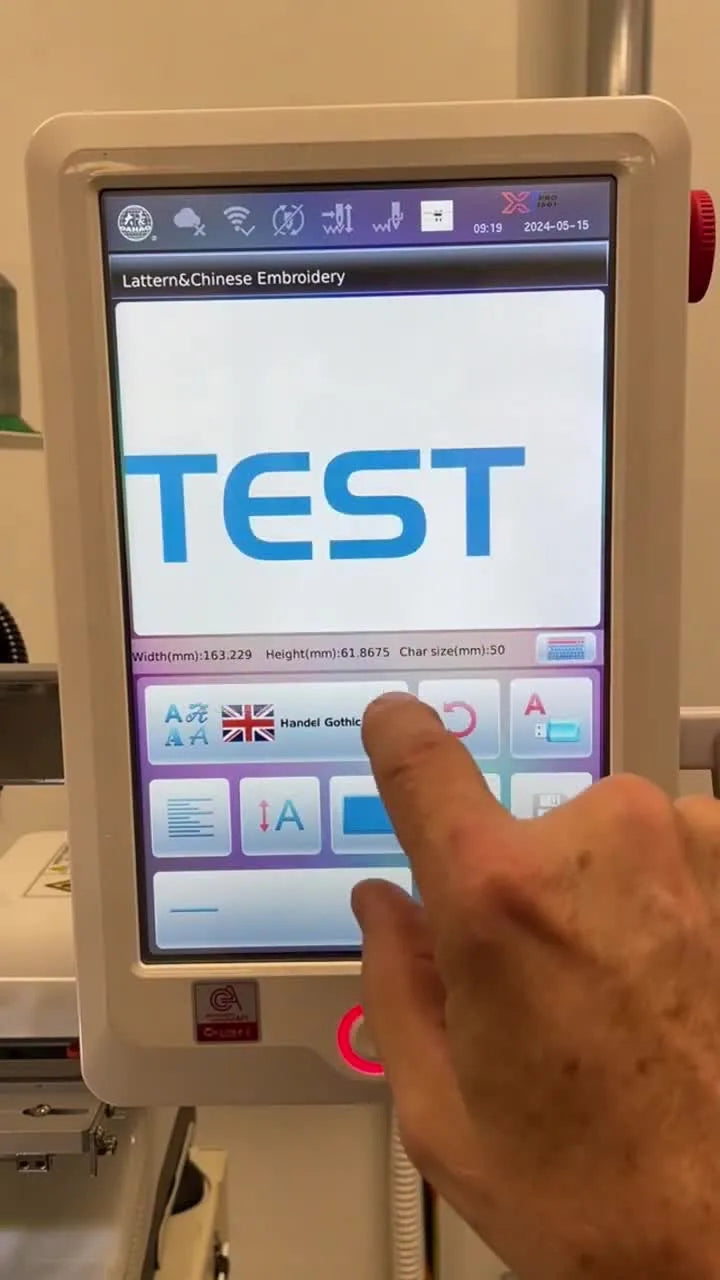

Once tapped, the screen transitions into the lettering menu (labeled “Lattern&Chinese Embroidery” in this interface version).

Expert Note: If your shop runs multiple commercial embroidery machines, you will notice interface variations. Train your eye to look for the Iconography (the T symbol), not just the label text, to maintain muscle memory across different machine generations.

Pick English Fonts Fast: British Flag Filter + Page 3/5 for Handel Gothic

Inside the lettering menu, filter out the noise immediately by selecting the British flag icon to display English fonts.

Navigate to Page 3/5 and select Handel Gothic.

Why this font? In my 20 years of embroidery education, I advise every shop to have a "Safe Harbor" font. Handel Gothic is reliable because it has uniform column widths. It doesn't have hairline serifs that vanish on fleece or super-thick columns that break needles on caps. It is the "Honda Civic" of fonts—it just runs.

Pro Tip: Don’t let customers browse all 5 pages. Offer them a curated choice of 3 fonts you know stitch well. This reduces decision fatigue and protects you from fonts that require complex stabilizer setups.

Type Text on the XT Pro Touchscreen Keyboard: En + Uppercase + Confirm Editing

The video demonstrates opening the keyboard, selecting English (“En”), enabling uppercase, and typing:

• TEST


To lock in the text, press the “A” button with a pencil icon (Confirm Edit).

The "$50 Typo" Check: After confirming, do not look at the buttons. Look at the preview window. Read the text backward.

• Why? The brain auto-corrects typos when reading forward. Reading backward forces you to see "T-S-E-T" instead of "TEST". Catching a typo here costs zero dollars. Catching it after the machine starts costs you a garment.

Generate Stitches First, Then Resize to 50 mm: The XT Pro Lettering Workflow That Prevents Bad Output

This is the most critical technical step in the article.

1. Press S/Needle icon to Generate Stitches.
2. Use A/Ruler icon to change size to 50 mm.




The Physics of Stitch Generation: Embroidery is clear math. If you resize a design without regenerating, the machine simply spreads the existing stitches out (making them loose/gappy) or squishes them together (breaking needles). By pressing "Generate," you force the XT Pro’s processor to calculate a fresh set of needle penetrations for the new geometry.

• Visual Check: After resizing to 50mm, the design width reads 189.622 mm.
• Sensory Check: Look at the "Stitch Count" number on the screen. It should jump significantly when you resize up. If the number stays the same, you haven't regenerated, and the design is unsafe to sew.

Baseline Shapes on XT Pro Lettering: Straight vs Arc (And When Each One Saves a Job)

The video shows changing the baseline from straight to an Arc (upper curve).

When to use which:

• Straight: Standard for Left Chest logos, tote bags, and jacket backs.
• Arc: Essential for Cap Backs (to follow the keyhole arch) and highly requested for team names on the back of hoodies.

Physics Note: Arched text introduces different push/pull forces than straight text. On an arch, the stitches at the top of the letters fan out, and the bottom stitches crowd together. If you are stitching an arc on a cap, use a slightly lighter density to prevent the crowded bottom stitches from cutting the fabric.

Kerning on the XT Pro Screen: The 200 Baseline Length Setting (And What It Really Changes)

The video adjusts the spacing tool (icon: arrows between vertical lines) to a value of 200.

Why 200? In digital embroidery terms, standard spacing is often too tight for textured fabrics (like pique polos or fleece).

• The Risk: If letters are too close, the "lock stitches" between them essentially form a knot, creating a hard lump that can suck the fabric into the needle plate.
• The Fix: Increasing spacing (Kerning) to ~200 gives the needle and presser foot room to breathe. The letters should look slightly "too far apart" on screen to look "just right" on the fabric due to the 3D nature of thread.

Color Preview Isn’t the Same as Thread Reality: Use It for Planning, Not Promises

The screen shows a color palette and a final view where the text renders in red.

The "Trust but Verify" Rule: The XT Pro screen does not know what thread cones you actually have sitting on top of the machine. The screen color is Design Intent. The thread cone is Reality.

• Action: Always visually verify that Needle #1 (or whichever is assigned) actually has the color you want. Do not rely on the screen telling you "Needle 1 is Red."

The Save That Actually Sticks: Floppy Disk Icon, Pattern Num 27, and the “Import Pattern Success!” Popup

To commit the file to memory:

1. Press the Floppy Disk (Save) icon.
2. Accept default Pattern Num 27 by pressing the Check Mark.


You must wait for the confirmation: “Import pattern success!”

Commercial Advice: If you are running a batch of 50 customized shirts, do not save them all as "Pattern 27, 28, 29." That is a recipe for disaster. Rename the file immediately if the interface permits, or keep a physical logbook next to the machine: "Pattern 27 = Smith, Pattern 28 = Jones."

Verify the File Like a Pro: Exit Lettering and Find “TEST” in the XT Pro Design Library Grid

Exit the font tool. The video shows the file “TEST” appearing in the main library grid.

This closes the loop. It confirms the file is no longer a temporary cache in the font engine but a stitchable .DST or machine-native file in the permanent memory.

The Real “Why” Behind Regenerating Stitches: What the XT Pro Is Doing Under the Hood

To reinforce the earlier point: Every time you change a variable—Height, Arc, or Spacing—you must hit Generate. Think of "Generate" as "Save Changes." If you change the Spacing to 200 but don't hit Generate, the machine will likely sew the old spacing. The Rhythm of Success: Change Setting -> Generate -> Check Preview. Repeat.

Setup Choices That Make Lettering Look Expensive (Not Homemade): Placement, Hooping, and Repeatability

Now that the file is ready, we move to the physical world. The difference between a "$5 amateur job" and a "$25 pro job" is rarely the machine—it’s the Hooping.

Traditional plastic hoops are the enemy of speed. They require significant hand strength to tighten, and they often leave "hoop burn" (shiny crushed rings) on delicate fabrics like performance polos.

This is where upgrading to magnetic embroidery hoops transforms your business.

• The Benefit: They snap onto the garment automatically adjusting for thickness. No tightening screws. No hoop burn.
• The ROI: You save roughly 30-60 seconds per garment. On a 100-shirt order, that is an hour of labor saved.

Warning: Magnetic Hazard. These are industrial neodymium magnets. They can pinch skin severely. NEVER place them near anyone with a pacemaker. Keep credit cards and phones at least 12 inches away.

Setup Checklist (Physical):

• Hoop Tension: Fabric should sound like a tight drum skin when tapped (thump-thump), not like a loose sheet.
• Alignment: Is the center mark on the hoop actually centered on the shirt placket?
• Trace: Always run a "Trace" (Design boundary check) to ensure the fluid needle bar won't hit the plastic/metal hoop frame.

A Simple Decision Tree: Fabric Type → Stabilizer Strategy for Clean Lettering

Lettering is dense. It acts like a saw trying to cut your fabric. Your stabilizer (backing) is the shield.

Decision Tree for Text:

1. Is the fabric Stretchy (T-shirt/Polo)?
   • MUST use Cutaway Stabilizer. Tearaway will allow the letters to distort and become unreadable after one wash.
2. Is the fabric Stable but Thin (Dress Shirt)?
   • Use Tearaway or a lightweight Cutaway.
3. Is the fabric Deep/Fluffy (towel/fleece)?
   • MUST use a Water Soluble Topper (Solvy) on top. Without this, your letters will sink into the pile and disappear.

Turning This Into a Money-Making Workflow: Batch Names Without Burning Operator Time

If you are processing team orders, typing names on the screen is efficient, but your productivity bottleneck will quickly shift to the hooping station.

To scale up:

1. Standardize the File: Use the XT Pro to create the master settings.
2. Systematize Hooping: Use a device like a hooping station for embroidery to ensure every name lands in the exact same spot on every shirt size (S-XXL).
3. Magnetize: Pair the station with embroidery magnetic hoop sets. The magnetic force holds thick seams (like Carhartt jackets) that plastic hoops can't grip.

Strategic Insight: If you find yourself consistently backed up with 500+ piece orders, you may be outgrowing single-head production. This is the trigger point to look at multi needle embroidery machines for sale to double your output per hour while keeping your labor cost flat.

Troubleshooting the One Problem the Video Calls Out: Font Program Not Working on XT Pro

Symptom: You press 'T' and nothing happens, or the font list is empty. Diagnosis: 99% of the time, this is an Offline Error. The Fix:

1. Exit to Main Menu.
2. Go to Network Settings.
3. Forget Network -> Re-connect to Wi-Fi.
4. Wait for the IP address to populate.
5. Retry.

Operation Checklist: The “No Regrets” Sequence for XT Pro Built-In Lettering

Print this and tape it to the machine stand.

1. Wi-Fi Check: Confirm green connectivity icon.
2. Navigation: Tap T Icon -> British Flag.
3. Selection: Choose Handel Gothic (or house font).
4. Input: Type Text -> Verify Spelling (Read Backward) -> Press A(Pencil).
5. Engineering: Click S(Needle) to Generate.
6. Sizing: Resize (e.g., 50mm) -> Regenerate Stitches.
7. Refining: Adjust Spacing (200) -> Regenerate Stitches.
8. Saving: Save Icon -> Confirm Pattern Number.
9. Loading: Exit -> Select "TEST" file from main grid.
10. Hooping: Load garment with correct stabilizer.

The Upgrade Path That Feels Natural: When Better Hooping Tools Beat More Screen Time

Mastering the XT Pro screen is Level 1. Level 2 is maximizing the physical workflow.

If you are struggling with wrist pain from tightening hoops, or rejecting garments due to "hoop burn" rings, do not blame the machine. The solution is often a magnetic hooping station upgrade.

In the embroidery business, we don't just sell stitches; we sell consistency. The XT Pro gives you the digital consistency (perfect lettering files); tools like magnetic frames give you the physical consistency (perfect placement). Combine them, and you have a scalable business.

• Compare: Many pros benchmark against the hoop master embroidery hooping station standard when upgrading their shop floor layout. Find the system that fits your budget, but do not ignore the efficiency of magnetic workflows.

FAQ

• Q: Why does the XT Pro built-in lettering font menu load blank or freeze when tapping the XT Pro “T” icon?
  A: This is most commonly caused by the XT Pro not having an active live internet connection, because the built-in lettering is cloud-hybrid and requires Wi-Fi.
  • Exit to the main menu and open Network Settings.
  • Reconnect to Wi-Fi (forget the network and re-join if needed).
  • Wait until the connection icon shows active and an IP address populates.
  • Retry the XT Pro “T” icon lettering menu.
  • Success check: The English font pages populate immediately (not empty) and scrolling pages responds normally.
  • If it still fails: Power-cycle the machine and re-check shop Wi-Fi stability before assuming the XT Pro is faulty.
• Q: What is the correct XT Pro built-in lettering order for resizing to 50 mm without getting loose or dense stitches?
  A: Generate stitches first, then resize to 50 mm, and regenerate after every change that affects geometry.
  • Tap the S/Needle icon to Generate Stitches before judging the preview.
  • Use the A/Ruler icon to set the height to 50 mm.
  • Hit Generate again after resizing (and again after changes like Arc or Spacing).
  • Success check: Stitch Count changes when size changes; after setting 50 mm, the screen shows a width reading around 189.622 mm in the demonstrated example.
  • If it still fails: Repeat the rhythm “Change Setting → Generate → Check Preview” to ensure the XT Pro is not sewing an old cached stitch set.
• Q: How can XT Pro operators prevent touchscreen typing errors when entering names on the XT Pro on-screen keyboard (English “En”, Uppercase)?
  A: Clean the XT Pro touchscreen first and verify text in the preview before saving, because greasy screens can cause phantom taps and costly typos.
  • Wipe the XT Pro touchscreen with a clean, dry microfiber cloth before typing.
  • Use a dedicated stylus/screen pen for small buttons and arrows if fingers mis-hit.
  • After pressing the A (pencil) Confirm Edit button, read the name backward in the preview to catch typos.
  • Success check: The preview shows exactly the intended spelling before any save or stitch generation.
  • If it still fails: Re-clean the screen and retype slowly; avoid promising a turnaround until the input is verified on-screen.
• Q: What does the XT Pro kerning/spacing value “200” change in built-in lettering, and when should XT Pro operators use it?
  A: Spacing 200 increases the gap between letters, which often helps on textured fabrics by reducing tight lock-stitch lumps between characters.
  • Open the spacing tool (arrows between vertical lines) and set the value to 200 as shown.
  • Press Generate after changing spacing so the XT Pro recalculates the stitches.
  • Visually inspect the preview for breathing room between letters (it may look slightly wide on-screen).
  • Success check: The sewn letters look evenly separated on fabric without hard “knots” between letters.
  • If it still fails: Increase spacing in small steps and regenerate each time; also re-check stabilizer choice for the fabric type.
• Q: What stabilizer should be used for XT Pro built-in lettering on T-shirts/polos, dress shirts, and fleece/towels?
  A: Match stabilizer to fabric behavior: cutaway for stretchy knits, tearaway (or light cutaway) for stable thin wovens, and add a water-soluble topper for deep/fluffy fabrics.
  • Use Cutaway Stabilizer for stretchy fabrics (T-shirt/polo) to prevent distortion after washing.
  • Use Tearaway or lightweight Cutaway for stable but thin dress shirts.
  • Add a Water Soluble Topper on fleece/towels so letters do not sink into the pile.
  • Success check: After stitching, letters stay readable and edges remain crisp instead of wavy, sunken, or distorted.
  • If it still fails: Re-check hooping tightness and run a trace to confirm the design is not shifting due to poor holding.
• Q: What is the correct XT Pro save process for built-in lettering so the file becomes stitchable in the XT Pro design library grid?
  A: Use the floppy disk Save icon and wait for “Import pattern success!”—then confirm the design appears in the main library grid (not just inside the font tool).
  • Tap the Floppy Disk (Save) icon.
  • Accept the pattern number (example shown: Pattern Num 27) by pressing the check mark.
  • Wait for the popup confirmation “Import pattern success!” before exiting.
  • Exit lettering mode and locate the saved design name (example: “TEST”) in the XT Pro main design library grid.
  • Success check: The design is selectable from the main grid after exiting the lettering tool.
  • If it still fails: Repeat the save step and do not interrupt the import process; keep a written pattern log to avoid loading the wrong saved slot.
• Q: What safety rules should XT Pro operators follow when switching from XT Pro editing to stitching, especially around the pantograph and needle bar?
  A: Keep hands, sleeves, and tools clear because the XT Pro can perform a sudden origin-seek movement when a file loads.
  • Move fingers and any magnetic tools away from the pantograph arm and needle bar case before starting.
  • Pause and watch the machine’s initial movement after loading a file or transitioning to stitch mode.
  • Run a trace/boundary check before sewing to confirm safe clearance around the hoop/frame.
  • Success check: The origin seek and trace complete without any near-contact between the moving head and the hoop/frame.
  • If it still fails: Stop immediately and re-check hoop placement and clearance before restarting.
• Q: What safety precautions are required when using magnetic embroidery hoops with XT Pro workflows to prevent pinched fingers and magnetic hazards?
  A: Treat magnetic embroidery hoops as industrial pinch hazards and keep them away from pacemakers and sensitive items.
  • Keep hands clear when magnets snap together; place magnets deliberately, not by sliding fingers underneath.
  • Never use magnetic hoops near anyone with a pacemaker.
  • Keep phones and credit cards at least 12 inches away from the magnets.
  • Success check: The hoop clamps fabric securely without screw tightening and without leaving hoop burn rings on delicate materials.
  • If it still fails: Switch back to non-magnetic hooping for that operator or station until safe handling habits are consistent.
