Embroidery Medic for Tiny Satin Text: Clean Up Connecting Stitches, Fix Caps, and Stop “Scissor Cleanup” for Good

When small lettering looks “almost right” on screen but turns into fuzzy caps, gaps, and ugly connecting stitches on the garment, it isn't bad luck—it’s physics. The good news is you usually don’t need to re-digitize the entire logo from scratch. You simply need to diagnose why the stitch path is misbehaving, then fix the specific objects causing the visual noise.

This guide rebuilds a poorly digitized small-text logo (“MARYKIRK.COM”) using professional workflow principles: improving visibility, confirming digitizing intent (left chest vs. cap), correcting satin inclinations, rebuilding component shapes (weld/slice), hiding connections with closest-point edits, and securing the foundation with specific underlay settings.

Don’t Panic: Messy “MARYKIRK.COM” Connecting Stitches Are Usually a Pathing Problem, Not a Thread Problem

If you are staring at a design where the letters look acceptable individually, but the “bridges” or travel stitches between them are clearly visible, forcing you to do tedious post-trimming with scissors, you are facing a pathing issue.

Before you touch a single node, internalize two realities of machine embroidery:

1. Small text magnifies every decision. A travel stitch that would disappear in 20 mm lettering becomes a glaring error in 4 mm text.
2. The cleanest fix is start/stop control—not density. Novices often try to "add stitches" to cover gaps. Experts "move stitches" to hide travel lines inside the lettering itself.

Your software should not just be a design tool; it should be a surgical instrument. The goal here is to make micro-fixes without demolishing the entire logo structure.

The “Hidden” Prep in Embroidery Legacy Digitizer: Backdrop Opacity, Native Files, and a Sanity Check on Scale

Professional digitizers never edit what they cannot see clearly. A common rookie mistake is editing black stitches against a black or dark backdrop, missing critical overlaps or gaps.

1) Work from the native file when possible

Editing is most effective when you have the native file (e.g., .EMB, .JDX). When software converts an expanded machine format (like .DST) back into outlines, it often generates extra nodes and chaotic inclination points. Always hunt for the source file first.

2) Reduce backdrop opacity (or hide it completely)

To perform surgery, you need a clean operating table. Right-click your backdrop properties and lower the opacity until it is faint, or hide it entirely. The stitches must be the only high-contrast element on your screen.

3) Confirm the design size before you “over-fix” it

Check the design dimensions immediately. In this case, it is roughly 4 inches wide by 1 inch high.

Crucial Step: View it at 1:1 scale (100%). Zooming in to 600% makes every tiny gap look like a canyon. Toggling to 1:1 scale reveals what the human eye will actually see on a polo shirt or baseball cap. If a gap is invisible at 1:1, do not waste time fixing it.

Warning: Safety First. When running test sews to verify your screen edits, keep scissors and snips at least 6 inches away from the needle bar. If you need to trim a jump stitch, stop the machine completely. Trying to snip a loose thread while the machine is running at 600+ SPM is the fastest way to drive a needle through your finger or destroy your rotary hook.

Prep Checklist (Do this before moving a single node):

• Source Check: Are you editing the native file (clean nodes) or a raw machine file (messy nodes)?
• Visuals: Is the backdrop dimmed or hidden? Can you clearly distinguish the stitch path?
• Scale: Have you viewed the design at 1:1?
• Simulation: Have you run a "Slow Redraw" to watch the logic of the current file?


Left Chest vs Cap Digitizing Logic: Use Slow Redraw to Catch the “Wrong Direction” Before It Costs You

Using the Slow Redraw simulator is non-negotiable. In this example, the lettering sews left-to-right, which is the standard approach for a Left Chest logo on flat garments.

However, if this logo is destined for a Cap, left-to-right sewing is a recipe for distortion.

• Cap Logic: Stitches should generally run bottom-up and center-out (from the seam towards the ears). This manages the "push" of the fabric and prevents the logo from warping or "walking" off-center.

The Commercial Reality: If you are digitizing for a client, adopt a cap-friendly logic by default or prepare two versions. It is risky to assume a logo will only ever go on a shirt. When that customer inevitably asks for 50 hats next week, a left-to-right file will likely fail at the center seam.

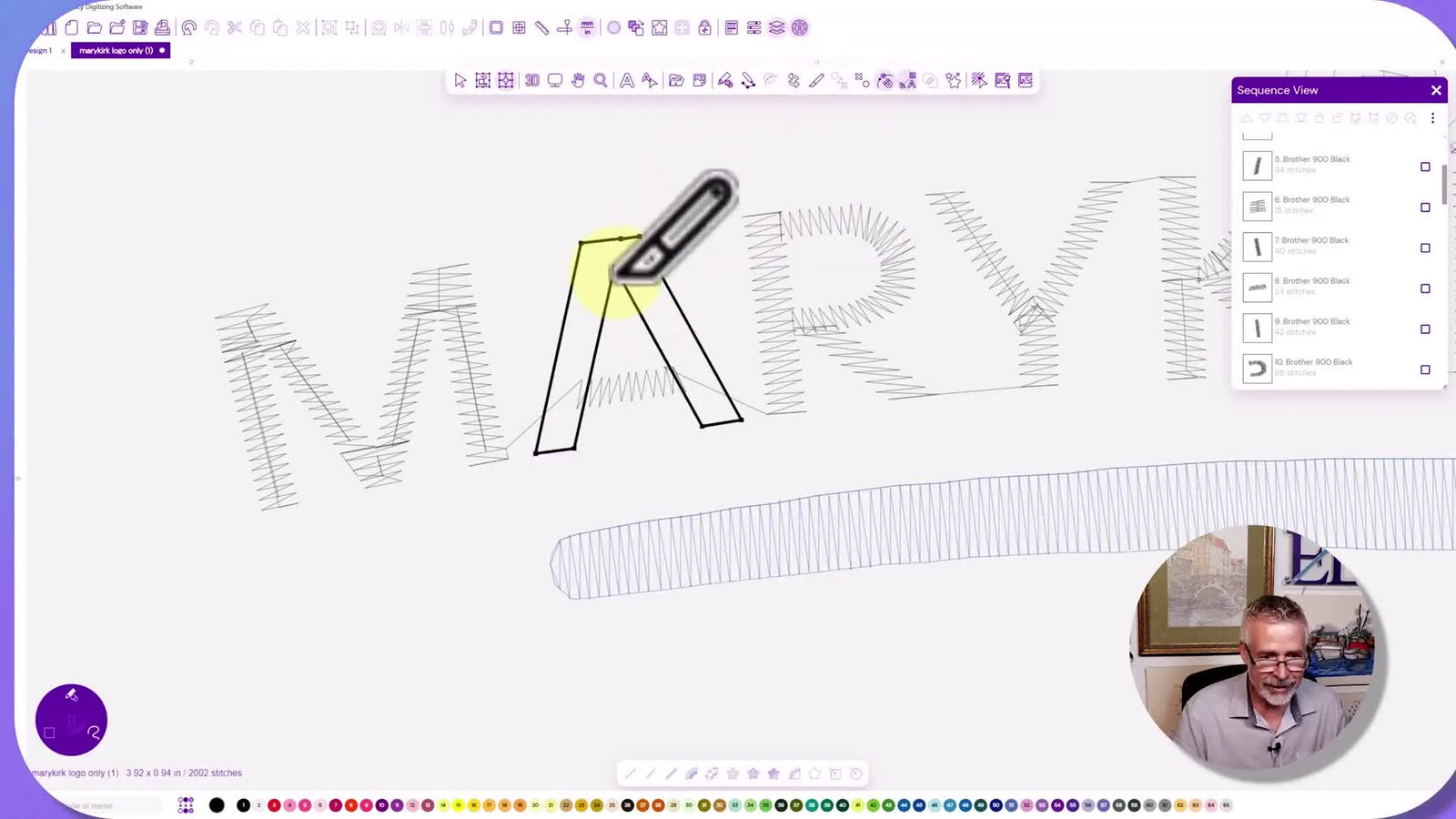

Straighten Satin Stitch Inclinations on Small Letters (Example: Fixing the “A” Cap Gap)

Zoom in on the letter "A". You might see the satin stitches at the top cap angling downward rather than running horizontally. Select the object and use the Reshape/Edit Nodes tool to adjust the inclination angles (the lines that tell the software which way the thread should lay).

Why this matters:

• Coverage: On narrow satin columns (under 2mm), angled stitches travel a longer distance but provide thinner effective coverage at the edges.
• Visual Clarity: If the top of an "A" is supposed to looks like a flat, crisp horizontal bar, angled stitches will make it look rounded or soft.

Straighten the inclination lines so they are perpendicular to the column. This ensures predictable pull and a crisp visual edge.

The Weld-and-Slice Move: Rebuilding a Clean Satin Cap on the “M” Without Re-Digitizing Everything

Sometimes, small letters are digitized as two separate strokes that meet at the top (like an inverted "V"). On fabric, the push/pull forces often separate these strokes, creating a gap.

The Fix: Weld and Slice

1. Convert to Artwork: Select the two satin objects forming the peak of the "M" and convert them to vector/artwork.
2. Weld: Use the software's geometric tools to weld them into a single, solid shape.
3. Slice: Use the Knife or Slice tool to cut a clean, flat top cap if needed.
4. Convert to Satin: Turn the new, unified vector shape back into embroidery stitches.


By turning two fighting objects into one unified object, you eliminate the "tug-of-war" at the join. You are giving the machine a single set of instructions for that area.

Manually place inclination lines at the open ends to force the stitches to turn horizontally at the cap.

Expert Insight: This systematic approach—controlling the process from end-to-end—is similar to the hoopmaster mindset in physical production. Just as you want a repeatable mechanical alignment for your hoops to ensure consistency, you want a unified geometric structure in your software to ensure the stitches align every time.

Hide Ugly Connections with the Closest-Point Method: Start/Stop Edits That Make Travel Stitches Disappear

The primary complaint with small text is often the "connecting run stitch" visibly crossing the gap between letters.

• The Rookie Mistake: Leaving the software to auto-connect at the closest distance, which is often the bottom tips of the letters serif.
• The Pro Fix: Move the Exit Point of Letter A and the Entry Point of Letter B slightly up the column.

He demonstrates editing the path so the travel stitch jumps from a point inside the satin column of the first letter to a point inside the satin column of the next letter.

Sensory Check: When the machine sews the satin column over this travel stitch, the travel line should disappear. You are essentially digging a tunnel (the travel stitch) and then pouring concrete (the satin column) over it. If you can see the travel stitch after the sew-out, you didn't move the start/stop points high enough.

Physical Variable: Even perfect digitizing can fail if the fabric shifts in the hoop. If the fabric loosens, the satin columns may narrow, exposing the travel stitches you tried to hide. This is why utilizing magnetic embroidery hoops can be a game-changer for small text. Magnetic frames hold even thick or slippery garments with consistent tension (drum-tight), preventing the fabric distortion that ruins closest-point connections.

Sequence View Discipline: Reordering Objects So Caps and Travel Stitches Sew Right After Their Parent Shapes

After creating new caps or welding shapes, your Sewing Order (Sequence View) is likely messy. The new objects might be sitting at the end of the list, meaning the machine would sew the letters, finish the logo, and then jump back to sew the caps.

The Clean Up: Drag and drop your new objects in the Sequence View so that:

1. The letter base sews.
2. The cap sews immediately after.
3. The travel stitch happens immediately before the next letter.


Setup Checklist (Before Test Sewing):

• Redraw: Watch the simulation. Does the machine jump erratically?
• Parent/Child: Verify caps are sequenced directly after their parent letter.
• Travels: Confirm travel stitches connect sequentially between letters, not across the design.
• Entry/Exits: Ensure start/stop nodes are tucked up inside the columns, not exposed at the tips.

If you are running a busy shop, adopting a structured workflow—similar to using a hoop master embroidery hooping station for consistent placement—is vital. Your software sequence must be as disciplined as your physical production line.

Underlay That Actually Supports Small Satin Text: Contour + Zigzag, 0.4 mm Inset, and Center Run Where It Counts

Small satin text (3mm - 6mm) needs a very specific foundation. Without underlay, the stitches will sink into the fabric (especially knits or pique), looking thin and ragged.

The Settings (The "Sweet Spot" for Small Text):

1. For Standard Satin Columns: Apply Contour + Zigzag underlay.
2. The Critical Adjustment: Set the Underlay Inset to 0.4 mm.
   • Why? Standard underlay is often too close to the edge. If the top stitching pulls in slightly, the underlay might poke out (called "peeking"). An inset of 0.4 mm keeps the foundation safe inside the column.
3. For Very Thin Columns: Select Center Run underlay.
   • Why? A single run stitch down the center acts like a spine, giving the satin stitches loft and preventing them from collapsing.




Contextual Note: When applying these settings, ensure you haven't accidentally selected a Run Stitch object along with your Satin objects. The software may grey out the underlay options if mixed stitch types are selected. Deselect the run stitches first.

If you are embroidering on hats, this foundation is even more critical. Cap fronts are structured but curved. A reliable cap hoop for embroidery machine setup combined with this robust underlay ensures the text stands off the cap rather than burying into it.

Fabric + Stabilizer Decision Tree for Small Lettering

Software is only half the battle. The perfect file will fail on the wrong backing. Use this decision tree:

Decision Tree: Stabilizer Strategy for Small Text

1. Is the fabric unstable/stretchy (Performance wear, T-shirts)?
   • YES: You must use Cutaway stabilizer. Tearaway leaves too much movement, causing small text to distort.
   • NO: Go to step 2.
2. Is the fabric textured/lofty (Pique Polo, Fleece, Towel)?
   • YES: You need a Water Soluble Topping (Solvy) on top to prevent stitches from sinking, plus your backing.
   • NO: Go to step 3.
3. Is the fabric structured (Twill, Cap Buckram, Denim)?
   • YES: A standard Tearaway or Cutaway usually works, provided the hooping is tight.

In production environments, inconsistent hooping tension is the #1 killer of small text quality. Using standardized hooping stations ensures every garment is hooped with the same tension and alignment, removing the variable of "human error" from your digitizing tests.

Troubleshooting: Symptom → Cause → Fix

Use this guide when your test sew fails.

The Upgrade Path: When Tools Matter More Than Technique

Once you master these software repairs, the bottleneck usually shifts to your physical equipment. If you are struggling with volume or consistency, consider these upgrades:

1. The "Crushed Fabric" & "Hand Pain" Problem:
   • Trigger: You are getting "hoop burn" marks on delicate polos, or your wrists hurt from wrestling traditional hoops.
   • Solution: Magnetic Hoops. They snap shut automatically, reducing strain and eliminating the friction that causes fabric shine/burn.
2. The "It Takes Too Long" Problem:
   • Trigger: You are spending more time trimming jump stitches and changing threads than actually sewing.
   • Solution: A Multi-Needle Machine. Moving from a single-needle to a SEWTECH-style multi-needle machine automates color changes and significantly increases production speed (SPM).
3. The "Crooked Logo" Problem:
   • Trigger: 1 in 10 shirts is rejected because the logo is tilted.
   • Solution: An embroidery hooping station. This hardware forces alignment consistency, making it impossible to hoop a shirt crookedly if used correctly.

Warning: Magnetic Field Hazard.
Magnetic frames contain powerful magnets. They can pinch fingers severely if handled carelessly. CRITICAL: Keep them away from anyone with a pacemaker or other implanted medical devices, as the magnetic field can interfere with their operation. Always store them with the provided separators.

Final Run: What “Done” Looks Like

Before exporting your file (DST, PES, etc.), do one final pass.

Operation Checklist (Last 60 Seconds):

1. Simulation: Run slow redraw one last time. Caps sew after letters? Travels are hidden?
2. Underlay: Did you apply the 0.4mm inset and Center Run?
3. Cleanup: Are there any tiny stray nodes or objects left over from the weld/slice process?
4. Format: Export to the native machine format for your specific machine to retain maximum data.


Small text embroidery is not magic; it is a system of geometry (software) and stability (hooping). By combining clean digitizing logic—welding caps, hiding starts/stops, and correct underlay—with professional stabilization tools like a hooping station for embroidery or magnetic frames, you turn a frustrating chore into a profitable, high-quality offering.

FAQ

• Q: In Embroidery Legacy Digitizer, how do I stop visible connecting stitches between letters in small satin text like “MARYKIRK.COM” on left chest logos?
  A: Move the Exit Point and Entry Point so the travel stitch runs inside the satin columns, then gets covered by the next satin stitches.
  • Run Slow Redraw and identify the exact connector that is crossing open fabric between letters.
  • Edit the Exit Point of the first letter and the Entry Point of the next letter slightly higher up into each satin column (not at the bottom tips/serifs).
  • Re-run Slow Redraw to confirm the travel now “tunnels” inside the columns before the satin covers it.
  • Success check: After a test sew, the connecting line is not visible because the satin stitching buries it.
  • If it still fails: Re-check hooping stability—fabric shift can narrow the satin and expose the travel stitch.
• Q: In Embroidery Legacy Digitizer, what is the correct 1:1 scale check to avoid over-fixing tiny gaps in a 4" wide small-text logo?
  A: Always evaluate small-text edits at 100% (1:1) before committing to node surgery.
  • Check the design dimensions first so expectations match reality (example shown: about 4" wide by 1" high).
  • Toggle the view to 100% and judge what the human eye will see on the garment, not what 600% zoom suggests.
  • Run Slow Redraw to confirm the current stitch logic before changing nodes.
  • Success check: At 1:1, only defects that are actually visible at normal viewing distance get corrected.
  • If it still fails: Dim or hide the backdrop so stitch paths and overlaps are clearly visible during edits.
• Q: In Embroidery Legacy Digitizer, how do I fix gaps at the tops of small satin letters like the “A” and “M” when the caps look separated after sewing?
  A: Straighten satin stitch inclinations for the “A,” and rebuild problem caps on the “M” by welding shapes into one object and slicing a clean cap.
  • Adjust inclination lines on the “A” cap so stitches lay as intended (avoid angled caps that soften coverage on narrow columns).
  • Convert the two peak objects on the “M” into artwork/vector, weld into one solid shape, then slice a clean top cap if needed.
  • Convert the rebuilt shape back to satin and manually place inclination lines at open ends to force a horizontal turn at the cap.
  • Success check: The cap sews as one clean, closed top with no visible split or gap after stitch-out.
  • If it still fails: Verify the sewing order so the cap sews immediately after its parent letter (not later in the sequence).
• Q: In Embroidery Legacy Digitizer, how do I reorder objects in Sequence View so rebuilt caps and travel stitches sew in the correct order for small lettering?
  A: Sequence the letter base, then the cap, then the travel into the next letter—no late “jumping back” to finish caps.
  • Open Sequence View and locate any newly created cap objects that ended up at the end of the design.
  • Drag-and-drop so each cap sits directly after its parent letter object.
  • Ensure the travel stitch occurs immediately before the next letter, not across the finished design.
  • Success check: Slow Redraw shows clean, local transitions with no erratic jumps across the logo.
  • If it still fails: Re-check Entry/Exit node locations—start/stop points should be tucked up inside satin columns, not exposed at tips.
• Q: In Embroidery Legacy Digitizer, what underlay settings (including the 0.4 mm inset) support 3–6 mm small satin text so edges don’t look thin or fuzzy?
  A: Use Contour + Zigzag underlay with a 0.4 mm inset for standard satin columns, and switch to Center Run underlay for very thin columns.
  • Apply Contour + Zigzag underlay to normal satin columns and set Underlay Inset to 0.4 mm to reduce underlay peeking.
  • Select Center Run underlay for very thin satin columns to act like a “spine” and keep the satin from collapsing.
  • Deselect any Run Stitch objects before editing underlay if the software greys out underlay controls.
  • Success check: Satin edges look fuller and cleaner, and underlay does not poke out along the sides after sew-out.
  • If it still fails: Increase inset cautiously (often 0.5 mm may help) and confirm the fabric is stabilized correctly for small text.
• Q: What stabilizer and topping choices prevent small lettering from sinking or distorting on performance shirts, pique polos, and caps?
  A: Match stabilizer to fabric behavior: cutaway for stretchy, topping for lofty texture, and standard backing for structured fabrics—then keep hooping tight.
  • Use Cutaway stabilizer for unstable/stretchy fabrics (performance wear, T-shirts) to control movement.
  • Add Water Soluble Topping on textured/lofty fabrics (pique polo, fleece, towel) so stitches don’t sink, plus the backing underneath.
  • Use standard Tearaway or Cutaway on structured fabrics (twill, cap buckram, denim) if hooping is tight and stable.
  • Success check: Small text stays sharp with consistent column width, and the surface does not swallow the stitches.
  • If it still fails: Treat hooping tension as the variable—fabric shift can defeat even a perfect file, so improve hooping consistency (magnetic frames can help).
• Q: What is the safest way to trim jump stitches during a high-speed embroidery test sew to avoid needle injuries near the needle bar?
  A: Stop the embroidery machine completely before trimming—never bring scissors or snips near the needle bar while the machine is running.
  • Pause/stop the machine fully before reaching into the sewing area.
  • Keep scissors and snips at least 6 inches away from the needle bar during operation.
  • Resume only after hands and tools are clear of moving parts.
  • Success check: Jump stitches are trimmed with zero contact risk—no “near-miss” moments while the machine is moving.
  • If it still fails: Slow down the workflow—run controlled test sews and verify fixes on-screen with Slow Redraw before sewing again.
• Q: What magnetic frame safety hazards should embroidery shop owners follow when using magnetic embroidery hoops on thick or slippery garments?
  A: Treat magnetic embroidery hoops as high-force tools: prevent finger pinches and keep them away from pacemakers and implanted medical devices.
  • Handle magnetic frames with deliberate hand placement to avoid severe finger pinching when the magnets snap shut.
  • Keep magnetic frames away from anyone with a pacemaker or other implanted medical devices due to interference risk.
  • Store magnetic hoops using the provided separators to control magnetic attraction during storage.
  • Success check: Hooping is consistent and controlled with no pinch incidents, and the shop follows clear “no-implant-device” proximity rules.
  • If it still fails: Re-train handling technique and enforce a dedicated storage/handling area to reduce accidental snap-closures.
