Mastering the HoopMaster & Magnetic Hoops: The 2025 Professional Setup Guide

If you have ever tried to hoop a slippery performance polo on a standard table, fought the fabric stretch until your fingers ached, and then watched your logo land one inch too high, you already understand why professional hooping stations exist.

Embroidery is a game of millimeters. In my 20 years on the production floor, I have seen more garments ruined by bad hooping than by bad digitizing. The struggle is real: wrist fatigue, "hoop burn" (those shiny rings left on dark fabric), and the anxiety of piercing a $50 jacket in the wrong spot.

This guide rebuilds the unboxing and assembly flow of the industry-standard HoopMaster system, but we are going deeper. I will provide the "old hand" sensory details—the clicks, the resistance levels, and the safety checks—that keep you from pinching fingers, cracking plastic, or wasting expensive stabilizer. Whether you are stitching one shirt for a gift or running a 50-piece corporate order on your SEWTECH multi-needle machine, the goal is the same: consistent placement, zero fabric damage, and absolute confidence.

The calm truth about the HoopMaster embroidery system: it’s a placement tool, not a magic wand

The HoopMaster system is designed to solve one specific problem: repeatability. It ensures that if you hoop 100 shirts, the logo lands in the exact same spot on every single one. However, it is a mechanical tool, not a magic wand. It requires correct assembly and calibration.

For owners of high-speed machines—whether a home single-needle or a commercial SEWTECH powerhouse—repeatability is where profit lives. If you are setting up a hoop master embroidery hooping station for the first time, expect two distinct learning curves:

1. Mechanical Assembly: Understanding friction and fit (preventing wobble).
2. Grid Logic: Translating the numbers on the board to the actual chest location on a garment.


Unboxing the HoopMaster Station and legs: set the height once, then stop fighting your posture

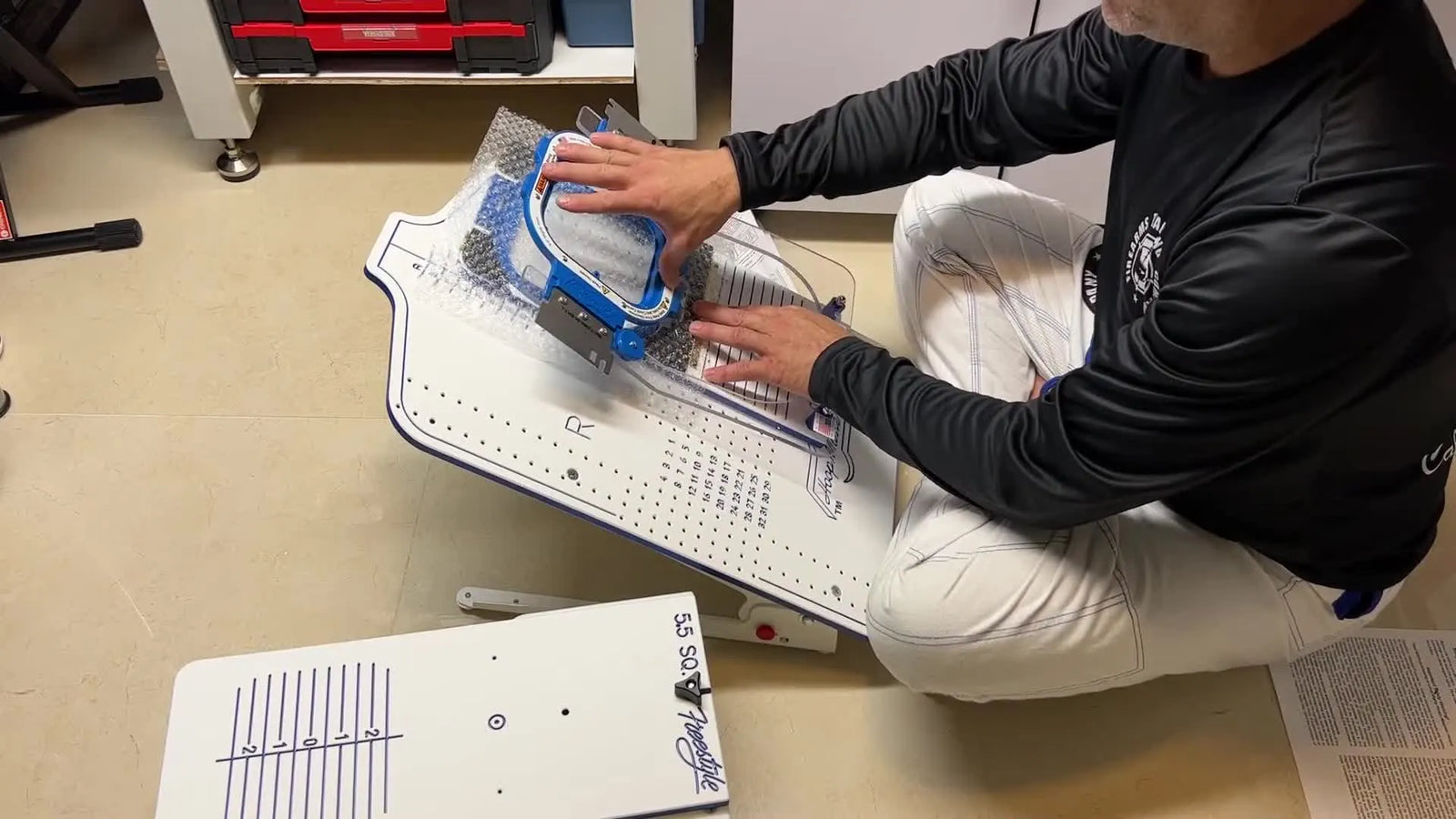

In the video, the presenter pulls out the main station board and legs, immediately adjusting the height. This is your first critical decision point.

What you do (The Ergonomic Setup):

1. Remove the station board and legs.
2. Stand the station up and loosen the black knobs.
3. The "Elbow Rule": Adjust the height so that when you stand in front of it, the hooping surface is roughly level with your elbows. Do not just max it out like the video unless you are tall.
4. Tighten the knobs firmly.
5. Storage Note: The legs fold flat, allowing the unit to slide under a standard embroidery machine table.

Expected Outcome: The station stands rock-solid. If you lean on it, it shouldn't slide.

Expert Insight (Why height matters): In real production, you might hoop 50 shirts in an hour. If the station is too low, you flex your wrists excessively (inviting Carpal Tunnel). If it is too high, you cannot apply the necessary downward pressure to snap the magnetic hoop close. Set it for your body, not the table.

Magnetic embroidery hoop safety: treat the 5.5" square like a hand tool, not a toy

The video unpacks a blue 5.5-inch square magnetic hoop. Stop here. This is not a standard plastic hoop. It is a powerful industrial tool.

One sentence must live in your head: Magnets do not "close," they slam.

Warning: Magnet Safety
Powerful magnetic hoops (Mighty Hoops) snap together with immense force.
* Pinch Hazard: They can crush fingertips and bruise skin instantly.
* Medical Risk: Keep at least 6 inches away from pacemakers.
* Electronic Risk: Do not place credit cards or phones directly on the magnets.

What you do (The Safe Handling Method):

1. Grip Control: Always hold the top hoop by the plastic handles or outer rim, never with fingers underneath.
2. Controlled Descent: Do not "drop" the top hoop. Lower it until you feel the magnetic pull request engagement, then guide it down.
3. Separation: To separate them, do not pull straight up. Slide them apart or "break" the seal like cracking an egg, using the leverage tabs.

Expected Outcome: You achieve a perfect fabric grip without injury.

If you are shopping for a magnetic embroidery hoop to solve the issue of "hoop burn" (the crushing mark left by standard hoops), know that the "pinch strength" you see is deliberate. It eliminates the need to tighten screws and allows you to hoop thick items (like Carhartt jackets) that standard hoops cannot handle.

The “hidden” prep before assembly: save 30 minutes by checking parts and friction points first

Before grabbing a screwdriver, we must perform a "Pre-Flight Check." The video shows a locking nut; this is a clue that precision, not brute force, is required.

Prep Checklist (Do this before assembly)

• Hardware Count: Confirm you have the station board, two legs, and the Freestyle base parts (top and bottom).
• Nut Identification: Locate the locking nuts. Look closely—they have a nylon insert or grooves. This means they are designed to resist turning; they are supposed to be hard to tighten.
• Hidden Consumables: Do you have silicone spray (optional but helpful for base movement) and temporary adhesive spray (like 505) for your stabilizer? New users often forget these.
• Tool Check: A full-sized handle screwdriver is better than a small one; you need torque control.
• Safe Zone: Clear the table. Small screws love to roll under heavy embroidery machines.


Building the Freestyle Arm mounting base: the locking nuts are supposed to feel “grabby”

This step confuses 40% of beginners. You start tightening the screw, and it stops turning easily. You think you stripped it. You didn't.

The Physics: These are Nyloc (nylon-insert) lock nuts. The plastic ring inside the nut bites into the screw threads to prevent vibration from loosening the base later.

What you do (step-by-step):

1. Align the top and bottom C-shaped plastic base pieces (check the video for orientation).
2. Insert the screws.
3. Finger-tighten the nuts until they stop.
4. The Torque Turn: Use your screwdriver. You will feel constant, heavy resistance. This is normal.
5. Stop Point: Tighten until the plastic parts meet firmly, but do not crush the plastic.

Sensory Check: You should feel a steady "drag" on the screwdriver, not a free spin.

Expected Outcome: A rigid C-shape base that does not flex when you apply 10-15 lbs of downward pressure.

Warning: Mechanical Safety
Do not use a power drill/impact driver for this step. High-speed torque will melt the nylon insert or crack the plastic base instantly. Hand tools only.

If the nuts “won’t tighten,” don’t panic—here’s what the video is really showing

The video touches on troubleshooting, but let's structure it for clarity.

Symptom: The screw turns but won't go in, or the base rattles.

Likely Cause:

1. The nut isn't seated in its hexagonal hex-hole.
2. Uneven tightening (one side is tight, the other is loose).

Fix (The "Cross-Pattern" Technique): Just like changing a tire, do not fully tighten one screw before the others. Tighten screw A (top left) 50%, then screw B (bottom right) 50%, and so on. This ensures the plastic base sits flat on your table.

Pro Tip: If your table surface is slippery, a small non-slip rubber mat under the Freestyle base prevents it from "walking" while you work.

Attaching the Freestyle Arm to the base: the pin-and-hole lock is the whole game

Now, the flat Freestyle arm board slides onto the base you just built.

What you do:

1. Slide the board over the base.
2. The Hunt: You are looking for the alignment pin on the underside.
3. The Lock: Wiggle the board until the pin drops into the hole.

Sensory Check: You will hear a distinct "Thud-Click". Once seated, try to rotate the board left and right. It should have zero play.

Expected Outcome: A completely stationary platform.

If you are researching hooping stations for commercial use, this pin mechanism is critical. If the station has "play" (movement), your chest logos will drift 2-3mm left or right, making them look off-center on the final shirt.

The underside pin detail: why a tiny alignment point prevents crooked logos

The video highlights the close-up of the pin. Why focus on this? Because in embroidery, rigidity equals accuracy.

When you press down with a magnetic hoop, you are applying force. If the station acts like a spring or pivots, the fabric shifts during the clamping process. The pin ensures the station fights back against your pressure, keeping the fabric grid-locked.

The numbered grid on the HoopMaster Station: pick a number, then commit to it for the whole order

The grid is your map. The video shows aligning to number 6.

The Logic:

• For a standard Men's L/XL Polo Left Chest: E to H usually works well for height.
• For Center Chest: You center the fixture.

What you do:

1. Select: Choose your number (e.g., 6) based on the shirt size chart provided with the kit.
2. Record: If you are doing an order for a client, write down "Station Setting: 6" on your work order.
3. Commit: Do not eyeball it. Use the pins.

Expected Outcome: Every shirt in the stack gets the logo in the exact same spot relative to the placket/collar.

If you are running a business using a hoopmaster station, this "record and repeat" discipline is what allows you to hire help later. You don't teach them "how to eye it," you teach them "Set it to 6."

Snapping the 5.5" fixture into the grid holes: make sure it seats fully before hooping

The grey plastic piece (the fixture) holds your specific hoop size.

What you do:

1. Align the fixture's prongs with the grid holes at your chosen number.
2. Press down firmly.

Sensory Check: Listen for the "Snap". It should be crisp. Verify by trying to lift the fixture lightly—it should stay put.

Loading the bottom magnetic ring into the fixture recess: this is where tension starts

Here is where the magic of the magnetic system begins. You place the bottom ring of the magnetic hoop into the cutouts of the fixture.

What you do:

1. Identify the "Machine Bracket" side of the hoop (the metal ears that attach to your pantograph).
2. Ensure the bracket orientation matches your machine’s needs (usually handles facing you or away, depending on the arm).
3. Seat the ring flat.

Expert Insight: If the bottom ring is slightly tilted, the top magnet will "jump" to it unevenly, creating a pinch or a wrinkle in the fabric. It must be perfectly flat.

Hooping a shirt on the Freestyle Arm: handles facing you, press straight down, and listen for the “snap”

The video demonstrates the movement. Let's break down the perfect hooping motion to avoid "hooper's wrist."

The Action Sequence:

1. Loading: Pull the shirt over the Freestyle board (like putting a shirt on a mannequin).
2. Smoothing: Run your hands from the center outward to remove wrinkles. Do not stretch the fabric; just relax it.
3. Alignment: Check that the side seams hang vertically.
4. The Press: Hold the top magnetic hoop. Align the front edge first (tilted slightly up), then roll the back down, OR press straight down if you have the clearance.
5. The Capture: Let the magnets find each other. SNAP.

Sensory Check: You will feel a jolt as the magnets engage.

Setup Checklist (Ready to Hoop?)

• Station legs are tight; correct ergonomic height.
• Freestyle arm is pin-locked (no rotation).
• Fixture is snapped into Grid # (e.g., #6).
• Bottom magnetic ring is seated flat in the recess.
• Backing Check: Did you place your stabilizer? (See below).


The “tightness test” after hooping: what you should see and feel before you walk to the machine

You have hooped the shirt. Now, do not assume it is good. Test it.

The Drum Test:

1. Lift the hoop off the fixture.
2. Tap the fabric in the center with your finger.
3. Listen: It should sound like a dull thud on a drum ( thump ), not a loose flap.
4. Look: The fabric grain should be straight, not bowed/curved like a smile.

Common Failure: If the fabric looks like a "waffle" or has waves, the magnets grabbed evenly but the fabric wasn't smoothed properly. Pop it open and redo.

Using the fixture tabs for stabilizer: the small detail that prevents shifting on knits

The video points out small tabs on the fixture. These are Stabilizer (Backing) Retainers.

The Logic: When you slide a T-shirt over the board, the friction often pushes the stabilizer sheet out of place underneath. These tabs hold the stabilizer still while the shirt moves over it.

Decision Tree: Stabilizer & Hoop Strategy

Use this guide to prevent "bird nesting" (thread tangles) and shifting.

• Scenario A: High-Stretch Knit (Polo/Performance Tee)
  • Stabilizer: Cutaway (2.5oz or 3.0oz). Must use Cutaway.
  • Technique: Tuck stabilizer under the fixture tabs. Do not stretch the shirt; lay it on top gently.
  • Hoop: Magnetic hoop is preferred to avoid crushing the fabric pile.
• Scenario B: Stable Woven (Dress Shirt/apron)
  • Stabilizer: Tearaway is usually acceptable.
  • Technique: Standard tab usage.
  • Hoop: Magnetic or Standard hoop works well.
• Scenario C: Using Pre-cuts
  • Size: For the 5.5" hoop, use 7.5" x 7.5" pre-cut squares.
  • Why? The 5.5" hoop needs margin. If you use a 6" piece of backing, the specific magnetic force might pull the edge, causing it to fold inside the stitch area. Rule: Metric + 2 inches.

If you are setting up a 5.5 mighty hoop starter kit, buying the correct backing size immediately saves you from ruined shirts on day one.

Comment-driven fixes: the questions beginners ask right before they waste materials

Based on common frustrations I see in the field:

1) "My hoop marked the shirt!" This is "Hoop Burn." It happens when you force a standard plastic inner/outer ring onto delicate fabric. The friction crushes the fibers. Fix: Steam it out. Prevention: This is exactly why professionals switch to magnetic hoops—they clamp down, they don’t scrub sideways.

2) "The design is crooked!" You likely aligned the shirt shoulders unevenly. Fix: Use the T-Square provided with the HoopMaster to align the shirt placket (buttons) perfectly vertical before clamping.

3) "Can I do pockets?" Yes, but the 5.5" hoop is tight for pockets. You may need a smaller fixture sizes (e.g., 4.25") to get inside a pocket without sewing it shut.

The upgrade path when you outgrow “one shirt at a time”: speed, consistency, and tool ROI

The HoopMaster and magnetic hoop system is the first major "productivity tool" a specialized embroiderer buys. It stops the guesswork. However, as your business creates more demand, you will encounter new bottlenecks.

The "Tool Upgrade" Logic:

• Problem: "I am spending too much time changing thread colors."
  • Solution Level 1: Optimize your color sequence in software.
  • Solution Level 2 (Production): Upgrade from a single-needle to a SEWTECH Multi-Needle Machine. This allows you to set up 10-15 colors at once and walk away while it runs.
• Problem: "I cannot hoop thick Carhartt jackets or leather bags."
  • Solution Level 1: Struggle with standard hoops (risking breakage).
  • Solution Level 2 (Production): Upgrade to heavy-duty Magnetic Hoops. Their clamp force penetrates thick seams that plastic hoops cannot.
• Problem: "My wrists hurt."
  • Solution: Stop screwing standard hoops. The magnetic "snap" action is ergonomically superior for high-volume days.

If you are currently struggling with a hoopmaster hooping station setup, verify your board height first. If you are struggling with fabric damage, look at magnetic frames.

Operation Checklist (The "Last 20 Seconds" before pressing Start)

Do not press the green button on your machine until you verify:

• Hoop Security: Is the hoop attached to the machine pantograph correctly? (Listen for the click).
• Clearance: Is the back of the shirt gathered underneath? (Reach under and feel—ensure you aren't sewing the front to the back).
• Obstructions: Is the sleeve falling into the sew field? (Use clips or tape to hold it back).
• Centering: Does the needle align with the center mark on your screen vs. the hoop?
• Bobbin: Do you have enough bobbin thread for the run?

Consistency is not an accident. It is a checklist. By mastering the station setup and respecting the magnetic forces, you turn hooping from a "hope it works" moment into a boring, reliable, profitable process.

If you are building a repeatable workflow around magnetic hooping station setups, these small details are the difference between a returned order and a customer for life.

FAQ

• Q: How do I set the correct height on a HoopMaster hooping station to prevent wrist fatigue during high-volume hooping?
  A: Set the HoopMaster station height so the hooping surface is roughly level with the operator’s elbows, then lock the knobs firmly.
  • Stand in front of the HoopMaster station and loosen the black knobs.
  • Adjust the board to elbow height (do not automatically max the legs out unless the operator is tall).
  • Tighten both knobs firmly and test stability by leaning lightly on the station.
  • Success check: the station feels rock-solid and does not slide or wobble when pressure is applied.
  • If it still fails: add a non-slip mat under the station feet or re-check that the knobs are fully tightened.
• Q: How do I handle a 5.5-inch magnetic embroidery hoop safely to avoid finger pinches and device damage?
  A: Treat the 5.5" magnetic hoop like a hand tool—control the descent and never place fingers underneath because magnets slam shut.
  • Grip the top hoop by the plastic handles or outer rim only.
  • Lower the top hoop slowly until the magnetic pull starts, then guide it down—do not drop it.
  • Separate hoops by sliding/breaking the seal with leverage tabs, not by pulling straight up.
  • Success check: the hoop closes with a controlled “snap” and no fingers are anywhere near the pinch zone.
  • If it still fails: reset your hand position and clear phones/credit cards from the work surface; keep magnetic hoops away from pacemakers.
• Q: Why do Nyloc locking nuts on a HoopMaster Freestyle Arm mounting base feel “grabby,” and how tight should the screws be?
  A: The resistance is normal because Nyloc lock nuts are designed to bite the screw threads; tighten by hand tools until the plastic parts meet firmly without crushing.
  • Finger-tighten first until the nut stops easily turning.
  • Use a full-handled screwdriver and continue with steady torque (expect constant drag).
  • Stop when the C-shaped base pieces meet firmly and the base does not flex under pressure.
  • Success check: the screwdriver never free-spins, and the mounted base feels rigid when you apply downward pressure.
  • If it still fails: do not use a drill/impact driver; re-seat the nut and tighten again by hand to avoid cracking plastic.
• Q: What should I do if HoopMaster Freestyle Arm base screws “won’t tighten” or the base rattles after assembly?
  A: Re-seat the locking nuts in the hex holes and tighten using a cross-pattern so the base sits flat.
  • Check each nut is fully seated in its hex-shaped pocket (not spinning in place).
  • Tighten screw A about 50%, then the opposite screw about 50%, alternating like a tire change.
  • Add a non-slip rubber mat under the base if the table surface is slippery.
  • Success check: the base sits flat on the table and does not rattle or “walk” when you press down.
  • If it still fails: loosen everything, re-align the two plastic base pieces, and repeat the cross-pattern tightening.
• Q: How do I lock the HoopMaster Freestyle Arm board onto the mounting base so chest logo placement does not drift 2–3 mm?
  A: Seat the Freestyle Arm using the underside alignment pin-and-hole lock until there is zero rotational play.
  • Slide the board onto the mounted base.
  • Wiggle gently while applying light downward pressure to “hunt” for the pin dropping into the hole.
  • Confirm the board cannot rotate left/right once seated.
  • Success check: you hear/feel a distinct “thud-click,” and the platform has zero play.
  • If it still fails: remove the board and try again—misalignment here can cause fabric shift during magnetic hoop clamping.
• Q: How do I tell if fabric is hooped correctly in a 5.5-inch magnetic hoop before installing the hoop on a multi-needle embroidery machine?
  A: Do a quick drum test and grain check before walking to the machine to prevent shifting and rework.
  • Lift the hooped garment and tap the center of the fabric with a finger.
  • Look for straight fabric grain (not bowed like a smile) and no “waffle” waves.
  • Re-hoop immediately if you see ripples—smooth the garment without stretching and clamp again.
  • Success check: the fabric gives a dull drum “thump” and lies flat with straight grain.
  • If it still fails: confirm the bottom ring was seated perfectly flat in the fixture recess before closing the top magnetic hoop.
• Q: What stabilizer should I use with a HoopMaster station when hooping a high-stretch knit polo, and how do the fixture tabs prevent shifting?
  A: For high-stretch knits, use cutaway stabilizer and tuck it under the fixture tabs so the backing does not slide while loading the shirt.
  • Choose cutaway stabilizer (2.5 oz or 3.0 oz) for polos/performance tees.
  • Place the stabilizer under the fixture tabs before pulling the shirt over the Freestyle board.
  • Use correctly sized pre-cuts for a 5.5" hoop (7.5" x 7.5") to keep safe margin around the clamping area.
  • Success check: the stabilizer stays centered under the sew field and does not creep as the garment is loaded.
  • If it still fails: re-tuck the backing under the tabs and re-hoop without stretching the knit.
• Q: If standard embroidery hoops keep causing hoop burn or slow screw-tightening fatigue, what is a practical upgrade path from technique fixes to magnetic hoops to a SEWTECH multi-needle machine?
  A: Start by fixing the setup and process, then move to magnetic hoops for fabric damage/ergonomics, and consider a SEWTECH multi-needle machine when color changes become the main bottleneck.
  • Level 1 (Technique): Set HoopMaster height to elbow level, use the grid consistently (pick a number and record it), and align garments with the T-square to stop crooked placement.
  • Level 2 (Tool): Switch to magnetic hoops to reduce hoop burn (downward clamp vs. sideways scrubbing) and to hoop thicker items without forcing plastic rings.
  • Level 3 (Capacity): Move to a SEWTECH multi-needle machine when frequent thread color changes are eating production time.
  • Success check: placement becomes repeatable across an order, fabric marks reduce, and hooping time per garment drops.
  • If it still fails: re-check station rigidity (pin-lock, fixture fully snapped) and stabilizer choice before investing in new hardware.
