Nail the ITH Zipper Gusset for the Sweet Pea Circular Tote (Part 1): Clean Layers, Zero Shifting, No “Rockety Ruler” Drama

If you’ve ever unhooped an In-The-Hoop (ITH) zipper panel and thought, “Okay… I’m terrified to take scissors to this,” you are not alone. Machine embroidery is often marketed as "push-button magic," but a zipper gusset is where that magic meets physics—and physics can be unforgiving.

This post upgrades Part 1: Embroidery Panels of the Sweet Pea Circular Tote process from a terrifying gamble into a repeatable engineering workflow. We will construct the embroidered body segments, then tackle the notorious ITH zipper gusset using the flip-and-fold applique approach.

More importantly, I am going to give you the "Old Hand" sensory details that cameras miss: the sound of a happy machine, the tactile feel of correct tension, and the crucial safety zones that prevent the two most common ITH disasters—needle strikes and layer shifts.

Keep Your Cool: Engineering the "Fussy" Zipper Gusset

The zipper gusset induces anxiety because you are asking your hoop to act as a clamp, a stabilizer, and a sewing table simultaneously. You are stacking cutaway stabilizer, lofty batting, rigid zippers, lining, and outer fabric.

The Physics of Failure: Most failures happen because of Hoop Deflection. When you jam a thick stack into a standard plastic hoop, the inner ring distorts into an oval. This creates "flagging" (bouncing fabric), which leads to poor registration and birdnesting.

The Fix:

• Speed Limit: Slow your machine down. If your machine runs at 800 SPM (Stitches Per Minute), drop it to 600 SPM for ITH assembly steps. You want torque, not speed.
• Tools: If you find yourself fighting to tighten the screw, or if you see "hoop burn" (crushed fibers) on the fabric, this is the exact scenario where professionals switch to magnetic embroidery hoops. They clamp downward purely with vertical force, holding thick sandwiches without distorting the fabric grain or your wrists.


The “Hidden” Prep: Sweet Pea assumes you know "The Sandwich"

The video starts with a stack that looks simple but must be engineered for stability:

1. Cutaway Stabilizer: Hooped drum-tight.
2. Batting: Floated on top.
3. Stiffener (Optional): Added between batting and fabric.
4. Fabric: Pressed flat.

Why Cutaway? For a bag, cutaway is non-negotiable. It provides the permanent skeleton. If you use tearaway, the stitches will perforate the paper, and your bag will lose shape after three uses.

The Tactile Check: Run your hand over the hooped stabilizer. It should feel taut, like a drum skin. If you push on it and it leaves a "bowl" shape, it's too loose. Tighten it until it rebounds instantly.

Prep Checklist: The Zero-Friction Start

• Machine: Needle changed to a fresh 75/11 or 90/14 Topstitch Needle (sharp point penetrates layers better than universals).
• Hoop: Cutaway stabilizer hooped smoothly with no ripples.
• Materials: Batting pre-cut larger than the design area but trimmed away from the attachment arms.
• Consumables: Fresh rotary blade installed (dull blades drag fabric).
• Adhesives: Washi tape or medical paper tape ready (never use duct tape or scotch tape; the residue ruins needles).


Embroidering Body Segments: The "1/2 Inch" Religion

The video’s body segments are straightforward decorative work. However, the post-stitch trimming is where the project lives or dies.

The Golden Rule: Trim all edges to an exact 0.5-inch seam allowance.

This is not an aesthetic choice; it is a geometric requirement. The bag is a circle. If your seam allowance varies by 1/8th of an inch, the circumference changes by nearly an inch across the whole bag, and your zipper gusset will either be too short or too long.

Visual Anchor: When marking the curve for trimming, use a heat-erasable pen. Draw the line on the stabilizer before you unhoop if possible, or use a flexible clear ruler immediately after.

Trim Without Distortion: Solving the "Rockety Roller"

When trimming a flat panel, life is easy. When trimming a zipper panel, the zipper pull creates a lump. If you place a rigid acrylic ruler over that lump, the ruler seesaws. This is the "Rockety Roller" effect mentioned in the video.

The Consequence: If your ruler rocks while you cut, your rotary blade will veer off-angle. You will end up with a smooth-looking cut that is actually crooked, making assembly a nightmare.

The Fix: We use a Two-Pass Trim Method (detailed in the trimming section below) to neutralize this bump.

Build the ITH Zipper Gusset: Managing Bulk with Millimeter Precision

The machine will stitch placement rectangles for the batting. Your job is to trim that batting.

The Critical Tolerance: Trim batting to 1–2 mm away from the stitch line.

Why? You are about to fold fabric over this edge.

• Too close (cutting the stitches): The batting shifts inside the bag.
• Too far (leaving >3mm): You create a thick ridge. When you later try to topstitch lightly over this, the needle will deflect off the ridge, causing crooked lines or broken needles.

Hidden Consumable: Use Double-Curved Embroidery Scissors. The curve allows the blades to glide flat against the stabilizer while lifting the batting up, ensuring a close cut without snipping the base.

Lock the Zipper in the "Trench"

Place the zipper into the channel (trench) created between the two batting strips.

Orientation Check: Zipper teeth must be facing UP.

The Taping Protocol: Secure it aggressively. Tape across the top, middle, and bottom. Tape the metal stops.

• Sensory Check: Wiggle the zipper tape with your finger. If it slides even 1mm, add more tape.

If you struggle to keep the zipper straight while managing the tape, this is where a hooping station for embroidery shines. It holds the outer frame static, allowing you to use both hands for precision placement rather than chasing a sliding hoop across the table.

The Flip-and-Fold Sequence: The "Burrito" for Zippers

This method, often called the "flip-and-fold," is the standard for ITH construction. It ensures all raw edges are hidden inside the final seam.

1. The Back Lining (The Under-Belly)

• Flip hoop over.
• Place lining fabric Right Side DOWN (Wrong Side facing you).
• Tape corners securely. Crucial: Ensure tape is outside the stitching area.


2. The Front Fabric (The Top Layer)

• Flip hoop to front.
• Place fabric strip Right Side DOWN.
• Align raw edge with the zipper tape edge, creating a 1/4 inch overlap.
• Action: Run the tack-down stitch.
• Action: Fold the fabric back so the Right Side is now facing UP. Finger press the fold sharply.

Why 1/4 Inch? This specific overlap ensures the fabric covers the batting edge but doesn't crowd the zipper teeth.

3. The Back Fold (The Safety Move)

• Flip hoop over.
• Remove tape from the lining.
• Fold the lining back and tape it down temporarily so it covers the underside of the embroidery area.


Warning: Physical Safety
When reaching under the needle to smooth fabric or adjust tape, wait for the machine to stop completely. An ITH pattern can jump from one side of the hoop to the other instantly. Keep fingers away from the "Danger Zone" (the 2-inch radius around the needle).

Repeat for Side Two & The "Tape Drag" Hazard

Repeat the process for the second side. However, as tape builds up, you face a new enemy: Friction.

The Symptom: You hear a grinding noise, or the hoop "stutters" while moving. The Cause: Loose ends of washi tape underneath the hoop are dragging on the machine bed or feed dog cover. The Fix: Check the bottom of the hoop every time you flip it. If a piece of tape is peeling up, remove it or re-tape it flat.

Pro Tool Tip: When using magnetic hoops for embroidery machines, the profile is often slimmer and flatter than traditional plastic inner-hoop screws. This reduces the surface area that can snag on machine beds, smoothing out the movement for complex ITH travel paths.

Cut the Stabilizer Window: Anatomy of a Flex Hinge

Once both sides are stitched, cut a window in the stabilizer behind the zipper teeth.

Why do this now?

1. Flexibility: It removes the rigid stabilizer from the zipper teeth, allowing the zipper to zip smoothly.
2. Access: It opens the path to the zipper pull.

Technique: Pinch the stabilizer in the center to snip a hole, then carefully cut a rectangle. Do not cut the zipper tape or your lining!

The "Center-the-Pull" Checkpoint: The Project Savior

STOP. Read this twice.

Before the machine stitches the final perimeter (the line that seals everything together), you must unzip the zipper and move the metal/plastic pull tab to the dead center of the fabric.

The Horror Story: If you leave the slider at the top edge, the machine foot will hit it during the final pass.

• Best case: A bent needle.
• Worst case: The impact knocks your machine's timing out, requiring a $150 service repair.




Setup Checklist: Pre-Flight for Final Stitch

• Zipper Pull: Centered in the middle of the panel.
• Zipper Tail: Tape the open ends of the zipper together so they lie flat.
• Back Lining: Taped securely so it doesn't flop over on itself.
• Machine Speed: Reduced to 500-600 SPM for this thick final pass.
• Bobbin: Check you have enough bobbin thread to finish! (Running out now creates a weak join).

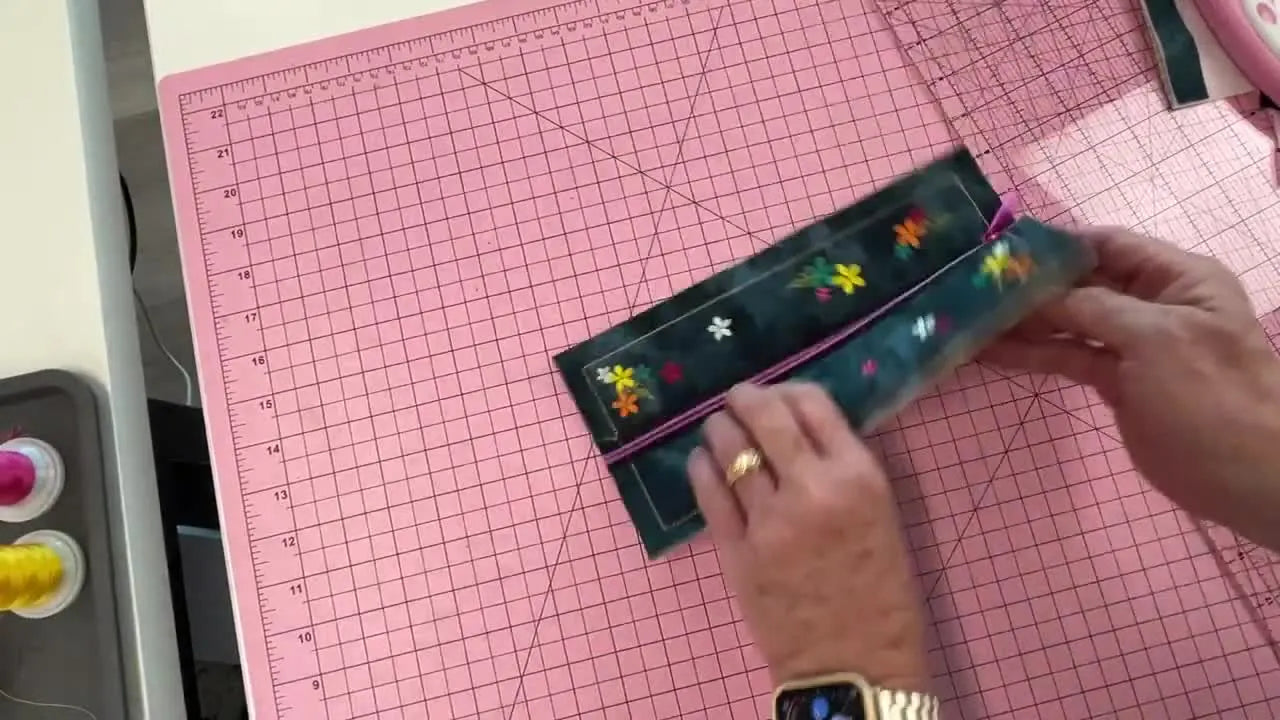

Trim Like a Pro: The Two-Pass Method

Unhoop. Peel away the stabilizer. Now, tackle the "Rockety Roller" problem.

The Method:

1. Pass 1: Place ruler on the top half. The zipper pull is in the bottom half. Cut.
2. Slide: Unzip/Zip the pull into the area you just cut.
3. Pass 2: Place ruler on the bottom half. (Now the pull is in the top half). Cut.

By moving the pull away from your active cutting zone, your ruler always sits flat on the fabric.

Production Note: If you are making these bags to sell, consistency is money. Uneven trimming kills profit margins because it slows down assembly. Many boutiques upgrade to a brother 5x7 magnetic hoop (or the size matching your machine) for these repetitive hooping tasks to save their wrists from repetitive strain injury (RSI) and eliminate hoop burn marks that require ironing.

Troubleshooting: The "Why is this happening?" Guide

Stabilizer Decision Tree: Choosing Your Foundation

Think of the stabilizer as the foundation of a house.

• Q1: Is the fabric stretchy (Knits, Jersey)?
  • Yes: Must use Mesh Cutaway or Heavy Cutaway. Never Tearaway.
• Q2: Is this a structural item (Bag, Tote)?
  • Yes: Use Medium Weight Cutaway (2.5oz). It stays in the project forever.
• Q3: Does the pattern require the back to be clean (e.g., scarf)?
  • Yes: use Wash-Away (Soluble) stabilizer—but only if the fabric is stable enough to hold stitches alone after washing.

The Upgrade Path: From Hobbyist to Professional

Once you master the technique, your tools become the bottleneck. Here is how to diagnose if you need an upgrade.

Scenario A: "My hoops leave 'burn marks' or can't hold the layers."

• The Pain: You are scrubbing water on fabric to remove hoop rings, or the inner hoop pops out mid-stitch.
• The Diagnosis: Mechanical hoops rely on friction, which fails with thick batting.
• The Solution: Upgrade to a magnetic hoop for brother (ensure compatibility with your machine). Magnets use vertical force, not friction. They hold batting + zipper + fabric without crushing the fibers.

Scenario B: "I spend 10 minutes hooping for 5 minutes of sewing."

• The Pain: Your back hurts from leaning over the table to align lines.
• The Diagnosis: Inefficient workflow.
• The Solution: Add a hoop master embroidery hooping station. It standardizes placement, so every hooping takes 30 seconds, not 5 minutes.

Warning: Magnet Safety
Magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely. Keep them at least 6 inches away from pacemakers, ICDs, and magnetic media (credit cards/hard drives).

Final Operation Checklist: The Definition of "Done"

• Geometry: All panels are trimmed to exactly 1/2".
• Cleanliness: Batting is trimmed close (1-2mm) to the stitch line; no lumps.
• Safety: The zipper pull is safely trapped in the middle of the gusset.
• Flex: The stabilizer window is cut cleanly behind the zipper.
• Finish: No loose threads or tape residue in the sewing path.

When you hit these five marks, Part 2 (Assembly) changes from a struggle into a simple sewing task. You are no longer "hoping" it fits; you know it fits.

Consistency is the difference between a "Home Ec Project" and a "Boutique Product." Respect the physics, upgrade your tools when the volume demands it, and treat every layer like you are building a house, not just sewing a seam.

FAQ

• Q: How do I hoop cutaway stabilizer drum-tight for an ITH zipper gusset without getting ripples in a standard embroidery hoop?
  A: Hoop the cutaway stabilizer tighter than you think, and verify tension by touch before stitching—this is common and fixable.
  • Tighten: Smooth the stabilizer into the hoop with no ripples, then tighten until it stops “creeping” when you rub it.
  • Test: Press the hooped stabilizer with a fingertip; if it holds a “bowl” dent, re-hoop tighter.
  • Stabilize: Float batting on top after hooping (do not try to hoop the whole thick stack if it distorts the hoop).
  • Success check: The stabilizer feels like a drum skin and rebounds instantly when pressed.
  • If it still fails: Slow the machine to about 600 SPM for ITH assembly steps and reduce bulk that is forcing the inner ring into an oval.
• Q: What machine speed should be used for thick ITH zipper gusset steps to reduce birdnesting and hoop deflection?
  A: Reduce speed for torque and control—use about 600 SPM for ITH assembly steps and 500–600 SPM for the final thick perimeter pass.
  • Set: Drop from high speeds (example: 800 SPM) down to ~600 SPM when stacking batting + zipper + fabrics.
  • Reserve: Use 500–600 SPM for the final perimeter stitch where the stack is thickest.
  • Pause: Stop fully before reaching into the hoop area to smooth layers or tape.
  • Success check: The hoop movement sounds smooth (no grinding) and stitches form cleanly without tangles under the throat plate.
  • If it still fails: Re-check stabilizer tightness and confirm no tape is dragging under the hoop.
• Q: Which needle should be installed for an ITH zipper gusset with multiple layers, and what is the best “fresh needle” prep standard?
  A: Start with a fresh 75/11 or 90/14 topstitch needle before the ITH assembly steps.
  • Change: Install a brand-new 75/11 or 90/14 Topstitch needle (sharp point helps penetrate layered stacks).
  • Inspect: Replace immediately if the needle hits a zipper pull/stop or if stitching suddenly sounds “punchy” or inconsistent.
  • Prepare: Keep double-curved embroidery scissors ready for close trimming near stitch lines without snipping the base.
  • Success check: The machine pierces the stack cleanly without audible popping and without skipped/broken stitches.
  • If it still fails: Confirm the zipper pull is centered before the final perimeter stitch to prevent impact-related breaks.
• Q: How do I prevent an embroidery machine needle strike on an ITH zipper pull during the final perimeter stitch of a zipper gusset?
  A: Unzip the zipper and move the slider pull to the dead center before the final perimeter—this checkpoint saves projects and machines.
  • Stop: Pause before the final perimeter stitch and physically confirm the pull is centered in the middle of the panel.
  • Tape: Tape zipper tails flat so they cannot spring upward into the needle path.
  • Slow: Run the final pass at 500–600 SPM for control through the thick stack.
  • Success check: The presser foot clears the zipper area without contacting metal/plastic and the needle remains straight after the pass.
  • If it still fails: Re-open the hoop area, re-center the pull, and reduce bulk where the foot is climbing.
• Q: How close should batting be trimmed to the stitch line for an ITH zipper gusset to avoid ridges and needle deflection?
  A: Trim batting to 1–2 mm away from the stitch line; do not cut into the stitches and do not leave more than about 3 mm.
  • Trim: Follow the placement rectangle and cut batting evenly to a 1–2 mm margin from stitches.
  • Tool: Use double-curved embroidery scissors to glide along the base while lifting batting away.
  • Verify: Check both sides before folding fabric over the edge.
  • Success check: The edge feels flat (no hard ridge) and folds crisply without a bulky bump.
  • If it still fails: Re-trim any thick spots before continuing; bulky ridges often cause crooked topstitching and needle deflection later.
• Q: Why does an embroidery hoop “stutter” or jerk during ITH zipper gusset stitching when using washi tape, and how do I fix tape drag?
  A: Remove or re-secure any loose tape ends on the underside of the hoop—tape drag friction commonly causes stuttering.
  • Flip: Turn the hoop over and inspect the bottom for peeling tape tails.
  • Remove: Pull off loose tape and re-tape flat, keeping edges firmly pressed down.
  • Repeat: Check the underside every time the hoop gets flipped during flip-and-fold steps.
  • Success check: Hoop travel becomes smooth with no grinding noise and no hesitation during direction changes.
  • If it still fails: Reduce tape buildup (use only what is needed) and confirm nothing protrudes below the hoop profile.
• Q: How should an ITH zipper gusset “sandwich” be layered to reduce shifting and keep the tote panels structural after stitching?
  A: Use cutaway stabilizer as the permanent foundation, then float batting on top, add optional stiffener, and place pressed fabric last.
  • Hoop: Hoop cutaway stabilizer drum-tight as the base layer.
  • Float: Place batting on top (trimmed away from attachment arms as needed).
  • Add: Insert optional stiffener between batting and fabric when extra body is desired.
  • Success check: The stack stays flat without flagging, and the finished bag panels hold shape rather than collapsing after use.
  • If it still fails: Avoid tearaway for structural bags and re-check hoop tension uniformity to prevent puckers near the zipper.
• Q: When thick ITH zipper gusset stacks keep causing hoop burn, poor registration, or slow hooping workflow, what upgrade path makes sense?
  A: Start with technique fixes, then consider magnetic embroidery hoops for even vertical clamping, and only then consider a higher-capacity machine if volume demands it.
  • Level 1 (technique): Slow to ~600 SPM, hoop cutaway drum-tight, trim batting to 1–2 mm, and center the zipper pull before final stitch.
  • Level 2 (tool): Switch to magnetic embroidery hoops when standard hoops ovalize, leave hoop burn, or are painful to tighten on thick stacks.
  • Level 3 (capacity): Upgrade to a multi-needle embroidery machine when consistent production speed and reduced setup time become the main bottleneck.
  • Success check: Hooping becomes repeatable (less wrestling), fabric shows fewer crushed-fiber rings, and registration stays stable through flip-and-fold steps.
  • If it still fails: Add a hooping station for consistent placement when alignment time is dominating the workflow.
• Q: What safety rules should be followed when using magnetic embroidery hoops and when reaching near the needle during ITH zipper gusset steps?
  A: Keep hands out of the needle danger zone until the machine stops completely, and treat magnetic hoops as industrial pinch hazards.
  • Wait: Do not reach under the needle area until the machine has fully stopped (ITH patterns can jump positions suddenly).
  • Avoid: Keep fingers outside the ~2-inch radius around the needle while the machine is active.
  • Protect: Handle magnetic hoop magnets carefully; keep magnets away from pacemakers/ICDs and magnetic media by at least 6 inches.
  • Success check: No finger pinches, no accidental needle contact, and no surprise collisions during rapid ITH travel moves.
  • If it still fails: Slow down the operation pace and re-stage tape and fabrics so adjustments happen only during safe stops.
