No-Scissors Glitter Appliqué on a Sweatshirt: The Melco EMT16X + Mighty Hoop 8x13 Workflow That Actually Stays Straight

The No-Cut Appliqué Guide: Mastering Glitter HTV on Sweatshirts Without the Scissors

If you have ever stared at an appliqué design and thought, “I love the texture, but I absolutely dread the hand-cutting,” you are about to unlock a massive workflow upgrade.

In traditional appliqué, you stitch a placement line, lay down fabric, stitch a tack-down, stop the machine, remove the hoop, and carefully trim the fabric with curved scissors without snipping the garment. It is high-stress and time-consuming.

This tutorial changes the rules. By swapping fabric for Glitter Flake Heat Transfer Vinyl (HTV), we can utilize a “rip-away” technique. The vinyl is thick and brittle enough that a dense satin stitch perforates it, allowing you to tear away the excess like a perforated notebook page. No scissors, no "oops" moments, and a retail-ready finish.

Angela demonstrates this workflow on a melco emt16x embroidery machine, but the physics remain the same whether you represent a home hobbyist or a production shop. As long as you respect the sequence and stabilization, you can master this.

1. The Mechanic: Why This Works (and When It Fails)

Before we touch the machine, you need to understand the "why." Appliqué is simply trapping a secondary material inside a border.

The rip-away method relies on specific material properties. You cannot effectively do this with standard thin PU vinyl (which stretches and refuses to tear) or fabric (which frays). You need Glitter Flake HTV because its granular structure makes it snap cleanly when perforated.

The Immutable Sequence

You must program your machine—or use the "Frame Out" / "Color Stop" feature—to pause at these exact moments:

1. Placement Stitch (Run Stitch): Shows you exactly where to put the vinyl.
2. STOP: You lay the vinyl down.
3. Tack-Down Stitch (Zig-Zag): Secures the vinyl to the sweatshirt.
4. Satin Border (The Cutter): A high-density column stitch that acts as the "knife," perforating the vinyl edges.

2. Preparation: The "Hidden" Variables of Quality

In my 20 years of embroidery, I’ve learned that 90% of issues happen before you press the start button. Skipping prep on a sweatshirt leads to puckering (gaps between the border and vinyl) or "bulletproof" stiff designs.

The "Must-Have" List

• The Blank: Grey crewneck sweatshirt (Cotton/Poly blend). Pro Tip: Pre-wash is risky for production, but do steam it if it has deep creases.
• The Hero Material: Stahls’ Glitter Flake HTV (Black).
• Stabilizer: Cut-Away Stabilizer (2.5oz or 3.0oz). Never use Tear-Away on a sweatshirt; the knit structure needs permanent support to prevent distortion over time.
• Needle: 75/11 Ballpoint Needle. Crucial: Sharp needles cut the knit fibers of the sweatshirt, creating holes. Ballpoints push the fibers aside.
• Hoop: 8" x 13" Magnetic Hoop.
• Consumables: Clear packing tape, canned air, black magnetic bobbin.


The "Hidden Consumables" Beginners Miss

• Temporary Spray Adhesive (e.g., KK100 or 505): A light mist on the stabilizer prevents the sweatshirt from "swimming" while hooping.
• Lint Roller: Sweatshirts shed. A lot. Lint is the enemy of thread tension.
• Weeding Tool: For picking out those tiny vinyl bits inside letters like A, O, or P.

Pro Insight: The "Crooked Blank" Reality

Angela highlights a painful truth: Cheap garment manufacturing is inconsistent. The side seams or the printed tag may not be perfectly centered.

• Action: Do not rely solely on the side seams. Fold the sweatshirt in half to find the true visual center, or measure from the specific landmarks (like the neck ribbing). If the shirt is twisted, align your embroidery to the visual center, not the mathematical center.

Pre-Flight Checklist (Do NOT Skip)

• Cut Stabilizer: Ensure your Cut-Away piece is at least 1-2 inches larger than your hoop on all sides.
• Prep Vinyl: Cut a strip of Glitter Flake HTV wide enough to cover the design with 0.5" margin.
• CRITICAL: Remove Carrier Sheet: Peel off the clear plastic carrier sheet before you embroider. You want the raw, rough glitter surface exposed to the needle.
• Heat Press Check: Turn it on now. Set to 320°F (160°C).
• Bobbin Check: Inspect the bobbin area for lint bunnies from previous jobs.


3. Hooping Without Pain: The Magnetic Advantage

Hooping thick sweatshirts with traditional friction hoops is a physical battle. You have to unscrew the hoop, wrestle the fabric, and pray you don't over-stretch the knit (which causes "hoop burn" or irreversible rings on the fabric).

This is where Angela uses an 8" x 13" magnetic hoop.

Why Logic Dictates Tools Upgrade

If you are doing one shirt, you can struggle with a standard hop. If you are doing 50, your wrists will fail before the machine does.

• The Solution: The mighty hoop 8x13 uses magnetic force to sandwich the garment. There is no friction dragging on the fabric, which means zero hoop burn and perfect tension distribution.

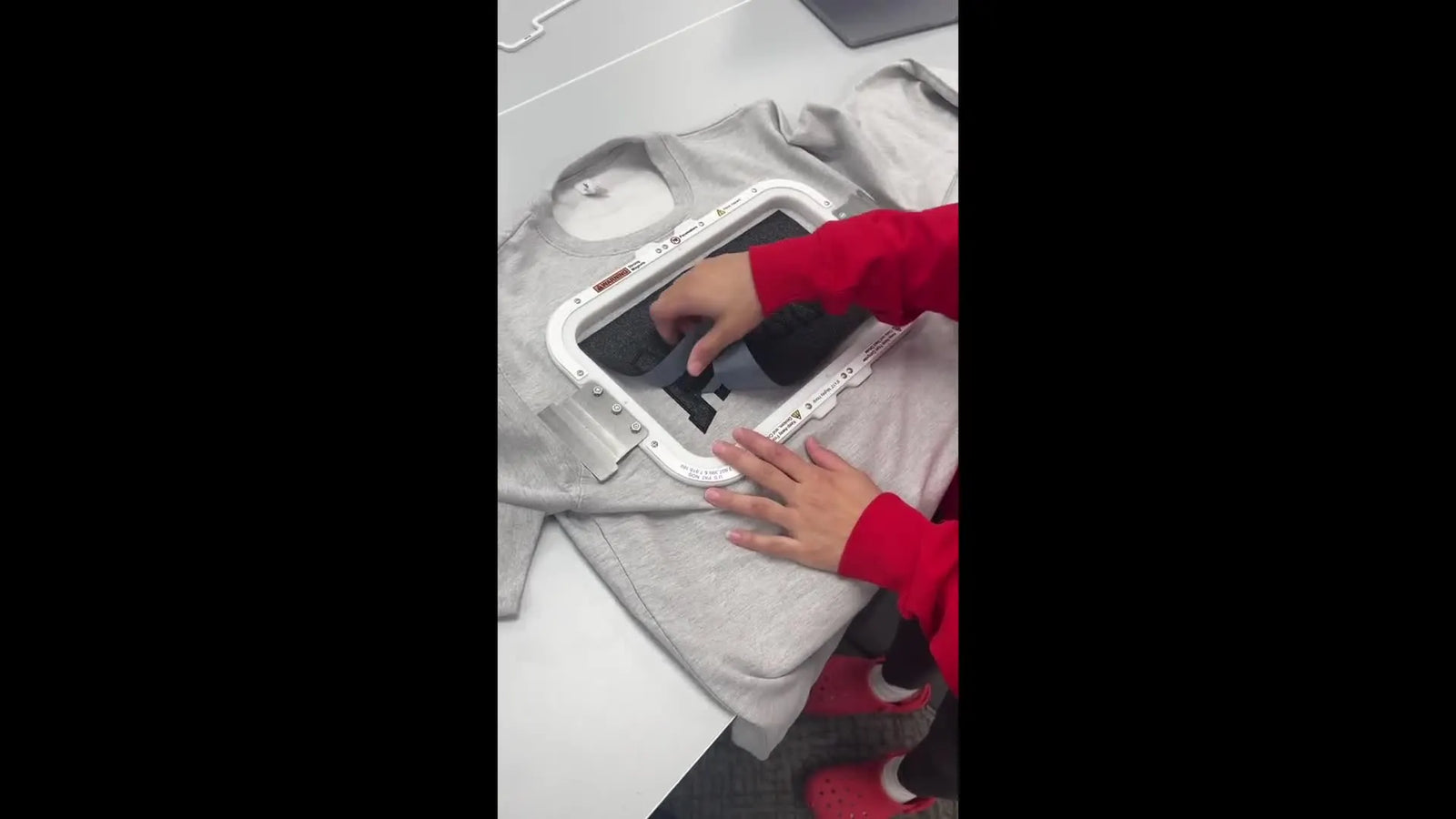

The Hooping Sequence (Sensory Guide)

1. Place Stabilization: Lock your backing onto the station.
2. Float the Garment: Slide the sweatshirt over the bottom ring. Smooth it out with your hands—it should feel flat, but not stretched tight like a drum skin.
3. Visual Alignment: Align your center mark.
4. The Snap: Bring the top ring down. Listen for the sharp "CLACK." That sound is security.


Warning: Magnetic Force Safety
Industrial magnetic hoops are powerful. They can pinch fingers severely (blood blister territory). They also pose a risk to pacemakers. Keep them at least 6 inches away from medical devices, credit cards, and your phone. Never leave them "open" where they can snap together unexpectedly.

Upgrade Path: When to Invest?

• Level 1 (Hobby): Master standard hooping, use spray adhesive to help.
• Level 2 (Side Hustle): If you struggle with alignment, a hooping station for embroidery ensures you hit the same spot every time.
• Level 3 (Production): If you battle hoop burn or carpal tunnel, Magnetic Hoops are not a luxury; they are PPE (Personal Protective Equipment) for your business.

4. The Tape Trick: "Stupid Simple" Alignment

Angela uses clear packing tape as a "Do Not Cross" line. This is brilliant for consistency.

The Method:

1. Apply a strip of clear tape parallel to the neckline.
   • Standard Size (L/XL): Place tape 3 inches down from the neck seam.
   • Plus Size (3XL+): Place tape 4 to 4.5 inches down.
2. This tape is your visual ceiling.


The Laser/Trace Verification

Use your machine’s "Trace" or "Contour" function. Watch the laser pointer (or needle bar).

• Success Metric: The top edge of your design trace should sit 1 inch below the tape.
• Why? This ensures the design sits across the chest, not up in the clavicle area.

Warning: Do not stitch through the packing tape! The gum/adhesive will coat your needle, causing drag, thread shredding, and skipped stitches within seconds.

5. Machine Setup: Black on Black

Standard embroidery usually uses a white bobbin. However, on a black sweatshirt with black vinyl, white bobbin thread is a liability. If the top tension is slightly off, white specks will pull to the top (called "pokies").

The Fix:

1. Blow it out: Use canned air to blast lint out of the hook assembly. Listen for the hiss; look for the dust cloud.
2. Switch: Insert a black magnetic bobbin.
3. Check Tension: Pull the bobbin thread. It should feel smooth, with slight resistance—like pulling a tea bag out of water, not like tugging a stuck zipper.

Troubleshooting "Needle Not Stitching": If the needle moves but no stitch forms, 90% of the time it is:

1. Thread missed the take-up lever.
2. Bobbin not clicked into the case.
3. Needle inserted backward (flat side must face the correct way for your machine).

6. The Stitch-Out: Timing is Everything

If your machine is a race car, this is where you drive it.

Step 1: The Placement Stitch

Running at standard speed (e.g., 800-1000 SPM), the machine stitches the outline on the sweatshirt.

• Action: When it stops, blow away any lint.

Step 2: Placing the Vinyl

Lay your Glitter Flake HTV over the outline.

• Check: Is the tape fully covering the stitches? Is it flat?
• Action: You can use a tiny piece of painter's tape on the outer edges (far away from the needle path) to hold the vinyl if it curls.


Step 3: Tack-Down and Satin Border

The machine will sew a zigzag tack-down, then immediately go into the thick satin border.

Speed Management (The "Sweet Spot"): While the melco emt16x embroidery machine is a beast that runs 1500 SPM, thick glitter vinyl creates friction and heat.

• Recommended Speed: Drop to 700-850 SPM for the satin borders. This reduces needle heat (which can melt the vinyl adhesive onto the needle) and thread breakage.

Troubleshooting: "My Thread Keeps Breaking"

Glitter vinyl is abrasive; it’s like sandpaper. If you experience breaks:

1. Slow Down: Drop to 600 SPM.
2. Needle Check: Is your needle sticky? Wipe it with alcohol or swap it.
3. Stability: Is the garment bouncing? If so, your hoop is too loose.

Commercial Note: If you face constant thread breaks on single-needle machines, it’s often due to the long thread path and lack of feeding control. SEWTECH multi-needle machines offer shorter, more stable thread paths and independent presser feet, which handle thick "sandwich" materials like sweatshirt+vinyl significantly better.

7. The Reveal: Ripping the Vinyl

This is the satisfying part.

1. Remove the hoop from the machine.
2. Grab a corner of the excess vinyl.
3. The Technique: Pull the vinyl flat against itself (low angle), not straight up in the air. This puts stress on the perforation line, not the stitches.
4. It should rip away with a clean zippp sound.


The Inner Cavities: Use your weeding tool to hook the small bits inside letters. If they are stubborn, wiggle the tool; don't yank, or you might pull a stitch loop.

8. Finishing: Trimming and Pressing

We are not done yet. The inside needs attention.

1. Flip carefully: Turn the garment inside out.
2. The "Safety Hold": Hold the collar towards you. Let the heavy sweatshirt fabric hang down, away from the stabilizer.
3. Trim: Use sharp embroidery scissors to trim the Cut-Away stabilizer about 1/4" to 1/2" from the stitches.


Warning: Scissors Safety
When trimming stabilizer, it is incredibly easy to accidentally snip the sweatshirt fabric bunched up behind your hand. Always keep your non-cutting hand between the fabric layers to feel where the blade is.

Heat Press: The Final Bond

The stitching holds the vinyl mechanically, but the adhesive isn't active yet.

• Temp: 320°F (160°C).
• Time: 10-15 Seconds.
• Pressure: Medium/Firm.
• Cover Sheet: ALWAYS use a Teflon sheet or parchment paper to protect the embroidery thread from direct heat.


Without this step, the vinyl centers will bubble after the first wash. With it, the design is permanent.

9. Operation Checklist (Post-Production)

• Inspect Edges: Are there any vinyl "hairy" bits? Trim them with fine scissors.
• Check Density: Do you see the sweatshirt color through the satin stitch? (If yes, your software density was too low—note for next time).
• Feel Check: Is the back scratchy? If so, consider fusing a "Cover-the-Back" soft interlining over the trimmed stabilizer.
• Cool Down: Let existing bond cool flat before folding.


10. Decision Tree: Stabilizer & Equipment Choices

Use this logic flow to avoid "Trial and Error" waste.

Scenario A: Heavy Hoodies (Carhartt/Champion style)

• Stabilizer: 3.0oz Cut-Away.
• Hoop: magnetic embroidery hoops are essential here. Plastic hoops will pop open.
• Needle: 80/12 Ballpoint (thicker needle for thicker fabric).

Scenario B: Fashion Fleece (Thin/Stretchy)

• Stabilizer: No-Show Mesh (PolyMesh) fused with a layer of Tear-Away, OR standard 2.5oz Cut-Away.
• Hoop: Standard or Magnetic.
• Risk: High risk of stretching. Use temporary spray adhesive generously.

Scenario C: Scaling Up (50+ Shirt Order)

• Problem: Hooping speed involves too much downtime.
• Upgrade 1: hooping station for embroidery to guarantee placement speed.
• Upgrade 2: Move to a multi-needle machine. The ability to keep the hoop dedicated to the machine and swap frames increases output by 40%. The efficiency of specific mighty hoops for brother or embroidery hoops for melco (depending on your fleet) turns a 3-day job into a 1-day job.

11. Troubleshooting: The Quick-Fix Guide

Final Result

You now have a 14-minute stitch-out that looks like expensive varsity wear. The combination of magnetic hooping for speed, the tape trick for placement, and the rip-away vinyl method for clean edges creates a professional, high-value product.

Whether you are stitching one gift or a hundred shop orders, rely on your prep work. Good tools—like proper backing and magnetic frames—don't just save time; they save your sanity.

FAQ

• Q: Why does Glitter Flake HTV appliqué tear raggedly after the satin border stitches on a sweatshirt embroidery design?
  A: Use a wider/denser satin border so the stitches perforate the Glitter Flake HTV like a tear line.
  • Increase satin column width or stitch density in embroidery software before stitching.
  • Slow the satin border speed to reduce heat and drag (a safe range is 700–850 SPM for thick glitter; go lower if needed).
  • Tear the excess vinyl away at a low angle, pulling the vinyl flat against itself—not straight up.
  • Success check: The vinyl removes with a clean “zip” and the edge looks smooth without jagged chunks.
  • If it still fails: Re-test with a sample and adjust border settings again; thin borders often cannot perforate thick glitter cleanly.
• Q: Why does white bobbin thread show as “pokies” on black-on-black sweatshirt embroidery with Glitter Flake HTV appliqué?
  A: Switch to a black bobbin and clean lint from the hook area so slight tension swings do not pull white to the top.
  • Blow lint out of the hook assembly before starting (sweatshirt lint builds fast).
  • Install a black bobbin and re-check the bobbin is seated correctly.
  • Test-pull the bobbin thread for smooth, slight resistance (not jerky or overly tight).
  • Success check: The satin border stitches look solid black with no white specks popping on the surface.
  • If it still fails: Clean the tension discs and re-check top/bobbin tension balance per the machine manual.
• Q: How can a magnetic embroidery hoop prevent hoop burn and fabric rings when hooping thick sweatshirts for appliqué embroidery?
  A: Use a magnetic hoop to clamp evenly without over-stretching the knit, which is the main cause of hoop burn.
  • Float the sweatshirt flat over the bottom ring; smooth it without pulling “drum tight.”
  • Snap the top ring down in one controlled motion to avoid shifting.
  • Add a light mist of temporary spray adhesive on the stabilizer to stop the sweatshirt from “swimming” while hooping.
  • Success check: The hooped area feels flat (not stretched) and shows no crushed ring after unhooping.
  • If it still fails: Re-hoop with less tension and confirm the stabilizer piece is 1–2 inches larger than the hoop on all sides.
• Q: What magnetic embroidery hoop safety precautions are required when using industrial-strength magnetic hoops on embroidery machines?
  A: Treat magnetic hoops like pinch-hazard tools and keep them away from pacemakers and sensitive items.
  • Keep fingers out of the closing path; magnets can snap together and cause severe pinches.
  • Keep magnetic hoops at least 6 inches away from pacemakers, credit cards, and phones.
  • Do not leave hoop rings “open” where they can jump together unexpectedly.
  • Success check: The top ring closes with a controlled “clack” without any finger pinch risk.
  • If it still fails: Slow down the handling routine and use a stable hooping surface or station for more control.
• Q: How do you stop skipped stitches and holes on sweatshirt embroidery by choosing the correct embroidery needle for knit sweatshirts?
  A: Use a ballpoint needle so the needle pushes knit fibers aside instead of cutting them.
  • Install a 75/11 ballpoint needle for typical sweatshirt knits (use a thicker ballpoint only if the garment is very heavy).
  • Replace the needle if thread breaks increase or if the needle feels sticky from adhesive buildup.
  • Avoid stitching through packing tape; adhesive on the needle can cause skipped stitches quickly.
  • Success check: Stitches form consistently with no visible cut holes around the satin border.
  • If it still fails: Reduce speed on dense satin borders and verify the garment is stabilized with cut-away backing.
• Q: What is the correct stabilizer choice to prevent gaps and puckering when embroidering Glitter Flake HTV appliqué on sweatshirts?
  A: Use cut-away stabilizer on sweatshirts; tear-away is not stable enough for knit garments.
  • Choose 2.5oz or 3.0oz cut-away for most sweatshirts and keep it permanently for long-term support.
  • Cut stabilizer at least 1–2 inches larger than the hoop on all sides.
  • Spray a light mist of temporary adhesive on the stabilizer to reduce shifting during hooping.
  • Success check: The satin border sits tight to the vinyl with no gaps and the design stays flat after stitching.
  • If it still fails: Move up to a heavier cut-away and re-check hoop tension (bouncing fabric causes shifting).
• Q: How can an embroidery production shop scale sweatshirt appliqué orders (50+ pieces) using a tiered approach from technique to equipment?
  A: Start by fixing setup consistency, then upgrade hooping tools, then consider a multi-needle machine if downtime is the bottleneck.
  • Level 1 (Technique): Standardize placement with a tape guideline and always run trace/contour verification before stitching.
  • Level 2 (Tooling): Add a hooping station and/or magnetic hoops to reduce alignment time and prevent hoop burn on thick garments.
  • Level 3 (Capacity): If thread breaks and handling time stay high on thick “sweatshirt + vinyl” stacks, a multi-needle machine often handles dense borders more reliably due to more stable thread paths.
  • Success check: Placement is repeatable and daily output increases without rehooping or redo waste.
  • If it still fails: Time each step (hooping, tracing, stitch-out, finishing) to identify the true bottleneck before investing further.
