SewWhat-Pro Name Frames That Stitch Clean: Satin Border Settings, Open-Side Cuts, and Lettering That Actually Fits

Name frames appear deceptively simple—just two bars and a name, right? Yet, seasoned embroiderers know the sinking feeling of stitching one onto a plush baby bib only to watch the border tunnel, the corners warp into hard knots, or the letter 'y' crash through the bottom satin bar, ruining the "boutique" finish.

As an educator with two decades on the production floor, I treat machine embroidery not just as art, but as engineering. This guide rebuilds the workflow from the SewWhat-Pro (SWP) tutorial, but I am going to layer in the "shop-floor consciousness"—the sensory checks, the physics of pull compensation, and the tooling upgrades—that turn a hobbyist’s struggle into a professional’s profitable routine.

The Calm-Down Moment: What a SewWhat-Pro “Name Frame” Really Is (and Why It’s Worth Learning)

Mechanically, a name frame is a high-risk structure. It consists of two dense satin columns (the bars) that exert significant pull on the fabric, surrounding delicate lettering that requires absolute stability.

It is popular on bibs and onesies because it simulates the look of a patch without the bulk. However, beginners often face frustration because they treat the digital file like a static image. A name frame is dynamic; if your density is too high or your stabilization is too weak, the fabric will buckle between the bars. Imagine trying to sew a zipper onto a sponge—that is the physics we are managing here.

The “Hidden” Prep Before You Click Add a Border in SewWhat-Pro (SWP)

Most errors happen before the software is even open. The video assumes you have made two critical engineering decisions. If you skip these, you are setting yourself up for a collision:

1. The True Stitch Field: You aren't designing for a "4x4 hoop"; you are designing for the safe sewing area of that hoop, which is usually 10mm smaller than the physical frame.
2. The Typography Verticality: You must decide on your letter height (e.g., 0.75") before drawing the border.

The "Spec Sheet" Habit: If you plan to sell these, do not guess every time. Create a sticky note or digital file: "Bib Frame: 3.80" Width, 1.00" Height, 0.75" Block Font." This standardization turns a 20-minute struggle into a 2-minute setup.

For those moving from occasional gifts to small-batch orders, consistency is your currency. Many home-based businesses eventually pair a repeatable digital template with a physical hooping station for machine embroidery. This ensures that once you nail the digital design, the physical placement on the bib is identical for every single unit, reducing the "did I center this?" panic.

**Prep Checklist: The "Pre-Flight" Inspection**

• Hoop Limit Check: Is your workspace set to the 4x4 hoop (100x100mm)?
• Fabric Analysis:
  • Touch Test: Is it stretchy? (Needs heavy cut-away).
  • Sight Test: Is it fluffy? (Needs a water-soluble topper).
• Font Selection: Have you checked your font for descenders (g, j, p, q, y)? If yes, you need a taller frame or all-caps.
• Grid Activation: Turn on the layout grid in SWP (View > Grid) to visually verify centering.


Build the Satin Rectangle in SewWhat-Pro “Add Border Stitches” Without Painting Yourself Into a Corner

To achieve the name frame look, we start with a closed shape and then surgically alter it. In the video, we access the Add a Border tool near the Info Icon.

Select the Rectangle shape. This creates the foundation of your patch.

Stitch property choices that matter (and the one you should not skip)

The video selects:

• Satin Outline (The industry standard for clean borders).
• Underlay (Checked).

The Engineering "Why": Never uncheck Underlay. Think of satin stitches as the "roof" of a house; the underlay is the framing. Without underlay, the satin stitches have nothing to grip; they will sink into the terry cloth of a bib, looking narrow and ragged. Underlay also performs "edge walk," securing the fabric to the stabilizer before the heavy satin stitching begins, which drastically reduces tunneling.

Warning: Satin borders are needle-demanding. A dense satin stitch generates friction and heat. Check your needle tip: Run your fingernail down the needle. If you feel a "catch" or scratch, throw it away. A burred needle on a satin border will shred your thread and ruin the bib instantly.

The 4x4 Hoop Reality Check: Set Border Width and Height So Letters Don’t Look Cramped

Here, we apply safe math to our design.

• Border Width: Set to 3.80 inches.
  • Reasoning: A physical 4x4 hoop usually has a stitchable limit of about 3.93" (100mm). Setting it to 3.80" guarantees the presser foot won't slam into the plastic frame—a terrifying sound that ends in broken gears.
• Border Height: Set to 1.00 inch.
  • Reasoning: This leaves exactly 0.25" of "breathing room" for 0.75" letters.

Visual Check: Look at the screen. Does the rectangle look balanced? Use your mouse to zoom in. If the border feels dangerously close to the edge of the hoop visualization, trust your gut and shrink the width to 3.75".

Satin Thickness vs Satin Stride in SewWhat-Pro: The Two Dials That Decide Whether Your Frame Looks Premium or Like Carpet

This is where the tactile quality of embroidery is determined. You are controlling the physical volume of thread.

The video suggests:

• Satin Thickness: 20 (approx 2mm visual width).
• Satin Stride: 4 (Density control).


Satin Thickness (Frame Width) — The "Visual Weight"

This controls how fat the line is.

• Thickness 5: Looks like a pencil sketch (too weak for terry cloth).
• Thickness 35: Looks like a heavy patch (bold, but increases stitch count).




Satin Stride (Density) — The "Danger Dial"

This is often counter-intuitive in SWP. Stride controls the spacing between needle penetrations.

• Lower Number (e.g., 1 or 2) = Higher Density. Matches are packed tighter.
• Higher Number (e.g., 4 or 5) = Lower Density. Matches are spread out.

The Sensory Anchor: If you set Stride to 1, you are creating a "bulletproof vest."

• Sound: Your machine will make a heavy, laboring thump-thump-thump sound.
• Touch: The result will feel hard, like a piece of plastic.

If you set Stride to 4 (as per the video):

• Sound: A smooth, rhythmic hum.
• Touch: The embroidery bends with the fabric.




Expert Rule of Thumb: For baby items, you want softness. Keep the Stride around 4 or 5. If you need coverage, do not increase density (lower stride); instead, use a matching bobbin thread or a water-soluble topping to keep the stitches accessible.

The Open-Side Name Frame: Two Ways to Remove the Vertical Bars (and When Each One Bites You)

Now we convert the rectangle into the "Name Bar" style by deleting the sides.

Open the cutting tools (Alt+S or the Scissors Icon).

Method 1 (Fast): The Eraser Tool

• Select Eraser.
• Drag the pink line across the vertical bars.
• Confirm deletion.


The Hidden Risk: The Eraser tool in older versions of SWP sometimes purely deletes coordinates without recalculating "Lock Stitches" (tie-offs/tie-ins).

• The Result: The border looks great initially, but after one trip through the washing machine, the thread ends pop loose and the satin stitch begins to unravel like a sweater.

Method 2 (Safe): Cut Pattern + Remove Interior

• Use Select Points.
• Draw a box around the vertical bar (4 points).
• Click Cut Pattern.
• Select Remove Interior.


Why this is better: This function tends to preserve the integrity of the remaining objects better than the brute-force eraser. If you are selling your work, use Method 2. Reliability implies quality.

Merge and Center 3/4-Inch Letters in SewWhat-Pro Without the “Why Is My Y Hanging Down?” Surprise

You now have the "Stage." It is time to add the "Actor."

• Merge: Import your 0.75" letters.
• Alignment: Use the specific center-align tool to place the name dead-center between the bars.


The Descender Problem (The "Ruby" Scenario)

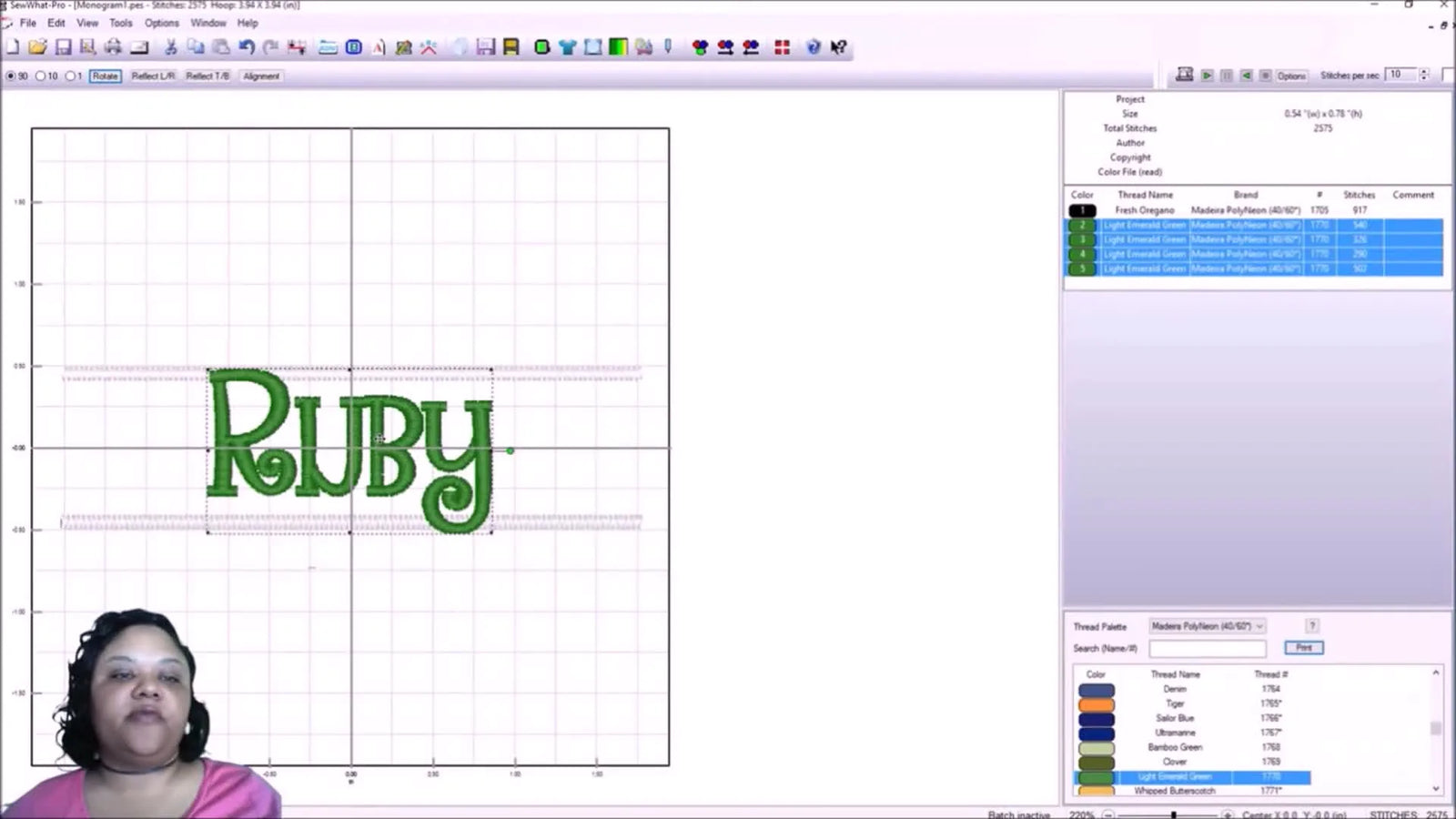

The video demonstrates the name "RUBY." Notice that the 'Y' dips below the imaginary baseline.

In a 1.00" frame with 0.75" letters, you only have 0.125" (1/8th inch) of clearance on the top and bottom. A standard 'y' or 'g' drops about 0.20". It will crash into the bottom bar.

The Solutions:

1. The "Squish": Shrink the letters to 0.60" (Risky, can make text illegible).
2. The "Stretch": Increase your frame height to 1.25" and hooping area permitting.
3. The "All Caps": Switch to uppercase letters (RUBY vs Ruby). This is the safest production method.

The “Why” Behind the Settings: How Fabric, Stabilizer, and Hooping Decide Whether Your Satin Bars Stay Flat

The software part is done. Now we enter the physical world. The number one reason name frames fail is not the file—it is the hooping.

Satin bars act like clamps. As they stitch, they pull the fabric inward. If your fabric is loose in the hoop, you will get "tunneling" (a bubble of fabric in the center).

The Hooping Pain Point: Hooping small items like bibs or onesies on a standard plastic hoop is physically difficult. You have to wrestle layers of thick fabric, stabilizer, and the plastic ring. If you tighten it too much, you get "hoop burn" (permanent ring marks). If too loose, the design shifts.

This is where the pros pivot. Many upgrade to machine embroidery hoops that utilize magnetic force. A magnetic hoop allows you to "float" the difficult item over the stabilizer without dragging or stretching it. The magnets hold the fabric firmly without the friction damage of traditional plastic inner rings.

Warning: Magnetic Hoop Safety. These magnets are industrial strength.
1. Pinch Hazard: They can snap together with bone-breaking force. Keep fingers clear.
2. Medical Danger: Keep at least 6 inches away from pacemakers or insulin pumps.
3. Electronics: Do not place your phone or credit cards on the hoop.

A Simple Decision Tree: Fabric Type → Stabilizer Strategy for Satin Name Frames

Do not guess. Use this logic flow to determine your "Sandwich."

1. Is the fabric unstable? (T-shirt, Stretchy Cotton, Minky)
   • Stabilizer: Heavy Cut-Away (2.5oz or 3.0oz).
   • Helper: Spray adhesive (temporary) to bond fabric to stabilizer.
2. Is the fabric stable but textured? (Terry Cloth Bib, Towel)
   • Stabilizer: Tear-Away (Medium) + Water Soluble Topper (Solvy).
   • Why the Topper? It prevents the satin stitches from sinking into the loops of the towel.
3. Is the fabric thick and stiff? (Canvas, Denim)
   • Stabilizer: Medium Tear-Away.
4. Are you stitching efficient batches?
   • If you are doing 50 bibs, manual hooping is slow. Consider using hooping stations to pre-align your garments. This ensures the name frame lands exactly 1 inch from the neckline every single time without measuring.

Troubleshooting the Scary Stuff: Symptoms → Likely Cause → Fix You Can Actually Do

This table comes from 20 years of fixing mistakes.

Setup Checklist: The “Don’t Waste a Bib” Test Stitch Routine

Before you ruin a $5 blank, follow this protocol.

1. The Scrap Test: Hoop a piece of scrap fabric (similar weight to your bib) with the exact stabilizer you plan to use.
2. The Size Check: Print a paper template from SWP (1:1 scale). Place it on the bib. Does the name fit? Does it look centered?
3. The Bobbin Check: Is your bobbin full? Satin frames consume a lot of thread. Running out mid-bar leaves a visible seam.
4. The Needle Swap: If you’ve stitched more than 8 hours on your current needle, change it. A fresh 75/11 needle ensures clean edges on satin bars.

The Upgrade Path: When This “Simple” Name Frame Becomes a Production Product

Mastering the name frame is often the gateway drug to professional embroidery. Today, you are doing one bib for a niece. Tomorrow, a daycare wants 30 of them.

When that happens, your bottleneck will shift from "Designing" to "Production."

• Level 1 (Skill): You master the SWP workflow described above.
• Level 2 (Tooling): You adopt a hoopmaster hooping station or similar jig to eliminate the alignment guesswork, and magnetic hoops to save your wrists.
• Level 3 (Scaling): You realize your single-needle machine takes 2 minutes to change thread colors. Simple 2-color name frames take 20 minutes each. This is where many of my students graduate to multi-needle machines (like the SEWTECH series), where thread changes are automatic, and production speed triples.

Operation Checklist: The Final Quality Pass Before You Save the File

Do not save until you tick these boxes:

• Underlay is Active: Ensures structural stability.
• Dimensions Verified: Width is < 3.90" (for 4x4 hoop).
• Descender Clearance: 'y' and 'g' do not touch the bottom bar.
• Start/Stop Position: Ensure your machine knows to start in the center (standard for hoops).
• Format: Saved in the correct format for your machine (PES, DST, JEF, etc.).

You have engineered the file. You have stabilized the fabric. You have checked your tools. Now, press start with confidence.

FAQ

• Q: In SewWhat-Pro (SWP), why does a satin name frame tunnel between the top and bottom bars on a terry bib?
  A: Use stronger stabilization and prevent fabric shift before the satin bars stitch—tunneling is almost always a hooping/stabilizer issue, not a border-shape issue.
  • Switch to heavy cut-away stabilizer when fabric is stretchy/unstable, and add temporary spray adhesive to bond fabric to stabilizer.
  • Keep “Underlay” enabled for the satin border so the edge walk anchors the fabric before dense satin coverage.
  • Hoop correctly (or float with a magnetic hoop) so the fabric is held firm without being stretched.
  • Success check: the fabric between bars stays flat (no “bubble”), and the bars do not visually squeeze the letters.
  • If it still fails: reduce satin density by increasing Satin Stride (for example, move toward 4–5) and re-test on scrap.
• Q: In SewWhat-Pro (SWP), what Satin Stride setting prevents a satin name frame from feeling “bulletproof” on baby items?
  A: Keep Satin Stride around 4–5 for softer results; very low Stride values make density too high and create a hard, plastic-like frame.
  • Set Satin Stride to 4 as a safe starting point for bibs/onesies, then test stitch before committing to the real item.
  • Avoid dropping Stride to 1–2 unless coverage is absolutely required, because density rises fast and stiffness follows.
  • Use a water-soluble topper on textured fabrics to improve coverage without increasing density.
  • Success check: the machine sounds like a smooth rhythmic hum (not heavy laboring), and the finished bar bends with the fabric.
  • If it still fails: keep Stride higher and focus on stabilization/topper rather than “packing” more stitches.
• Q: In a 4x4 (100x100mm) hoop in SewWhat-Pro (SWP), what border size avoids the presser foot hitting the hoop when making a satin name frame?
  A: Set the border width to about 3.80 inches and keep the design inside the safe sewing area (often smaller than the plastic frame).
  • Choose the 4x4 hoop workspace and design to the stitchable field, not the physical hoop edge.
  • Start with Border Width 3.80" and visually confirm clearance; shrink to 3.75" if the border looks too close.
  • Keep Border Height at 1.00" when using 0.75" letters, then adjust only if lettering needs more clearance.
  • Success check: the on-screen border stays comfortably inside the hoop boundary visualization, with no “edge crowding” feeling.
  • If it still fails: re-check that the correct hoop size is selected in software and that the machine is not set to a different hoop limit.
• Q: In SewWhat-Pro (SWP) name frames, why do descender letters like “y” or “g” crash into the bottom satin bar with 0.75-inch text?
  A: Descenders often extend beyond the baseline and can exceed the available clearance in a 1.00" frame—change the text/frame plan before stitching.
  • Switch to ALL CAPS to eliminate descenders (production-safe option).
  • Increase the frame height (for example, toward 1.25") if the hooping area allows.
  • Reduce letter height (for example, toward 0.60") only if readability remains acceptable.
  • Success check: on-screen, the lowest point of “y/g/p/q/j” does not touch or overlap the bottom satin bar.
  • If it still fails: change the font style to one with shorter descenders and re-center using the center-align tool.
• Q: In SewWhat-Pro (SWP), why do open-side name frames unravel after washing when vertical bars are removed with the Eraser tool?
  A: Some SWP versions may delete points without preserving lock stitches, so the satin border can lose secure tie-ins—use the safer cut method.
  • Remove the side bars using Select Points → Cut Pattern → Remove Interior instead of Eraser for better object integrity.
  • Add or verify tie-offs/tie-ins (lock stitches) at the border start/stop if the workflow leaves ends unsecured.
  • Test wash a sample if the item is for sale or frequent laundering.
  • Success check: thread ends do not pop out after handling, stretching, or a wash cycle; the satin edge stays intact.
  • If it still fails: inspect the start/stop positions and add manual tie-off stitches before saving the file format.
• Q: What is the safest needle-related rule for stitching dense satin borders on baby bib name frames to prevent shredding and sudden thread breaks?
  A: Replace any needle that feels burred and don’t overrun needle hours—dense satin generates heat and friction, so needle condition matters immediately.
  • Run a fingernail down the needle; discard the needle if any “catch” or scratch is felt.
  • Swap to a fresh needle if the needle has been used for extended stitching time (a safe habit is changing before critical satin work).
  • Do a quick scrap test stitch to confirm clean edges before placing the real bib.
  • Success check: satin edges look smooth (not ragged), and the thread runs without shredding during the border.
  • If it still fails: re-check threading path and tension, because satin borders will expose small setup errors fast.
• Q: What magnetic embroidery hoop safety rules prevent pinch injuries and medical/electronics risks when hooping bibs and onesies?
  A: Treat magnetic hoops like industrial clamps: keep fingers clear, keep magnets away from medical devices, and don’t place electronics near the hoop.
  • Keep fingers out of the closing path; magnets can snap together with severe pinch force.
  • Keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps.
  • Keep phones, credit cards, and sensitive electronics off the hoop and away from the magnets.
  • Success check: magnets are seated evenly without “slamming,” and fabric is held firmly without wrestling or overstretching.
  • If it still fails: use slower, staged placement (set one magnet at a time) and reposition the garment rather than forcing the hoop closed.
• Q: For selling batches of satin name frames, when should embroiderers upgrade from technique tweaks to magnetic hoops or a multi-needle SEWTECH embroidery machine?
  A: Upgrade in layers: first standardize the SWP file and test routine, then add magnetic hooping/alignment tools if hooping is the bottleneck, and move to multi-needle when thread changes dominate labor time.
  • Level 1 (Technique): lock in a repeatable spec (border size, letter height, Stride, underlay ON) and use a scrap + paper template test every time.
  • Level 2 (Tooling): add magnetic hoops (and an alignment station) when hoop burn, slow hooping, or inconsistent placement is costing rework.
  • Level 3 (Scaling): consider a multi-needle SEWTECH machine when single-needle thread changes are turning simple 2-color frames into long cycle times.
  • Success check: per-item time becomes predictable, placement repeats without “center panic,” and rejects from tunneling/hoop burn drop.
  • If it still fails: track which step consumes the most time (hooping vs rethreading vs rework) and upgrade only that bottleneck first.
