StitchArtist Level 3 in the Real World: Vector-to-Stitch Control, the Inflate Border Trick, and 3D Foam Preview That Saves You a Re-Stitch

If you’ve ever watched a flawless digitizing demo, nodded along, and then watched in horror as your machine turned that “perfect” file into a bird’s nest of thread—you aren’t alone. You aren’t “bad with computers.” You are simply encountering the gap between digital theory and physical reality.

I have spent 20 years teaching operators that embroidery is a contact sport. Software like Embrilliance StitchArtist Level 3 is your strategy room, but the battle is fought on the needle plate. The software shown in this review is powerful—it handles vectors, automates borders, and simulates puff foam—but it will happily let you design a file that breaks needles if you don't understand the physics behind the pixels.

In this guide, we are going to strip away the marketing fluff. We will rebuild the video’s workflow into a battle-tested field manual. We will cover not just how to click the buttons, but why specific settings prevent disaster, and when you need to look away from the screen and upgrade your physical tools to match your digital ambitions.

Don’t Panic—StitchArtist Level 3 vs. The "Fear Phase"

New software triggers a specific type of anxiety: "Is this too much for me?"

The video introduces StitchArtist Level 3 as a professional grade tool. It doesn't hide the complexity—it embraces it. Honest digitizing software must be complex because it controls thousands of physical movements.

Here is the cognitive shift you need to make: Stop trying to master every button. Focus on the "Safe Path" features that yield sellable results:

1. Vector Import: Don’t draw from scratch; trace clean art.
2. Inflate Tool: Automate your borders (don’t manually plot them).
3. Simulation: Catch errors before you waste a garment.

Think of your setup as a localized factory. Your software handles the design risk, but your physical tools handle the production risk. If you are upgrading your software to professional levels, you must ask if your hooping method is still stuck in "hobby mode." Terms like magnetic embroidery hoops often pop up in professional circles not because they are trendy, but because they eliminate the "hoop burn" and fabric distortion that ruins perfectly digitized designs.

The “Hidden” Prep: Pre-Flight Safety Checks

Most failures happen before you touch a single node. The video shows importing files, but before you do that, you need to define your Success Physics.

A design meant for a structured hat (stable) will distort horribly on a stretchy performance tee (unstable) unless you plan for it.

Prep Checklist (The "Do Not Ski" List)

• Define the "Canvas": Is this a chest logo (7-10cm) or a full back? Action: Measure the actual garment, don't guess.
• Check the Vector Hygiene: Zoom in on your vector file. Look for: Weird tiny loops or crossing lines. If the laser printer ignores them, the embroidery machine will find them and make a knot.
• Stabilizer Strategy:
  • Stretchy? Cutaway (2.5oz or 3.0oz). No arguments.
  • Stable? Tearaway is acceptable.
• System Check: Close Chrome tabs. As the video notes, rendering thousands of stitches in 3D is math-heavy. Give your CPU breathing room.

Warning: Eye Protection Required. When testing a new digitized file—especially one with dense fills or 3D foam—needles can deflect and shatter. Always watch the first sew-out from a safe distance with safety glasses. Never put your face near the needle bar to "see better."

Make Vectors Behave: The "Garbage In, Garbage Out" Rule

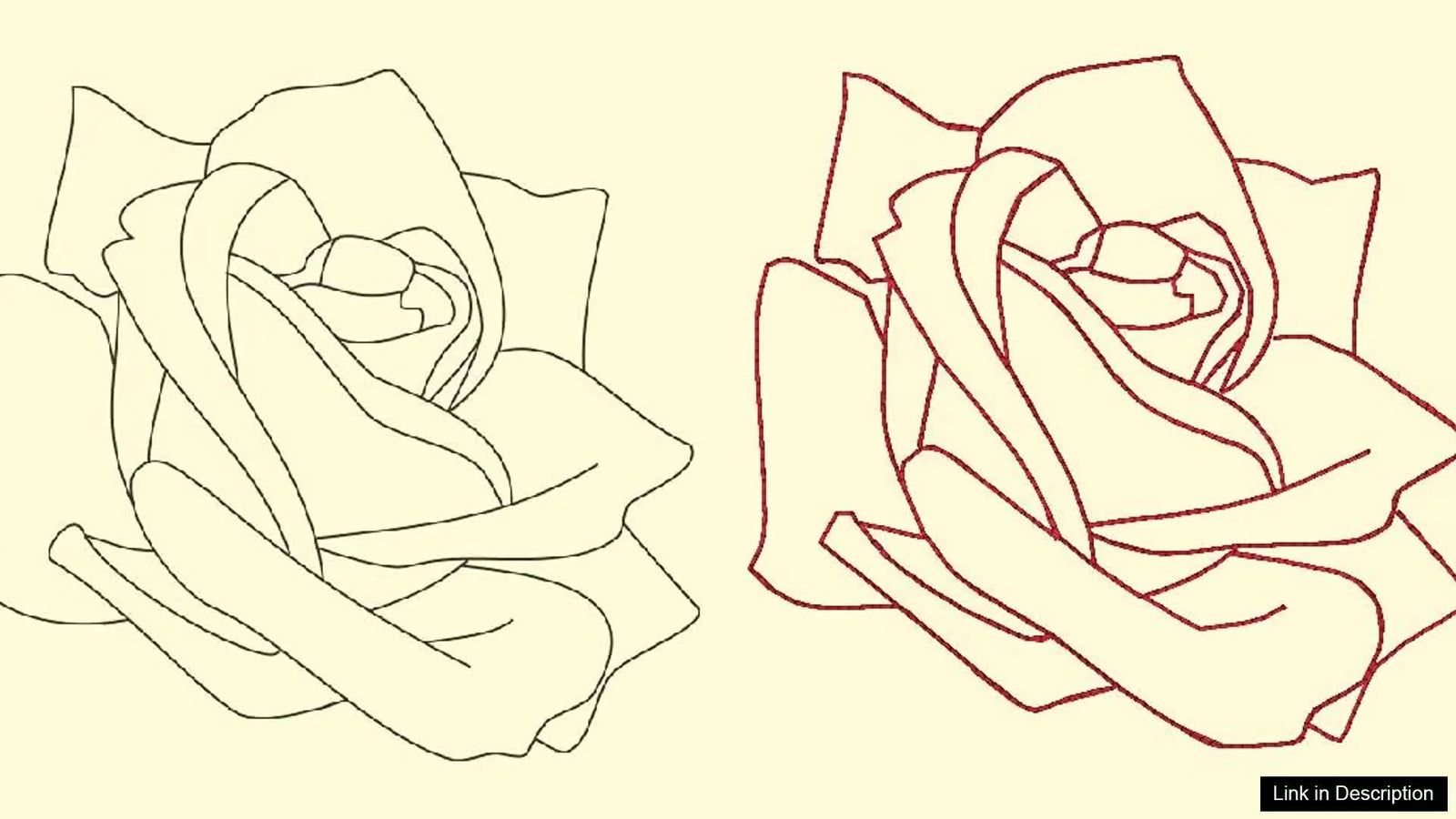

In the video, a rose line drawing is imported and manipulated. The narrator adjusts curves using Bezier handles. This is the moment most beginners gloss over, and it is the #1 cause of "jagged" embroidery.

The Sensory Check: Imagine your embroidery machine is a car driving down a road.

• Smooth Curves: The car drives smoothly at 60mph.
• Lumpy Vectors: The car has to swerve constantly. You will literally hear the difference—the machine will sound like it is stuttering or "grinding."

The Action Step:

1. Import your vector.
2. Zoom in to 400%.
3. Simplify: Delete any node that isn't defining a curve. Fewer nodes = smoother satin stitches.
4. Listen: If your machine makes a rhythmic thump-thump, your vector is clean. If it makes a chaotic grrr-click-grrr, go back and smooth your nodes.


The "Inflate" Tool: Automating Borders Without Grief

Creating a border around a complex shape manually is a nightmare. The video demonstrates the "Inflate" tool on a number "5," automatically generating a perfectly spaced outline.

This is a high-risk area for "Bulletproof Embroidery" (embroidery that is too dense and hard). You must use the settings shown in the video with care.

Field-Tested Parameters (Beginner Safe Zone):

• Outline Thickness: 3 mm.
  • Reality Check: 3mm is a bold satin. If you go wider (e.g., 5mm), ensure "Split Satin" is enabled, or the loops will snag on buttons and zippers.
• Hole Inflate: 0.5 mm.
• Soften Corners: Checked/True. (Crucial!)

Why "Soften Corners" Saves Needles: A sharp 90-degree turn in a satin stitch forces the needle to pile thread into a single microscopic point. This creates a hard knot.

• The Sound: You will hear a loud CRACK. That is your needle hitting a thread wall.
• The Fix: "Soften Corners" rounds this turn, spreading the needle penetrations out.

If you digitize a perfect border but it stitches out "wobbly," the culprit is rarely the software—it is usually the fabric shifting in the hoop. This is where a magnetic hoop becomes a secret weapon; it holds even slippery fabrics with consistent pressure, allowing that 3mm border to land exactly where the Inflate tool predicted.

Why Borders Fail: The Physics of "Push and Pull"

The video shows the software generating the border, but it doesn't explain the physics.

The Rule of Displacement: When a needle penetrates fabric 1000 times a minute, it pushes fabric away (Push) and pulls the sides in (Pull).

• The Symptom: You stitch a circle, but it comes out as an oval. The border lands on top of the fill in some spots and leaves a white gap in others.

The Solution Ladder:

1. Level 1 (Software): Increase "Pull Compensation" in StitchArtist (start at 0.4mm for beginners).
2. Level 2 (Consumables): Use a heavier stabilizer or float an extra layer.
3. Level 3 (Hardware): Upgrade your grip. A magnetic embroidery hoop minimizes the "trampoline effect" (bouncing fabric) that causes registration errors, keeping your borders aligned without you having to over-compensate in software.


Trust the Simulator: The "Digital Twin" of Your Design

The video switches to 3D view to preview a "Groovy" foam design. This feature is vital because foam (3D Puff) is unforgiving. If you don't cover the foam completely, it peeks through like ugly yellow insulation.

How to Use Simulation for 3D Foam:

1. Turn off the "3D" rendering first. Look at the raw wireframe.
2. Check the Ends: Do the satin columns "cap" the ends? Open ends mean foam will poke out.
3. Check Density: For foam, you need high density.
   • Standard Satin Density: 0.4mm spacing.
   • Foam Satin Density: 0.2mm to 0.3mm spacing. (Yes, almost double the thread).

The "Hoop Burn" Variable: Heavy density designs (like patches or foam) require tight hooping. Traditional screw hoops can leave permanent rings (burn marks) on delicate fabrics like velvet or performance wear. If you plan to specialize in heavy coverage/puff designs, investing in magnetic hoops for embroidery is often the only way to hold the fabric securely enough for 3D work without crushing the surrounding material.

Publishing Custom Fonts: Hard Limits for Legibility

The video shows the "Font Publisher" tool. This is excellent for branding work. However, scaling text is the fastest way to make it unreadable.

The "Legibility Floor" (Safety Specs): The video suggests a Min Font Size of 20mm. Stick to this.

• Why? Most standard 60wt or 40wt thread cannot form a clear letter "a" or "e" smaller than 5-6mm tall. The center hole will close up.
• Visual Check: Look at the lowercase "e". If the center gap is smaller than a needle point (1mm) on screen, it will close up on fabric.

The "Snag Ceiling": The video sets a Max Size of 400mm.

• Warning: A satin column wider than 7mm-9mm is prone to snagging. If you scale a font up to 100mm+, ensure you change the stitch type from "Satin" to "Fill" (Tatami), or set a "Split Satin" parameter.


Combatting "Lag": When Your Computer Stutters

The video notes that complex designs can slow down older PCs. This is a workflow bottleneck.

The "Batching" Workflow: Don't digitize -> stitch -> digitize -> stitch. It destroys flow.

1. Batch Design: Do all computer work in the morning.
2. Batch Hooping: Hoop 5-10 items at once if you have multiple hoops.
3. Batch Stitching: Run the machine continuously.

This is where a dedicated hooping station changes the game. While the software is calculating dense stitches or saving files, you should be at your station, perfectly aligning the next garment. Zero downtime.

Level 3 vs. The World: Is the Upgrade Worth It?

The video scrolls through features (Level 1, 2, 3). Don't get lost in the list.

The ROI Calculation: Purchase Level 3 if you need Vectors and Digitizing from Scratch.

• Hobbyist: Buying designs is cheaper.
• Business: Creating custom designs is profitable.

However, the best software in the world cannot fix a physical bottleneck. If you are producing 50 shirts for a local business, your software isn't the slow part—your single-needle machine and your hooping process are. Upgrading to a magnetic hooping station can reduce your physical setup time by 30-40% per shirt, which often yields a faster ROI than software upgrades alone.

The Secret Sauce: Satin Columns & Motif Fills

The "Properties" panel is where you define the texture of your work.

Sensory Guide to Density:

• 0.4mm Spacing: Standard. Feels like a smooth patch.
• 0.3mm Spacing: Tight. Feels hard/stiff. Use for dark thread on white fabric.
• 0.5mm+ Spacing: Loose. Feels soft, but you might see fabric color through it (the "screen door" effect).

Action: Start at 0.4mm. If you see the fabric color peeking through your satin column, do not increase density immediately. Increase Underlay (Edge Walk + ZigZag) first. It adds coverage without adding bulk.

Sequencing: The Object List is Your Roadmap

The video emphasizes the Object List on the right panel. A disorganized list equals a messy result.

The "Trim" Cost: Every time your machine trims (cuts thread), it takes 6-10 seconds to stop, cut, move, and restart.

• 100 trims = ~15 minutes of wasted time.
• The Fix: In the Object List, group all "Red" items together, then all "Blue" items. Do not color hop.

Consistency in the software needs consistency on the table. When you are running efficient batches, a hooping station for embroidery machine ensures that "Center Chest" is in the exact same spot on Shirt #1 and Shirt #50, reducing the need to tweak position on the machine screen.

Decision Tree: From Fabric to Stabilizer

Use this logic flow before you save your .PES/.DST file.

Step 1: Analyze Fabric Texture

• Smooth/Stable (Canvas, Denim):
  • Stabilizer: Tearaway (Medium).
  • Underlay: Standard.
• Textured/Looped (Towels, Fleece):
  • Stabilizer: Tearaway + Water Soluble Topping (Essential! Prevents stitches sinking).
  • Underlay: Heavy ZigZag (to mash down the nap).
• Stretchy/Mobile (T-Shirts, Performance Wear):
  • Stabilizer: Cutaway (No Mesh, use 2.5oz solid).
  • Underlay: Light. Most importantly, avoid stretching the fabric while hooping.

Step 2: Choose Hooping Method

• Standard Hoops: Good for flat cotton. Watch for "Hoop Burn" on velvet/polyester.
• Floating (Sticky Stabilizer): Good for items you can't hoop (collars, socks).
• Magnetic Systems: Excellent for difficult or thick items. A proper hooping for embroidery machine setup with magnets prevents the "stretch distortions" common with inner/outer rings.

Warning: Magnetic Pinch Hazard. Magnetic hoops are industrial tools, not toys. They can snap together with crushing force. Keep fingers clear of the mating surfaces. Pacemaker Alert: Keep powerful magnets at least 6-12 inches away from medical devices.

Troubleshooting: The "Why Did It Fail?" Matrix

The video mentions learning curves and lag. Here is the field guide to physical failures.

Hidden Consumables List (Stuff you forgot to buy)

• Spray Adhesive (e.g., 505): Crucial for preventing shifting without tight hooping.
• Needles (75/11 Ballpoint): For knits. Sharp needles cut the yarn of knits.
• Water Soluble Topping: For anything fluffy.
• Tweezers: For picking out those tiny jump stitches.

The Path to Pro: Tools + Technique

Embrilliance StitchArtist Level 3 is a fantastic "brain" for your operation. It allows you to control density, pulls, and structure. But even the best brain needs a strong body.

Commercial Evolution Path:

1. Start: Single needle machine + Standard Hoops + Level 3 Software. Focus on learning.
2. Frustration Point: You spend more time hooping and changing thread than sewing.
3. Upgrade Level 1: Magnetic Hoops. Solve the frustration of hoop burn and wrist strain. Speed up the physical workflow.
4. Upgrade Level 2: Multi-Needle Machine. When you need to run 15 colors without babysitting the thread changes. Brands like SEWTECH offer high-efficiency machines that bridge the gap between home hobbyist and industrial powerhouse.

Operation Checklist (The "Green Light" Sequence)

• Bobbin Check: Is it low? Don't start a 20,000 stitch design with a 10% bobbin.
• Needle Check: Run your fingernail down the needle tip. Feel a burr? Change it.
• Clearance: Rotate the handwheel manually (or use the "Trace" function) to ensure the needle won't hit the hoop frame.
• Speed: Start the first 500 stitches at 600 SPM (Stitches Per Minute). Once the foundation is laid, crank it up to 800-1000 SPM.
• Listen: A quiet machine is a happy machine. If it clicks, snaps, or grinds—STOP immediately.

Master the software, respect the physics, and upgrade your tools when they become the bottleneck. That is how you win at embroidery.

FAQ

• Q: How do I prevent bird’s nest thread jams on a Brother PE800 embroidery machine when stitching a new StitchArtist Level 3 design?
  A: Re-thread the Brother PE800 correctly with the presser foot UP before changing any design settings—most bird’s nests start with threading/tension disc issues.
  • Re-thread: Lift the presser foot, fully re-thread the top path so the thread seats in the tension discs.
  • Clean: “Floss” the tension discs and remove lint from the bobbin area/bobbin case.
  • Restart: Sew the first few hundred stitches slowly and watch for stable stitch formation.
  • Success check: The machine sound becomes smooth (no grinding), and thread does not pile under the needle plate.
  • If it still fails: Stop immediately and inspect the bobbin case area for packed lint or mis-seated bobbin before running again.
• Q: What stabilizer should I choose for a stretchy performance T-shirt when digitizing in Embrilliance StitchArtist Level 3 to reduce puckering and distortion?
  A: Use cutaway stabilizer (2.5 oz or 3.0 oz) for stretchy performance tees—this is the safest base for controlling movement.
  • Choose: Apply solid cutaway (2.5 oz is a safe starting point; 3.0 oz for heavier designs).
  • Avoid: Do not stretch the garment while hooping; stretching invites recoil and distortion after stitching.
  • Match: Keep underlay lighter on knits and let the cutaway do the stabilizing work.
  • Success check: After stitching, the fabric lies flat around the design with minimal rippling when relaxed off the hoop.
  • If it still fails: Reduce design density before tightening hoop tension further, especially on soft knits.
• Q: What are the safest StitchArtist Level 3 “Inflate” border settings for a 3 mm satin outline to prevent needle breaks on a home embroidery machine?
  A: Start with a 3 mm outline, 0.5 mm hole inflate, and keep “Soften Corners” enabled—sharp corners are a common needle-break trigger.
  • Set: Outline Thickness = 3 mm and Hole Inflate = 0.5 mm.
  • Enable: Turn on Soften Corners to prevent thread piling at tight angles.
  • Limit: If increasing width beyond 3 mm, use Split Satin to reduce snagging and excessive density.
  • Success check: The machine runs without loud “crack” impacts at corners, and the satin border looks smooth rather than knotted.
  • If it still fails: Check hoop stability and fabric shifting before assuming the software is at fault.
• Q: How do I fix gaps between fill stitches and an outline border caused by push-and-pull distortion when using Embrilliance StitchArtist Level 3?
  A: Add pull compensation first (start around 0.4 mm), then stabilize and improve hoop grip—gaps are often fabric movement, not “bad digitizing.”
  • Adjust: Increase Pull Compensation (0.4 mm is a beginner-safe starting point).
  • Stabilize: Use a heavier stabilizer or float an extra layer when the fabric is mobile.
  • Secure: Use temporary spray adhesive to bond fabric to stabilizer and reduce shifting.
  • Success check: The outline lands consistently against the fill with no white “halo” gaps around curves.
  • If it still fails: Upgrade hooping control (for example, a magnetic hoop or a hooping station/jig) to reduce trampoline-like bounce.
• Q: How do I stop hoop burn and fabric ring marks on polyester performance wear when hooping dense embroidery or 3D puff designs?
  A: Reduce crushing pressure while maintaining stability—dense designs require secure holding, and magnetic hoops often help clamp evenly without over-tightening rings.
  • Choose: Use a hooping method that holds firm without excessive ring pressure (magnetic systems are commonly used for this).
  • Plan: Expect dense coverage (patches/foam) to need stable hooping; avoid over-tightening traditional screw hoops on delicate fabrics.
  • Test: Stitch a small sample first before committing a full garment.
  • Success check: After unhooping, the fabric shows minimal or no permanent ring, while registration stays accurate during stitching.
  • If it still fails: Re-evaluate stabilizer weight and consider a hooping upgrade rather than increasing density further.
• Q: What safety steps should I follow when test-stitching a dense StitchArtist Level 3 file (fills or 3D puff) to avoid needle injury on a single-needle embroidery machine?
  A: Treat the first sew-out like a live safety test—needles can deflect and shatter during dense stitching.
  • Wear: Put on eye protection before running the first test.
  • Observe: Watch the first sew-out from a safe distance; do not put your face near the needle bar to “see better.”
  • Start: Run the first 500 stitches slower (around 600 SPM) before increasing speed.
  • Success check: The needle runs smoothly with no deflection sounds (click/snap/grind), and the stitch formation remains stable.
  • If it still fails: Stop immediately and inspect for density/corner impacts, needle damage/burrs, or fabric flagging.
• Q: What magnetic hoop safety precautions should I follow when using magnetic embroidery hoops on an industrial multi-needle machine?
  A: Keep fingers clear and treat magnets as pinch hazards—magnetic hoops can snap together with crushing force.
  • Handle: Keep hands and fingertips away from mating surfaces while closing the hoop.
  • Control: Set the hoop down flat and bring components together deliberately—do not “let them jump.”
  • Protect: Keep strong magnets 6–12 inches away from pacemakers or medical devices.
  • Success check: The hoop closes without finger pinches, and the fabric remains evenly held without sudden snap impacts.
  • If it still fails: Switch to a slower, two-step closing technique (position first, then close) and reassess workspace layout to prevent accidental contact.
