Stop Embroidery Gaps at the Source: Stitch Angles in Generations Software (Plus the Push/Pull Physics Digitizers Miss)

The "White Gap" Nightmare: Why Your Perfectly Digitized Design Has Spaces (And How to Fix It)

You know the feeling. You’ve spent an hour perfecting a design on your screen. The two shapes are touching perfectly—pixel against pixel. You load it into your machine, hit start, and watch with anticipation.

But when you pull the hoop off, your heart sinks. There, glaring at you between the red circle and the blue square, is a maddening white gap of bare fabric.

It looks like a mistake. It feels like a failure. Attempting to fix it by just "nudging" the shapes closer usually results in a messy bulge later.

Here is the truth: It’s not your machine’s fault, and it’s likely not a stabilizer failure. It is a matter of physics. Specifically, it is about Stitch Angles.

In this master guide (based on Holly Pike’s Generations Embroidery Software methodology), we are going to look past the screen and into the fabric. We will dismantle the "Push/Pull" mystery, teach you how to adjust angles to lock fibers together, and discuss when it’s time to upgrade your hooping tools to stop the fabric from fighting back.

The Physics of the Gap: Why "Touching" on Screen Means "Separated" on Fabric

If you understand why the gap happens, you will never fear it again.

Embroidery is not like printing ink on paper; it is like tying thousands of tiny knots on a flexible, moving skin. Every stitch creates tension.

The Mental Model: The Tug-of-War

Imagine two people standing back-to-back. If they both step forward (away from each other), a gap opens between them.

• Rule of Thumb: Stitches pull the fabric in the direction the thread runs.
• The Scenario: You have two fill areas next to each other. Both have a stitch angle of 45 degrees.
• The Result: As the machine stitches, the thousands of needle penetrations pull the fabric fibers along that 45-degree line. Because both objects are pulling in the same direction, they distort the fabric identically, often pulling away from their shared border.


This is called Pull Compensation (or lack thereof). When two objects butt up against each other and share the same stitch angle, the fabric experiences aligned stress. That aligned pull opens the visible space between them.

Sensory Check: The Fabric "Drum"

Before we even touch the software, think about your hoop. When you tap the fabric in a hoop, it should sound like a tight drum—a dull thump. If it sounds loose or flabby, no amount of digitizing software can fix the gaps. The physics of the stitch needs a stable foundation.

The "Hidden" Prep Pros Do First: Set Up a Gap Test You Can Reuse

Before you start changing settings randomly, we need to replicate the problem in valid structural terms.

Holly’s demonstration highlights a classic "Gotcha" in digitizing software: When you create objects sequentially (like using the Box or Circle tool), the software acts like a robot—it assigns the same default stitch angle (usually 0 or 45 degrees) to every new shape to save calculation time.

That consistency is convenient for the computer, but disastrous for the fabric.

Build the demo objects (Default Behavior)

1. Select the Rectangle Tool.
2. Draw the first rectangle as a Complex Fill object.
3. Draw a second rectangle as another Complex Fill object.
4. Use the Select Tool to drag them so they are abutting (touching edge-to-edge).






Prep Checklist: The "Before You Edit" Scan

Run this mental scan before applying any angle changes. Skipping this leads to fixing the wrong problem.

• [ ] Fill Type Verification: Are both objects actually 'Complex Fill'? (Satin stitches behave differently).
• [ ] Separation Check: Are they two distinct objects? (If they are merged into one path, you cannot change angles independently).
• [ ] The Zoom Test: Zoom in to 400%. Are the edges actually touching? If there is a pixel gap on screen, there will be a canyon on fabric.
• [ ] Target Identification: Decide which object is the "Anchor" (stays the same) and which is the "Mover" (changes angle).

The Fix That Actually Works: Rotating Stitch Angles (Breaking the Alignment)

The solution is structural opposition.

We need to force the two shapes to pull the fabric in different directions. By changing the stitch angle of just one object, we disrupt the unified pull force. The stresses cancel each other out or pull across each other, knitting the border together rather than ripping it apart.

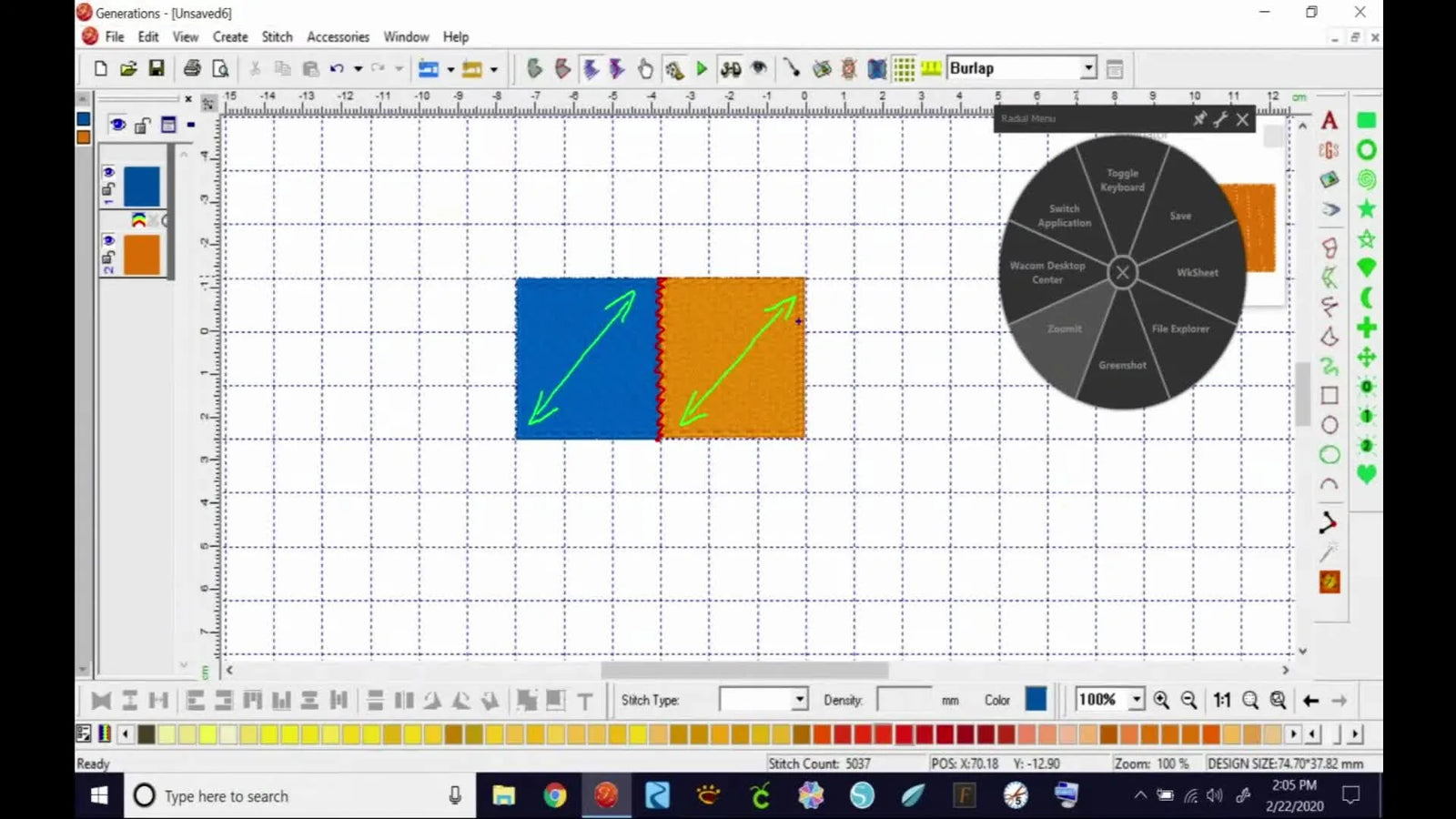

Method 1: The "Green Dot" Handle (The Visual/Fast Way)

This is the "Magic Wand" approach Holly demonstrates. It is perfect for visual learners who want to see the texture change instantly.

1. Right-click the object you want to edit (e.g., the right-hand rectangle).
2. Look for the wireframe editing nodes. You are looking for a line crossing the shape with a Green Dot at the end.
3. Hover over the Green Dot until your cursor changes to a magic wand icon.
4. Left-click, hold, and drag the dot to rotate the line like a clock hand.
5. Release the mouse.
6. Regenerate (Ctrl+G or G in many suites) to apply the new calculation.






What to Look For (Visual Confirmation)

• The Contrast: You should see a distinct difference in the "grain" of the two shapes. If Object A looks like the grain runs North-South, Object B should run East-West (or diagonal).
• Light Reflection: On your screen (and later on thread), the light will hit the stitches differently, creating a subtle color shift even if the thread color is identical.


Pro Tip: A difference of 90 degrees is the strongest structural lock, offering the maximum resistance against gapping.

Beyond the Gap: Aesthetics, Shine, and "The Look"

Holly makes a critical point often missed by novices: Stitch angle isn't just a structural bolt; it's your paintbrush.

Thread is reflective. A vertical stitch reflects light differently than a horizontal stitch.

Demo: Rotating Stitch Angle on a Circle

1. Create a standard Circle object.
2. Use the Green Dot handle to rotate the fill direction.
3. Observe the "Shine Line."




This is why expert digitizers can make a single color of black thread look like a textured tuxedo—by varying the angles of adjacent shapes to create depth.

• Vertical Angles: Often make objects appear taller or slimmer.
• Horizontal Angles: Can make objects appear wider or flatter.
• Diagonal Angles: generally the safest for stability on knits (T-shirts), as they pull against the bias of the fabric weave.

Method 2: The "No-Math" Numerical Adjustment (Precision Mode)

Sometimes, dragging a handle feels imprecise. You might be trying to match a specific angle from a previous design, or you want exactly 45 degrees.

Holly demonstrates the Properties Method, which is ideal for "Template" work where consistency is key.

1. Select the object with a Right-click.
2. Press the Spacebar (or right-click and select Properties) to open the Area Object Stitch Properties dialog.
3. Navigate to the Complex (or Fill) tab.
4. Locate the Direction setting.
5. The Action: Either drag the clock-face dial or type a number.




In the example, changing 314 degrees to 196 degrees completely alters the structural integrity of the shape.

Why use numbers?

If you are doing a production run of team patches, you cannot rely on "eyeballing it." Using specific degrees ensures that if you ever have to resize or edit the file 6 months later, the underlying structure remains mathematically constant.

The Real World Variable: Managing Push/Pull Compensation

You have fixed the angles in the software. Now, we must talk about the variable the software cannot fully predict: The Hooping.

"Push and Pull" are not just software settings; they are physical reactions.

• Pull: Stitches pull in (shorten) along their length.
• Push: Stitches push out (expand) perpendicular to their length.

If your fabric is not stabilized correctly, these forces are magnified.

The Stabilizer & Hooping Factor

Even perfect digitizing will fail if the fabric moves in the hoop. This is commonly known as "flagging"—when the fabric bounces up and down with the needle.

• Standard Hoops: Require perfect tension. If you over-tighten, you get "hoop burn." If you under-tighten, you get gaps.
• Mastery Level: This is where hooping for embroidery machine becomes an art form. You need the fabric to be neutral—taut, but not stretched.

If you are struggling with gaps despite changing your stitch angles, the culprit is likely the fabric shifting. This is a common pain point for beginners working on slippery performance wear or thick hoodies.

The Hardware Upgrade Path

If you find yourself constantly fighting gaps on production runs, it might be time to look at your tools.

Many professionals search for terms like magnetic hooping station because they solve the "human error" part of tension. By using magnets to clamp the fabric instantly and evenly, you reduce the distortion caused by manually hauling on the fabric edges. Less distortion means the fabric stays where your digitizing software thinks it is.

Troubleshooting: The "Gap" Decision Tree

Do not guess. Use this logic flow to determine your next move when you see a gap.

Decision Tree: Solving the White Gap

1. Is the hooping tight? (Tap test: Drum sound?)
   • No -> Re-hoop. Do not touch software.
   • Yes -> Go to step 2.
2. Are the objects touching on screen at 400% zoom?
   • No -> Move them closer.
   • Yes -> Go to step 3.
3. Do they share the same Stitch Angle?
   • Yes -> CHANGE ANGLE (Method 1 or 2 above). This is the 90% fix.
   • No -> Go to step 4.
4. Still gapping?
   • Action: Increase Pull Compensation (or Overlap) on the edges.
   • Standard Range: Add 0.2mm - 0.4mm overlap on the shared edge.

Operations: Safety and Habits

Digitizing is a desk job, but embroidery is a machine shop activity.

Warning: Mechanical Hazard
When testing designs, keep hands clear of the needle bar area. If a gap appears, do not try to "pull" the fabric while the machine is running to close it. This changes the registration and can force the needle to strike the throat plate, causing high-velocity needle shrapnel.

Warning: Magnetic Field Safety
If you upgrade to a magnetic embroidery hoop, be aware they use powerful Neodymium magnets. They can pinch fingers severely. More importantly, keep them at least 6 inches away from pacemakers, insulin pumps, and magnetic storage media.

The Professional Upgrade: When Better Tools Protect Your Work

We have discussed software fixes, but let’s address the elephant in the room.

You can spend 4 hours perfect-tuning stitch angles to compensate for a bad hoop job. Or, you can upgrade your workflow to eliminate the instability.

The "Tool Upgrade" Ladder:

1. Level 1 (The Hobbyist): Use better stabilizers (Cutaway for knits, tearaway for wovens) and temporary spray adhesive to stick the fabric to the stabilizer.
2. Level 2 (The Prosumer): Switch to machine embroidery hoops that use magnetic clamping (like the SEWTECH Magnetic series). This minimizes "hoop burn" and ensures the fabric grain remains straight, making your stitch angle calculations accurate.
3. Level 3 (The Business): If you are doing volume, a multi-needle machine allows you to leave a design set up while you hoop the next garment on a separate hooping station for machine embroidery. This separation of "prep" and "sew" is the secret to profitability.

Conclusion: Use The Angle

Holly’s lesson is a fundamental pillar of digitizing:

• Physics: Aligned angles = Aligned pull = Gaps.
• The Fix: Rotate one object. 45 to 90 degrees difference is ideal.
• The Check: Use the Green Dot for speed, Property Numbers for precision.

Don't let the white gap defeat you. It’s just the fabric asking you to change direction.

Operation Checklist (Final Pre-Flight)

• [ ] Angle Scan: Checked all abutting objects for conflicting angles?
• [ ] Sensory Check: Does the hoop sound like a drum?
• [ ] Simulation: Ran the on-screen stitch simulator to check flow?
• [ ] Safety: Checked needle path and hoop clearance?

If you master the proper use of stitch angles—and support that skill with solid hooping tools—an embroidery digitizing tutorial like this becomes more than just a fix; it becomes the foundation of your reputation for quality.
