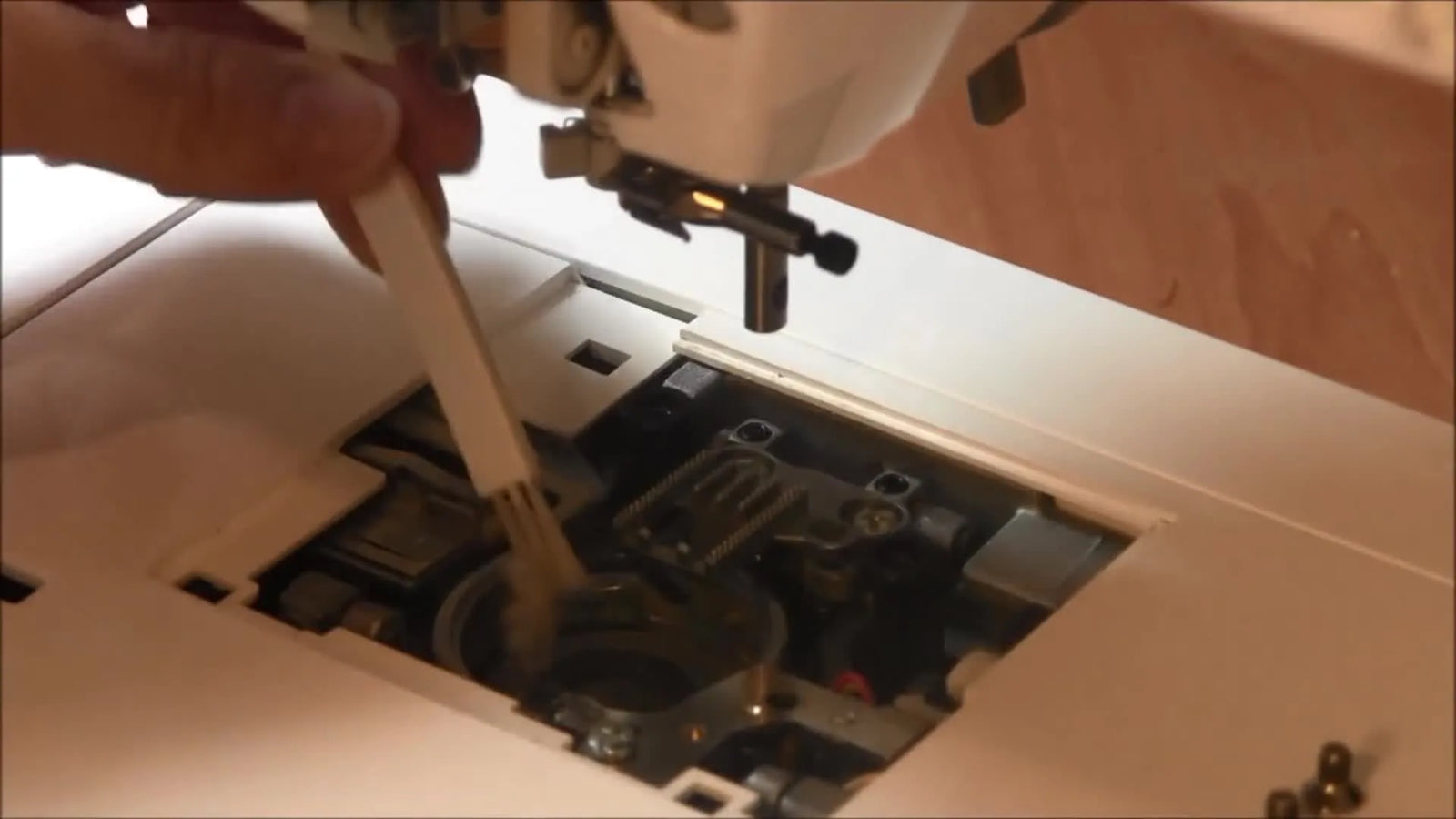

Stop the Bird’s Nest: The Brother Innov-is 4000D Hook-Race Cleaning Routine That Actually Fixes First-Stitch Jams

If you’ve ever meticulously cleaned your Brother Innov-is 4000D, put everything back “exactly how it came apart,” pressed start, and watched in horror as the first ten stitches turned into a snarled "bird's nest" underneath—take a deep breath.

You didn’t break your machine. You simply missed a critical invisible tolerance zone.

In the embroidery world, we call this "The Pinched Bobbin Effect." On the Brother Innov-is 4000D (and similar top-loading models), the hook-race is forgiving of lint but unforgiving of pressure. If the bobbin case is pinned down during reassembly, it loses its ability to float. When it can't float, the thread can't pass around the hook, and your machine turns into a thread shredder.

This guide is not just a cleaning tutorial. It is a forensic reconstruction of the cleaning routine, adding the sensory checkpoints (what you should feel and hear) that separate a functioning machine from a jammed one.

The Calm-Down Check: Anatomy of a "Bird's Nest"

A sudden bird’s nest right after cleaning is almost always a mechanical assembly error, not a mysterious software glitch or tension curse.

The Symptom: The machine sounds normal for a split second, then you hear a rhythmic thump-thump, and the fabric gets stuck to the plate. The Reality: The bobbin case (the black plastic cup) is trapped. It needs to dance imperceptibly with the thread. If you tightened the needle plate on top of it, you’ve locked its feet to the floor.

If you’re new to this, you’re in good company. In my 20 years of teaching, I've seen seasoned shop owners make this mistake. Panic is normal; the fix is physics.

Tools That Won’t Betray You: The "Do No Harm" Kit

Your machine is a precision instrument. Using a kitchen screwdriver here is like doing watch repair with a hammer.

The Essential Kit

• Brother Disc-Shaped Screwdriver: This provides high torque without height, preventing you from stripping screw heads in the tight space under the arm.
• Soft Cleaning Brush: The standard white brush supplied with the machine.
• Tweezers: For pulling lint clumps out of corners.
• New Needle (Size 75/11 or 90/14): Never reinstall a used needle after a deep clean.

The "Hidden" Consumables

• Non-Permanent Loctite (Optional): Only for frame screws, never for the needle plate.
• Micro-Vacuum Attachment: Safer than canned air for sucking out debris.

Pro Tip: If you don't have the disc screwdriver, look for a "stubby" flathead. The key is downward pressure. You must press down hard while turning slowly to avoid that heart-sinking feeling of a stripped screw head.

The "Hidden" Prep Pros Do First: Zero Energy State

Before you touch a screw, we must eliminate the risk of accidental activation. This isn't just about safety; it's about resetting the machine's electronics.

Power-Down Protocol

1. Turn the machine OFF.
2. Unplug it from the wall. (This drains residual capacitor power and ensures absolute safety).

Warning: Remove the needle immediately. When your hands are deep in the hook race, a sharp needle is a hazard. A puncture wound in this environment carries oil and lint—infection risk is high. Furthermore, dropping a needle into the open race can scratch the teflon coating of the bobbin case, permanently ruining tension.

Prep Checklist (Do OR Fail)

• Machine switch is OFF and cord is physically unplugged.
• Needle is removed and discarded (start fresh later).
• Presser foot is removed to clear the visual field.
• Work area is lit (use your phone flashlight if needed).
• Magnetic dish or small tray is ready to catch the two tiny plate screws.


Clearing the Deck: Creating Surgical Access

The video’s order represents best practices for reducing cognitive load. By removing obstructions, you reduce the chance of fumbling expensive parts.

1. Remove Presser Foot: Unscrew the holder. Set it aside.
2. Remove Needle: Loosen the clamp, drop the needle, and trash it.

Now you have a clear view. If you are maintaining a brother sewing and embroidery machine, this access is vital. Rushing purely to "get it done" is the fastest way to lose a screw inside the machine casing—a nightmare scenario that requires a technician to fix.

Needle Plate Removal: The "Push-Turn" Technique

The needle plate (the metal cover) is held by two screws that are often tighter than expected due to vibration.

The Action:

1. Fit the disc screwdriver into the slot.
2. Apply significant downward pressure with your palm.
3. Turn counter-clockwise. You should feel a firm "crack" as the threadlock breaks.

Once the screws are out, lift the plate straight up. Do not slide it, as you risks scratching the plastic bed.

Bobbin Case Removal: The "Fuzzy Tab" Orientation

With the plate off, remove:

1. The plastic sliding bobbin cover.
2. The black plastic bobbin case (the basket).

Critical Observation: Look at the bobbin case. You will see a small, felt-like fuzzy rectangle on one side. Memorize this. This implies an oiling point or a friction buffer. When reassembling, this fuzzy tab usually orients toward the front or specifically aligns with a metal stopper, depending on exact sub-model.

Sensory Check: The bobbin case is lightweight and feels fragile. Handle it like an eggshell. Inspect the edges—if you feel any burrs or rough spots with your fingernail (like a snag in a sweater), the case is damaged and will cut your thread. Replace it.

Lint Removal: The "Air vs. Brush" Debate

This is the most controversial topic in machine maintenance. The video suggests blowing; the comments scream "Rust!" Here is the industry verdict.

The Physics of Lint: Embroidery lint is abrasive. It soaks up oil and turns into a cement-like sludge that grinds your gears.

The Safe Cleaning Protocol

1. Brush First (Mechanical Removal): Use the soft brush to sweep lint out. Lift clumps with tweezers.
2. The "Canned Air" Rule:
   • Bad: Blowing air straight down. This packs lint into the greased gears below.
   • Good: Blowing air at a sharp, horizontal angle to whisk fine dust out of the machine.
   • Best: Use a micro-vacuum attachment to suck the dust out.

If you are caring for a high-end brother computer embroidery machine, treat lint like glitter: if you blow it around, it never leaves; it just hides until it ruins your next project.

The "Golden Rule" of Reassembly: Plate FIRST, Case LAST

Stop. Read this twice. This is the single operational difference between a smooth machine and a bird's nest.

The most common instinct is to put the bobbin case in, then screw the metal plate down over it to "secure" it. This is wrong. If you do this, the metal plate clamps down on the plastic case, immobilizing it. The thread cannot slip around the case, and the machine jams instantly.

The Correct Sequence:

1. Step 1: Install the Metal Needle Plate. Screw it down tight.
2. Step 2: Insert the Bobbin Case. It drops into the well formed by the plate.

When maintaining a brother embroidery machine, memorize this mantra: Metal before Plastic.

The "Float Test": Validating the Installation

dropping the case in isn't enough. You must verify it has "life."

The Action:

1. Drop the bobbin case in. Align the white triangle (or dot) on the case with the white dot on the machine race.
2. The Sensory Check: Place your index finger lightly on the center of the case. Wiggle it left and right.
   • Tactile: It should feel "springy" or loose. It should rotate a few millimeters against the stopper spring.
   • Auditory: You might hear a tiny plastic "click-clack" as it hits the stops.

If it feels tight, jammed, or doesn't move, take it out and try again. Do not force the plastic cover on yet.

The Flush Finish: The Bobbin Cover Click

The final piece is the clear plastic slide cover.

The Check: Slide the cover on. It must sit perfectly flush with the metal plate.

• If the cover creates a "bump" or pops up: The bobbin case is not seated.
• Do not sew. If you sew with a raised cover, the needle will strike the cover, potentially shattering the plastic and sending shards into your eyes.

Fix: Remove cover -> Reseal Bobbin Case (wiggle it) -> Reinstall Cover.

Setup Checklist (Pre-Flight)

• Metal Needle Plate is screwed down secure before the bobbin case was inserted.
• Bobbin Case passes the "Float Test" (wiggles slightly, not pinned).
• Slide Cover is flush and clicks into place.
• New Needle is installed flat-side back, fully up.
• Thread Path is clear (no loose threads trapped under the plate).

The Physics of Failure: Why "Clean" Machines Jam

The hook system works on a gap principle. The thread loop must pass around the bobbin case. This requires a gap of roughly 0.7mm to 1.0mm.

• Lint: Closes the gap, causing friction (drag) -> Thread shreds.
• Assembly Error: Closes the gap mechanically -> Thread halts -> Bird's Nest.

When the host says "any little difference will cause an embroidery to not work right," she refers to this gap. Your job is to protect the gap.

"Should I Oil It?" (The Warning)

Unless your manual specifically shows an oiling point in the race (common on industrial machines, rare on modern home drop-ins like the Innov-is 4000D): DO NOT OIL.

These machines use self-lubricating sintered metal or specialized grease. Adding sewing machine oil can dissolve the factory grease or gum up the works. Leave deep lubrication to a certified technician.

Structured Troubleshooting: From Symptom to Cure

Decision Tree: Is it Me or the Machine?

Start: You cleaned the area, but the machine is acting up.

1. Do the "Float Test". Does the bobbin case wiggle freely?
   • NO: You installed the case before the plate. STOP. Disassemble and reverse order.
   • YES: Proceed to 2.
2. Check the "Click". Is the clear cover perfectly flush?
   • NO: The case isn't seated deep enough. Reseat it.
   • YES: Proceed to 3.
3. Inspect the Needle. Is it brand new?
   • NO: Change it. A bent tip (invisible to the eye) causes 80% of jams.
   • YES: Proceed to 4.
4. Still Nesting?
   • YES: This may be a timing issue (internal gear slippage). Call a tech.
   • NO: Run a test stitch. You are good to go.

The Upgrade Path: From "Fixing" to "Flowing"

Congratulations. Your machine is mechanically sound. But mechanics differ from workflow.

If you find yourself constantly battling fabric slippage, "hoop burn" (those shiny rings left on velvet or dark fabric), or wrist pain from tightening screws, your maintenance is good, but your tools are the bottleneck.

The "Hoop Burn" & Efficiency Problem

Standard plastic hoops require you to pull fabric taut like a drum skin, often distorting the weave or crushing the pile.

• The Trigger: You are doing production runs of 10+ shirts, or working with delicate velvet/pique.
• The Upgrade: Professional shops switch to machine embroidery hoops that utilize magnetism.

The Solution Levels

1. Level 1 (Technique): Use "floating" techniques with adhesive stabilizer (messy, but works).
2. Level 2 (Tool Upgrade): Magnetic Hoops (e.g., SEWTECH). These clamp fabric automatically without the "screw-tightening" struggle. They eliminate hoop burn and allow you to hoop a garment in 5 seconds instead of 30.

Warning: Magnetic hoops contain powerful Neodymium magnets. Pinch Hazard. Keep fingers clear of the snapping zone. unsafe for individuals with pacemakers.

1. Level 3 (Capacity Upgrade): If you are spending more time changing thread colors than sewing, consider graduating from a single-needle brother sewing machine to a multi-needle platform. This allows you to set 6-10 colors at once, drastically increasing profit per hour.

Operation Checklist (The Final Test)

• Reassemble fully (Plate -> Case -> Cover -> Needle -> Foot).
• Hand Wheel Turn: Manually turn the wheel toward you for one full rotation. Listen. No crunching? Good.
• Scrap Test: Run a simple "H" or "8" on scrap fabric.
• Hooping Check: Ensure fabric is taut but not distorted. If struggling, review your hooping for embroidery machine technique or stabilizer choice.

You have now mastered not just the cleaning, but the mechanics of your embroidery machine. Keep it clean, respect the reassembly order, and your machine will serve you for millions of stitches.

FAQ

• Q: Why does the Brother Innov-is 4000D make a bird’s nest right after cleaning the hook race?
  A: Reinstall the Brother Innov-is 4000D needle plate first, then insert the bobbin case last—most “after-cleaning” nests are caused by a pinned bobbin case.
  • Remove the clear slide cover, bobbin case, and needle plate.
  • Install and fully tighten the metal needle plate first.
  • Drop the bobbin case into the well after the plate is secured, then reinstall the slide cover.
  • Success check: The bobbin case passes the “Float Test” (a slight springy wiggle and tiny click-clack against the stopper).
  • If it still fails: Replace the needle with a new 75/11 or 90/14 and inspect the needle plate for burrs/needle strikes.
• Q: How do you perform the Brother Innov-is 4000D bobbin case “Float Test” to prevent the Pinched Bobbin Effect?
  A: The Brother Innov-is 4000D bobbin case must wiggle slightly and feel “alive”—if it feels tight, the machine will jam.
  • Align the bobbin case mark (triangle/dot) with the machine race mark (dot) before seating it.
  • Press a fingertip lightly on the center of the bobbin case and wiggle left-right a few millimeters.
  • Do not force the clear cover on until the bobbin case moves freely.
  • Success check: Tactile “springy” movement with a faint plastic click as it taps the stops.
  • If it still fails: Remove and reseat the bobbin case; check edges for burrs/roughness that can shred thread.
• Q: What causes the Brother Innov-is 4000D “Replace Cover” message after bobbin area reassembly?
  A: Seat the Brother Innov-is 4000D bobbin case deeper so the clear slide cover sits perfectly flush and engages the cover switch.
  • Remove the clear slide cover and lift out the bobbin case.
  • Reinsert the bobbin case and repeat the Float Test before reinstalling the cover.
  • Slide the clear cover on without forcing it.
  • Success check: The cover clicks in and lies perfectly flat with no bump or pop-up.
  • If it still fails: Stop and recheck seating—sewing with a raised cover risks needle impact and plastic breakage.
• Q: What safety steps should be followed before cleaning the Brother Innov-is 4000D hook race and needle plate area?
  A: Power down to a true “zero energy state” and remove the needle immediately to avoid injury and internal damage.
  • Turn OFF the Brother Innov-is 4000D and unplug the power cord from the wall.
  • Remove and discard the needle before hands go near the hook race.
  • Remove the presser foot to clear visibility and reduce accidental snagging.
  • Success check: The machine is physically unplugged, and no needle is installed while working under the needle plate.
  • If it still fails: If a needle was dropped into the race or something feels scratched/rough, stop and avoid running the machine until inspected.
• Q: Should canned air be used to clean lint from the Brother Innov-is 4000D bobbin area and hook race?
  A: Use a brush first, and if using canned air on the Brother Innov-is 4000D, blow at a sharp horizontal angle to push dust out—not straight down.
  • Brush lint out mechanically with the soft brush; pull clumps with tweezers.
  • Avoid blasting air downward because it can pack lint into greased parts below.
  • Prefer a micro-vacuum attachment to remove fine dust safely.
  • Success check: The race area looks clear with no lint packed into corners or smeared into oily sludge.
  • If it still fails: If thread still shreds after cleaning, inspect for burrs on the bobbin case/needle plate and install a new needle.
• Q: Why does the Brother Innov-is 4000D make a loud rhythmic “thump-thump” and then jam during embroidery?
  A: Stop immediately—on the Brother Innov-is 4000D, rhythmic thumping often means the needle is striking the bobbin case or the case is jumping out of position.
  • Press stop and remove the hoop/fabric to prevent further impacts.
  • Open the bobbin area and confirm the bobbin case is fully seated and passes the Float Test.
  • Inspect the bobbin case for warping, damage, or rough edges that could destabilize it.
  • Success check: Hand-wheel a full rotation toward you with no crunching and no contact sound.
  • If it still fails: Do not keep testing under power; persistent contact may indicate damage or a deeper mechanical issue requiring a technician.
• Q: How should embroidery workflow be upgraded when Brother Innov-is 4000D hooping causes hoop burn, fabric slippage, or wrist pain?
  A: Use a tiered fix: improve hooping technique first, then consider magnetic hoops for speed and reduced hoop burn, and move to a multi-needle machine if color changes dominate production time.
  • Level 1: Use “floating” with adhesive stabilizer when standard hoops distort or mark delicate fabrics.
  • Level 2: Switch to magnetic hoops to clamp fabric without aggressive tightening and reduce hoop burn on tricky materials.
  • Level 3: Upgrade to a multi-needle embroidery machine when changing thread colors costs more time than stitching.
  • Success check: Hooping becomes consistent (fabric taut but not distorted), and setup time drops without new registration issues.
  • If it still fails: If fabric still shifts, re-evaluate stabilizer choice and run a simple scrap test stitch before production; for persistent mechanical nesting, follow the Float Test and needle replacement steps first.
