Your First Custom Embroidery Patch That Actually Looks Pro: Heat Seal Backing + Hot Knife Cutting (No Scorched Edges)

If you have ever stared at a freshly stitched patch still trapped in the hoop and thought, “Now what… and how do I not ruin this in the final 5 minutes?”, you are in the right place. The embroidery part—the digitized path the needle takes—is only half the job. Finishing is where patches either look like high-end store merchandise or like a messy craft project.

In the video tutorial, Demi tackles her very first patch (a tricky New Jersey outline with complex curves). This is the perfect case study because if you can finish that irregular shape cleanly, simple circles and squares will feel like a walk in the park.

The Patch-Maker’s Calm-Down: Your Embroidered Patch Material Isn’t “Done” Yet—and That’s Normal

A lot of beginners panic at this stage because the patch looks "complete" design-wise, but it is still physically attached to a larger sheet of patch material (twill, felt, or specialized patch fabric).

Let’s reframe your expectations. The professional finish you crave comes from two specific chemical and physical actions:

1. Chemical Bonding: Using a stable backing (Heat Seal/Iron-on film) that turns your floppy embroidery into a stiff, true patch.
2. Physical Sealing: A hot knife cut that cauterizes the edge, preventing the dreaded "fray explosion."

If you plan to sell patches or apply them to garments for customers, this finishing workflow is your insurance policy. It keeps edges from fraying after a wash, corners from lifting, and customers from coming back with complaints.

The “Hidden” Prep Pros Do First: Heat Press Area, Glass Surface, and a Clean Hot Knife

Before you turn on any heating element, we need to set up your "Cockpit." Beginners often scramble for tools while the glue is melting—that leads to mistakes.

The Essential Toolkit (from the video + professional additions):

• Patch Material: The design, already embroidered.
• Heat Press: A swing-away style is shown (ideal for safety), but a clamshell works if you are careful.
• Heat Seal ( Adhesive Backing): This is the "glue sheet."
• Parchment Paper: Not wax paper. This protects your press.
• Glass Cutting Sheet: A tempered glass cutting board.
• Hot Knife: A heated tool with a fine tip.
• Paper Towels: Folded into a thick pad (essential for cleaning).
• Teflon/Tuff-lon Sheet: To protect the thread during the final bond.
• Garment: (e.g., a white T-shirt).

The "Hidden" Consumables:

• Backup Blades: Hot knife tips bend over time. Keep a spare.
• Tweezers: For picking hot bits of adhesive off the glass.

Why The Hardware Matters (The "Old Hand" Secrets)

First, glass is not optional. The video demonstrates this clearly. Wood or cutting mats have texture; hot glue loves texture. If you cut on a self-healing mat, you will melt the mat and ruin the patch. On glass, any heat seal that sticks can be scraped right off once cool.

Second, consider how the patch was created. If you are struggling with "hoop burn" (the ring mark left on the fabric by the hoop) or if your patch shape looks distorted before you even cut it, the issue lies in your hooping tension. This is a massive pain point for patch makers using thick materials like stiff felt.

Here, tools like magnetic embroidery hoops act as a workflow accelerator. Unlike traditional screw-tightened hoops that crush the fibers, magnetic hoops clamp flat. This prevents the fabric distortion that makes circles look like ovals and leaves deep "burn" marks that are impossible to iron out later. If your base isn't flat, your cut won't be straight.

Prep Checklist (Do this **before** you heat anything)

• Visual Inspection: Confirm your patch design has a Satin Stitch border (a dense zigzag). You will cut against this, not through it.
• Zone Clearance: Clear your press area. Dust or lint under the Heat Seal becomes permanent dirt in the glue.
• Surface Check: Place your glass cutting sheet on a waist-high table. If you have to hunch over, your hand will shake during cutting.
• Cleaning Station: Fold a paper towel into a thick, 4-layer pad. Dampen one corner slightly if you prefer, but dry usually works for hot knives.
• Safety Zone: Locate your Teflon sheet.

Warning: Thermal Safety
A hot knife can reach temperatures over 900°F (480°C). It cuts skin instantly and cauterizes the wound—you won't feel it until it's too late. Treat it with the same respect as a loaded weapon. Never wipe the blade while holding the material with your other hand close by. Always cut away from your body.

The Heat Seal “Sandwich” That Prevents a Sticky Mess on Your Heat Press

In the video, Demi applies the heat seal backing before cutting. This transforms the raw embroidery into a rigid, iron-on unit.

The "Sandwich" Physics:

1. Bottom Layer: Embroidered patch material, Face Down on the platen.
2. Middle Layer: Heat Seal sheet, shiny side (adhesive side) touching the back of the embroidery.
3. Top Layer: Parchment Paper. This covers everything.


That parchment paper is doing the heavy lifting. If the heat seal sheet is slightly larger than your fabric, the overhang will melt. Without parchment paper, that glue melts onto your heat press platen. You will spend the next hour scrubbing toxic fumes off your machine.

The Data: Temperature & Time The video shows an 8-second press, but beginners often ask for the numbers. While every brand of Heat Seal (like E-Zee Heat Seal or similar) varies, here is the Beginner Sweet Spot:

• Temperature: 270°F - 300°F (132°C - 149°C)
• Time: 8 - 12 Seconds
• Pressure: Medium (You should feel resistance when locking the press, but not struggle).

Expert Note: If your instructions say "Cotton Setting" for a household iron, that usually equates to approx. 300°F.

Setup Checklist (Right before you press down)

• Orientation: Patch is FACE DOWN. (If it's face up, you will glue the patch to the platen. It happens to everyone once. Try not to let it be today.)
• Alignment: Heat seal sheet covers the entire design area.
• Barrier: Parchment paper extends at least 1 inch beyond the adhesive on all sides.
• Timer: Set to 8 seconds (as a starting point).

Peel and Cool: The Moment You’ll Know the Backing Fused Correctly

After the press beeps, lift the handle gently. Do not rip the parchment paper off immediately like a wax strip.

Wait 5 seconds. Then, peel the parchment paper away.

Sensory Success Metrics:

• Visual: The backing should look smooth and flat.
• Tactile: The paper should release easily. If it drags or pulls the glue up, it’s not cool enough, or the heat wasn't high enough to activate the bond.
• Auditory: Silence. If you hear a ripping sound, stop.

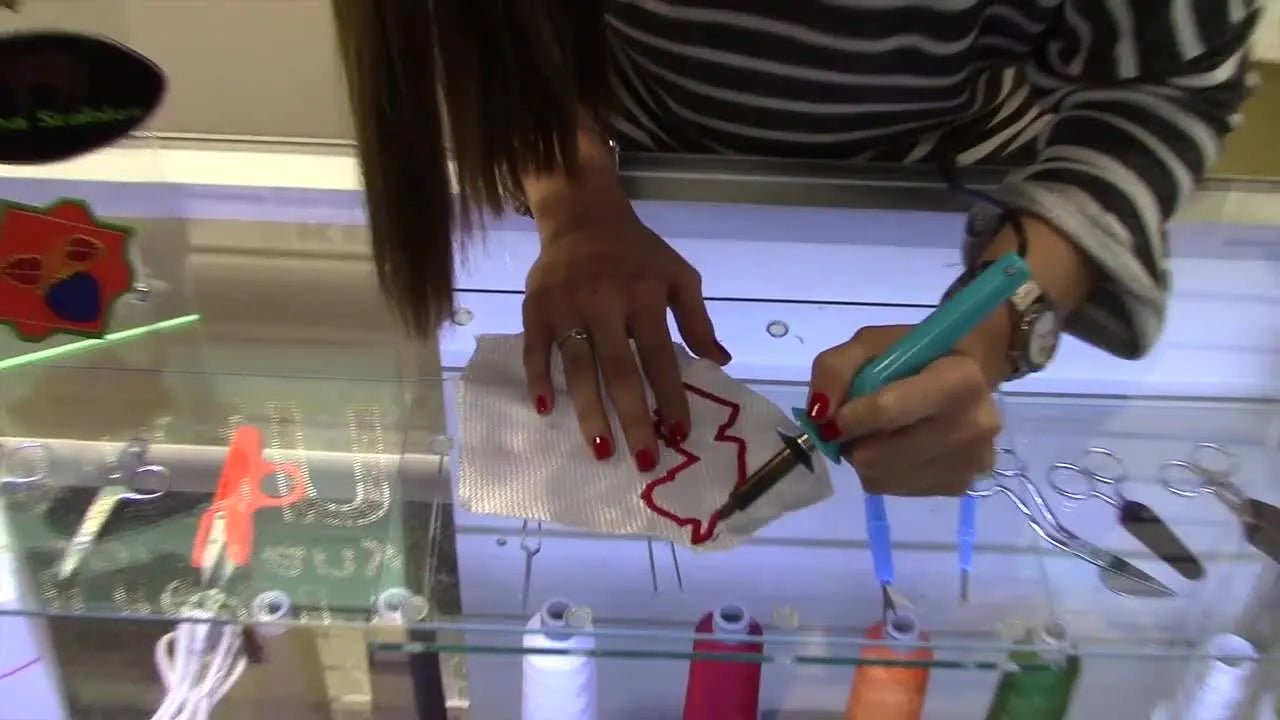

Hot Knife Cutting on Glass: Follow the Satin Border Without Slicing Your Threads

Now, the part that separates "first patch" from "pro patch." This requires steady hands and nerve.

Demi moves to the glass desk. She holds the hot knife like a pen, but looser.

The Technique:

• Proximity: Cut 1mm - 2mm outside the satin stitch border.
• Velocity: Move swiftly. If you stop, you burn.
• Motion: Do not pivot your wrist. Pivot the patch with your other hand. Keep the knife hand relatively still and rotate the artwork under it.


Why "Slightly Outside"? The physics are simple: The satin border is structural. If you cut flush against the threads, the heat will sever the bobbin thread holding the satin stitch together, and your border will unravel. If you cut too far out, you leave an ugly "halo" of simple fabric. 1mm is the safety zone where the heat seals the fabric edge effectively without attacking the thread.

Scaling Up: If you find yourself making 50 of these, your hand will get tired. Fatigue leads to slips. In a production environment, consistency starts way before the cutting stage. It starts with hooping. If your hoop tension varies from Patch #1 to Patch #50, the fabric density changes, and your "1mm gap" will look different on every patch.

For operators moving from hobby runs to repeatable batches, using magnetic hoops for embroidery machines ensures that "same clamp, same tension" feel across the entire run. This consistency allows you to get into a cutting rhythm without having to compensate for distorted fabric.

The Clean-Blade Habit: Wipe the Hot Knife More Often Than You Think

The video shows Demi stopping to wipe the blade on the folded paper towel. This is non-negotiable.

The Chemistry of the Smear: As you cut, the synthetic patch material and the heat seal adhesive melt. They form a black, sticky "gunk" (carbonized residue) on the blade tip.

• If you wipe it: It comes off easily.
• If you don't: It hardens, gets superheated, and then transfers onto the nice white edge of your patch as a black scorch mark.

The Rhythm: Cut 3 inches -> Wipe. Cut 3 inches -> Wipe. Do not wait to see dirt. Wipe to proactively prevent it.

Edge Cleanup Without Re-Cutting: Use the Side of the Hot Knife Barrel

After the main cut, you will inevitably see little white "fuzzies" or jagged bits.

• Novice Mistake: Trying to slice them off with the tip. You will likely slice the border thread.
• Pro Move: Use the side of the hot knife barrel (the shaft, not the point).


Gently run the side of the hot metal along the edge of the patch. It acts like a soldering iron, melting the fuzz back into the sealed edge without cutting anything. It smooths the perimeter like butterizing toast.

Expected Outcome: The edge looks sealed, uniform, and slightly rounded.

Why Glass Beats a Cutting Mat for Heat Seal Work

The video demonstrates lifting scrap material off the glass. Notice how it doesn't stick?

Heat seal adhesive is designed to bond to porous surfaces (like fabric). Glass is non-porous. This means mistakes are temporary. If you accidentally touch the hot knife to the glass, nothing happens. If you touch a plastic cutting mat, you inhale fumes and ruin the surface.

The Finished Patch Check: What “Professional” Looks Like Before You Press It to a Shirt

Demi inspects the patch on the table.

Quality Control Checklist (The "A-Grade" Standard):

1. Border Integrity: No cut threads.
2. Seal Quality: No stray white fabric sticking out further than 1mm.
3. Flatness: The patch sits flat on the table (no curling).
4. Backing: The glue feels smooth and dry, not tacky (until reheated).

Pressing the Patch Onto a T-Shirt: Teflon Sheet + 10 Seconds for a Permanent Bond

The final step: Application.

The "Application Sandwich":

1. Bottom: T-shirt (Pre-pressed for 2 seconds to remove moisture).
2. Middle: The Patch (Glue side down).
3. Top: Teflon/Tuff-lon Sheet.


The Teflon sheet is critical. It protects the polyester embroidery threads from direct contact with the metal platen, which can sometimes cause "thread shine" or flattening.

The Settings:

• Time: 10 Seconds.
• Pressure: Medium-Firm. You need to drive the glue into the T-shirt fibers.




After pressing, peel the Teflon sheet hot. Let the patch cool completely. The bond is weakest when hot. Do not test it by picking at the corner until it is room temperature.

Operation Checklist (The Final Apply)

• Positioning: Measure twice. A crooked patch is permanent.
• Protection: Teflon sheet covers the patch and the surrounding shirt area.
• Timer: Set to 10 seconds (adding time is easier than fixing scorched shirts).
• Cool Down: Hands off for at least 60 seconds after pressing.

A Simple Decision Tree: Choosing Stabilizer + Hooping Method for Patch Runs

The video focuses on the cutting, but the stability of your patch starts with the Stabilizer and the Hoop. Use this logic flow to avoid frustration.

1. What is your Patch Base Material?

• Thick/Stable (Twill, Felt):
  • System: Tearaway stabilizer or specialized patch backing.
  • Hooping: Needs high clamping force to prevent slipping.
• Thin/Stretchy (T-shirt fabric used as patch):
  • System: Must use Fusible Mesh or Cutaway stabilizer.
  • Hooping: Needs gentle, even tension.

2. What is your Volume?

• One-off Hobby Patch:
  • Strategy: Take your time. Standard hoops are fine.
• Production Run (20+ Patches):
  • Strategy: Speed and Repetition are key.

3. The Pain Point Diagnosis:

• Do you struggle with "Hoop Burn" that won't iron out?
  • Solution: This is mechanical damage. Switch to a magnetic embroidery hooping station or standalone magnetic frames. They rely on magnetic force rather than friction, leaving no marks.
• Do your hands hurt from screwing/unscrewing hoops?
  • Solution: Look into how to use magnetic embroidery hoop videos. The "snap and go" Action significantly reduces wrist strain effectively (RSI).

Warning: Magnet Safety
Professional magnetic frames (like those from SEWTECH) use Neodymium magnets. They are incredibly powerful.
* Pinch Hazard: Keep fingers clear of the snapping zone.
* Medical Devices: Keep at least 6 inches away from Pacemakers.
* Electronics: Do not place phones or credit cards directly on the magnets.

Troubleshooting the Three Most Common Patch-Finishing Problems

When things go wrong, consult this triage table immediately.

The Upgrade Path When You’re Ready to Sell Patches

Once you nail the cutting technique, the bottleneck moves elsewhere. It usually moves to Consistency.

Here is the realistic progression path for a growing embroidery business:

1. The Learner (1–10 Patches):
   • Focus: Technique.
   • Tools: Single needle machine, standard hoops, patience.
   • Goal: Clean edges.
2. The Side Hustle (50–100 Patches):
   • Focus: Efficiency.
   • Tools: Upgrade to embroidery hooping station to ensure every patch is centered exactly the same way. This reduces the mental load of aiming.
3. The Professional (Batch Orders):
   • Focus: Throughput.
   • Tools: Time is money. If you are still changing threads manually on a single needle machine, you are losing profit. Moving to a Multi-needle machine (like SEWTECH multi-needle solutions) allows you to set up 6-10 colors and walk away while it stitches.
   • Finishing: At this volume, consistency in hooping is vital. Terms like magnetic embroidery hoop stop being "accessories" and start being "necessary infrastructure" to prevent re-hooping fatigue and rejected parts.

And don’t overlook the quiet profit-killer: Rework. If your borders wobble because the fabric slipped in the hoop, you will spend twice as long fixing edges with the hot knife. Investing in a stable system pays for itself by saving your time.

The Real Takeaway: Clean Backing + Clean Cut + Protected Pressing

Demi’s first patch works not because she is a wizard, but because she respects the workflow:

1. Bonding: 8 Seconds with parchment protection.
2. Cutting: 1mm gap on Glass, with a clean blade.
3. Refining: Melting the fuzz.
4. Application: 10 Seconds with Teflon protection.

Master these four steps, and your patches will be indistinguishable from the ones sold by major brands—whether you are making one for your backpack or 100 for a local sports team.

FAQ

• Q: What patch-finishing tools and consumables are required for cutting embroidered patches with a hot knife and heat seal backing?
  A: Set up the full “cockpit” first so no adhesive melts while tools are missing.
  • Gather: heat press, heat seal (adhesive backing), parchment paper (not wax paper), tempered glass cutting sheet, hot knife, folded paper towels, Teflon/Tuff-lon sheet, tweezers, and a spare hot knife tip.
  • Place: glass sheet on a waist-high, stable table to reduce hand shake during cutting.
  • Prepare: a thick folded paper towel pad right next to the glass for frequent blade wiping.
  • Success check: everything is within arm’s reach before any heat is turned on, so there is no scrambling while glue is soft.
  • If it still fails… replace a bent/dull hot knife tip; inconsistent cutting often starts with a worn tip and poor posture.
• Q: What heat press temperature, time, and pressure should be used to fuse heat seal (iron-on) backing onto embroidered patch material?
  A: Use a safe beginner starting point of 270°F–300°F (132°C–149°C) for 8–12 seconds at medium pressure, then adjust per the heat seal brand instructions.
  • Build: a press “sandwich” with patch material face down, heat seal adhesive against the back, and parchment paper on top extending at least 1 inch beyond the adhesive.
  • Set: timer to 8 seconds first; increase time slightly only if the bond is not activating.
  • Avoid: pressing without parchment paper, because adhesive overhang can melt onto the platen.
  • Success check: backing looks smooth and flat, and parchment peels away cleanly after a brief cool-down (no ripping sound).
  • If it still fails… raise temperature slightly within the stated range or increase press time a few seconds, and confirm the patch was face down (wrong orientation can cause a mess).
• Q: How can embroidered patch makers tell if heat seal backing fused correctly before hot knife cutting?
  A: Let the patch cool briefly, then peel slowly—easy release and a smooth backing surface indicate a correct fuse.
  • Wait: about 5 seconds after pressing before peeling the parchment paper.
  • Peel: gently; stop immediately if the paper drags or lifts adhesive.
  • Inspect: the backing should look uniformly smooth rather than bubbled or patchy.
  • Success check: silent peel (no tearing sound) and a flat, fully bonded-looking backing.
  • If it still fails… the bond may be under-activated; re-press with slightly more time or heat (following the heat seal product guidance).
• Q: What is the correct hot knife cutting distance from a satin stitch border when finishing embroidered patches on glass?
  A: Cut 1–2 mm outside the satin stitch border to seal fabric without heat-damaging the border threads.
  • Hold: the hot knife like a pen and move swiftly; stopping in one spot increases burning.
  • Rotate: the patch with the other hand instead of pivoting the knife wrist to maintain a smooth curve.
  • Cut: against the satin border (do not slice through the satin stitches).
  • Success check: the border remains intact with no cut threads, and no visible fabric “halo” extending beyond about 1 mm.
  • If it still fails… if the border starts unraveling, the cut is too close; if a white halo shows, melt fuzz back using the side of the hot knife barrel instead of re-cutting with the tip.
• Q: How can embroidered patch makers prevent black scorch marks on patch edges when using a hot knife?
  A: Wipe the hot knife blade proactively—about every 3 inches of cutting—to prevent carbonized adhesive residue from transferring onto the patch.
  • Cut: a short section, then wipe the blade on a folded paper towel pad before the residue hardens.
  • Keep: the cleaning station beside the glass so wiping is automatic and frequent.
  • Avoid: waiting until dirt is visible; residue can superheat and smear suddenly.
  • Success check: the blade tip stays visually clean and the patch edge remains free of black streaks.
  • If it still fails… stop and clean the blade more often; minor edge marks may be lightly sanded, but heavy scorch usually means discarding that patch.
• Q: What should embroidered patch makers do when heat seal adhesive glue sticks to the table or cutting mat during patch finishing?
  A: Switch to a non-porous tempered glass cutting surface—porous or textured mats grab melted adhesive and create a sticky mess.
  • Move: all hot knife cutting and adhesive handling to glass only.
  • Scrape: cooled adhesive off glass after mistakes; it releases much easier than from wood or mats.
  • Avoid: self-healing mats for hot cutting; they can melt and contaminate the patch.
  • Success check: scrap adhesive lifts cleanly from the glass after cooling, without tearing fibers or leaving tacky patches on the surface.
  • If it still fails… clean residue carefully and reset the workflow with parchment barriers during pressing to prevent overhang glue from escaping.
• Q: What are the key hot knife safety rules for cutting embroidered patches, and what is the magnet safety rule when using magnetic embroidery hoops?
  A: Treat a hot knife as a high-burn tool and magnetic hoops as pinch-hazard tools—slow down and control hand placement.
  • Cut: away from the body and keep the non-knife hand clear of the cutting line; never wipe the blade while the other hand is close.
  • Set: a fixed “safety zone” for the hot knife when not cutting (do not leave it where forearms can brush it).
  • Keep: fingers out of the snap zone when handling magnetic embroidery hoops/frames, and separate magnets carefully.
  • Success check: no moments where hands cross in front of the blade or fingers enter the magnet snap area during setup.
  • If it still fails… pause and reorganize the station layout; most accidents happen when tools are moved mid-process under time pressure.
• Q: When should patch makers upgrade from standard hoops to magnetic hoops or a multi-needle embroidery machine for patch production consistency?
  A: Upgrade when the pain point is repeatability—if hoop marks, distorted shapes, wrist strain, or rework time is limiting output, move up in levels.
  • Level 1 (technique): standardize the workflow—glass cutting, clean blade wiping rhythm, correct press “sandwich,” and consistent 1–2 mm cut distance.
  • Level 2 (tool): switch to magnetic hoops when hoop burn, fabric distortion, or repetitive screw tightening causes inconsistent patches or hand fatigue.
  • Level 3 (capacity): move to a multi-needle machine when frequent thread changes and batch orders make single-needle runs unprofitable.
  • Success check: patch borders and cut margins look the same from Patch #1 to Patch #50 without extra edge rework.
  • If it still fails… identify whether rejects originate before cutting (hooping distortion/marking) or during finishing (dirty blade/press settings), then address the earlier bottleneck first.
