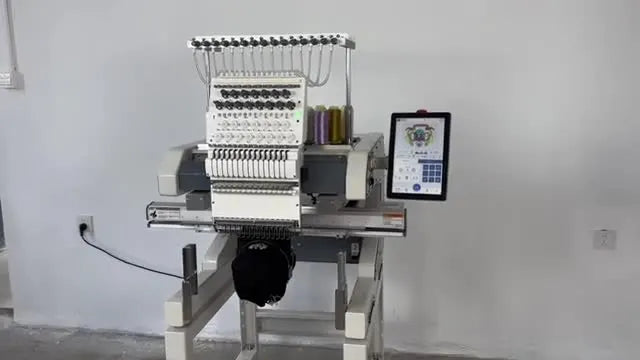

Type C 15-Needle Cap Machine at 1000 RPM: The Upgrades That Actually Protect Quality (and Your Sanity)

Cap embroidery is where good machines get exposed. It is the ultimate stress test for your equipment—and your patience.

At 600–800 RPM, almost anything can look “fine.” But when you push caps to the ceiling—tight curves, hard seams, short stitch lengths, constant trims—every weak link shows up as noise, vibration, registration drift, oil stains, or that one nightmare: a ruined customer hat. Caps defy the laws of flat embroidery; you are stitching on a moving sphere that wants to push the needle away.

This technical tour of the new Type C model is compelling not because of the speed number, but because it exposes the physics required to handle that speed. The video shows specific mechanical changes aiming for one holy grail: stable, repeatable cap embroidery at 1000 RPM.

Don’t Panic—Cap Embroidery at 1000 RPM Is Possible (If You Respect the Physics)

If you’re staring at a new machine spec like “1000 RPM cap embroidery” and thinking, “That sounds like thread-break city,” your instincts are correct. Speed without stability is just a faster way to ruin a hat.

High-speed cap work is a delicate balancing act. As an educator, I teach the "Triangle of Stability":

1. Hooping Tension: It must be tight. The cap should sound like a drum when tapped. Too loose = shifting; too tight = fabric distortion.
2. Stabilizer Support: Tearaway is standard, but the weight matters. Too soft = wobble; too stiff = needle deflection.
3. Machine Rigidity: Any vibration in the arm translates to mis-registration (gaps between outlines and fills) on the cap.

The Type C video demonstrates upgrades to the frame, drivers, sensors, and hook area. If you’re shopping or upgrading, this is the lens I want you to use: not “How fast can it go?” but “How fast can it go while staying quiet?”

My advice to novices: Just because the machine can do 1000 RPM doesn't mean you should start there.

• The Beginner Sweet Spot: 600–700 RPM. Learn to walk before you run.
• The Pro Production Zone: 850–1000 RPM. Attempt this only perfectly digitized files and rock-solid hooping.

The “Hidden Prep” Before You Touch a Screwdriver: Covers, Sensors, and Clean Cap Workflow

The host removes covers to show internal components. This is a crucial reminder: cap embroidery isn’t only about the cap frame—it’s about preventing "snag hazards."

A few details shown in the tour matter immensely for daily shop life:

• Protected wiring channels: Reducing the chance of a loose thread catching a wire.
• Y-direction sensor redesign: Essential for shops handling heavy hoodies or jackets where drawstrings whip around.
• Internal handrail with plastic grip: User ergonomics matter when you are loading dozens of caps.

Warning: Mechanical Hazard. Before removing any covers or inspecting internal parts (like the hook assembly), always POWER DOWN the machine. modern servo motors have high torque; an accidental start while cleaning lint can cause severe finger injury or needle puncture.

Prep Checklist (Do this BEFORE a cap run)

• The "Click" Test: Install the cap driver. Give it a firm tug. If you don't hear/feel a solid metallic click engaging, do not sew.
• Clearance Check: Manually rotate the drive shaft (if applicable) or trace the design to ensure the needle bar doesn't hit the cap driver.
• Clean the Hook: Remove the needle plate. One burst of compressed air and a drop of clear oil on the rotary hook race is mandatory for high-speed runs.
• Obstructed Path: Check the sensor area. Ensure no lanyards, tools, or spare backing sheets are sitting on the machine bed.
• Hidden Consumable Check: Do you have fresh needles (Titanium coated 75/11 sharp is my recommendation for structured caps) and 3D foam (if doing puff) ready?

Red Laser Positioning on the Type C: Faster Placement, Fewer “Off-Center” Caps

The video highlights a red laser module mounted near the needle bar area. In the world of caps, the center seam is the "Equator." If your design is 2mm off-center, the human eye spots it immediately because use the seam as a reference.

In real production, the laser saves you from the "Trial and Error" tax.

Practical application:

1. Align your laser to the exact center of the cap seam.
2. Trace the design box.
3. Ensure the bottom of the design sits at least 10-15mm up from the bill (unless you have specific low-profile frames).

If you are serious about scaling, consistency is key. Terms like machine embroidery hooping station are your gateways to understanding efficient production. A good station combined with laser alignment ensures that Hat #1 and Hat #500 look identical.

The 9 mm Trick: How the Special Pressure Foot Gets You Closer to the Cap Edge

This is one of the most valuable specs in the video: the machine uses a special pressure foot allowing embroidery down to 9 mm from the cap edge.

Why does this matter? "Flagging." When stitches get close to the brim (the bill), the fabric is pulled tight against the bill but loose above it. The fabric bounces up with the needle (flagging), causing skipped stitches and bird nesting.

A specialized cap presser foot holds the fabric down only where the needle penetrates, minimizing this bounce.

Expert Insight: When embroidering close to the brim, your enemy is needle deflection. The needle hits the heavy buckram or brim seam and bends.

• Fix: Use a #90/14 needle if punching through thick seams.
• Speed: Slow down to 600 RPM in this "danger zone" (bottom 15mm of the cap).

If you’re evaluating a commercial hat embroidery machine, don't just ask about speed. Ask: "What is the physical clearance between the needle plate and the presser foot?" That gap defines your stitching limit.

Linear X/Y Drivers and Guide Rails: The Quiet Upgrade That Keeps Registration Tight

The video emphasizes a “100% linear driver” upgrade for X and Y motion.

Smooth motion isn’t a luxury; it’s quality control. In cheap machines, you often hear a "clanking" sound when the pantograph changes direction. That is "backlash." Backlash causes the white gaps you see between a black outline and a red fill.

The host shows a thicker, stronger main shaft and bearing assembly.

Sensory Check: A linear guide system should sound like a hum or a "whir," never a rattle. Less vibration = sharper small text "EST. 1908" shown at the end.

CNC-Integrated Color Change Block: Less Jamming, Less Lost Time Between Colors

Color change issues are the silent profit killer. If a machine takes 10 seconds to recover from a jam during a color change, and you do that 50 times a day, you lose an hour of production.

The video compares the older cam method to the new CNC-integrated block.

This ensures the needle bar aligns perfectly with the driver every time. If you’re currently running a single head embroidery machine and find yourself manually twisting the color change knob because it got stuck "halfway," you know exactly why this upgrade matters.

The Sealed Grease Box on the Rotary Hook: The Upgrade That Saves Garments (and Refunds)

Oil stains are the fastest way to lose a client. The video calls out a sealed rotary box design where grease is contained.

The Problem: At 1000 RPM, centrifugal force turns open lubrication points into oil sprinklers. The Solution: The sealed box keeps the lubrication on the gears, not on your white wedding caps.

Maintenance Tip: Even with a sealed box, check the "pigtail" (bobbin thread guide) for lint buildup. Lint soaks up oil and becomes a dirty sludge that stains thread.

One Needle Plate for Caps and Flats: Less Swapping, Fewer Setup Mistakes

The host shows a needle plate capable of handling both flat and cap embroidery.

Workflow Win: Every time you unscrew a needle plate, you risk:

1. Stripping the screw.
2. Losing the screw.
3. Re-installing it slightly crooked (breaking needles).

Eliminating this step reduces "changeover time"—the non-billable time between jobs.

The Sensor Upgrade Under the Arm: A Small Change That Prevents Big Downtime

The video explains the move from exposed cable sensors to protected proximity sensors.

Real-world scenario: You are rushing. You throw a heavy Carhartt jacket onto the machine. The heavy zipper swings and hits an exposed sensor cable under the head. Snap. Machine down.

"Protected by design" is a critical feature for high-volume commercial environments where garments are heavy and operators are moving fast.

Why the Factory Process Matters: One-Piece Casting + CNC Flatness + Marble Table Assembly

Most buyers skip the factory tour, but this is the "QC" section. The host explains the chassis is a one-piece casting, assembled on a flat marble table.

Why this matters: Embroidery machines are vibrating robots. If the frame is welded steel (cheaper), welds can crack or warp over years of vibration. Cast iron/aluminum bodies dampen vibration.

• Lesson: If comparing a 15 needle embroidery machine, tap the body. It should feel dead and solid, not hollow.

Setting the Top Wisdom T6 Panel to 1000 RPM: Fast Isn’t the Goal—Stable Is

The video shows the panel where the speed limit is increased to 1000 RPM.

The Expert's Rule of Speed:

• Long Satin Stitches: Run fast (900-1000 RPM). The machine has time to accelerate.
• Short Stitches / Small Text: Slow down (600-700 RPM). The machine physically cannot reach top speed in 2mm movements, and trying to force it causes "shredded" thread.

Setup Checklist (The "Pre-Flight" Check)

• Thread Tension: Pull the top thread. It should feel smooth but firm, like flossing your teeth. If it's loose, you'll get loops. If it snaps, it's too tight.
• Bobbin Case: Check the "Drop Test." Hold the bobbin thread; the case should hold its weight but drop slightly when you jerk your wrist.
• Parameter Check: Ensure the "Cap Mode" is actually selected in the software. This flips the design 180 degrees (usually) and adjusts the frame limits.
• Backing: Ensure you are using Cap Backing (heavy tearaway), not standard flat backing. Two layers often work better than one for structured hats.

The 1000 RPM Cap Test: What to Watch While It’s Running (Sound, Movement, Trims)

The live demo runs a multi-color logo on a black cap.

Sensory Diagnosis:

1. Sound: Listen for a rhythmic "thump-thump." A harsh "clack-clack" means the presser foot is hitting the plate or the needle is hitting the driver.
2. Sight: Watch the brim. It should not be vibrating visibly.
3. Trims: Watch the color change. If the thread tail is too long, it gets sewn into the next color (ugly). If too short, the thread pulls out of the needle (stoppage).

If you’re building a cap workflow, reliable cap hoop for embroidery machine setups are vital. But for your flat garments, consider upgrading to SEWTECH Magnetic Hoops. While cap frames are mechanical, magnetic hoops for flats reduce "hoop burn" (the ring mark left on fabric) and drastically speed up the hooping process for shirts and bags.

Warning: Magnetic Field Hazard. If using magnetic hoops or frames mentioned as upgrades: Keep them away from pacemakers, credit cards, and hard drives. The pinch point between magnets is strong enough to cause blood blisters. Handle with care.

Operation Checklist (During the run)

• Monitor the Bobbin: Listen. When the bobbin runs low, stitch quality usually degrades slightly before the sensor catches it.
• Watch the "Flagging": If the cap front is bouncing up and down more than 2-3mm, PAUSE. Add another layer of stabilizer or tighten the cap frame.

Quality Verification: Small Text Tells the Truth

The host shows the "EST. 1908" text.

My Verdict: Large fills are easy. Small text (under 4mm) is the lie detector.

• Look at the letter "O" or "A". Is the hole in the middle open?
• Are the bottoms of the letters aligned on a straight baseline?

If yes, the machine is rigid. If no, the sway is killing your quality.

Cap Backing Decision Tree: Choose Stabilizer Like a Pro

Guessing your stabilizer leads to puckering. Use this logic flow:

• Scenario A: Structured Cap (Stiff Front: Baseball/Trucker)
  • Stabilizer: 1-2 sheets of 3.0oz Tearaway.
  • Needle: 75/11 Sharp or Titanium.
  • Goal: Prevent needle deflection.
• Scenario B: Unstructured Cap (Soft Front: Dad Hat/Bucket)
  • Stabilizer: 2 sheets of Tearaway OR 1 sheet of Cutaway (if heavy stitch count).
  • Needle: 75/11 Ballpoint (to avoid cutting fabric fibers).
  • Goal: Provide the "skeleton" the hat lacks.
• Scenario C: Performance/Dri-Fit Cap (Stretchy & Slick)
  • Stabilizer: 1 sheet Cutaway + 1 sheet Tearaway.
  • Top: No-Show Mesh optional.
  • Goal: Prevent the slippery fabric from distorting.

Troubleshooting the Three Problems the Video Quietly Solves

Here is a quick-reference guide for when things go wrong:

Comment Questions, Answered Like a Shop Owner

The comments reflect real user anxieties. Let's address them.

“How much?” Price is irrelevant without support. A cheap machine with zero training costs you more in downtime than a premium machine. Always ask: "Does this price include the cap driver and training?"

“What image format can I insert?” Embroidery machines do not read JPEGs. They read coordinate files like .DST or .DSB. You need digitizing software (like Wilcom or Hatch) to convert your logo into stitches.

“Will this fit my smaller machine?” Parts like presser feet and cap drivers are rarely universal. Compatibility is key. If you own multiple machine embroidery hoops across different brands, label them clearly. Trying to force a Tajima hoop onto a Brother machine (or vice versa) is a quick way to break a pantograph arm.

The Upgrade Path That Actually Makes You Money

A machine that runs caps at 1000 RPM is impressive, but profitability comes from workflow, not just speed.

If you are struggling with your current setup, follow this "Upgrade Ladder":

1. Level 1: Consumables Upgrade. Switch to high-quality SEWTECH Thread (stronger tensile strength) and premium backing. This stops thread breaks.
2. Level 2: Tooling Upgrade. For your flat work (hoodies/polos), switch to SEWTECH Magnetic Hoops. This eliminates hoop burn and reduces wrist strain, allowing you to load faster.
3. Level 3: Machine Upgrade. If you are turning away orders because your single-needle is too slow, or your current multi-needle can't handle caps reliably, look at the SEWTECH Multi-Needle Machines. They offer the rigid structures (like the Type C discussed) necessary for reliable 1000 RPM production.

For shops assessing a honpo embroidery machine or similar industrial platforms, use the features in this video as your checklist: Laser placement, 9mm clearance, linear guides, and sealed lubrication. These aren't just features; they are your insurance policy against ruined caps.

FAQ

• Q: How do I set correct hooping tension on an industrial cap frame so cap embroidery does not shift at 850–1000 RPM?
  A: Aim for “drum-tight” tension—tight enough to resist shifting, but not so tight that the cap front distorts.
  • Tap the hooped cap front and adjust until it sounds like a drum.
  • Install the cap driver and do a firm tug to confirm full engagement before sewing.
  • Add stabilizer support first if movement persists instead of over-tightening the frame.
  • Success check: During tracing or first stitches, the brim should not visibly vibrate and outlines should land exactly where expected.
  • If it still fails: Drop speed to 600–700 RPM and re-check stabilizer weight (too soft often causes wobble).
• Q: What stabilizer and needle should be used for structured caps vs unstructured caps vs performance (Dri-Fit) caps in commercial cap embroidery?
  A: Match stabilizer and needle to cap structure to prevent wobble, deflection, and distortion.
  • Use structured caps: 1–2 sheets of 3.0oz tearaway + 75/11 sharp or titanium (goal: resist needle deflection).
  • Use unstructured caps: 2 sheets tearaway or 1 sheet cutaway (heavy stitch count) + 75/11 ballpoint (goal: give the cap a “skeleton”).
  • Use performance/Dri-Fit caps: 1 cutaway + 1 tearaway; optional no-show mesh (goal: control stretch and slipperiness).
  • Success check: The cap front does not bounce more than 2–3 mm during stitching and small details stay registered.
  • If it still fails: Add an extra stabilizer layer and slow down in dense/short-stitch areas.
• Q: What pre-flight checks should be done on a multi-needle cap embroidery machine before running caps at 1000 RPM?
  A: Do a fast “pre-flight” routine—most high-speed failures come from missed basics, not the design.
  • Clean the rotary hook area (remove needle plate if needed), blow out lint, and add a drop of clear oil on the hook race for high-speed runs.
  • Verify fresh needles are installed (75/11 sharp/titanium is a common choice for structured caps; go larger only for thick seams).
  • Check top thread tension (smooth but firm, like flossing your teeth) and perform the bobbin-case drop test.
  • Success check: The machine sounds like a steady hum (not a harsh clack), and the first trace/run shows no contact with the driver.
  • If it still fails: Re-check that cap mode is selected and confirm the cap driver engagement “click.”
• Q: How do I troubleshoot random stops or sensor-related errors on a commercial cap embroidery machine during production runs?
  A: Treat random stops as “something is obstructing the sensor area” until proven otherwise—this is common in busy shops.
  • Clear the machine bed and sensor area; remove lanyards, tools, and spare backing sheets that can trigger or block sensors.
  • Inspect cables and sensor locations under/around the needle arm for anything being snagged by garments or drawstrings.
  • Re-run a trace after clearing to confirm the motion path is unobstructed.
  • Success check: The machine completes multiple color changes without pausing and without intermittent error stops.
  • If it still fails: Pause cap production and do a careful inspection with power off; persistent sensor faults may require service-level checking.
• Q: What should be adjusted when flagging, skipped stitches, or bird nesting happens near the brim when embroidering within 9 mm of the cap edge?
  A: Slow down and increase control near the brim—this is the “danger zone” where flagging and needle deflection spike.
  • Reduce speed to about 600 RPM for the bottom 15 mm near the brim.
  • Switch to a #90/14 needle if punching through thick brim seams/buckram.
  • Add stabilizer or tighten the cap frame if the cap front is bouncing during needle penetration.
  • Success check: The cap front stops bouncing (ideally under 2–3 mm) and stitches no longer skip or pile into nests.
  • If it still fails: Confirm presser-foot/driver clearance and stop immediately if any clack indicates contact.
• Q: How can oil spots on caps be prevented when running high-speed cap embroidery on a rotary hook system?
  A: Control lint and lubrication—at high RPM, excess oil plus lint is the usual staining combination.
  • Clean lint from the hook area before high-speed runs, especially around the bobbin thread guide (“pigtail”).
  • Use only the required amount of clear oil; avoid over-oiling before a cap run.
  • Wipe any visible residue on guards/near the hook before placing light-colored caps.
  • Success check: After several minutes of stitching, there are no new oil marks on the cap or thread path.
  • If it still fails: Stop production and re-check for lint sludge buildup that can carry oil onto thread.
• Q: What are the safety steps before removing covers or inspecting the hook area on a servo-driven commercial embroidery machine?
  A: Power down completely before hands go near internal parts—modern servo motors have high torque and can injure fingers fast.
  • Turn off the machine and wait for motion to fully stop before removing any cover or needle plate.
  • Keep hands clear of needle bar, rotary hook, and driver linkages while checking for lint or thread snags.
  • Use controlled cleaning (one burst of compressed air, then oil where required) instead of aggressive blowing that spreads debris.
  • Success check: Inspection and cleaning are completed with zero unexpected movement and no contact with sharp/rotating parts.
  • If it still fails: Do not continue—refer to the machine manual or qualified service for internal adjustment procedures.
• Q: What magnetic hoop safety precautions should be followed when using SEWTECH Magnetic Hoops for flat embroidery production?
  A: Treat magnetic hoops as pinch and magnetic-field hazards—use them for speed, but handle them deliberately.
  • Keep magnetic hoops away from pacemakers, credit cards, and hard drives.
  • Separate and assemble magnets slowly to avoid pinch points that can cause blood blisters.
  • Store hoops with spacers/guards as needed so magnets cannot snap together unexpectedly.
  • Success check: Operators can load garments quickly without finger pinches and hoops seat consistently without sudden snapping.
  • If it still fails: Switch to a safer handling routine (two-hand placement, slower closing) and review shop training before ramping up volume.
