USB to Stitch-Out on the Baby Lock Pathfinder: Load Designs Cleanly, Avoid File Corruption, and Get to the Fun Part Faster

If you’ve ever stood in front of your Baby Lock Pathfinder with a USB stick in your hand thinking, “Please don’t let me press the wrong button and freeze this machine,” you are not alone. I have trained hundreds of operators, and that hesitation is universal. The good news: the transfer mechanism itself is simple logic. The bad news: one small habit—pulling the USB 5 seconds too early—can turn a perfectly good design file into a corrupted headache.

This guide rebuilds the exact on-screen path shown in the video (USB → Embroidery Edit → Select Design → Set), but I am going to overlay it with the "Old Hand" protocols—the sensory checks and safety stops that manuals don't teach you. We will cover what to check before you hit "Set," why the machine gets possessive about the USB drive, and how to set yourself up so the moment the design loads, you are physically ready to stitch without breaking a needle.

The Calm-Down Moment: What “USB Transfer” Really Means on a Baby Lock Pathfinder

Let’s reframe this to lower your blood pressure. On the Baby Lock Pathfinder (and similar interfaces like the Meridian or Altair), transferring a design via USB is less like "copying a file" to a hard drive and more like "opening a book to read."

The machine reads the data directly from the stick while you are setting up. That is why the presenter stresses keeping the USB inserted for the duration of your setup. In the demo, the design comes from an Urban Threads download. This is a critical realization: once you master this 60-second transfer skill, your machine stops being a closed garden of built-in fonts and becomes a limitless production tool.

Warning: Mechanical Safety. Keep fingers, hair, jewelry, and loose sleeves at least 4 inches away from the needle bar and moving carriage when testing Start/Stop or positioning fabric. Even a "slow" machine moves faster than your reflexes. A needle strike at 600 SPM (Stitches Per Minute) can shatter the needle and send shrapnel toward your eyes.

The “Hidden” Prep Pros Do Before Touching the Screen (USB + Thread + Stabilizer)

The video focuses on the buttons, which is fair. But in my 20 years on the floor, I’ve learned that the transfer is the easy part. The disaster usually happens because the operator ignored the physical prerequisites.

Here is the "Pilot's Mindset" I teach: Do not load a digital design until you have confirmed the physical reality. In the preview pane shown in the video, the design specs are visible: 3.73" x 3.85", 14,983 stitches, 2 colors.

Do not just read those numbers. Interpret them:

• 15,000 stitches: This is a dense design for a 4x4 area. If you put this on a T-shirt with a thin tearaway stabilizer, it will pucker. It needs a Cutaway stabilizer (2.5oz or 3.0oz).
• 3.73" Width: This is dangerously close to the limit of a 4x4 hoop. If you don't center your fabric perfectly, the foot will hit the hoop.
• 2 Colors: Check your thread rack. Do you actually have the specific cones needed, or just "something close"?

If you are building a workflow around consistency, this is where upgraded tools remove human error. Many owners eventually move toward hooping stations because they standardize the placement height. Instead of guessing where "center" is, you lock the hoop in place, ensuring the fabric is square every single time.

Pre-Flight Prep Checklist (Do this **before** inserting the USB)

• Hardware Check: USB drive contacts are clean and the casing is not cracked.
• File Hygiene: You know exactly which folder the DST or PES file is in (don't doom-scroll on the machine screen).
• Consumable Check:
  • Needle is fresh (start a new project with a new 75/11 or 80/12 needle).
  • Bobbin is at least 50% full (don't risk running out mid-design).
  • Hidden necessity: Do you have your applique scissors or snips nearby?
• Stability Plan: Fabric is ironed/pressed. Stabilizer is selected based on stitch density (Density > 10k? Use heavier backing).
• Hoop Strategy: You have verified the design fits inside the internal sewing field of your chosen hoop, not just the outer plastic ring.

Find the USB Port on the Baby Lock Pathfinder (and Insert the Drive the Right Way)

In the video, the USB Type-A port is located on the right side of the machine head. The presenter uses a novelty unicorn drive. While cute, it illustrates a good tactical point: use a drive that has a distinct "Up" side so you aren't fumbling blindly.

The Tactile Anchor: When you insert the USB, push gently until you feel a firm "thud" or resistance. You should not feel a "crunch." If it resists immediately, flip it. Crucial: A half-seated USB is a silent killer. It looks "in," but the machine will give you intermittent read errors. Push it until it stops moving.

Use “Embroidery Edit” on the Pathfinder—It’s the Safer Choice for Real Projects

On the main screen, the presenter taps Embroidery Edit (the icon with the needle and a little pencil/box) rather than just "Embroidery."

Why? This is your safety buffer.

• "Embroidery" mode assumes you are ready to sew now.
• "Embroidery Edit" mode gives you a workspace to move, rotate, size, and combine designs.

Even if you think you don't need to edit, use Embroidery Edit. It allows you to visually verifiy the design against the grid background. It is your insurance policy against a logo ending up 3 degrees crooked.

Setup Checklist (Software Readiness)

• Tap Embroidery Edit to enter the safe workspace.
• Visually confirm the background grid matches your attached hoop size.
• Verify the USB is still firmly seated (no blinking error lights).
• Mental Contract: Vow not to remove the USB until you return to the Home screen.

The Exact Screen Path: USB Icon → Select the Design → Press “Set” (and Verify Specs First)

From the category screen, the presenter taps the USB icon. It looks like a little stick with a cap (usually the middle icon in the bottom row on this interface). This tells the Pathfinder: "Ignore internal memory; look at the external port."

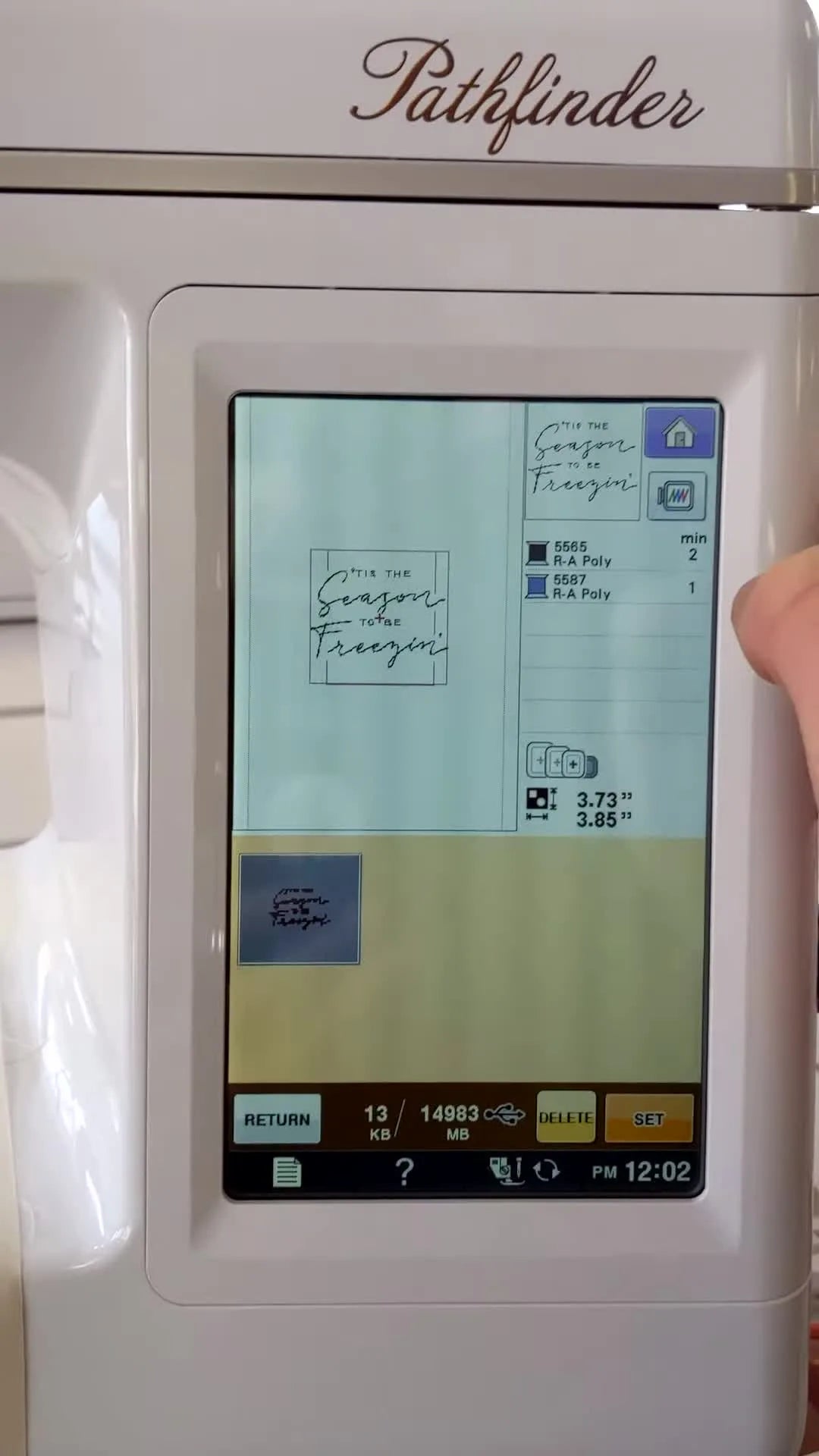

Once the file list appears, the presenter selects the design (shown as “’Tis the Season…”). STOP. Do not press "Set" yet. Look at the preview pane on the right side.

Interpret the data again. This is your last "cheap" checkpoint before you waste expensive backing and thread:

• Size vs. Hoop: Is the design 3.85" tall? If you are using a 4x4 hoop (approx 3.93" sewing field), you have zero margin for error. Consider sizing down 2% or sizing up to a 5x7 hoop for safety.
• Stitch Count: 14,983. If this was 40,000 stitches, I would tell you to slow your machine speed down to 600 SPM to prevent thread breaks. For 15k, you can likely run at default speed (800-1050 SPM), provided your stabilization is solid.

Once validated, press Set. This loads the data into the machine's temporary RAM.

The design will now appear on your main editing grid.

Operation Checklist (The "Go/No-Go" Decision)

• Visual Confirmation: The design is visible on the grid and is not greyed out.
• Orientation Check: Is the design facing the right way up relative to how you hooped the shirt? (e.g., Is the neck of the shirt at the top or bottom of the hoop?)
• Color Check: Tap the spool icon. Does the color order match the cones you have lined up on your stand?
• Trace: Use the "Trace/Frame" button to watch the needle walk the perimeter of the design. If the foot hits the plastic hoop during the trace, do not sew.

The “Don’t Corrupt Your Files” Rule: When It’s Actually Safe to Remove the USB

The video touches on a troubleshooting point that accounts for 30% of the service calls we see: Data Corruption.

The rule is absolute: Do not remove the USB while the machine is actively accessing the drive (hourglass icon) or stitching.

The presenter's advice is the safest protocol: Only remove the USB when you are back at the Home Screen. Pulling the drive while the machine is reading a design is like ripping a book out of someone's hands while they are reading aloud—they will lose their place, and next time, they might not be able to read that page at all.

For those looking for a cleaner workflow, newer models like the Altair allow wireless transfer, which eliminates this risk entirely.

Where the USB Port Is on Other Baby Lock Models Shown

The presenter does a quick shop-floor tour. While the locations vary slightly, they are almost always on the right side of the head on Baby Lock machines.

• Baby Lock Aventura II: Side port, easy access.
• Baby Lock Verve: Same location, compact body.
• Baby Lock Altair: Offers USB + Direct PC connection.
• Baby Lock Aerial: Has a cluster of three ports (USB-A, USB-B for mouse/PC).
• Baby Lock Meridian: Dedicated embroidery model, right-side port.
• Baby Lock Solaris: The flagship; USB is prominent on the right.










The Real Bottleneck Isn’t USB—It’s Hooping and Stabilizing

Once you can load designs reliably, the next frustration hits fast. You realize that transferring the file takes 30 seconds, but hooping the fabric takes 5 minutes, and if you get it wrong, you get "hoop burn" or puckering.

This is where the hobbyist separates from the pro.

• Standard Plastic Hoops: Great for beginners, but they require significant hand strength to tighten, and they leave "burn marks" (crushed fibers) on delicate velvets or performances fabrics.
• Magnetic Hoops: If you are fighting with thick towels or slippery knits, professionals switch to babylock magnetic hoops. Because they use magnetic force rather than friction to hold the fabric, there is no "inner ring" to force into an outer ring. This eliminates hand strain and allows for much faster re-hooping.

Warning: Magnet Safety. Magnetic hoops use industrial-grade magnets. They are incredibly strong.
1. Pinch Hazard: They can snap together instantly; keep fingers clear of the mating surfaces.
2. Medical Danger: Keep them at least 6 inches away from pacemakers or insulin pumps.

Decision Tree: Select Your Weapon (Fabric → Stabilizer → Hoop)

Use this logic flow to determine your setup:

1. Project: T-Shirt / Stretchy knit.
   • Stabilizer: No-Show Mesh (Cutaway). Tearaway will fail and stitches will distort.
   • Hoop: Standard hoop if you don't overstretch the fabric. Better option: embroidery hoops magnetic to hold the knit flat without pulling it out of shape.
2. Project: Thick Towel / Canvas Tote.
   • Stabilizer: Tearaway (Canvas) or Water Soluble Topper + Tearaway (Towel).
   • Hoop: These are hard to force into plastic hoops. A magnetic hoop is almost essential here to avoid wrist strain.
3. Project: Batch of 20 Polo Shirts (Logo on Left Chest).
   • Stabilizer: Pre-cut squares of Cutaway.
   • Hoop: You need speed. A hooping station for embroidery machine coupled with a magnetic hoop allows you to load each shirt in under 45 seconds with perfect alignment.

What the Finished Stitch-Out Is Telling You (Quality Analysis)

The video ends with a shot of a stitched tree design. That final sample is your "Report Card."

Look closer at your own finish. A successful transfer isn't just about the file loading; it's about the stitch integrity:

• Outline Registration: Does the black outline sit perfectly on top of the color fill? If there are gaps, your stabilization was too loose.
• Thread Loops: Do you see loops on top? Your top tension is too loose. Do you see white bobbin thread on top? Top tension is too tight.
• Texture: Run your hand over it. It should feel pliable, not like a bulletproof vest. If it's too stiff, you used too many layers of stabilizer.

Quick Troubleshooting: Symptoms → Likely Cause → Fix

We don't guess. We diagnose. Here is the hierarchy of repair, from free fixes to "call the tech."

The Upgrade Path That Actually Makes Sense

Mastering USB transfer on your single-needle machine is Step 1. But if you find yourself spending more time changing thread colors and fighting with hoops than actually creating, it means you are hitting the "Single-Needle Ceiling."

• Level 1 Upgrade (Workflow): If your wrists hurt or you have hoop burn, upgrade to hooping for embroidery machine aids like magnetic frames. This solves the physical struggle.
• Level 2 Upgrade (Production): If you are declining orders because you can't stitch them fast enough, or the automated jump-stitch trimming is too slow, look at multi-needle solutions like the SEWTECH ecosystem. Moving from 1 needle to 10+ needles isn't just about speed; it's about the freedom to set up a job and walk away while it runs the entire palette without you changing a spool.

The goal isn't buying gear; the goal is removing the friction that stops you from creating. Start with the USB, get that right, and then smooth out the rest of your process.

FAQ

• Q: When transferring a design on a Baby Lock Pathfinder via USB, when is it actually safe to remove the USB drive without corrupting the file?
  A: Remove the USB drive only after returning to the Home screen, not while the machine is reading (hourglass icon) or stitching.
  • Wait: Keep the USB inserted through design selection, editing, and the entire stitch-out.
  • Watch: Do not pull the drive if the interface shows an hourglass/loading indicator.
  • Build the habit: Make it a rule—USB out only at Home screen.
  • Success check: The machine is at the Home screen and no loading icon is present.
  • If it still fails… Reboot the machine, reformat the USB as FAT32 on a PC, and reload a fresh DST/PES file.
• Q: On a Baby Lock Pathfinder, what should be checked before pressing Set on a USB design to avoid hoop hits and puckering?
  A: Verify size, stitch count, and color count in the preview pane before pressing Set, then match stabilizer and hoop strategy to those numbers.
  • Confirm: Compare design size to the internal sewing field of the attached hoop (a tight 4x4 fit leaves almost no margin).
  • Interpret: Treat ~15,000 stitches in a ~4x4 area as a dense design and plan stronger stabilization (often cutaway for knits).
  • Check: Confirm the required thread colors are actually on hand before committing.
  • Success check: The design specs make sense for the hoop, fabric is pressed, stabilizer choice matches density, and you can trace without contacting the hoop.
  • If it still fails… Size down slightly or move up to a larger hoop for more clearance.
• Q: Why is Embroidery Edit the safer mode than Embroidery on a Baby Lock Pathfinder when loading a USB design for real projects?
  A: Use Embroidery Edit because it provides a buffer to visually verify hoop size, placement, and orientation before sewing.
  • Tap: Enter Embroidery Edit first instead of going straight into Embroidery.
  • Verify: Confirm the grid/background matches the hoop size you attached.
  • Adjust: Move/rotate/size only as needed, then trace the perimeter before stitching.
  • Success check: The design sits correctly on the grid and the trace path clears the hoop with no contact.
  • If it still fails… Recheck that the design is oriented correctly relative to how the garment is hooped (neck/top direction), then trace again.
• Q: On a Baby Lock Pathfinder USB screen, why does the file list appear but the Set button does not show or does not activate?
  A: Select the design thumbnail/image so it highlights first; browsing the folder list alone may not activate Set.
  • Touch: Tap the actual design preview/thumbnail until it highlights (often blue).
  • Pause: Confirm the preview pane updates with size/stitch/color data.
  • Proceed: Press Set only after the design is clearly selected.
  • Success check: The selected design is highlighted and the Set button becomes available/active.
  • If it still fails… Try a different USB drive or reload the file to rule out a corrupted design.
• Q: What does a Baby Lock Pathfinder “H” or “V” alignment error usually mean, and how should the hoop be corrected?
  A: An “H” or “V” alignment error commonly indicates a hoop size mismatch between the selected design and the hoop attached to the machine.
  • Compare: Check whether the design requires a larger hoop than the one currently mounted.
  • Switch: Attach the correct hoop size that matches the design’s required field.
  • Recheck: Return to the edit screen and confirm the grid reflects the attached hoop.
  • Success check: The error clears and the design displays normally within the hoop boundary on the grid.
  • If it still fails… Re-seat the hoop firmly and reselect the design to ensure the machine recognizes the hoop.
• Q: What is the correct mechanical safety practice on a Baby Lock Pathfinder when testing Start/Stop or positioning fabric near the needle bar and moving carriage?
  A: Keep fingers, hair, jewelry, and loose sleeves at least 4 inches away from the needle bar and moving carriage whenever motion could occur.
  • Stop: Remove distractions and secure sleeves/jewelry before touching Start/Stop.
  • Position: Hold fabric and hoop from stable edges, not near the needle path.
  • Trace first: Use trace/frame to confirm clearance instead of “just starting” to see what happens.
  • Success check: No part of the body or loose items enter the moving area during trace or stitch start.
  • If it still fails… Power off the machine before rethreading, changing needles, or reaching into the needle area.
• Q: How can embroidery “hoop burn” on delicate fabric be reduced on a Baby Lock embroidery setup, and when should a magnetic hoop be considered?
  A: Steam can often relax hoop burn marks, and a magnetic hoop is a common next-step tool when standard plastic hoops crush or strain fabric repeatedly.
  • Recover: Hover-steam over the shiny ring mark (avoid pressing down with the iron).
  • Prevent: Reduce over-tightening and confirm the design fits with margin so you are not forcing the fabric to “fight” the hoop.
  • Upgrade path: If hooping is slow, painful, or consistently leaves marks, consider switching from standard plastic hoops to a magnetic hoop for gentler holding.
  • Success check: The ring mark fades after steaming and the next hooping holds fabric flat without visible crushing.
  • If it still fails… Reassess stabilizer choice and hooping method; persistent puckering/marking often means the fabric is being distorted during hooping.
