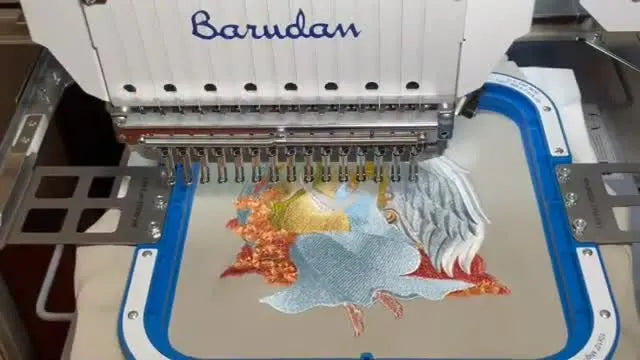

2 Hours, 111,958 Stitches: Running a Barudan Embroidery Machine on a Port Authority Apron with a Mighty Hoop 8x13

When you’re staring down a dense, high-stitch-count design on a thick apron, the stress is real: one tiny shift early on can turn into a two-hour slow-motion disaster.

This stitch-out is a clean example of what “commercial-stable” looks like—an Art Nouveau angel design stitched on a Port Authority full-length apron with two pockets, running on a Barudan multi-needle machine at 800 stitches per minute, totaling 111,958 stitches and taking more than two hours.

A viewer summed up what most customers feel when it goes right: “So beautiful!” That reaction doesn’t happen by accident—it happens because the hooping, stabilization, and run discipline are solid. But for the operator, the journey is about managing physics, not just pressing "Start."

Calm the Panic First: A 2+ Hour Barudan Embroidery Machine Run Can Be Boring (and That’s the Goal)

Long runs don’t fail because the machine “can’t handle it.” They fail because we treat a two-hour job like a two-minute sample.

On a commercial head, the goal is boring consistency: stable fabric, predictable tension behavior, and zero surprises during color changes. If you build that foundation, a dense design becomes routine—even on a thick apron using a heavy canvas weave.

One detail matters right away: this project is clamped in a magnetic frame, and that choice is doing a lot of invisible work for you. If you’re comparing options, the term magnetic embroidery hoop isn’t just marketing jargon—it’s shorthand for “repeatable clamping pressure without fighting the substrate.”

Note on Speed: While the video runs at 800 stitches per minute (SPM), if you are a novice or using a lighter machine, your "Sweet Spot" is likely 500–600 SPM. Speed creates vibration; on a 100k+ stitch design, vibration is the enemy of registration. Slow is smooth, smooth is fast.

The “Hidden” Prep Pros Do Before Hooping a Port Authority Apron (Stabilizer, Thread Plan, and a Reality Check)

Aprons are deceptively tricky: they feel stable in your hands, but under high-speed needle penetration they can flex, bounce, and creep—especially when the design is large and dense.

Here’s the prep mindset I want you to adopt:

1. Treat the apron like a topographic map. Seams, pocket layers, and thickness changes create uneven resistance under the presser foot. You must map these before you hoop.
2. Assume the design will amplify every weakness. At 111,958 stitches, even a small tension imbalance or slight flagging translates to gaps in your outline.
3. Plan for heat. The video’s end card calls out “more than 2 hours.” Needles get hot. Hot needles melt synthetic thread coatings.

The "Must-Haves" Beginner Kit for Aprons

• Needles: Use a Titanium-coated 75/11 Sharp. The sharp point penetrates canvas cleanly; ballpoints will struggle.
• Consumable: Temporary Adhesive Spray (like 505). This bonds your backing to the apron, preventing the "drift" that happens in hour 2.
• Stabilizer: Heavy Cutaway (2.5oz or 3.0oz). Never use Tearaway for 100k stitches on an apron; it will perforate and collapse.

Prep Checklist (do this before the apron ever touches the hoop)

• Tactile Check: Run your hand over the stitch area. Is there a hidden pocket double-seam? If so, move the design up or down by 1 inch.
• Stabilizer Bond: Spray your cutaway lightly and smooth it onto the back of the apron. It should feel like one unified piece of fabric, not two layers sliding against each other.
• Needle Freshness: Install a brand new needle. Listening for a "popping" sound as it enters fabric indicates a dull needle. It should sound like a whisper.
• Bobbin Status: For a run this long, start with a fresh, full bobbin. Don't risk a run-out in the middle of a complex fill.

Warning: Physical Safety Hazard. Needles and trimming blades are razor sharp. A multi-needle head can move unexpectedly if you bump the start button or a color-change command. Always hit the Emergency Stop or Lockout button before changing needles, clearing thread paths, or reaching near the needle bar.

Set Up the Mighty Hoop 8x13 on a Barudan: Get the Trace Right Before You Spend 111,958 Stitches

The video shows the machine tracing the design area (pantograph movement) while the apron is clamped in a blue magnetic frame. This is not a formality—it’s your last cheap mistake.

If you’re running a commercial rig like a barudan embroidery machine, skipping the trace is gambling with a garment that may have straps that can catch.

What you’re looking for during tracing

• Visual Clearance: Ensure the presser foot clears the magnetic frame edges by at least 2-3mm.
• The "Squish" Factor: Aprons are thick. Ensure the foot height is set high enough so it doesn't drag on the fabric during travel moves (listen for a scuffing sound), but low enough to hold the fabric during the stitch.
• Hoop Stability: The apron should look “locked.” When you tap the fabric in the center of the hoop, it should sound tight—like a dull drum—but not stretched so tight it warps the weave.

Why magnetic clamping helps on thick aprons (the physics, in plain English)

Thick substrates resist being compressed evenly by traditional inner/outer rings. You often have to crank the screw so tight it hurts your wrist (and creates "hoop burn" marks).

A magnetic frame applies clamping force vertically. This reduces:

1. Hoop Burn: No friction rings grinding the fabric fibers.
2. Drumming: It prevents the "trampoline effect" where the fabric bounces.
3. Fatigue: If you are doing 50 of these, your wrists will thank you.

That’s why a setup like the mighty hoop 8x13 is so commonly seen on heavier items: it clamps thick seams without forcing you to unscrew the hoop to its breaking point.

Setup Checklist (right after hooping, right before you press start)

• The Clearance Trace: Run the trace. Did the foot come within 5mm of a pocket rivet or thick seam? If yes, urge the design away.
• Strap Management: Crucial Step. Roll up the apron neck and waist straps and tape/clip them out of the way. A loose strap catching on the pantograph will ruin the machine's registration motors.
• Thread Path: Pull a few inches of thread through the needle. It should pull with consistent resistance, similar to flossing your teeth—not loose, but not requiring force.

Warning: Magnetic Safety. Magnetic frames are incredibly powerful. Keep fingers clear of the "snap zone" when seating the top ring. Keep these magnets away from pacemakers, implanted medical devices, and sensitive electronics (phones/credit cards). Follow the hoop manufacturer’s safety guidance strictly.

Run the Base Layer Without Drama: Watching the First Minutes Like a Hawk Saves the Next Two Hours

In the video, the machine begins stitching the background elements and the lower part of the dress. This is where you earn the right to walk away later.

Checkpoints in the first 3–5 minutes

• Sound Check: Listen for the rhythm. A happy machine makes a consistent "thump-thump-thump." A high-pitched "tink-tink" usually means the needle is hitting the needle plate (deflection). A grinding noise creates immediate concern.
• The 1/3 Rule (Visual): Stop the machine after the first 500 stitches. Look at the back. You should see 1/3 bobbin thread (white) in the center of the column. If you see only top thread, your top tension is too loose. If you see only bobbin thread, top tension is too tight.
• Flagging: Watch the fabric right where the needle enters. Does it lift up with the needle as it exits? If the fabric lifts more than 1-2mm, your hoop isn't tight enough or you need more stabilizer.

A magnetic frame is doing heavy lifting here: the video specifically highlights that the apron material doesn’t shift or flag during high-speed stitching. That stability is what keeps the early base layer from becoming a distorted foundation.

Pro tip (from years of production): If the first minutes look slightly off, stop immediately. On a 2+ hour run, “slightly off” becomes “disaster” by the time you reach the face and wings.

Keep Registration Perfect Through Dense Shading: The Mighty Hoop Branding Shot Tells You What Matters

Later in the stitch-out, the video shows complex shading on the angel’s wings using white, grey, and silver threads. This is the danger zone for long designs: dense fills, frequent direction changes, and high contrast (white on beige) make every flaw visible.

The close-up where the frame branding is visible is more than a product moment—it’s a stability moment. When the hooping is right, the machine can stack layers cleanly without the design “growing” or misaligning.

If you’re evaluating a mighty hoop style workflow for thick goods, here’s the practical takeaway: the hoop isn’t just holding fabric—it’s protecting registration (alignment) over time.

What to monitor during dense fills (Example: Wings)

• The "Push" Effect: Dense stitching pushes fabric outward. If your stabilizer is weak, the wings will look "bubbled."
• Thread Shredding: If you see "fuzz" accumulating near the needle eye, your thread is shredding. Change the needle immediately (it likely has a burr/sharp edge) or loosen tension slightly.
• Heat Management: For metallic or silver threads (often used in wings), slow the machine down to 500-600 SPM. Friction kills metallic thread.


The “Why” Behind Stable Hooping on Thick Aprons: Tension, Fabric Memory, and Long-Run Discipline

Let’s talk about what’s really happening mechanically, because understanding it prevents repeat failures.

1) Hooping tension vs. Fabric Distortion

On thick canvas/cotton blends, you can’t “drum-tight” the fabric the way you might on a tee. If you force it by over-stretching, you create Fabric Memory—the fabric tries to shrink back to its original shape while you stitch. This causes puckering.

Magnetic clamping helps because it allows you to hold the fabric taut but neutral. You aren't stretching the fibers; you are arresting them.

2) Stitch density magnifies movement

At over 100k stitches, the design adds significant weight and pull. A standard plastic hoop relies on friction. Under the vibration of 100,000 impacts, plastic hoops can micro-slip. Magnets do not slip.

3) Commercial mindset: One-off vs. Production

If you’re stitching one apron for fun, you can struggle through with a standard hoop. If you’re stitching 20 for a restaurant order, you need a repeatable system.

That’s where a magnetic hooping station (or any consistent fixture) becomes a real productivity lever: it guarantees the logo is in the exact same spot on every apron.

The Upgrade Logic: If you find yourself dreading the hooping process, or if you are losing money on ruined garments, this is the time to consider tool upgrades.

• Level 1: Better stabilizer and needles.
• Level 2: Magnetic hoops (SEWTECH offers compatible magnetic hoops for many home and industrial machines) to solve the slipping/burn issue.
• Level 3: If you are consistently running 2+ hour jobs, a single-needle machine holds you back. Customers looking for efficiency often upgrade to a SEWTECH multi-needle embroidery machine to handle thread changes automatically, freeing you to do other work while it runs.


A Simple Stabilizer Decision Tree for Aprons (So You Don’t Guess and Pray)

Because the video only confirms “stabilizer/backing” (not the exact type), use this expert decision tree.

Decision Tree: Apron Fabric + Design Density → Backing Strategy

1. Is the apron thick (Canvas/Denim) AND the design dense (50k+ stitches)?
   • Action: Use 1 layer of Heavy Cutaway (3.0 oz) + Temporary Spray Adhesive.
   • Why: You need absolute structural rigidity.
2. Is the apron lighter weight (Cotton Poly Blend) or stretchy?
   • Action: Use 1 layer of No-Show Mesh (Fusible if possible) + 1 layer of Medium Cutaway.
   • Why: The mesh protects the weave; the cutaway supports the stitches.
3. Is the design just text or open linework (Low Density)?
   • Action: 1 layer of Medium Cutaway is sufficient.
   • Why: Less pull force requires less resistance.

Hidden Consumable Tip: Always keep a water-soluble topping handy. Even on canvas, a topping prevents stitches from sinking into the textured weave, making the "Art Nouveau" details pop.

The Technical Specs That Actually Matter: 800 SPM, 7.46" x 7.81", and a Stitch Count That Changes Your Pricing

The end card provides the numbers:

• Speed: 800 stitches per minute (Expert level)
• Stitch count: 111,958 stitches (Heavy duty)
• Size: 7.46" x 7.81"
• Time: 2+ Hours

Those specs aren’t trivia—they are your Pricing Reality Check.

If you charge a flat rate for this, you will lose money. 111k stitches consumes roughly 500-600 meters of thread. It occupies your machine for 1/4 of a workday.

• Material Cost: Add $1.50 for thread and premium stabilizer.
• Risk Cost: If the machine eats the apron at minute 119, you buy the apron.

Price accordingly. This is not a $10 job; it is a premium customization.

Troubleshooting Thick Apron Embroidery: Symptoms → Likely Causes → Fixes That Don’t Waste a Whole Afternoon

The video makes it look easy, but here is your "Break Glass in Case of Emergency" guide.

The Upgrade Path That Pays Off: When Magnetic Hoops and Multi-Needle Efficiency Stop Being “Nice to Have”

If you’re doing occasional aprons, you can muscle through hooping with traditional rings. But if aprons are part of your regular menu—restaurants, breweries, makers, event staff—your bottleneck becomes hooping time and reliability.

Here’s a practical way to think about upgrades without getting salesy—it is about removing pain:

• Pain Point: Hand/wrist fatigue from tightening screws on thick canvas.
  • Solution: Magnetic Hoops. They snap on. No screwing, no twisting.
• Pain Point: "Hoop Burn" rings on delicate or dark fabrics that won't iron out.
  • Solution: Magnetic Frames. The flat clamping surface eliminates the friction ring marks effectively.
• Pain Point: Standing at a single-needle machine changing thread 15 times for the Angel wings.
  • Solution: Multi-Needle Machine. A SEWTECH multi-needle allows you to set up 10-15 colors and walk away. This turns "active labor time" into "passive machine time," which is the secret to profitability.

One more quiet profit lever: Consumables. Consistent embroidery thread (polyester for sheen and strength) and high-quality stabilizer reduce rework. Rework is the most expensive “material” in any shop.

Operation Checklist (The habits that keep a 2+ hour run from turning into a remake)

• The "Fly-By": Every 10 minutes, walk by the machine. Listen to the sound.
• The Bobbin Watch: Don't wait for the sensor. Change the bobbin before it runs out during a critical detailed section (like the Angel's face).
• Clear the Deck: Ensure no loose apron straps have vibrated into the stitch zone.
• Document It: Write down "Speed: 600, Tension: 120g, Backing: 2.5oz Cutaway." Save this for the next time the customer orders.


If you take only one lesson from this Barudan apron stitch-out, let it be this: long, dense designs don’t demand heroics—they demand a stable clamp, disciplined prep, and the patience to verify alignment before you commit to the next 111,958 stitches.

FAQ

• Q: What stabilizer and adhesive setup should be used for a 50,000+ stitch dense apron design on canvas/denim fabric?
  A: Use 1 layer of heavy cutaway (3.0 oz) bonded with temporary adhesive spray to stop shifting during long runs.
  • Spray: Apply a light, even coat of temporary adhesive to the cutaway and smooth it onto the apron back so the layers move as one.
  • Add: Keep a water-soluble topping available to prevent stitches sinking into textured canvas weave.
  • Avoid: Do not use tearaway for 100k-stitch-class apron jobs; it can perforate and collapse.
  • Success check: The apron + backing should feel like a single unified piece with no “sliding” when you tug gently.
  • If it still fails: Move up to heavier backing strategy (for lighter/stretchy aprons use no-show mesh + medium cutaway) and re-check hoop stability before restarting.
• Q: What needle choice is a safe starting point for stitching a dense apron design on a Barudan multi-needle embroidery machine?
  A: Start with a brand-new titanium-coated 75/11 Sharp needle for clean penetration on heavy canvas.
  • Replace: Install a new needle before a 2+ hour run; don’t gamble on a “maybe OK” needle.
  • Listen: Pay attention during the first penetrations—dull needles can make a noticeable “popping” sound entering fabric.
  • Upgrade: If repeated breaks happen, move up to 80/12 or 90/14 and slow the machine down.
  • Success check: The needle should sound like a whisper entering fabric, not a pop or tink.
  • If it still fails: Check for deflection from seams/hard spots and re-position the design away from thick pocket seams.
• Q: How can Barudan multi-needle embroidery machine operators confirm top/bobbin tension is correct in the first 500 stitches of a long apron run?
  A: Stop after about 500 stitches and verify the “1/3 rule” on the backside to catch tension problems early.
  • Stop: Pause the machine early (before the job commits to hours of stitching).
  • Inspect: Look at the back of the design columns—aim for roughly 1/3 bobbin thread centered in the stitch formation.
  • Adjust: If only top thread shows on the back, tighten top tension; if only bobbin thread dominates, loosen top tension (adjust gradually).
  • Success check: The back shows balanced columns with bobbin thread visible in the center, not overwhelming either side.
  • If it still fails: Re-thread the entire path and ensure thread is seated in the tension discs (lint can prevent proper seating).
• Q: What are the best “after hooping” clearance and stability checks before starting a 100,000+ stitch apron design on a Barudan embroidery machine with a magnetic embroidery hoop?
  A: Run a full trace and confirm clearance, foot height, and hoop lock before pressing Start.
  • Trace: Perform the clearance trace and watch the full design path for straps, pocket edges, rivets, and frame contact risk.
  • Set: Ensure presser foot height clears thick apron sections during travel moves (no scuffing), but still holds fabric during stitching.
  • Secure: Roll and tape/clip apron neck and waist straps out of the pantograph travel area.
  • Success check: The presser foot clears frame edges by a few millimeters and the hooped area feels “tight like a dull drum” without stretching distortion.
  • If it still fails: Re-hoop and reposition away from thickness changes (move the design about 1 inch if a hidden double-seam is in the stitch zone).
• Q: What should embroidery operators do if apron fabric flagging appears (fabric lifting 1–2 mm with the needle) during a long, dense run in a magnetic frame?
  A: Stop and increase stability—flagging early is a warning that later layers will misregister.
  • Watch: Observe the needle entry point; flagging is the fabric lifting with the needle as it exits.
  • Tighten: Re-seat the magnetic top ring to improve clamping and make sure the fabric is taut but not stretched.
  • Support: Upgrade stabilization (heavier cutaway and adhesive bonding) before attempting another full run.
  • Success check: Fabric stays flat with minimal lift (about 1–2 mm or less) and the stitch sound remains consistent.
  • If it still fails: Slow down toward 500–600 SPM (vibration worsens movement) and reassess whether the apron thickness change requires moving the design location.
• Q: How do you fix “white bobbin thread showing on top” on a Barudan multi-needle embroidery machine during apron embroidery?
  A: Treat it as excessive top tension or lint in the tension discs—clean first, then reduce top tension.
  • Clean: “Floss” the tension discs with un-waxed dental floss to remove lint buildup.
  • Adjust: Lower top tension slightly and test again (small changes, then re-check).
  • Verify: Confirm smooth thread pull through the needle path with consistent resistance.
  • Success check: Top stitches no longer expose bobbin thread on the surface and the stitch balance looks even.
  • If it still fails: Re-thread the machine completely to ensure the thread is seated correctly in the tension discs.
• Q: What safety steps should be followed when changing needles or clearing thread near a Barudan multi-needle embroidery machine needle bar during apron production?
  A: Hit Emergency Stop/Lockout before hands go near needles, trimming blades, or the needle bar—multi-needle heads can move unexpectedly.
  • Stop: Engage Emergency Stop (or the machine’s lockout function) before any needle/thread intervention.
  • Clear: Keep fingers away from sharp needles and trimming blades while removing thread or replacing needles.
  • Confirm: Restart only after tools, clips, and loose straps are fully out of the stitch area.
  • Success check: The machine is physically prevented from starting or color-changing while you are working near the head.
  • If it still fails: Review the machine’s safety procedures in the manual and standardize a “power-safe” routine for every operator.
