From Wilcom e4.2 to a Tajima DST Stitch-Out: A Neckline Digitizing Workflow That Actually Lines Up on the Machine

Mastering the Neckline: The Ultimate Guide to Alignment & Texture Control in Wilcom e4.2

Neckline embroidery is the ultimate litmus test for an embroiderer. It looks deceptively simple on screen, but it sits at the intersection of three production nightmares: precise symmetrical placement, uneven fabric curvature, and the unforgiving nature of textured knits.

When you watch a tutorial video, everything looks sterile and controlled. But on your shop floor, the reality is specific: a Kurti or Kameez cut piece that stretches the moment you breathe on it, and a "waffle" texture that swallows your stitch density.

If you’ve ever felt that cold spike of panic when the machine needle drops—“Did I center that perfectly? Will the fabric pucker?”—this guide is your safety net. We are going to deconstruct the workflow from Wilcom EmbroideryStudio e4.2 to the physical stitch-out, calibrating every step with industry-standard safety margins and sensory checks.

Calm the Panic: What This Wilcom e4.2 Neckline File Is Really Solving

The project involves a localized neckline pattern: small satin "eyelet rings" arranged symmetrically, flanked by a running stitch outline.

To a novice, this is just a design. To a pro, this file is an engineering solution for two physical problems:

1. Alignment Drift: Cut pieces (fabric not yet sewn into a garment) have no structure. They are fluid. If you try to hoop them traditionally, you will likely stretch the neck curve, resulting in a distorted final garment.
2. Texture "Swallow": The video uses a white textured waffle/knit. If you use standard settings (0.40mm spacing), the fabric's peaks and valleys will poke through your satin, making the embroidery look "cheap" or threadbare.

The solution we will build relies on high-density satin objects for coverage and a physical "placement run" for alignment.

The “Hidden” Prep Pros Do Before Digitizing Satin Eyelets

Before you touch the digitizing tools, you must stabilize your environment. Amateur mistakes happen here, not in the software settings.

The "Invisible" Consumables:

• Printed Template: 1:1 scale paper printout of your design.
• Water-Soluble Pen: For marking the physical fabric centers.
• Adhesive Spray (Temporary): If not using sticky backing.
• New Needles: For high-density satin on knits, use a fresh 75/11 Ballpoint needle to push fibers aside rather than piercing them.

Prep Checklist (Pre-Digitizing):

• Verify Scale: Measure your background bitmap image in Wilcom. Does the neckline width match your physical physical garment exactly? If the screen says 150mm and the shirt is 155mm, stop. Rescale now.
• Fabric Diagnosis: Stretch the fabric with your hands. Does it roll? Does it bounce back?
  • High Stretch: Requires Cutaway stabilizer + adhesive.
  • Low Stretch: Tearaway might suffice (but Cutaway is safer).
• Contrast Check: The video uses black thread on white fabric. This is unforgiving. Every gap will show.
• Format Decision: The video exports to Tajima (*.DST). Decide this now to avoid color-change errors later.

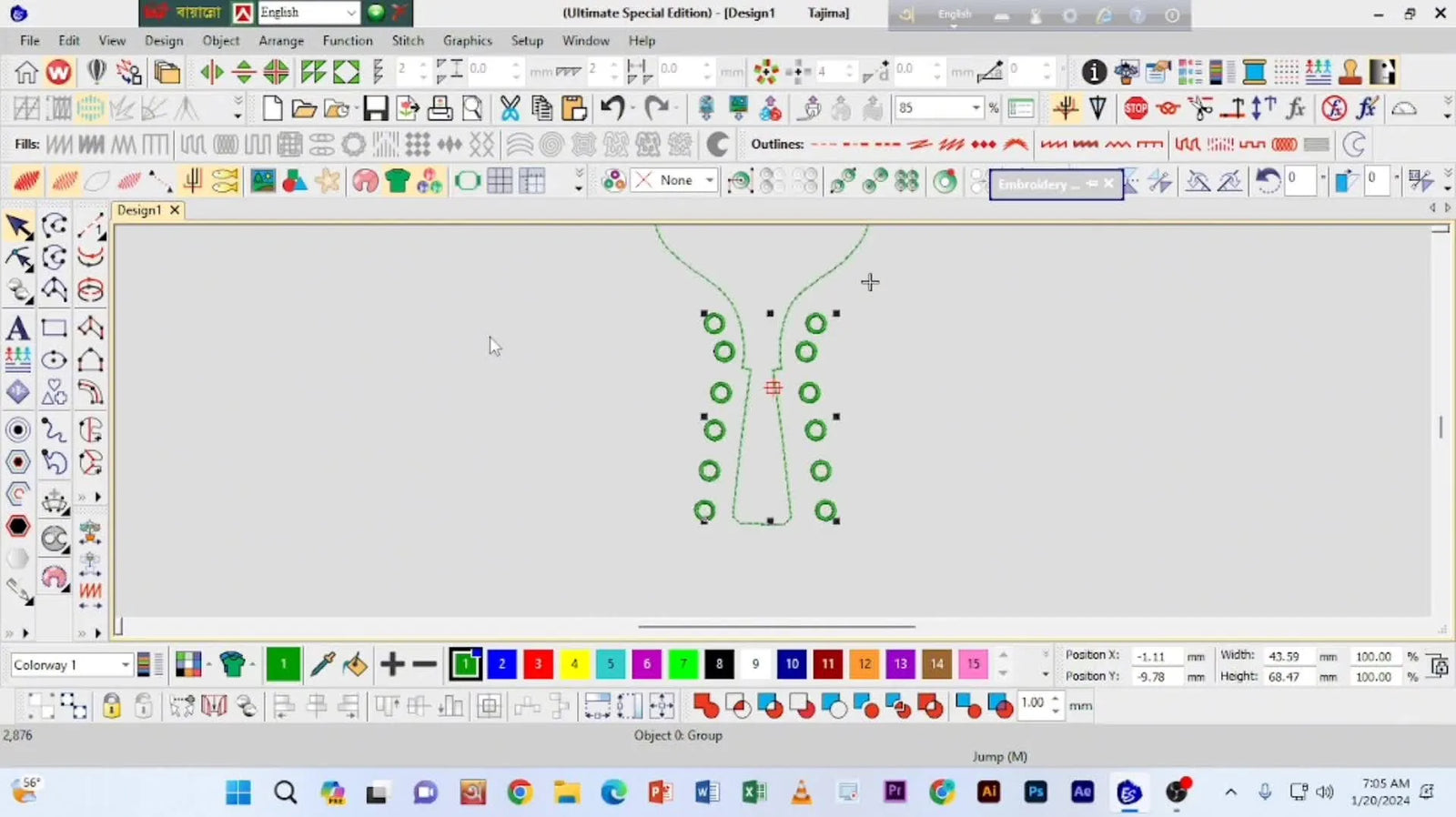

Build the Satin Ring in Wilcom e4.2 (9 mm Width) Without Fighting the Tool

Precision starts with the input method. In the video, the digitizer uses the Circle/Ring tool with Satin logic.

1. Select the Ring/Circle input tool in Wilcom.
2. Set stitch type to Satin.
3. The Sensory Anchor: Do not eyeball the size. Input 9.00 mm explicitly in the property bar. 9mm is a "heavy" visual weight—large enough to stand out, but small enough to stitch without creating long, snag-prone floats.
4. Place the ring directly over the background reference.

Checkpoint: Zoom in to 600%. The edges of your vector object should sit exactly on the pixel edges of your background image.

The Coverage Fix: Zigzag Underlay + 0.31 Spacing for Waffle Fabric

This is the most critical technical adjustment in the tutorial. Standard auto-density (usually 0.40mm) fails on textured knits because the fabric "breathes" through the thread.

The "Bridge" Theory: To cover a waffle texture, your embroidery must act like a bridge. It needs a foundation (Underlay) and a tightly packed deck (Index/Top Stitch).

The Expert Recipe:

• Underlay: Change to Zigzag (or Double Zigzag). This holds the waffle texture down, compressing the "peaks" of the fabric so the top stitch has a flat surface.
• Spacing (Density): Reduce from 0.40mm to 0.31 mm.

Why 0.31mm? This is the "sweet spot" for high contrast.

• 0.40mm: Too loose; white fabric shows through.
• 0.25mm: Danger zone. Too tight; causes needle deflection, heat, and thread breaks.
• 0.31mm: Provides solid "block" coverage while allowing the machine to run smoothly.

Warning: Mechanical Risk. When running density at 0.30mm-0.31mm, do not exceed 750 SPM (Stitches Per Minute). High speed + high density = friction heat that can snap thread or melt synthetic fabrics.

Duplicate Like a Production Digitizer: Ctrl+D and Alignment

Efficiency minimizes error. Do not draw each ring individually; you will introduce subtle size variations that the human eye detects as "messy."

1. Perfect the Master: Ensure your first ring has the 0.31mm spacing and Zigzag underlay before copying.
2. Ctrl + D: Duplicate.
3. Drag & Constraint: Hold Ctrl directly while dragging (in many software versions) to lock vertical/horizontal movement, ensuring perfectly straight lines if the design calls for it. Here, follow the curve carefully.

Cognitive Chunking: Think of the left side of the neckline as a single "Component." Finish it completely before thinking about the right side.

Mirror Horizontal Without “Almost Symmetry”

The human eye is incredibly sensitive to asymmetry. A variance of 1mm between the left and right collarbone area will make the garment look crooked.

The Reliable Method:

1. Group: Select all left-side rings and Group them (Ctrl + G).
2. Duplicate: Ctrl + D.
3. Mirror Horizontal: Use the toolbar icons.
4. The Pivot Point: This is where beginners fail. Do not drag the mirrored group by hand. Use the alignment tools or coordinate inputs (X/Y axis) to place it relative to the visual center of the neckline.

Visual Check: Look at the distance from the top ring to the shoulder seam marked on your background. Is it identical on both sides?

The Placement Run Stitch: Your Insurance Policy

Digitize a Run Stitch (length 2.5mm - 3.0mm) that traces the exact curve of the physical neckline.

Changes color in the software so the machine forces a stop. Ideally, position this as color #1 in your stitch sequence. This line will stitch onto the stabilizer only, creating a "map" for where to lay your fabric.

Why avoid the "Triple Run" for placement? A single run is easier to pick out if you make a mistake. A triple run buries itself in the stabilizer and is harder to see clearly for alignment.

Export Tajima (*.DST) for Universal Compatibility

The video highlights exporting as Tajima (*.DST).

The "Why" Behind the Format: DST is a machine-instruction format. It strips away vector data and leaves only X/Y coordinates and "Stop" commands. It is the universal language of commercial embroidery.

• Pro: Almost every machine opens it.
• Con: It doesn't save colors. You must assign colors at the machine.

File Naming Discipline: Save your file as Neckline_Waffle_v1_DST.DST. Never just Neckline.DST. You need to know what version you are running.

Production Floor Reality: Floating on Sticky Stabilizer

Now we move to the physical realm. The video uses a "float" technique: hoop the stabilizer, then stick the fabric on top. This avoids "Hoop Burn"—the crushing ring marks that traditional hoops leave on delicate knits.

The "Tack" Test (Sensory Check): Touch your sticky stabilizer or adhesive spray. It should feel like a fresh Post-it note, not like duct tape.

• Too Sticky: You will distort the knit when trying to remove it, ruining the embroidery.
• Too Dry: The fabric will lift during stitching (Flagging), causing birdnesting.

The Alignment Action:

1. Stitch the Placement Run (Color 1) on the stabilizer.
2. Hover: Hold the cut piece taut (but not stretched) above the needle plate.
3. Anchor: Touch the center of the neckline to the center of the stitched line.
4. Roll: Gently roll the fabric outwards to the left and right. Do not push. Pushing stretches the knit. Rolling lays it flat.

For shops doing this daily, terms like floating embroidery hoop techniques are standard, but the execution requires "soft hands."

Setup Checklist: The Fast “Before You Hit Start” Routine

Complete this sequence before every single run.

Machine Setup Checklist:

• Bobbin Check: Is the bobbin at least 50% full? (Running out during a satin stitch leaves a visible seam).
• Needle Clearance: Is the fabric laid flat? Are sleeves or excess fabric tucked away so they don't get sewn to the back?
• Thread Path: Pull the top thread near the needle. Does it unspool smoothly?
• File Verification: Is the design oriented correctly? (Neckline facing the operator usually).
• Speed Limit: Set machine to 600 SPM for the first run.

Operation: Stitching Satin Eyelets and "Listening" to the Machine

Press start. Watch the first ring closely.

The Auditory Check:

• Good Sound: A rhythmic "thump-thump-thump."
• Bad Sound: A sharp "slap" (loose tension) or a grinding noise (needle struggling to penetrate).

The Visual "Open Satin" Tell: Look at the black satin. If you see white specks of the waffle fabric poking through the center of the column, your density (0.31mm) is working against the fabric texture.

• Emergency Fix: Do not stop the machine yet. Wait for the next ring. If it persists, pause. You cannot fix density at the machine; you must go back to Wilcom. Do not just tighten tension—that will pucker the fabric.

Decision Tree: Choosing the Right Holding Method

How do you decide between floating, hooping, or magnetic frames?

Decision Matrix: Fabric vs. Holding Method

If you find yourself constantly battling "hoop burn" or struggling to hoop thick items, consider that professional shops often transition to magnetic embroidery hoops. They clamp the fabric flat instantly without the "inner ring friction" that causes distortion.

Troubleshooting: Structured Diagnostics

Focus on the two main issues from the video, plus two real-world additions.

1) File Won’t Open on Machine

• Symptom: Machine beeps or shows empty folder.
• Cause: Saved as .EMB or .PES instead of .DST.
• Fix: Re-export from Wilcom: File > Export Machine File > Tajima (.DST)*.

2) "Open" Satin (Texture Show-through)

• Symptom: Black thread looks grey/speckled because white fabric shows through.
• Cause: Density too low (e.g., 0.40mm) or Underlay insufficient.
• Fix: Change Spacing to 0.31mm; Add Double Zigzag Underlay.

3) The "Smile" Distortion

• Symptom: The neckline embroidery curves more than the fabric, creating a pucker.
• Cause: Fabric was stretched during the floating process.
• Fix: Use the "Roll" technique (Section 9) and use a cutaway stabilizer to support the stitches.

4) Misalignment Drift

• Symptom: The left side is perfect, but the right side is 5mm off the placement line.
• Cause: The stabilizer wasn't hooped tightly enough, causing it to shift under the weight of the fabric.
• Fix: Tighten the stabilizer drum-tight before sticking the fabric down.

Pro Tip: If your machine supports it, use a laser alignment feature to double-check the placement line before dropping the fabric.

The Upgrade Path: Moving from Hobby to Production

The "tape and sticky stabilizer" method works for 5 shirts. It does not work for 500.

The Pain Threshold: When your wrist starts hurting from hooping, or when you are spending 5 minutes prepping for a 2-minute stitch-out, your process is the bottleneck, not your skill.

Tool Upgrades (Logic: Pain -> Solution):

• Pain: Hoop burn on delicate fabrics or inability to hoop thick seams.
  • Solution: magnetic embroidery frame systems (like the MaggieFrame). These reduce "hooping time" from minutes to seconds and eliminate hoop burn.
• Pain: Inconsistency in placement.
  • Solution: A hooping station for embroidery. This allows you to prep the next garment while the machine is running.
• Pain: Single-needle limitations (constant thread changes).
  • Solution: If you are running designs with 2+ colors on 50+ items, the math favors a SEWTECH Multi-Needle Machine. The ability to "set and forget" colors allows you to do QC on the next piece while the current one runs.

Many operators running tajima embroidery machines or similar commercial gear search for magnetic hoops for tajima specifically to speed up reloading times. Compatibility is key—ensure your upgrade fits your specific machine arms.

Warning: Magnet Safety. Magnetic hoops use industrialstrength neodymium magnets. They can pinch fingers severely. Never place them near pacemakers. Keep them away from credit cards and machine screens.

The Finish Standard: Quick QC

How do you know you succeeded?

1. The Fold Test: Fold the garment in half at the shoulder seams. Do the left and right embroidery patterns kiss exactly?
2. The Stretch Test: Gently pull the neckline. The satin stitches should hold the fabric firm but not pop or break.
3. The Backside: Is the bobbin thread roughly 1/3 of the width of the satin column? (Standard tension).

Mastering a neckline file isn't about one magic setting; it's about the accumulation of small, correct choices—from the 0.31mm density in Wilcom to the gentle hand-rolling of fabric onto the sticky backing.

FAQ

• Q: What needle should be used for high-density satin eyelets on textured knit neckline fabric when digitizing in Wilcom EmbroideryStudio e4.2?
  A: Use a fresh 75/11 ballpoint needle to push knit fibers aside and reduce skipped stitches and thread breaks.
  • Install: Replace the needle before running dense satin (around 0.30–0.31 mm spacing).
  • Confirm: Verify the needle is straight and fully seated in the needle clamp.
  • Slow down: Keep speed conservative on dense satin (a safe starting point is the 600 SPM first-run approach).
  • Success check: The machine sound stays a steady “thump-thump,” not a sharp “slap” or harsh grinding.
  • If it still fails: Recheck satin spacing/underlay in Wilcom and inspect thread path for snagging.
• Q: How can Wilcom EmbroideryStudio e4.2 settings prevent “open satin” when stitching black satin rings on white waffle knit fabric?
  A: Switch underlay to Zigzag (or Double Zigzag) and reduce satin spacing to 0.31 mm for better coverage on textured knits.
  • Edit: Set Underlay to Zigzag/Double Zigzag to compress the waffle texture.
  • Adjust: Change Density/Spacing from 0.40 mm to 0.31 mm on the satin objects.
  • Run safely: Avoid high speed with high density; keep the machine under control to reduce heat and thread breaks.
  • Success check: The black satin looks solid with no white specks showing through the column.
  • If it still fails: Do not “fix” coverage by tightening tension at the machine; return to Wilcom and rebuild density/underlay.
• Q: What stitch should be used as a neckline placement guide for floating embroidery on sticky stabilizer, and where should it go in the color sequence?
  A: Digitize a single Run Stitch (2.5–3.0 mm) as Color #1 so the machine stops and the line maps the neckline on stabilizer only.
  • Digitize: Trace the neckline curve with a Run Stitch (not triple run) for easy visibility and removal.
  • Sequence: Put this placement line first so it stitches before the fabric is laid down.
  • Align: Float the fabric by anchoring the center first, then gently “roll” outward—do not push or stretch.
  • Success check: The fabric sits on the stitched line without waviness, and the cut piece is not stretched or distorted.
  • If it still fails: Re-hoop the stabilizer drum-tight so it cannot shift under the fabric weight.
• Q: Why does a Wilcom EmbroideryStudio e4.2 neckline file export as Tajima DST but show wrong colors or force manual color setup on the embroidery machine?
  A: DST is a stitch-instruction format that usually does not preserve color information, so colors must be assigned at the machine.
  • Export: Use Wilcom “Export Machine File” and select Tajima (*.DST) to maximize machine compatibility.
  • Label: Name files with version/context (for example, include neckline + fabric type + version) to avoid running the wrong file.
  • Verify: Check orientation before stitching (neckline typically facing the operator in setup).
  • Success check: The machine loads the design and runs stops/sequence as expected without missing objects.
  • If it still fails: Confirm the machine is not being given an EMB/PES file by mistake and re-export as DST.
• Q: What are the fastest machine-side checks before stitching dense satin neckline embroidery to prevent visible defects like bobbin run-out seams and snagged fabric?
  A: Do a quick “before you hit start” routine: bobbin level, fabric clearance, smooth thread path, correct design orientation, and conservative speed for the first run.
  • Check: Ensure bobbin is at least 50% full to avoid a mid-satin empty-bobbin seam.
  • Clear: Tuck away sleeves/excess fabric so nothing gets caught and stitched down.
  • Pull-test: Tug the top thread near the needle to confirm it unspools smoothly.
  • Set: Start slow (the 600 SPM first-run approach) before increasing speed.
  • Success check: First ring stitches cleanly with consistent sound and no sudden tension changes.
  • If it still fails: Stop after the first signs of trouble and inspect for fabric lifting (flagging) or stabilizer shifting.
• Q: What causes “smile distortion” on neckline embroidery when floating knit fabric on sticky stabilizer, and how can it be corrected?
  A: “Smile distortion” usually happens when the knit was stretched during floating; fix it by using a gentle roll-down method and supporting with cutaway stabilizer.
  • Reset: Stitch the placement run on stabilizer first, then align the fabric center-to-center.
  • Apply: Roll the fabric outward left/right without pushing to avoid stretching the neckline curve.
  • Support: Use cutaway stabilizer for high-stretch knits to hold dense satin stitches more reliably.
  • Success check: The stitched neckline curve matches the garment curve without extra puckering or exaggerated “smile.”
  • If it still fails: Re-evaluate whether the stabilizer was hooped drum-tight before floating the fabric.
• Q: What mechanical safety precautions should be followed when running very dense satin (around 0.30–0.31 mm spacing) on an embroidery machine?
  A: Reduce speed and watch for heat/friction symptoms because high density at high speed can cause thread breaks or fabric damage.
  • Limit: Keep speed controlled (do not combine maximum SPM with maximum density).
  • Listen: Stop if you hear grinding/struggling sounds that suggest needle penetration stress.
  • Observe: Watch the first few satin objects for thread fraying, repeated breaks, or needle deflection behavior.
  • Success check: Stitching remains rhythmic and stable, with no sudden thread snaps or scorch-like fabric changes.
  • If it still fails: Back off density slightly in software (rather than forcing speed/tension) and confirm the needle is new and correct for knits.
• Q: How should an embroidery shop choose between standard hooping, floating on sticky stabilizer, and magnetic embroidery hoops for neckline work on knits and textured fabrics?
  A: Choose the holding method by matching fabric risk to the least-distorting option: float sticky for high-stretch textured knits, standard hoop for stable wovens, and magnetic hoops when firm grip is needed without crushing.
  • Level 1 (technique): Float on sticky stabilizer for waffle/jersey knits to avoid stretching and hoop burn.
  • Level 2 (tool): Use magnetic hoops for slippery synthetics or pile fabrics where standard hoops can slip or leave marks.
  • Level 3 (capacity): If setup time and reloading consistency are limiting output, consider upgrading workflow/equipment (often the bottleneck is process, not digitizing).
  • Success check: Fabric stays flat during stitching with no hoop marks, no shifting, and consistent placement left-to-right.
  • If it still fails: Recheck stabilizer tension/hooping tightness and add a placement run stitch to remove guesswork.
