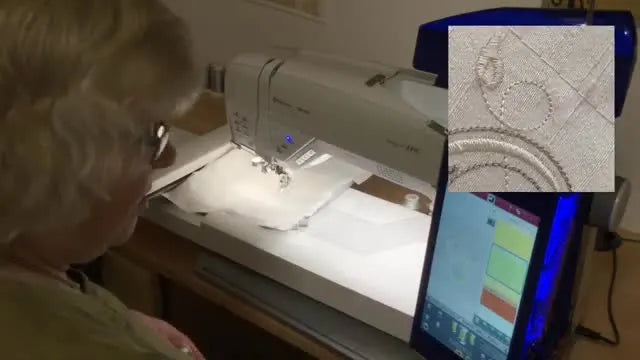

Silk Thread on the Husqvarna Viking Designer EPIC: The Calm, Clean Stitch-Out Method for Fleur de Grunge on Silk Dupion

Embroidery on silk dupion strikes fear into the hearts of many makers. It is an unforgiving, high-stakes material: expensive ($20–$50/yard), prone to puckering, and intolerant of needle penetrations. One false move with tension or hooping, and you don’t just have a bad stitch-out—you have ruined fabric.

But here is the industry secret: Silk is actually highly predictable if you respect the physics of the fiber. It requires a specific protocol—what I call the "Low-Stress Architecture."

This guide reconstructs Hazel’s "Fleur de Grunge" project on a Husqvarna Viking Designer EPIC, using Superior Threads Tire Silk #50. We will move beyond basic instructions into an heirloom-grade operational standard, ensuring you can replicate these results whether you are making a single bridal gift or a production run of luxury items.

See the First Stitch Before You Commit: Husqvarna Viking Designer EPIC First-Color Preview That Prevents Wrong Thread Starts

Before you thread the machine, you need to perform a "Digital Rehearsal." On the Designer EPIC, Hazel demonstrates a critical UI navigation hack: tapping the second button on the left sidebar to reveal the specific details for the first color block.

Why is this non-negotiable for silk?

1. Thread Cost: Silk thread is 3x the cost of rayon. Threading the wrong color and cutting it wastes money.
2. Fabric Integrity: Unpicking stitches on silk dupion leaves permanent needle holes. There is no "undo" button on natural fibers.

The Pro Routine: Don't just trust the screen thumb. Scroll through the spool list. Visually confirm that Color #1 matches the spool in your hand. This 10-second pause is the difference between a relaxing session and a panic attack.

The “Hidden” Prep That Makes Silk Behave: Silk Dupion + Stabilizer Stack + Clean Thread Path Checks

Silk dupion is characterized by "slubs" (irregularities in the weave). These give the fabric beauty but act as landmines for your needle. If the fabric shifts even 1mm, the needle will push a slub rather than piercing it, causing the dreaded "pucker."

The Physics of Stabilization: You cannot rely on the silk to support itself. You must build a "composite structure." Hazel uses a sandwich method designed to float the fabric, minimizing stress.

The Formula:

• Base: 2 layers of Stitch-and-Tear Stabilizer (For denser designs, I recommend swapping one layer for a lightweight Mesh Cutaway for permanent stability).
• Adhesion: Temporary Spray Adhesive (like Odif 505).
• Top: Silk Dupion (Floated).
• Thread: 50wt Silk (Top) + 60wt/90wt Bobbin (Bottom).
• Needle (Critical): Use a fresh 75/11 Embroidery or Sharp Needle. Ballpoint needles will snag silk fibers.

Hidden Consumables You Need:

• Fresh Needle (Change every 8 hours or every new silk project).
• Tweezers (for grabbing jump stitches).
• Scrap fabric (for a tension test stitch).

Prep Checklist: The "Do Not Fly" List

• Needle Check: Run your fingernail down the needle tip. Any burr? Replace it immediately.
• Spool Inspection: Check the rim of your silk spool for plastic molding "burrs" that could snag the fine thread.
• Design Analysis: Is the design meant for silk? Heavy fills verify the fabric; light, open running stitches (like Fleur de Grunge) are safer for beginners.
• Bobbin Status: Ensure the bobbin is wound at medium speed to prevent stretching the thread.


The Floating Technique on Silk Dupion: How to Stack Stitch-and-Tear + Adhesive Without Distorting the Fabric

"Hoop burn" is the permanent crushing of fabric fibers between the inner and outer hoop rings. On silk, hoop burn is often fatal to the garment. To avoid this, we use Floating.

The Process:

1. Hoop only the stabilizer (drum-tight).
2. Apply a light mist of adhesive spray (do not soak it).
3. Smooth the silk dupion on top. Do not stretch it; just pat it flat.

This technique is a lifesaver for one-off items. However, relying solely on spray spray can be risky. If the spray dries mid-stitch, the fabric shifts. This is why the industry is moving toward mechanical solutions.

The Tooling Upgrade: Terms like floating embroidery hoop usually refer to this manual method. However, if you struggle with keeping the fabric taut or hate using sticky sprays, this is the distinct trigger point to upgrade to a Magnetic Hoop.

Unlike traditional friction hoops, a magnetic frame clamps flat from the top down. It minimizes fiber crushing (hoop burn) and holds slippery silk significantly tighter than spray alone.

Warning: Mechanical Hazard. Keep fingers, loose jewelry, and sleeves at least 4 inches away from the needle bar while the machine is running. When floating fabric, never brush lint away while the needle is moving.

Setup Checklist (Pre-Ignition)

• Adhesion Check: Lift the corner of the floated partial. It should offer resistance, like peeling a Post-it note.
• Clearance: Ensure the excess fabric outside the hoop is rolled/clipped so it doesn't drag under the needle bar.
• Basting File: Load a "basting box" or fixation stitch to run before the design. This acts as the safety belt for floated fabric.


Silk Thread Feeding on the Husqvarna Viking Designer EPIC: Horizontal Spool Placement to Avoid Notch Snags

Silk thread is slippery and cross-wound. Physics dictates that it must feed off the spool smoothly without adding drag.

Hazel places the spool horizontally. Why?

• Vertical Spool Pin: The thread spirals off the top. If the thread catches on the spool’s label or a nick in the plastic rim, the tension spikes instantly, snapping the delicate silk.
• Horizontal Spool Pin: The spool rotates. This mechanical unwinding is smoother and reduces the "twist" introduced into the thread.

If you are using high-end husqvarna viking embroidery machines, trust the engineering: use the horizontal pin and the correct size spool cap. The cap should be slightly larger than the spool diameter to prevent the thread from snagging behind it.

When the Stitching Sounds Bad: Recovering from Missed Securing Stitches Without Leaving a Gap

In the video, Hazel realizes she floated the fabric but forgot the fixation (basting/securing) stitches. The sound of the machine changed—a classic sensory warning.

Sensory Diagnostics:

• Good Sound: A rhythmic, soft "click-click-click."
• Bad Sound: A hollow "thump-thump" (fabric flagging) or a grinding noise (thread nest).

The Recovery Protocol:

1. Stop Immediately. Do not hope it gets better.
2. Visual Check: Is the fabric lifting with the needle? (Flagging).
3. The Fix: Hazel uses the screen to backtrack 4–5 stitches. This overlaps the new stitches with the old, locking them in.
4. The Lesson: Never float silk without a basting stitch.

If you miss this step, the silk will drag inward, destroying the design registration.

Stitching the Green Section (1,500 Stitches) with Silk Thread: How to Stay Gentle Without Babying the Machine

The screen shows 1,500 stitches for the next block. A novice sees "Time to finish"; an expert sees "1,500 chances for a thread break."

The Velocity Rule: While modern machines can hit 1,000 SPM (Stitches Per Minute), silk thread degrades at high heat/friction.

• Beginner Safe Zone: 600 SPM.
• The Sweet Spot: 700-800 SPM.
• Danger Zone: 1000+ SPM (Risk of thread shredding).

Hazel keeps an ear on the machine. If the sound becomes harsh, slow down. It is better to finish 2 minutes late than to spend 20 minutes re-threading.

Unthreading Backwards Through Tension Discs: What Hazel Did, What Her Dealer Said, and the Safer Default

Hazel touches on a controversial topic: pulling thread backwards out of the machine. Ideally, you should cut the thread at the spool and pull the tail out through the needle.

Why this matters for Silk: Silk fibers can shed microscopic lint. Pulling a used, slightly shredded thread backwards through the tension discs can deposit this lint deep inside the machine's tension springs. Over time, this causes erratic tension.

The Verdict: Unless your specific manual explicitly okays backward pulling, don't do it. Treat the thread path like a one-way street.

Don’t Let the Raindrops Go Sideways: Design Orientation Checks That Make Fleur de Grunge Look “Right”

Hazel notes that the "raindrop" elements must fall downward. This is an aesthetic check, but it speaks to a larger technical issue: Orientation relative to Grain.

Embroidery distorts fabric. Stitches pull the fabric in the direction of the stitch angle.

• If you rotate the design, you change how the stitches pull against the fabric grain.
• On silk, stitches running with the grain sink in; stitches running across the grain sit on top.

Commercial Insight: If you struggle with keeping designs straight (e.g., ensuring raindrops are vertical), manual hooping is likely your bottleneck. Professionals often search for hooping for embroidery machine stations or magnetic frames to guarantee that 90-degree alignment is perfect every time without the "eyeball" guesswork.

Trim Position + Curved Scissors: Clean Jump Stitch Removal Between the “Raindrop” Elements

Silk reveals every error. A sloppy jump stitch cut looks like a scar. Hazel uses the Trim Position function to move the hoop toward her, then uses Double Curved Scissors.

Why Curved Scissors? Straight scissors force you to tilt the blade, risking a nick in the fabric. Curved scissors allow the blade to sit parallel to the fabric, lifting the thread up before cutting.

Operation Checklist (The "In-Flight" Monitor)

• Auditory Monitor: Is the machine purring or thumping?
• Tension Check: Look at the back of the hoop periodically. Is the bobbin thread filling 1/3 of the satin column? (The "1/3 Rule").
• Jump Stitch Management: Trim jumps immediately if the machine doesn't have auto-trim. Loose threads can get sewn over, becoming impossible to remove later.
• Stabilizer Integrity: Check that the basting stitches haven't torn through the stabilizer.


Stabilizer Decision Tree for Silk Dupion (and When to Upgrade Your Hooping Tooling)

Choosing the wrong stabilizer is the #1 cause of failure on silk. Use this logic gate to decide.

Decision Tree: Fabric + Design → Stabilizer Approach

1. Is the design "Open" (Redwork, Vintage)?
   • Yes: 2 layers of Tearaway are acceptable (as Hazel used).
   • No (Solid fills, Modern logos): You MUST use Cutaway (Mesh). Tearaway will perforate and the design will fall out.
2. Do you need to avoid Hoop Burn at all costs?
   • Yes: Use the Floating Method OR Upgrade to a Magnetic Hoop.
   • No: Traditional hooping with fabric wrapped in tissue paper (old school, but works).
3. Is this a Production Run (10+ items)?
   • One-off: Adhesive spray is fine.
   • Production: Spray gums up needles and slows you down.
   • Solution: embroidery hoops for husqvarna viking users specifically benefit from magnetic frames here. They eliminate the need for spray by providing consistent, non-slip clamping around the entire perimeter.

Warning: Magnetic Hazard. Magnetic hoops contain powerful neodymium magnets. Users with pacemakers should maintain a safe distance (usually 6-12 inches) referenced in the manufacturer's safety guide. Beware of pinch hazards—do not place fingers between the magnetic ring and the frame.

The Silk Thread “Hoard” Problem: How to Start Using Expensive Spools Without Fear (and Without Wasting Them)

We all do it: buy the expensive silk thread and then leave it in the drawer because it's "too good to use."

The Psychology of Usage: Silk thread has a shelf life. It can become brittle over 10-20 years. Using it is better than saving it.

The Entry Strategy: Start with a low-density design (like Hazel’s ivy/scrolls). These "sketch" style designs put very little stress on the thread, allowing you to get used to the tension settings without a catastrophic birdnest.

What to Do About Bobbin Thread When Using Silk on Top: Keep It Simple Unless Your Manual Says Otherwise

A viewer asks: "Do I need silk in the bobbin?" Hazel’s Answer: No. Use ordinary bobbin thread.

The Technical Reason: Embroidery relies on balanced tension. Your embroidery machine husqvarna is factory-calibrated for standard 60wt or 90wt polyester bobbin thread.

• If you put slippery silk in the bobbin, you lower the friction.
• result: The top thread pulls the bobbin thread to the top (e.g., white dots on your silk).

Stick to standard pre-wound bobbins unless you are doing reversible embroidery (like a towel or scarf).

The Upgrade Path That Actually Makes Sense: From “Careful Hobby Stitch-Out” to Repeatable Studio Results

Hazel’s tutorial is excellent for the hobbyist. But what if you need to do this for a business? The "Float and Spray" method is too slow for profit.

The Workflow Evolution:

• Level 1: Hobbyist (Technique Focus)
  • Tool: Standard Hoops + Spray Adhesive.
  • Pain Point: Slow setup, hoop burn risk, sticky needles.
  • Fix: Patience and cleaning needles with alcohol.
• Level 2: Serious Maker (Tool Focus)
  • Tool: Magnetic Hoops (e.g., MagClip capable frames).
  • Benefit: Zero hoop burn on silk. Re-hooping takes 5 seconds, not 5 minutes.
  • Trigger: When you dread starting a project because hooping hurts your hands. Many users searching for husqvarna embroidery hoops upgrades find this is the single highest ROI purchase for their current machine.
• Level 3: Professional (Machinery Focus)
  • Tool: SEWTECH Multi-Needle Machines.
  • Benefit: You can leave different thread colors set up. The tubular arm slides inside garments/bags without unpicking seams.
  • Trigger: When you turn down orders because you can't make them fast enough.


Final Reveal Standards: What “Good” Looks Like on Silk Dupion (Before You Ever Take It Out of the Hoop)

Do not unhoop until you check these Quality Assurance (QA) markers. Once you unhoop, re-alignment is statistically impossible.

The QA Scan:

1. Registration: Does the outline meet the fill? (Gaps = stabilization failure).
2. Puckering: Look at the fabric around the design. Is it rippling? (Hooped too loose or stabilizer too light).
3. Loops: Are there small loops of thread on the surface? (Top tension too loose).

Hazel’s sample is clean. The silk sheen is complementary to the thread sheen. This is the payoff.

Quick Troubleshooting Map: Symptom → Likely Cause → Fix (Based on This Stitch-Out)

Silk embroidery is a discipline of patience. But remember: Equipment dictates efficiency. While you can achieve great results with careful manual prep, upgrading your stabilization method (Cutaway) and your holding method (Magnetic Hoops) will transform the experience from "stressful gamble" to "predictable success."

Stitch with confidence, upgrade when the workflow hurts, and let the silk shine.

FAQ

• Q: On a Husqvarna Viking Designer EPIC, how can the first-color preview prevent starting silk dupion embroidery with the wrong thread?
  A: Use the Designer EPIC first-color detail view before threading so the correct Color #1 spool is confirmed and silk does not get unpicked.
  • Tap the second button on the left sidebar to open the first-color block details.
  • Scroll the spool/color list and match it to the physical spool in hand before threading.
  • Avoid “test-starting” on silk dupion, because unpicking leaves permanent needle holes.
  • Success check: Color #1 on-screen and the spool in hand match before the needle is threaded.
  • If it still fails: Stop after the first few stitches and re-check the first-color block instead of continuing and planning to rip stitches out.
• Q: What is the recommended silk dupion stabilizer stack and needle choice for embroidery on a Husqvarna Viking Designer EPIC to reduce puckering?
  A: Float silk dupion on a stabilizer “sandwich” and use a fresh 75/11 embroidery or sharp needle to prevent slub-related puckers.
  • Hoop only stabilizer drum-tight: start with 2 layers stitch-and-tear; for denser designs, swap one layer to lightweight mesh cutaway for permanent stability.
  • Apply a light mist of temporary spray adhesive and smooth (do not stretch) the silk dupion on top.
  • Thread with 50wt silk on top and standard 60wt/90wt bobbin thread underneath.
  • Success check: Fabric lies flat with no rippling around the stitch area, and the design runs without the fabric “lifting” with the needle.
  • If it still fails: Re-evaluate design density (heavy fills need cutaway/mesh) and replace the needle immediately if any snagging is felt.
• Q: How can a Husqvarna Viking Designer EPIC user avoid permanent hoop burn on silk dupion while still keeping the fabric stable during embroidery?
  A: Do not hoop silk dupion directly; float silk on hooped stabilizer and secure it with a basting/fixation stitch to prevent shifting.
  • Hoop stabilizer only (drum-tight), then mist adhesive lightly and pat the silk flat without stretching.
  • Load and run a basting box/fixation stitch before the design to “seatbelt” the floated fabric.
  • Roll/clip excess fabric outside the hoop so it cannot drag under the needle bar.
  • Success check: The floated silk corner lifts with mild “Post-it-like” resistance, and the machine sound stays rhythmic (not thumping).
  • If it still fails: Consider upgrading to a magnetic hoop to clamp silk evenly and reduce reliance on spray for holding power.
• Q: On a Husqvarna Viking Designer EPIC, how should silk thread be placed on the spool pin to prevent silk thread snapping from notch snags?
  A: Place silk thread horizontally with the correct spool cap size so the spool rotates smoothly and tension spikes are avoided.
  • Move the silk spool to the horizontal spool pin so the spool can rotate instead of the thread spiraling off the top.
  • Use a spool cap slightly larger than the spool diameter to prevent thread catching behind the cap.
  • Inspect the spool rim for plastic “burrs” that can snag fine silk thread.
  • Success check: Thread feeds smoothly with no sudden jerks, and there are no instant breaks right after starting.
  • If it still fails: Try a thread stand and re-check for label edges or rim nicks that create intermittent drag.
• Q: What should a Husqvarna Viking Designer EPIC user do when embroidery on silk dupion makes a “thump-thump” sound or shows fabric flagging?
  A: Stop immediately and add securing (basting) stitches or improve holding, because thumping usually means the fabric is lifting with the needle.
  • Stop the machine as soon as the sound changes from soft “click-click” to hollow thumping.
  • Check visually whether the fabric lifts with the needle (flagging) and whether the fabric has shifted.
  • Backtrack 4–5 stitches to overlap and lock the stitch line if securing stitches were missed.
  • Success check: The sound returns to an even rhythm and the fabric stays flat while stitching continues.
  • If it still fails: Increase stabilization (heavier option like mesh cutaway) and/or switch to a stronger holding method such as a magnetic hoop.
• Q: What are the key safety rules for floating silk dupion on a Husqvarna Viking Designer EPIC to avoid needle-bar injuries?
  A: Keep hands, sleeves, and jewelry away from the needle bar while the machine runs, and never reach in to brush lint when the needle is moving.
  • Keep fingers at least 4 inches away from the needle area during stitching and trimming movements.
  • Stop the machine before adjusting floated fabric, clearing threads, or checking basting.
  • Clip/roll excess fabric so it cannot pull your hand toward the needle zone while you manage it.
  • Success check: All adjustments happen only when the needle is fully stopped and the fabric is controlled outside the moving area.
  • If it still fails: Pause more often and use tools (tweezers, curved scissors) instead of fingers near the needle path.
• Q: What are the magnet safety hazards when upgrading to a magnetic embroidery hoop for silk dupion projects, and how can users reduce risk?
  A: Treat magnetic hoops as powerful pinch and medical-device hazards; keep fingers clear during clamping and maintain safe distance for pacemaker users per the manufacturer guide.
  • Keep fingers out from between the magnetic ring and the frame to prevent pinch injuries.
  • Clamp the hoop in a controlled way (one side down first, then lower the rest) rather than “dropping” it.
  • Keep magnetic hoops away from pacemakers (commonly 6–12 inches, but follow the hoop maker’s safety instructions).
  • Success check: The hoop closes without finger contact in the clamp zone, and the fabric is held evenly without needing excessive force.
  • If it still fails: Switch back to floating with basting until safe handling is consistent, then retry the magnetic frame technique slowly.
• Q: For silk dupion embroidery workflow, when should a shop move from spray-floating to a magnetic hoop upgrade, and when is a SEWTECH multi-needle machine the next step?
  A: Use technique fixes first, upgrade to magnetic hoops when hooping/spray becomes the bottleneck, and consider a SEWTECH multi-needle machine when order volume is limited by rethreading and setup time.
  • Level 1 (Technique): Float silk on hooped stabilizer, run a basting box, slow to a safer speed range (often 600–800 SPM for silk), and change to a fresh 75/11 needle.
  • Level 2 (Tooling): Upgrade to a magnetic hoop if hoop burn risk, fabric shifting, or “spray + rehoop” time is causing repeated failures or hand fatigue.
  • Level 3 (Machinery): Upgrade to a SEWTECH multi-needle machine when production requires multiple colors ready to go and you are turning down work due to slow color changes and setup.
  • Success check: Setup time drops, fabric holding becomes repeatable, and stitch-outs run without thumping/flagging or frequent rethreading.
  • If it still fails: Re-check stabilizer choice against design density (open vs heavy fills) before assuming more speed or more machine is the answer.
