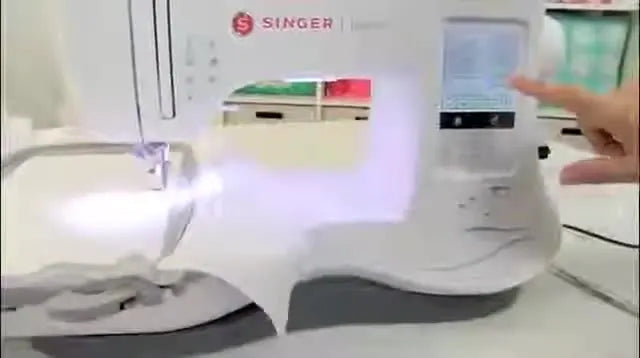

Singer Legacy Embroidery: Load a Design, Edit It on Screen, Stitch Cleanly—and Recover from a Thread Break Without Gaps

If you have ever stared at your Singer Legacy screen, finger hovering over the start button, thinking, “I’m one wrong tap away from ruining this garment,” take a breath. You are not incompetent; you are just in the “Fear Phase” of the learning curve.

The secret that experienced embroiderers know—but rarely explain—is that machine embroidery is 80% physics and 20% software. The Singer Legacy workflow is actually quite forgiving, provided you respect three physical laws: Positive Attachment (getting the hoop clicked in), Spatial Awareness (tracing the design), and Recovery Protocol (knowing how to fix a thread break without leaving a scar).

This guide rebuilds the tutorial workflow, not just as a list of button presses, but as a "Pilot's Manual" designed to eliminate your anxiety, improve your stitch quality, and help you understand when your struggle is a skill issue—and when it’s time to upgrade your tools.

Lock the Hoop In Like You Mean It: Singer Legacy 260x150 Hoop Attachment That Won’t Misread or Crash

The machine demands the hoop be connected before you start intense editing. On the Singer Legacy, the hoop connector must engage with the embroidery arm’s carriage mechanism cleanly and completely. This is the single most common failure point for beginners: a "soft" attachment leads to design shifting midway through.

The Sensory Check (Audio + Tactile): You are sliding the hoop connector into the embroidery arm. Do not stop at the first feeling of resistance. Push firmly until you hear a sharp, mechanical “CLICK”.

• No Click? It’s not locked. The machine may not detect the hoop size, or worse, the hoop will detach while moving at 600 stitches per minute.
• The Feel: Once clicked, give the hoop a very gentle wiggle. It should feel integrated with the arm, not loose.

The Clearance Protocol: Before you even slide the hoop in, lift the presser foot lever. On the Singer Legacy, you can lift the lever to its “up” position, and then push it even higher manually (the extra-lift position). Hold it there while sliding the hoop under.

• Why? If the hoop frame bumps the needle or the foot on entry, you can bend the needle bar or knock the un-calibrated arm out of alignment.

If you are new to the physics of hooping for embroidery machine setups, memorize this mantra: Lift high, slide straight, listen for the snap.

Warning: HANDS OFF ZONE. Keep fingers and tools strictly away from the needle area while the machine is calibrating or moving the hoop. The carriage moves fast and with high torque. Do not leave scissors on the bed of the machine—if the hoop catches them, it will shatter the plastic or jam the drive belt.

The “Hidden” Prep Before You Touch the Screen: Stabilizer, Fabric Behavior, and a Calm Start on a Singer Legacy

The tutorial often begins with the machine already threaded and the fabric perfectly hooped. In the real world, this is where the battle is won or lost.

The "Drum Skin" Standard (Tactile Check)

Embroidery is essentially "controlled fabric distortion." The needle punches the fabric thousands of times while the thread pulls at it.

• The Test: Tap the fabric inside the hoop. It should sound taut, like a drum.
• The Feel: Run your fingers over the surface. It should be flat with no ripples. If you pull the fabric, it should not stretch.

Stabilizer: The Unsung Hero

You cannot embroider on fabric alone (unless it is heavy canvas). You must use a backing (stabilizer).

• Wovens (Shirts/Quilting Cotton): Use Tearaway stabilizer.
• Knits (T-shirts/Polos): Use Cutaway stabilizer. Physics Note: Knits stretch. Cutaway provides a permanent skeleton so the stitches don't distort when you wash the shirt.

Hidden Consumables you need now:

• Fresh Needles: Use a 75/11 Embroidery Needle. If you hear a "popping" sound when the needle enters the fabric, your needle is dull. Change it.
• Temporary Spray Adhesive (505 Spray): Lightly mist your stabilizer to stick it to the fabric. This prevents "shifting" in the hoop.

Prep Checklist (Pre-Flight)

• Power: Embroidery unit is plugged in and machine is in "Embroidery Mode."
• Clearance: Presser foot is raised to the extra-high position.
• Hooping: Fabric + Stabilizer is taut (drum sound).
• Threading: Top thread is seated in the take-up lever (critical!). Bobbin is checked (no lint in the case).
• Tools: Small curved snips are within reach.


USB vs Built-In Memory on Singer Legacy: Pick Design #111 from a USB Stick or Design #60 from the Machine

The Singer Legacy offers two data pipelines. Understanding them prevents the "File Not Found" frustration.

Option A: Load a design from a USB stick (shown with Design #111)

1. Insert: Place your USB stick into the side port. Tip: Keep your USB capacity small (under 8GB if possible) and formatted to FAT32 for faster reading.
2. Navigate: From Home, tap Embroidery Designs > USB icon > Design Data.
3. Locate: Designs are often grouped in folders. Open the folder range containing #111.
4. Confirm: Tap the thumbnail to load.

Pro Tip: The tutorial notes that the USB often contains PDF references. Print these out. They contain the Color Change Sheet. The machine screen is small; having a printed paper showing that "Color 3 = Red" saves you from guessing later.

If you operate a singer machine for custom work, organizing your USB folders by "Client Name" or "Design Type" (e.g., Floral, Geometric) will save you hours of scrolling.

Option B: Load a built-in design (shown with Design #60)

1. Navigate: Home > Embroidery Designs > Machine Icon.
2. Select: Type 60 on the keypad and OK.

Why start here? Built-in designs are engineered specifically for this machine's tension and speed parameters. They are the safest way to build confidence.

Make the Screen Work for You: Singer Legacy Position, Rotate (90°), Mirror, Scale (±20%), Trace, Baste, and Monochrome

Once loaded, we enter the "Digital Setup" phase. This is your chance to prevent physical errors using software tools.

1) Position Menu: The Safety Boundary

Use arrows to center your design.

• The Warning Beep: If the machine beeps and stops moving the design, you have hit the Hoop Boundary. Do not force it. The machine is protecting you from smashing the needle into the plastic frame.


2) Rotate Menu

Rotates in 90-degree increments. Helpful if you hooped your fabric upside down or sideways to save stabilizer.

3) Scale Menu: The 20% Rule

You can resize in 5% steps, up to ±20%.

• Physics Note: Why only 20%? If you shrink a design too much, stitches become too dense and snap needles. If you expand too much, the gaps between stitches become visible. If you need a different size, resize it on your computer software first, which recalculates the stitch count.

4) The Vital Info Screen: Trace & Baste

This is the most critical screen for avoiding disaster.

TRACE (The "Dry Run")

This button moves the hoop to the four corners of the design's outer box.

• Visual Check: Watch the needle (while up) as it travels. Does it cross a button? Does it get too close to the hoop edge? If yes, move the design. never press "Start" without Tracing.

BASTE (The "Seatbelt")

This adds a large rectangular running stitch around your design before the actual embroidery starts.

• When to use it: Always. Basting anchors the fabric and stabilizer together, preventing the fabric from "flagging" (bouncing up and down). It is the cheapest insurance for stitch quality.

MONOCHROME

Forces the machine to stitch the whole design in one color. Useful for single-color logos or drafting test runs.

As you compare singer embroidery machines, you will find that the dedicated "Baste" function is a feature usually reserved for high-end models—use it!

Setup Checklist (Before Pressing Start)

• Hoop Size: Confirmed on screen (260x150mm).
• Trace: Completed. No obstructions found.
• Baste: Activated (highly recommended).
• Thread Color: You know which spool is Color #1.
• Bobbin: You have enough bobbin thread for the design.

The Clean Stitch-Out Routine on Singer Legacy: Start/Stop, Trim the Tail, Then Handle Color Changes Without Losing Your Place

The Start-Up Ritual

1. Foot Down: Lower the presser foot. The light will turn green.
2. Hold the Tail: CRITICAL STEP. Hold the end of the top thread gently with your fingers for the first 3-4 stitches. This prevents the thread from being sucked down into the bobbin case, creating a "bird's nest" jam.
3. Press Start.


The "Snip" Protocol

The machine will stitch a few locking stitches and stop, showing a Scissors Icon.

• Action: Lift the foot. pull the thread tail gently. Trim it close to the fabric (flush).
• The Mistake: Do NOT cut the thread leading to the needle eye! Only cut the loose tail coming from the fabric.
• Resume: Lower foot, press Start.


Color Changes

When the machine stops for a color change:

1. Clip: Cut the top thread near the spool.
2. Pull: Pull the old thread out through the needle (pulling towards the needle, never backwards towards the spool, which can damage tension disks).
3. Rethread: Thread the new color. Check: The thread must pass through the take-up lever eyelet. If you miss this, you get zero tension and a massive jam instantly.
4. Verify: Confirm the change on screen.


Operation Checklist (During Stitching)

• Sound Check: A happy machine makes a rhythmic thump-thump-thump. A distinct clank or grinding noise means STOP immediately.
• Sight Check: Watch the bobbin thread on the back. It should be 1/3 white (center) and 2/3 color (sides).
• Safety: Do not walk away from the machine. If a thread breaks and the machine keeps running for 2 minutes, you will ruin the garment.

The No-Panic Thread Break Fix: Singer Legacy Stitch Position “Minus” Backup by ~3 Stitches for Seamless Overlap

Thread breaks are not failures; they are part of the process. The difference between a novice and a pro is how they recover.

The "Overlap" Technique

If the thread snaps, the machine might take a few stitches before its sensor realizes it. This leaves a gap.

1. Clear: Raise foot. Remove hoop only if necessary to clear a bird's nest (try to avoid removing hoop). clear loose threads.
2. Rethread: Thread the machine normally.
3. Back Up: Go to the Stitch Position menu (usually a +/- icon). Use the Minus (-) button.
   • The Magic Number: Back up 3 to 10 stitches.
   • Visual: Look at the needle position. It should move back over the last few good stitches.
4. Restart: Lower foot, hold the new thread tail, press Start.

Why overlap? By stitching over the previous 3-5 stitches, you lock the old thread and the new thread together. This prevents the stitches from unraveling later and hides the "scar" of the break.

When using standard machine embroidery hoops, this precision backup capability is your primary defense against ruining expensive garments.

When the Singer Legacy Beeps at You: Edge Limits, Scaling Limits, and What to Do Instead of Fighting the Screen

Decision Tree: Troubleshooting Logic

Fabric & Stabilizer Decision Tree

• T-Shirt / Stretchy? -> Use Cutaway Stabilizer + Ballpoint Needle.
• Towel / Terry Cloth? -> Use Tearaway (Back) + Water Soluble Topping (Front) to keep stitches from sinking.
• Standard Cotton? -> Use Tearaway Stabilizer + Universal Needle.

If you find yourself constantly fighting hoop burns (shiny marks from the ring) or your fabric slips despite tight screws, consider the hardware limitations. Standard plastic hoops rely on friction. Upgrading to an embroidery magnetic hoop changes this to magnetic force, which clamps fabric firmly without the friction burn—a massive upgrade for delicate items.

Warning: MAGNET SAFETY. If you use magnetic hoops, be aware they are incredibly strong. They can pinch fingers severely. Pacemaker Warning: Keep strong magnets at least 6 inches away from medical implants.

The Finish Without the Fumble: Release Lever Hoop Removal on Singer Legacy (and How to Avoid Distorting the Fresh Stitches)

You are finished—but don't ruin it now. The fabric is currently under tension and the stitches are "hot" (technically, they are settled under tension).

1. Foot Up: Raise presser foot to max height.
2. Release: Press the Release Lever on the hoop connector. Do not just yank.
3. Extract: Slide the hoop gently toward you.




Post-Process:

• Remove the hoop from the fabric.
• Trim jump stitches (threads connecting different parts of the design).
• Tear away or cut away the excess stabilizer.

The Upgrade Path That Actually Makes Sense: When Better Hooping Tools Beat More Screen Tapping

The Singer Legacy is a capable machine, but as you grow from "hobbyist" to "semi-pro," you will hit bottlenecks. Here is how to diagnose if your pain is a skill issue or a tool issue.

Pain Point 1: "It takes me 10 minutes to hoop a shirt straight, and my wrists hurt."

• Diagnosis: Plastic hoops are slow and physically demanding.
• The Upgrade: Magnetic Hoops. They snap on instantly, self-align better, and reduce wrist strain. They remove the friction of the inner ring adjustment.

Pain Point 2: "I spend all my time changing threads for this 4-color logo."

• Diagnosis: You are hitting the efficiency limit of a Single-Needle machine.
• The Upgrade: If you are doing batches (e.g., 20 shirts), look at Multi-Needle Machines (like SEWTECH models). These machines hold 10-15 colors at once and switch automatically.

Pain Point 3: "My placement varies by 2mm every time."

• Diagnosis: Human inconsistency.
• The Upgrade: A stationing jig, like a hoopmaster hooping station, standardizes the placement so every shirt is identical.

Start with the techniques in this guide. Master the Snap, the Trace, and the Overlap. When those become second nature, let your volume of work dictate your tool upgrades. Happy stitching!

FAQ

• Q: How do I correctly attach the Singer Legacy 260x150mm hoop so the Singer Legacy does not misread the hoop size or shift the design mid-stitch?
  A: Lock the Singer Legacy 260x150mm hoop into the embroidery arm until a sharp “CLICK” is felt and heard.
  • Lift the presser foot lever up, then push to the extra-high lift position before sliding the hoop in.
  • Slide the hoop connector straight into the carriage; do not stop at the first resistance.
  • Gently wiggle the hoop after attachment to confirm it feels integrated (not loose).
  • Success check: A distinct mechanical “CLICK” occurs and the hoop does not wobble when lightly moved.
  • If it still fails… Remove and re-seat the hoop from a straight angle; do not start editing or stitching until the attachment is solid.
• Q: What is the “drum skin” standard for hooping fabric on a Singer Legacy, and how do I know the fabric + stabilizer tension is correct before stitching?
  A: Hoop the fabric with stabilizer so it is tight, flat, and sounds like a drum when tapped.
  • Tap the hooped area and adjust hooping until the sound is taut (not dull or slack).
  • Feel the surface with fingers; eliminate ripples and avoid stretching the fabric while tightening.
  • Pair stabilizer to fabric: tearaway for woven shirts/cotton, cutaway for knits like T-shirts/polos.
  • Success check: The surface is flat with no ripples and the fabric does not stretch when lightly pulled.
  • If it still fails… Add temporary spray adhesive to keep stabilizer from shifting, or switch to cutaway for stretchy knits that keep relaxing.
• Q: How do I prevent a Singer Legacy bird’s nest jam at the start of embroidery (top thread getting sucked into the bobbin area)?
  A: Hold the top thread tail for the first 3–4 stitches on the Singer Legacy, then trim only the loose tail when prompted.
  • Lower the presser foot (green light) before pressing Start.
  • Hold the end of the top thread gently during the first stitches so it cannot get pulled down.
  • When the scissors icon appears, lift the foot and trim the loose tail close to the fabric (do not cut the thread at the needle eye).
  • Success check: No thread “pile-up” under the hoop and the first lock stitches look clean on top.
  • If it still fails… Stop, cut away the tangled thread, replace the needle (it is often bent after a jam), and rethread with the thread seated in the take-up lever.
• Q: How do I fix “Check Upper Thread” on a Singer Legacy when the Singer Legacy keeps stopping during embroidery?
  A: Rethread the Singer Legacy completely and make sure the upper thread is seated through the take-up lever and tension path.
  • Cut the thread and rethread from the spool path-by-path instead of trying to “patch” the threading.
  • Floss the thread into the tension disks so it is fully seated (do not just lay it in).
  • Confirm the take-up lever eyelet is threaded; missing it can cause instant tension failure and jams.
  • Success check: Stitching resumes with stable tension and no immediate re-trigger of “Check Upper Thread.”
  • If it still fails… Inspect for lint in the bobbin area and verify the needle is fresh; persistent issues may indicate the thread slipped out again during a color change.
• Q: What should the Singer Legacy bobbin thread balance look like during stitching, and how can I visually judge Singer Legacy tension quickly?
  A: Use the back of the stitch-out as the Singer Legacy tension indicator: the bobbin thread should appear centered with colored thread dominating the sides.
  • Pause and look at the underside early in the design instead of waiting until the end.
  • Compare the underside mix: about 1/3 bobbin thread in the center and about 2/3 top color thread on the sides is a practical target.
  • Listen for abnormal sounds; a happy machine is rhythmic, while clanks/grinding mean stop immediately.
  • Success check: The underside shows a consistent centered bobbin line without large loops or messy nesting.
  • If it still fails… Rethread the top thread (especially the take-up lever) and check for a dull needle (a “popping” sound on penetration is a warning sign).
• Q: How do I use Singer Legacy “Trace” and “Baste” to prevent the needle from hitting the hoop edge and to reduce fabric flagging?
  A: Run Singer Legacy TRACE before pressing Start, and enable Singer Legacy BASTE as a stabilizing “seatbelt” around the design.
  • Tap TRACE to move the hoop around the design boundary and watch for buttons, seams, or hoop-edge proximity.
  • Reposition the design on screen if the traced path gets too close to the hoop edge; do not force past boundary beeps.
  • Turn on BASTE to stitch a rectangle first so fabric and stabilizer stay locked together during the design.
  • Success check: The trace path clears all obstacles and the basted rectangle holds the fabric flat with less bouncing.
  • If it still fails… Re-hoop tighter to the drum-skin standard and confirm the presser foot clearance (extra-high lift) before inserting the hoop.
• Q: How do I recover cleanly after a Singer Legacy thread break using Singer Legacy Stitch Position “Minus (-)” without leaving a visible gap?
  A: Back up the Singer Legacy stitch position by about 3–10 stitches using “Minus (-)” and restart to create a seamless overlap.
  • Stop the machine, raise the presser foot, and clear loose thread; avoid removing the hoop unless a jam forces it.
  • Rethread the machine normally and bring up a clean thread tail to hold at restart.
  • Use Stitch Position “Minus (-)” to move back over the last good stitches, then press Start.
  • Success check: The restart stitches overlap the previous stitches and the break point is not visible as a gap.
  • If it still fails… Back up a few more stitches (within the 3–10 range) and verify the upper thread is correctly routed through the take-up lever before restarting.
• Q: When Singer Legacy hooping keeps causing hoop burn, fabric slipping, or slow painful hooping, what is the step-by-step upgrade path from technique fixes to magnetic hoops to a multi-needle machine?
  A: Start with technique optimization, then consider magnetic hoops for clamping and comfort, and only then consider a multi-needle machine for batch efficiency.
  • Level 1 (Technique): Use drum-skin hooping, TRACE every time, and BASTE to reduce flagging and shifting.
  • Level 2 (Tool): Switch from standard plastic hoops (friction clamping) to magnetic hoops (magnetic force clamping) to reduce hoop burn and speed up hooping.
  • Level 3 (Capacity): If frequent multi-color jobs and batch runs dominate your workload, a multi-needle machine reduces manual thread changes.
  • Success check: Hooping time drops, placement consistency improves, and fewer restarts/jams occur across multiple garments.
  • If it still fails… Add a placement station/jig to reduce human variation when consistent logo placement is the main issue, and always follow magnet safety (strong pinch hazard; keep magnets away from pacemakers/implants).
