Two Star Quilt Blocks per Hoop on a Brother PR1050X: The Color-Sort “Stop” Trick, In-the-Hoop Fusing, and Perfect 4.5" Trims

The 6-Block Batching Protocol: Mastering Quilt Blocks on Multi-Needle Machines

If you’ve ever tried to produce a stack of small quilt blocks on a multi-needle machine, you likely know the specific flavor of anxiety that comes with it: The first block looks pristine, the second one shifts slightly, and by block six, you’re wondering why "efficiency" currently feels like chaos.

Start doing math on your time, and the pain gets real. If you are re-hooping for every single 4.5" square, you are losing 5–7 minutes per block in setup alone.

This guide—based on a workflow demonstrated on a Brother Entrepreneur Pro X (PR1050X) using Embrilliance Essentials—solves the two massive efficiency killers in studio embroidery:

1. Loss of "Stop Points": When software over-optimizes and deletes the pauses you need for fabric placement.
2. Redundant Stitching: Wasting minutes on tack-down stitches when your applique is already fused.

I will walk you through the "Shop Floor" standard for batching these blocks. We will cover the software logic, the needle assignment physics, and the specific sensory cues (what to hear and feel) that tell you your machine is running safely.

1. Software Logic: Fix the "Color Sort" Trap

The Problem: When you duplicate a design in Embrilliance and hit "Color Sort," the software acts like a logical robot. It sees "Blue Placement Line" in Block A and "Blue Placement Line" in Block B, and groups them together. The Consequence: Your machine stitches both placement lines without stopping, meaning you miss your chance to lay down your fabric.

The Fix: You must "trick" the machine into seeing them as different steps.

• Action: Change "like" colors to slightly different shades on-screen.
• Example: If Block A uses standard Blue, change Block B’s placement line to "Periwinkle" or "Cornflower."
• Why: We aren't changing the thread on the machine; we are changing the digital ID so the machine inserts a STOP command between the steps.

If you are navigating the complex world of multi hooping machine embroidery, this distinction is critical. You control the stops; the software creates the path.

2. Layout & Sequence Verification

Don't just trust the automated sort. You need to visually verify the stitch order before export.

Step-by-Step Protocol:

1. Open Design: Load your star block in Embrilliance Essentials.
2. Duplicate: Copy/Paste to create Block B.
3. Position: Select All (Ctrl+A) and nudge until centered.
4. Color Isolation: Change diagram colors for any step where you need to physically touch the hoop (Placement/Tack-down).
5. Sort: Run Utility → Color Sort → New View.
6. The "Safety Check": Scroll through the object list.
   • Visual Check: Do you see: Placement A -> STOP -> Placement B -> STOP?
   • Success Metric: If the list looks like a continuous run of one color, you failed the sort. Undo and re-color.


Setup Checklist (Before Export)

• Orientation: Is the design rotated 90° or 180° to match your specific multi-needle hoop orientation?
• Spacing: Is there at least 15mm clearance between the design edges and the hoop frame?
• Stop Codes: Have you confirmed legally distinct colors for every placement step?
• Hidden Consumables: Do you have fresh embroidery tape and hooping station for embroidery or alignment mat ready?

3. The "Force Stop" Technique (Brother PR Series)

Multi-needle machines are built for speed—they want to run continuously. To do applique or batting placement, we must force the machine to pause.

The "Needle 10" Strategy: On the Brother PR1050X (and similar interface machines), we use the Needle Assignment Grid (the spool screen) to program pauses.

1. Load & Rotate: Bring the design in via USB.
2. The Anchor Needle: Assign all your placement/tack-down steps (the ones where you need to intervene) to a specific needle. Becky uses Needle 10.
3. The Reserve Command: Set Needle 10 to "Anchor/Stop" mode (usually an icon with a hand or stop sign).
4. Observation: The screen might show weird colors because we messed with them in software. Ignore the colors. Trust the Needle Number.

Commercial Insight: If you find yourself fighting to keep fabric straight during this loading phase, this is a symptom of poor hoop tension. While standard hoops work, professionals often upgrade to a magnetic frame system here to ensure the material stays drum-tight without "hoop burn."

4. Managing Batting: The "Float and Tape" Method

Instead of hooping bulky batting (which causes pop-outs), we "float" it. This requires a specific touch.

The Protocol:

1. Stitch the placement line on the stabilizer.
2. Place the batting piece over the line.
3. The Sensory Check: When taping the batting down, do not press so hard you deform the stabilizer. It should feel like applying a stamp, not sealing a box.
4. Tape Logic: Use embroidery-specific tape (like Kimberbell or generic paper tape). Do not use masking tape, which leaves residue on needles.

Warning: Pinch Hazard. Keep fingers entirely outside the hoop area when the machine is active. Multi-needle machines have powerful torque; never attempt to smooth fabric while the machine is in "Ready" mode (green light).

Decision Tree: Fabric vs. Stabilizer Choice

How do you prevent the dreaded "wavy block"? Match your consumables to your physics.

5. The Surgical Trim: In-the-Hoop Precision

Trimming batting in the hoop is where 80% of accidental damage happens.

Pro Technique:

• Tool: Use double-curved applique scissors (Duckbill scissors are safer).
• The "Whisper" Margin: Do not cut flush to the thread! Leave about 1mm—a "whisper" of batting.
  • Why? If you cut flush, the satin stitch has nothing to grab, and the edge will look hollow.
• Safety Audit: If you accidentally snip the stabilizer (you’ll hear a "pop" sound vs the "crunch" of batting), patch it immediately with tape on the underside.


6. The "Fuse & Skip" Speed Hack

This step separates the pros from the hobbyists. Tacking down applique takes time. If you can fuse it securely, you can skip the tack-down stitch entirely.

The Workflow:

1. Position: Place your applique fabric inside the placement lines.

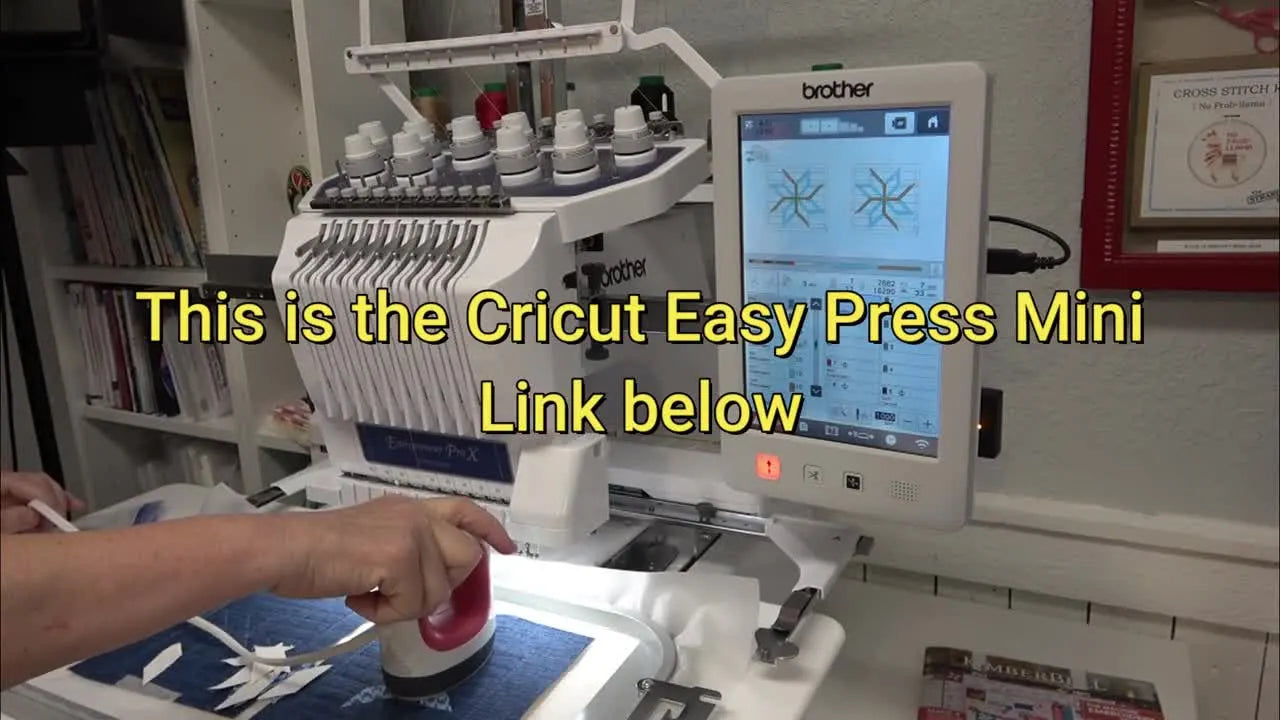

2. The Mini Iron: Use a tool like the Cricut EasyPress Mini directly inside the hoop.
3. Pressure: Apply firm pressure for 3-5 seconds.
4. The Check: Try to lift a corner with your fingernail. If it lifts easily, DO NOT skip the tack-down. If it holds, skip forward on the machine screen to the satin stitch.

Why skip? It reduces thread buildup and makes the edge cleaner.

7. Bobbin Management & Recovery

Running out of bobbin thread on a multi-needle machine can be terrifying because there is no foot pedal to "feather" the speed.

Tools: The tutorial uses Fil-Tec Magnetic Core Bobbins.

• Physics: The magnetic core provides consistent drag (tension) from the first inch to the last, unlike cardboard sides which fluctuate.

Recovery Protocol (If you run out):

1. Stop & Replace: Swap the bobbin.
2. Backtrack: Do not just resume! Go to the screen and back up 10–20 stitches.
3. Locking: The overlap creates a knot. Trim the tails after the first few stitches.

Running out of bobbin thread frequently? This is often why shops transition to magnetic embroidery hoops—not for bobbins, but because the speed gained in hooping compensates for the downtime in maintenance.

8. Remote Monitoring

Becky uses a phone app for monitoring.

• Rule of Thumb: Never leave the building. Use the monitor to do other prep work in the same room.
• Auditory Anchor: Train your ear. A rhythmic "thump-thump" is good. A high-pitched "whine" or "slap" sound means a thread path issue.


9. Precision Squaring: The Orange Pop Method

Your embroidery is done. Now you must cut it to exactly 4.5".

The Setup:

1. Rotating Mat: Place the block on an Olfa rotating mat.
2. Orange Pop Ruler: Align the inner groove over your block.
3. Visual Alignment: Look at the distance between your embroidery and the ruler edge. Is it symmetrical?

Why a Rotating Mat? If you try to walk around the table or twist your arm, your blade angle changes. A changed angle cuts on a bias, ruining the square. Spin the mat, keep your wrist straight.

It is worth noting that while we are batching in a large hoop here, some users still try to force this workflow on a brother 4x4 embroidery hoop. While possible, the inability to batch two blocks cuts your hourly output in half.

10. The Cut

Action: Press down hard on the ruler frame (not the center). Movement: Slide the blade into the groove. You should feel the "track" guiding the blade.

Warning: Blade Safety. Rotary cutters are razor blades without guards when open. Always close the safety latch immediately after the cut. Never cross your arms while cutting.

11. Quality Control

Before you start the next batch, inspect the first result.

• Puckering? You need tighter hoop tension or more stabilizer.
• Gaps? Your applique fabric wasn't fused well enough.
• Squareness? Check the corners with a rigid ruler.


12. Pre-Production Prep: The Secret to Speed

The video shows ironing stabilizer onto the back of the applique fabric before cutting.

• Why: It turns floppy cotton into stiff paper-like material. This makes placement inside the hoop 3x faster and prevents fraying.

Operation Checklist (The "Go" Flight Plan)

1. Prep: Applique fabric backed with fusible woven interface? [Yes/No]
2. Hooping: is the stabilizer "drum tight" (flicks with a sharp sound)? [Yes/No]
3. Machine: "Force Stop" programmed on Needle 10? [Yes/No]
4. Speed: Set machine to 600-800 SPM. (Slow down for applique steps 1000 SPM is too risky for floating layers).
5. Safety: Scissors and hands clear? [Yes]

The Upgrade Path: From Hobby to Production

You have mastered the technique. Now, how do you scale? The bottleneck will shift from your hands to your equipment.

Here is the professional hierarchy of upgrades:

1. Level 1 (Technique): Use the Sorting & Fusing methods above. Cost: $0.
2. Level 2 (Consistency): If you struggle with hoop burn or wrist pain from clamping, upgrade to a magnetic hoop for brother (or your specific machine brand). The magnets self-level the tension, removing the "user error" variable.
3. Level 3 (Volume - PR Series): If you own a PR1050X, a specific magnetic hoop for brother pr1050x allows you to hoop the next garment while the first one stitches.
4. Level 4 (Scale): When you are turning away orders because you can't stitch fast enough, look at adding heads (like the brother pr1055x or SWETECH equivalents).

Warning: Magnetic Field Safety. Commercial magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Do not use if you have a pacemaker.
* Do not place fingers between the brackets (crush hazard).
* Do not place near credit cards or hard drives.

FAQ

• Q: Why does Embrilliance Essentials “Color Sort” remove stop points for applique fabric placement when batching quilt blocks for a Brother PR1050X?
  A: Don’t worry—this is common: Embrilliance groups identical color steps, so the Brother PR1050X won’t pause between placement lines unless the steps are made “different.”
  • Change: Recolor the on-screen placement/tack-down steps for Block B to a different shade than Block A (thread on the machine does not need to change).
  • Sort: Run Utility → Color Sort → New View after recoloring.
  • Verify: Scroll the object list and confirm Placement A then a stop, then Placement B then a stop.
  • Success check: The stitch/object list shows separated placement steps instead of one continuous run of the same color.
  • If it still fails: Undo, recolor again with more clearly distinct shades, and re-run Color Sort before exporting.
• Q: How do you force a pause (“STOP”) on a Brother PR1050X using the Needle Assignment Grid for applique placement steps?
  A: Assign all “hands-on” steps to one dedicated needle and set that needle to an Anchor/Stop mode so the Brother PR1050X pauses when you need to place fabric.
  • Assign: Put all placement/tack-down steps onto a single needle number (the tutorial uses Needle 10).
  • Set: On the spool/needle screen, set that needle to “Anchor/Stop” mode (hand/stop-style icon).
  • Ignore: Don’t chase the on-screen thread colors after recoloring in software—follow the needle numbers.
  • Success check: The machine pauses at the exact steps where fabric/batting must be placed, instead of stitching straight through.
  • If it still fails: Recheck that every placement step is truly assigned to the anchor needle (not mixed across needles).
• Q: What is the correct “drum-tight” hoop tension check before running a Brother PR1050X multi-needle quilt block batch?
  A: Start only when the hooped stabilizer is drum-tight; loose tension is a common cause of shifting and wavy blocks.
  • Hoop: Tighten until the stabilizer is evenly tensioned across the full hoop area.
  • Test: Flick the hooped stabilizer surface lightly to confirm it feels firm.
  • Allow: Keep at least 15 mm clearance between design edges and the hoop frame.
  • Success check: The stabilizer “flicks” with a sharp sound and does not feel spongy or slack.
  • If it still fails: Upgrade the process by improving hoop consistency (many shops move to a magnetic frame system to reduce uneven pressure and user-to-user variation).
• Q: How should batting be handled on a Brother PR1050X to prevent pop-outs using the “Float and Tape” method?
  A: Float the batting and tape it lightly—pressing too hard can deform the stabilizer and create waviness.
  • Stitch: Run the placement line on the stabilizer first.
  • Place: Lay the batting piece over the placement line (do not hoop bulky batting).
  • Tape: Apply embroidery-specific tape with a light “stamp” pressure, not heavy sealing pressure.
  • Success check: The stabilizer stays flat (not distorted) and the batting stays put when the hoop moves.
  • If it still fails: Reevaluate the stabilizer + fabric combo (fusible poly-mesh plus floating batting is a common starting point for standard quilt cotton).
• Q: What is the safest way to trim batting in-the-hoop during applique on a Brother PR1050X without damaging stabilizer?
  A: Use double-curved applique scissors and leave a 1 mm “whisper” margin—cutting flush is the fastest way to create hollow edges or accidental snips.
  • Use: Choose double-curved applique scissors (duckbill-style is safer around stitches).
  • Trim: Cut close but leave about 1 mm of batting beyond the stitch line.
  • Patch: If stabilizer is accidentally cut, tape the underside immediately before continuing.
  • Success check: The finished satin edge looks full (not hollow) and the stabilizer remains intact and supportive.
  • If it still fails: Slow the machine down for applique steps and keep fingers completely out of the hoop area during movement.
• Q: When is it safe to skip the tack-down stitch on a Brother PR1050X applique block using a mini iron (Cricut EasyPress Mini) inside the hoop?
  A: Skip the tack-down only if the applique fabric is firmly fused; if any corner lifts, run the tack-down stitch.
  • Fuse: Press firmly with a mini iron directly inside the hoop for 3–5 seconds.
  • Test: Try lifting a corner with a fingernail before skipping ahead.
  • Skip: If it holds, jump on the machine screen to the satin stitch step.
  • Success check: The applique fabric does not lift at the edges when lightly picked, and the satin stitch lands cleanly without fabric shifting.
  • If it still fails: Do not skip—run the tack-down stitch and recheck fusing technique on the next block.
• Q: What safety rules should be followed around a Brother PR1050X hoop area during applique batching, especially when using strong magnetic embroidery hoops?
  A: Keep hands out of the hoop area whenever the machine is active, and treat magnetic hoops as industrial pinch hazards.
  • Clear: Never smooth fabric while the Brother PR1050X is in “Ready” mode (green light)—step away before starting.
  • Protect: Keep fingers completely outside the hoop travel path to avoid pinch/crush injuries.
  • Avoid: Do not use commercial magnetic hoops if the operator has a pacemaker; keep magnets away from credit cards and hard drives.
  • Success check: All fabric adjustments and trimming happen only when the machine is fully stopped, and hands/tools are cleared before pressing start.
  • If it still fails: Pause the job, reset a slower working rhythm, and reposition tools so nothing is reachable inside the hoop area while stitching.
