Brother/Baby Lock 10-Needle Accessories Unboxed: What Each Part Does (and What Not to Lose on Day One)

Title: Unboxing & Setup Masterclass: The Logic Behind Every Part of Your 10-Needle Machine Author: Chief Embroidery Education Officer, SEWTECH Published Date: 2025-10-24 Category: Commercial Embroidery Guides

Unboxing a multi-needle machine is exciting—until you realize the “mystery parts” pile can turn into missing components, wrong needles, and avoidable downtime. You have just invested significantly in a brother 10 needle embroidery machine (or its Baby Lock equivalent), expecting production-level output. But the machine is only as capable as the operator's understanding of its smallest tools.

This is not just a parts list; it is a calibration of your mindset. We will transform that box of plastic and metal into a disciplined workflow. I will guide you through what each accessory is, the physics behind why it exists, and how to store it so you don't lose the critical bits that keep your shop running.

Calm the Chaos: The Small Supply Box That Saves Your First Week

The clear plastic supply organizer isn’t just packaging—it’s your “home base” for the tiny items that disappear fastest. In a busy shop, entropy is the enemy. A lost hex driver means a stopped machine.

In the video, the supply box opens from the front tabs and reveals compartments for maintenance tools and consumables. The host also points out the mounting brackets removed earlier and recommends storing those brackets in this same box for safekeeping.

My 20-year shop rule: If a part is small enough to lose, it’s important enough to label.

• Establish a "Zero-Search" Zone: Keep the supply box in the exact same spot (e.g., top drawer, right side). Muscle memory speeds up maintenance.
• The "Parking Lot" System: Add a label reading “10-Needle OEM Parts.”
• Segregate Frequency: Put anything “not used daily” (brackets, scan-mat bits, spare guides) in a zip bag inside the box. Daily tools (oil, snips) go in the front.

Hidden Consumables Strategizing: Now is the time to add the items the manufacturer didn't give you but you will need by Day 3:

1. Water-soluble marking pen (for checking trace alignment).
2. Compressed Air or USB Vacuum (for hook assembly cleaning).
3. Basic 75/11 Ballpoint Needles (spares).


The Daily Habit That Prevents Expensive Noise: Oil + Bobbin Area Discipline

The video is very direct here: oil the machine every single day before use, specifically in the bobbin area.

That’s not overkill—it is physics. Multi-needle machines run at 800-1,000 stitches per minute (SPM). The rotary hook spins twice for every single stitch. That is 2,000 rotations per minute of metal-on-metal contact. Without a microfilm of oil, friction generates heat, heat expands metal, and expansion leads to lockups.

Warning: Physical Safety
Always turn the machine OFF before cleaning or oiling near the needle plate/bobbin area. An accidental tap of the 'Start' button while your finger is near the hook assembly can result in severe puncture wounds or broken drive gears.

What’s included (and why it matters)

• Oil bottle: High-viscosity machine oil. Do not use household oils (like WD-40); they gum up.
• Cleaning brush: For lint under the needle plate.
• Magnetic-core bobbins: The host shows Fil-Tec Magna-Glide bobbins.

Expert Insight & Sensory Check:

• The "Whisper" Test: A well-oiled hook usually emits a smooth, consistent hum. If you hear a dry, metallic "hissing" or rhythmic "grinding," you are running dry.
• The Oiling Spot: You are looking for the "race" (the track where the hook basket sits). One drop is medicine; three drops is a mess.
• Why Magnetic Core? The Magna-Glide bobbins included interact with the magnetic sensors in the bobbin case to provide consistent tension down to the last inch of thread. They reduce "backlash"—the tendency of the bobbin to keep spinning after the machine stops.


The “What Are These Even For?” Bag: Scan Mat Magnets + Creative Modules

The video shows a small green bag of magnets and explains what they’re for: they relate to the scan mat used with the creative/design features—IQ Designer (Baby Lock) or My Design Center (Brother).

If you’re not using those features yet, don’t toss the magnets. Store them with the scan mat parts so you’re not hunting later.

Watch out (common new-owner mistake): These magnets are small and look generic. They often get stuck to the side of a metal desk leg or swept into the trash.

Warning: Magnetic Field Safety
Keep scan-mat magnets and any future magnetic embroidery hoops you purchase away from sensitive electronics, credit cards, and pacemakers. The magnets used in modern embroidery tools are Neodymium (Earth Magnets) and are significantly stronger than fridge magnets. Pinch hazards are real.

Needle Changes Without Panic: The Grey Needle Holder Tool (Your “Third Hand”)

Dropping a needle inside a multi-needle head is a rite of passage—one you want to avoid. If a needle falls into the open throat plate gaps, you might have to take the covers off to retrieve it.

The video demonstrates the grey spring-loaded needle holding tool:

1. Grip: Place the needle into the groove of the tool.
2. Clip: Release pressure so the tool grips the needle snugly.
3. Insert: Guide the needle up into the needle bar without fumbling or dropping it.

Included tools you’ll actually use

• Grey needle holder tool: Essential for safety and precision.
• Allen screwdriver (Hex driver): For loosening the set screw. Tactile Tip: Do not overtighten; finger-tight plus a 1/8th turn is usually enough.
• Additional “third hand” style tool: For threading tight spots.
• Tweezers: For grabbing thread tails.
• Scissors: Curved tips are best for trimming jump stitches close to fabric.

Expert Insight (Sensory Feedback): When inserting a new needle, push it upward until it hits the "stopper" bar. You should feel a solid standard "thud" of metal-on-metal contact.

• Visual Check: Look at the needle butt through the sight hole (if available on your model) to ensure it is fully seated.
• The "Ticking" Sound: If you hear a rhythmic "tick-tick-tick" after a needle change, stop immediately. The needle is likely not seated fully high enough and is hitting the bobbin case.


Don’t Guess Your Needle System: EBBR Is Non-Negotiable

The video shows the needle packaging close-up and tells you exactly what to look for: EBBR.

You can use size 11 (75) or 14 (90), but they must be EBBR system needles (HAx130EBBR).

Why this matters: Industrial machines usually use round-shank needles (DBxK5). Home machines use flat-shank (130/705H). The 6/10 needle crossover machines use flat-shank EBBR needles to ensure perfect alignment of the scarf (the indentation on the needle) with the rotary hook. If you use a standard home needle, the scarf length may differ, causing skipped stitches. If you try to force a round-shank industrial needle in, you will damage the needle bar.

Pro tip: Keep one empty needle pack (with “EBBR” visible) in your supply box as a "physical bookmark." When you reorder on Amazon or from a supplier, hold the old pack up to the screen to verify.

The Bobbin Tension Reality Check: Using the Pattern Weight for a Drop Test

The video includes a round metal pattern weight (with a hole in the center) and explains its purpose: it helps you test bobbin tension in the bobbin case using a drop test.

If you’re new to multi-needle machines, this is your sanity tool. Tension is a balance between the top thread and the bobbin thread. You cannot adjust the top correctly if the bottom is a variable.

Expert Insight: The "1-Inch Drop" Standard

1. Insert the bobbin into the case.
2. Route the thread through the tension slit.
3. Hang the bobbin case by the thread using the weighted disk (or just the weight of the case if consistent).
4. The Action: Jerk your wrist gently, like a yo-yo.
5. The Metric: The case should drop 1 to 2 inches and then stop.
   • Too Loose: It falls like a stone to the floor. (Tighten the screw).
   • Too Tight: It doesn't move at all, even with a shake. (Loosen the screw).
   • Sensory: When pulling the thread manually, it should feel like the resistance of pulling a new dryer sheet from a box—steady, slight drag, but smooth.

Thread That Misbehaves: Nets + Guides for Metallic and “Tricky” Spools

The video calls out two included helpers for difficult thread:

• White thread nets: Especially recommended for metallic thread.
• Two thread guides: For controlling the path of unruly spools.

The Physics of Thread Delivery: Metallic thread has "memory"—it wants to spiral off the spool like a spring. This spiraling causes it to wrap around the thread tree, snapping needles.

• The Fix: The net compresses the thread slightly, forcing it to unspool linearly rather than explosively.

If you’re building a shopping list for efficiency, this is where a proper hooping station for embroidery and a consistent thread management system become vital. Most "thread breaks" are actually "thread path issues" caused by vibration.

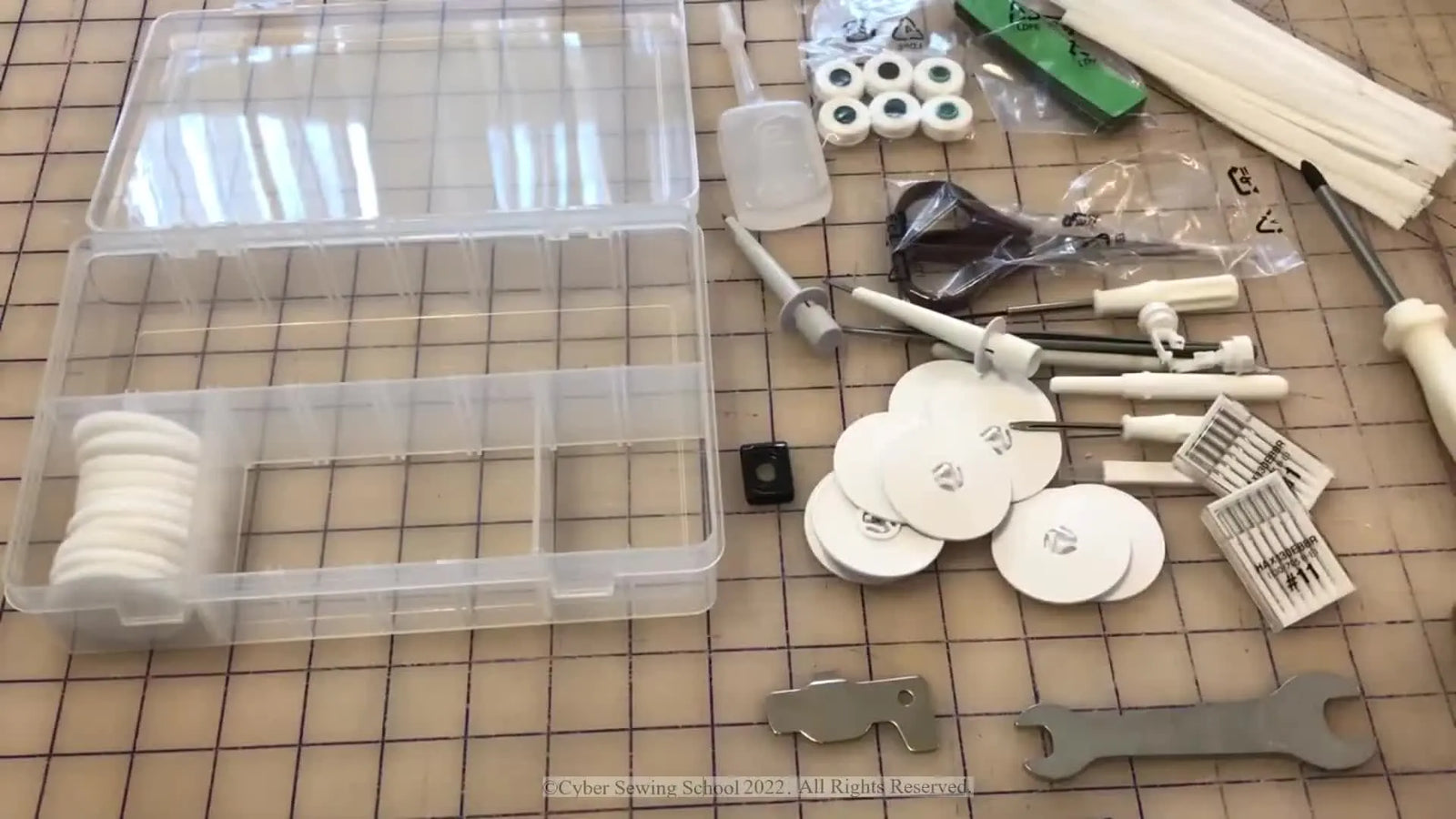

Inventory Like a Pro: What’s in the Small Box (So You Don’t Rebuy It Later)

Here’s a clean inventory based on what the video shows and names. Check this against your box immediately.

• Oil bottle (High spec)
• Sample bobbins (Fil-Tec Magna-Glide; Coats L mentioned)
• Magnets (Scan Mat / Creative)
• Spool caps (Multiple sizes - key for preventing spool lift)
• Felt pads (Go under spools to prevent spinning friction)
• Scissors & Tweezers
• Stylus (Keep this tethered or dedicated!)
• Screwdrivers (Standard + Phillips + Bracket tool)
• Grey needle holder tool (Do not lose this)
• Allen screwdriver (Needle set screws)
• “Third hand” threading aid tool
• Large wrench (For foot height adjustment)
• Cleaning brush
• Seam ripper
• Thread nets (x10 usually)
• Black plate (For free-arm cap/leg work)
• Two packs of Organ needles (EBBR size 75/11)
• Two thread guides
• Pattern weight (Tension gauge)

Comment-inspired reality check: One viewer said they’ve never used the hoops that came with their machine because magnetic hoops are easier and faster. That’s a common production mindset. Standard hoops are mechanical anchors; magnetic hoops are speed clamps. It is worth planning for this transition once you survive the first learning week.

The Big Styrofoam Tray: Scan Mat, Frame Holders (A/B), and the Parts People Misplace

When you open the main box, the video shows a large foam tray holding the bigger accessories.

The Scan Mat (and the tiny black piece you must not lose)

The scan mat is identified by the black-and-white balance bars. The host also points out a small black piece associated with the scan mat and warns not to lose it. This piece is often the calibration marker. Without it, the camera cannot "see" the mat's boundaries.

Frame Holders: A-Frame and B-Frame

The video shows two frame holders and how to tell them apart:

• A-Frame holder: Marked clearly with an “A.”
• B-Frame holder: The other arm set included.


Expert Insight (Workflow Efficiency): The machine will scream at you if you use the wrong arm for the wrong hoop.

• Group Storage: Store the "A" Holder in a bin with the hoops that use it. Do the same for "B".
• Labels: I recommend putting a piece of masking tape on your hoops: write "ARM A" or "ARM B" on the hoop plastic itself. This stops you from walking back and forth to the storage rack.

The Manufacturer Hoops: Sizes, Grids, and What Still Matters in 2026

The video shows four manufacturer hoops and calls out sizes. These are your "Training Wheels" and "Standard Duty" tools.

• 4x4 hoop (100x100mm): The workhorse for left-chest logos on stiff fabric.
• Small hoop (40x60mm approx): for cuffs or pockets.
• 8x14 hoop (200x360mm): For jacket backs.
• 5x7 hoop (130x180mm): The most versatile mid-size.






The video also shows plastic grid sheets/templates.

• Old School: You mark the fabric, lay the grid on top, and align the hoop manually.
• New School: You hoop roughly, then use the Camera/Snowman to rotate the design.

When the OEM hoop is totally fine

If you’re learning placement, testing designs, or doing occasional personal projects, the standard hoops are a good baseline. The brother 4x4 embroidery hoop provides excellent tension for stable fabrics like heavy cotton or twill because the screw mechanism can be cranked tight (careful not to strip it).

When hooping becomes the bottleneck

If you’re doing repeat orders (e.g., 50 polos), thick items (Carhartt jackets), or delicate performance wear, standard hoops struggle.

• The Pain: Tightening the screw causes "hoop burn" (shiny rings on fabric).
• The Strain: Your wrists will ache after hooping 20 shirts manually.

A commenter specifically mentioned preferring mighty hoops for brother because they snap shut automatically. This is the exact "production pain" signal I listen for.

Tool Upgrade Path (Scenario → Standard → Upgrade):

• Scenario: You find yourself avoiding jobs because hooping is "too hard" or takes too long.
• Judgment Standard: Time yourself. If hooping takes longer than the stitching time (e.g., small 3-minute names), your workflow is upside down.
• Options:
  1. Level 1: Use Spray Adhesive + standard hoops (Messy, but cheap).
  2. Level 2: Add magnetic hoops for brother to your kit. These clamp using vertical magnetic force, reducing distortion and eliminating the need to tighten screws.
  3. Cross-Platform: If you are running a mixed shop, magnetic hoops for babylock embroidery machines offer the same ergonomic relief.

Snowman Stickers + Camera Scan: Faster Placement Without the Old Grid Sheets

The video shows Snowman positioning stickers. These look like tiny snowmen. You stick one on your fabric where you want the center of the design. The machine's camera scans the fabric, finds the snowman, and automatically rotates/moves the design to match.

Pro Tip: Keep the sticker sheet flat and clean. If lint gets on the back of a sticker, it might lift during the scan. If the sticker curls, the camera reads the angle wrong, and your design will be crooked.

The Extension Table: The Unsung Hero for Heavy Items and Cleaner Stitching

The video shows the extension table and notes it includes hardware to install it. It’s described as great for supporting heavier items while embroidering.

Expert Insight (The Physics of Drag): When embroidering a heavy towel or jacket on the free arm, gravity pulls the fabric down. This weight creates drag on the pantograph (the moving arm).

• Result: Micro-shifts in registration (the outline doesn't match the fill).
• Fix: The extension table supports the weight, neutralizing gravity. Your stitch quality on dense designs will improve immediately.

The “Hidden” Prep Before Your First Real Job: Set Up Storage, Spares, and a Baseline

This is where beginners turn into operators. Before you stitch, build your environment.

Prep Checklist (Do this once)

• Label the Supply Box: "10-Needle Tools" – store it in a permanent spot.
• Segregate the "Ghost Parts": Bag the scan-mat magnets and calibration black piece; label them "SCANNER ONLY".
• Pair Arms & Hoops: Store A-Frame holder with A hoops; B-Frame with B hoops.
• Needle Standard Note: Tape a note to the machine: "NEEDLES: HAx130EBBR ONLY".
• Visibility: Put the oil bottle and brush in the front of the box.
• Emergency Kit: Verify you have at least one full pack of Size 75/11 needles and pre-wound bobbins.

Setup That Feels Like a Production Shop: Hoops, Positioning, and Thread Control

Even if you’re a hobbyist, a production-style setup reduces mistakes and saves money.

Decision Tree: Positioning & Hooping Workflow

• Scenario A: Precision is Critical (e.g., Logo on a Pocket)
  • Method: Mark fabric center -> Apply Snowman Sticker -> Hoop roughly -> Camera Scan.
  • Tool: Standard Hoop or Magnetic Hoop.
• Scenario B: Speed/Bulk is Critical (e.g., 50 Aprons)
  • Method: Set up a hoopmaster station or use a consistent table marking.
  • Tool: magnetic embroidery hoops (Speed is 3x faster).
• Scenario C: Fabric is Thick/Difficult (e.g., Leather, Car Mats)
  • Method: Float method (Sticky stabilizer) or Magnetic Clamping.
  • Tool: brother 5x7 hoop (Standard) may pop open; Magnetic is safer.

Setup Checklist (Before Each Session)

• Daily Oil: 1 drop on the hook race. Listen for the smooth sound.
• Lint Check: Quick brush under the needle plate.
• Needle Verification: Are you using EBBR? Are the needles fresh? (Change every 8-10 operational hours).
• Thread Path: If using metallic, is the net installed? Is the thread tree extended fully?
• Hoop Choice: Does the hoop size minimize excess space? (Don't use an 8x14 hoop for a 2-inch word).
• Weight Support: If the item is heavy, is the table installed?

Operation Checkpoints: What “Normal” Looks Like While You Stitch

The video covers unboxing, but these checkpoints ensure those accessories are working correctly.

Operation Checklist (During & End of Run)

• Auditory Check: Machine runs with a rhythmic hum (good) vs. loud clanking (bad - stop and check oil/needle).
• Needle Change: Did you use the grey tool? Did you feel the "thud" of the stopper?
• Tension Monitor: Are you seeing about 1/3 white bobbin thread on the back of a satin column?
  • If Yes: Perfect.
  • If No: Perform the drop test with the pattern weight again.
• Clean Up: Return the hex driver and grey tool to the box immediately. Do not leave them on the table vibrated by the machine.

Quick Troubleshooting From the Video: Symptom → Cause → Fix

These are the exact issues the video calls out, translated into a fast reference table for your shop wall.

The Upgrade Moment: When Faster Hooping Pays for Itself

Once you’ve done a few projects, you’ll notice what slows you down. For 90% of owners, it’s not the stitching—it's the hooping.

If you are just starting, the included plastic hoops are perfectly adequate. Master them first. Understand how fabric moves.

However, if you reach the stage where you are dreading the "hoop-screw-tighten" cycle, or if you are rejecting heavy garment jobs because you can't hoop them, that is your trigger to upgrade.

Practical Upgrade Path:

1. Start: OEM Hoops + Snowman Stickers.
2. Productivity: Add magnetic embroidery hoops for your most common size (usually 5x7 or 6x10). This often doubles your prep speed.
3. Scale: If you move to a multi-head or high-volume setup like SEWTECH platforms, the magnetic workflow becomes essential for profitability.

Your machine is a powerhouse. Respect the "small parts," oil it daily, and it will build your business for years to come.

FAQ

• Q: What daily oiling routine should a Brother/Baby Lock 10-needle embroidery machine owner follow to prevent rotary hook noise and lockups?
  A: Oil the bobbin/hook race every day before stitching—one drop in the correct spot is enough.
  • Turn OFF the machine before touching the needle plate/bobbin area.
  • Open the bobbin area and place 1 drop on the hook “race” (the track the hook basket rides on).
  • Brush out visible lint while you are there, then close up and run.
  • Success check: The machine sound is a smooth, consistent hum (not a dry metallic hiss or rhythmic grinding).
  • If it still fails: Stop and re-check the oiling spot and needle installation; continued grinding may indicate lint/debris under the needle plate.
• Q: How do you confirm an EBBR needle is installed correctly in a Brother/Baby Lock 10-needle embroidery machine after needle changes?
  A: Use only HAx130EBBR system needles and seat the needle fully upward using the grey needle holder tool.
  • Use the grey spring-loaded needle holder tool to grip the needle so it cannot drop into the head.
  • Push the needle up until it hits the internal stopper; tighten the set screw finger-tight plus about 1/8 turn (do not overtighten).
  • Verify the needle system on the packaging shows “EBBR” before loading it into the machine.
  • Success check: You feel a solid “thud” when the needle hits the stopper and the machine runs without a rhythmic “tick-tick-tick.”
  • If it still fails: Stop immediately—ticking often means the needle is not seated high enough and may be striking the bobbin case.
• Q: How do you set bobbin tension on a Brother/Baby Lock 10-needle embroidery machine using the pattern weight “drop test” (1–2 inch standard)?
  A: Use the bobbin case drop test as a baseline so top tension adjustments are not chasing a moving target.
  • Insert the bobbin into the bobbin case and route thread through the tension slit.
  • Hang the bobbin case by the thread using the pattern weight, then gently “yo-yo” jerk your wrist.
  • Adjust the bobbin-case screw only if needed: tighten if it falls freely, loosen if it will not drop.
  • Success check: The bobbin case drops about 1–2 inches and stops; thread pull feels like steady, slight drag.
  • If it still fails: Re-check thread routing in the bobbin case and confirm the thread path is clean before changing any top tension.
• Q: What should a Brother/Baby Lock 10-needle embroidery machine owner do when metallic thread shreds or snaps repeatedly during stitching?
  A: Install a white thread net and use the included thread guides to control the spool’s “springy” feed.
  • Slide a white thread net over the metallic spool to compress and stabilize unwinding.
  • Add the included thread guides if the spool is looping, wrapping, or slapping the thread tree.
  • Watch the spool during the first minute of stitching and correct any looping immediately.
  • Success check: The thread unwinds smoothly and linearly with fewer sudden loops, and thread breaks reduce.
  • If it still fails: Re-check the entire thread path for vibration-related snag points and consider switching to a less “memory-prone” spool orientation if the machine supports it (follow the machine manual).
• Q: What does “loops on top of fabric” mean on a Brother/Baby Lock 10-needle embroidery machine, and what is the fastest fix mentioned using the pattern weight?
  A: Treat loops on top as a bottom-tension baseline problem first—do the bobbin-case drop test before chasing top tension.
  • Pause the run and confirm the thread path is correctly routed (misrouting can mimic tension issues).
  • Perform the bobbin-case drop test with the pattern weight and return to the 1–2 inch drop baseline.
  • Resume and evaluate stitch balance before making additional adjustments.
  • Success check: Stitch balance improves and the design back shows roughly consistent bobbin presentation (not wildly varying).
  • If it still fails: Repeat the drop test and inspect for lint buildup in the bobbin area that can destabilize tension.
• Q: What safety steps should be followed when cleaning or oiling the bobbin area on a Brother/Baby Lock 10-needle embroidery machine?
  A: Always power OFF before cleaning or oiling near the needle plate/hook area to prevent accidental startup injuries and damage.
  • Switch the machine OFF before placing fingers or tools near the hook assembly.
  • Use the brush for lint removal under the needle plate area as needed.
  • Apply oil only after cleaning so lint does not turn into paste.
  • Success check: Hands stay clear during any test run, and the machine restarts smoothly without abnormal noise.
  • If it still fails: If you feel unsure or the area is hard to access safely, pause and follow the official machine manual procedure before proceeding.
• Q: What magnetic safety precautions should be used for Brother/Baby Lock scan mat magnets and magnetic embroidery hoops in an embroidery workspace?
  A: Treat scan-mat magnets and magnetic hoops as strong neodymium tools—store and handle them to prevent pinch injuries and electronic interference.
  • Store scan mat magnets together with scan mat parts so they do not get lost or stick to metal furniture.
  • Keep magnets away from sensitive electronics, credit cards, and pacemakers.
  • Handle magnets with controlled grip to avoid finger pinch hazards when magnets snap together.
  • Success check: Magnets are easy to locate when needed and are not found stuck to desks, machine stands, or swept into trash.
  • If it still fails: Create a labeled “SCANNER ONLY” bag/box location and return magnets there immediately after each scan setup.
• Q: When hooping becomes the bottleneck on a Brother/Baby Lock 10-needle embroidery machine, how should an operator choose between standard hoops, magnetic hoops, and a productivity upgrade path?
  A: Use time and fabric behavior as the decision standard: optimize technique first, then upgrade hooping tools if hooping time or fabric damage becomes the limiter.
  • Level 1 (technique): Reduce distortion by choosing the smallest appropriate hoop and use consistent marking/positioning (camera + positioning sticker workflow if available).
  • Level 2 (tool): Move to magnetic hoops when screw-tightening causes hoop burn, wrist strain, or slow turnaround on repeats.
  • Level 3 (capacity): Consider higher-volume multi-needle production platforms when demand requires scaling beyond one operator’s hooping throughput.
  • Success check: Hooping time drops below stitch time on small jobs, and garments show fewer shiny hoop rings or registration shifts.
  • If it still fails: Re-evaluate fabric support (use an extension table for heavy items) and confirm hoop/arm pairing (A-frame vs B-frame) to prevent setup-induced delays.
